Madison 4m x 6mm Guillotine

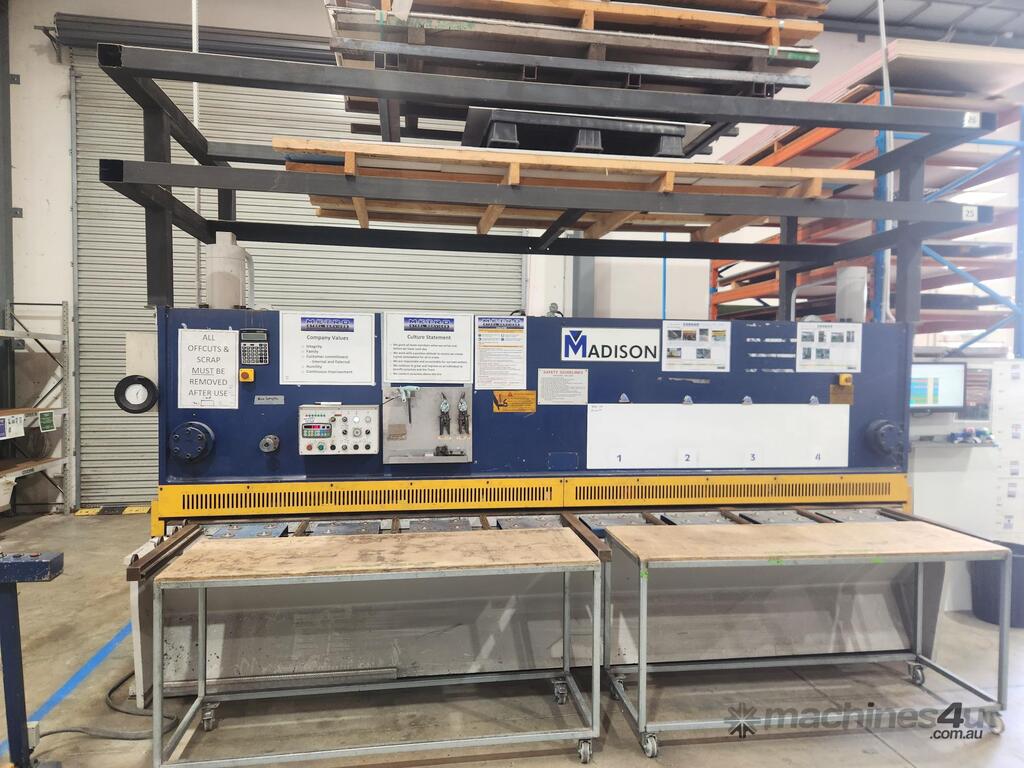

1 only Madison model 6 x 4000 Hydraulic Guillotine.


Specification
Shearing capacity 6 mm mild steel
Cutting length 4000 mm
Back gauge travel 10-800 mm
Rake angle adjustment 0.5-2°
Motor power 11 kw
Floor space 4800 x 1900 x 2300 mm
Weight 7800 kg

Features
* Hydraulic shear over driven design.
* Individual hydraulic holdown cylinders.
* Front guard bar, folds up.
• Blade clearance adjustment.
• Blades four-edged stainless quality.
* Inching control.
• Variable rake angle adjustment.
* Variable stroke control.
* Electric overload protection.

Standard Equipment
* Maper controller, controls backguage.
* Powered back gauge.
* Pneumatic sheet support.
* Large 300mm throat.
* Blade area illumination.
* Side squaring arm and front supports.
* Roving foot petal.
* Instruction manuals.
