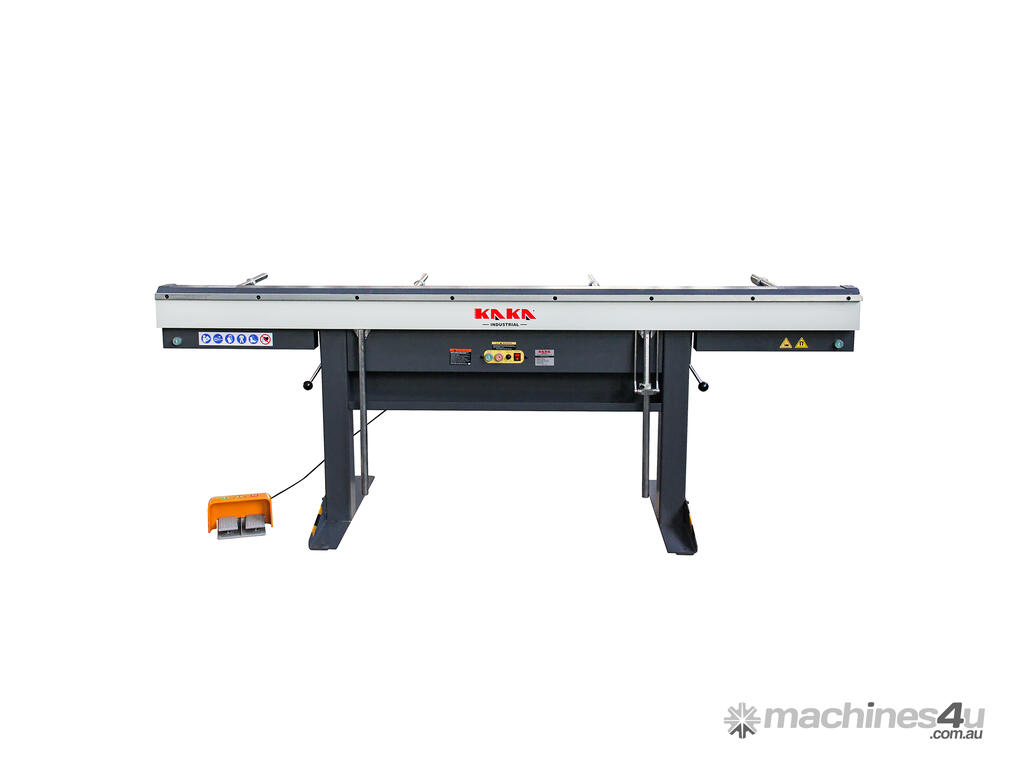

Magnetic Bender EB-9816 Magnetic Bending Machine, 2500x1.6mm Bending Capacity

MAGNABEND EB-9816, PANBRAKE FOLDER

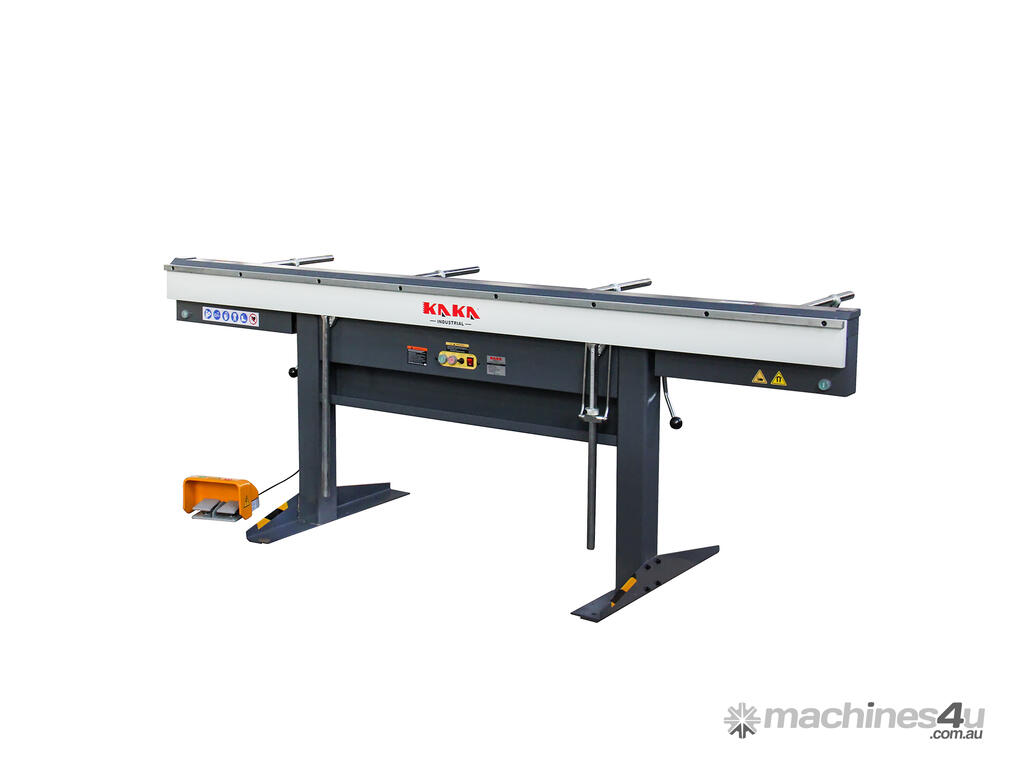

The KANG EB-9816 Magnetic Panbrake is a high-performance electromagnetic sheet metal folding machine designed for precise bending of various materials, including mild steel, aluminium, copper, and stainless steel. With a generous bending capacity of 2500mm in length and up to 1.6mm thickness for mild steel, this magnabend machine is ideal for professional applications in industries such as roofing, aircraft manufacturing, HVAC, and general sheet metal fabrication. It operates on 240V single-phase power, making it suitable for workshops and small to medium-sized operations.

Unlimited Versatility. Magnetic clamping supports endless bending possibilities and box depths (no depth restrictions), perfect for custom enclosures, trays, and intricate designs that conventional panbrakes can't handle.

Extra-Long 2500mm Capacity. Handles full 2500 mm sheets with ease, ideal for Australian HVAC, roofing, and fabrication shops working on larger panels or ductwork.

Powerful & Uniform Clamping. 12 tons of magnetic force ensure even pressure across the entire length, reducing distortion and speeding up setup compared to mechanical clamps.

Versatile for Complex Bends. Easily create triangles, alternate bends on varying planes, round items, scrolling, and more—expanding creative possibilities beyond standard brakes.

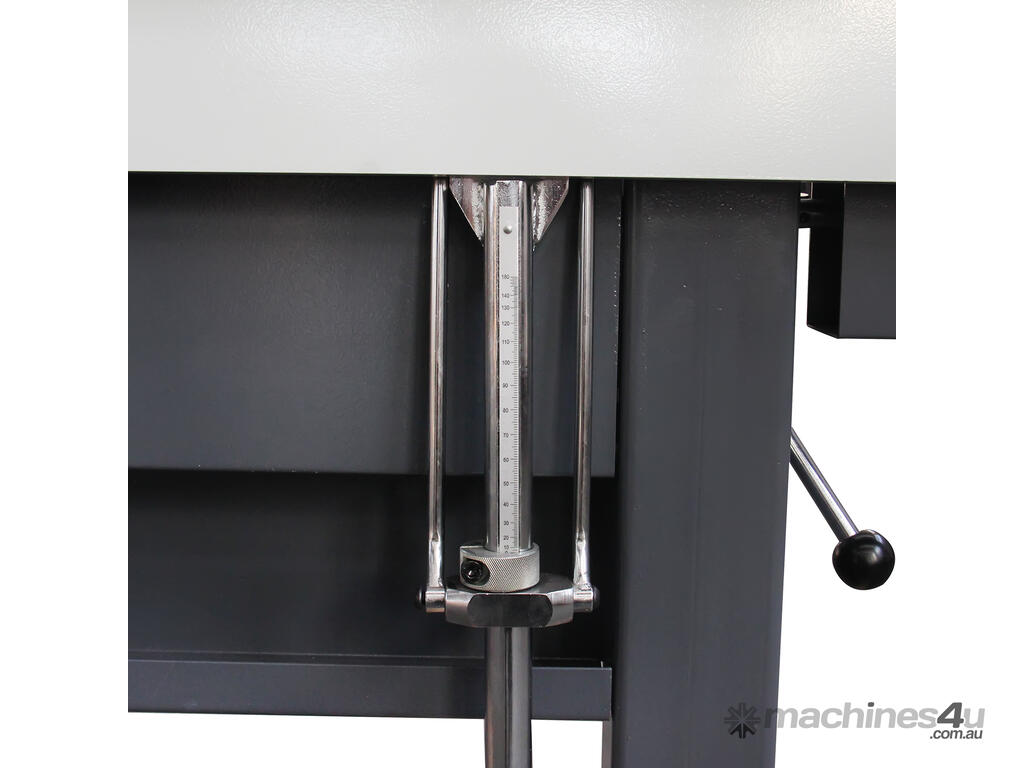

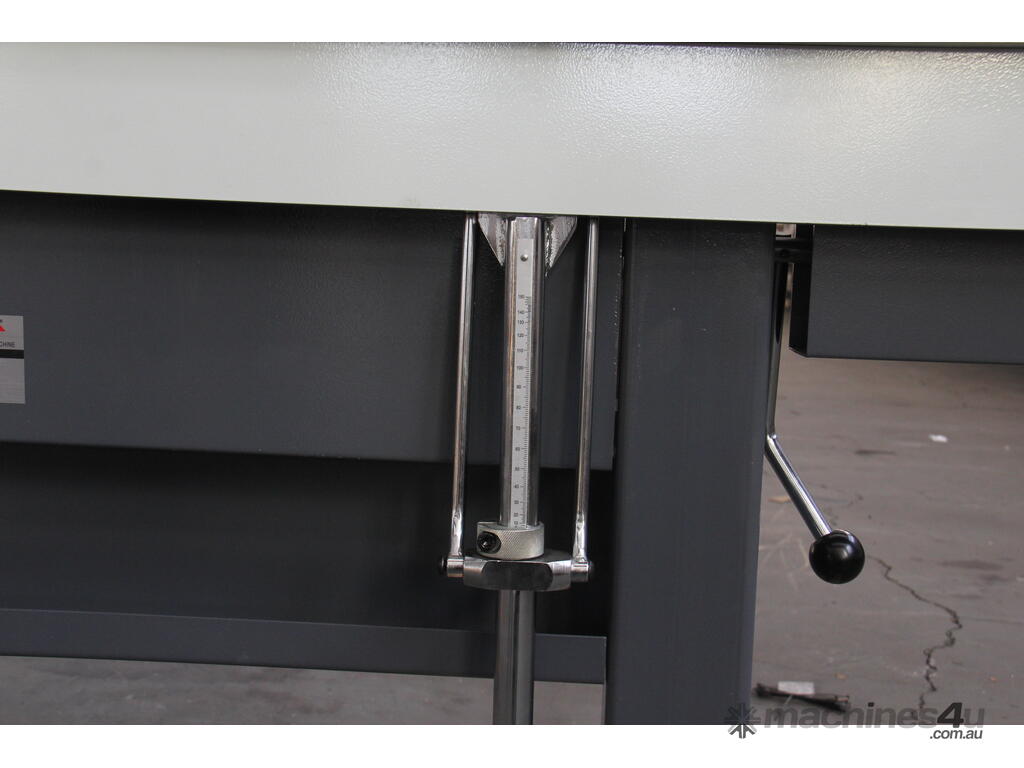

Precision and Repeatability. Equipped with a back gauge, bend angle gauge, and scaled stroke angle control for consistent, accurate bends—reducing errors and saving time on production runs.

Easy Adjustments for Any Material. Simple gap adjustments on the clamping bar accommodate varying thicknesses, with a 16 mm minimum reverse bend and 3 mm front-to-rear fine-tuning for flawless results on mild steel or stainless.

Features

Runs on 240V single-phase power

Open-ended design as EB-4816, but much wider up to 2500mm

1.6mm mild steel capacity

No limitation on the depth of the box

Sliding angle guide on the bending beam

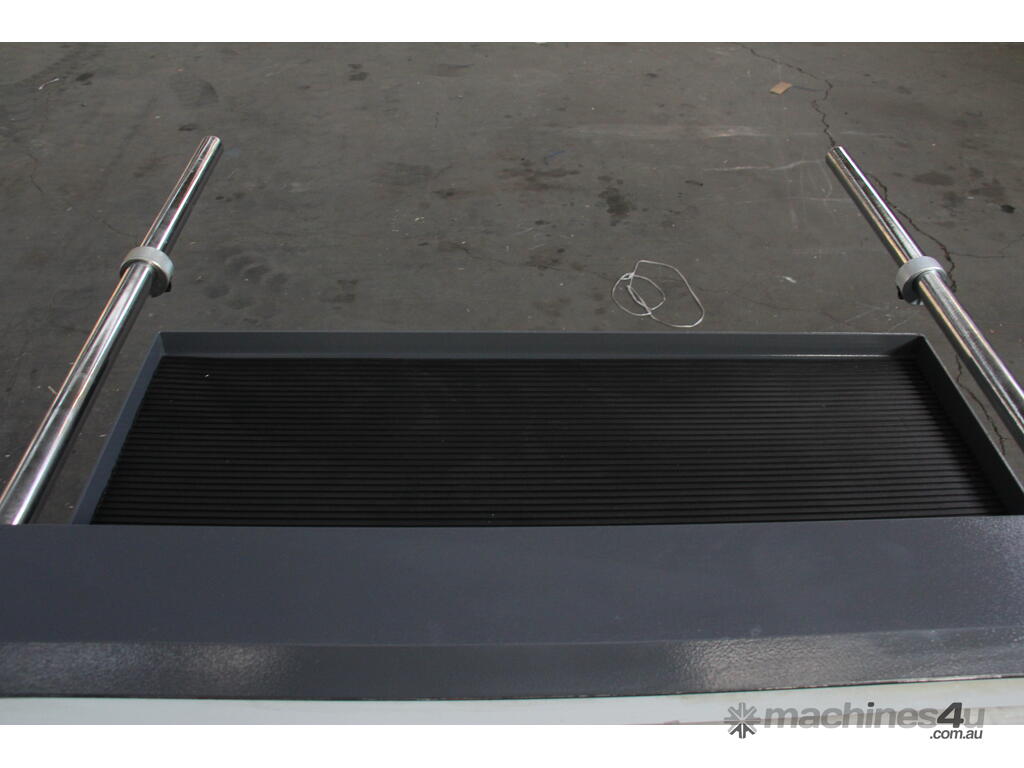

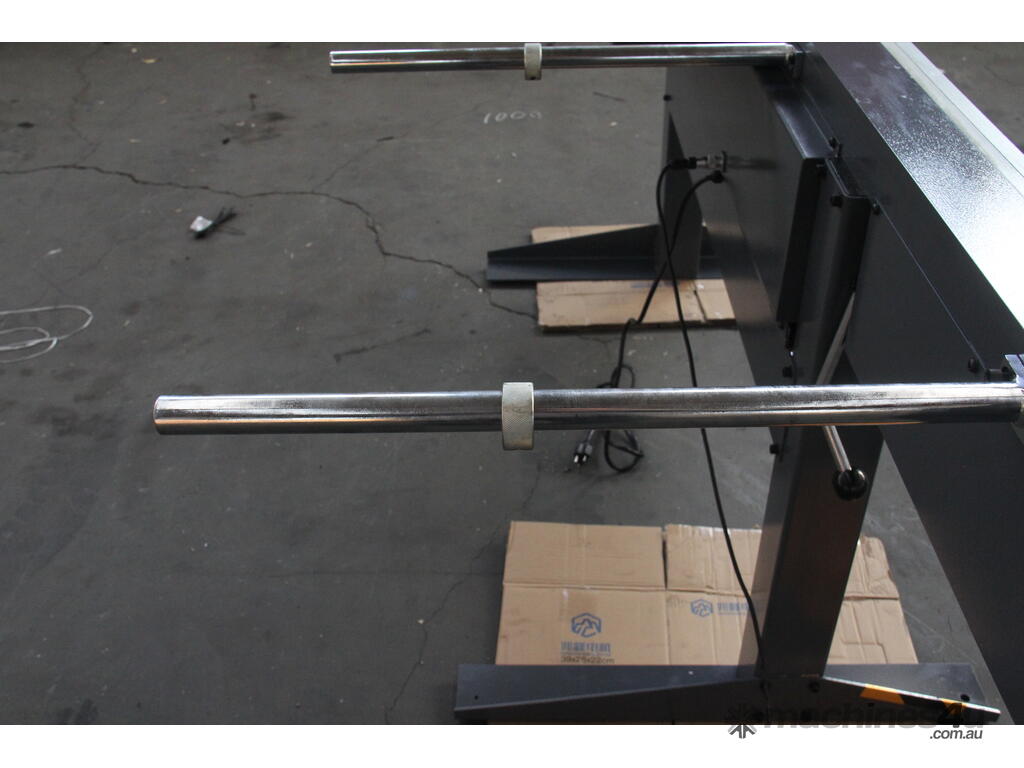

Four back gauges to hold large-sized material

Used for HVAC shops, industrial art shops, and general sheet metal fabrication shops

Making ductwork, triangles, and alternate bends on varying planes

Specifications
SKU 173405
Model EB-9816
Max. capacity 2500x1.6 mm
Clamping force 12 Ton
Duty cycle 30%
Back gauge 640 mm
Nominal current 15 Amp
Protection Thermal cut-out 70?
Bending edge length 2590 mm
Packing size 270x112x38 cm
N.W./G.W. 290/403 kg
