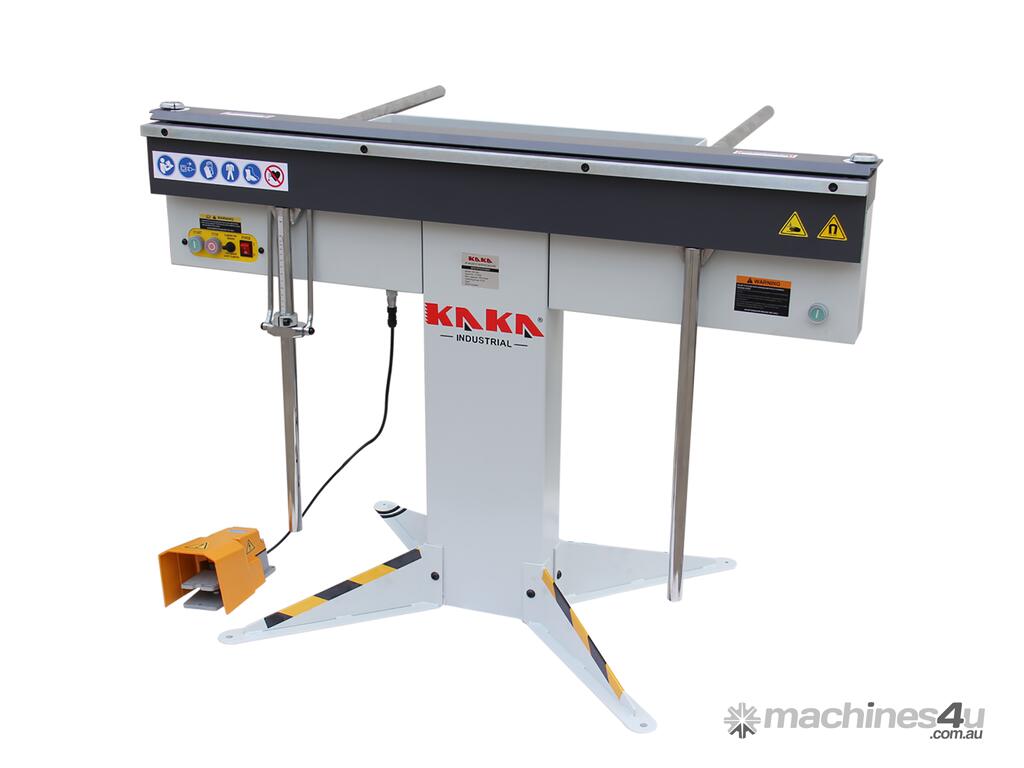

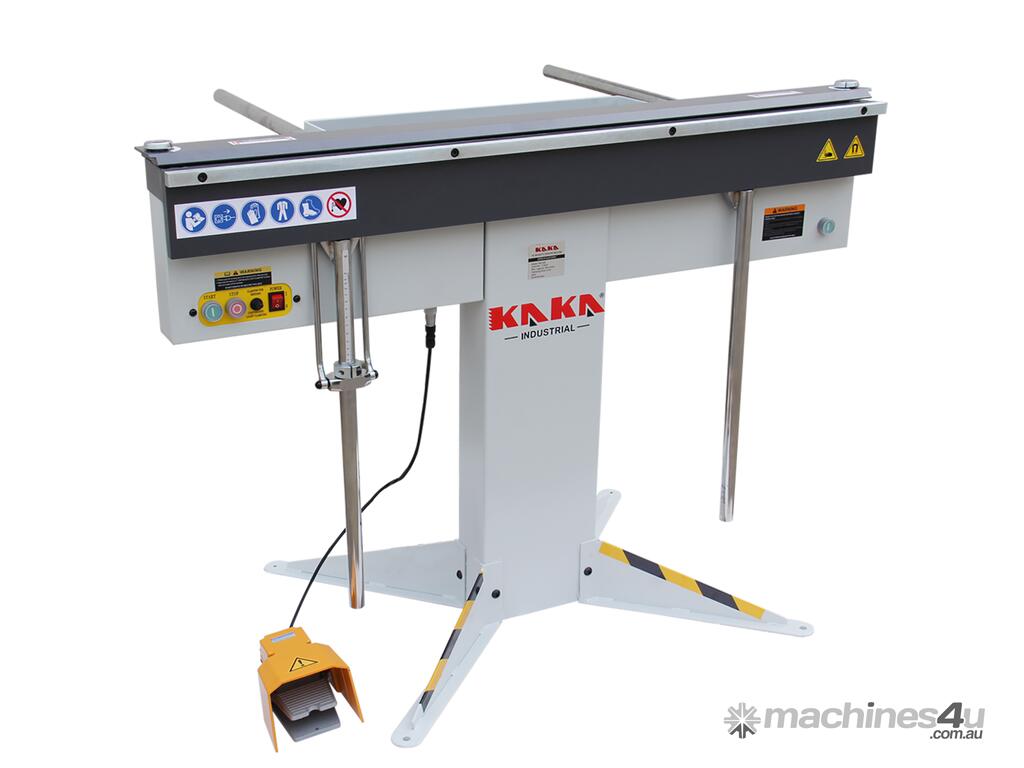

Magnetic Panbrake EB-4816, 1250x1.6 mm Panbrake Folder, Sheet Metal Folding Machine

Magnetic Pan Brakes, 1250x1.6mm Panbrake Folder

Revolutionize your sheet metal bending with the KANG Magnetic Panbrake EB-4816, an electromagnetic bender built for precision and efficiency in fabrication workshops and trade environments. This bender features a generous 1250 mm working width and handles up to 1.6 mm mild steel, perfect for forming boxes, pans, and custom profiles without the limitations of traditional clamps. It delivers 6 tonnes of clamping pressure via a powerful electromagnetic system, with centerless hinges for even load distribution and a replaceable clamping bar for versatile shapes like round or square tubes.

Magnetic Clamping Innovation for Effortless Setup.  The 6-tonne electromagnetic system secures workpieces instantly without mechanical clamps, enabling distortion-free bends on thin sheets, ideal for Aussie fabricators in HVAC or signage shops, reducing setup time compared to conventional pan brakes and minimizing marks on delicate materials like aluminum or brass.

Versatile Material Handling Sheet Metal Bender. Excels with 1.6 mm capacities for mild steel and non-ferrous metals, plus stainless options, with adjustable back gauge and depth settings for infinite profiles, ideal for regional fabricators tackling HVAC ducts or automotive panels without tool changes, offering more flexibility than segmented models for curved or irregular bends.

Compact, Lightweight Durability Pan Brakes. At just 185 kg and a space-efficient footprint, it's easy to maneuver in tight garages or mobile workshops, with rugged centerless hinges ensuring reliable sheet bending performance against dust, humidity, and vibrations in harsh regional conditions.

Unlimited Box Depth. The open-span design allows for the formation of boxes of virtually unlimited depth, overcoming the geometric restrictions of traditional panbrake folders.

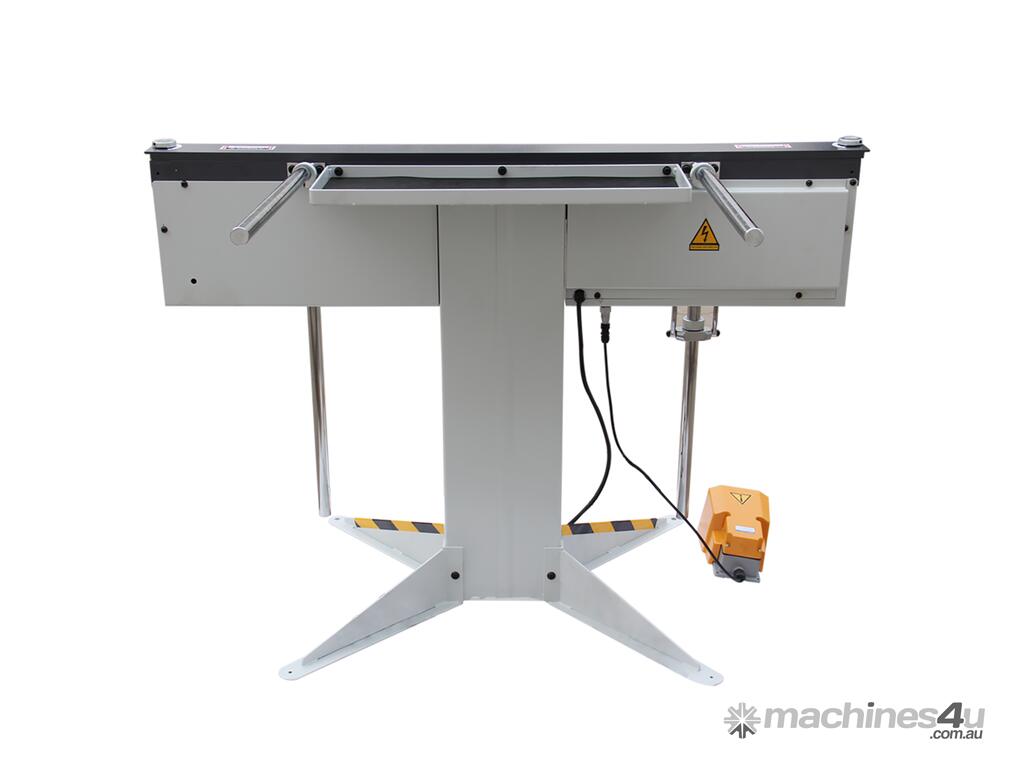

Enhanced Safety and Productivity. Foot pedal control allows hands-free loading/unloading for safer, faster operation, improved electronics ensure consistent clamping—vital for solo operators in high-volume Down Under sites, minimizing fatigue and boosting output on repetitive jobs like box forming.



Features

Runs on 240V single-phase power

1250 mm length with a max. 1.6 mm mild steel bending capacity

No limitation to the depth of the box, open-end design

6-ton pressure across the entire beam

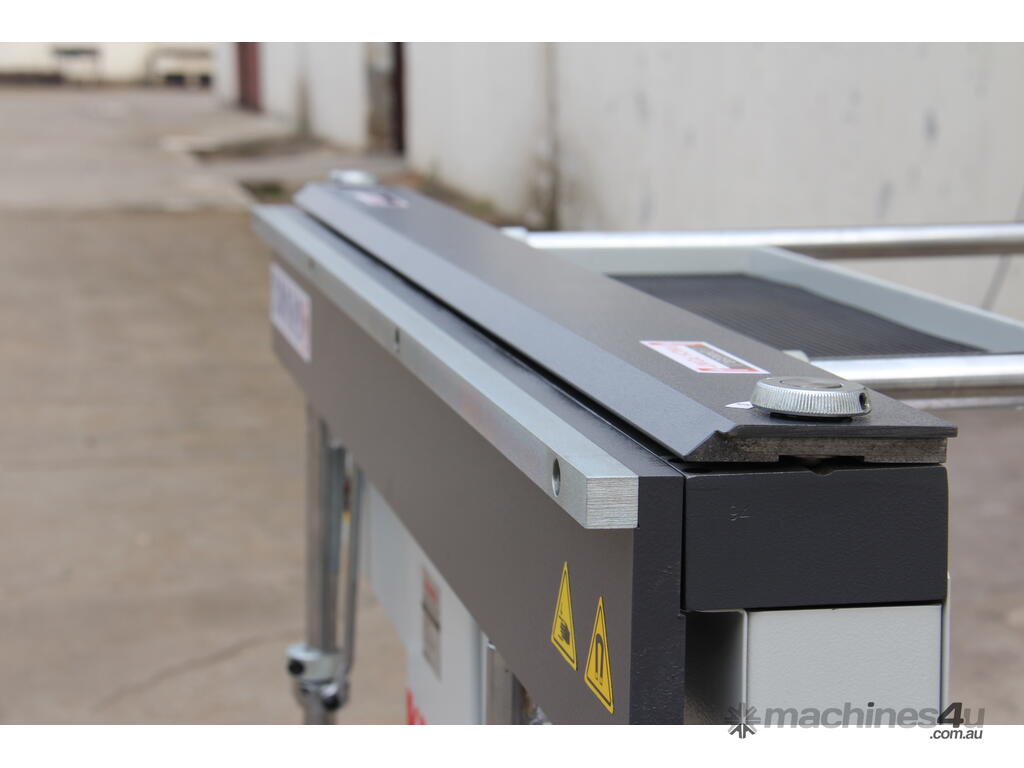

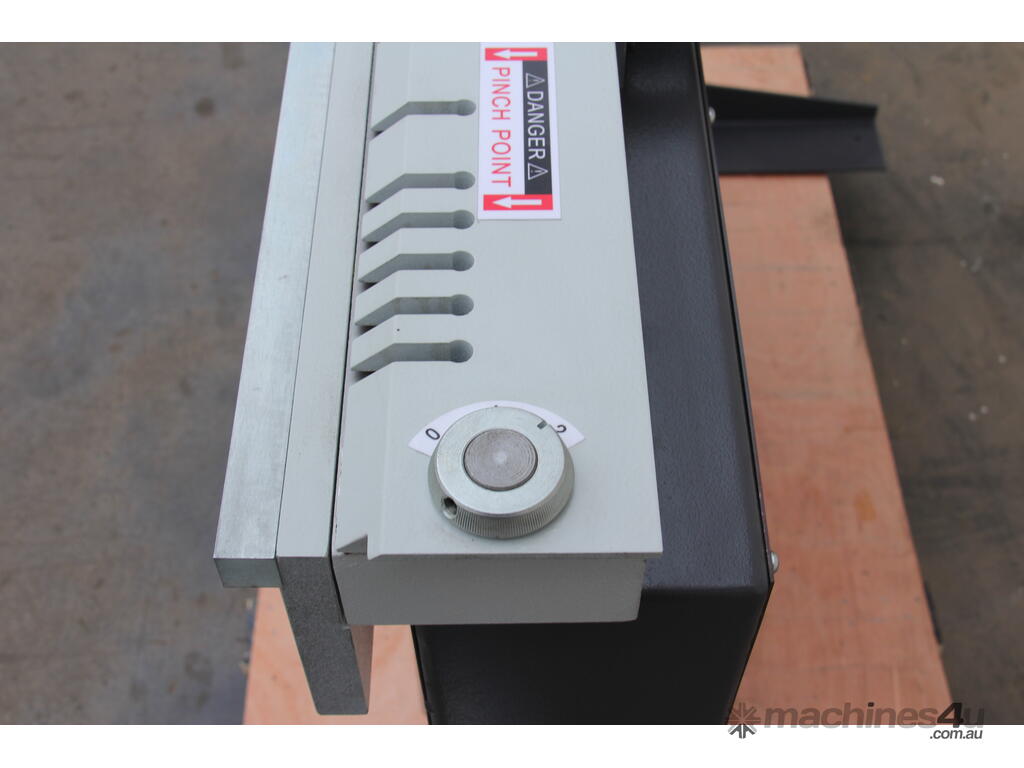

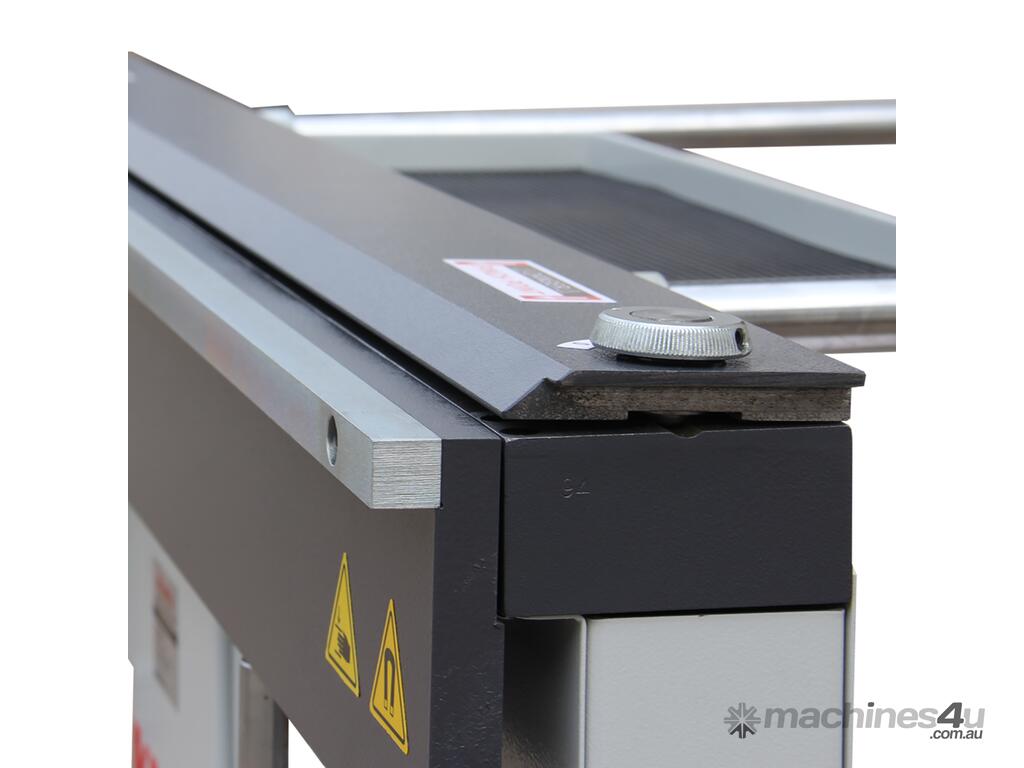

Blade gap adjustment on clamping bars

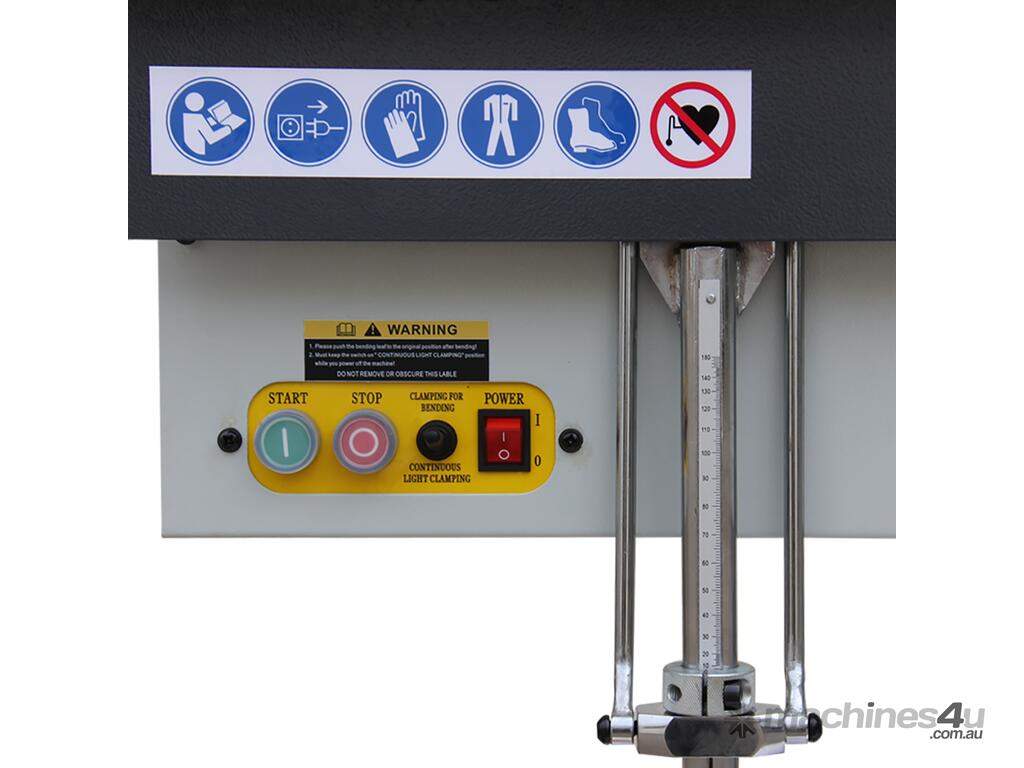

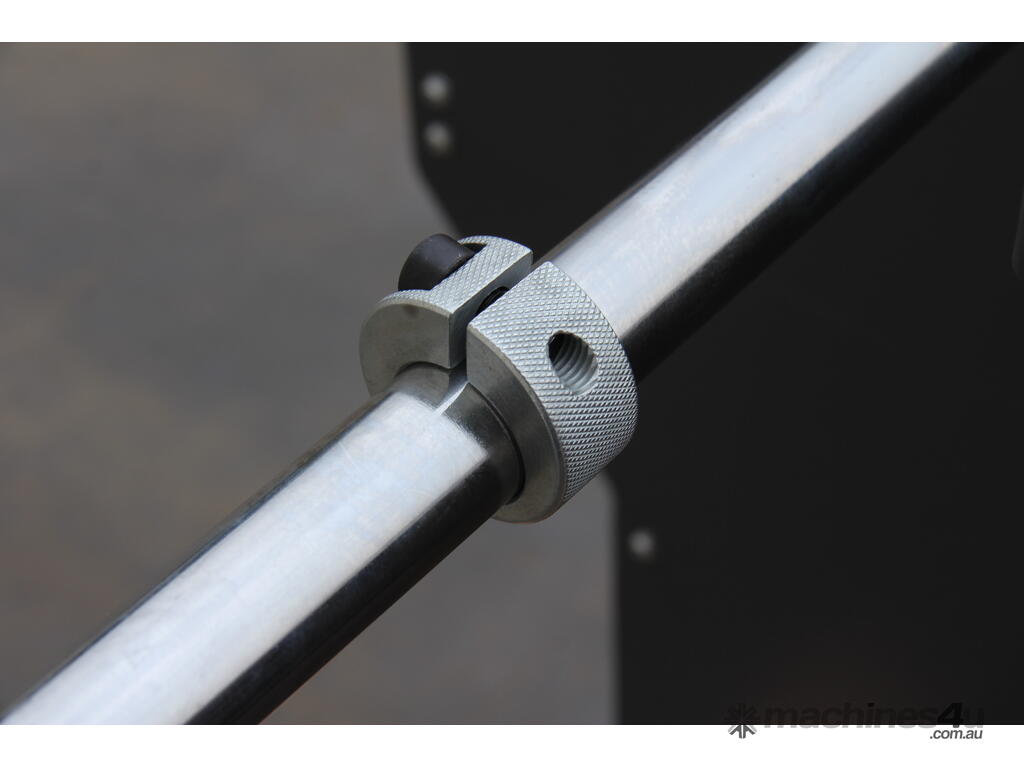

Scaled stroke angle control lets you make repeatable bends

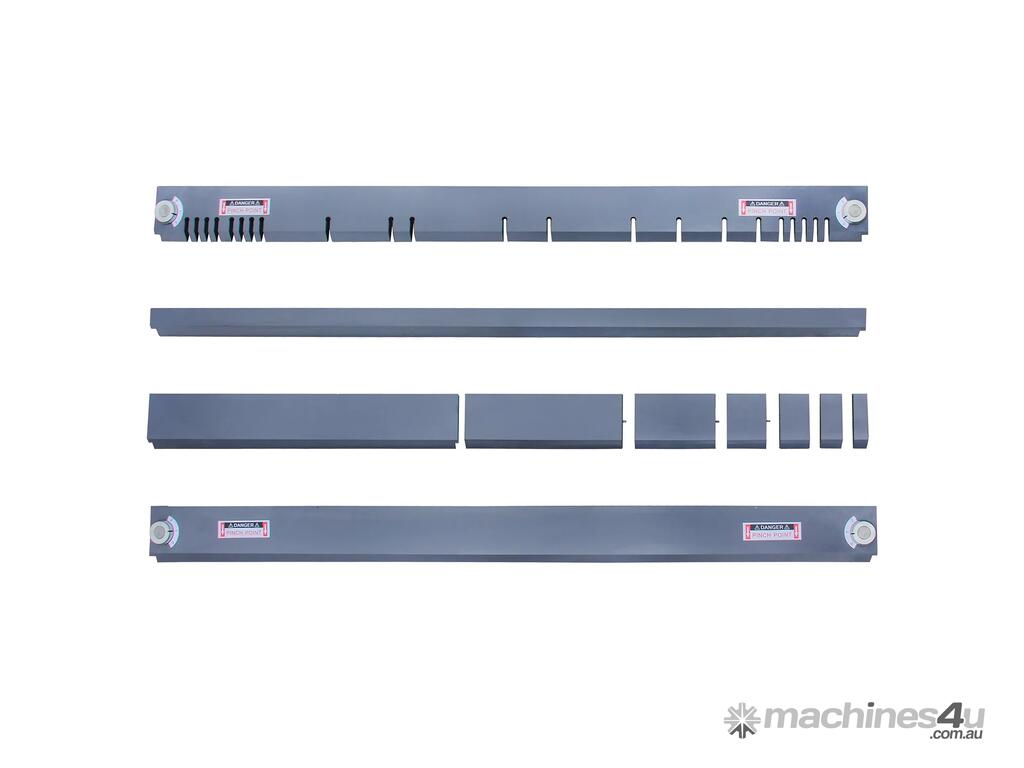

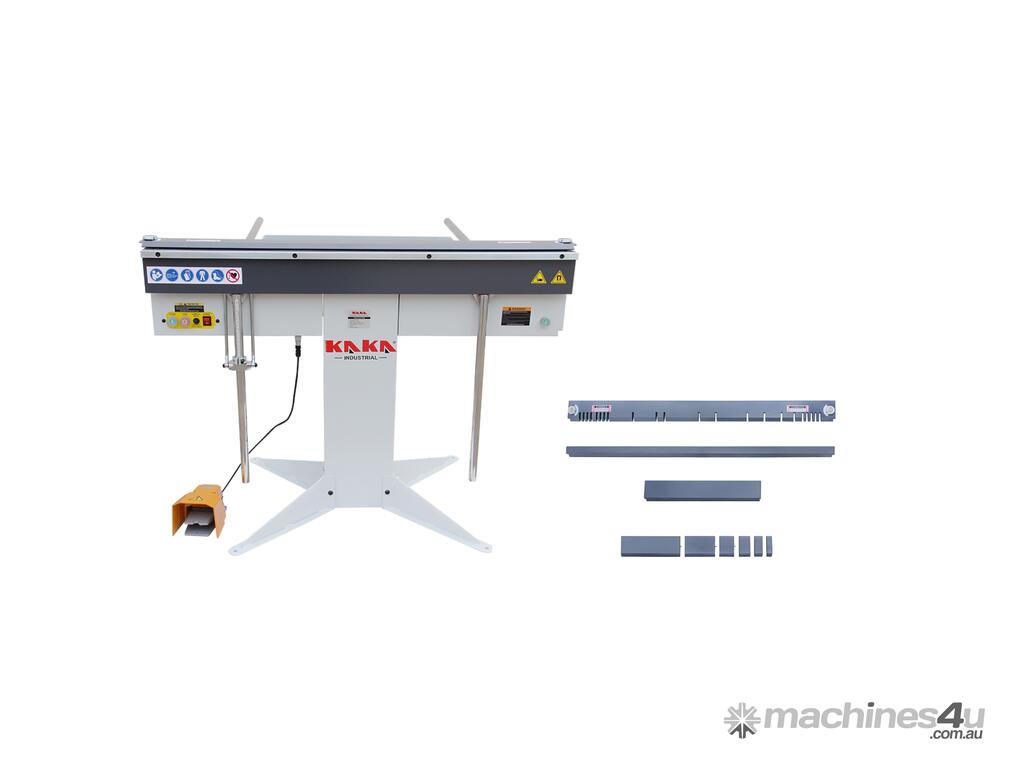

Different clamping bars

Suitable for HVAC shops, industrial art shops, and general sheet metal fabrication shops

Could make enclosed boxes, triangles, etc.

Could bend a variety of materials, such as mild steel, stainless steel, aluminum plate, etc.

Different sizes available, EB5216(1320mm width),; EB6116 (1550mm width), EB9816 (2500mm width)

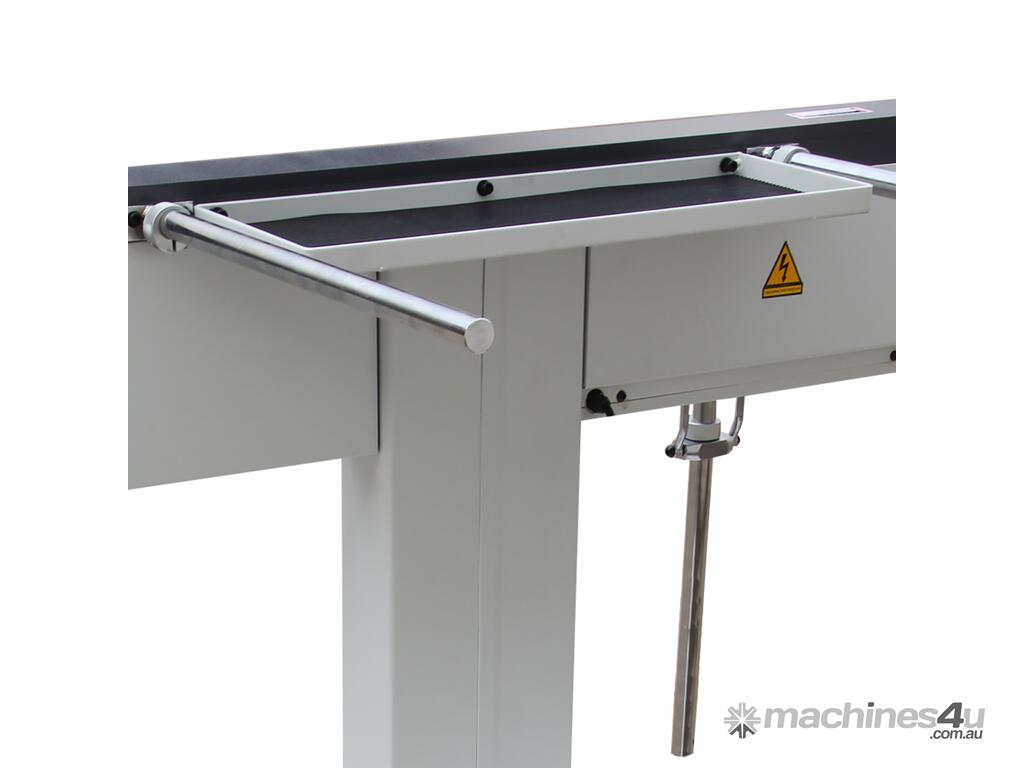

EB-4816B with a special stand, could hold the different bending bars

Specifications
SKU 173403
Model EB-4816
Max. capacity (mild steel) 1250x1.5 mm
Clamping force 6 Ton
Duty cycle 30%
Back gauge 640 mm
Nominal current 6 Amp
Power motor 2.2 kW
Protection Thermal cut-out 70?
Bending edge length 1300 mm
Distance between lifters 1260 mm
Packing size 145x112x38 cm
N.W./G.W. 200/260 kg
