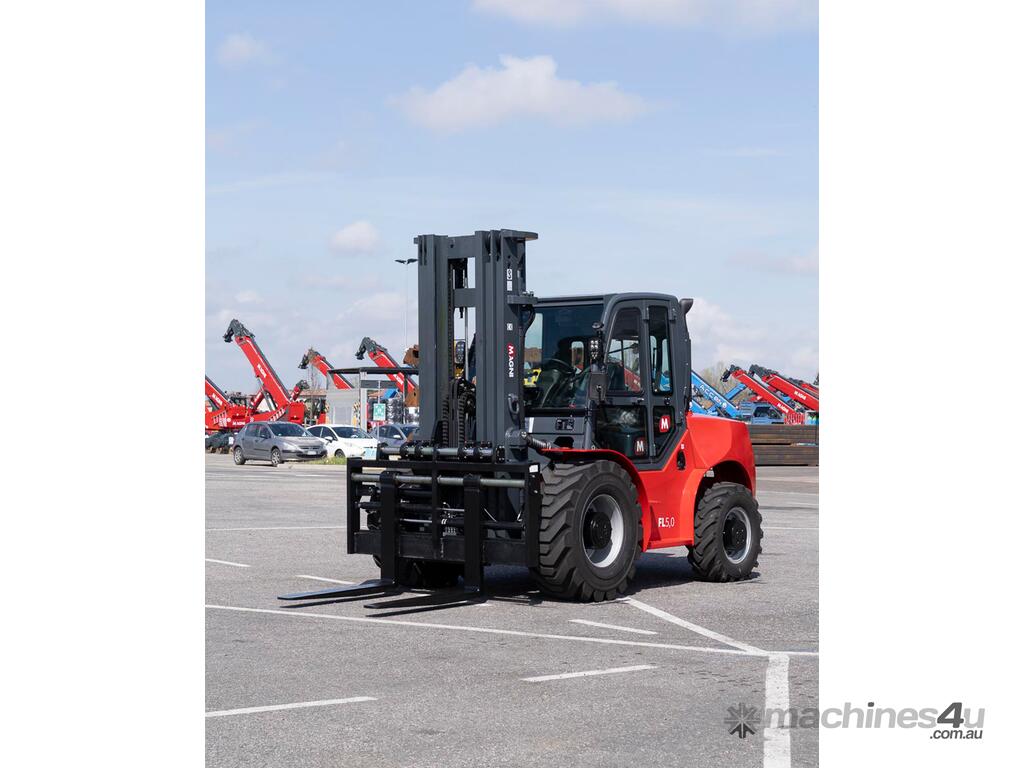

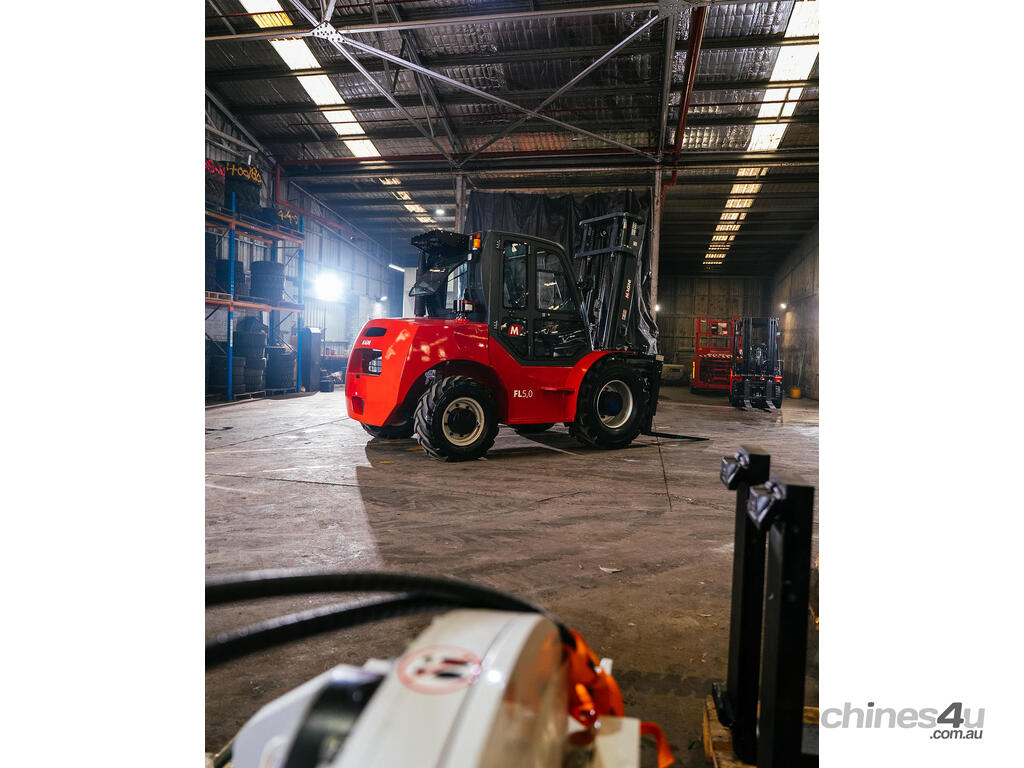

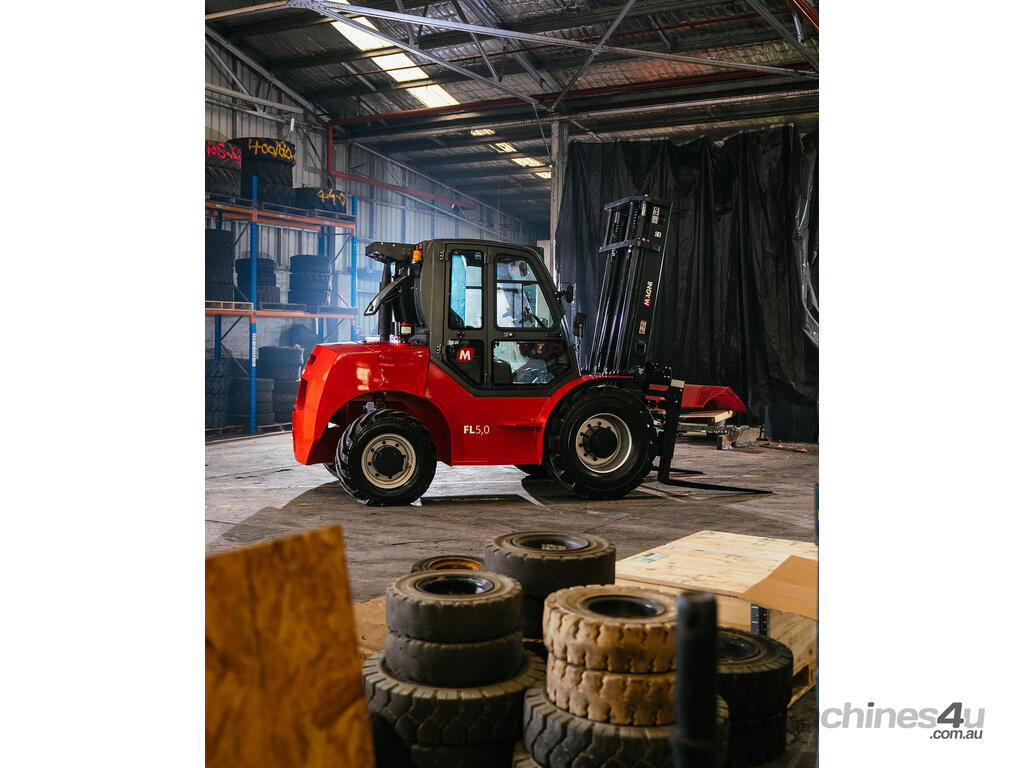

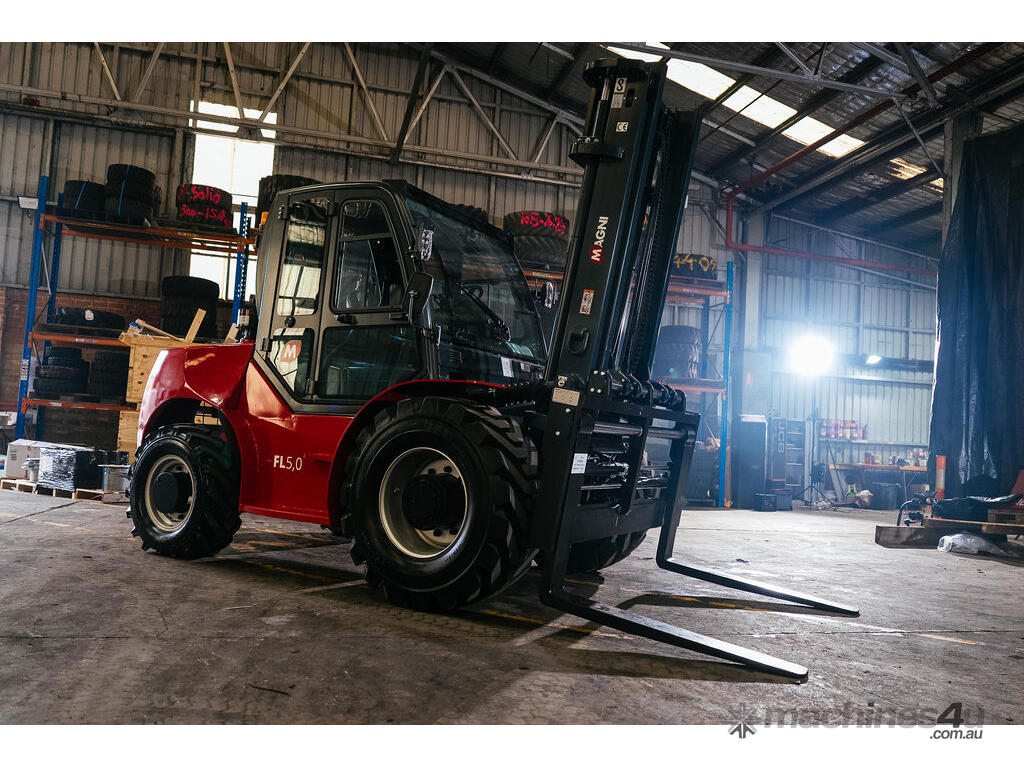

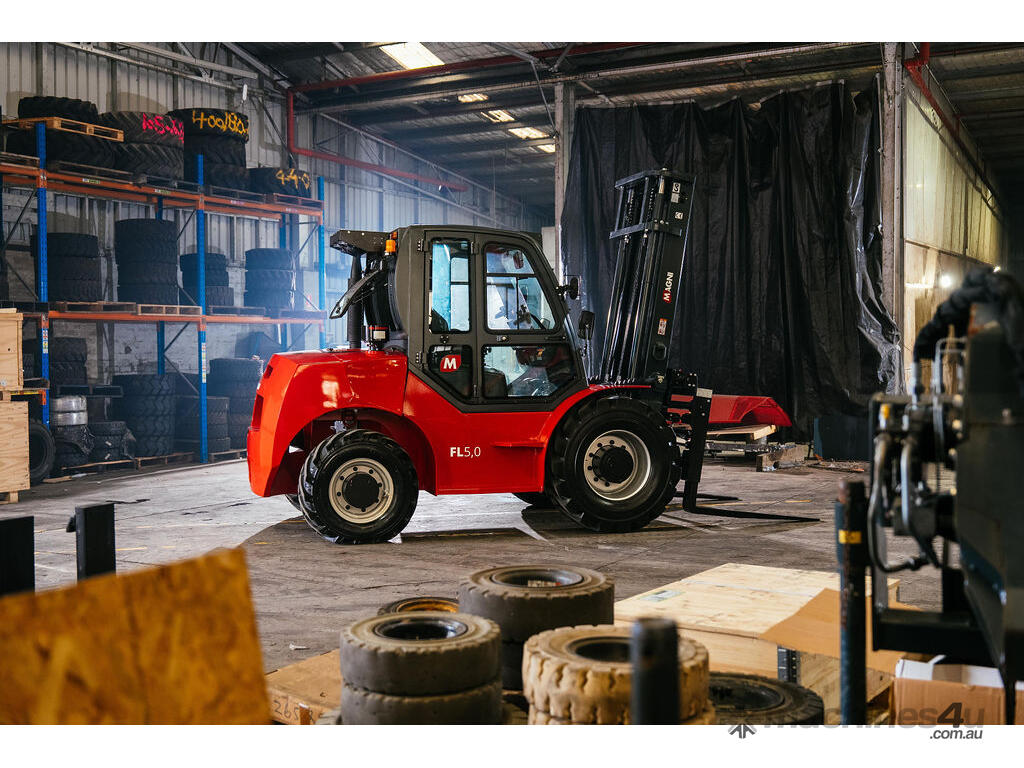

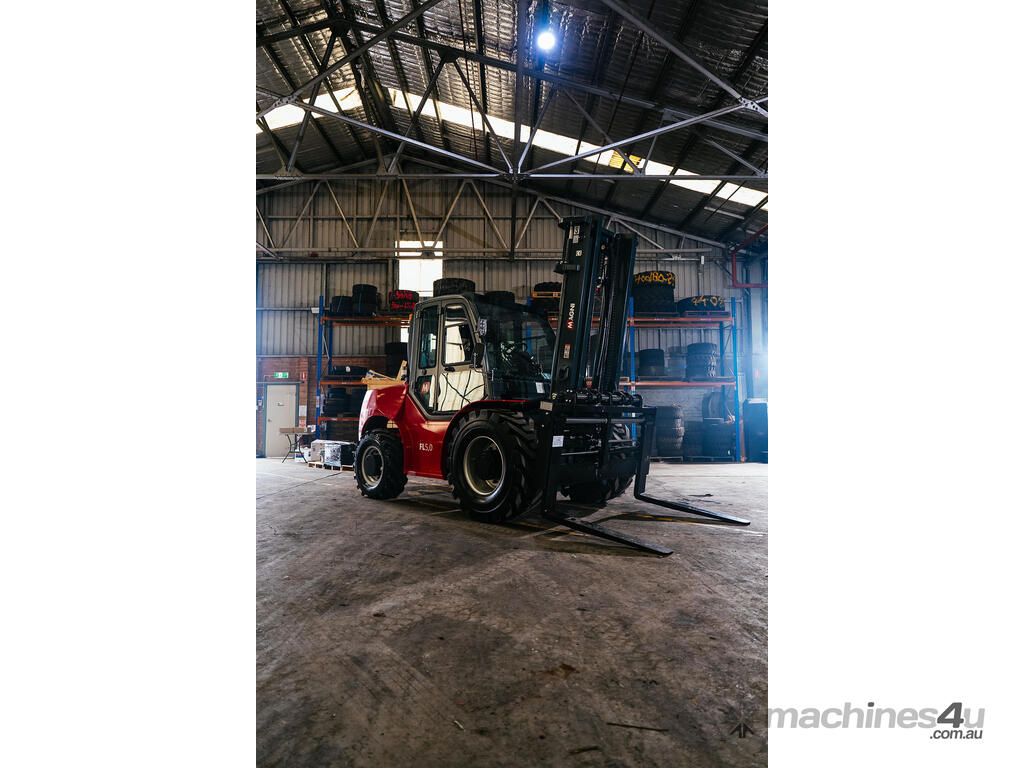

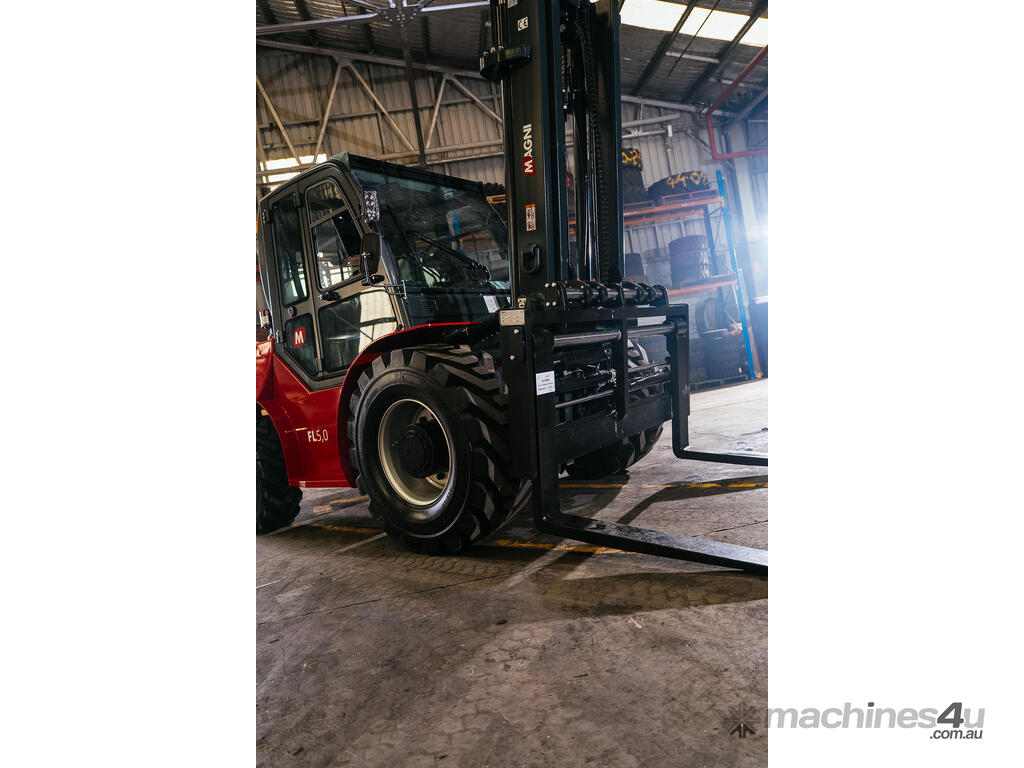

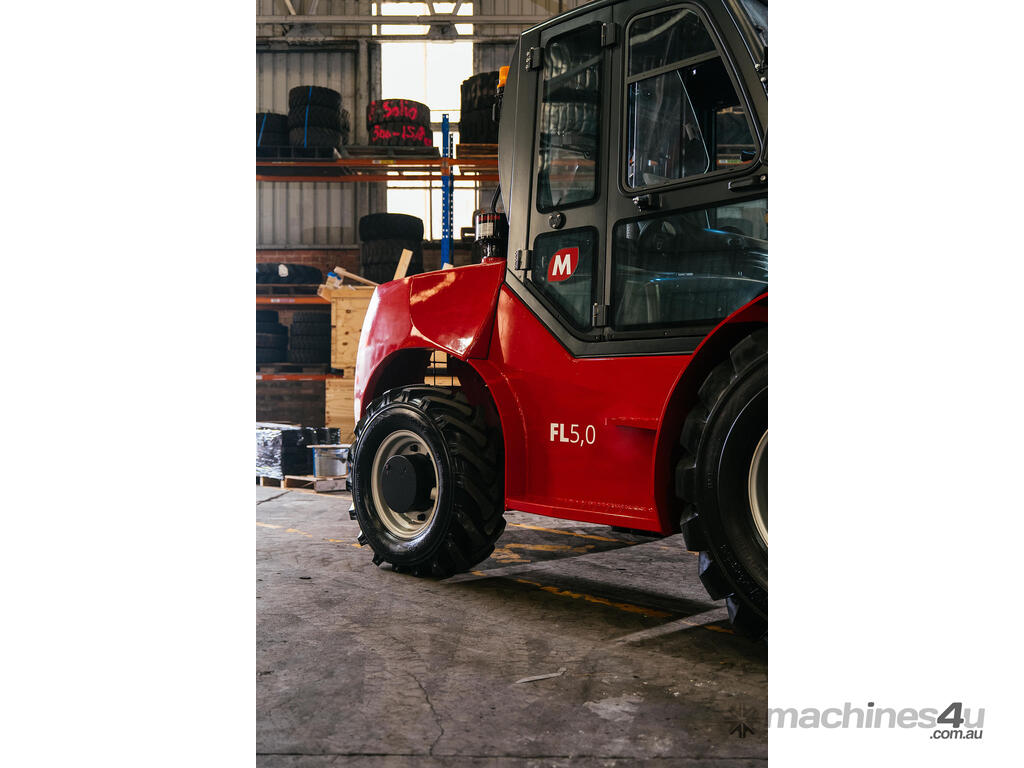

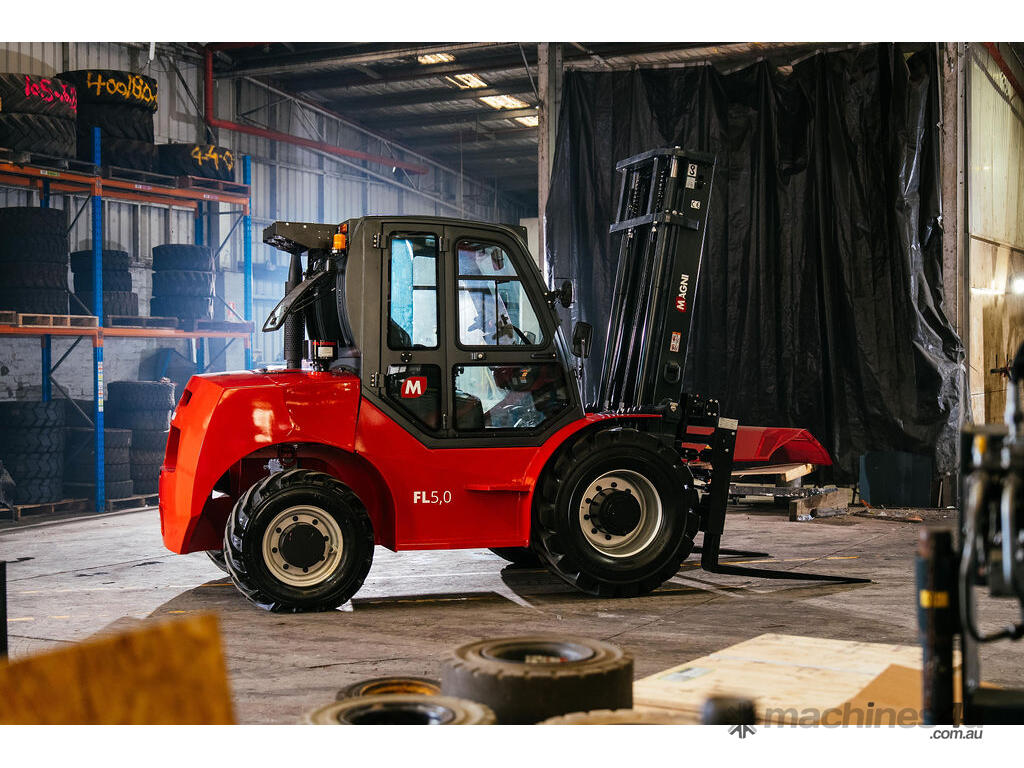

Magni 5t Rough Terrain Forklift

Magni forklifts are distinguished not only by their trademark red colour but also by a basic outfit enhanced by market-specific options to improve safety and operator comfort.
Main Features
• Transmission: The hydraulic transmission, with function for switching between 2WD and 4WD, provides higher travel speed and better capability for tackling gradients. The hydraulic transmission with three forward speeds enables a top speed of 25 km/h.
• Brakes: The wet brakes ensure a long braking system lifetime, reducing wear and improving reliability even in case of intensive use. Thanks to their continuous lubrication, brakes of this kind retain high performance and extend the lifetime of the whole braking system.
• Air filter and radiator: The twin high-capacity air filter, combined with the coil radiator and the optimised heat sink channel, improves heat dispersal capability and keeps temperatures stable, guaranteeing the engine’s reliability in even the most heavy-duty applications.

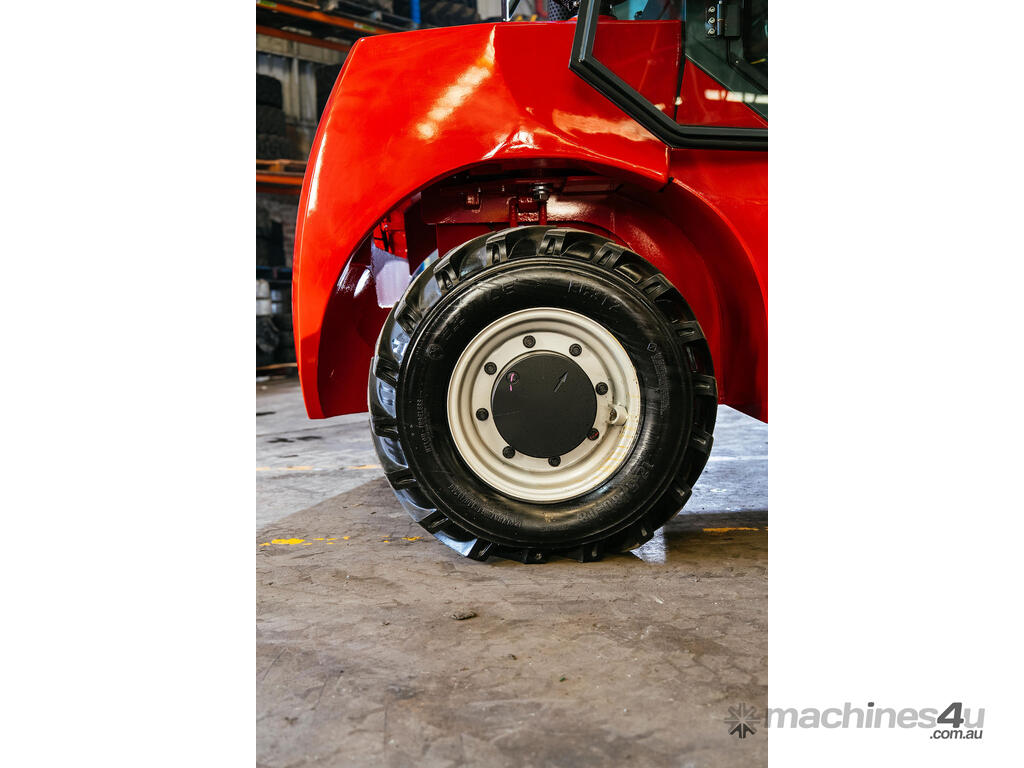

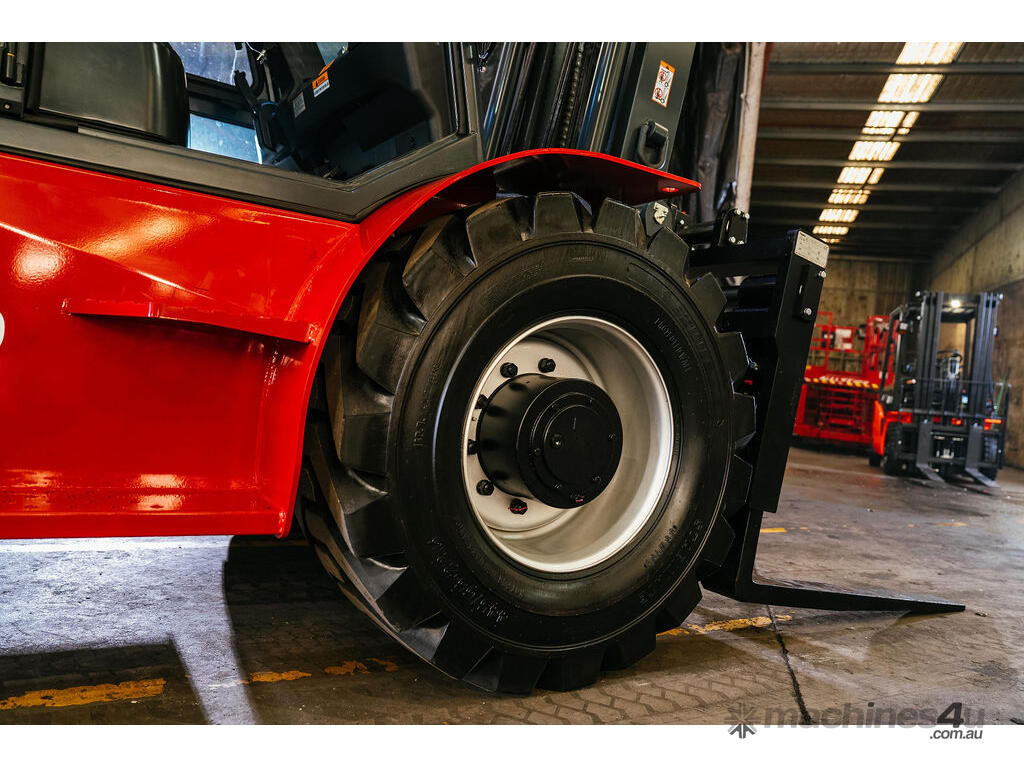

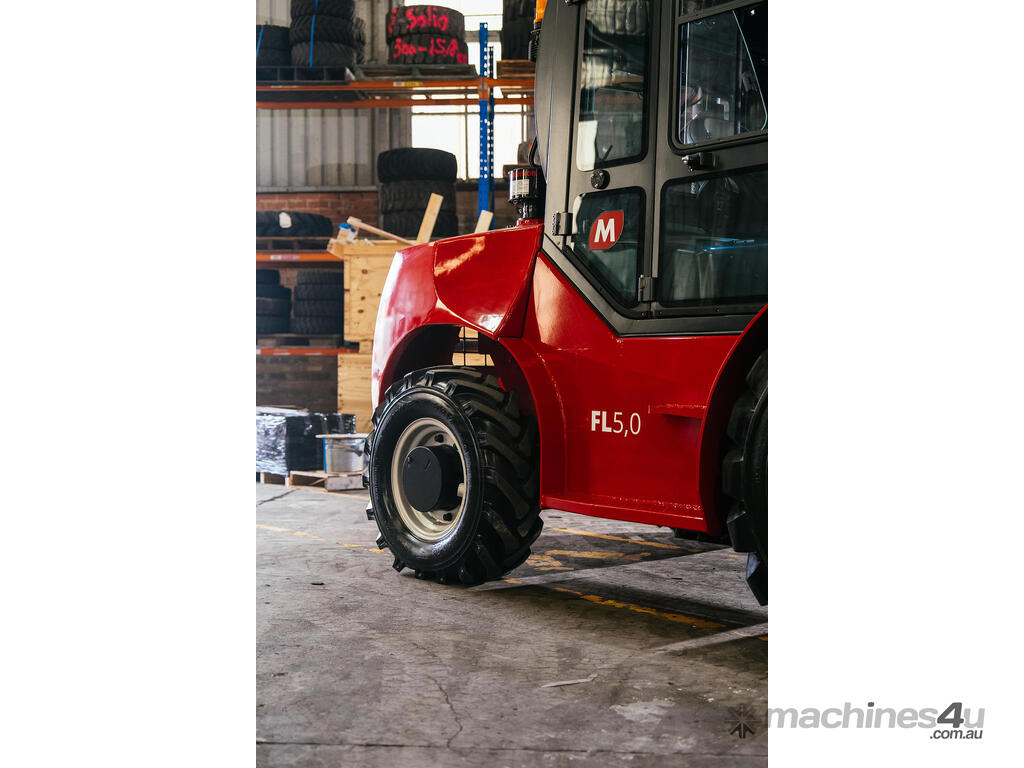

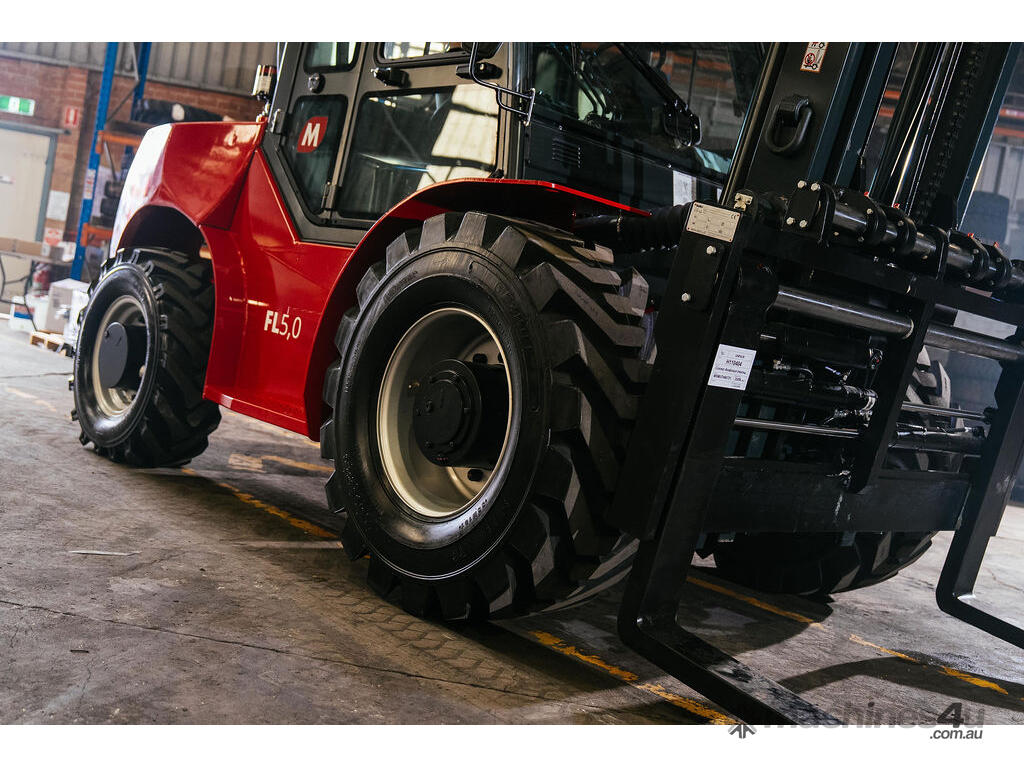

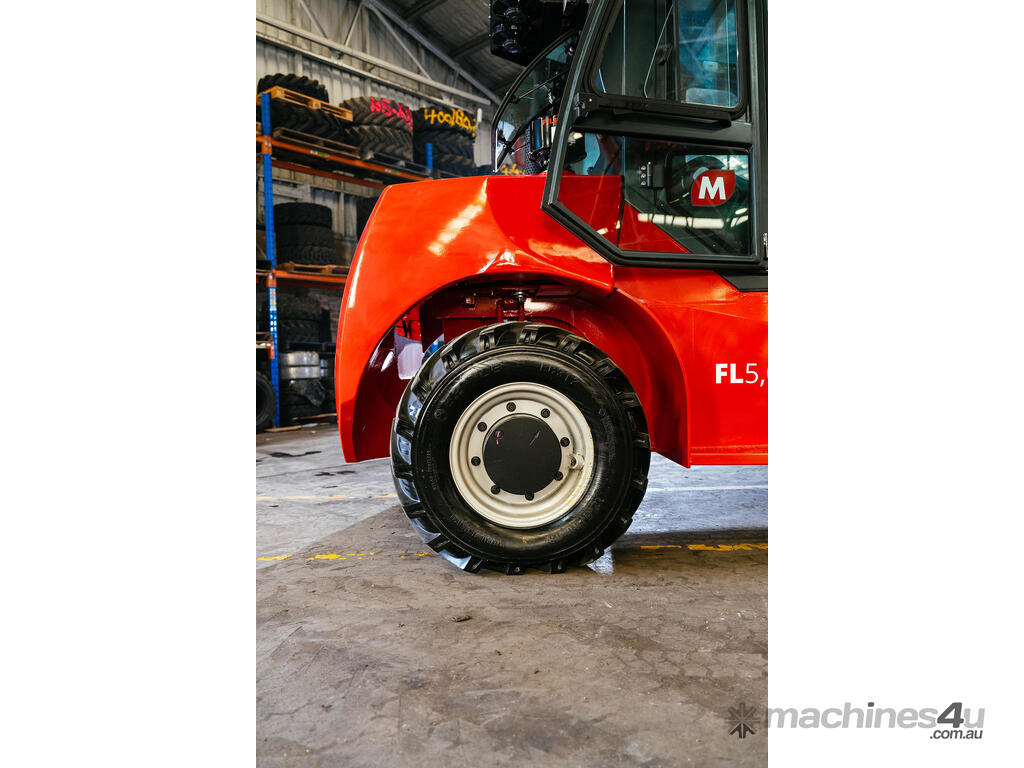

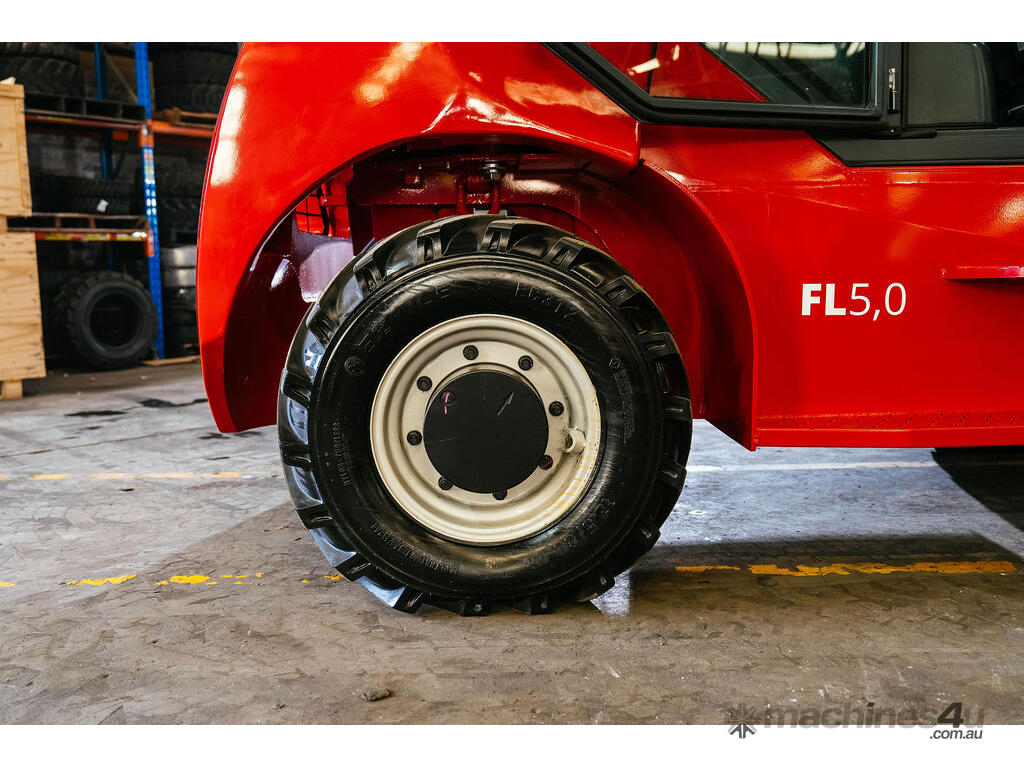

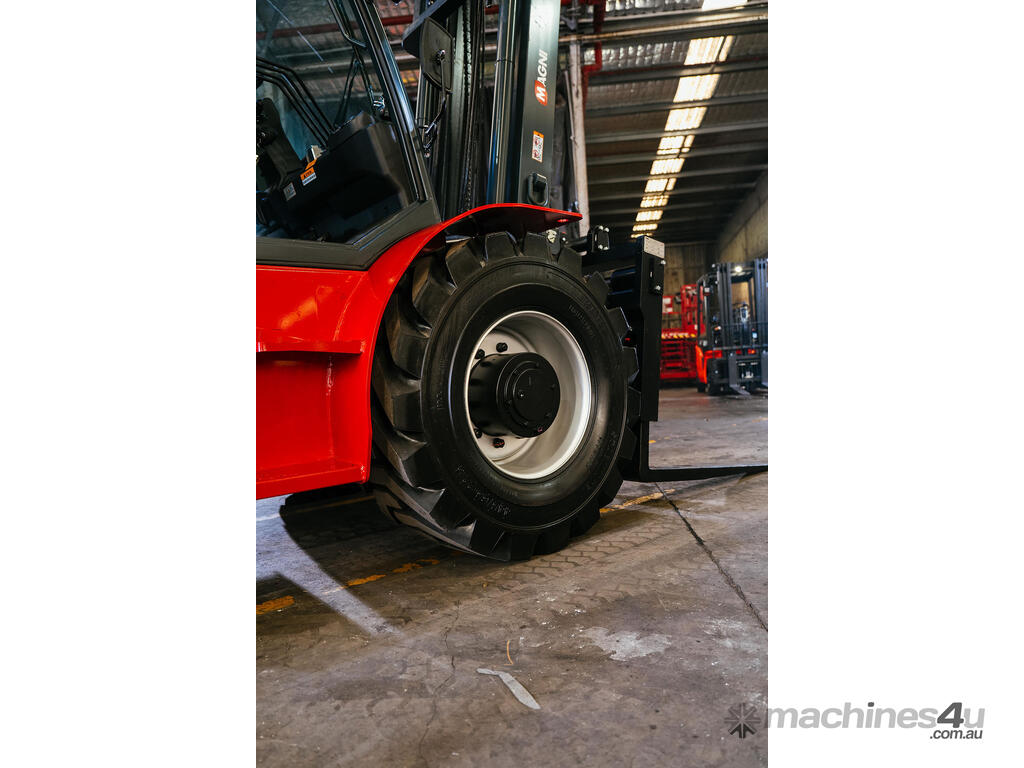

• Tyres: The drive axle has wide-base, deep-tread tyres, ideal for adapting to a wide range of working conditions. Other types of tyres, including foam-filled or non-marking, are also available.

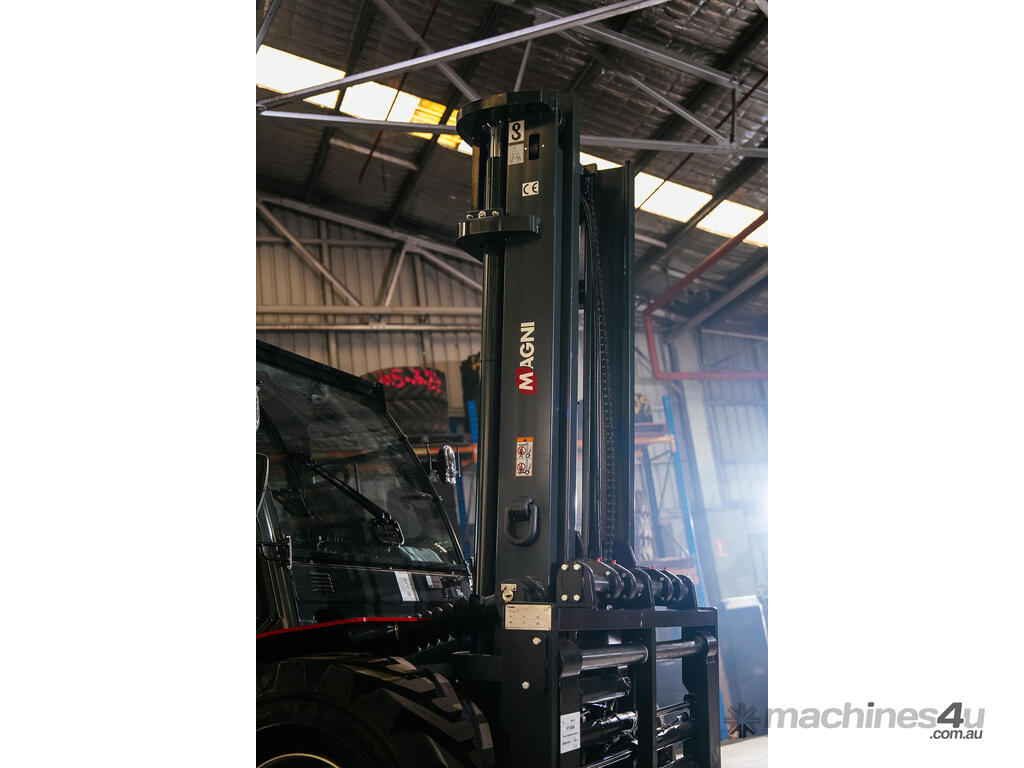

• Visibility: The design of the cab structure has been optimised to ensure good visibility even in the rear. All models are fitted with rear-view mirrors on both sides as standard. The design of the high-visibility mast provides an excellent forward view thanks to the greater distance between the lift cylinders.
• Agility: The compact wheelbase and ground clearance ensure excellent agility in even the tightest spaces and the most demanding applications, where most off-road forklifts would be in difficulty.

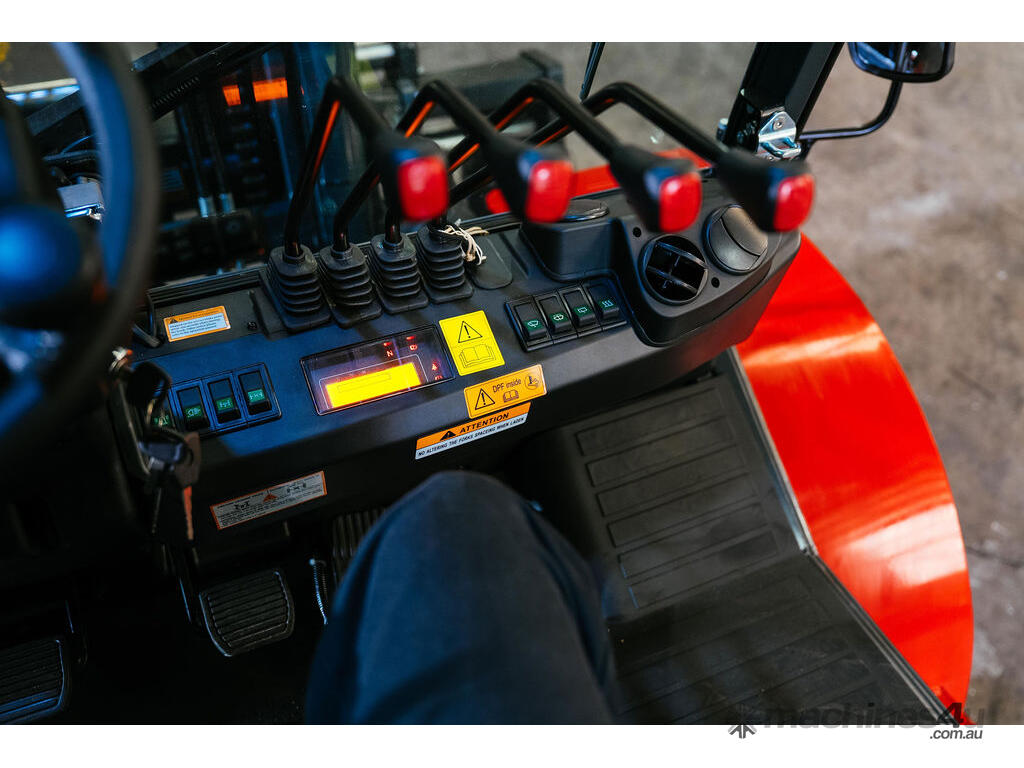

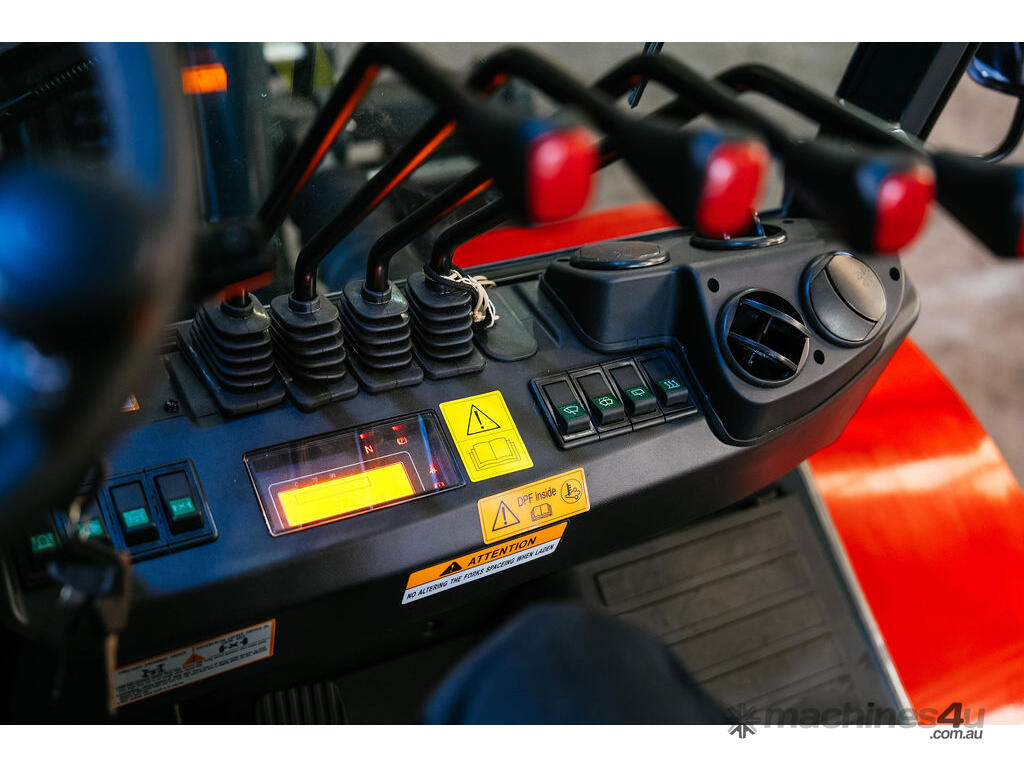

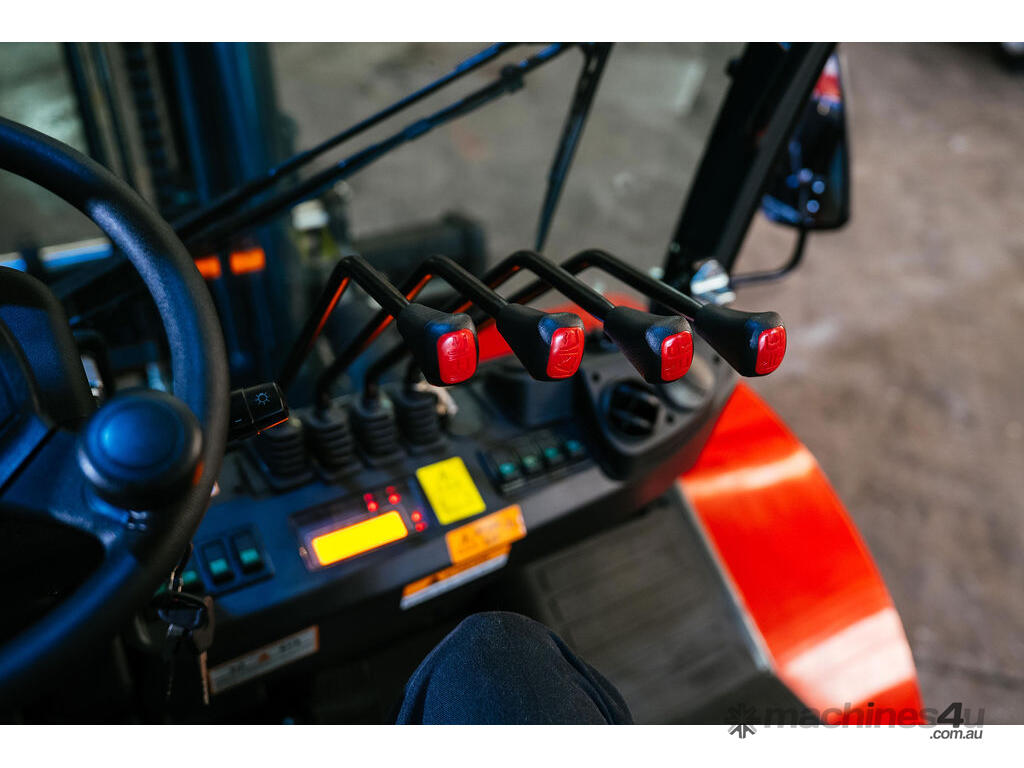

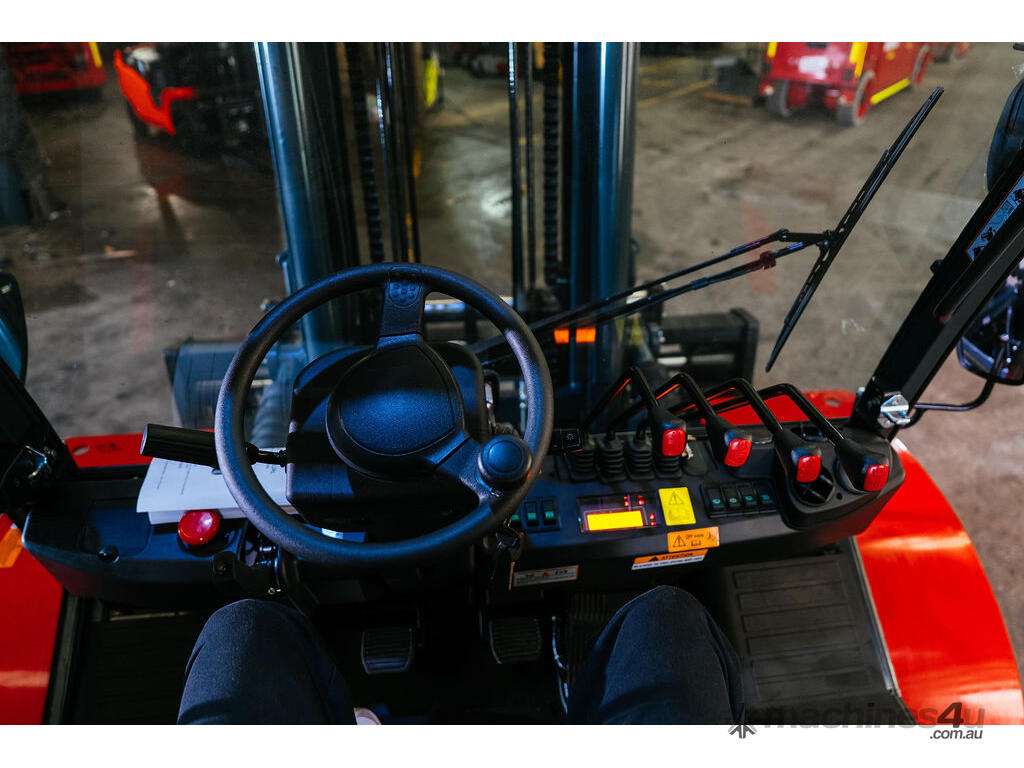

• LCD display: Magni forklifts are equipped with a 4-inch LCD display with four interactive buttons for display of the main items of information. There is also a CAN BUS communication function with a protocol compliant with the SAE standard.

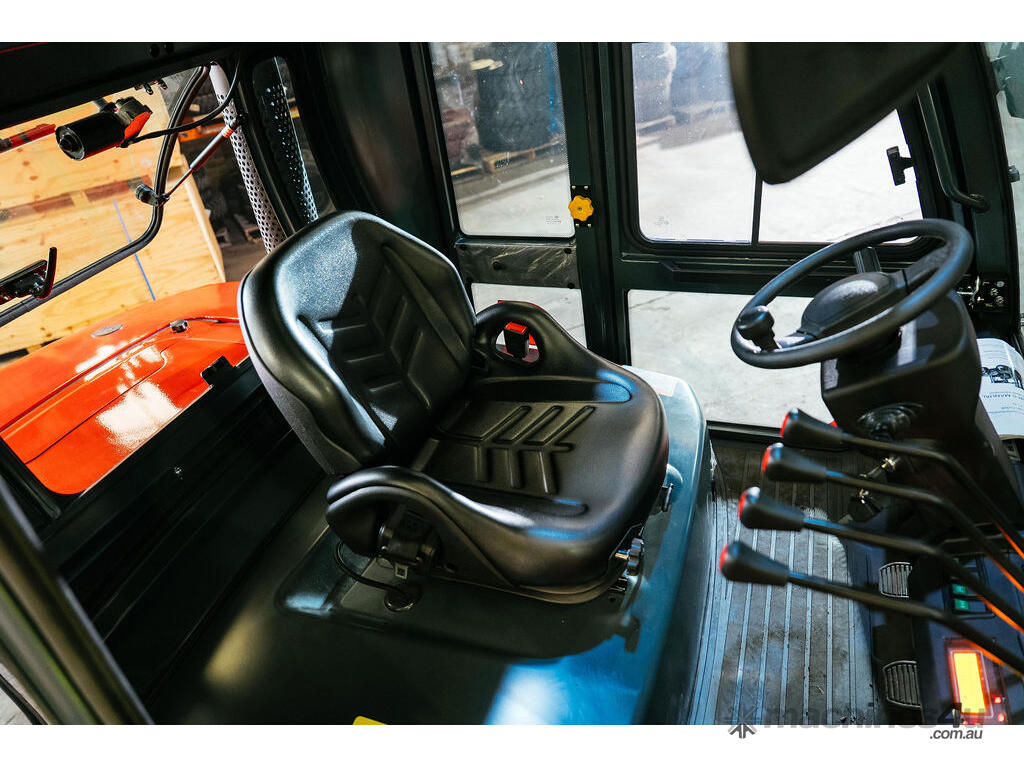

• Seat: Unbeatable operator comfort is ensured by the fully suspended seat and the comfort armrest.
• Lighting system: The high-efficiency lighting system uses LED lights and a new type of reflector to save energy, significantly improve lighting performance and always maintain visibility and in all conditions.

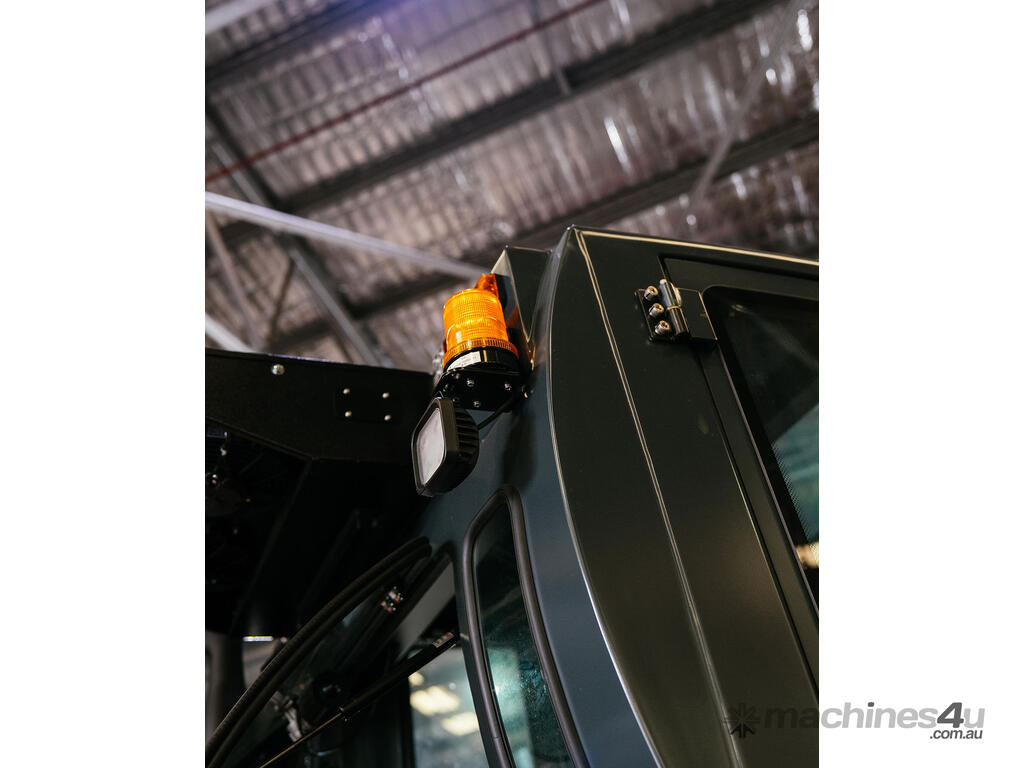

• Safety lights: The blue light placed above the LED lights enhances the vehicle’s visibility when at work, clearly indicating its presence. To ensure that the forklift is easily visible from the rear it is also fitted with a flashing orange light to make sure it will be seen even in crowded or low visibility working environments.
• Easy maintenance: Quick access to the engine compartment underneath the operator’s seat is provided by the easy-release catch. What’s more, the two-piece design makes the cab floor easy to lift and remove for immediate access to the driveline. The radiator cover is easily rotated by hand for quick, simple checks and maintenance.

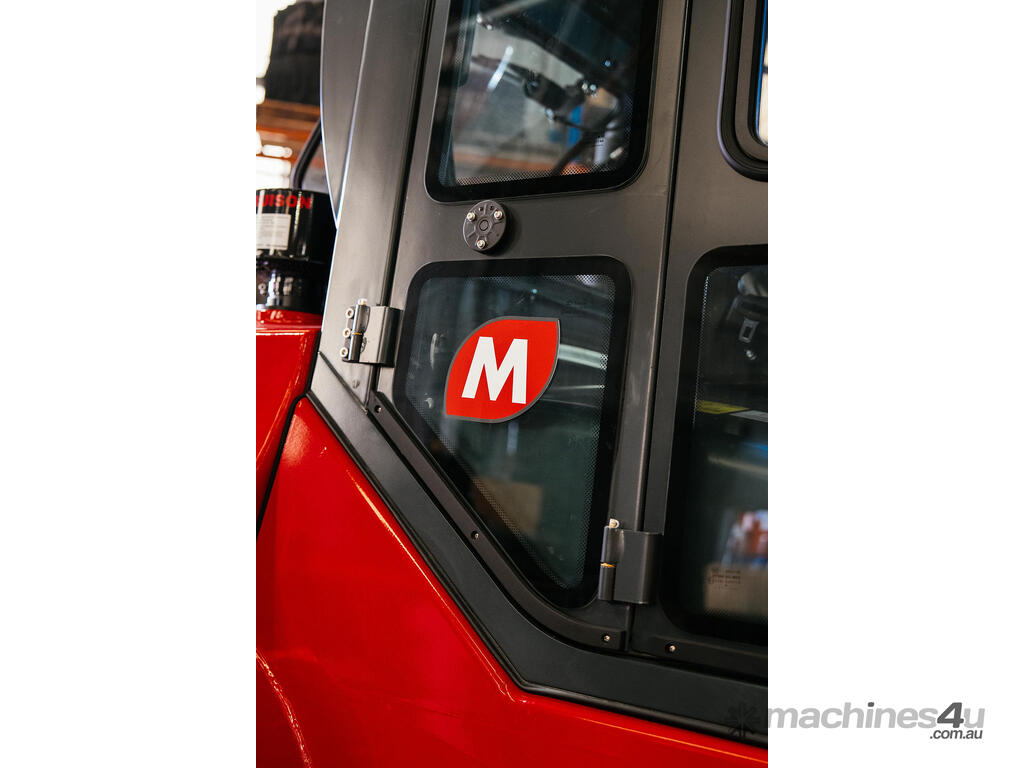

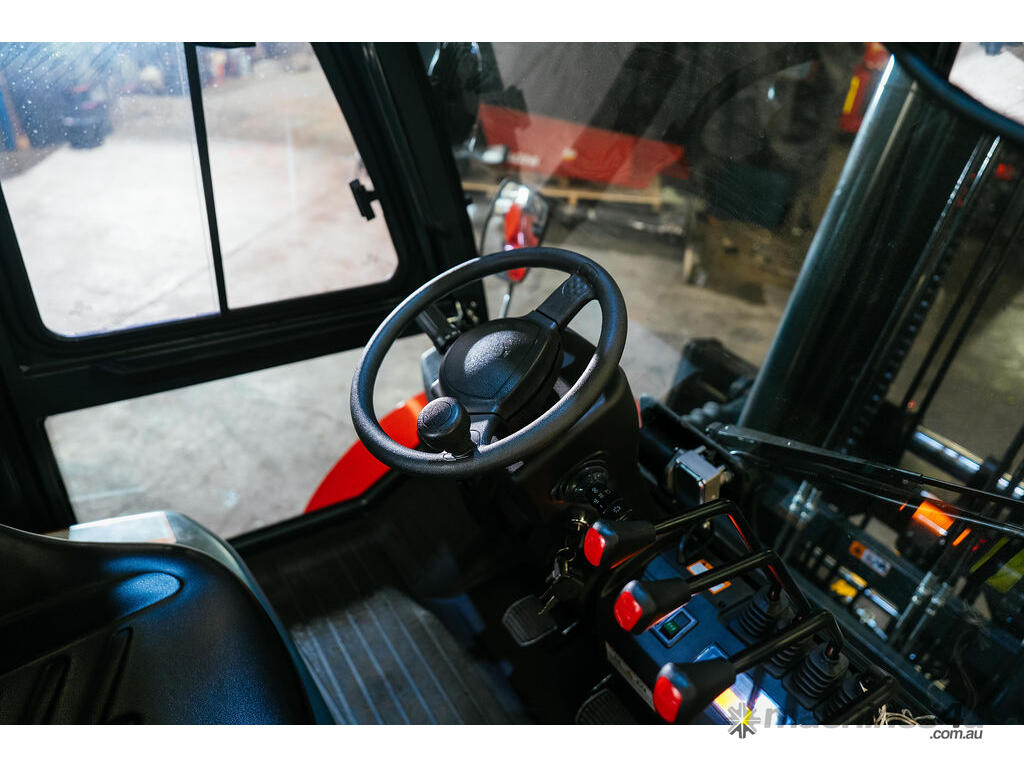

• Cab: The configuration for forklifts with Stage V engine includes a cab with front and rear windscreens and glazed roof. The FL “A” version, with Stage IIIA engine, will be fitted as standard with open cab, without front and rear windscreens, both available as optional accessories. The enclosed cab, equipped with side doors useful when working in weather conditions requiring air-conditioning or heating, will be available as optional feature for both versions.



CAPACITY 5000 KG
LENGTH 3.66M
WIDTH 2.10M
2 STAGE MAST
4M LIFT HEIGHT WITH WIDE VIEW MAST
TRANSMISSION HYDRAULIC WITH
SUSPENSION
RATED POWER 86 KW
SPEED 25 KM/H
GRADEABILITY 45 %
WEIGHT 9050 KG
FUEL TYPE DIESEL
OIL FLOW RATE OF ATTACHMENTS: 180 L/MIN
CASCADE SIDESHIFTING FORK
POSITIONER
1220MM FORKS ARMS
ENCLOSED CAB WITH A/C & HEATER
OPERATOR PRESENCE SYSTEM
OHG CABIN
ROAD LIGHTS FRONT AND REAR
FLASHING AMBER BEACON LIGHT
RIGHT & LEFT REAR VIEW MIRRORS
4 VALVE AND PIPING
D SHAPE TIE DOWN
FULL SUSPENSION SEAT WITH SWITCH
SEATBELT WITH SEQUENTIAL INTERLOCK
SYSTEM
COMFORT ARMREST
4-INCH LCD COLOUR DISPLAY
ON-BOARD DIAGNOSTIC SYSTEM
EMERGENCY STOP BUTTON INSIDE OF
THE CABIN
HOUR METER
BACK-UP BUZZER
