Magni RTH5.18 Rotational Telehandler

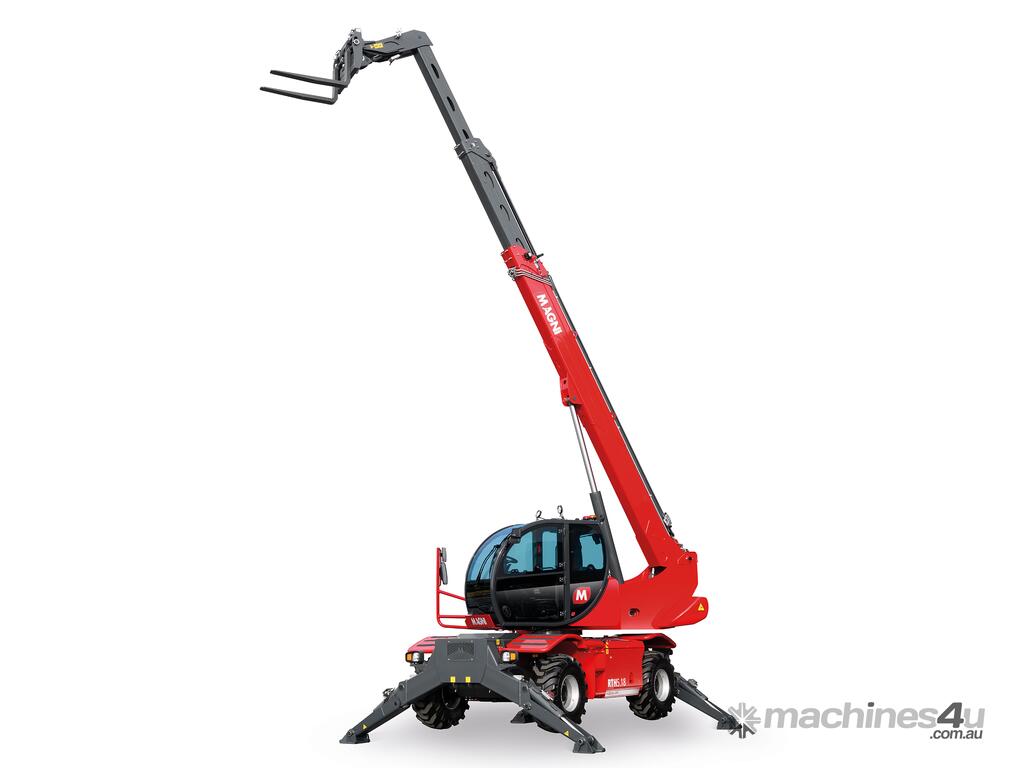

RTH 5.18 – Rotating Telescopic Handler

The RTH 5.18 is a versatile rotating telehandler designed for demanding construction sites and hire fleets across Australia. Compact yet powerful, it supports a wide range of attachments, thanks to its integrated RFID system that automatically identifies accessories and configures the relevant load charts. This makes it ideal for diverse applications in both construction and industrial settings.

Key Features
The RTH 5.18 transforms effortlessly between roles:
Telehandler with forks
Off-road crane with winch
Elevated work platform with basket
Its RFID system ensures automatic attachment recognition, activating the appropriate safety systems and load charts for each tool.

Safety & Visibility

ROPS/FOPS Level 2 certified cab for industry-leading operator protection

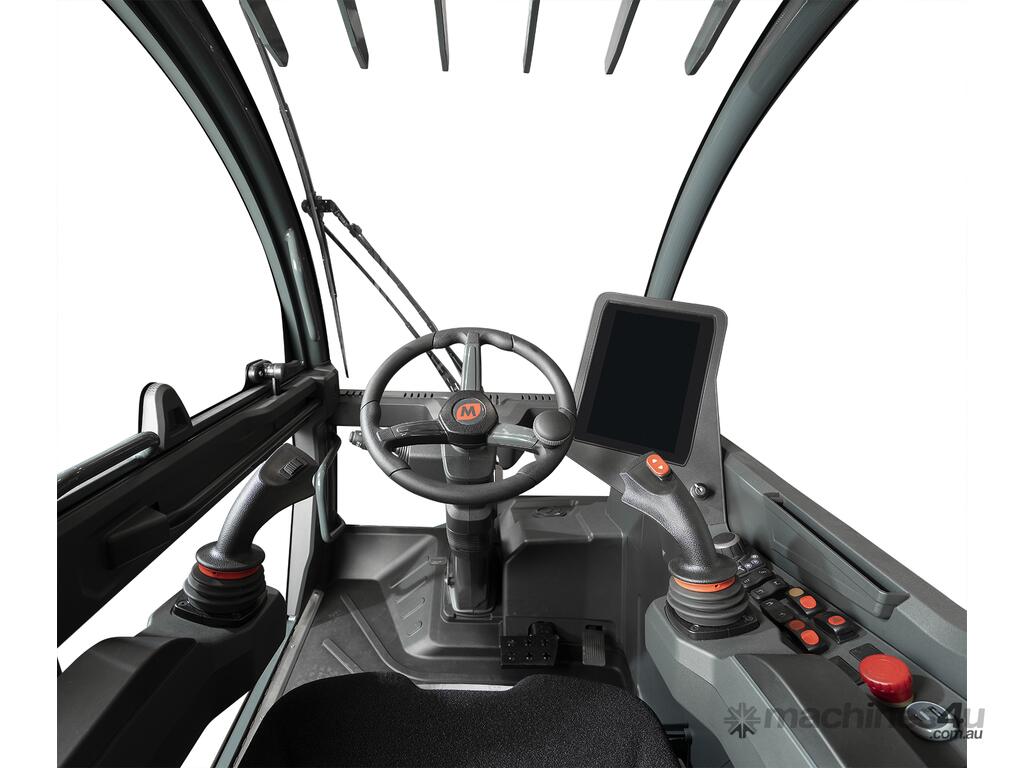

Enhanced visibility through:
Forward-shifted cab
Expanded upper glazing

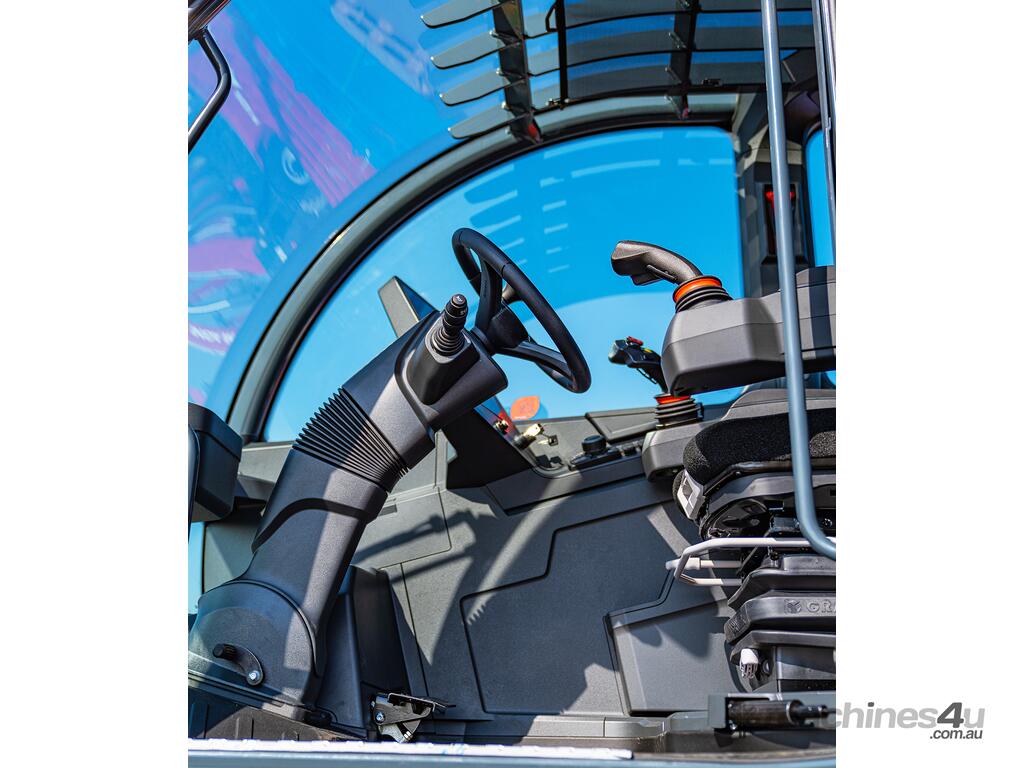

Slimline steering column

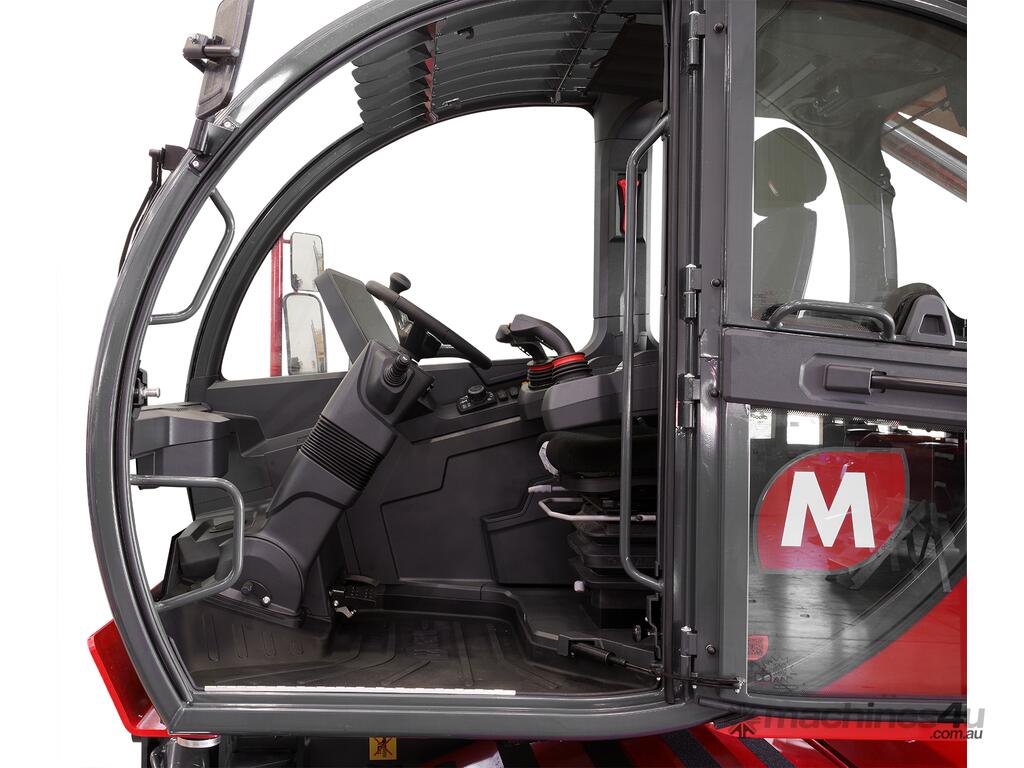

Magni’s patented “Easy Access” system allows slight turret-to-chassis misalignment for easier cab entry

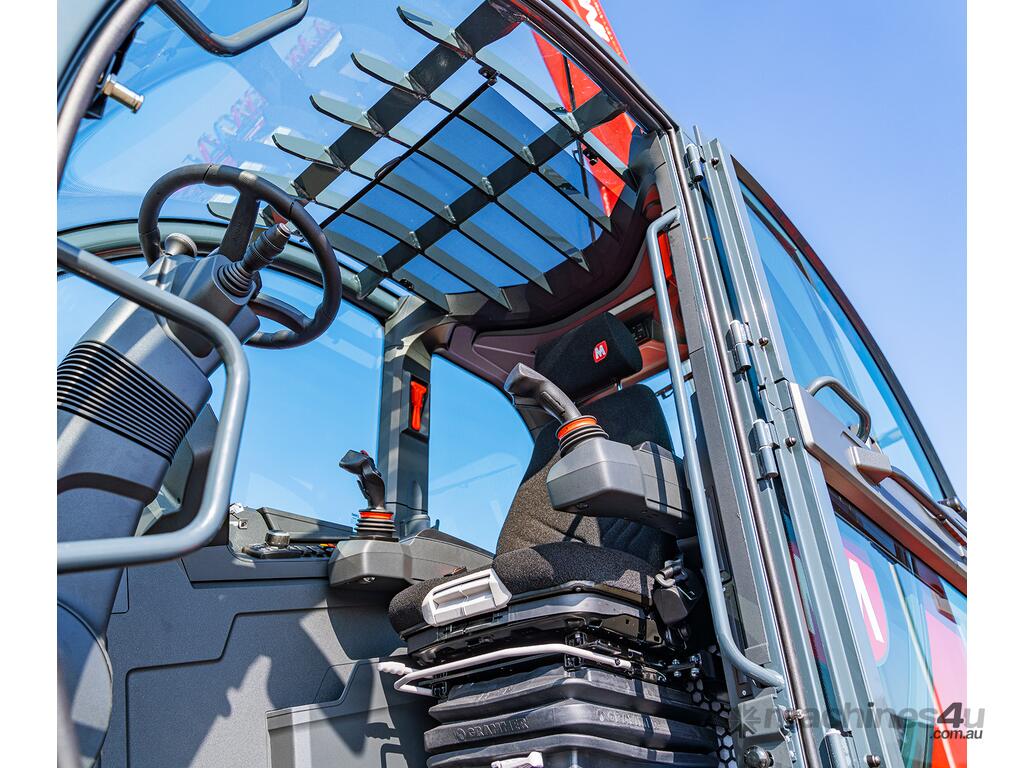

Operator Comfort

Fully redesigned cab interior with injection-moulded panels for durability and premium finish

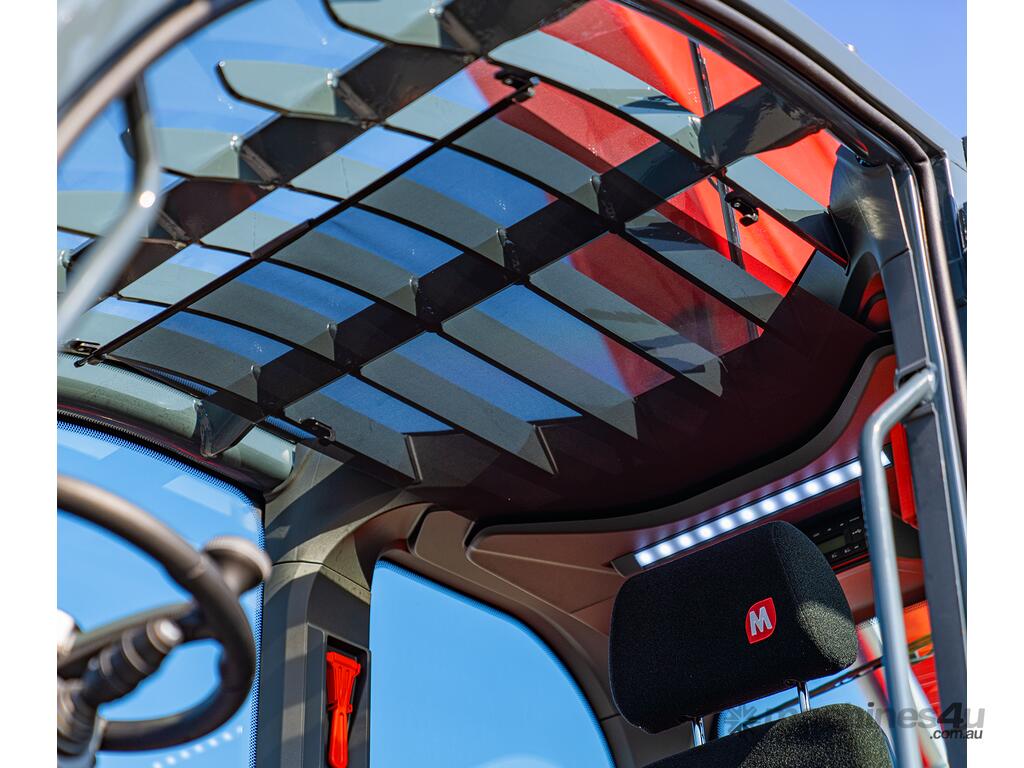

LED courtesy lights activate when the door opens and fade out gradually
Improved airflow and defrosting via redesigned windscreen base
Roof-mounted sunblind with dual locking positions for sun protection

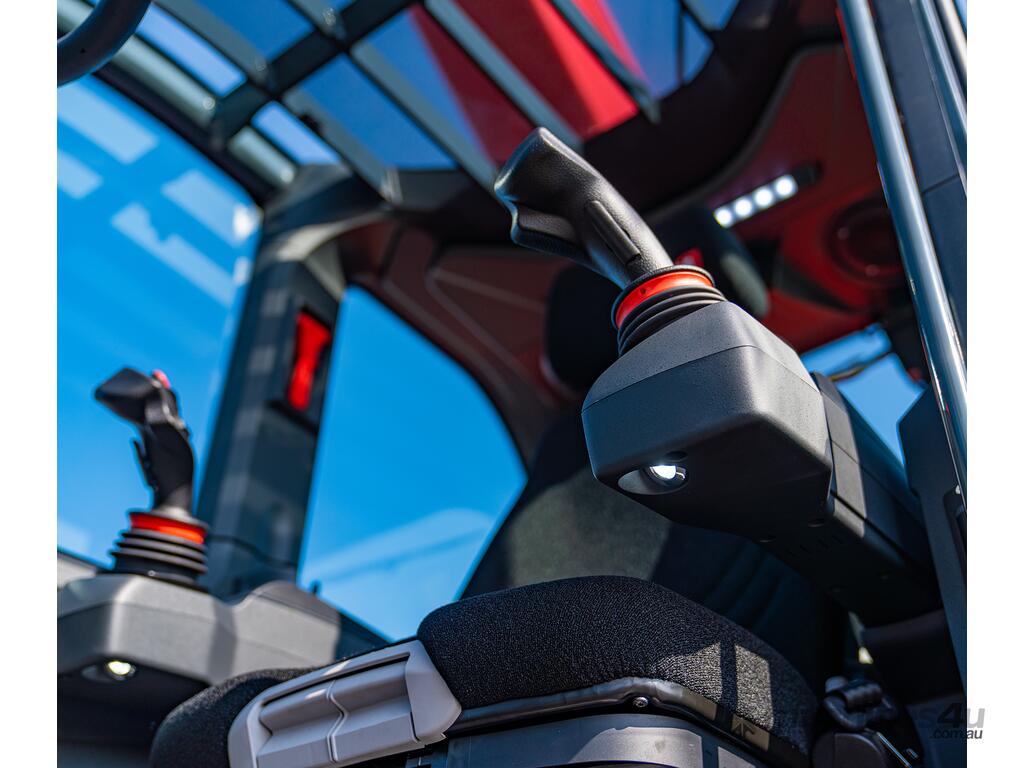

Adjustable armrests with integrated storage
Optional air-suspended, tilting premium seat with headrest

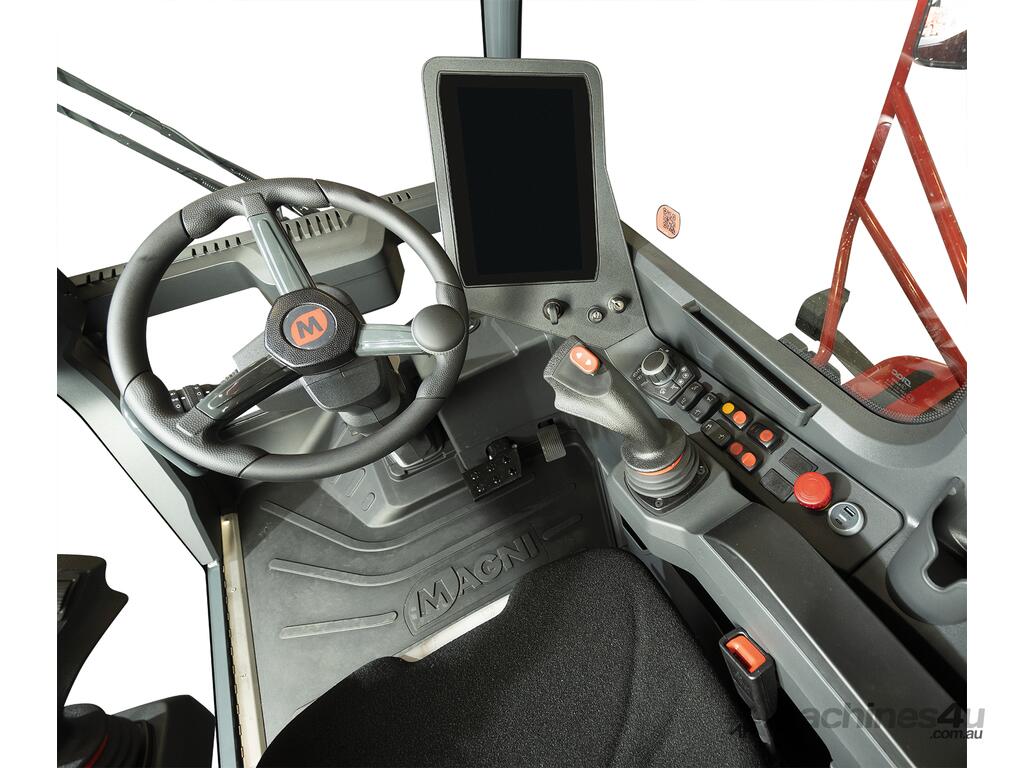

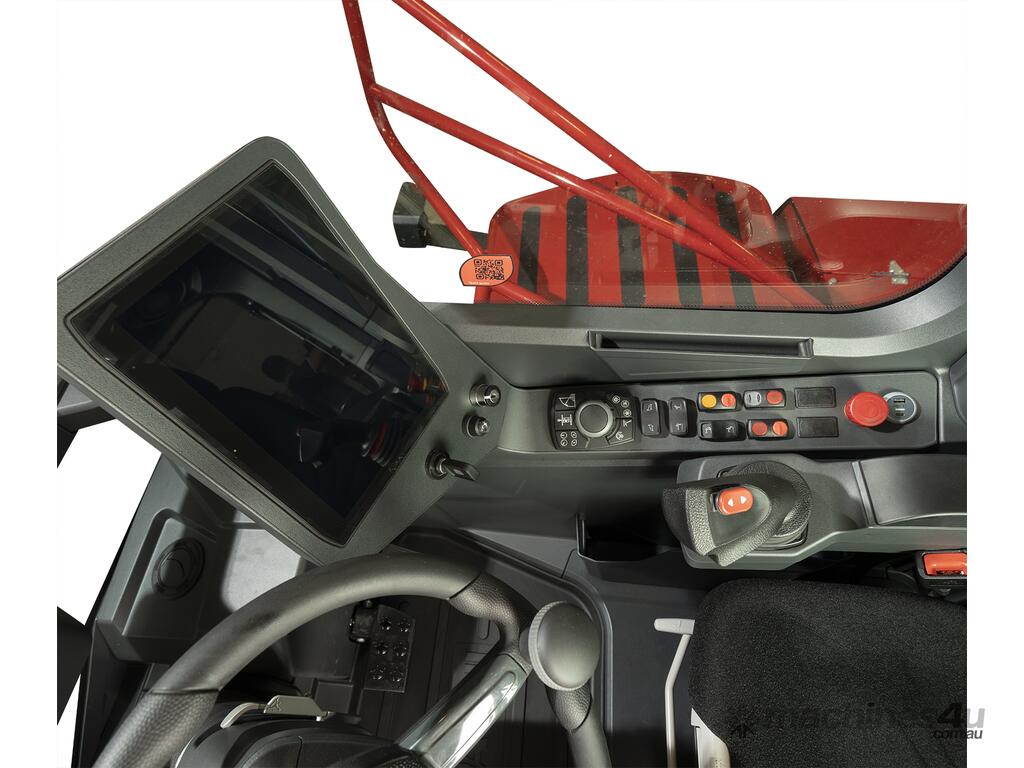

Advanced Control System – MCTS (Magni Combi Touch Screen)
The latest RTH models feature a completely updated software interface accessible via touchscreen, offering:
Eco Mode: Automatically reduces engine RPM at cruising speed to lower fuel use and emissions
Attachment Presets: Three selectable performance modes for precision or responsiveness
Magni LLD (Live Load Diagram):
Standard: Full load band display
Dynamic: Shows available working area based on current load
360° Dynamic: Top-down view of working area for enhanced precision
Also included:

Reversing camera integrated into the MCTS display, activated automatically when reversing


Technical Specifications

Stabilisers: Pivoting type
Maximum Lift Capacity: 4,999 kg
Lift Capacity at Full Height: 3,000 kg
Maximum Lift Height: 17.4 metres
Maximum Reach: 14.5 metres
Engine: Deutz TCD 3.6 L4 HT, compliant with Stage V emissions standards
Rated Engine Power: 55.4 kW (75.3 hp) 2,200 rpm
Hydraulic Flow Rate: 90 litres per minute
Transmission: 2 forward / 2 reverse gears
Hydraulic System Pressure: 350 bar (Load Sensing)
Overall Length: 6.8 metres
Overall Width: 2.53 metres
Ground Clearance: 300 mm
Unladen Weight: 14,400 kg
Maximum Travel Speed: 25 km/h
Boom Rotation: Continuous 360°

Standard Features:
Climate control (air conditioning)
Automatic attachment recognition
Reversible fan drive
