Magni RTH5.21 Rotational Telehandler

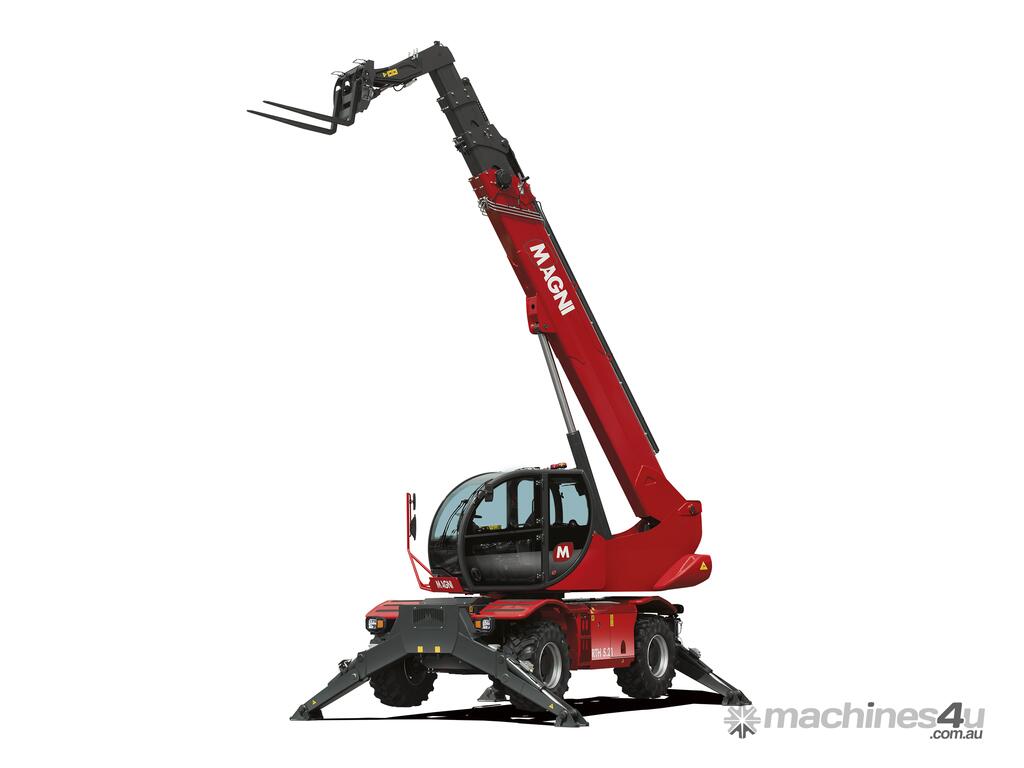

The RTH 5.21 is a simple yet high-performance rotating telescopic handler. It can lift loads up to a height of 21 m and is equipped with pivoting stabilizers to guarantee stability and safety during all operational manoeuvres. It is also equipped with a safe load indicator to inform the driver of the risk of overloading the machine during use and features three steering modes. It is compatible with a wide range of accessories thanks to its RFID system which allows automatic recognition of attachments and creation of the corresponding load charts. This telescopic handler is the ideal solution to a long list of requirements in the construction and production sectors.



Technical Specifications – RTH 5.21
Stabilisers: Pivoting type
Maximum Lift Capacity: 4,999 kg
Lift Capacity at Full Height: 2,500 kg
Maximum Lift Height: 20.5 metres
Maximum Reach: 17.4 metres
Engine: Deutz TCD 3.6 L4 – Stage V compliant
Rated Power: 100 kW (136 hp) 2,200 rpm
Transmission: 2 forward / 2 reverse gears
Hydraulic System: Load Sensing, 350 bar
Overall Length: 6.57 metres
Overall Width: 2.55 metres
Ground Clearance: 330 mm
Unladen Weight: 15,900 kg
Maximum Travel Speed: 40 km/h
Boom Rotation: Continuous 360°
Standard Features:
Climate control (air conditioning)
Automatic attachment recognition via RFID
Reversible fan drive for improved cooling and maintenance
