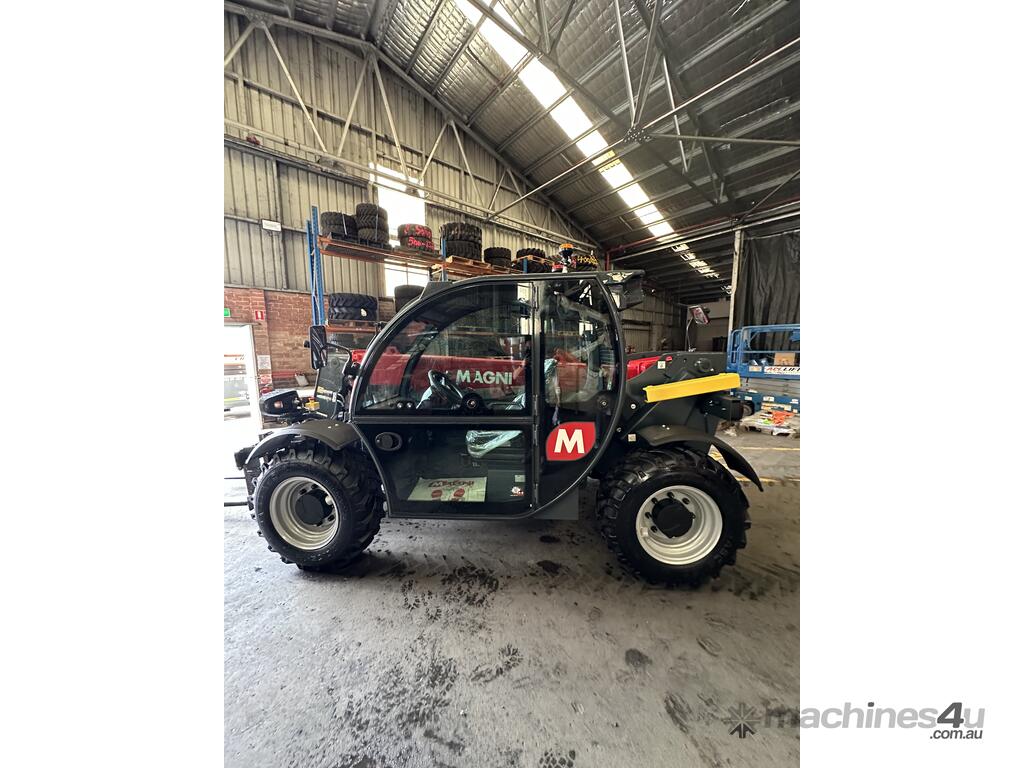

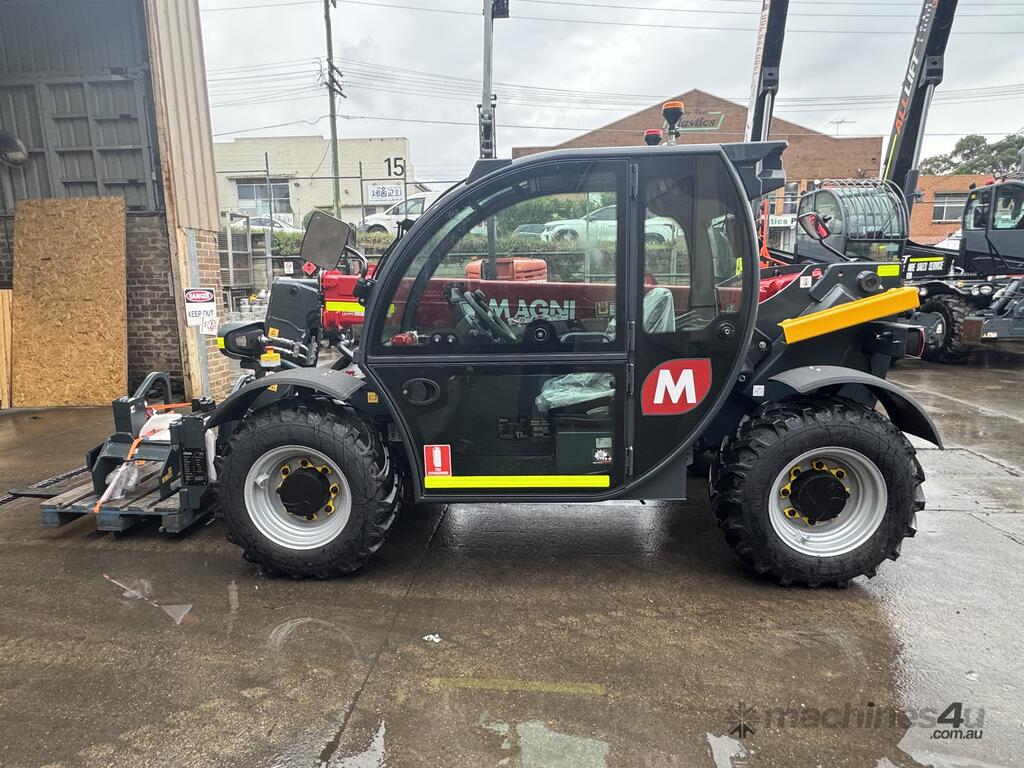

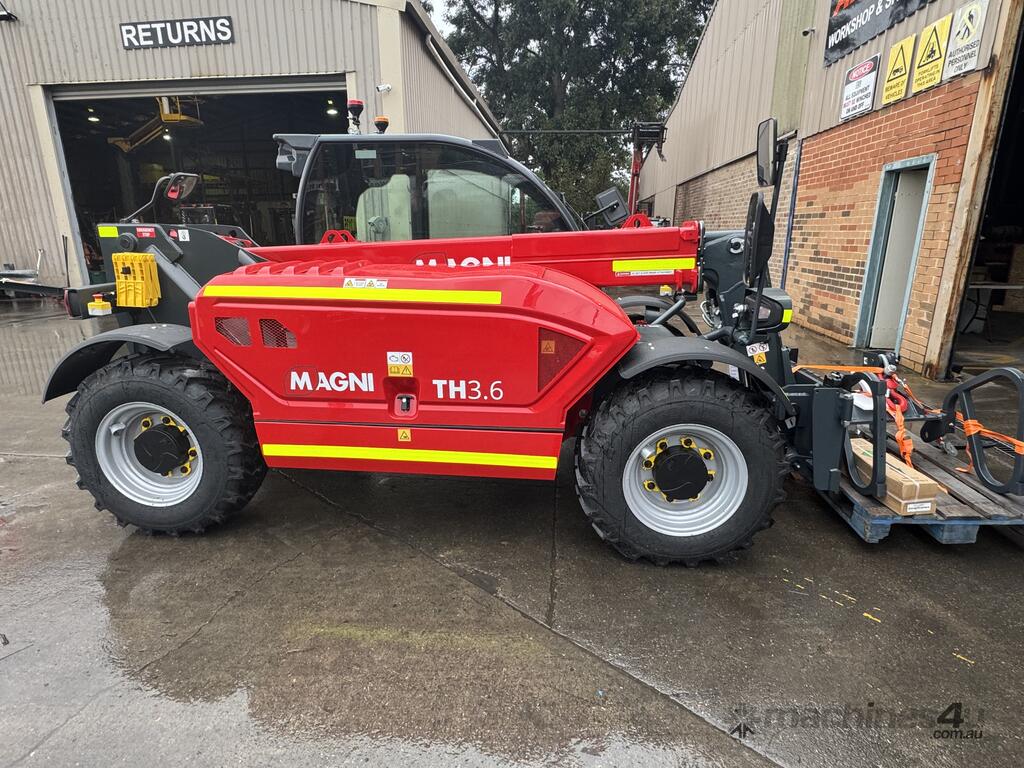

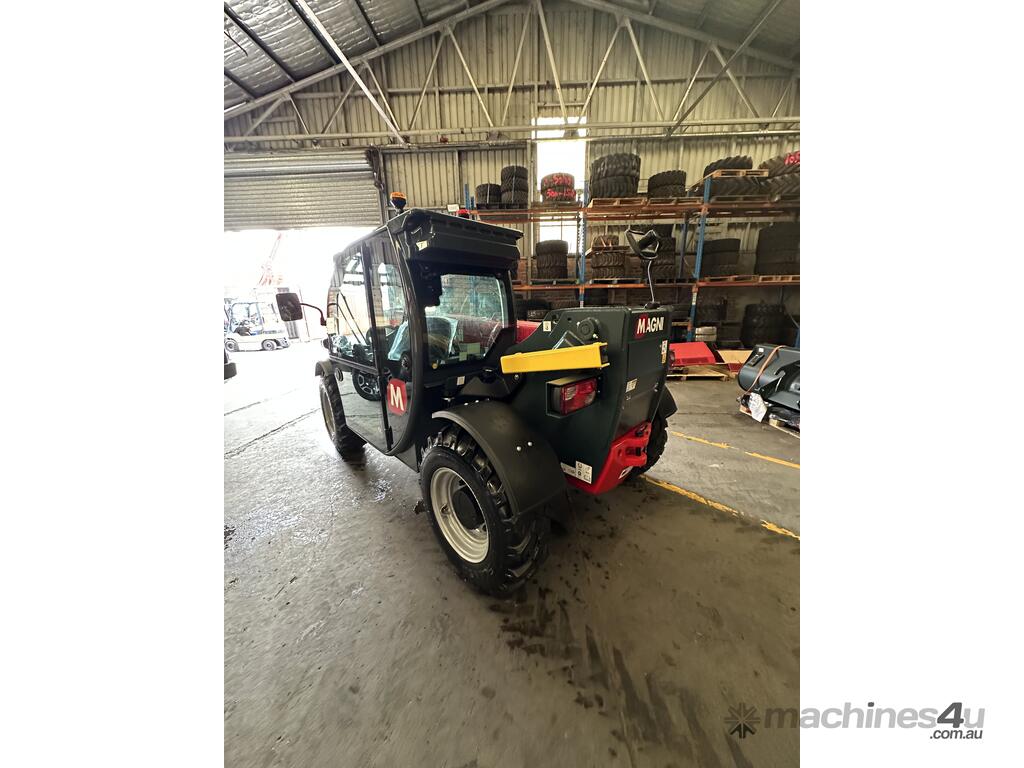

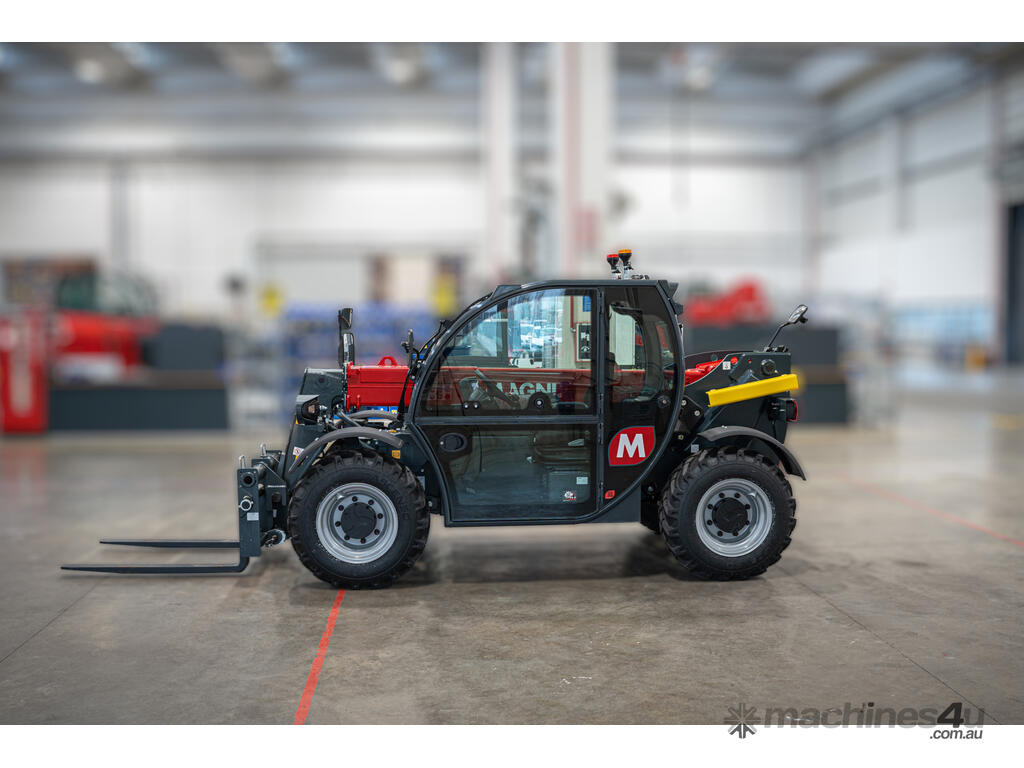

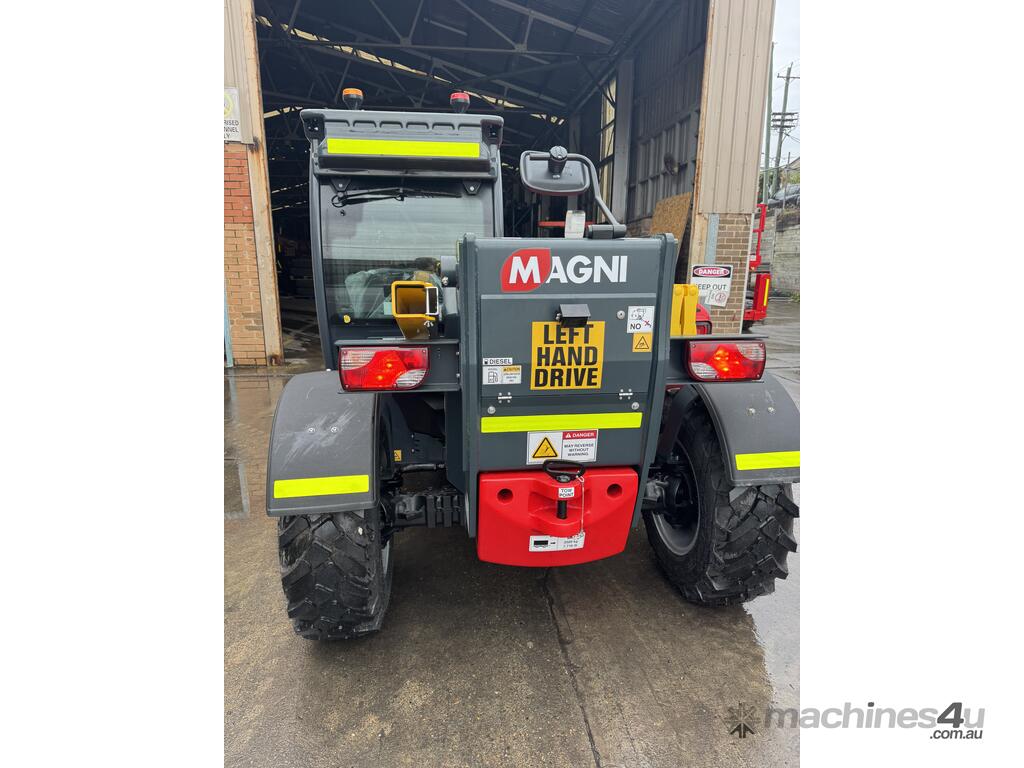

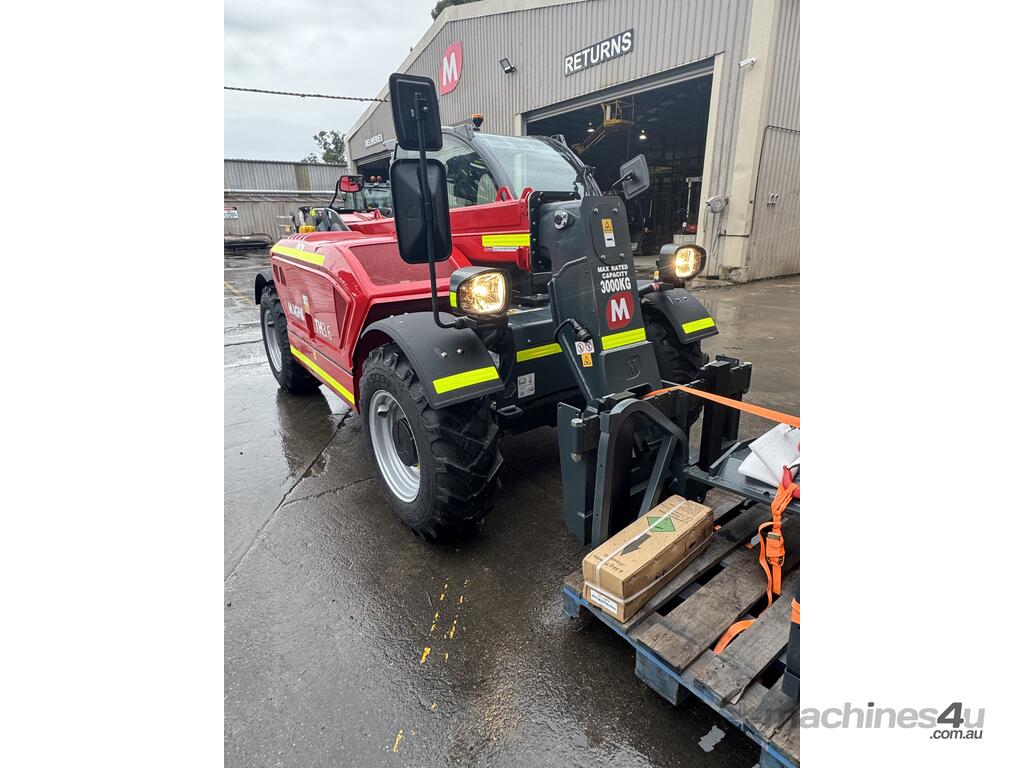

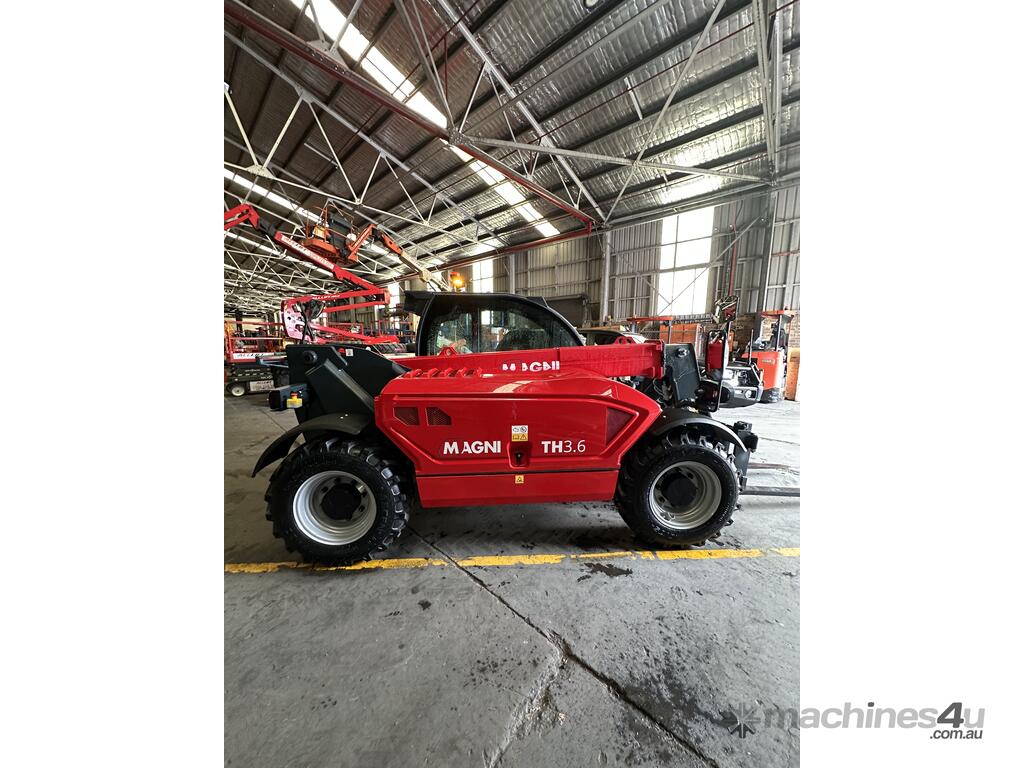

All Lift are excited to introduce the MAGNI TH3.6, the latest addition to MAGNI
Designed for versatility and built with Italian engineering excellence, the TH3.6 is a compact powerhouse that delivers unmatched performance in tight spaces. Whether you're working in construction or industrial settings, this machine is built to elevate productivity and safety.
Why the MAGNI TH3.6?
• 3.6-ton lifting capacity with precision control
• 6-meter lift height – ideal for confined job sites
• Compact footprint for superior manoeuvrability
• Rugged build with MAGNI’s signature reliability

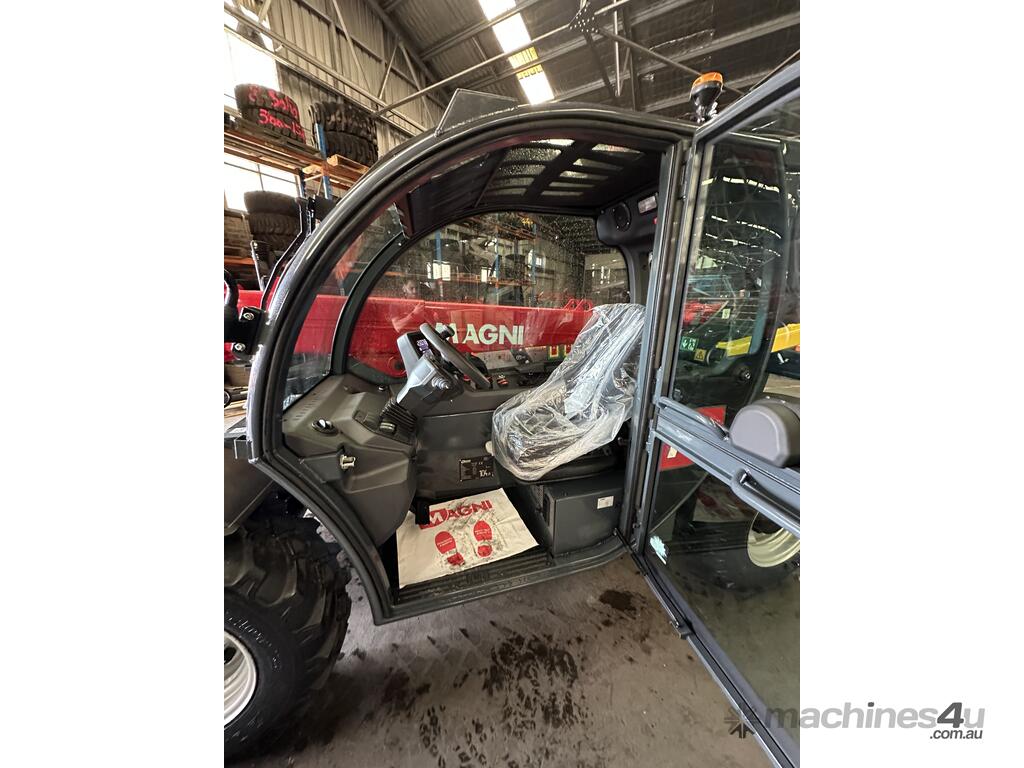

• Advanced operator comfort and intuitive controls

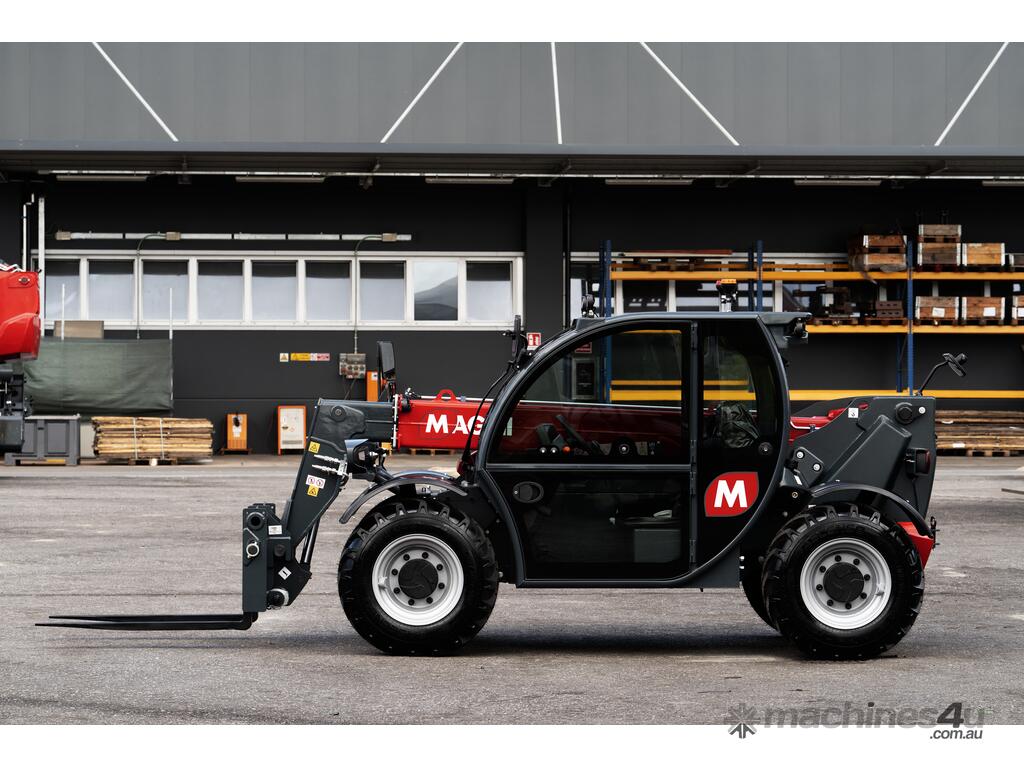

With capacity of 3 tonnes and lifting height of 5.8 metres, the new TH 3.6 combines small size with impressive performance. In fact, the most compact fixed telescopic handler in the TH range, intended for the construction and logistics sectors and soon also for agriculture, is able to lift its maximum load to a height of 5.4 metres, 2,500 kg to the maximum height and 1,100 kg to a horizontal reach of more than 3 metres (10 feet). Its low-level design makes it ideal for tight spaces, while retaining optimal ground clearance for uneven terrains.
These characteristics, together with a Deutz Stage V engine of 75 kW give it a top speed of 35 km/h. The four-wheel drive and steering, with hydrostatic transmission, provide superlative stability and manoeuvrability with 3 steering modes: front, concentric and crab.

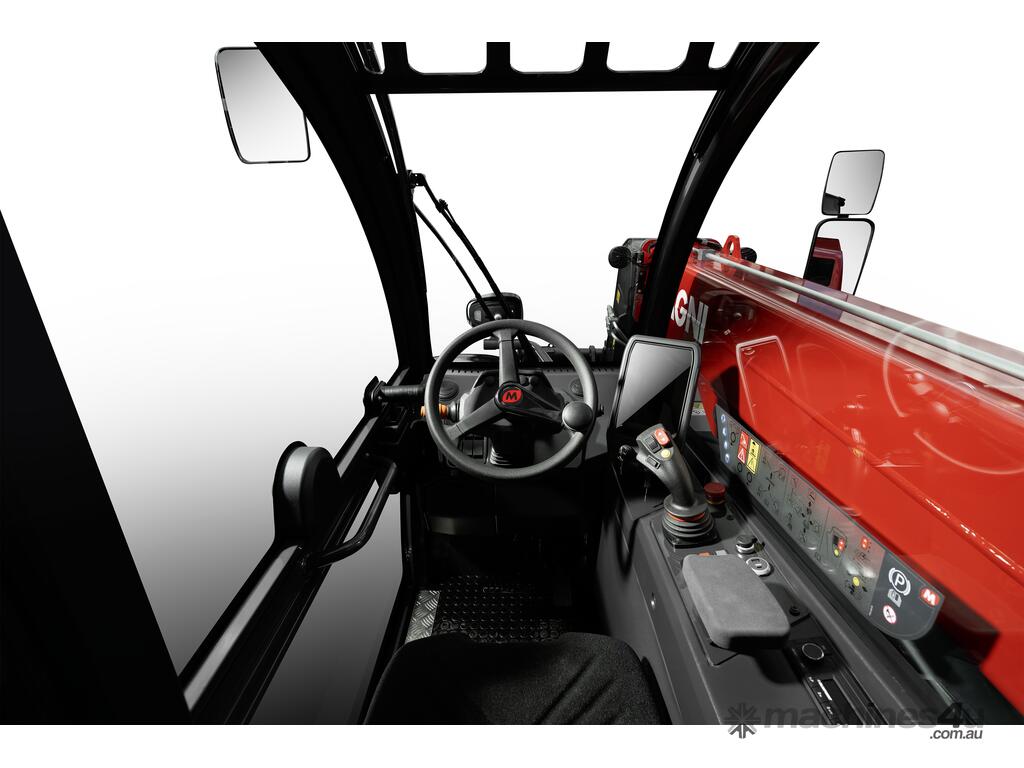

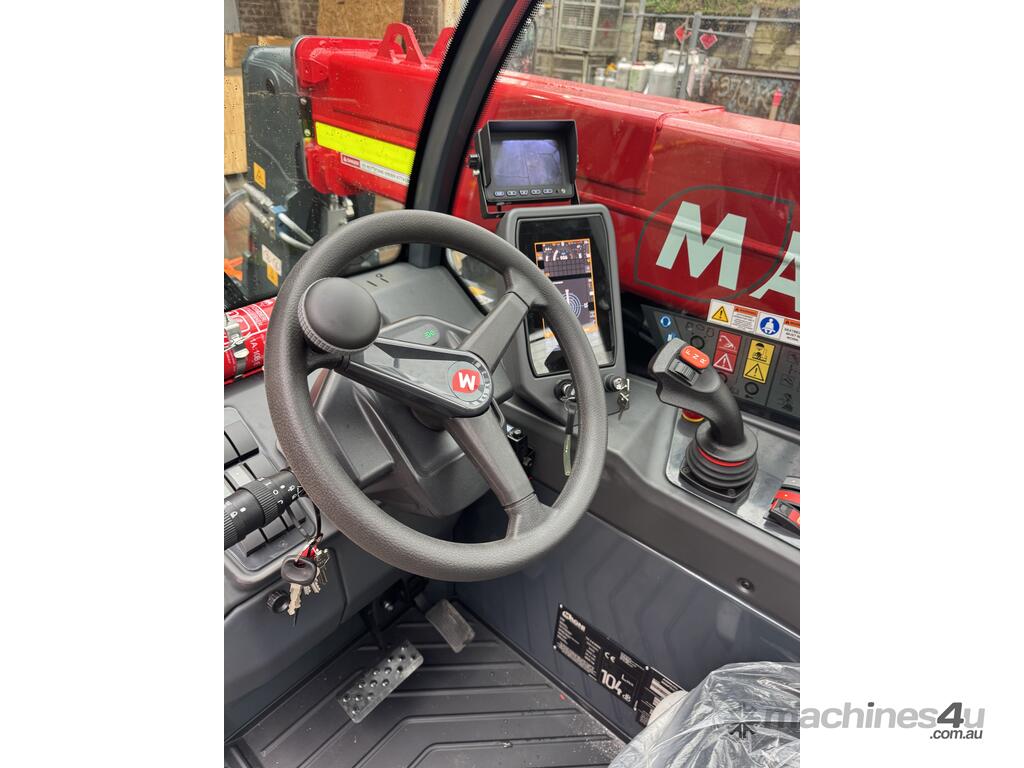

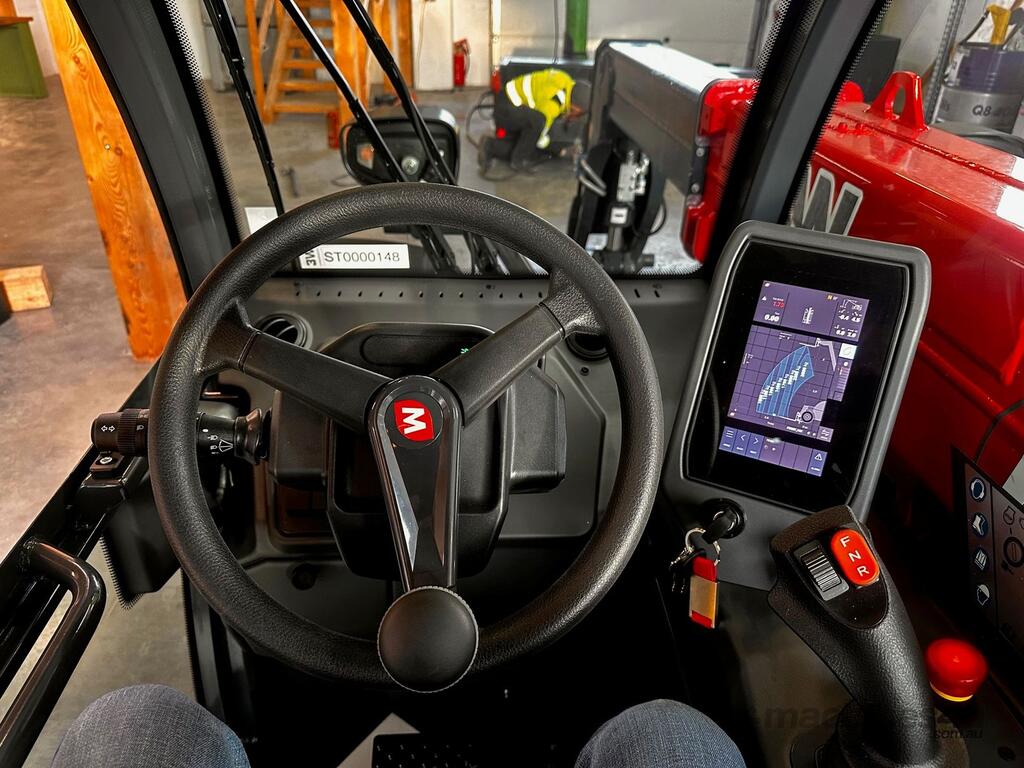

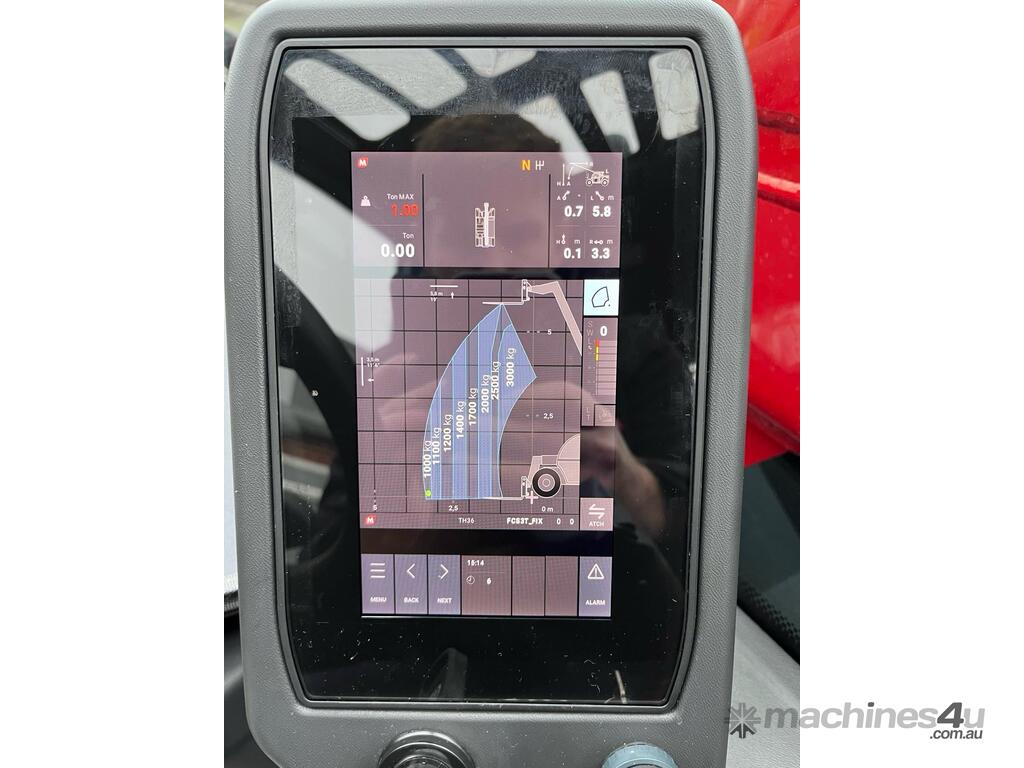

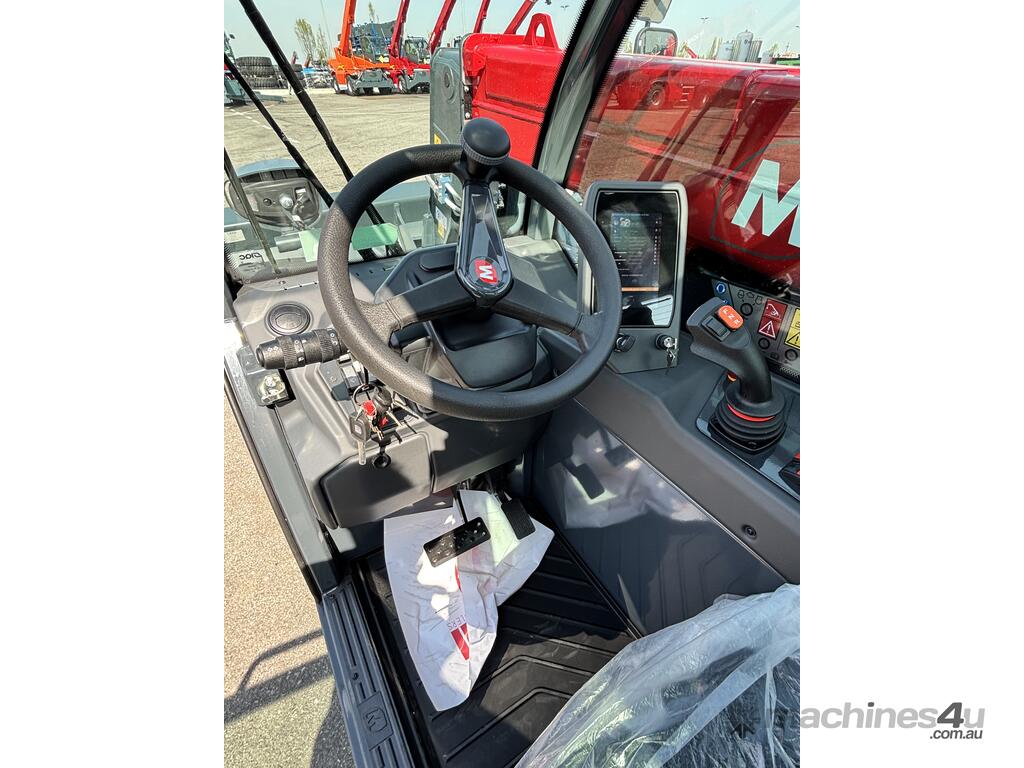

Consulted via the 7 inch touch screen, the MCTS (Magni Combi Touch System) on-board software provides complete control of the machine with icon-based navigation. From the main menu, the operator can access the themed screens with the various functions, including load charts.
Specifications:
o Stabilizers: None
o Lifting capacity: 3,000 kg
o Capacity at maximum height: 2,500 kg
o Lifting height: 5.80 m
o Reach: 3.20 m
o Engine: Deutz TD 2,9 L4 EDG - Stage V
o Rated power: 55 kW (75,30 hp) 2.600 rpm
o Number of gears: 2/2
o Hydraulic system: 255 bar (Load Sensing)
o Length: 3.79 m
o Width: 1.81 m
o Ground clearance: 380 mm
o Unladen weight: 4,850 kg
o Travel speed: 35 km/h
