Manual Arbor Press AP-2, 2 Tonne Pressure, 180mm Height Heavy Duty Arbor Press C/W Slotted Table

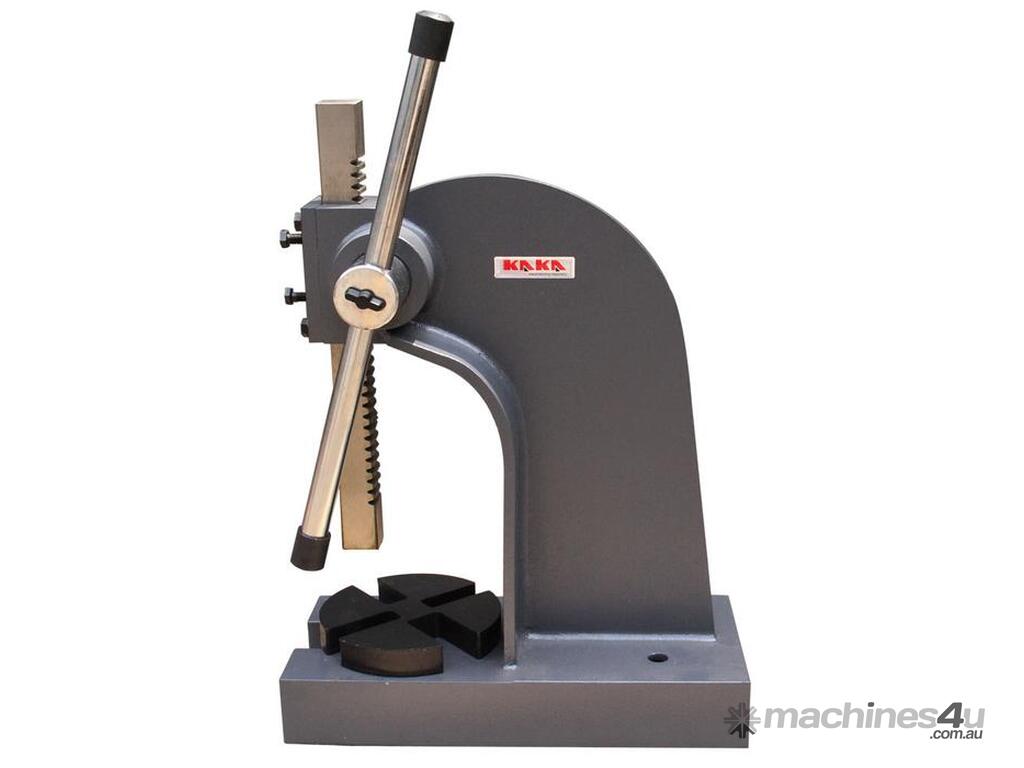

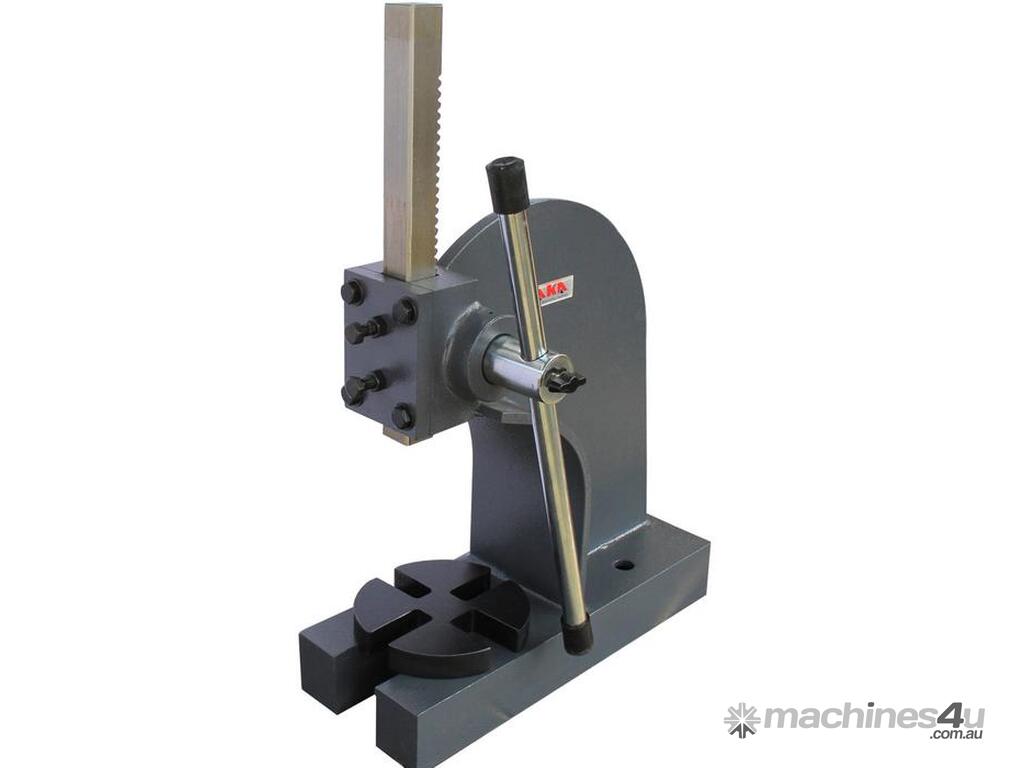

KANG Industrial 2 Tonne Arbor Press

Add serious pressing power to your workshop with this KANG 2 Tonne Manual Arbor Press. Built from high-quality steel, this robust bench-mounted tool is perfect for precision assembly, disassembly, and forming tasks in Australian garages, fabrication shops, automotive workshops, and home engineering setups. This lever-operated arbor press delivers up to 2 tonnes of force for pressing bearings, bushings, gears, pins, rivets, and more. The ram is a solid 32 x 32 mm square section for accurate, repeatable pressing.

Powerful 2 Tonne Capacity Manual Press. Delivers massive force for pressing bearings, bushings, gears, pins, and assembling/disassembling press-fit parts with ease.

Heavy-Duty Steel Construction Arbor Press. Extremely rigid and durable, built to withstand years of heavy use in busy workshops.

4-Position Base. Rotate the frame into 4 different positions for the best access and leverage on any job.

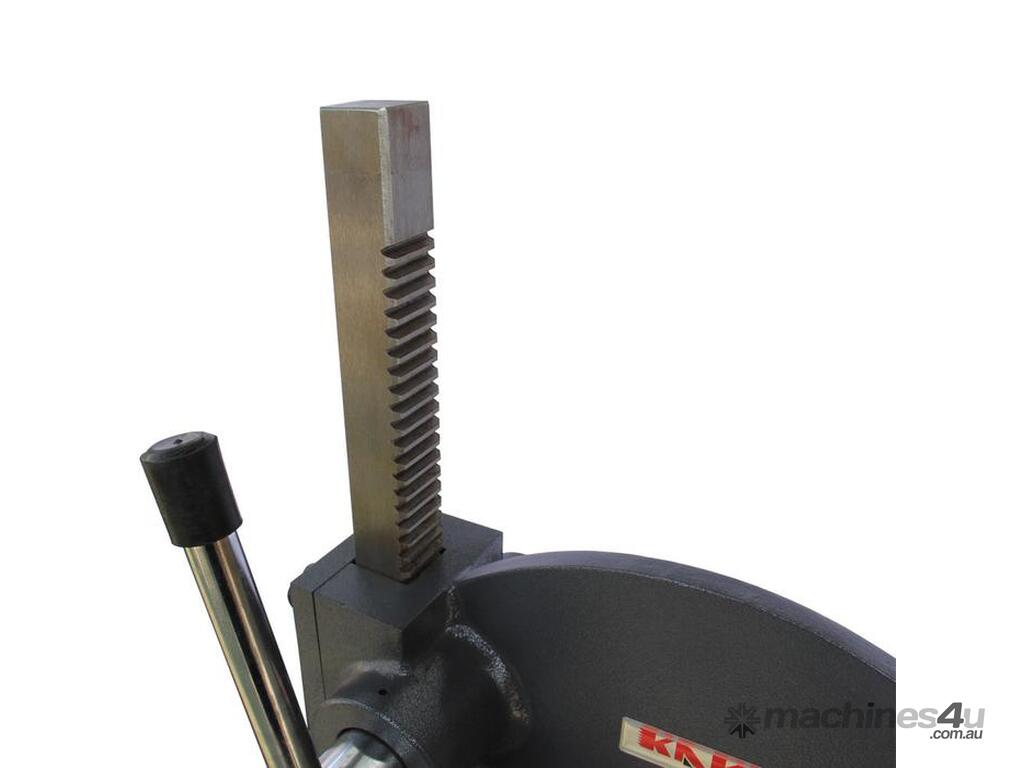

Precision 32mm Square Ram. Ensures accurate, straight pressing without deflection – critical for bearings and precision work.

Generous Throat & Work Height. 123 mm throat depth and 180 mm max height handle a wide variety of component sizes.

Stable Large Base Bench Type Press Machine. 432 x 260 mm footprint bolts securely to your bench for rock-solid operation.


Features

Throat depth 123 mm, and accepts material height to 180mm

Hardened 32x32 mm ram transfer pressure

Standard with a 4-position bottom die plate to secure various broach sizes

It could be bench-mounted.

Different working capacities are available

AP-1/2 (0.5 Tonne)

AP-1 (1 Tonne)

AP-3 (3 Tonne)

AP-5 (5 Tonne)

Specifications
SKU 176503
Model AP-2
Capacit 2 Ton
Max. height & dia. 180x123mm
Largest arbor 40 mm
Table size ø 155mm
Ram square 32x32 mm
Press Ht. 445 mm
Base size 432x260 mm
Packing size 46x20x48 cm
N.W./G.W. 30/31 kg
