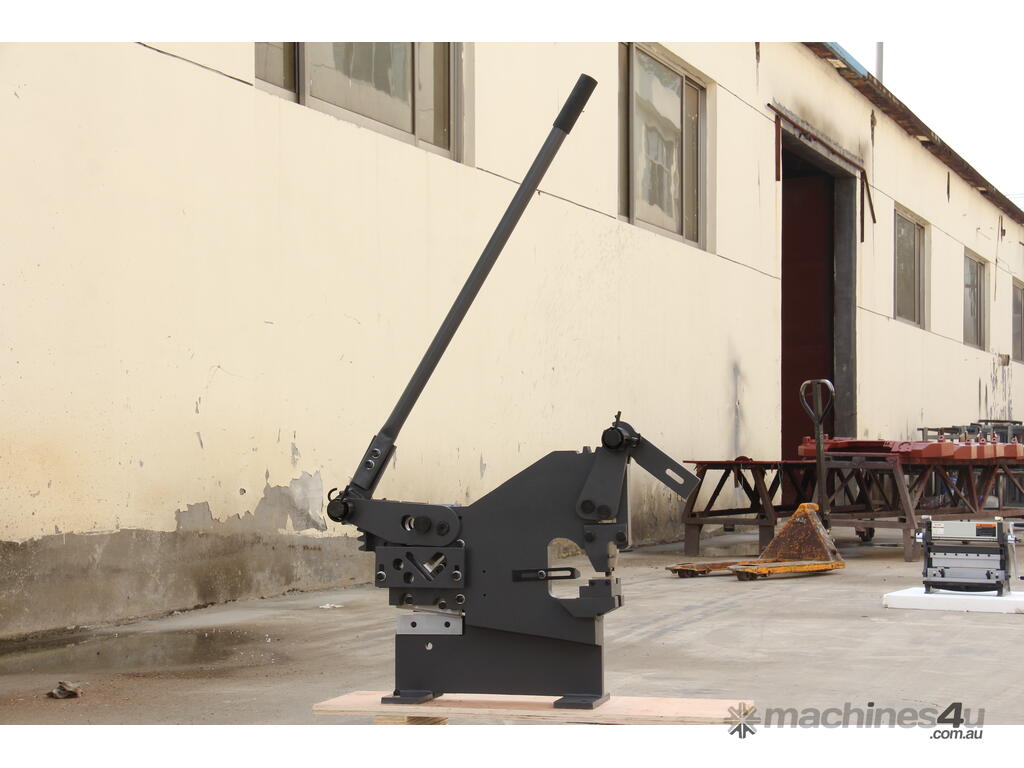

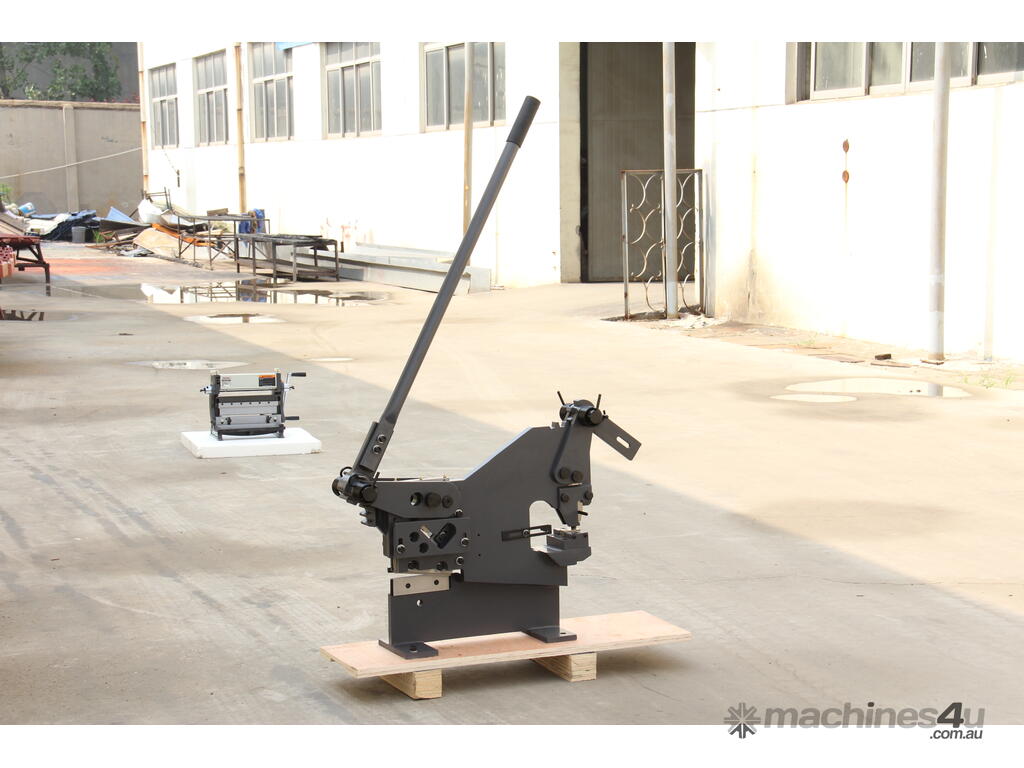

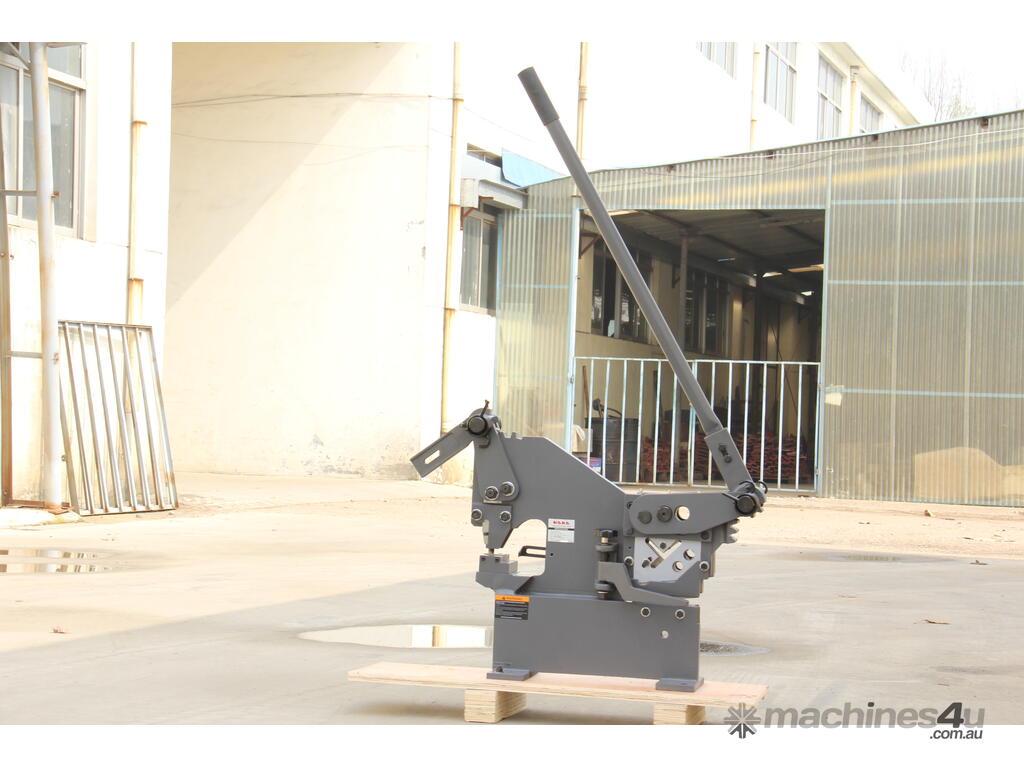

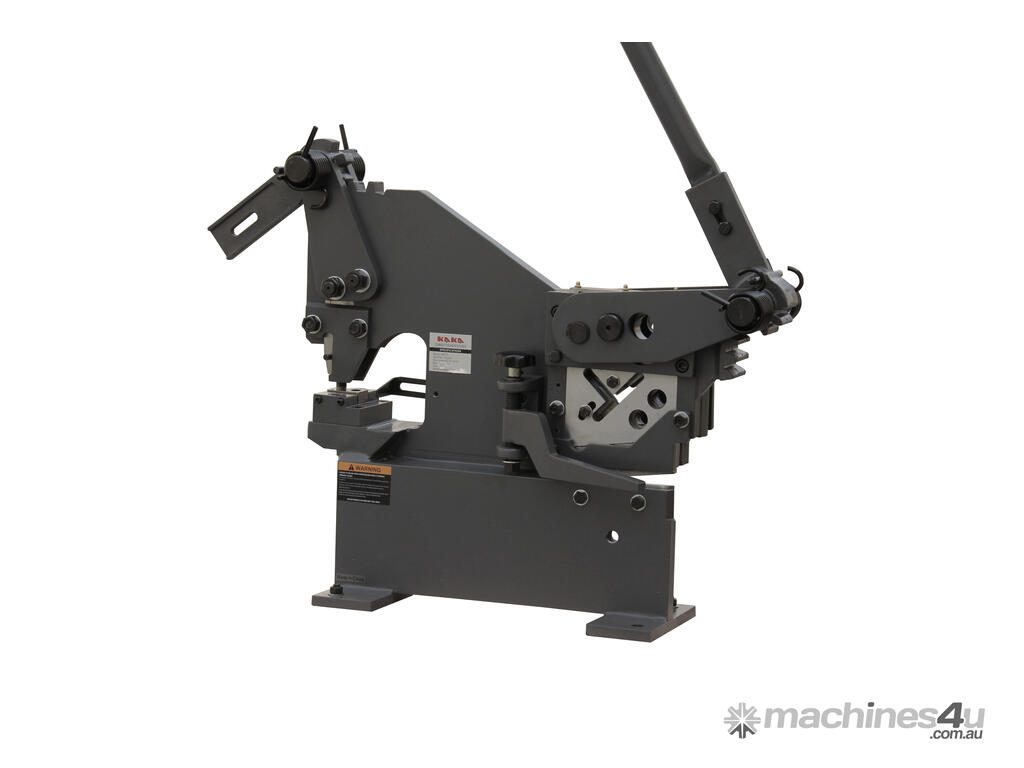

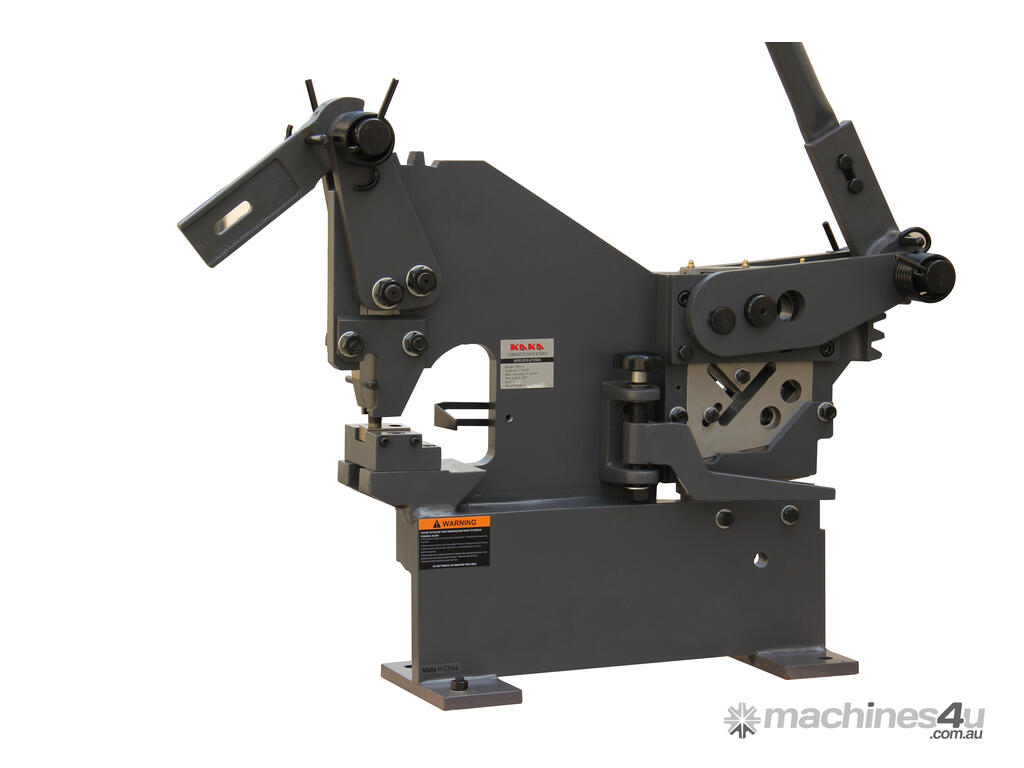

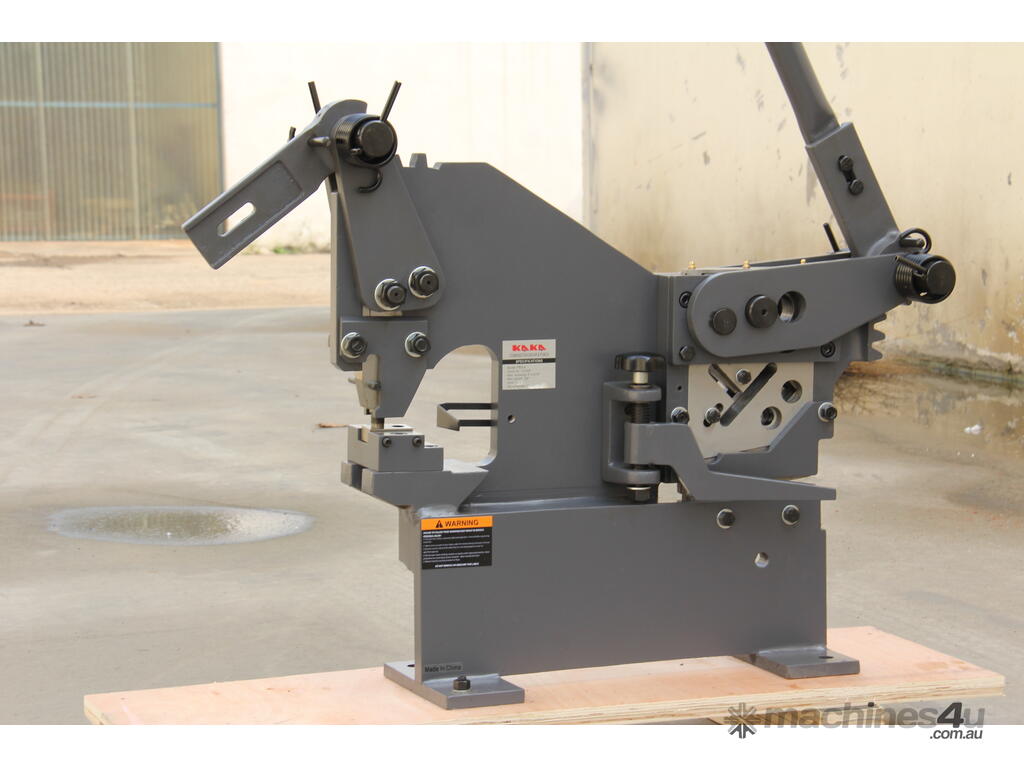

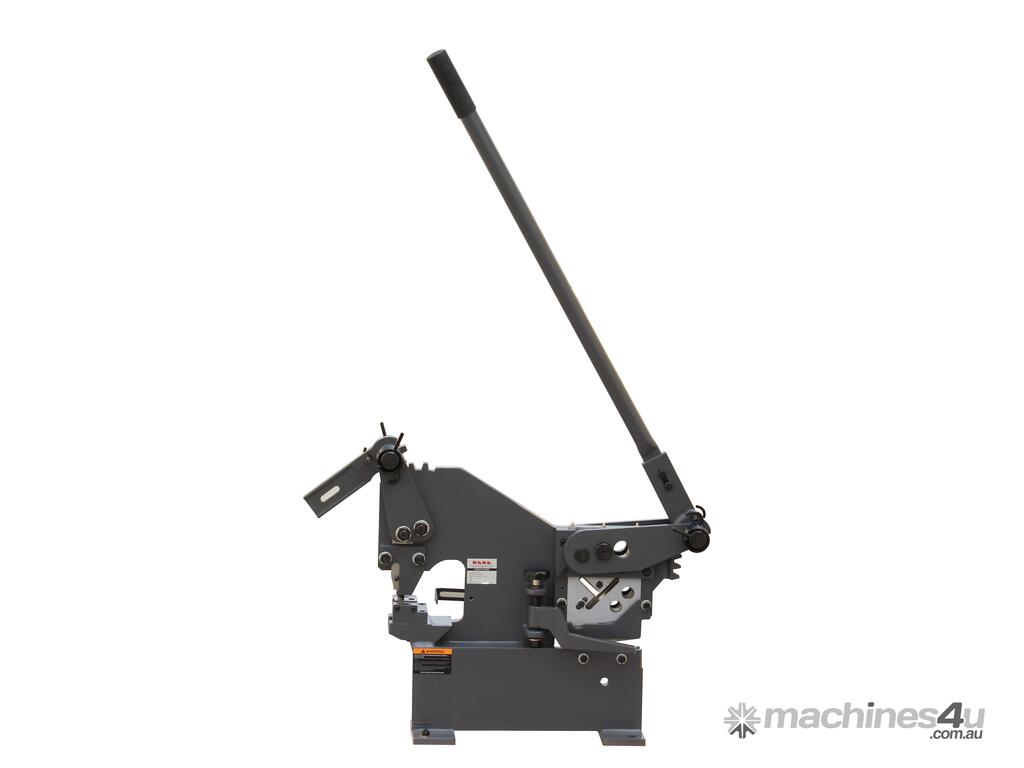

KANG Industrial Manual Iron Worker PBS-9 with Punch

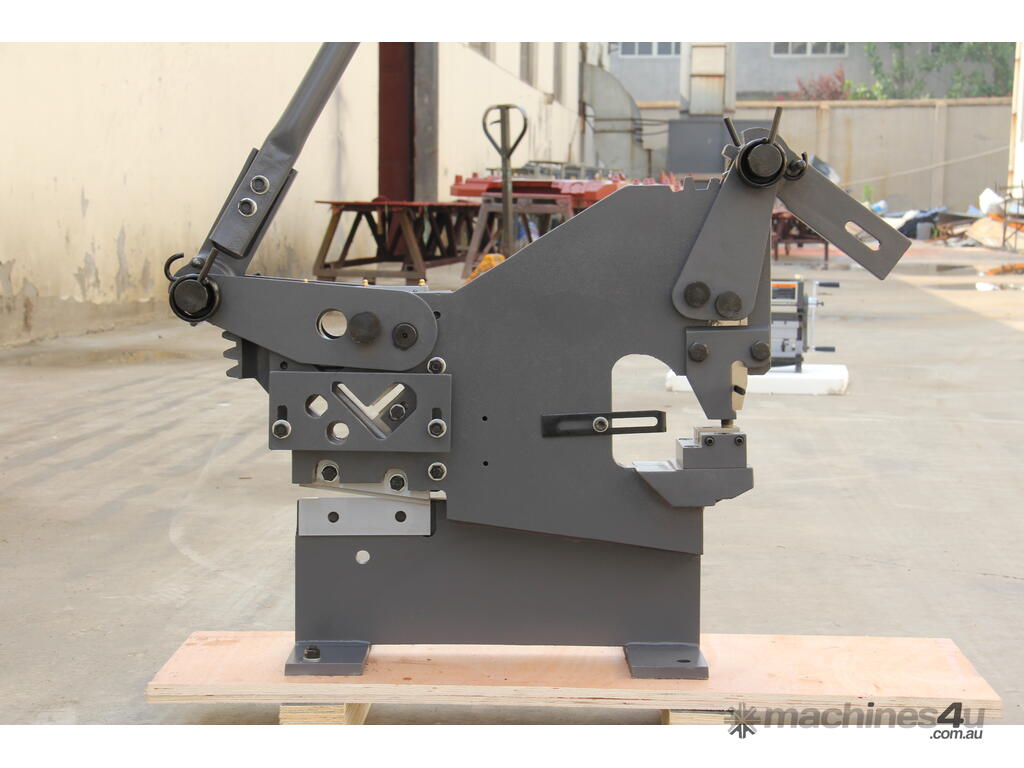

The KANG PBS-9 Manual Ironworker with Punch is a versatile, multi-purpose metal fabrication machine designed for small workshops, maintenance departments, and home hobbyists. It effectively combines two machines into one compact footprint: the manual sheet metal punch and the manual ironworker. It features a robust plate-steel frame and a gear-driven mechanism that translates manual arm strength into high-pressure cutting and punching force.
Space Efficiency Manual Ironworker. By combining punching and shearing into one unit, it frees up critical floor space compared to owning separate machines.
No Power Required Machine Tools. Perfect for remote jobsites or rural workshops where 3-phase power is unavailable or expensive to install. It is ready to work anywhere, anytime.
Durability for Harsh Conditions. Constructed from heavy plate steel rather than cast iron, this machine is built to withstand rigorous environments without cracking or failing under high stress.
Repeatability Working. The inclusion of a manual back-stop allows for light production work, enabling the user to cut multiple pieces to the same length quickly.
Cost-Effective Professionalism. It offers the functionality of a professional hydraulic ironworker at a fraction of the price, making professional-grade results accessible to smaller operations.
Features
A combination of the manual ironworker and punch machine saves space in a small workshop

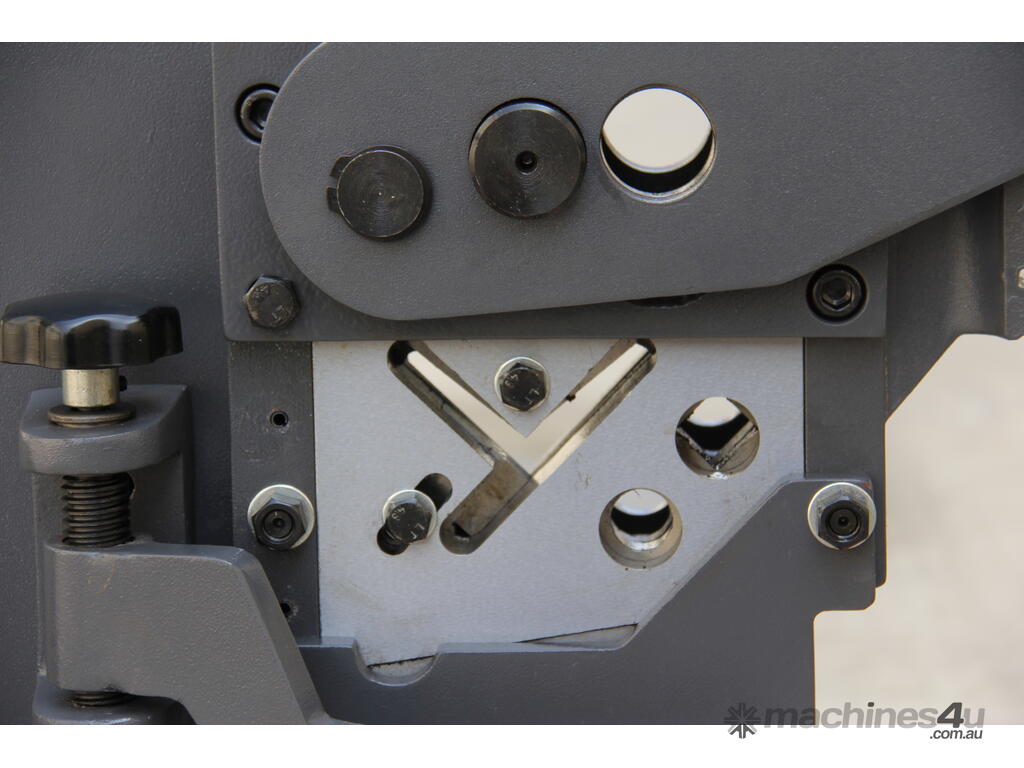

The shear station could cut angle iron, flat bar, solid round, and solid square.

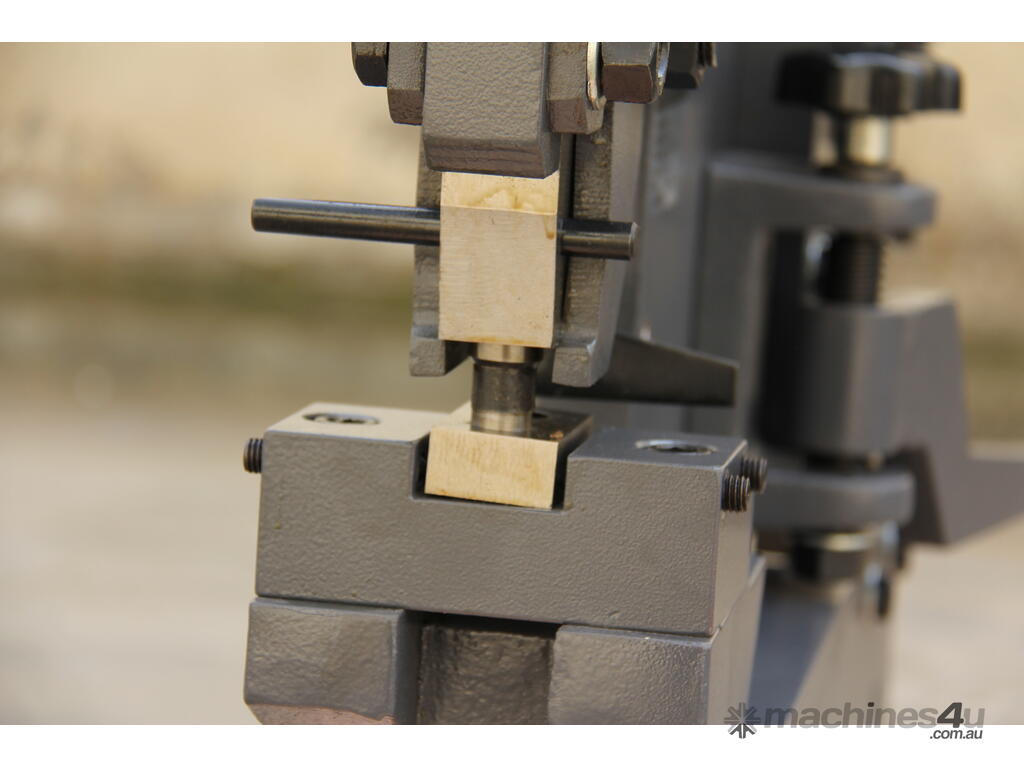

Standard with one set of punch dies (OD 16mm only)
Back-stop lets you make repeatable work for light production work
Material hold-down ensures straight, clean shearing and punching
Gear transfers the power from the arm to the blade
A long handle offers more leverage and could multiply your force

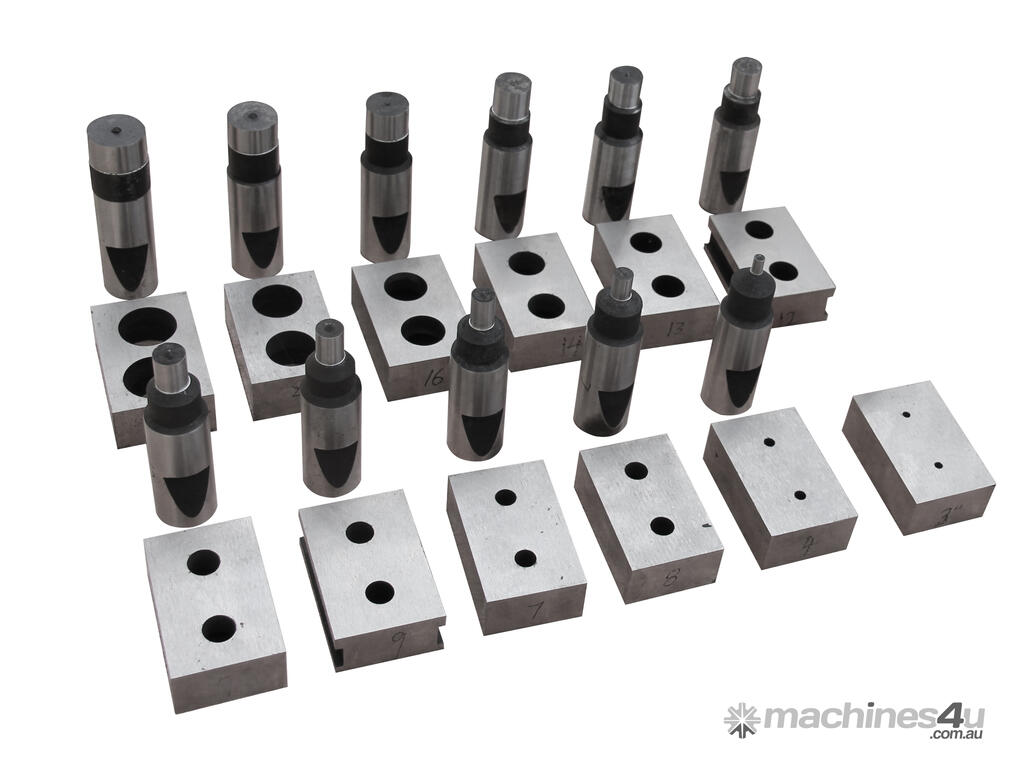

Optional punch die sets are available. (range 6-20mm dia.)
Specifications
SKU 172304
Model PBS-9
Cut round steel 15 mm
Cut square steel 15 mm
Cut flat steel 90x8 mm
Cut angle steel 60x7 mm
Cut T-steel 60x7 mm
Cut plate steel 6 mm
Packing size 106x36x84 cm
N.W./G.W. 130/160 kg
