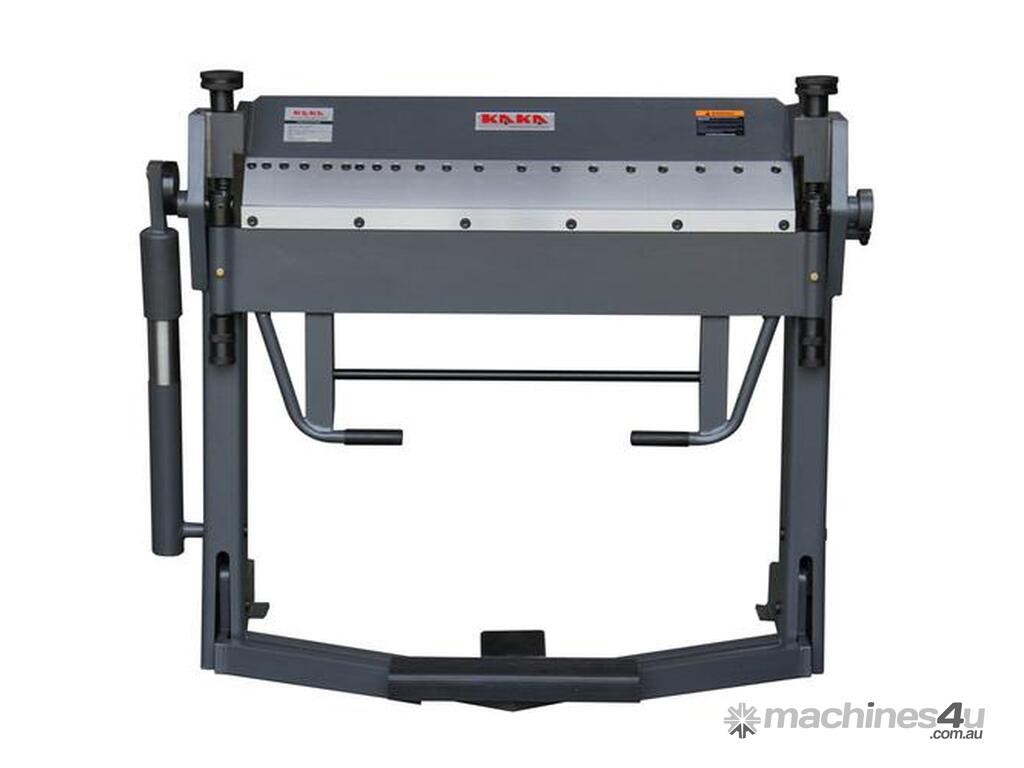

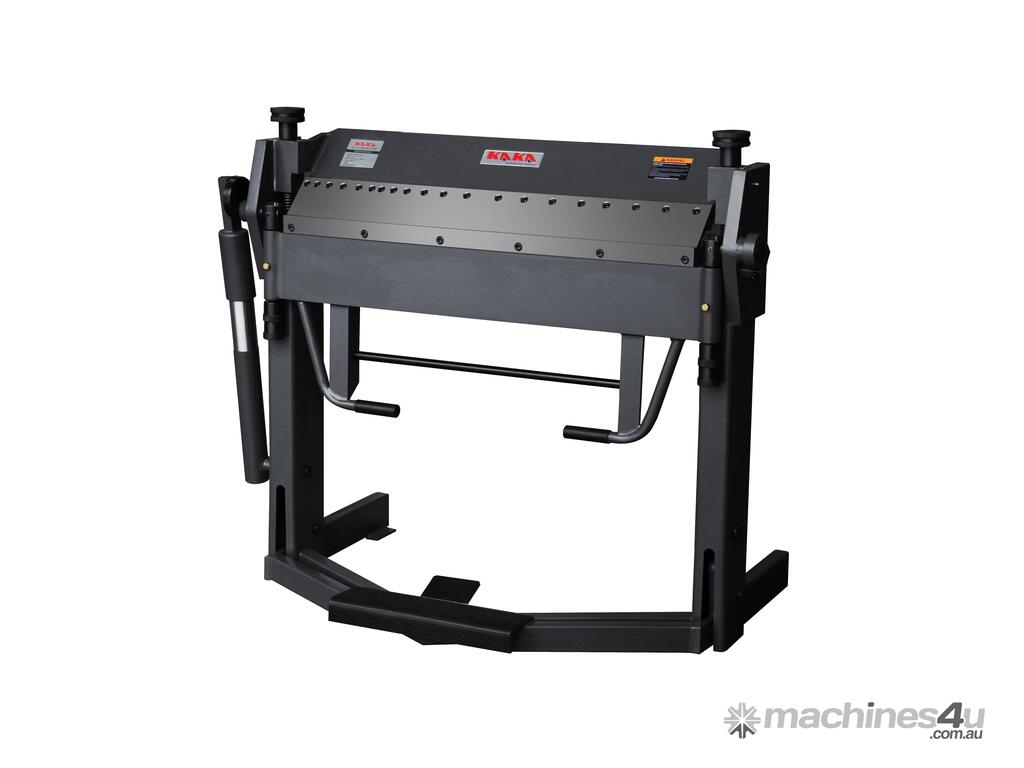

KANG Industrial PBB4012 Pan box brake, 2.5x1020 mm mild steel plate folding machine
The KANG PBB-4012 is a robust, manually operated sheet metal bender designed for precise and powerful sheet metal fabrication. It boasts an exceptional capacity, able to bend 2.5 mm of mild steel across its 1020 mm working width, and up to 3.0 mm in aluminium, making it superior for heavy-gauge work compared to standard folders.

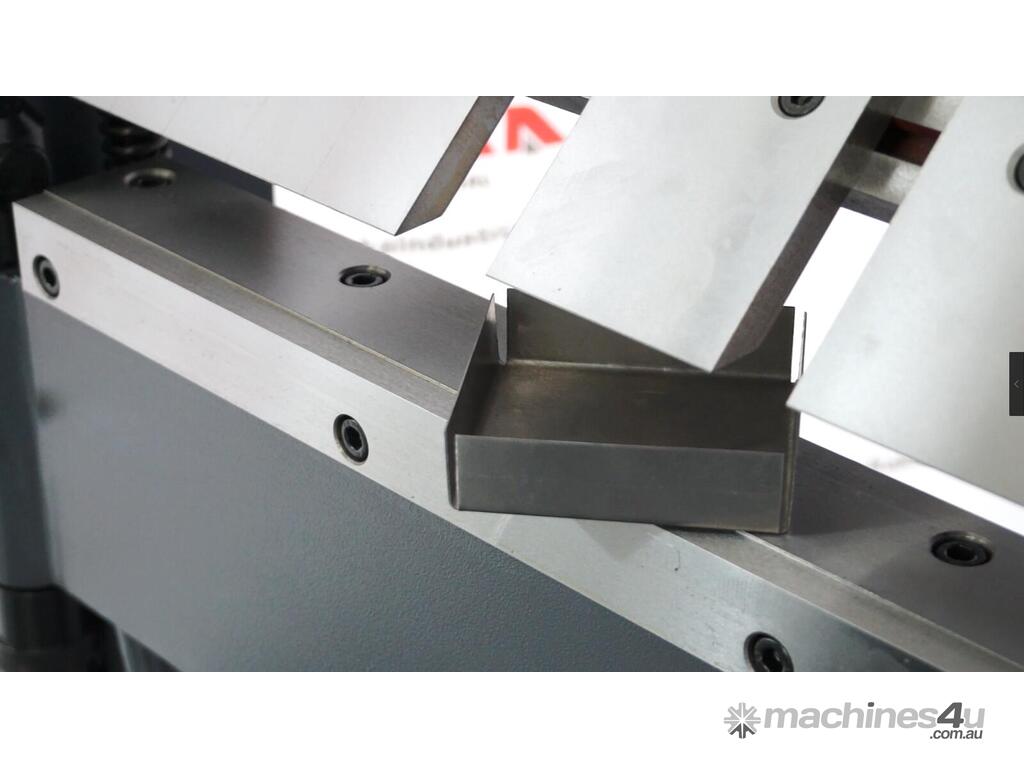

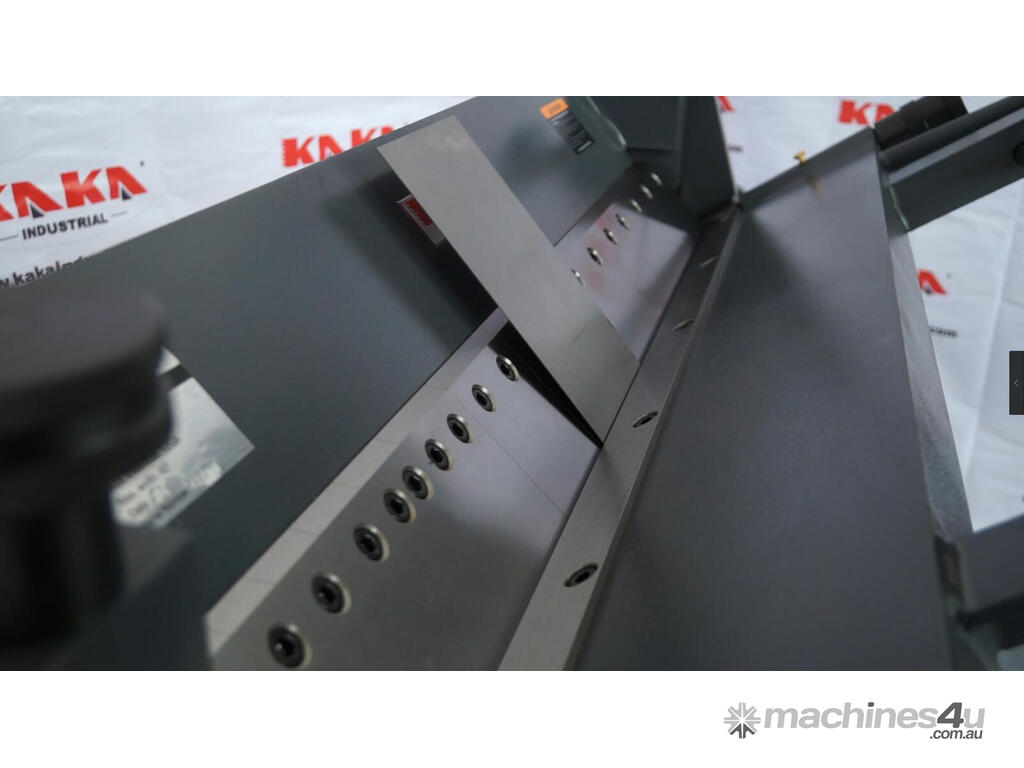

This panbrake folder is engineered for versatility in producing complex shapes, featuring a segmented upper beam (fingers) for the fabrication of fully enclosed parts like boxes, pans, HVAC ducting components, and special profiles. Operation is streamlined by a foot pedal-activated workpiece clamp, which keeps both hands free for safe material feeding and setup.
The PBB-4012 Panbrakes include a powerful auxiliary cylinder to assist the bending process, significantly reducing the required effort for heavy-capacity forming
Superior Capacity for Demanding Projects. Handles up to 2.5 mm mild steel with ease, perfect for constructing durable boxes, pans, and specialised profiles—saving time and reducing material waste in high-volume Aussie manufacturing or custom fabrication setups.

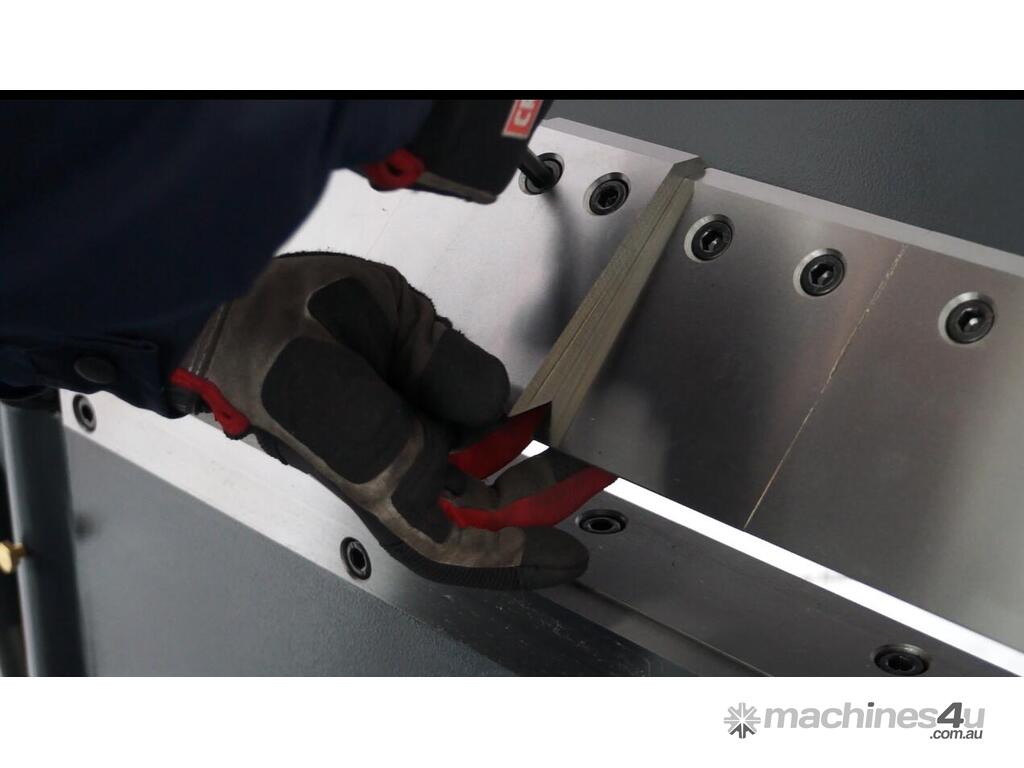

Endless Customisation Options. Features a comprehensive set of removable segments (25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 270 mm), enabling infinite bending configurations for unique shapes without needing multiple tools, boosting efficiency in space-limited workshops.
Enhanced Safety and Usability. Integrated foot pedal securely clamps the steel sheet, freeing hands for precise adjustments and minimising accidents—crucial for solo operators or busy trade environments. The Auxiliary Cylinder reduces operator effort for bending heavy-gauge materials, facilitating smooth and less strenuous operation.

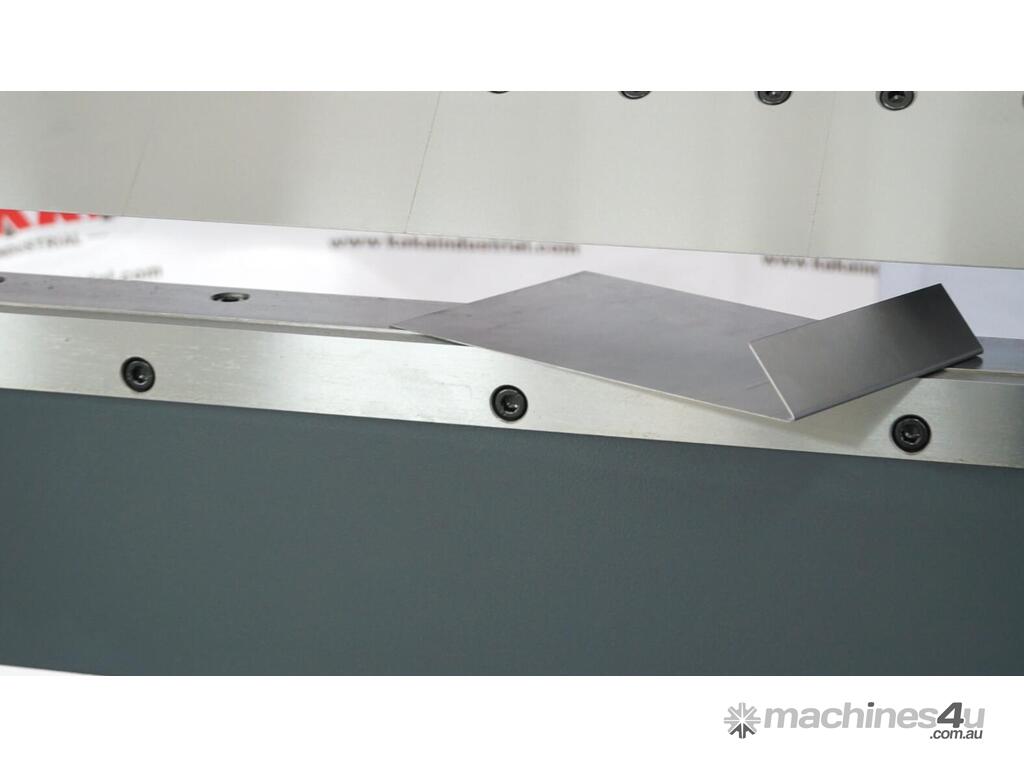

Versatile Bending Range. Achieves angles from 0° to 135°, supporting a wide array of applications from HVAC ducting to automotive panels, with the 1020 mm width accommodating larger sheets common in regional projects.
Durable, Portable Design. Complete with legs for immediate setup and stability on uneven floors, this panbrake is easy to position in garages, sheds, or industrial sites, ensuring long-term reliability without frequent maintenance
Features
This metal brake max. bend 2.5mm mild steel plate at the full width of 1020 mm
The stop ring lets you make repeatable bends.

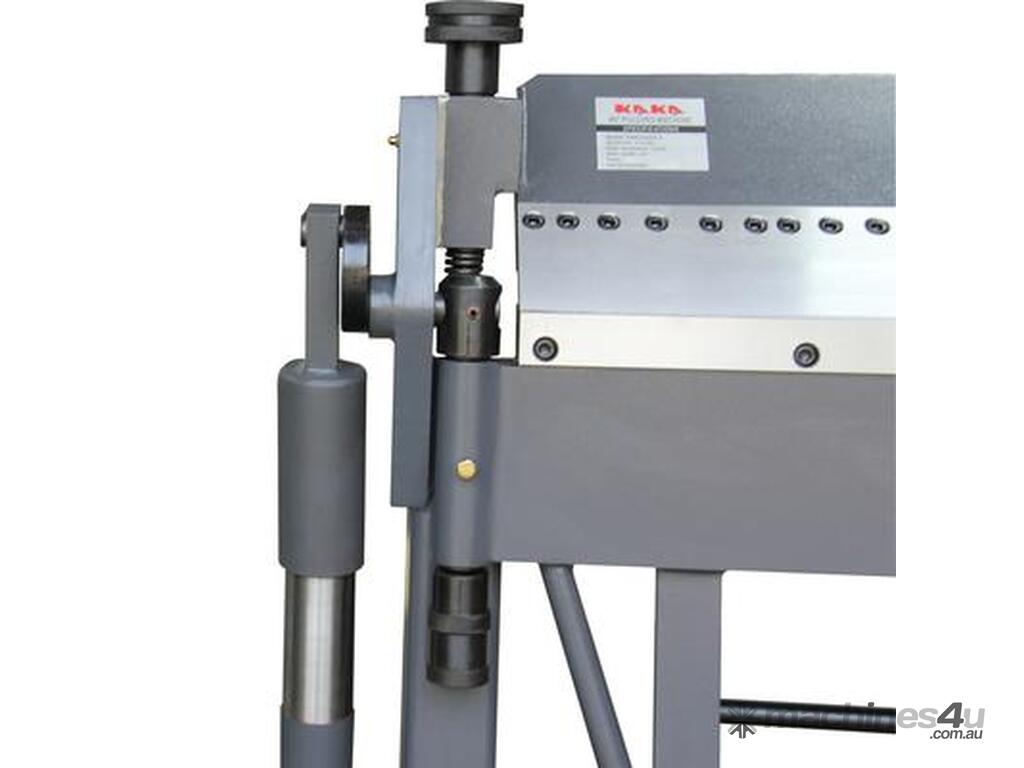

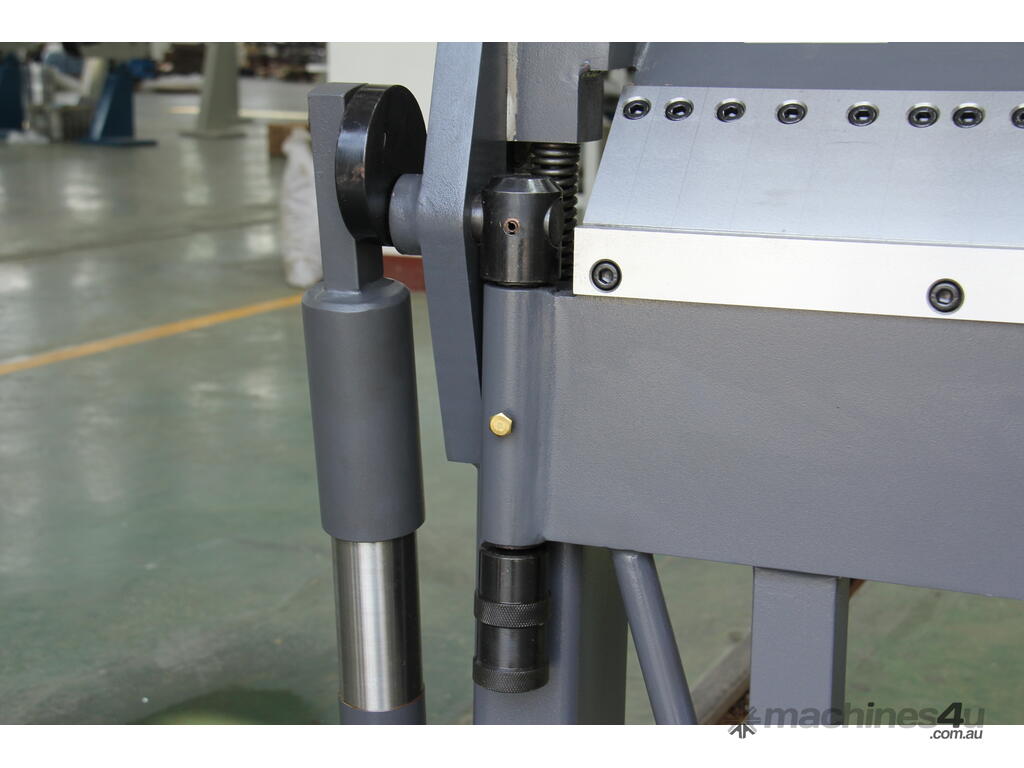

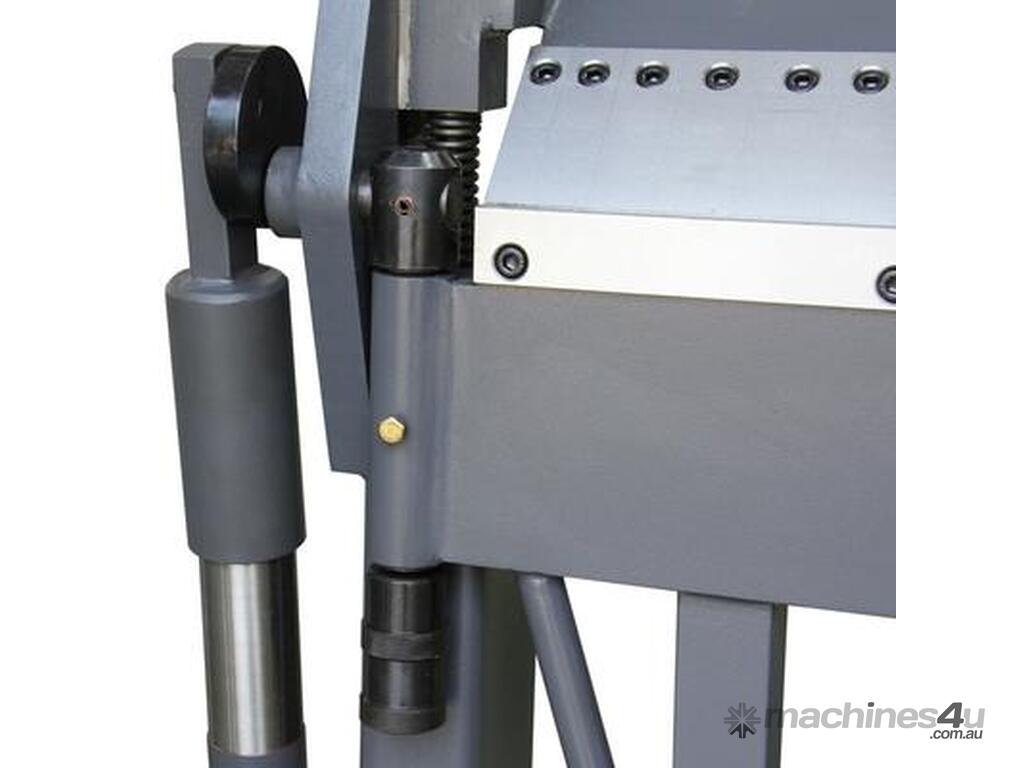

The spring-loaded cylinder assists in lifting the apron

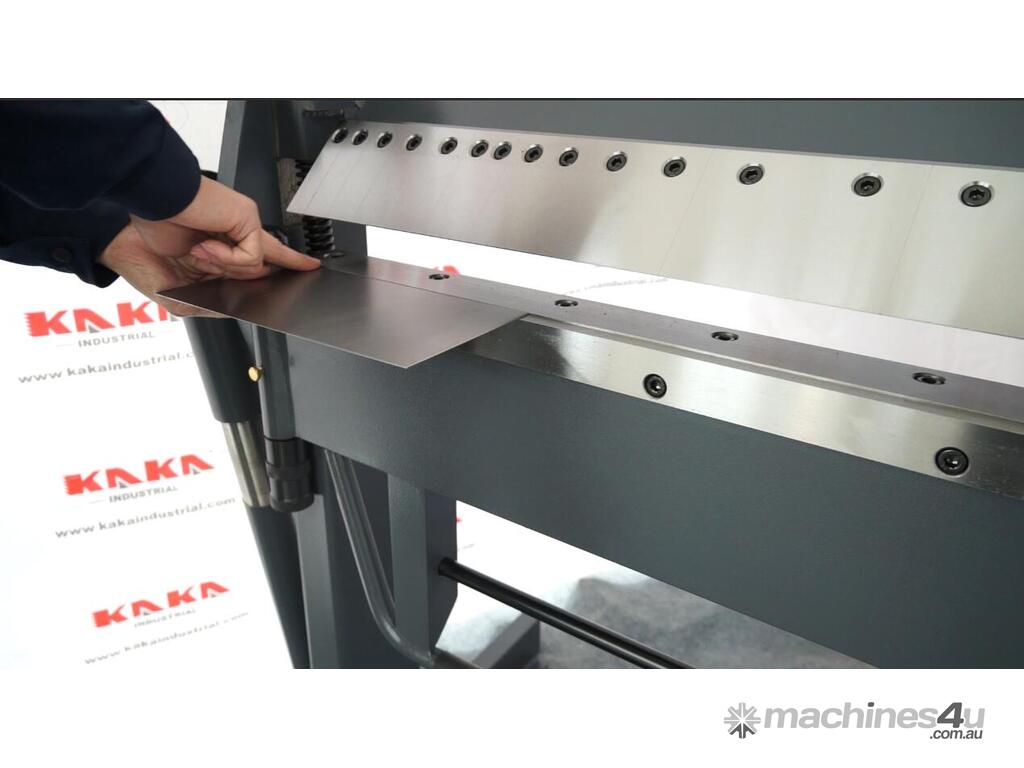

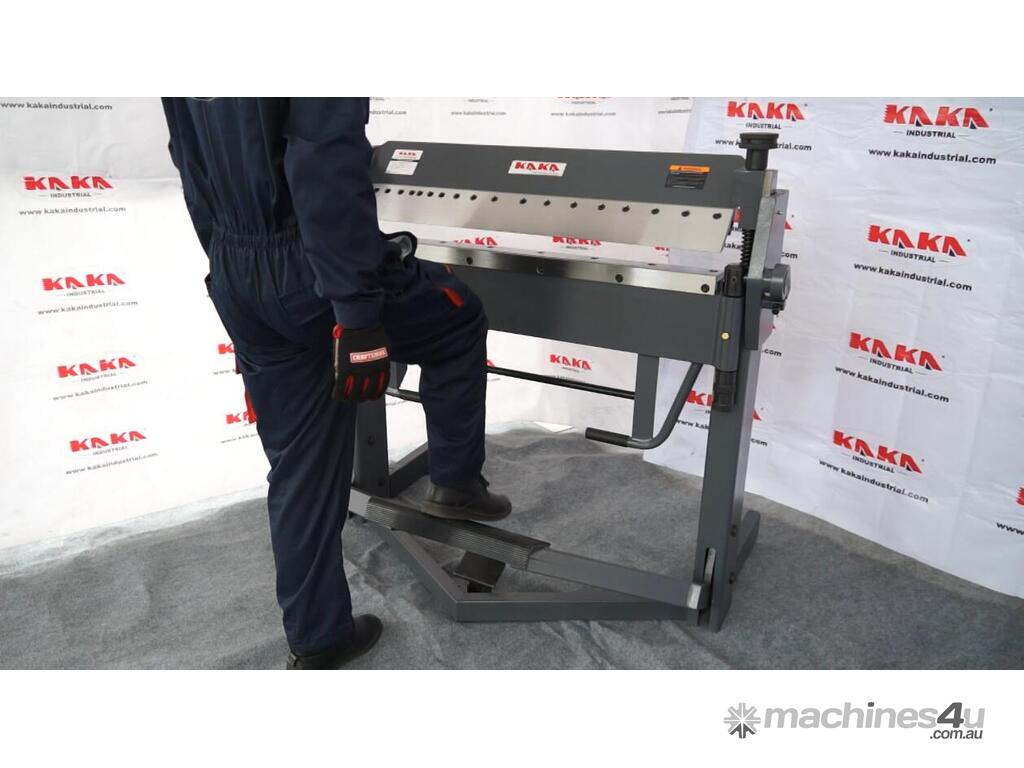

Foot control clamps leave your hand free to position the material
Fully welded structures, manual pan brake, long-term use
Specifications
SKU 173150
Model PBB-4012
Max. bending width 1020 mm
Max. bending thickness 2.5 mm
Max. clamping bar lift 47 mm
Folding angle 0-135°
Packing size 146x63x131 cm
N.W./G.W. 290/355 kg
