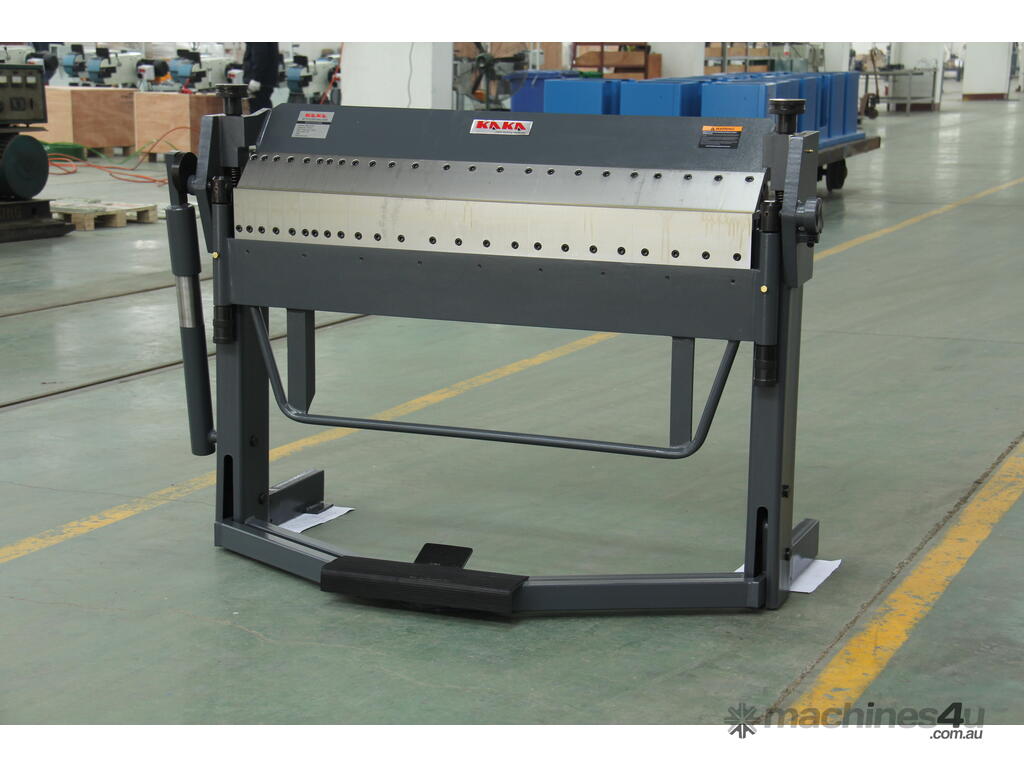

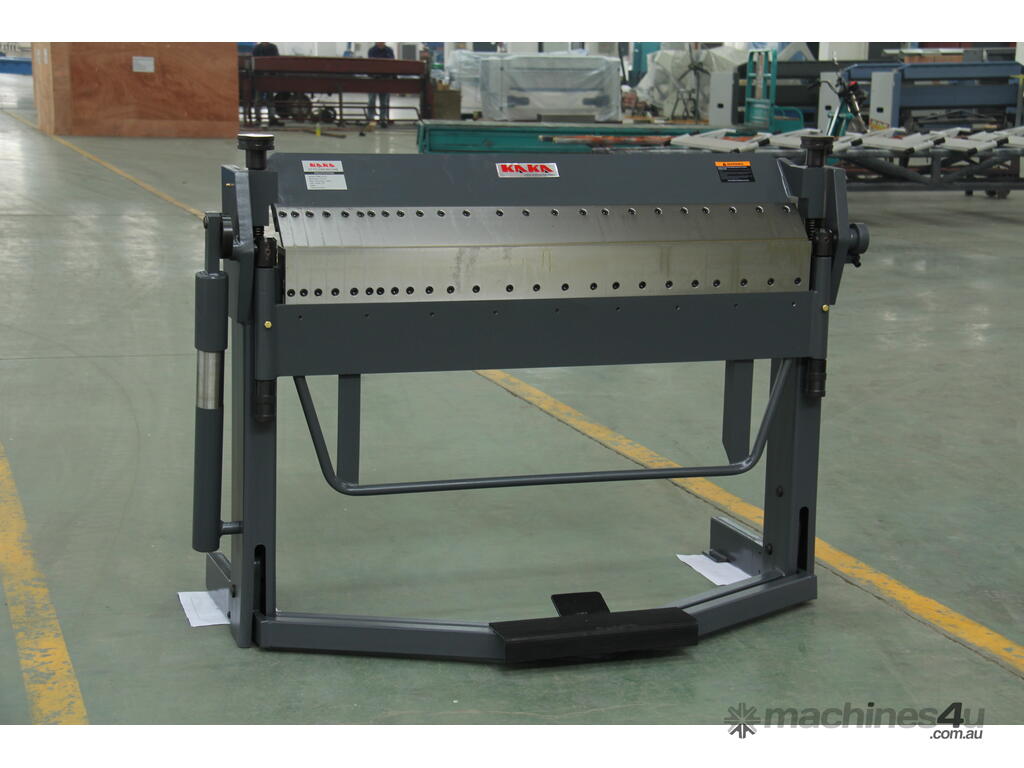

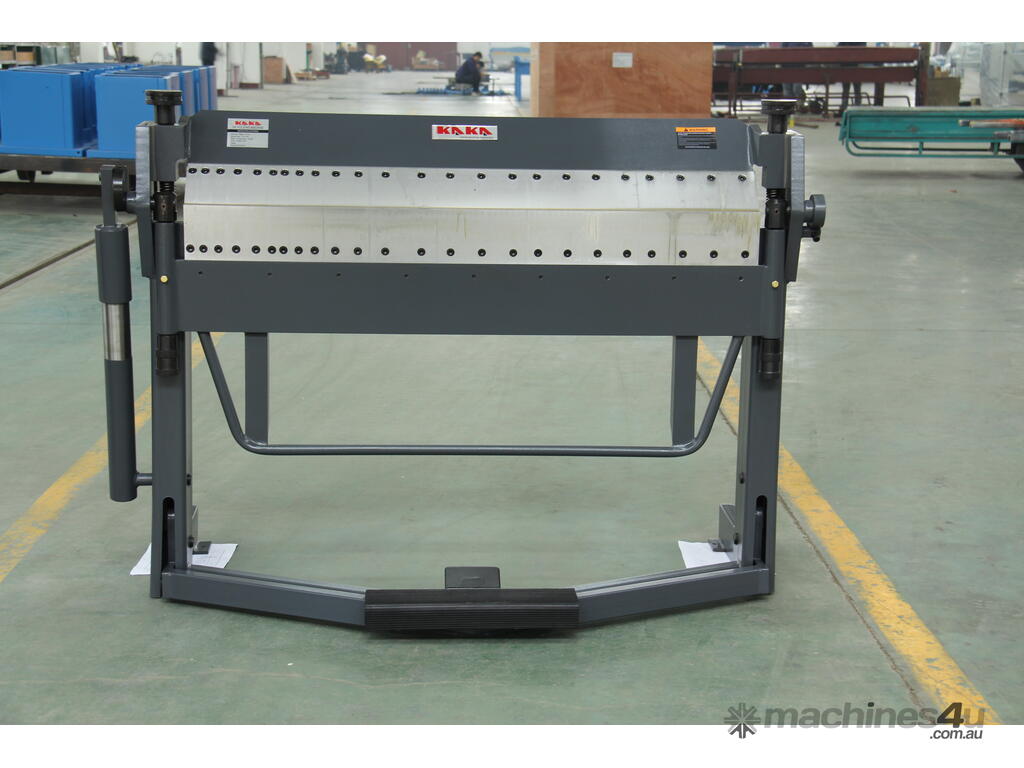

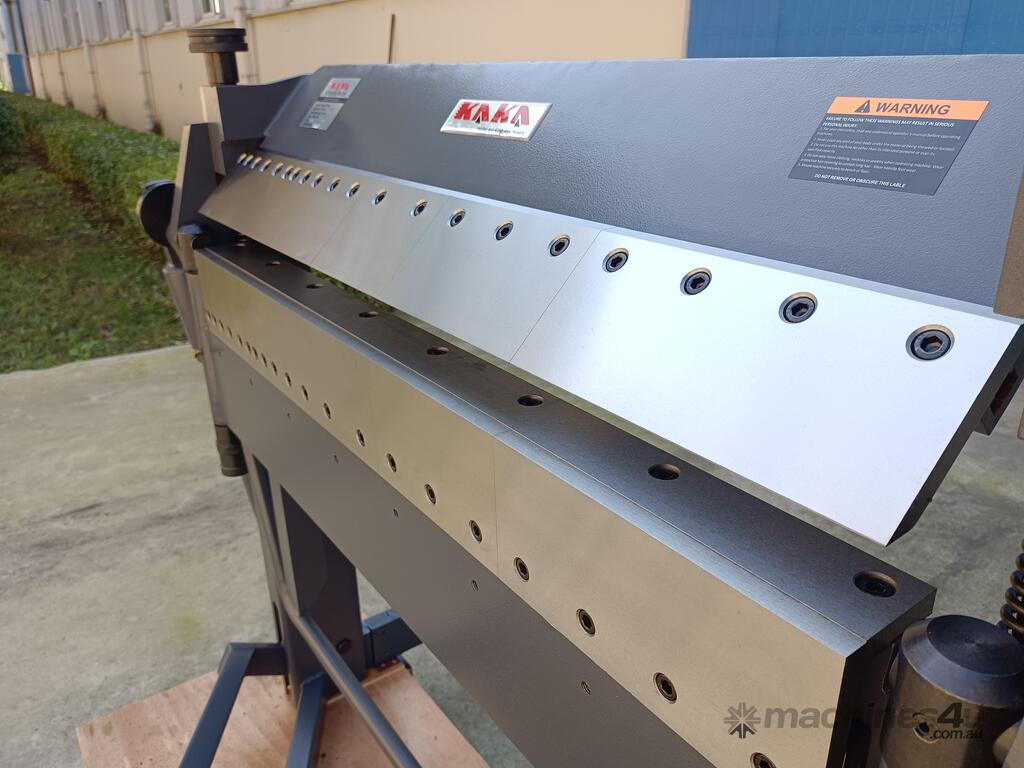

Manual Panbrake Bender PBB-5014A, 1270x2.0mm Sheet Folding Machine
Unlock advanced sheet metal versatility with the KANG Manual Panbrake PBB-5014A, featuring innovative upper and under removable segments for superior control in complex forming. This sheet metal bender manages up to 2.0 mm mild steel across a 1270 mm working width, excelling in demanding applications like constructing boxes, pans, and special profiles—tailored for fabricators, workshops, and DIY specialists handling intricate designs. Weighing 370 kg and equipped with stable legs for immediate setup, it includes a foot pedal for secure sheet holding and delivers precise bends from 0° to 135°. The dual-segment system (upper and under sectional fingers) opens up endless configuration options without additional tooling.
High-Capacity Performance for Complex Tasks. Powers through 2.0 mm mild steel on 1270 mm widths, ideal for building robust enclosures or fittings in high-demand Australian trades, from coastal manufacturing to outback repairs—reducing material waste and speeding up production on tough jobs.

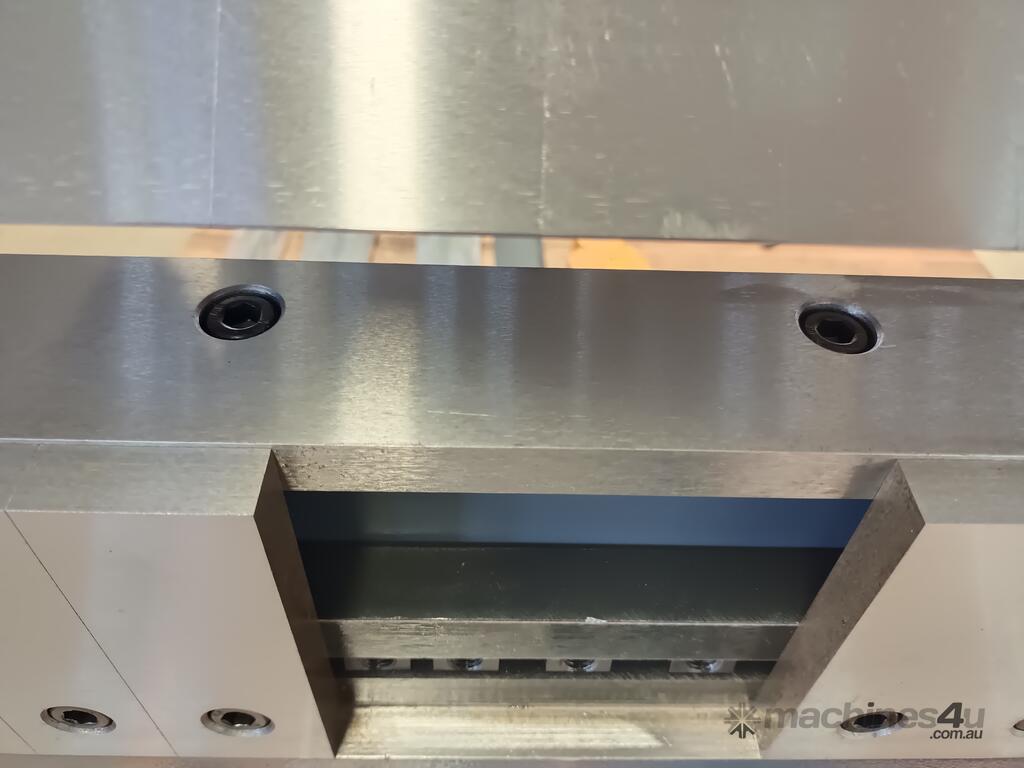

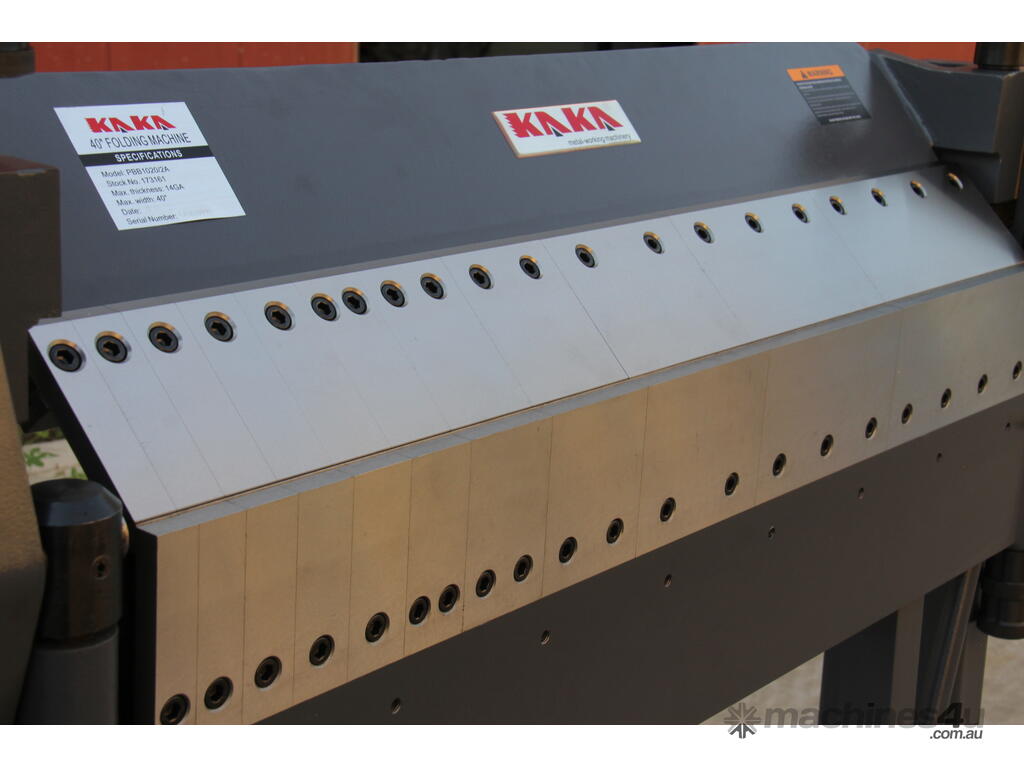

Dual Upper and Under Segments for Ultimate Flexibility. Removable sectional fingers (25, 30, 35, 40, 45, 50, 75,100,150, 200, 250, 270 mm)enable multi-directional, infinite bending setups for boxes, pans, and profiles—saving space and costs in compact garages or mobile workshops by eliminating the need for specialised extras.
Effortless Safety with Hands-Free Operation. Foot pedal clamps sheets securely, allowing precise adjustments without risk—essential for solo operators or busy sites Down Under, enhancing compliance and minimising downtime from accidents.
Broad Angle Range for Diverse Projects. Achieves 0°–135° bends effortlessly, supporting varied applications like HVAC components or automotive panels, with the 1270 mm width fitting larger sheets common in regional fabrication.

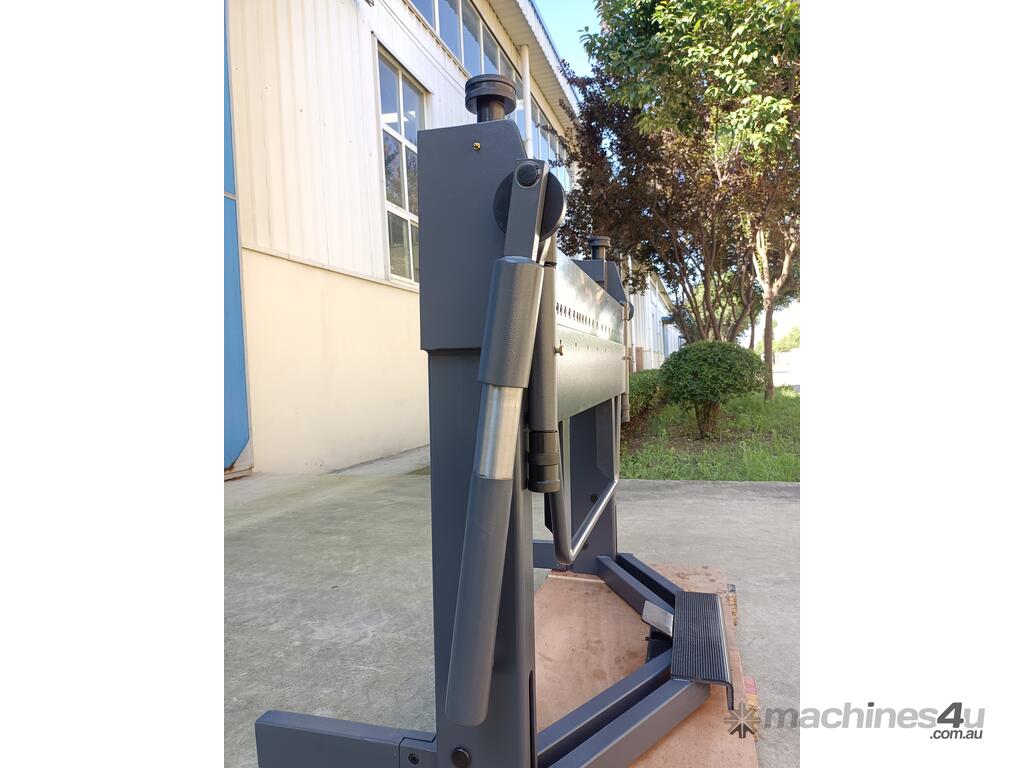

Cylinder Support. A powerful assist mechanism that reduces the physical force needed to swing the beam, ensuring effortless bending of thick materials.
Features
Max. bend 1270x2 mm mild steel plate or thinner, could make straight bends, boxes, pans, and trays
Clamping fingers and bending blocks of different lengths, finger sizes 25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 250, and 270 mm
Setback and clamping pressure are easy adjustments for different thick materials
Adjusting the bending stop to make repetitive bends of the same angle
Suitable for shops doing signs, fabrication, HVAC, etc.
Specifications
SKU 173162
Model PBB-5014A
Max. working width 1270 mm
Max. thickness 2.0 mm
Max. clamping bar 47 mm
Folding angle 0-135°
Packing size 171x71x131 cm
N.W./G.W. 370/450 kg
