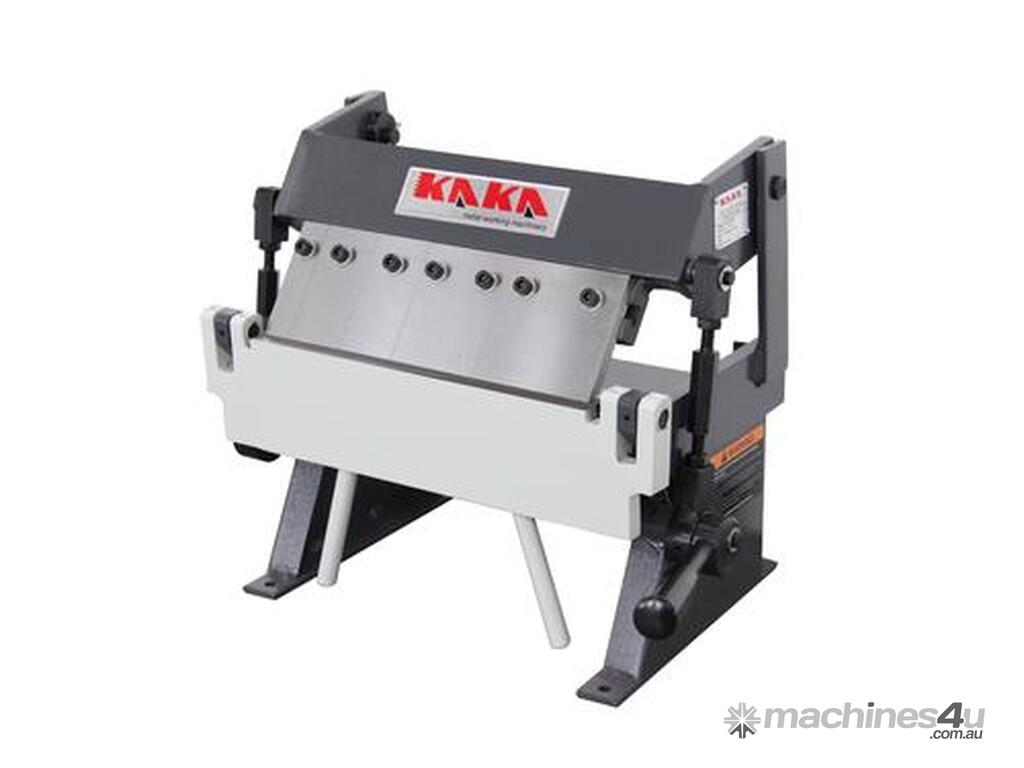

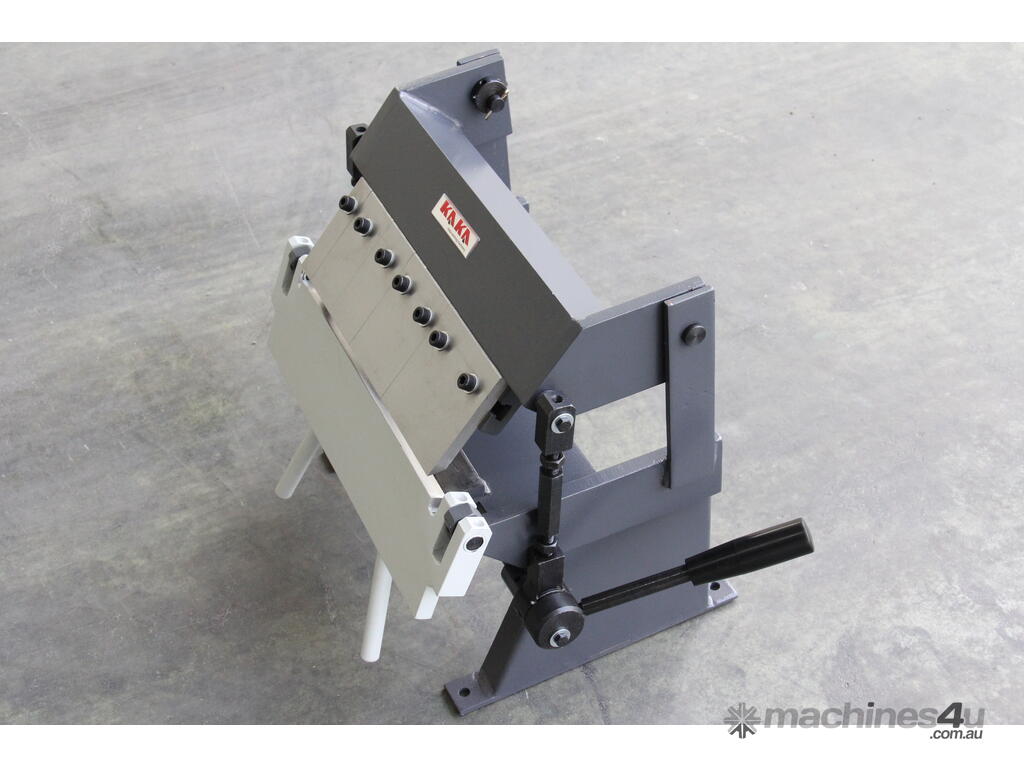

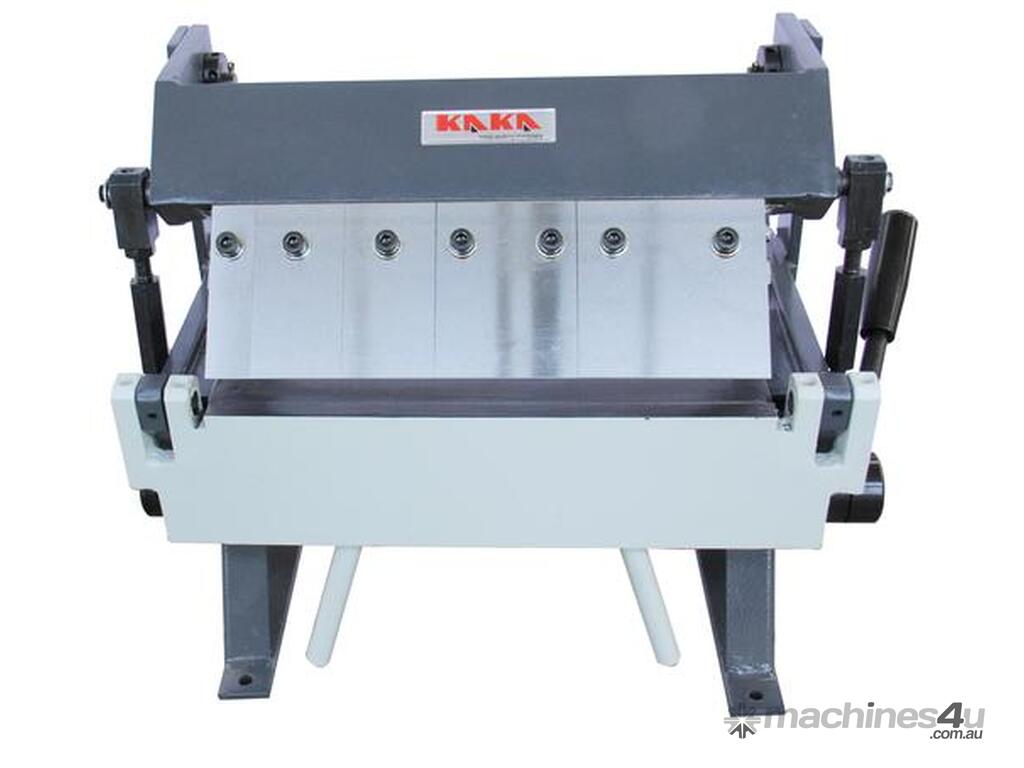

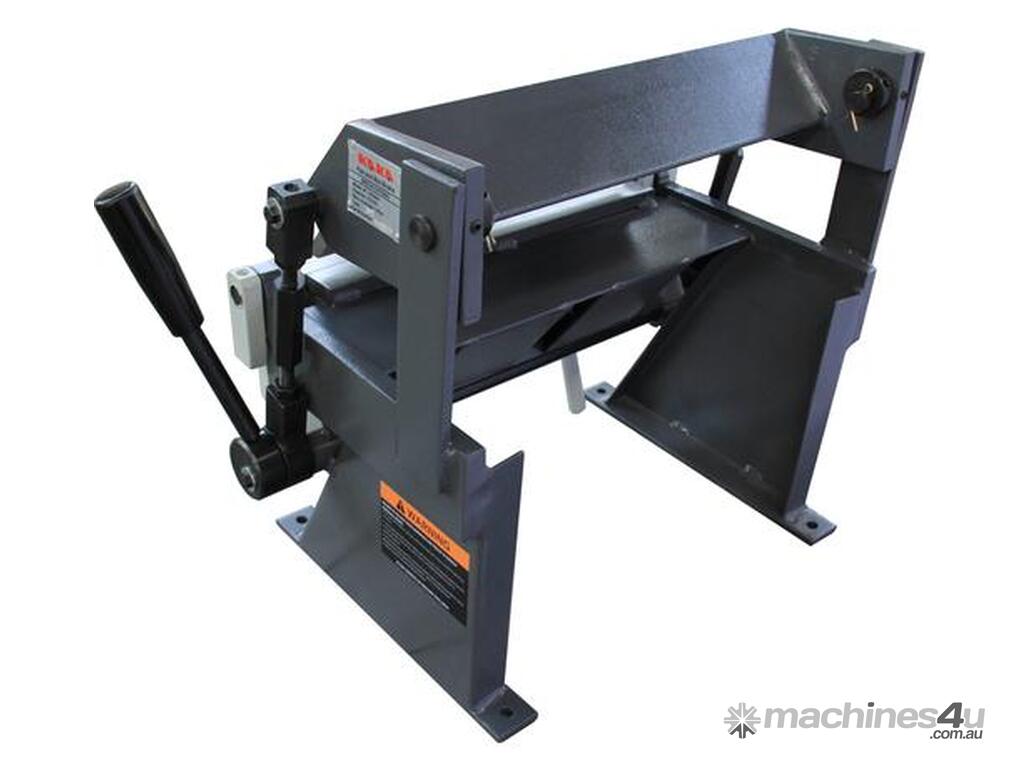

KANG Manual Panbrake Folder W-1220A
The 305 mm Manual Panbrake Folder W-1220A is a compact, versatile tool engineered for intricate sheet metal bending tasks. It excels in creating complex shapes, such as boxes, pans, and custom profiles, by utilizing removable sectional fingers. 305x1.0 mm mild steel plate capacity, max. bending angle up to 135 degrees.

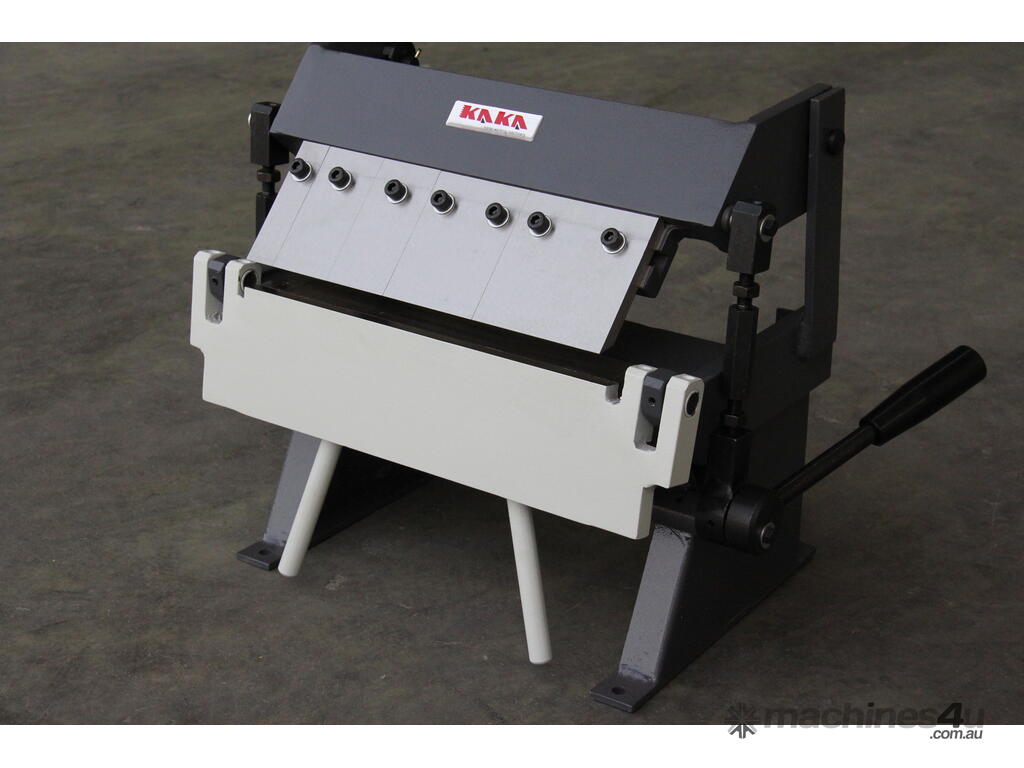

Versatility for Complex Bending Projects. The removable sectional fingers enable precise, adaptable bending for specialized shapes like boxes, pans, and profiles, making it ideal for custom fabrication where standard machines fall short
Space-Saving and Compact Design Sheet Bender. With a 305 mm width and bench-mount setup, it's ideal for home garages, sheds, or small workshops
Efficiency in Intricate Bending. Offers a broad bending angle (up to 135°) and reliable performance on thin materials, reducing the need for multiple tools and speeding up production for detailed sheet metal tasks
Features
Max. bend 1.0 mm mild steel at the full width of 305 mm

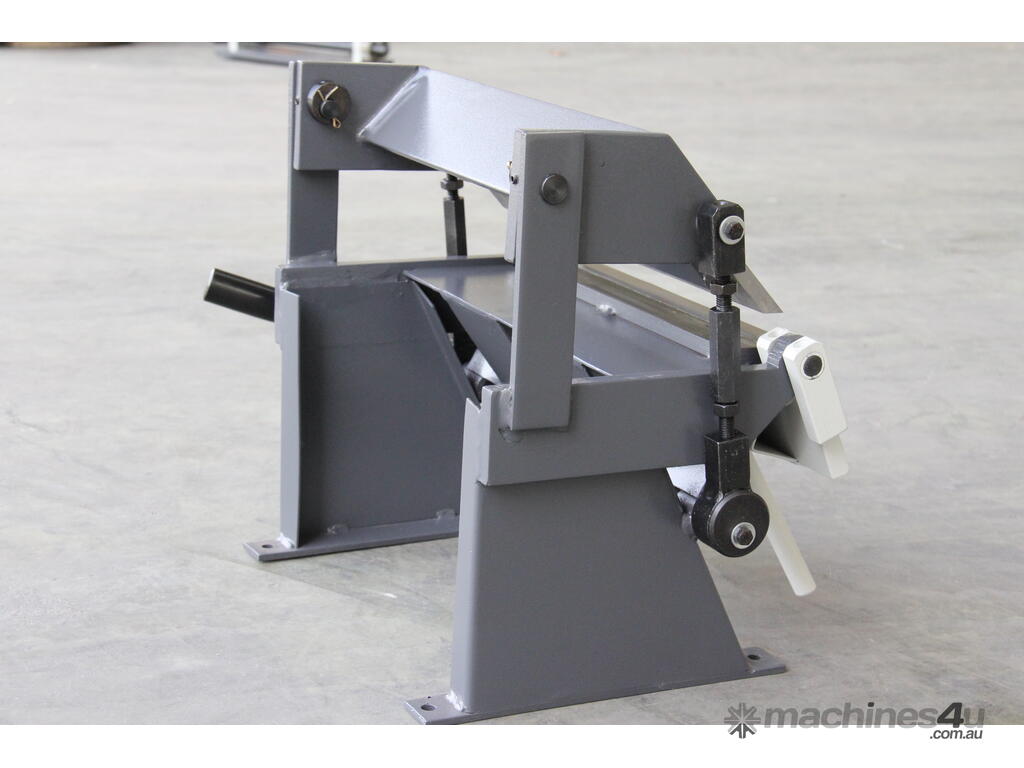

Steel-welded structure bench top manual panbrake

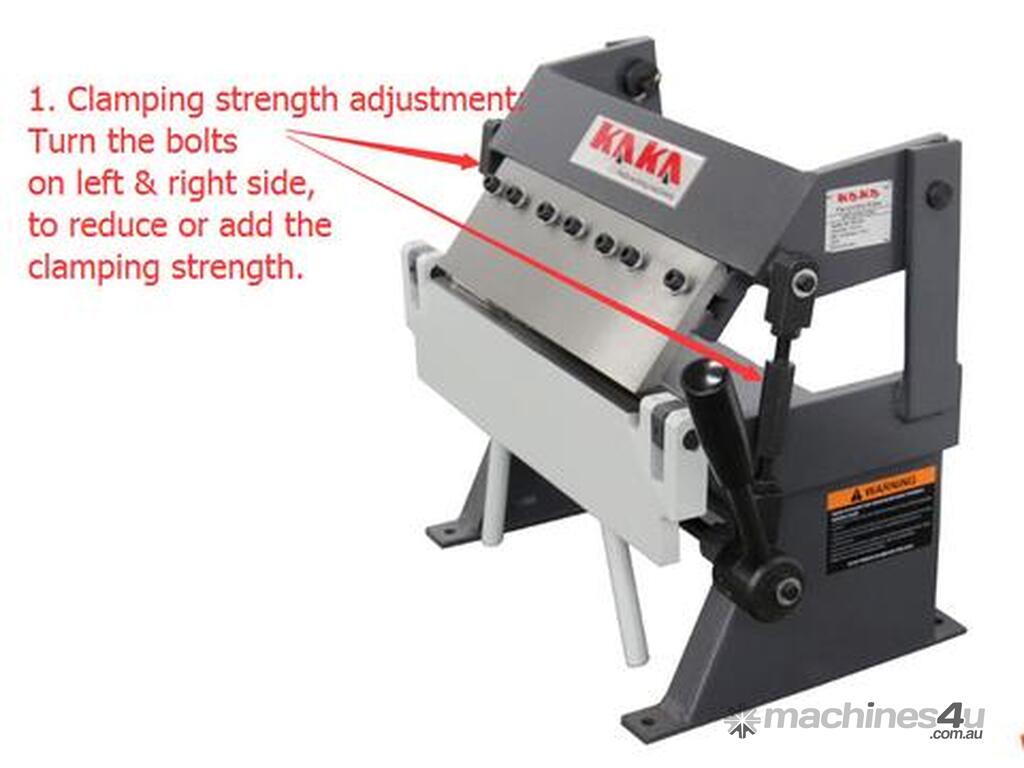

Easy-adjust the clamping blade for different thick plates
Different finger sizes to get various box widths, 1", 2", 2", 3 and 4"
Finger setback to adjust the bending radius
Specifications
SKU 173101
Model W-1220A
Bending width 305 mm
Bending thickness 1.0 mm
Bending angle 0-135 °
Packing size 50x35x41 cm
N.W./G.W. 28/38 kg
