KANG Industrial Sheet Metal Manual Panbrakes

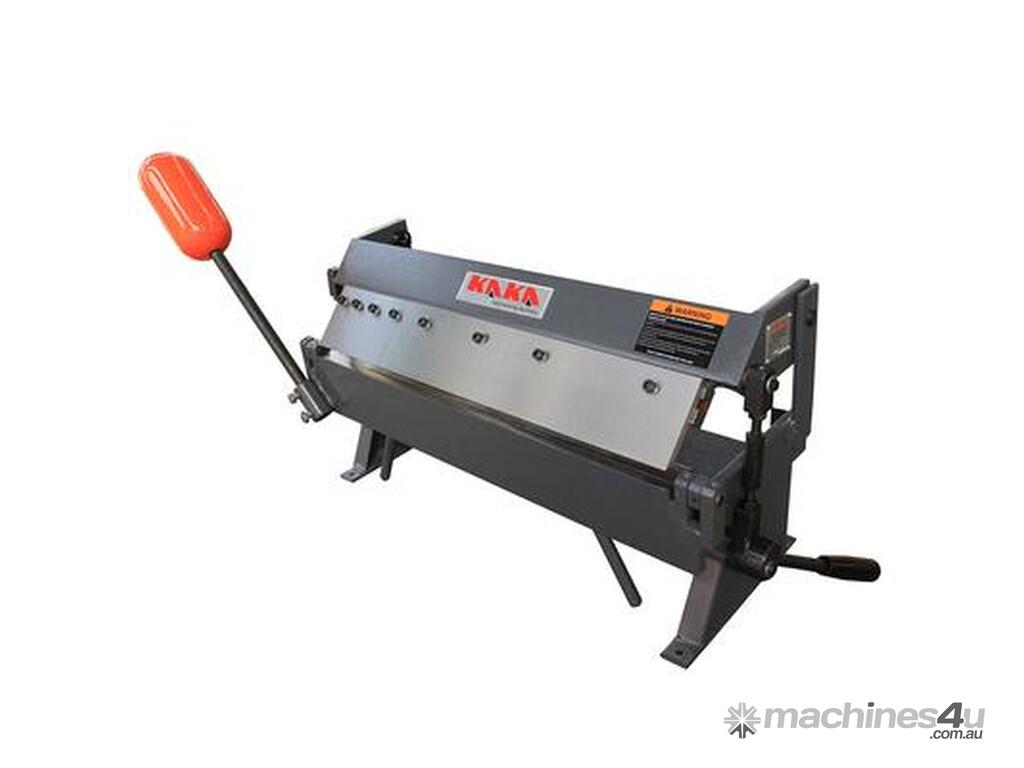

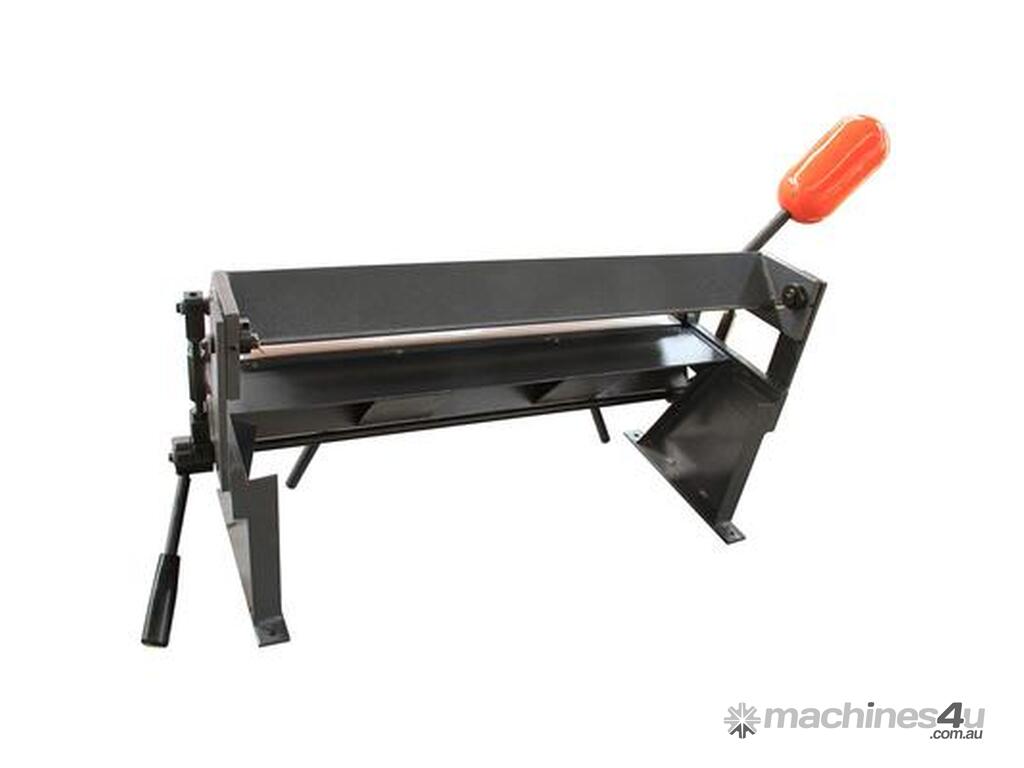

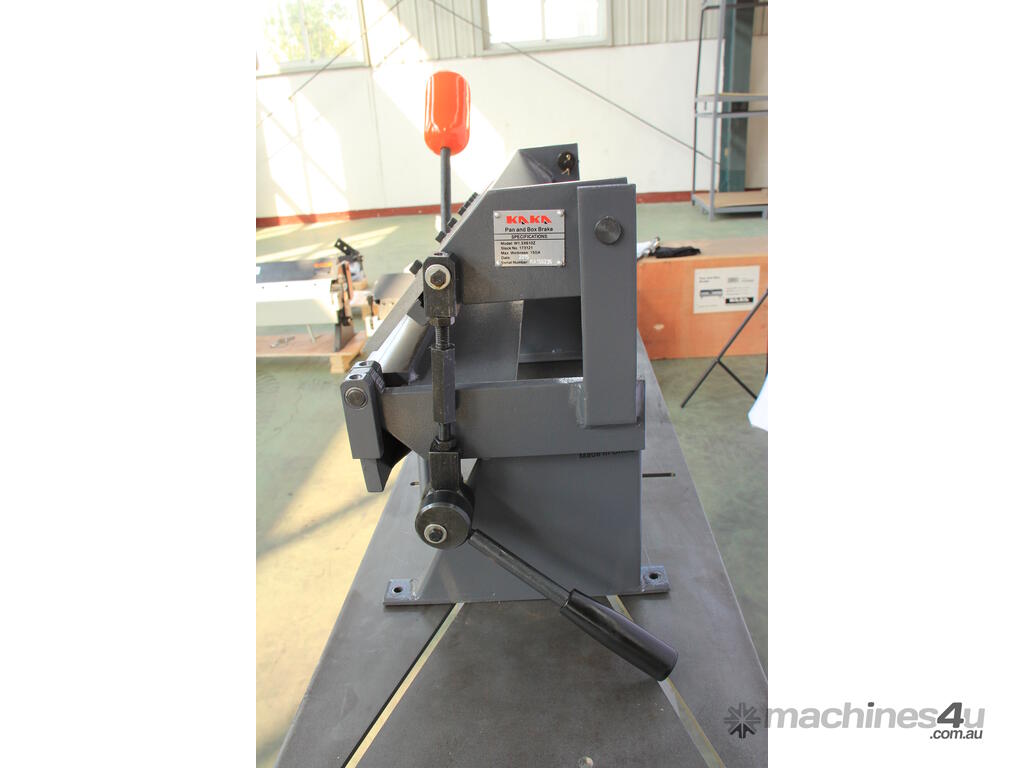

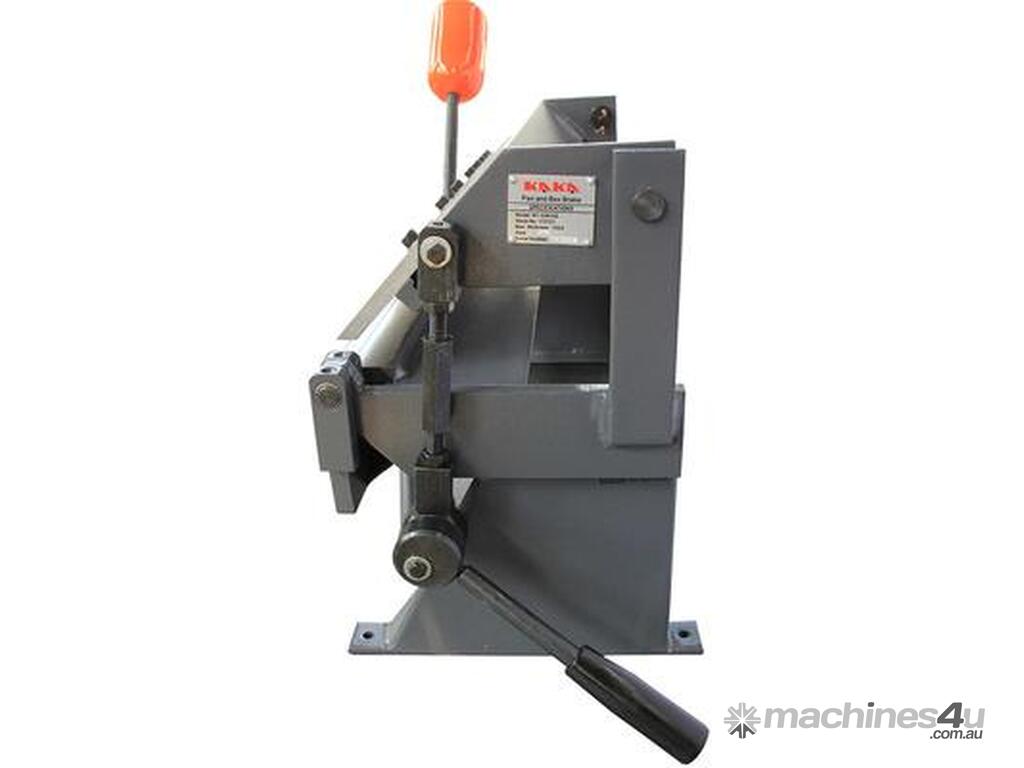

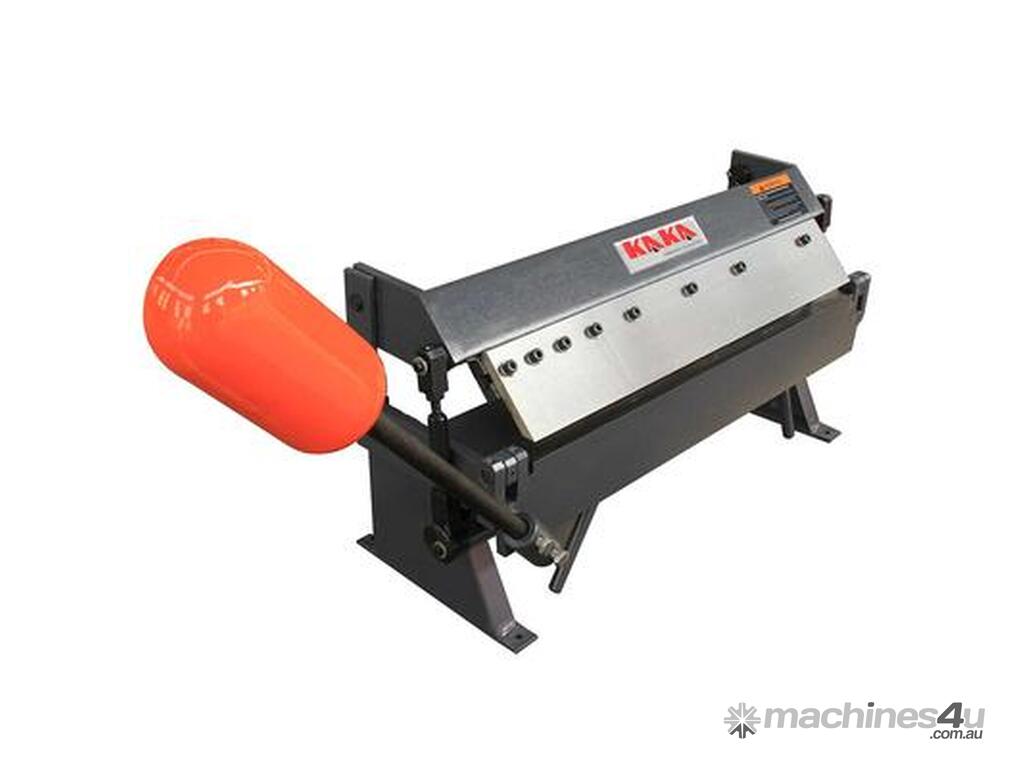

The KANG W-2416Z is a manual panbrake folder engineered for precise sheet metal bending in small-scale production. It features a fully welded steel plate framework for exceptional rigidity and accuracy, making it suitable for hobbyists, educational settings, or fabrication shops handling short runs of compact items like boxes, pans, and custom profiles. The design includes removable fingers for versatile bending in tight spaces, with a counterweight-assisted apron to ease operation.
High-Capacity Sheet Metal Bender. This panbrake folder is rated for 1.5x610 mm mild steel plate, allowing it to handle thicker materials.
Exceptional Durability and Precision Metal Folder. The fully welded steel plate construction sheet metal benders minimise flex and deflection, ensuring consistent, accurate bends at full capacity over time.
User-Friendly Manual Design Sheet Folder. The counterweight apron lift significantly reduces physical effort, making it ideal for prolonged use in small shops or classrooms without the complexity or cost of powered models.
Versatile for Small-Scale Fabrication. With 5 removable fingers ( 1*25.4mm, 1*50.8mm, 1*76.2mm, 1*203.2mm, and 1*254mm) and a 135° bend capability, it enables quick reconfiguration for boxes, pans, and profiles up to 35 mm deep, offering flexibility for custom work on thin sheets without needing multiple tools
Features
Steel-welded construction manual panbrake
Max. bend 1.5 mm plate at the full width of 610 mm
Bending up to 135°

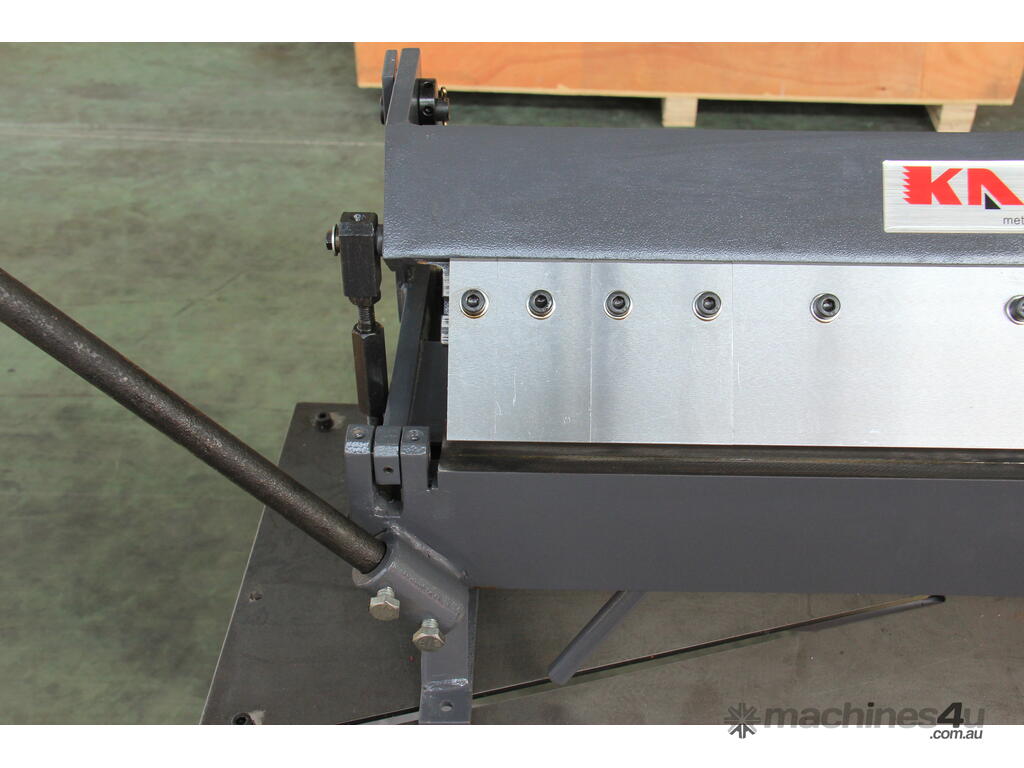

Includes 5 removable individual bending fingers of different lengths for panbrakes
Finger sizes are 25.4mm, 50.8mm, 76.2mm, 203.2mm, and 254mm

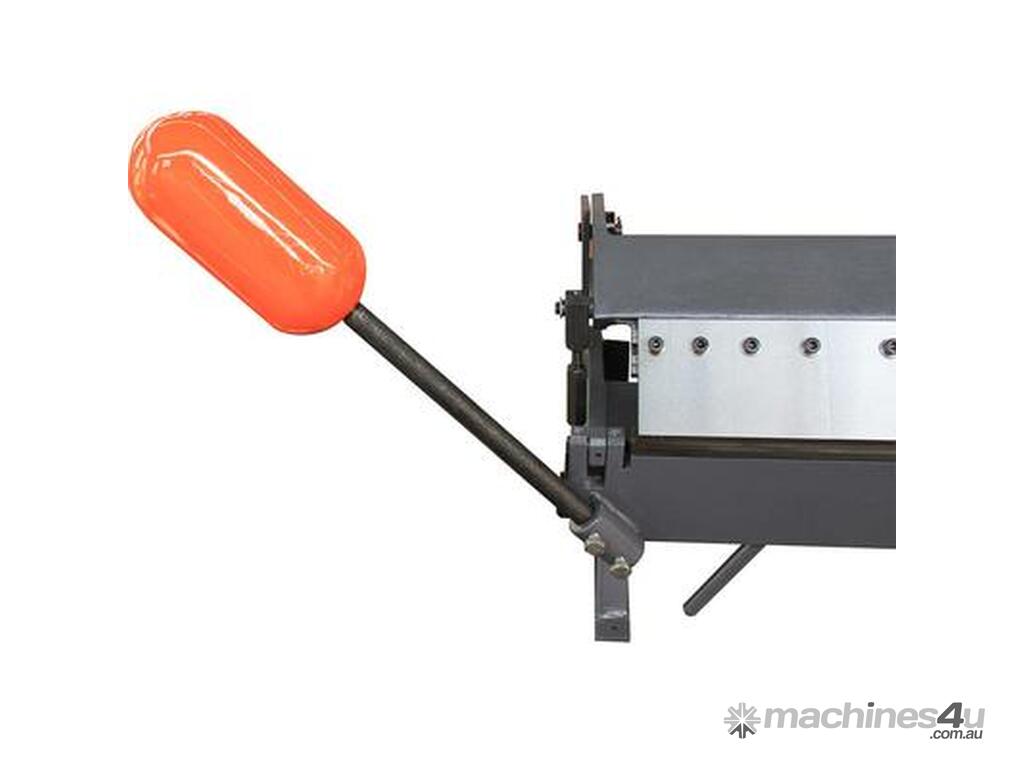

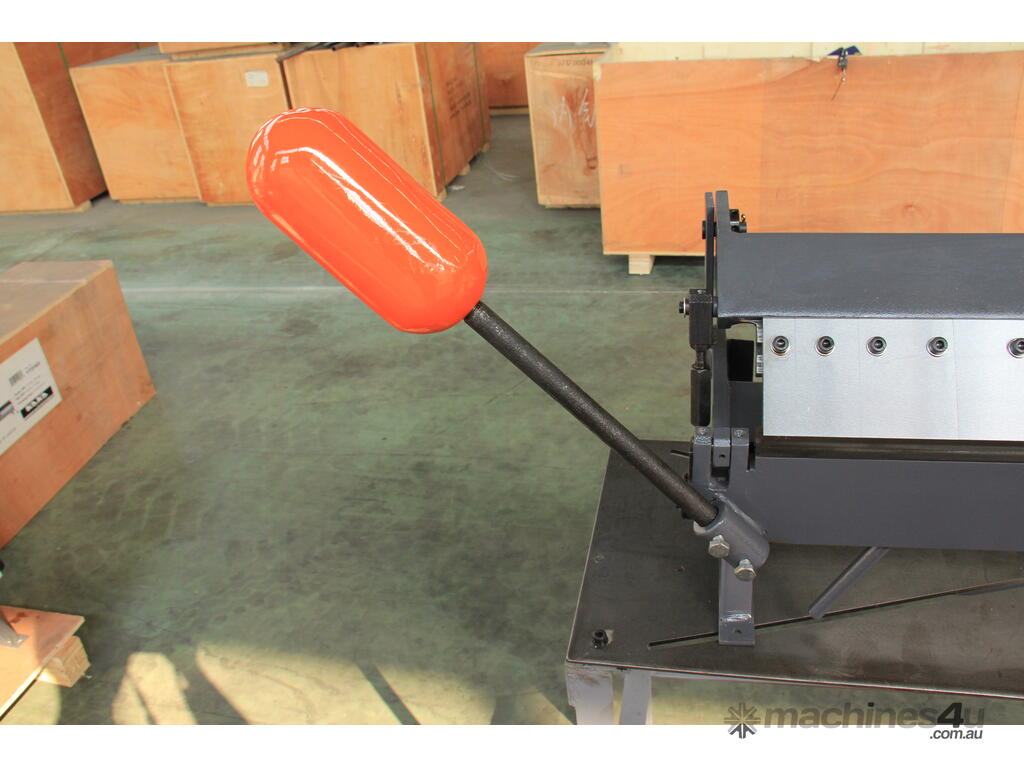

C/W a balance weight to reduce the operator's effort

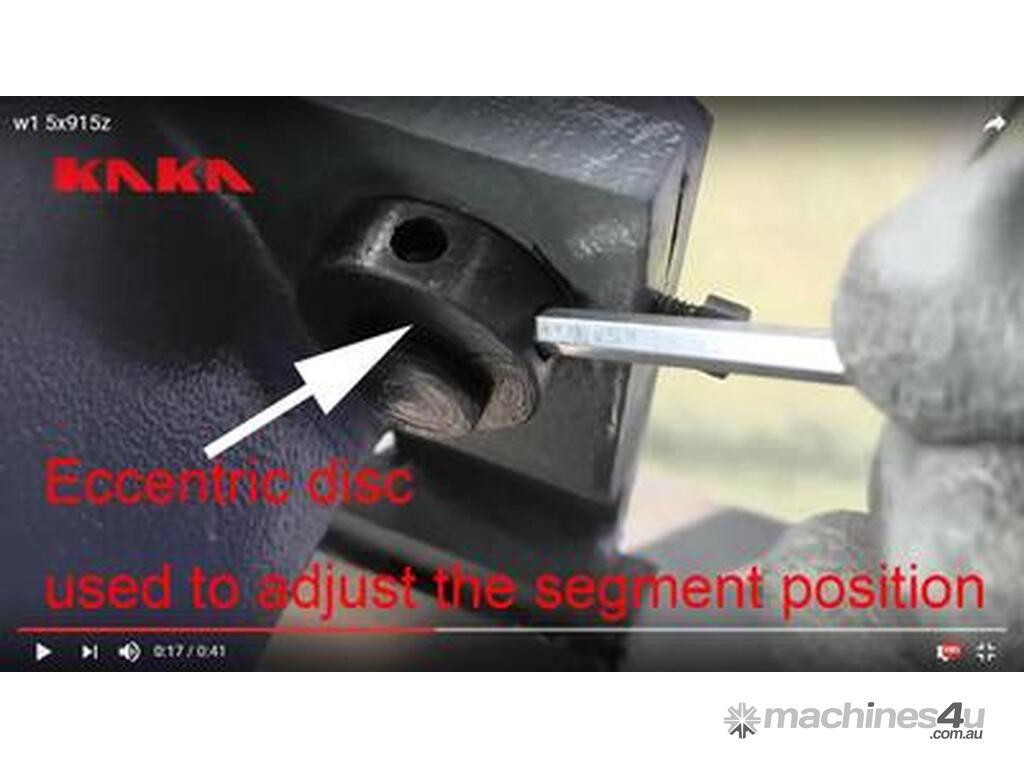

Finger setback adjustment to increase the bending radius for thicker materials
Specifications
SKU 173121
Model W-2416Z
Bending width 610 mm
Bending thickness 1.5 mm
Bending angle 0-135 °
Packing size 85x37x56 cm
N.W./G.W. 51/64 kg
