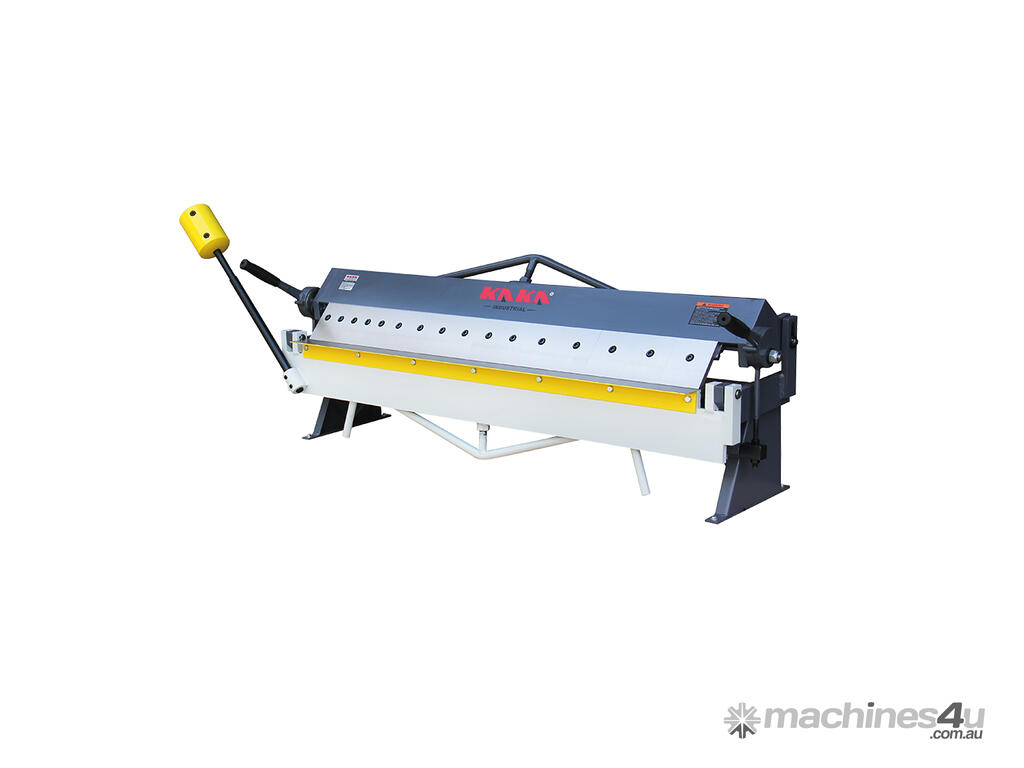

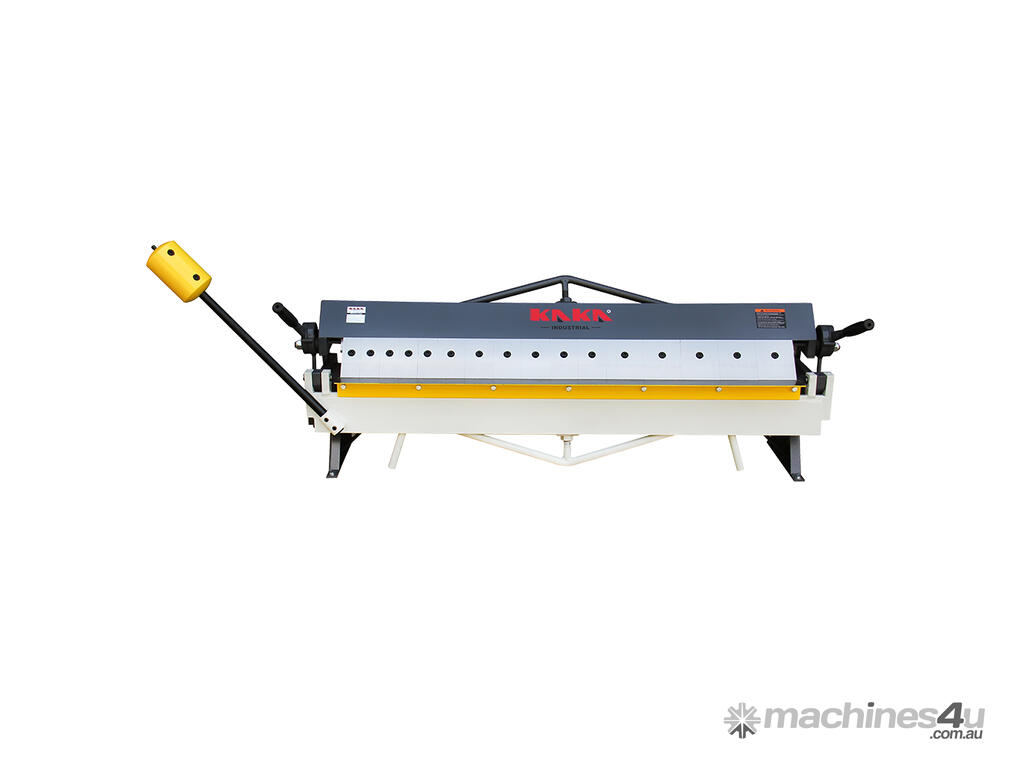

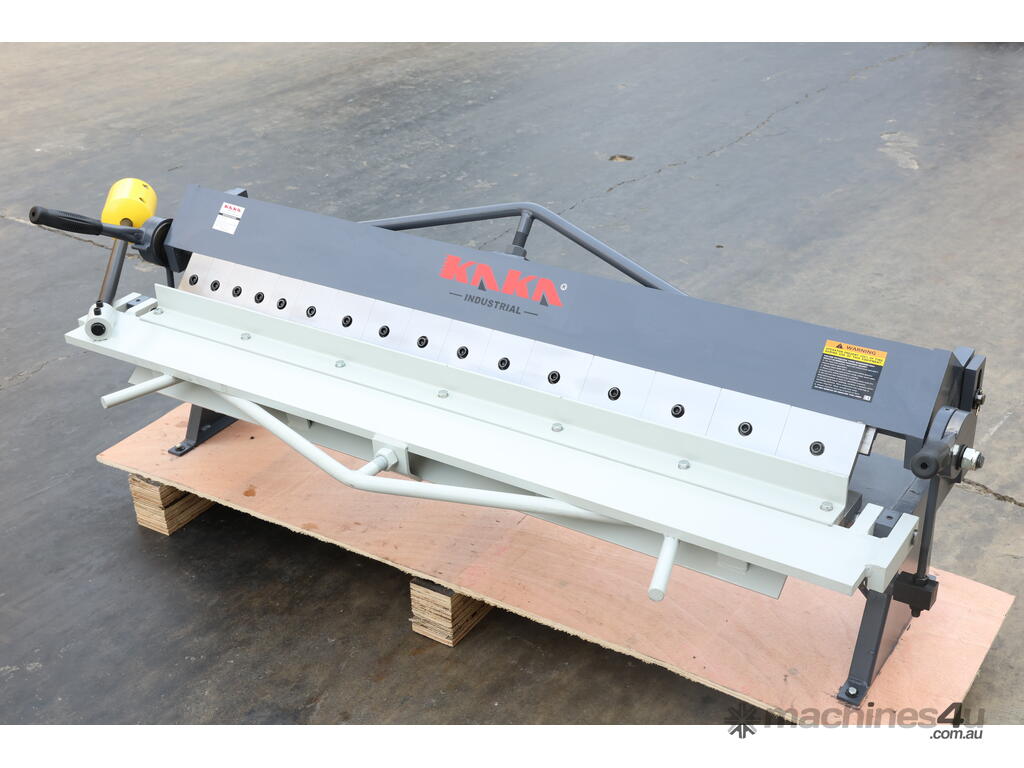

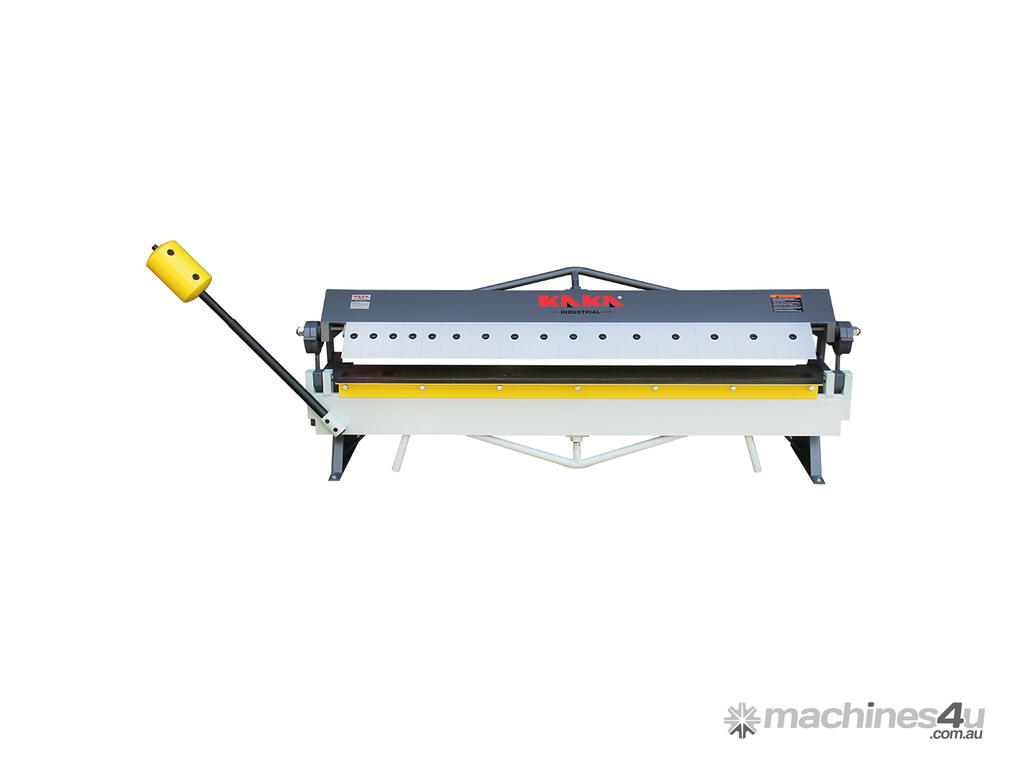

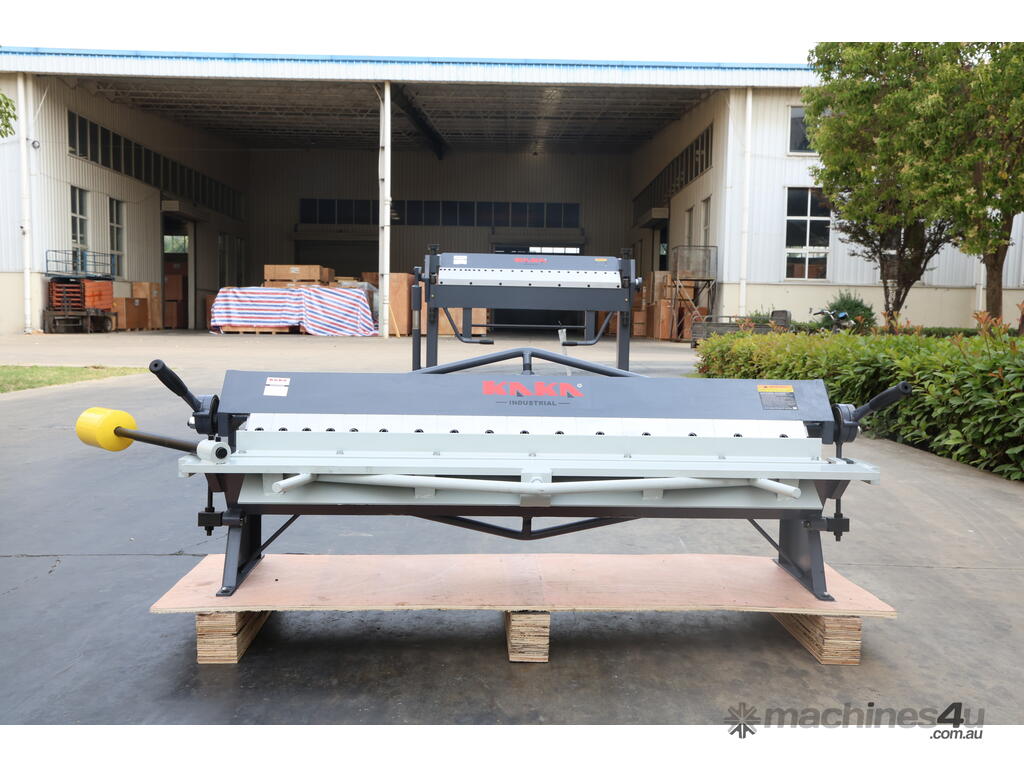

Manual Panbrake Folder W-4816Z, 1.5mm x 1220 mm Capacity Sheet Metal Bending

KANG Industrial Sheet Metal Manual Panbrakes W-4816Z


This manual panbrake folder excels at intricate bending operations, such as construction boxes, pans and unique profiles. Its design emphasises flexibility, with endless possibilities enabled by removable segment bending fingers that allow for precise and varied bends.

Rigid Structure Panbrake Folder. Steel welded structure frame, the thick material reduce the flex and twist of the bender, making a clean & straight bender on 1.5x1220mm sheet metal.

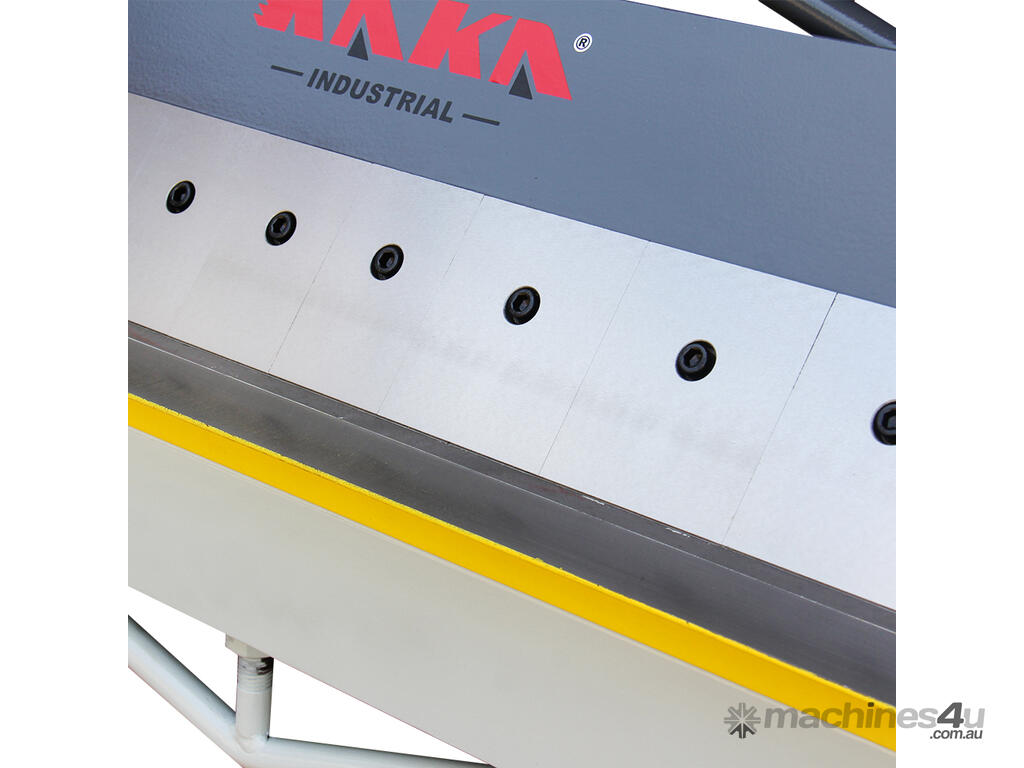

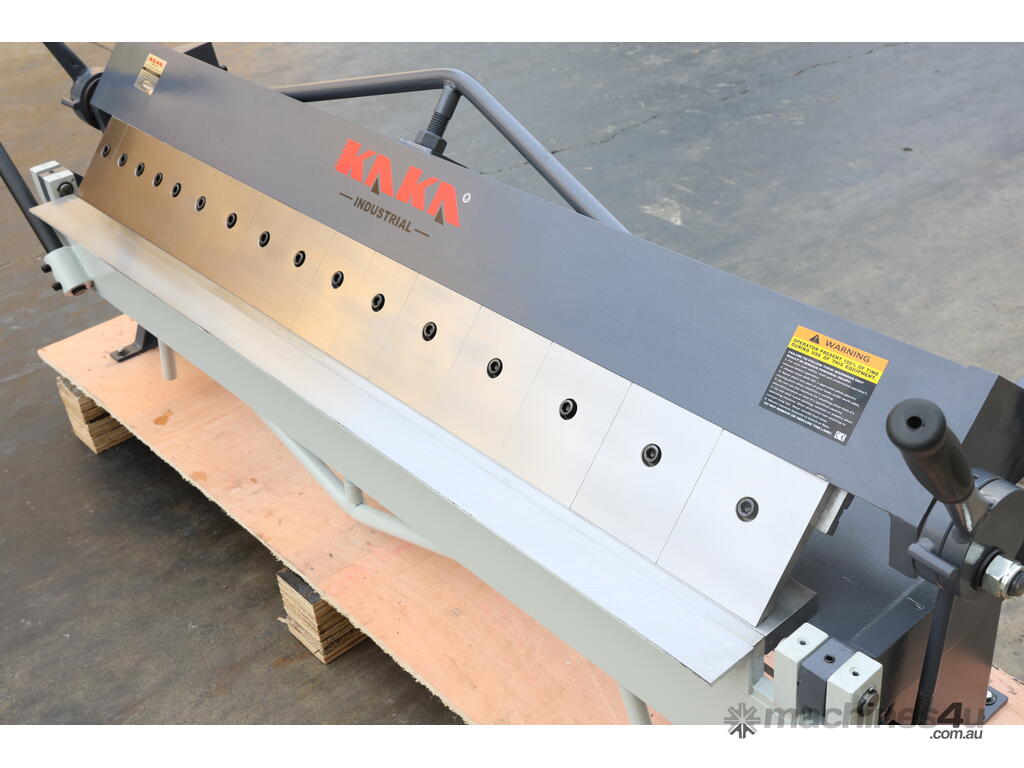

More & Fine Finger Segments. Standard with 16 fingers (5 * 50.8mm, 6 * 76.2mm, & 5 * 101.6mm), give much more flexibility for small flange, tight corners and intricate box layouts.

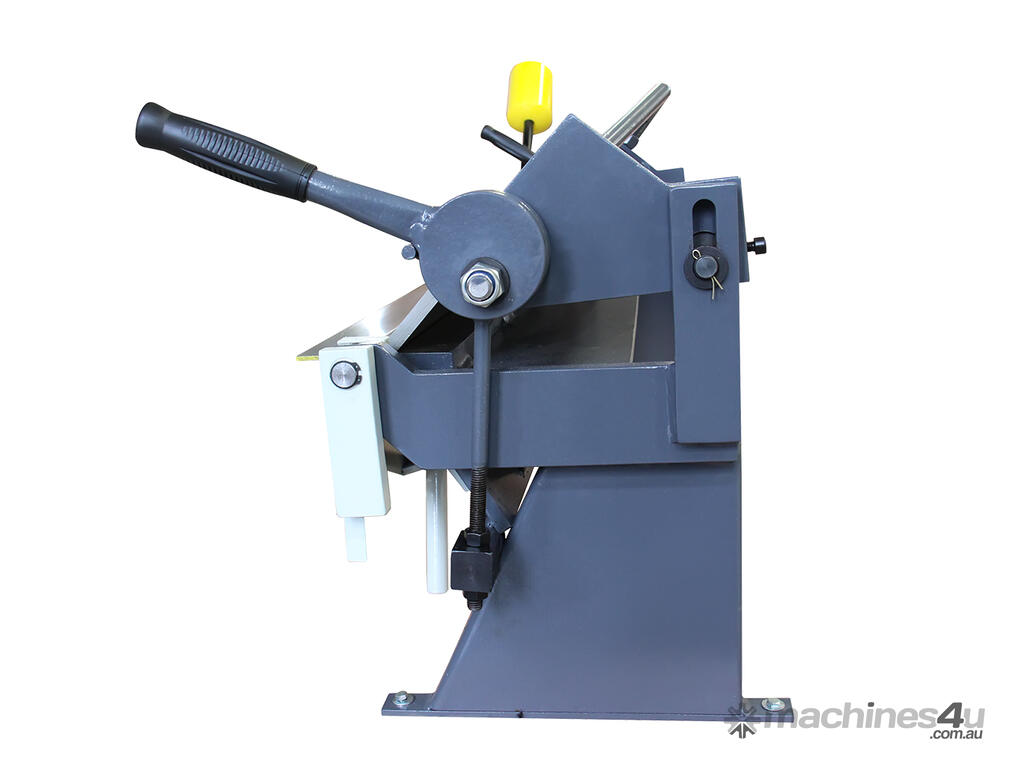

User-Friendly Manual Design. The counterweight apron lift assists significantly in reducing physical effort, making it ideal for prolonged use in small shops or classrooms without the complexity or cost of powered models.

Ability to Create Short Edges and Tight Angles. The design of the clamping fingers allows the machine to get very close to the edge of the material, making it ideal for creating short return flanges and achieving tight angles and hems that might be challenging with bulkier press brake tooling.

Simplicity and Ease of Operation. This sheet metal bender is generally simple to operate and set up. It is accessible to both experienced machinists and amateurs, making it suitable for environments that do not require high-level programming or complex tooling changes.

Features

Steel-welded structure manual panbrakes

Max. bend 1.5 mm plate at the full width of 1220 mm

0-135 degrees bending range

Segment bending fingers for box & pans bending

Finger size: 50.8mm x 5 pcs, 76.2mm x 6 pcs, 101.6mm x 5 pcs (16 pcs)

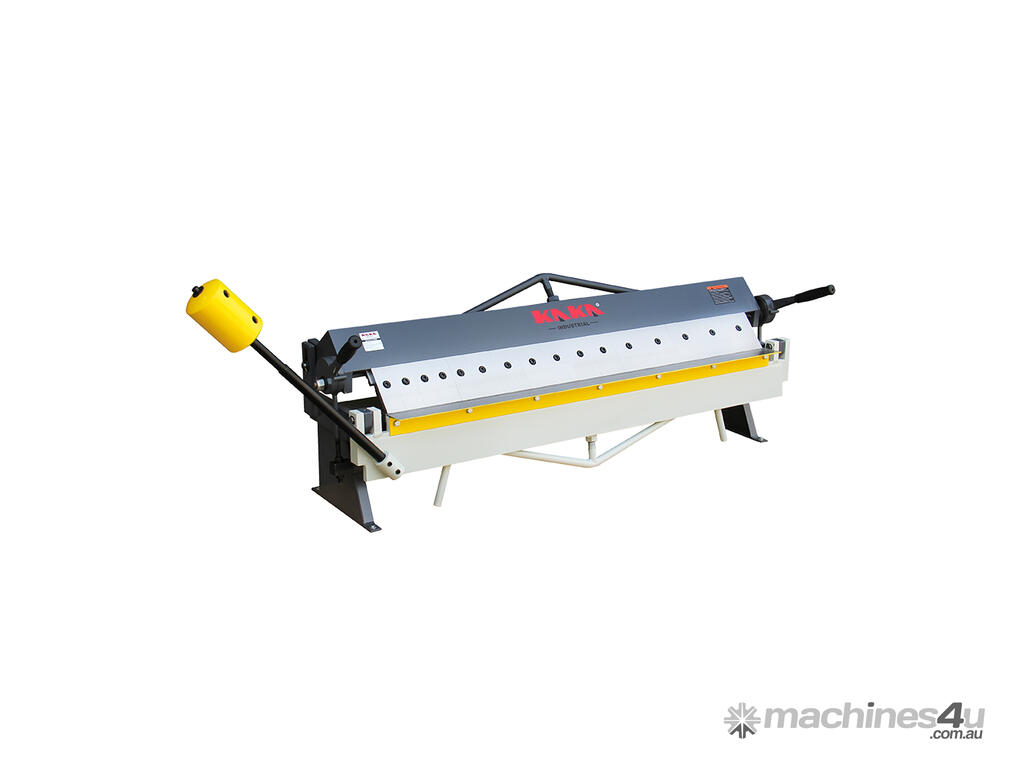

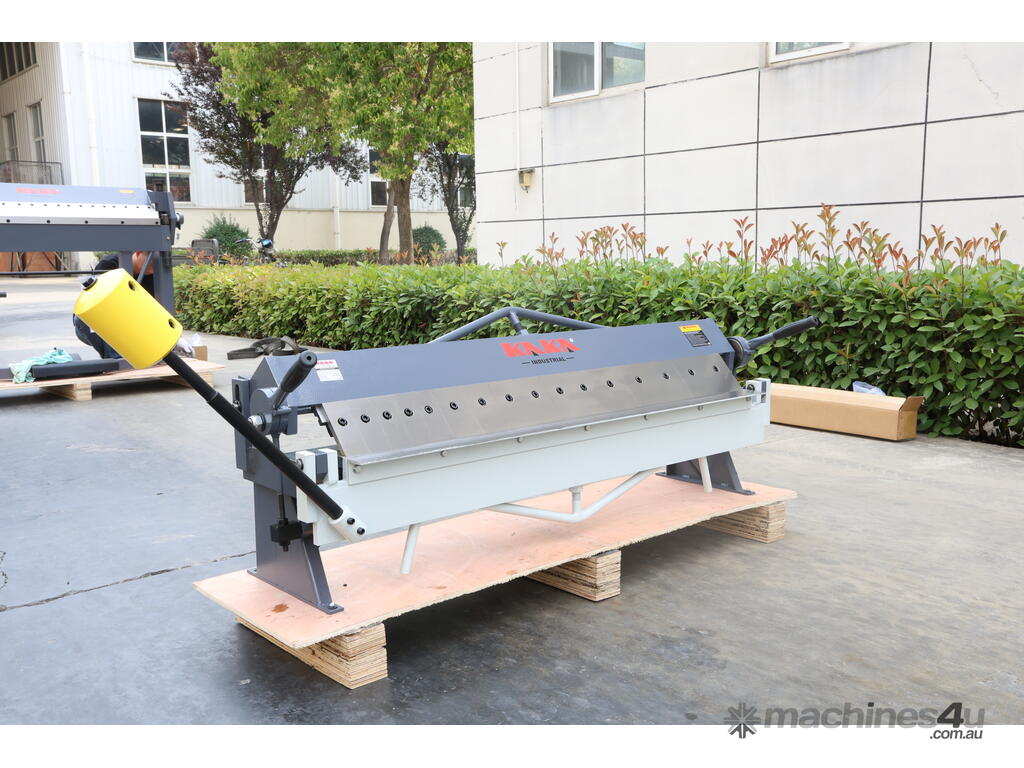

Comes with a counterweight to reduce the operator's effort for efficient folding applications

Fixing hole dimension ø11mm, 1292x300mm. Fix it on a stand or your workbench in the workshop

KANG A-Type Stand

KANG D-Type Stand

Specifications

SKU 173123
Model W-4816Z
Bending width 1220 mm
Bending thickness 1.5 mm
Bending angle 0-135 °
Packing size 158x45x65cm
N.W./G.W. 175/215 kg
