Heavy Duty Manual Plate Curve Roller

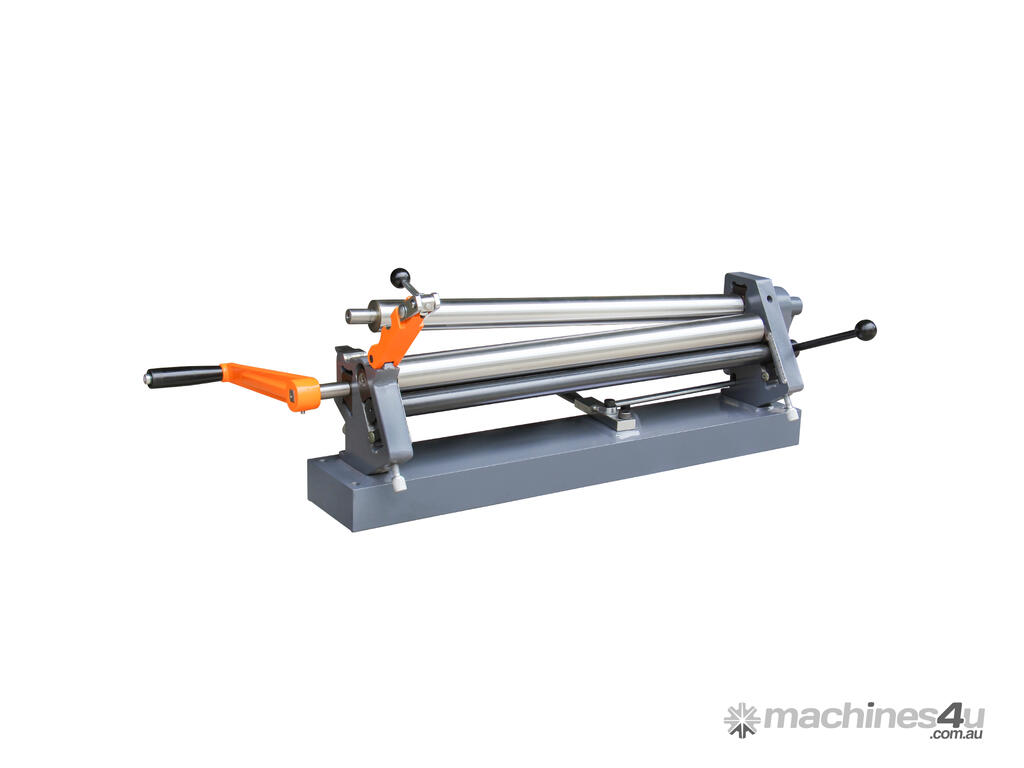

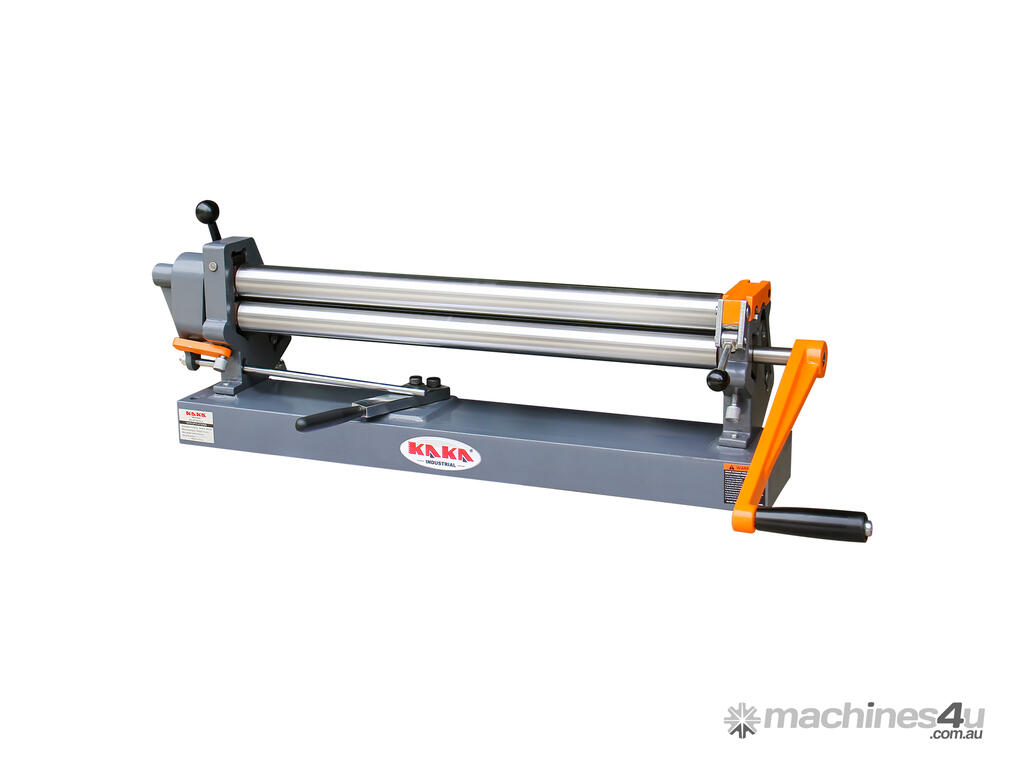

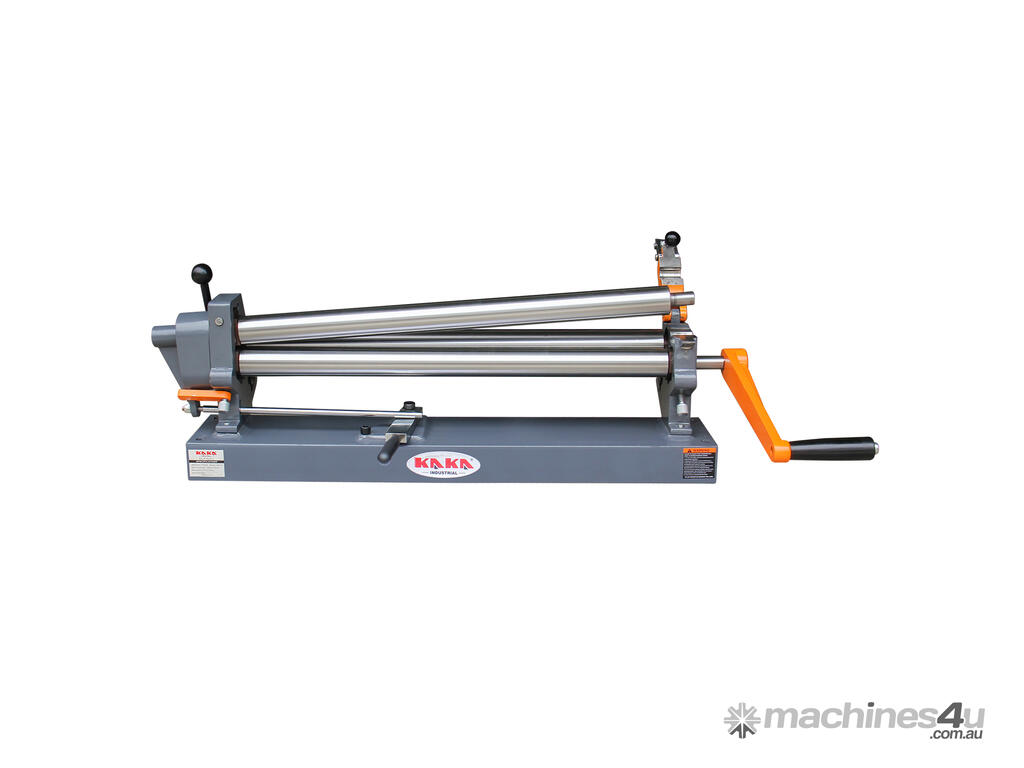

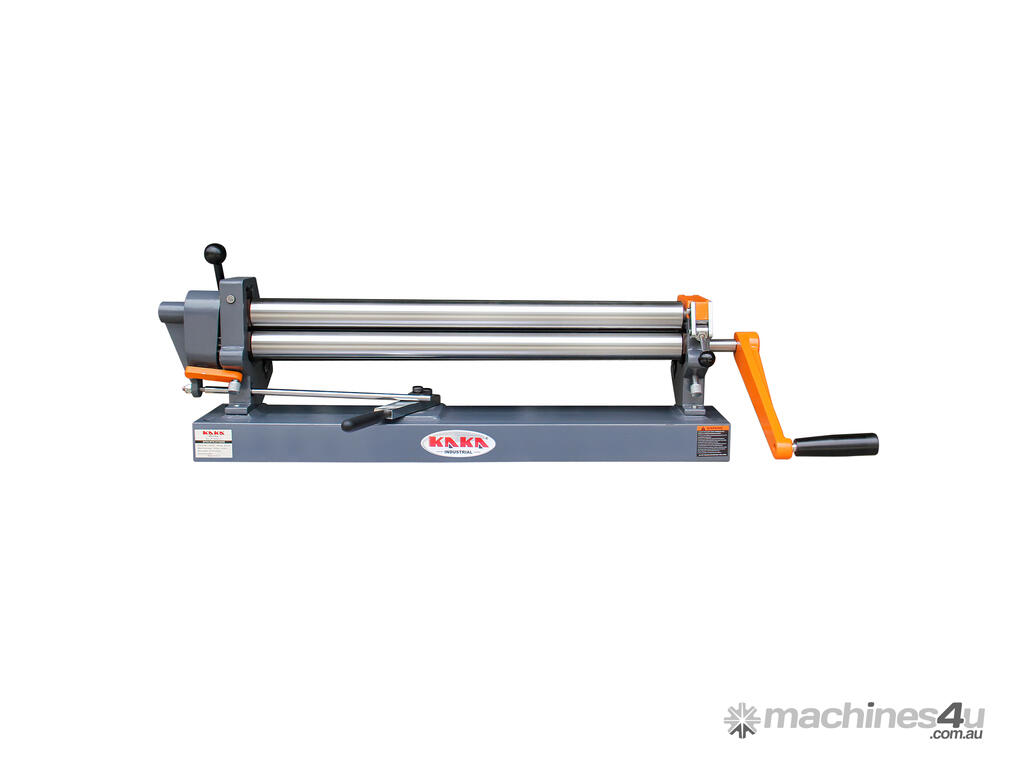

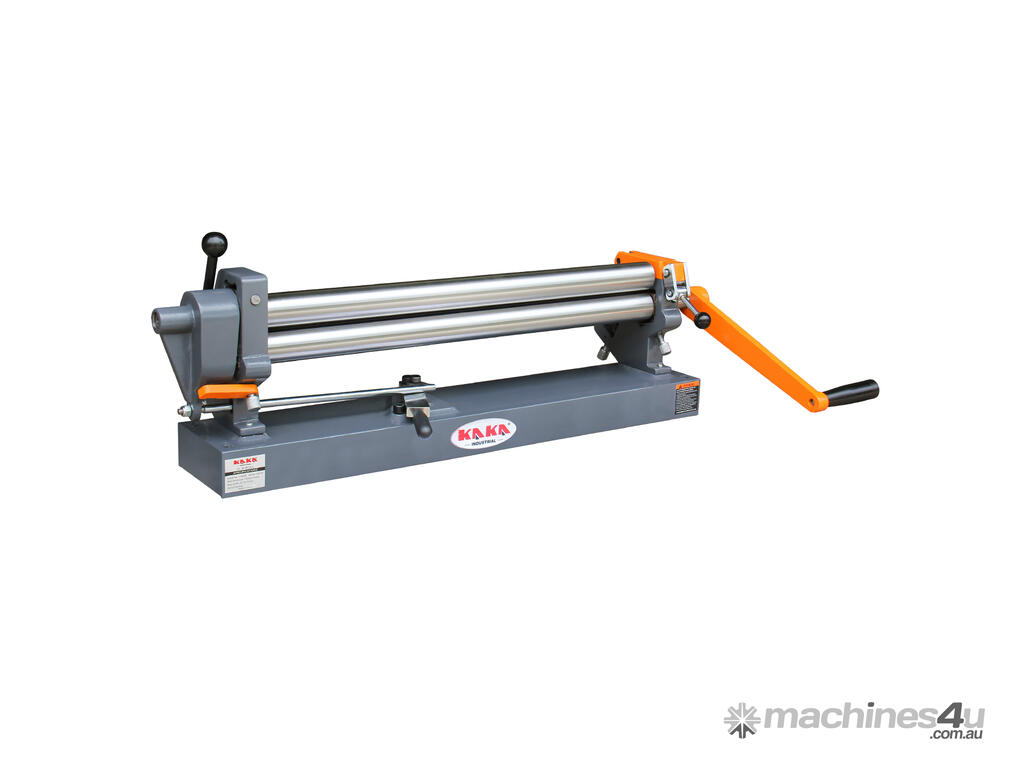

The KANG 610mm Sheet Metal Curve Roller SR-24 is a premium, precision manual sheet metal roller designed for accurate forming of curves, cylinders, cones, and tubes in smaller to medium-sized projects. It features three precision-ground steel rollers (42 mm diameter) with a maximum forming width of 610 mm and a capacity for mild steel up to 1.6 mm thick at full width. The standout feature is the cam-actuated idler roll, which eliminates flat spots on the leading edge, allows bends at any point along the material, and returns to the exact pre-set position for perfect part duplication. Rear roll indicators ensure quick, repeatable adjustments, and optional grooved rollers enable forming round, flat, or square wire/rods. Fully manual operation uses a side crank handle, making it ideal for benchtop use in workshops, garages, schools, or production environments.
Exceptional Precision & No-Flat-Spot Forming Roller. The cam-actuated idler roll produces true circles and allows bending anywhere on the material—ideal for high-quality prototypes, custom brackets, toolboxes, exhaust components, or decorative items where standard sheet curve roller leaves unwanted flat ends.
Perfect for Repetitive & Production Work. Rear roll indicators and repeatable idler positioning make it excellent for short production runs or duplicating identical parts, a big plus for small Australian fabrication shops, apprentices, or hobbyists doing multiple similar jobs.
Compact 610 mm Width for Space-Constrained Workshops. Fits easily in home garages, mobile setups, or smaller commercial spaces common in urban Australia, while still handling a useful range of sheet sizes for roofing flashing, guards, or custom panels.
Versatile Radius Capability. Capable of achieving a tight 25.4mm minimum radius up to an unlimited maximum radius, offering flexibility for a wide variety of small-scale fabrication projects.
Easy to Store & Move Slip Roller. Compact footprint and benchtop design makes it simple to relocate or store when not in use, ideal for Australian homes or small commercial spaces.
Features
610mm rolling width, can roll 1.5mm mild steel over the entire width
1:1 gear ratio for powerful rolling

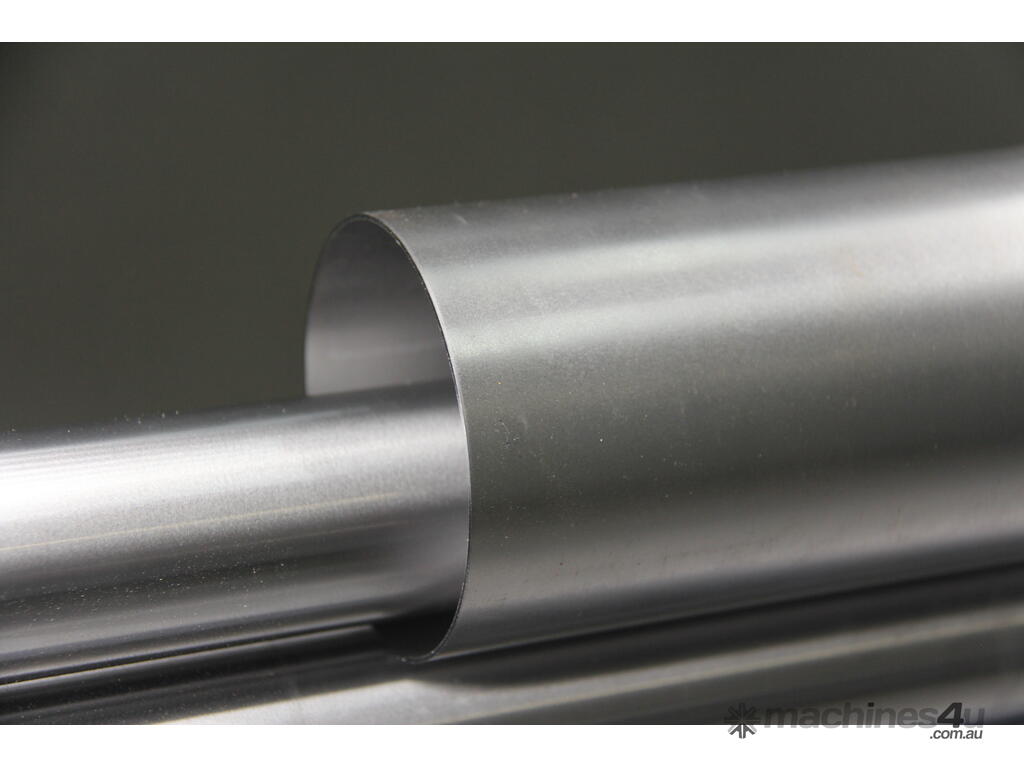

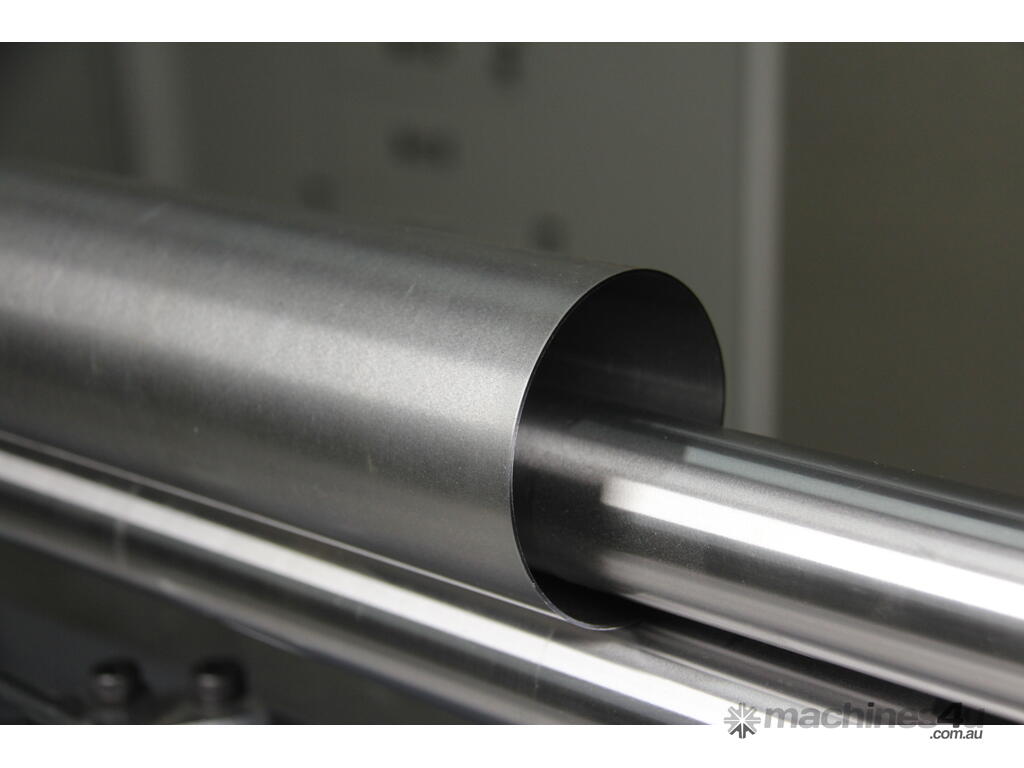

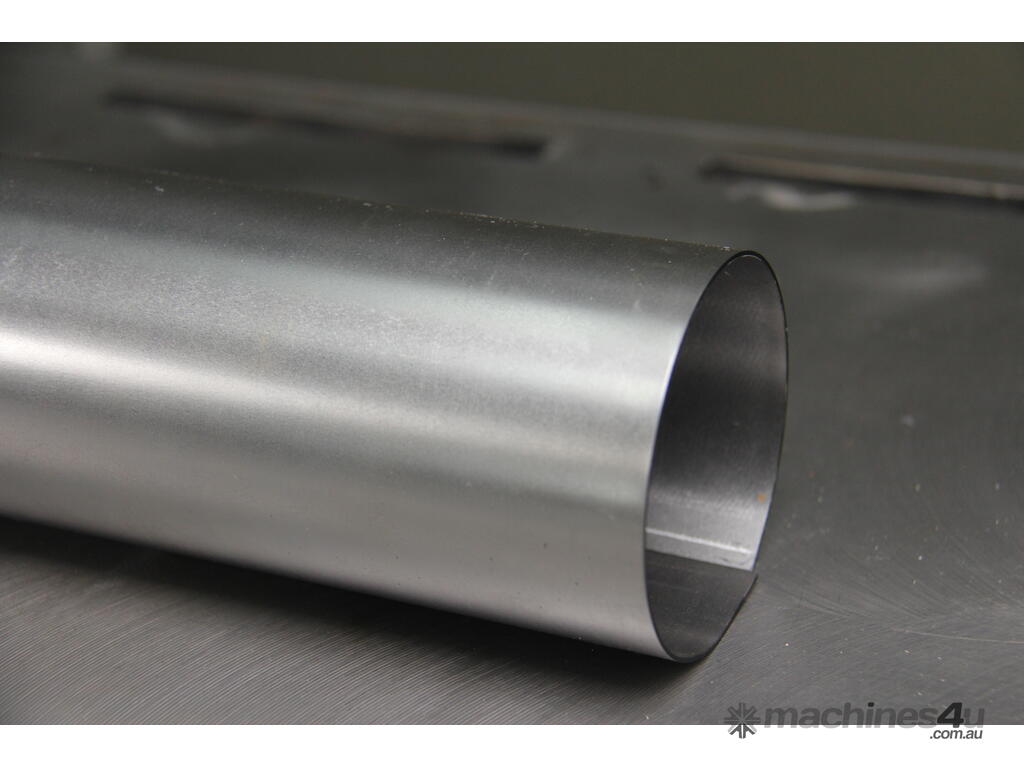

Form min. 50.8mm circle

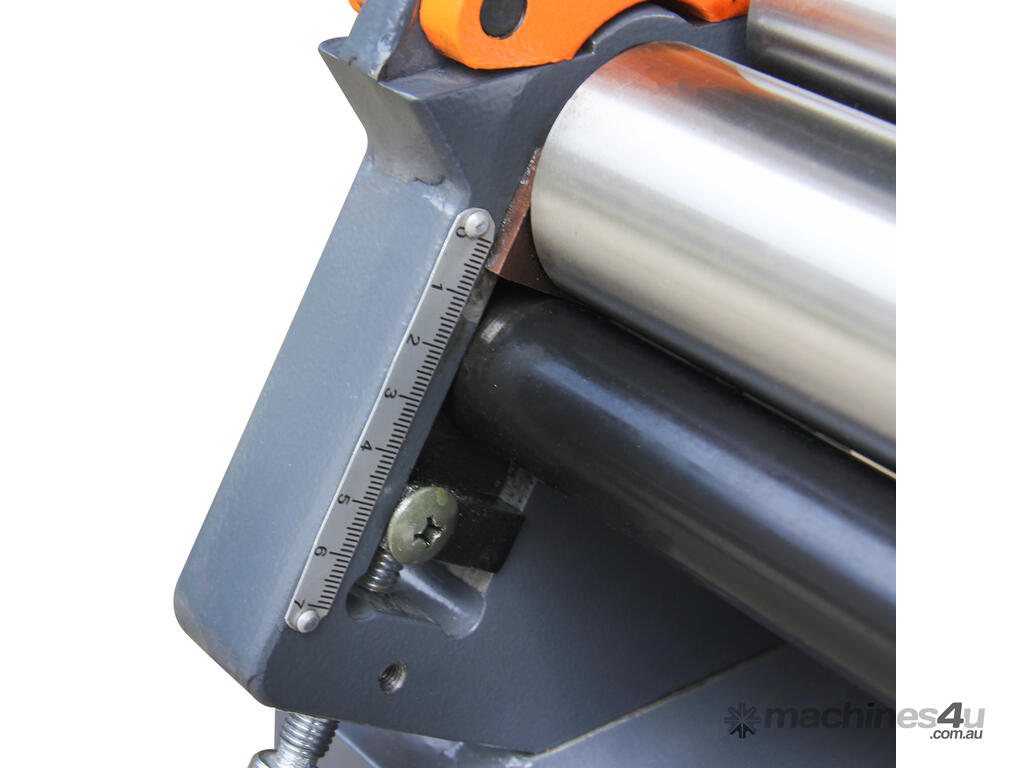

The rear roll indicator enables the operator to adjust the idler& roll to a previous setting

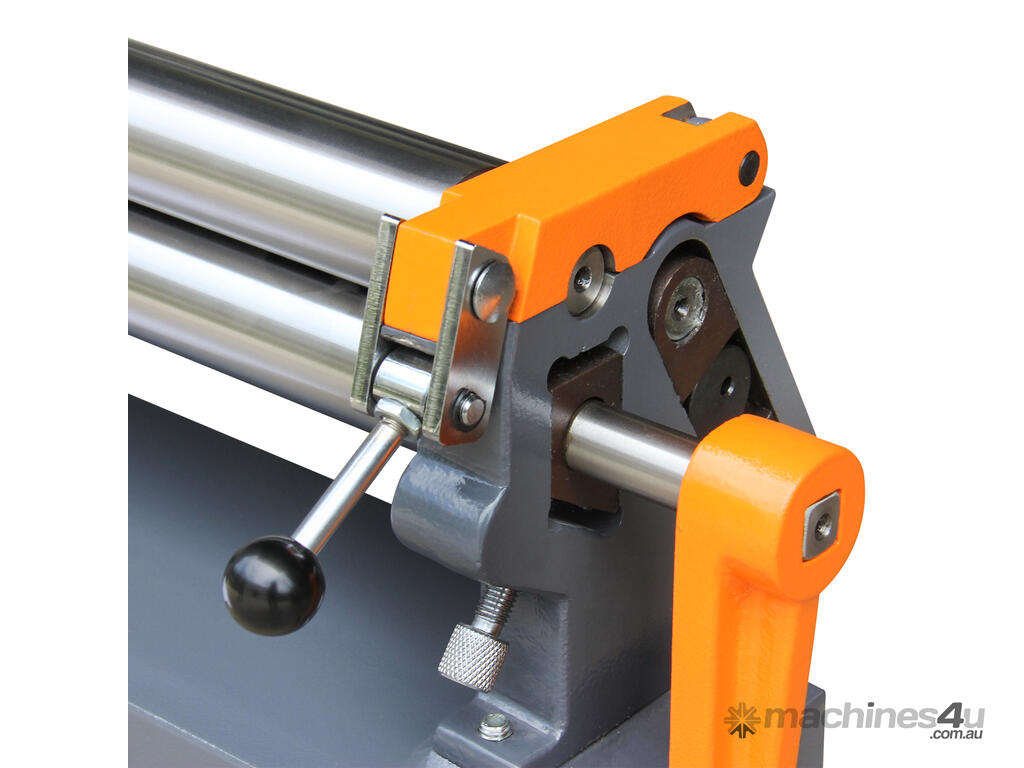

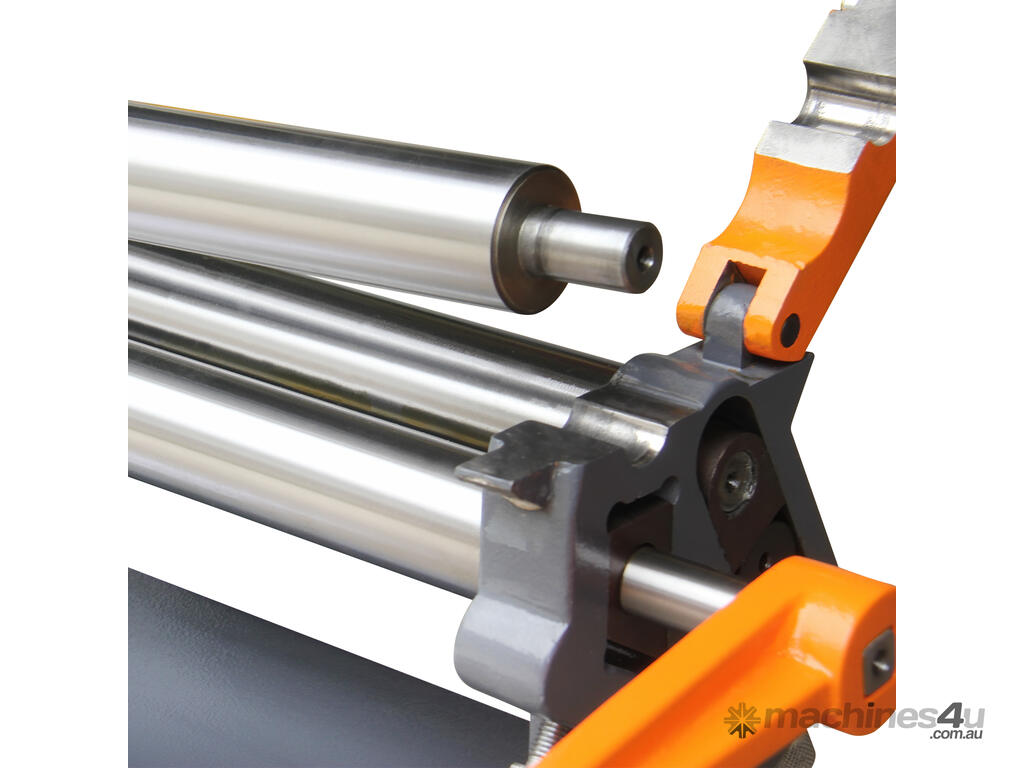

The eccentric idler roll is designed to form circles without flat spots on the leading edge of the plate
Solid roller, round, flat, and square grooves can be machined into rollers for various applications. This is an optional service at an extra charge
Specifications
SKU 174009
Model SR-24
Max. capacity
1.5mm (mild steel)
0.9mm (Stainless steel)
Max. forming width 610 mm
Roll dia. 42 mm
Min. forming dia. 50.8 mm
Rear roll lift 25.4 mm
Packing size 89x21x37cm
N.W./G.W. 46/55 kg
