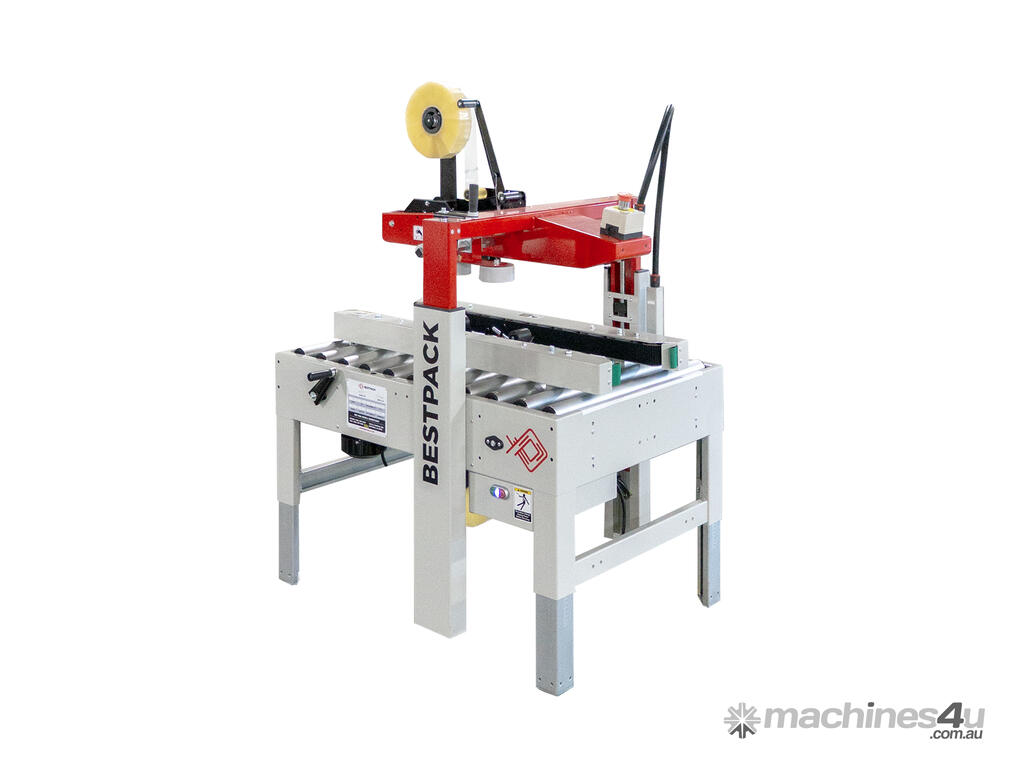

Manual Sidedrive Dual Mast Carton Sealer

Category: Carton Sealers
Belt Drive: Side Belt Drive
MSD Simple System
Up to 40 Cartons/min.


The BestPack™ MSD Series is a Semi-Automatic Uniform Tape Carton Sealer and is our most popular operator-fed adjustable carton sealer. The MSD is a top of the line machine, designed to suit a variety of light-to-heavy duty uniform carton closure applications. Using side belt technology, the MSD will seal very narrow to wide cartons. Dual telescopic masts allow for an extra 4? carton height extension on the upper assembly.

Our MSD line incorporates our exclusive 2? or 3? pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

SpeedUp to 40 Cartons/Min.
Power Requirements = 110 Volts 60 Hz
Air Requirements = None
Shipping Weight = 342-490 lbs
Machine Dimensions(39.5") x (32.8") x (70.3")
Carton Range = (6.0" - U) x (4.25" - 20.0") x (3.5" - 20.5")
Trip Current (A) = 10
FLA = 2.5
Conveyor Height adjustment = (23.5" - 30")
Phase = 1
SCCR (KA = )5
Max Current (A) = 5
Power (W) = 275
Specifications based on Line = Specifications based on MSD22-2

-------------------------------------------------------------------------------

General Information:-
All our machines come with strict quality control checks, and certificates issued to the machines come along with the machine despatch.
A one-year standard warranty is applicable to all our machines and models. We offer additional warranty and services upon request, so please contact us for further information.
All our sales, prices, and information strictly adhere to our terms and conditions. Please contact us and demand the terms and conditions information document. Customers can also visit our for more information.
Our skilled service engineers and technicians are available to come to your site for machine installation and training. We have the capability to keep your machine operational at all times with on-time spare parts delivery, whether they are general consumables or critical.
We continuously enhance our capabilities and provide support to our customers, fostering strong relationships with them.

*Please note* that prices may vary slightly due to international foreign exchange rates. For the final product quote, kindly contact our sales team.
