Manual Treadle Guillotine Q01-5216, 1.5x1320 Mild Steel Plate Shear, Guillotine Shear

Manual Treadle Guillotine Shear Q01-5216

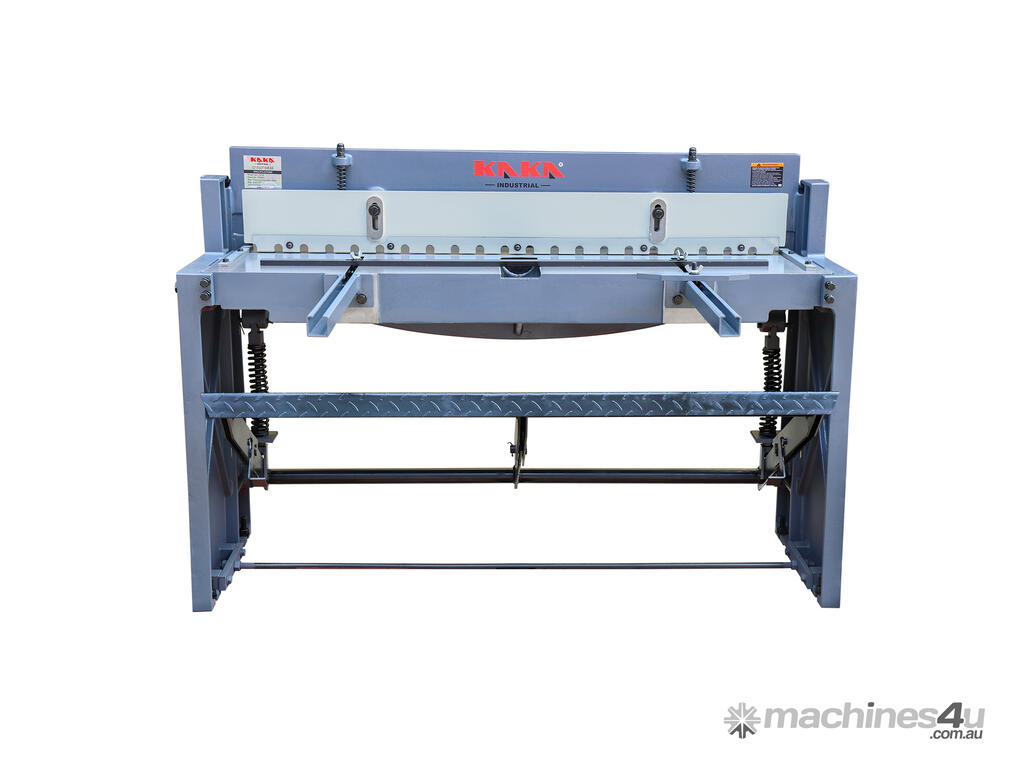

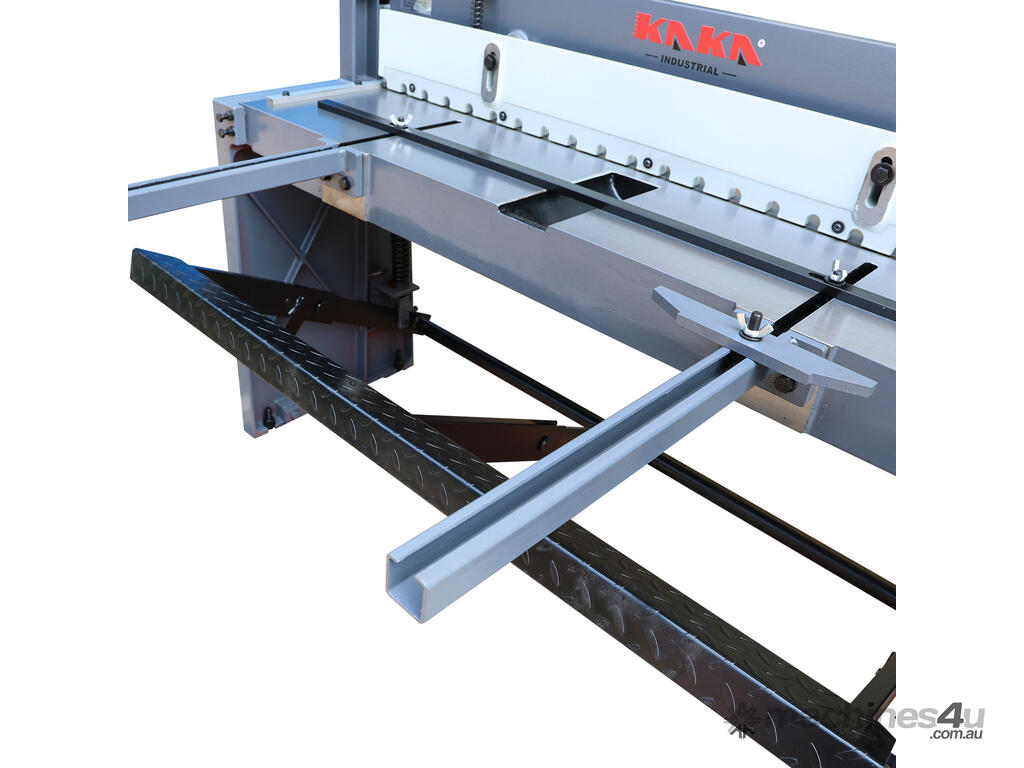

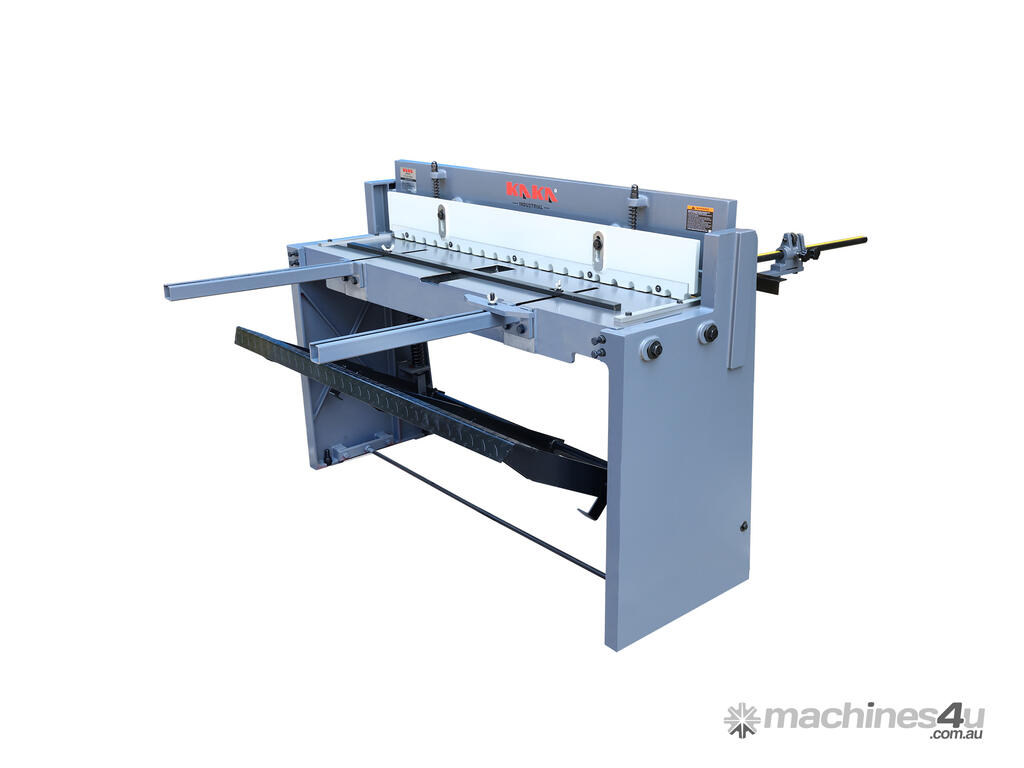

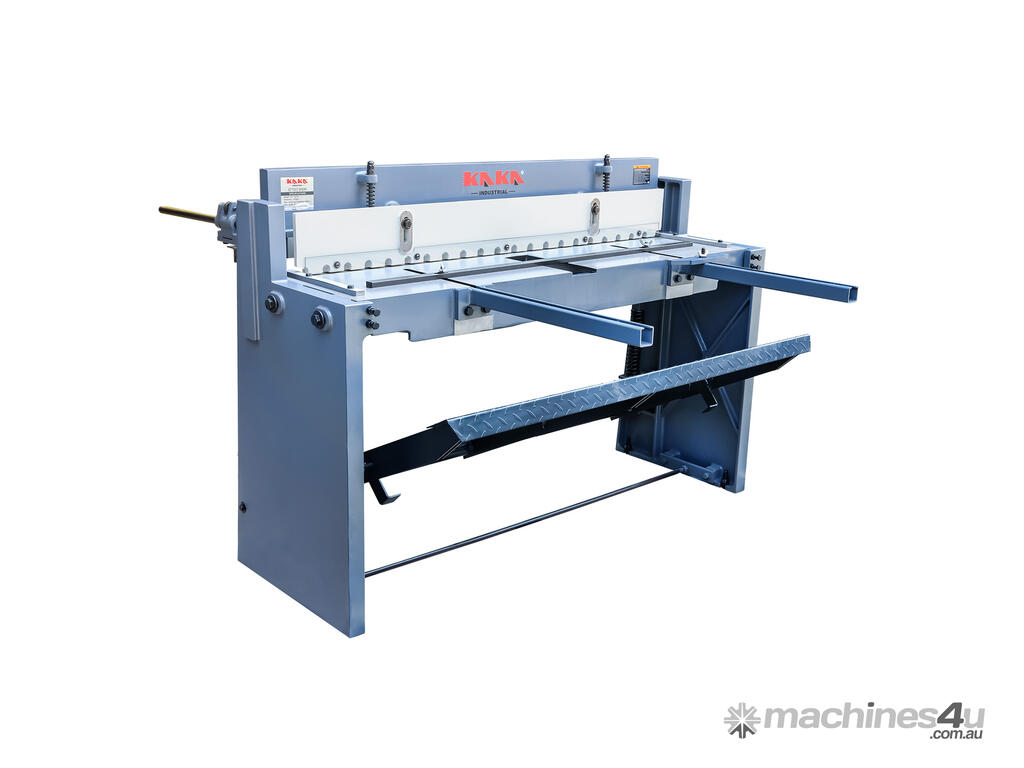

The Treadle Guillotine Shear Foot Operated 1320 mm is a professional-grade, heavy-duty foot-operated guillotine shear designed for precise straight cutting of sheet metal up to 1.50 mm thick (mild steel or equivalent), as well as other materials like plastics or cardstock. With a generous 1320 mm cutting length, this shear features a robust cast iron body for exceptional stability and longevity, high-quality steel upper and lower blades, and an automatic clamping device to securely hold the material during cuts. It includes front extension arms for supporting large sheets, a precise adjustable back gauge (0–700 mm) with integrated measuring tape, and right-angled front gauges on both sides for accurate positioning. The foot-operated pedal leaves both hands free to feed and align the sheet, making the operation efficient and safe.

Hands-Free Operation for Efficiency & Safety Sheet Cutting. The foot pedal activates the cut while leaving both hands free to position and feed large sheets, ideal for precise work on wide materials like roofing panels, automotive parts, signage, or HVAC ducting.

Higher Cutting Capacity & Wide Blade. Handles thicker sheets (up to 1.5 mm mild steel) with a 1320 mm length for broader projects, perfect for medium-scale fabrication needs.

No Electricity Required Manual Treadle Guillotine. Fully foot-operated design eliminates power needs, suiting off-grid rural properties, remote job sites, or areas with unreliable electricity.

Superior Build Quality & Durability Guillotine. Heavy cast iron body, high-quality steel blades, and automatic clamping ensure long-lasting performance and clean cuts, withstanding Australia's harsh conditions (dust, heat, humidity) for generations of reliable service.

Precision Features & Ergonomics. Adjustable back gauge with measuring tape, front extensions, and 800 mm working height provide accurate, comfortable operation—crucial for professional results in busy Aussie sheds or workshops.

Features

Mild steel plate 1.5x1320 mm cutting capacity

4-Side high chromium blade extends the blade's use

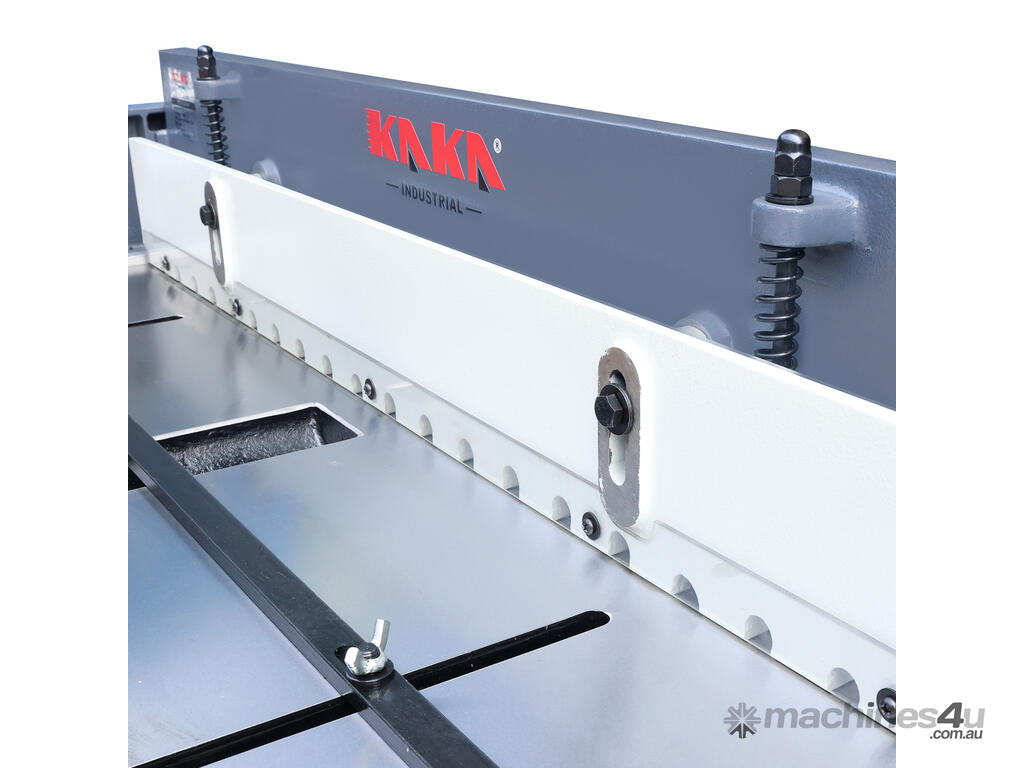

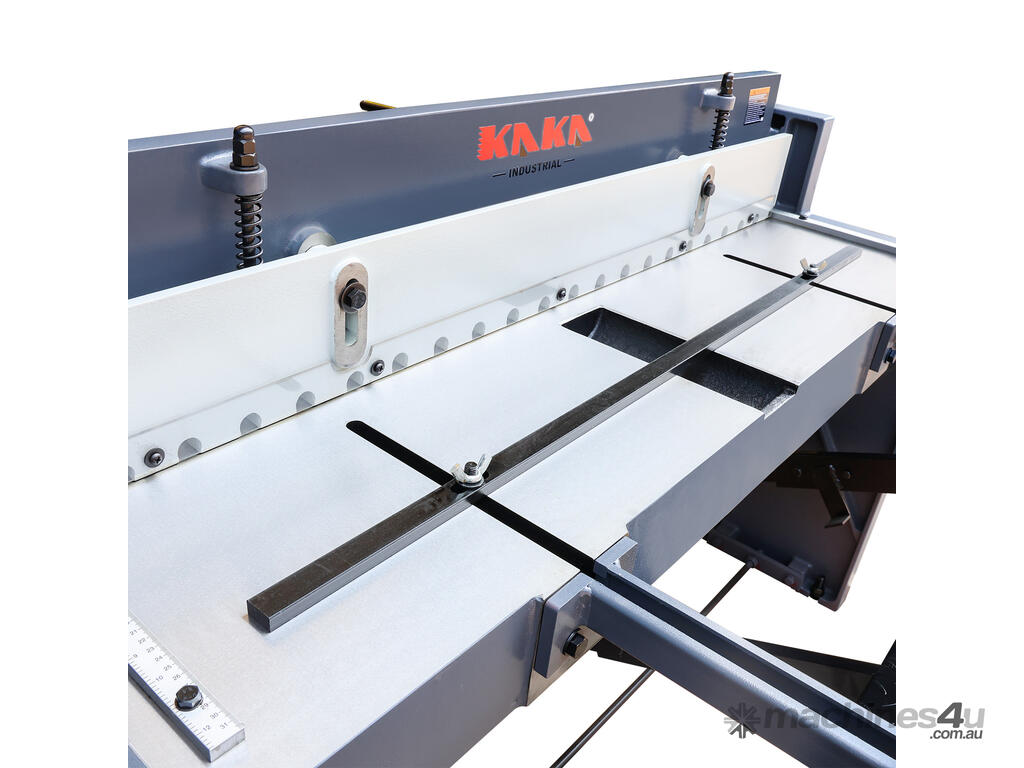

Spring-loaded material clamp beam

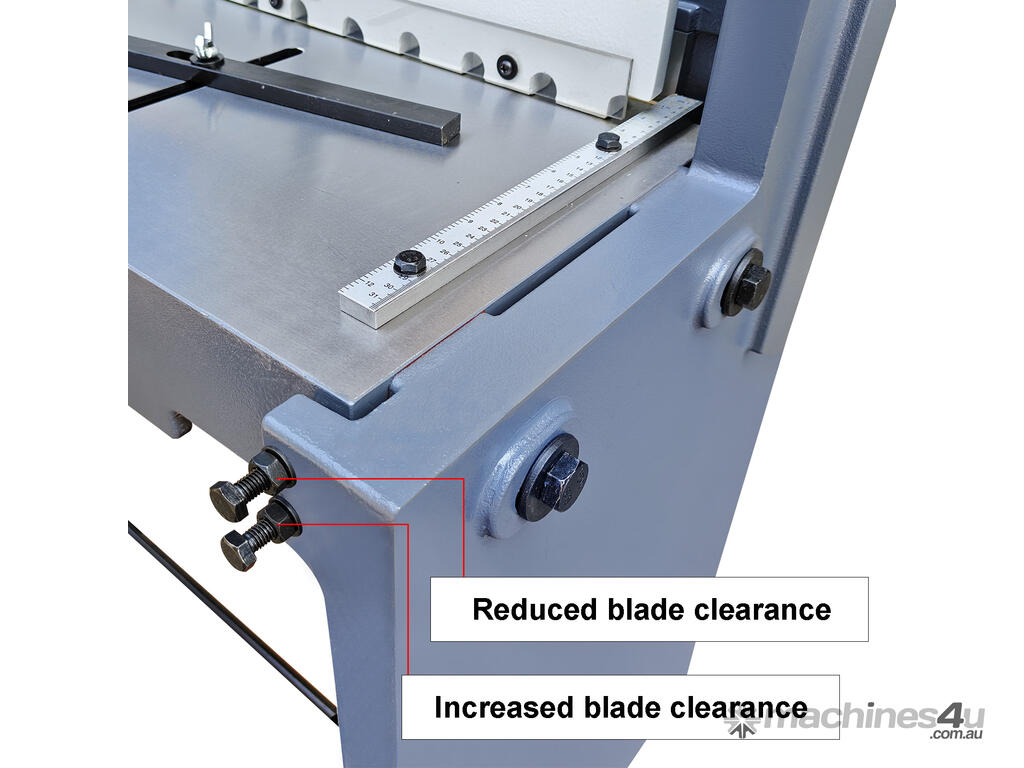

Adjustable blade gap clearance for thin plate

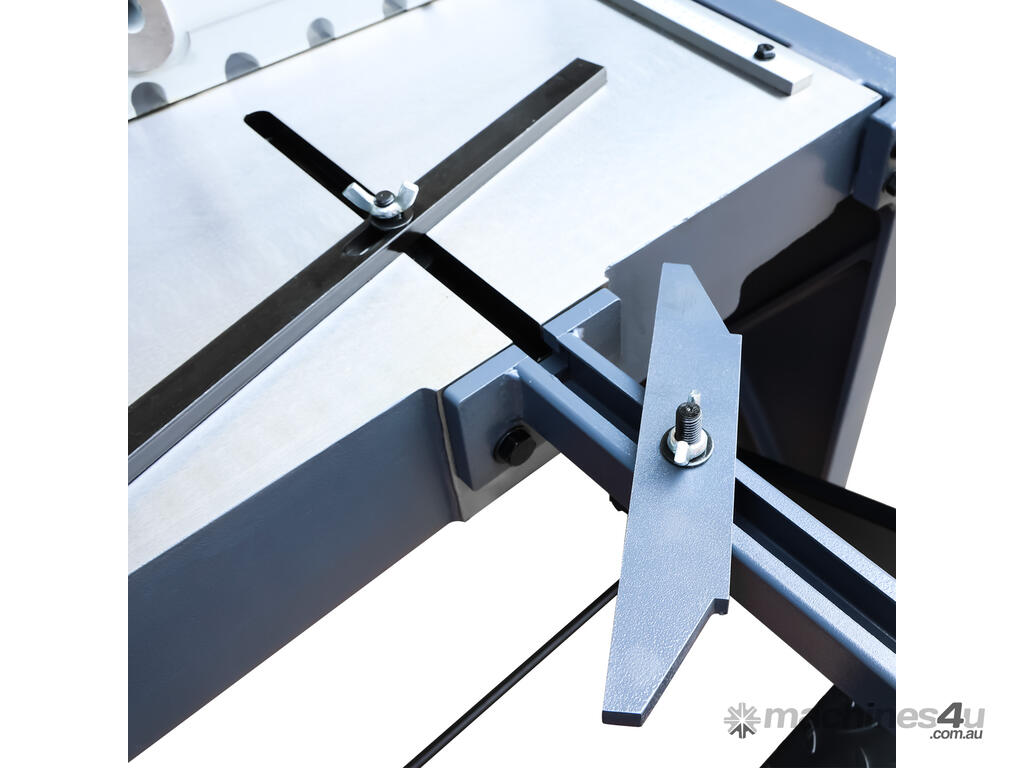

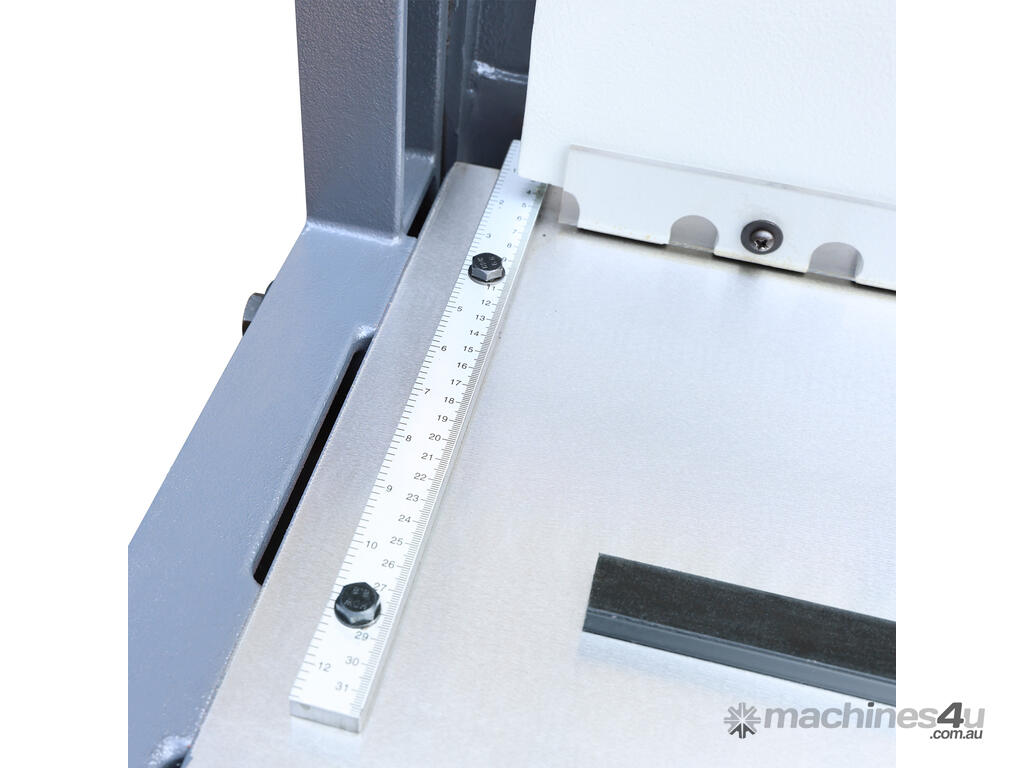

Standard front and back gauge

800mm table height

Specifications
SKU 172002
Model Q01-5216
Cutting width 1320 mm
Cutting thickness 1.5 mm

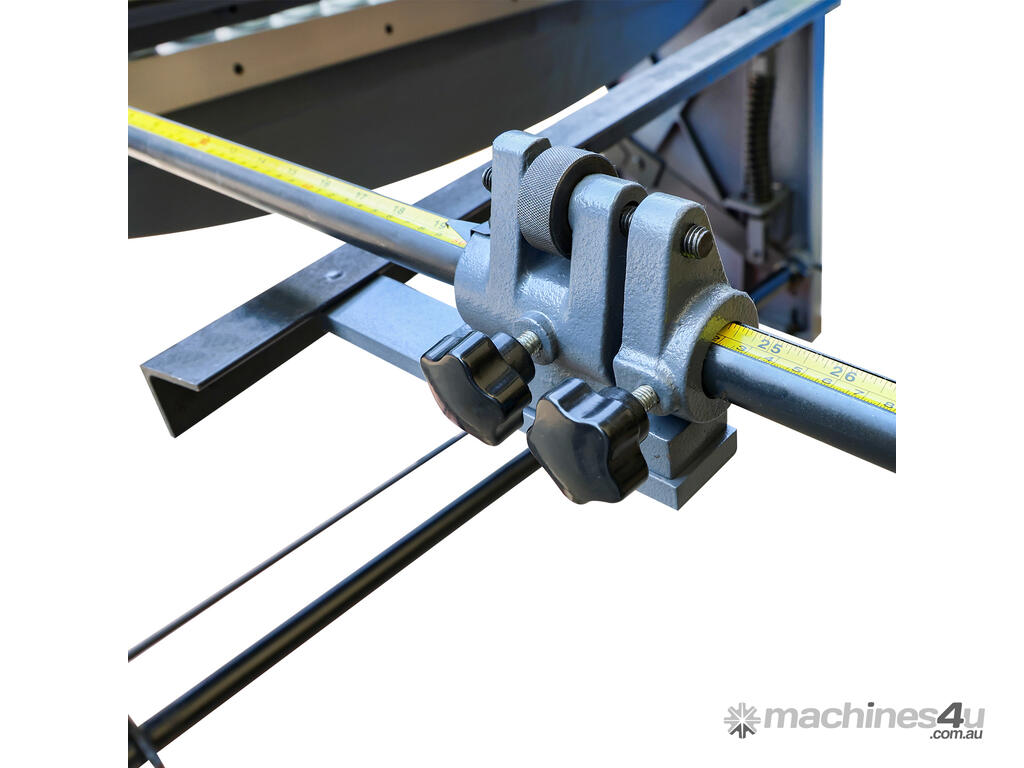

Back gauge 0-700 mm
Packing size 168x76x115 cm
N.W./G.W.  454/508 kg
