KANG Industrial WP300SM Welding Positioner

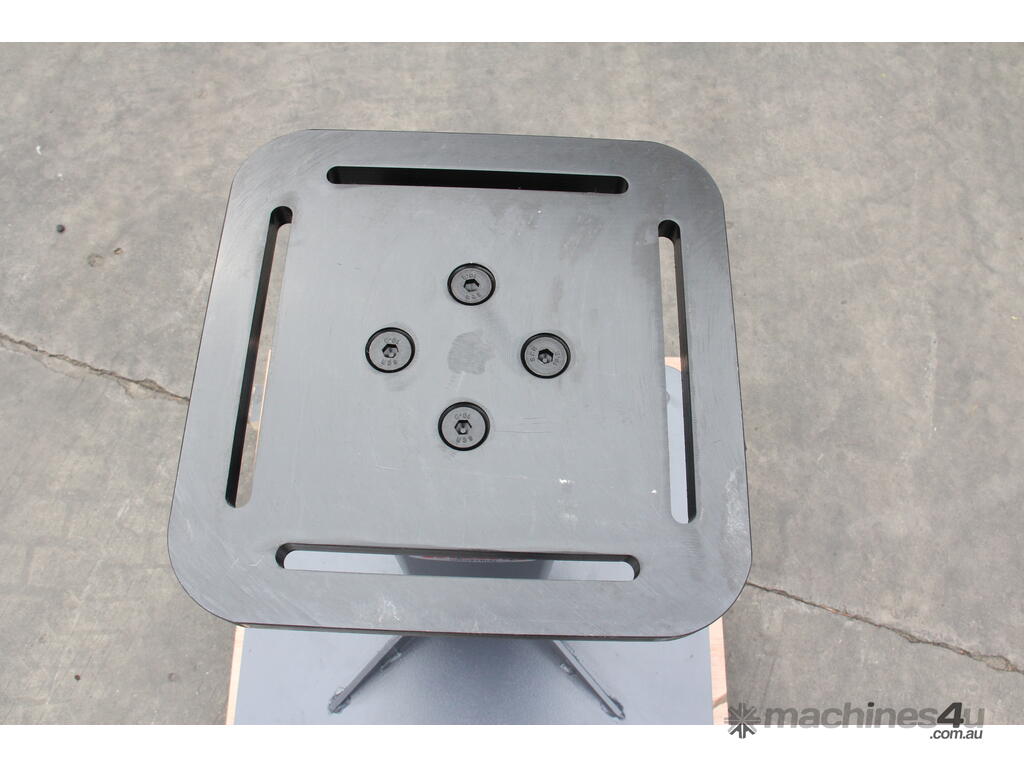

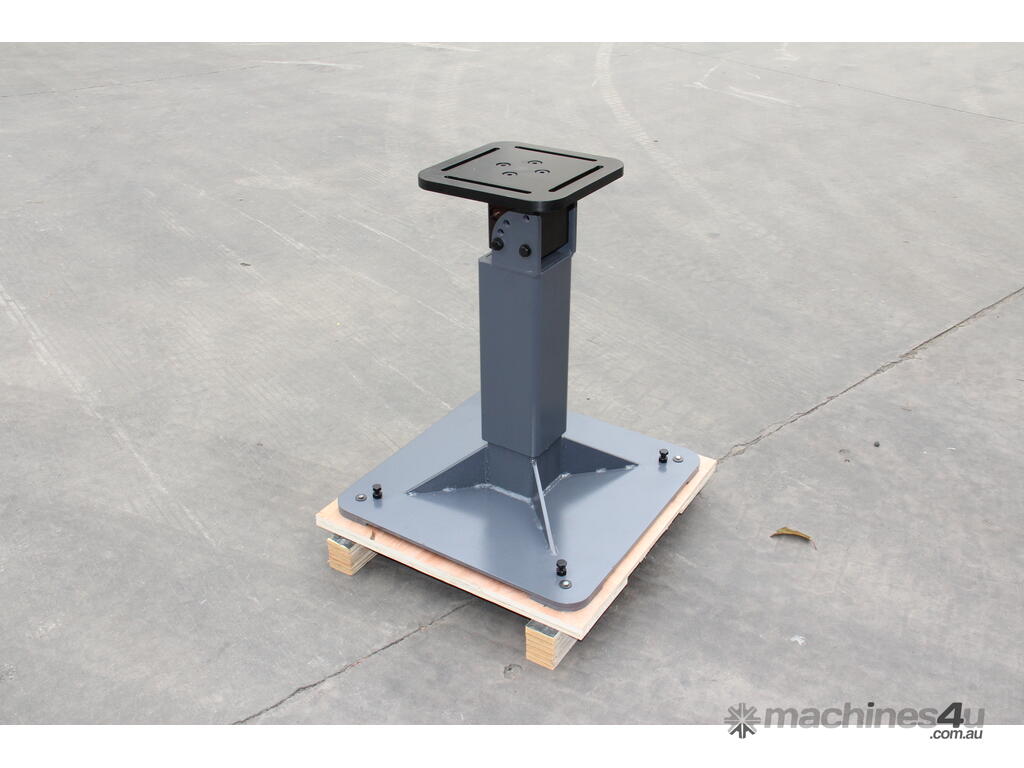

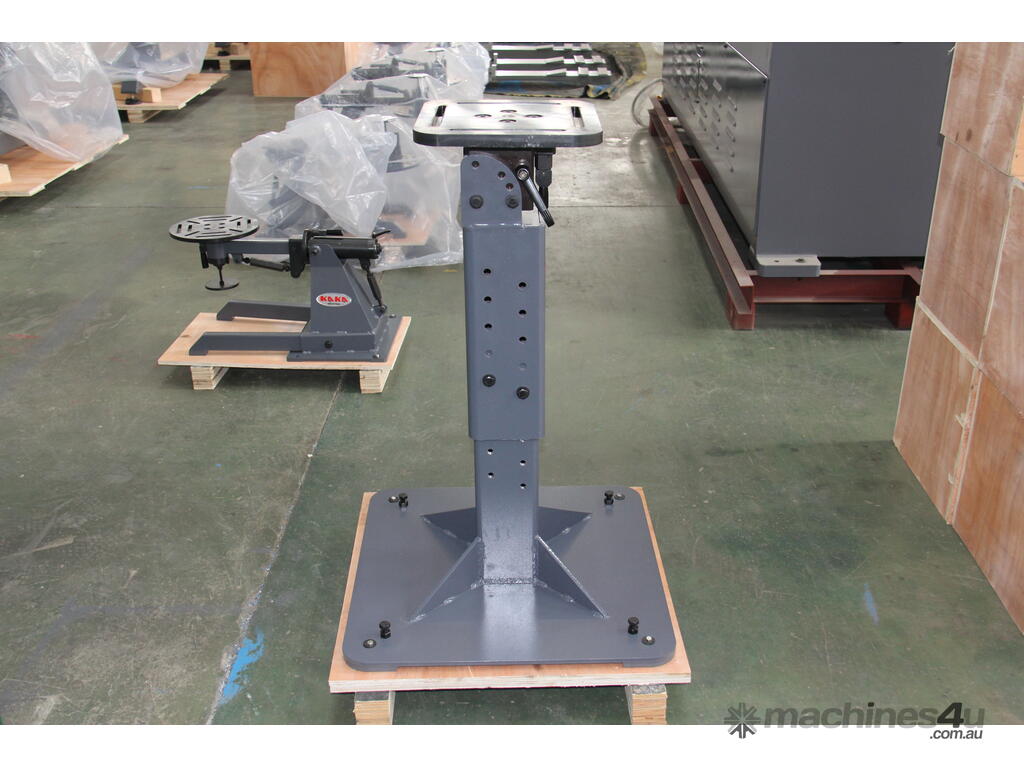

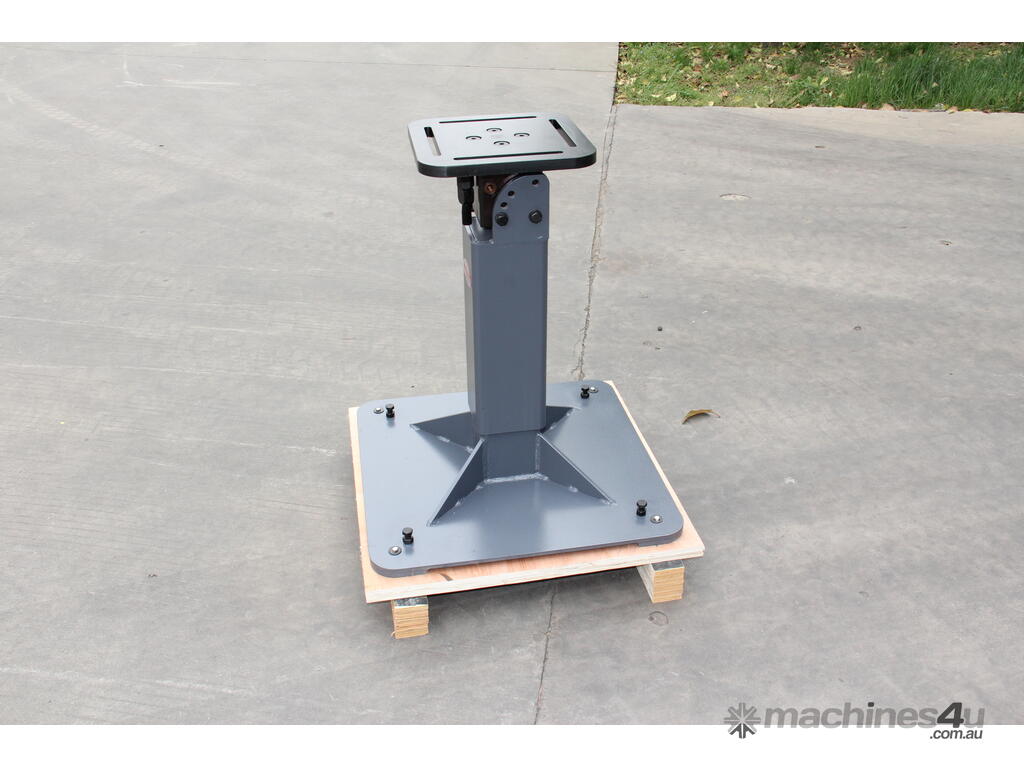

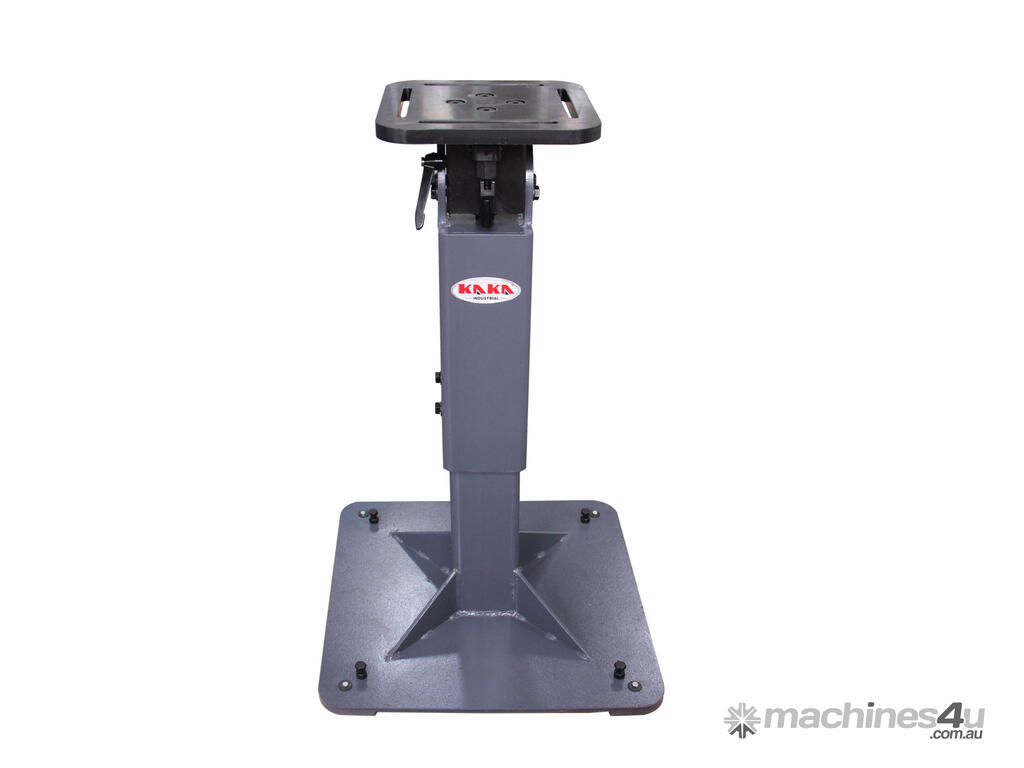

The Pedestal Manual Weld Positioner Rotary Table is a robust, manual welding tool designed for professional and industrial use, featuring a 305x305x19mm table that can handle horizontal loads up to 300 kg and vertical loads up to 150 kg. It offers full 360-degree rotation, adjustable table angles at 0, 22.5, 45, and 90 degrees, and height adjustments from 71 cm to 91 cm in 50 mm increments for versatile positioning during welding tasks. The unit includes mounting slots/grooves measuring 12.7x180mm for secure workpiece attachment, with a stable 61 cm x 61 cm base. The positioner is ideal for horizontal and vertical welding applications, enhancing efficiency in workshops or fabrication settings.
Versatile Positioning Options. With adjustable heights, angles (up to 90 degrees), and full 360-degree rotation, it allows welders to position workpieces optimally, reducing physical strain and improving access for precise welding—perfect for Australian tradespeople in fabrication, automotive, or construction industries.
High Load Capacity Welding Positioner. Supports heavy-duty loads of up to 300 kg horizontally and 150 kg vertically, making it suitable for a wide variety of metalworking projects without compromising stability.
Ergonomic Design Manual Turn Table. Multiple height settings (71-91 cm) promote better posture and safety during extended use, helping to minimize workplace injuries.
Durable and Stable Construction. The large base and thick plate ensure reliable performance on uneven workshop floors, ideal for rugged Australian environments from urban garages to remote mining sites.
Efficiency Boost. Enables faster setup and welding by eliminating the need for manual repositioning, potentially increasing productivity for small businesses or hobbyists.
Features
The table could be turned easily into any position by hand.

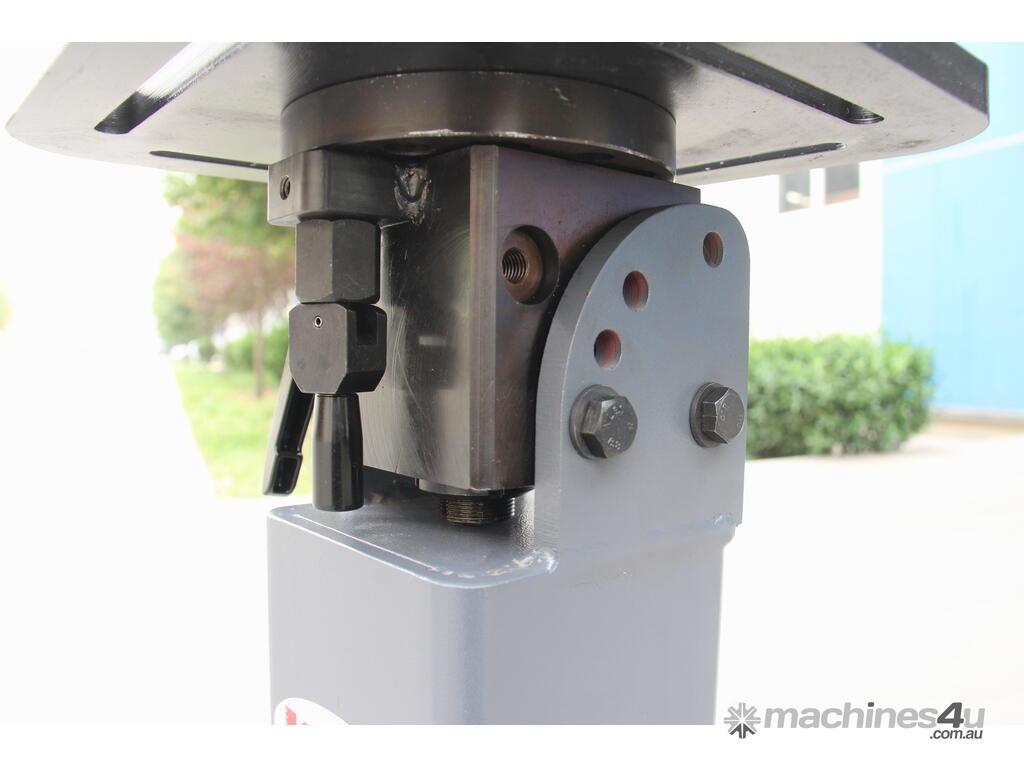

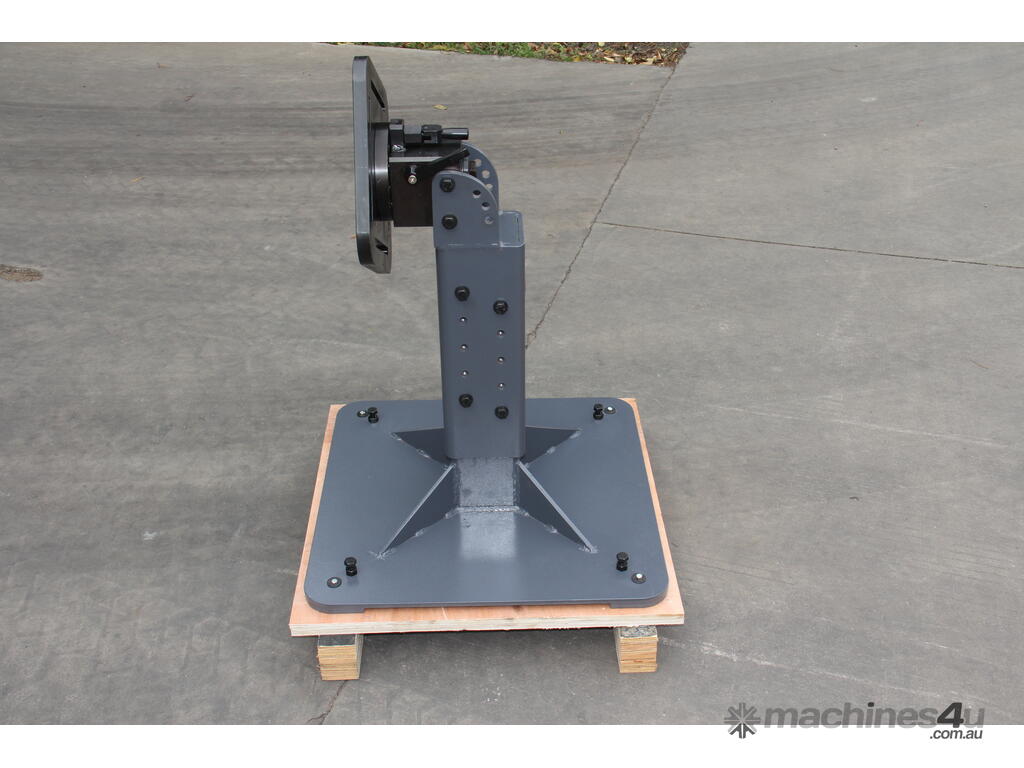

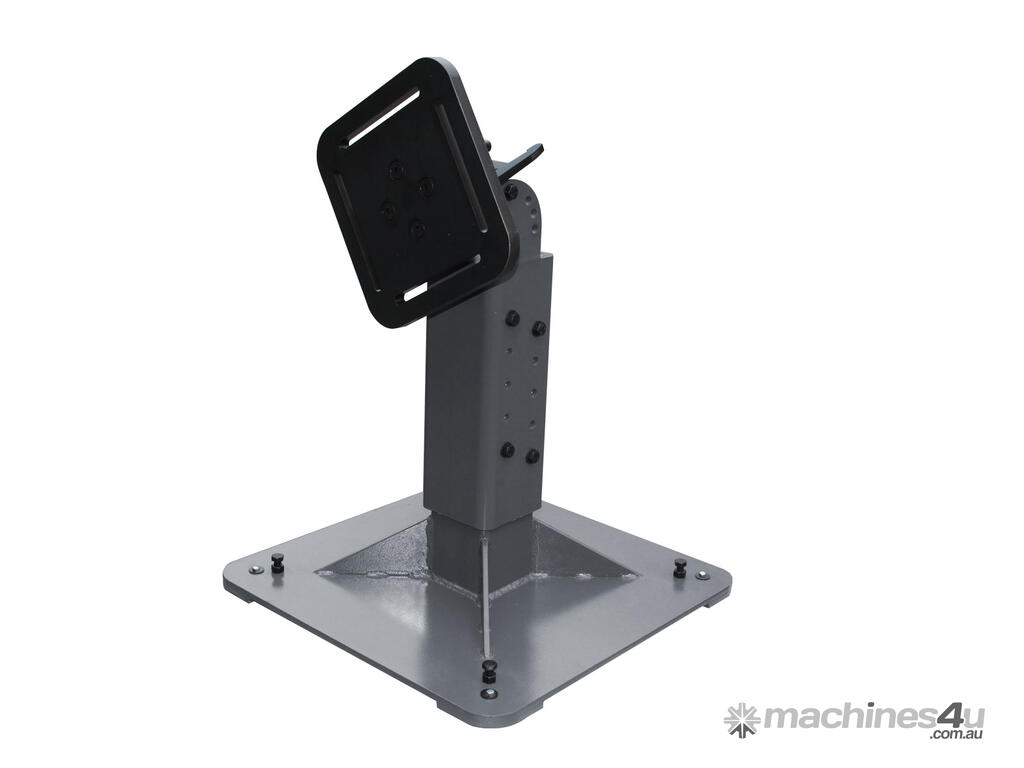

The mounting head could tilt at different angles, 22.5°, 45°, and 90 °
Adjustable table height ranges from 710mm to 860 mm in 50mm increments
Specifications
SKU 178371
Model WP300SM
Horizontal loading 300 kg
Vertical loading 150 kg
Table height 710, 760, 810, 860 mm
Table adjusting range 710, 760, 810, 860 mm
Packing size 67x67x86 cm
N.W./G.W. 86/114 kg
