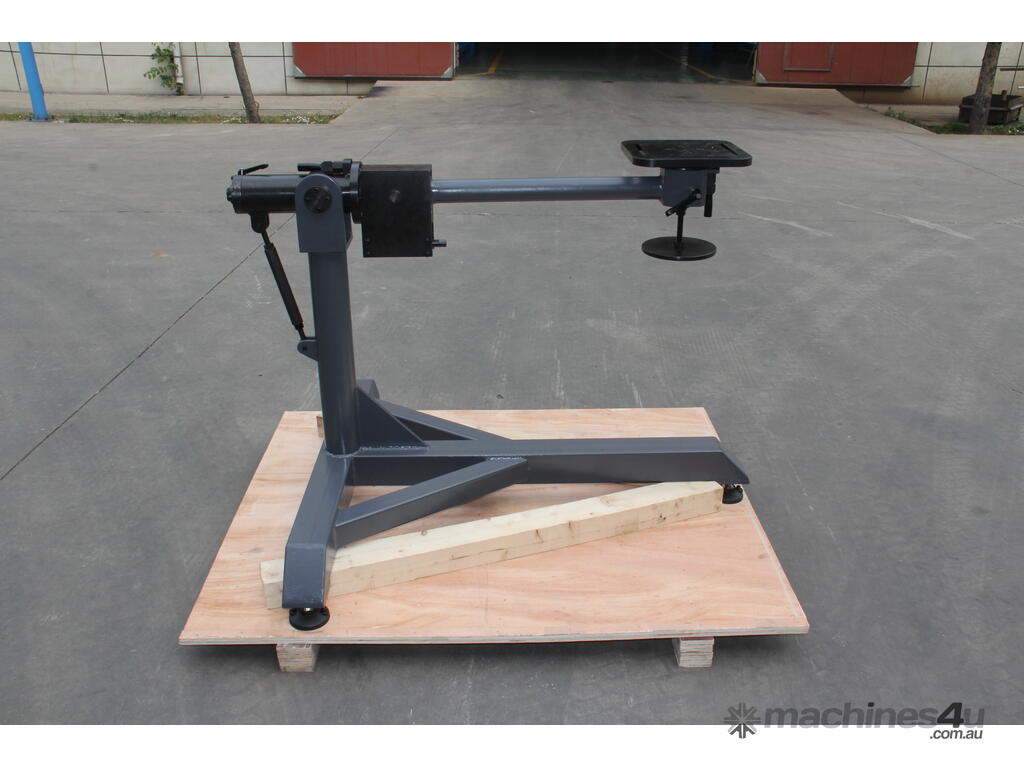

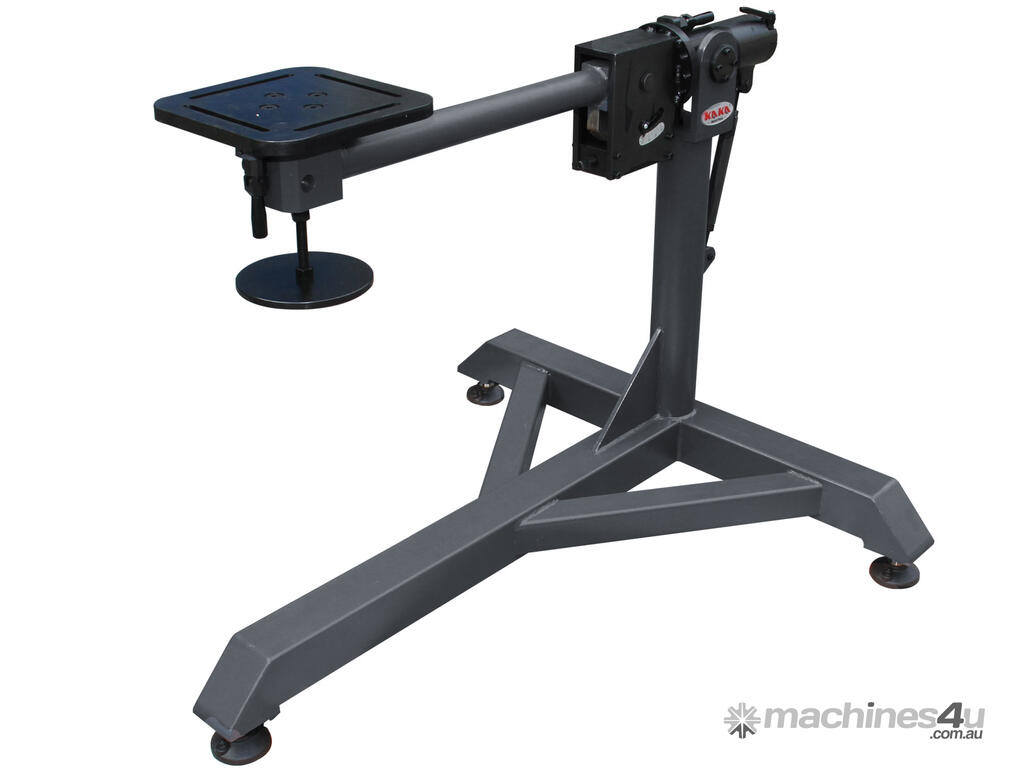

KANG Industrial Manual Welding Positioner WP300M

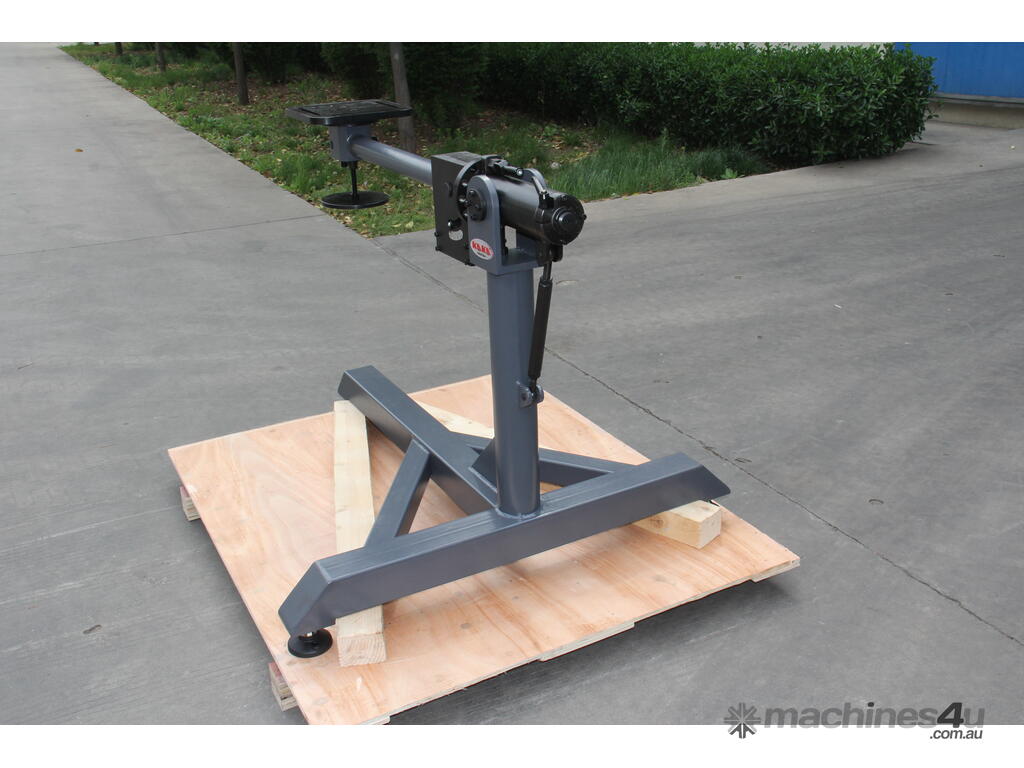

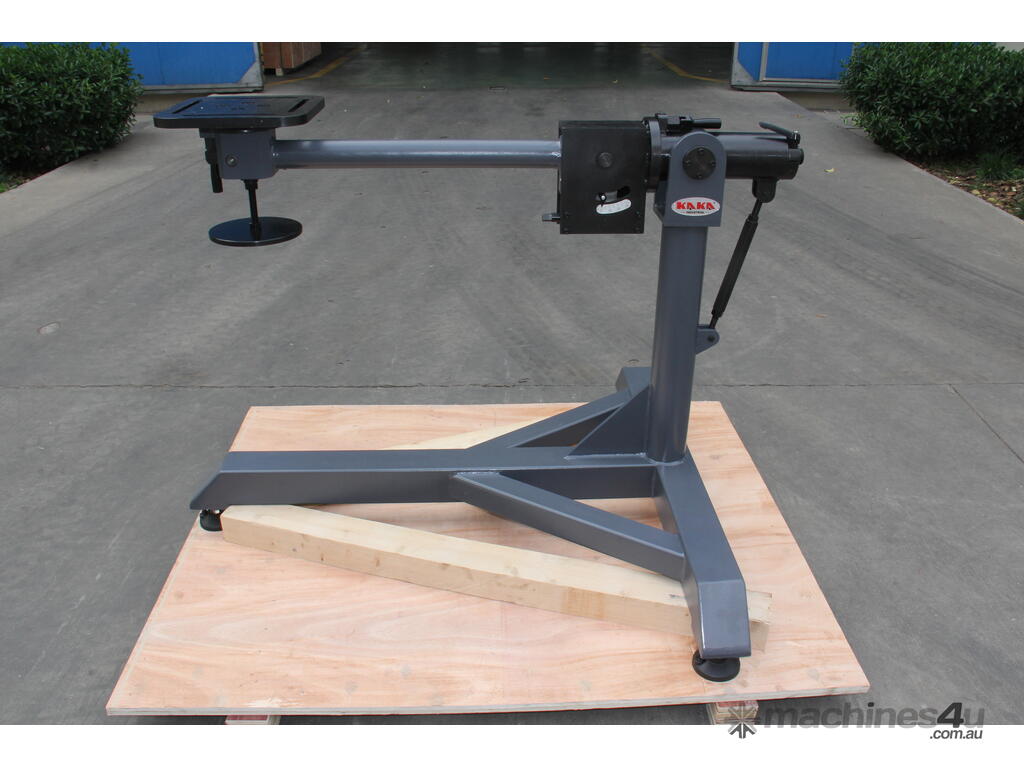

The KANG WP300M Welding Universal Balance Positioner is a premium, fully manual balancing welding positioner designed for effortless manipulation of medium-sized weldments. It utilizes the workpiece's center of gravity to allow smooth, fingertip-controlled rotation and tilting in any direction—providing true 360° freedom in multiple axes without motors, gears, or electrical components. Once balanced, operators can rapidly and safely position the part in any spatial orientation for optimal welding access.
Heavy-Duty Capacity for Serious Projects. The turntable supports up to 300 kg horizontally—perfect for the fabricators working on structural steel, machinery repairs, mining equipment, or agricultural implements where larger parts are common.

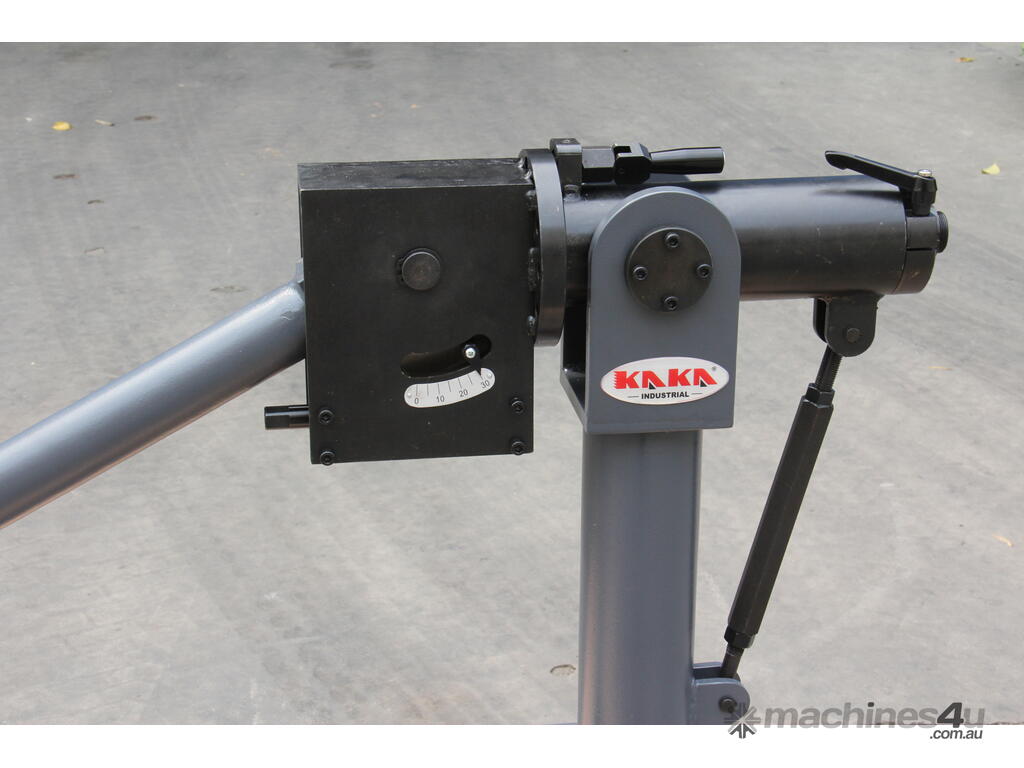

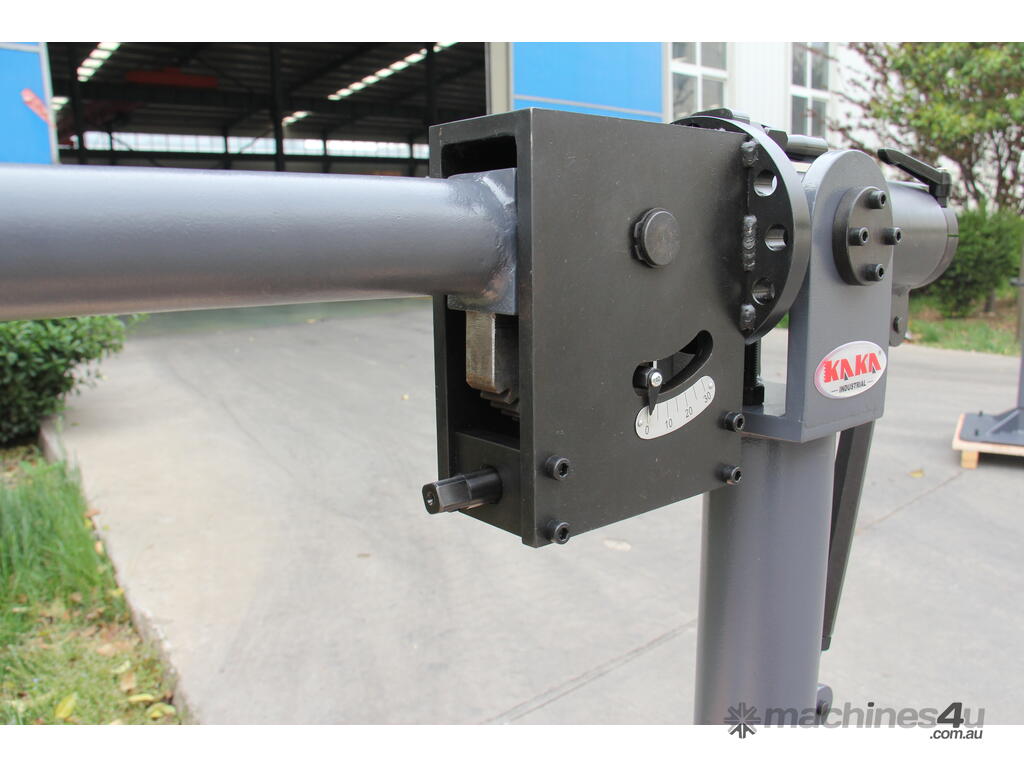

Precise Manual Control Positioning. 15° rotation stops, and the hand wheel allows exact positioning without power tools, reducing setup time and improving weld quality in professional workshops or remote sites with limited electricity.

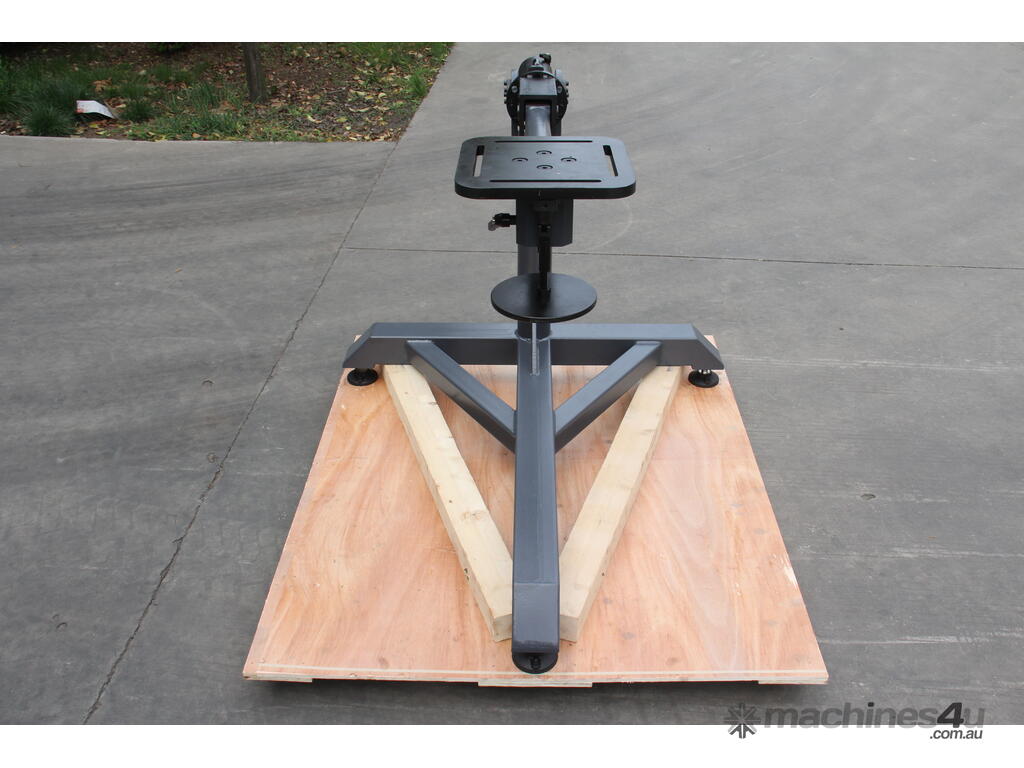

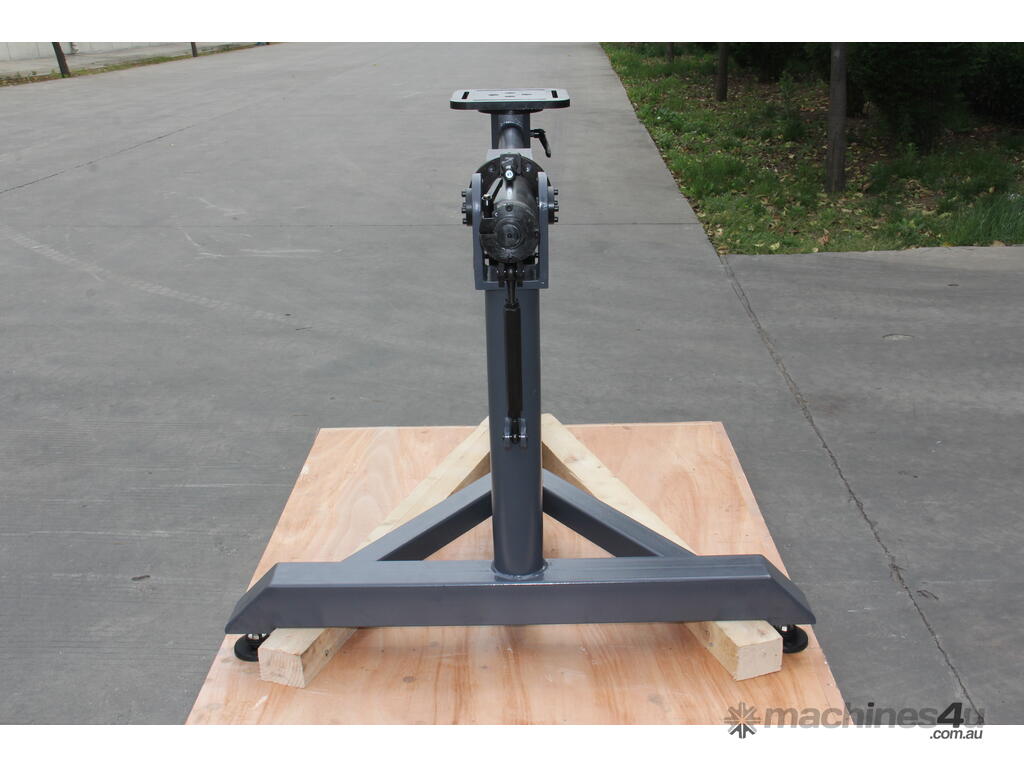

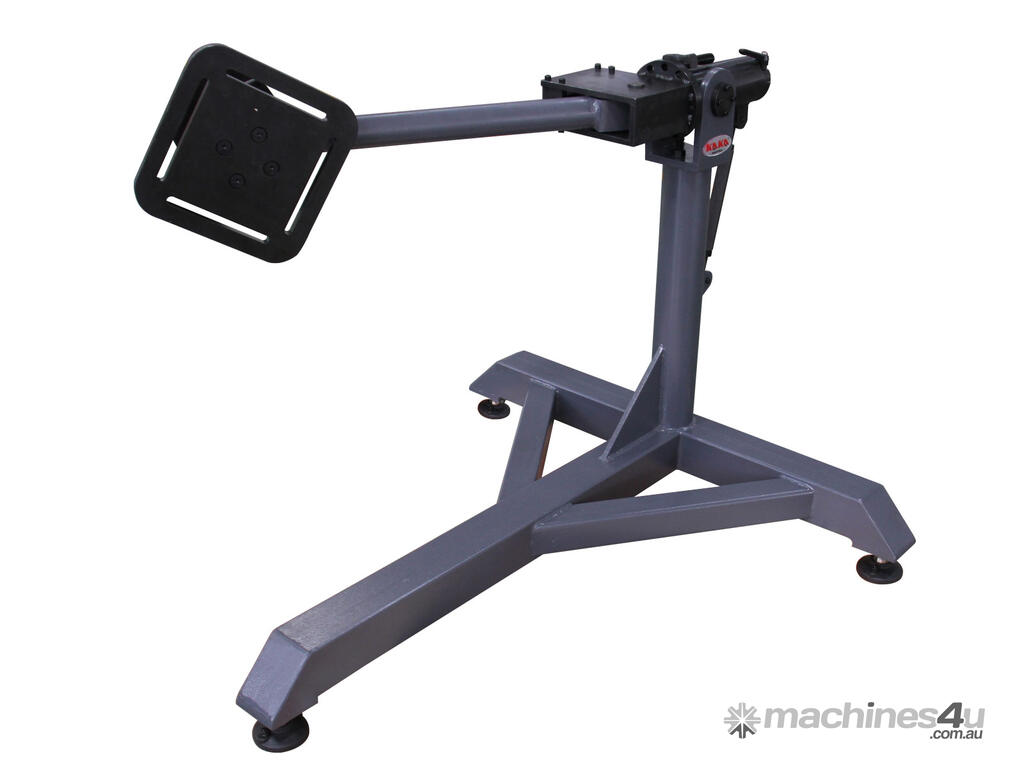

Stable Floor-Standing Design. The manual universal balance welding positioner features a massive 1220x1300mm base that ensures rock-solid stability on workshop floors, ideal for heavy industrial use in fabrication, automotive restoration, or custom metalwork.

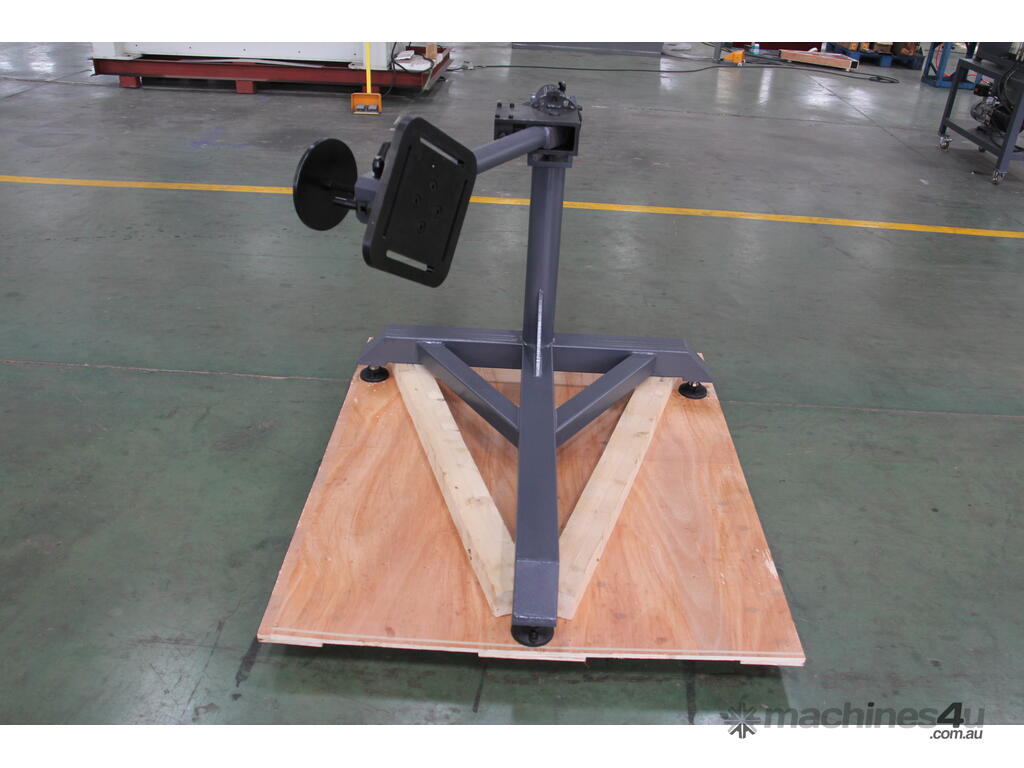

Full Spatial Freedom. Positions workpieces in any orientation for down-hand welding, improving bead quality, and minimizing defects on complex parts common in mining equipment or structural work.

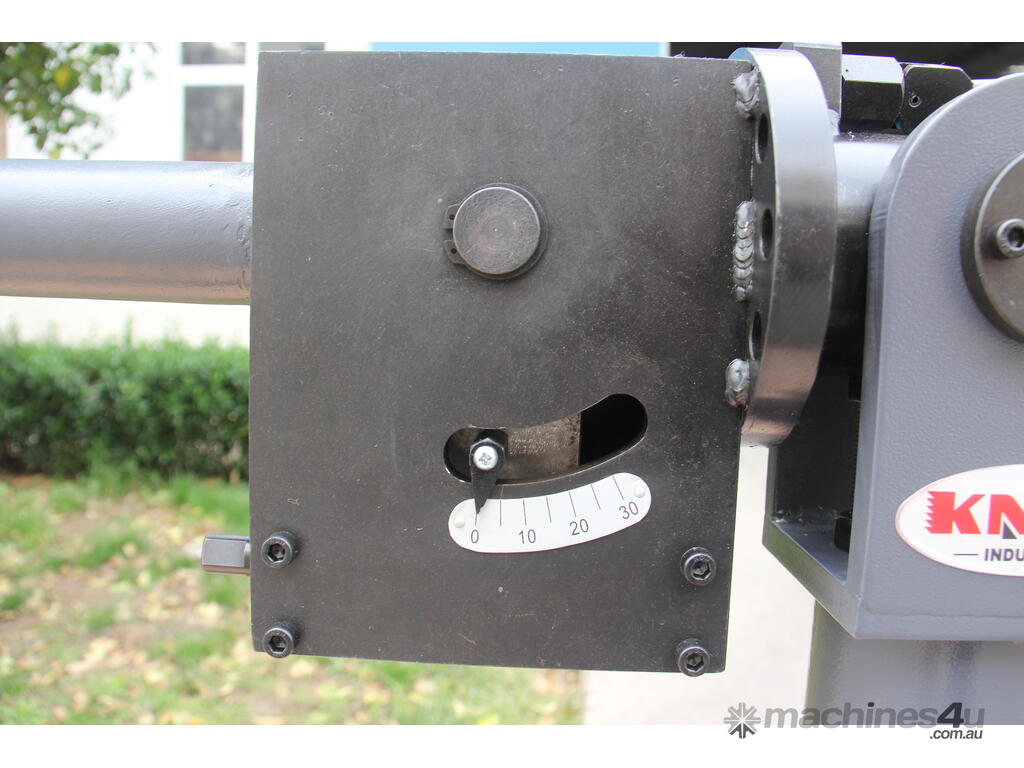

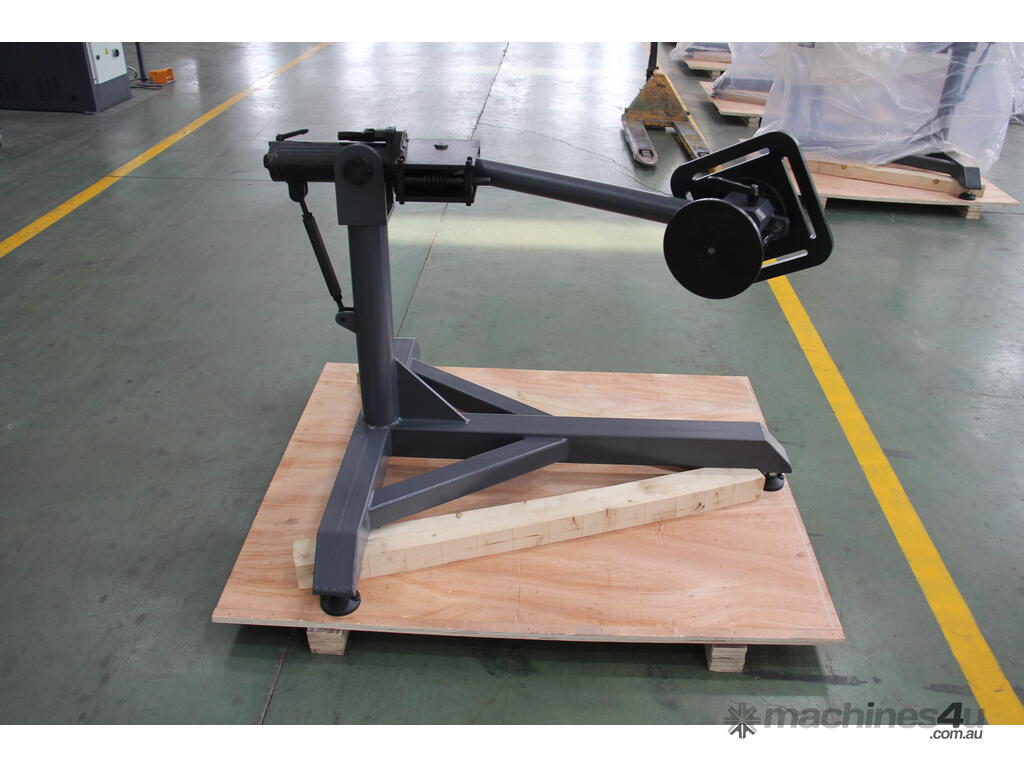

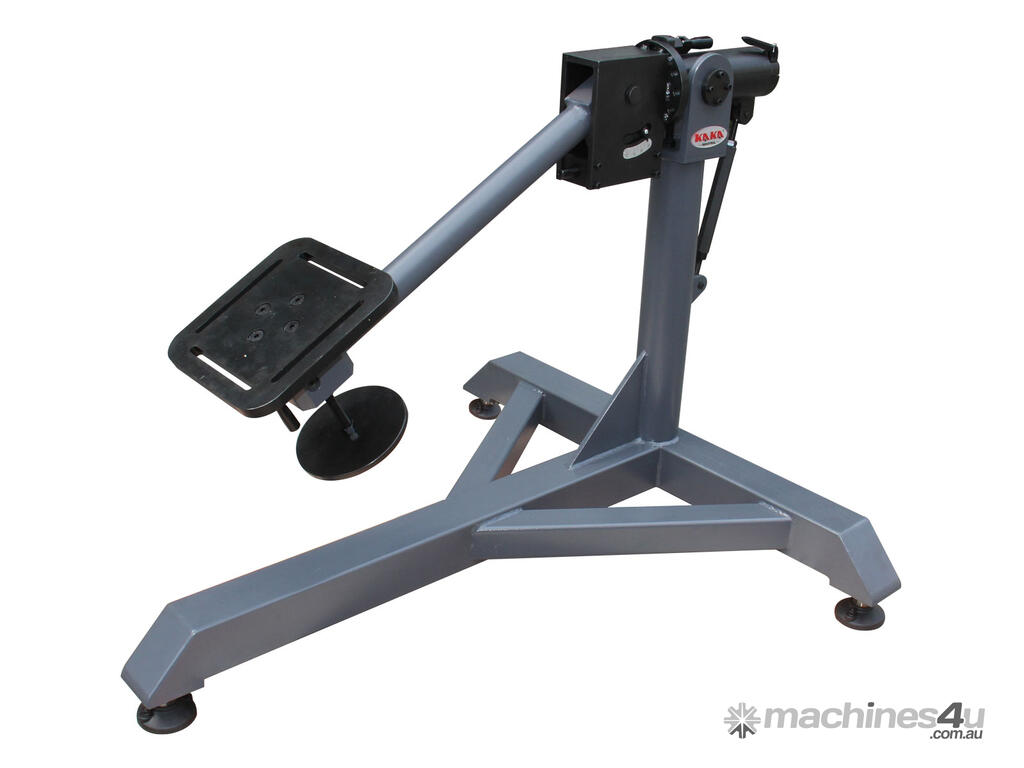

Versatile Table Tilt and Rotation. The table beam tilts from 0° (flat) to 30° (up and down), combined with a full 360° rotation, provides excellent access to complex welds, minimizing physical strain.
Features
The turning is achieved fast and safely in two axes

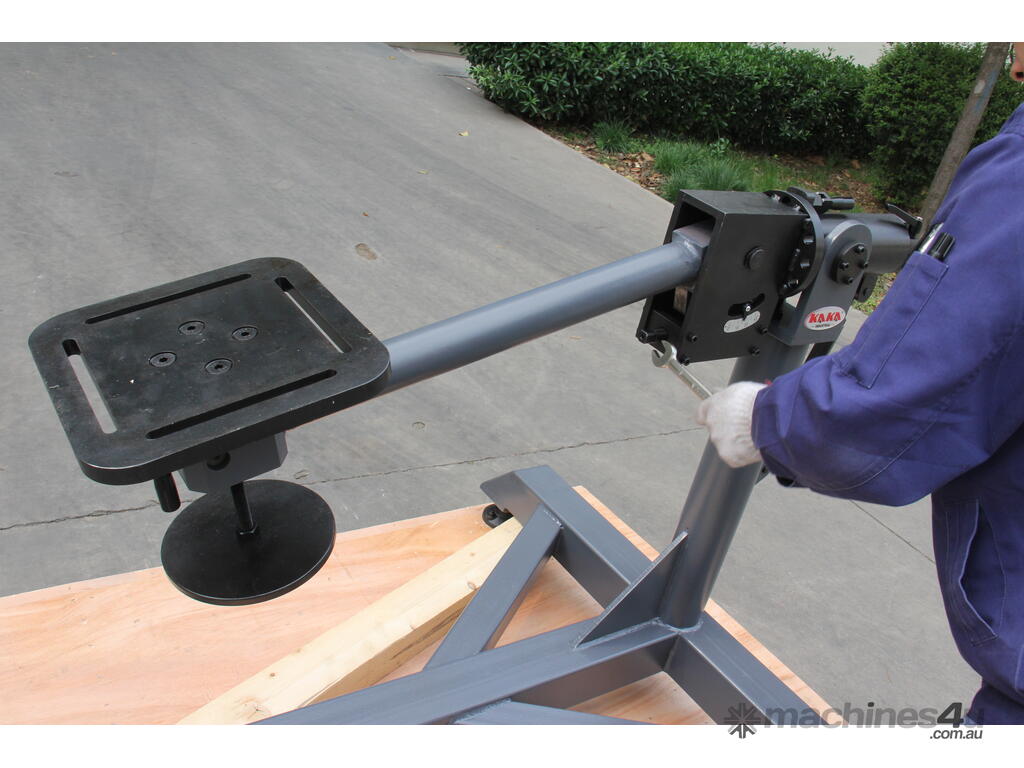

A slight pressure of the hand is enough to move the workpiece into a new position
Neither a motor nor a control unit is required
Both turning axes with backlash-free bearings

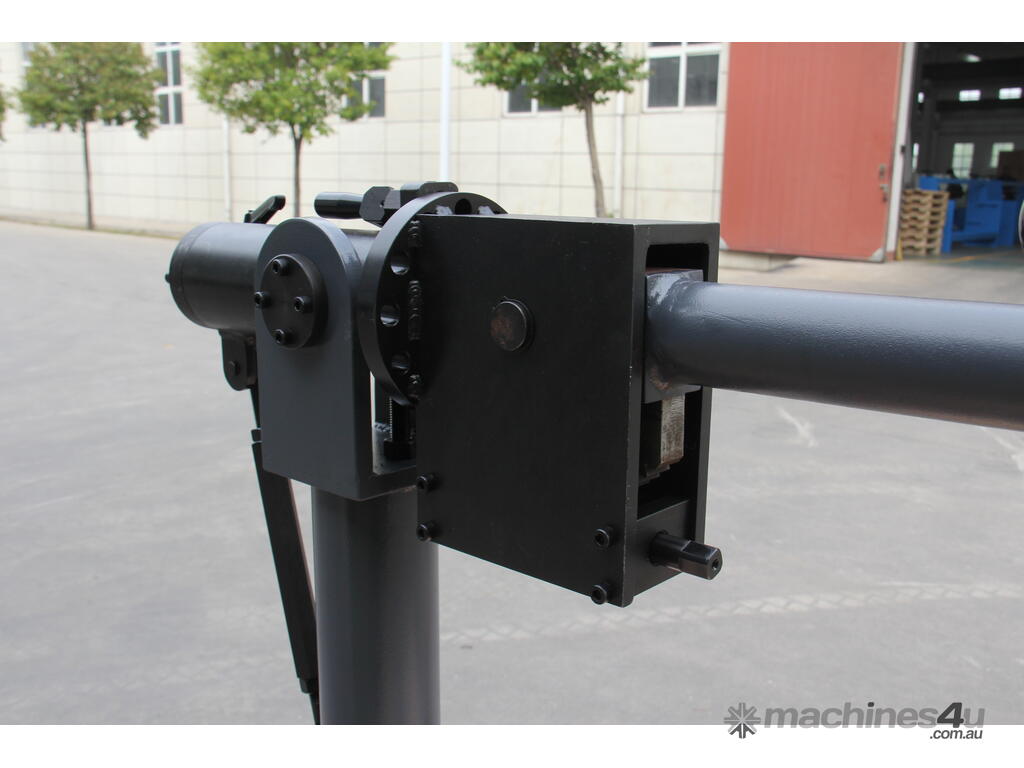

The rotating structure has fast positioning and a locking device
Specifications
SKU 178376
Model WP300M
Horizontal loading capacity 300 kg
Vertical loading capacity 150 kg
Table height 1020 mm
Table adjusting range Min. 635 mm, Max. 1255 mm
Packing size 155x128x116 cm
N.W./G.W. 135/200 kg
