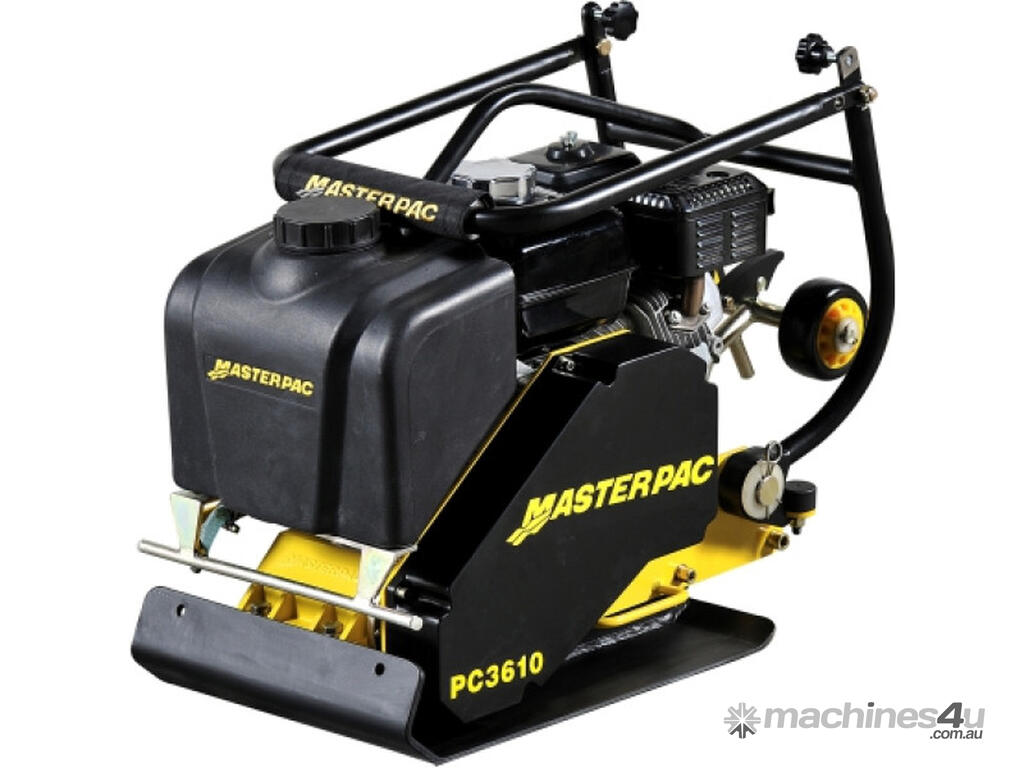

Masterpac PC3610H Forward Plate Compactor

Masterpac Forward Plate Compactors
Masterpac's PC Series forward plate compactors are ideal for all general applications – curbs, gutters, around tanks, forms, columns, footings, landscaping, paving blocks, drainage ditches and light to medium road repair work.

Features
-> Solid,high strength steel base plate with curved edges provides top performance.
-> Cast Iron wear resistant lubricated vibrator assembly.
-> Robust design sealed belt cover for clutch and belt protection.
-> Anti vibration removable flip over handle for easy transportation.
-> Solid engine frame with lifting eye protects engine against dirt and damage makes and for easy transportation.
-> Sturdy protected throttle lever.
-> Optional transport wheel for easy transportation around sites.
-> Optional water tank for asphalt use.
-> Optional polyerthene pad for paving applications also available.
-> Powered by gasoline as HONDA,ROBIN,and diesel as LOMBARDINI,HATZ.

Option
-> T-Water tank for asphalt compaction
-> M-Rubber mat for pavement
-> W-transport wheel for easy transport

Specifications:
Model: PC3610H
Engine: Honda GX160 4.9 hp
Centrifugal Force: 10 kN
Travel Speed: 20 m/min
Vibration Frequency: 5900 vpn
Plate Size L×W: 490 × 360 mm
Weight: 61 kg
