MatCam 8000 Series 5 Axis CNC

MatCam 8000 Series 5-Axis CNC Router – 1000 mm Z, HSD HS300 Head

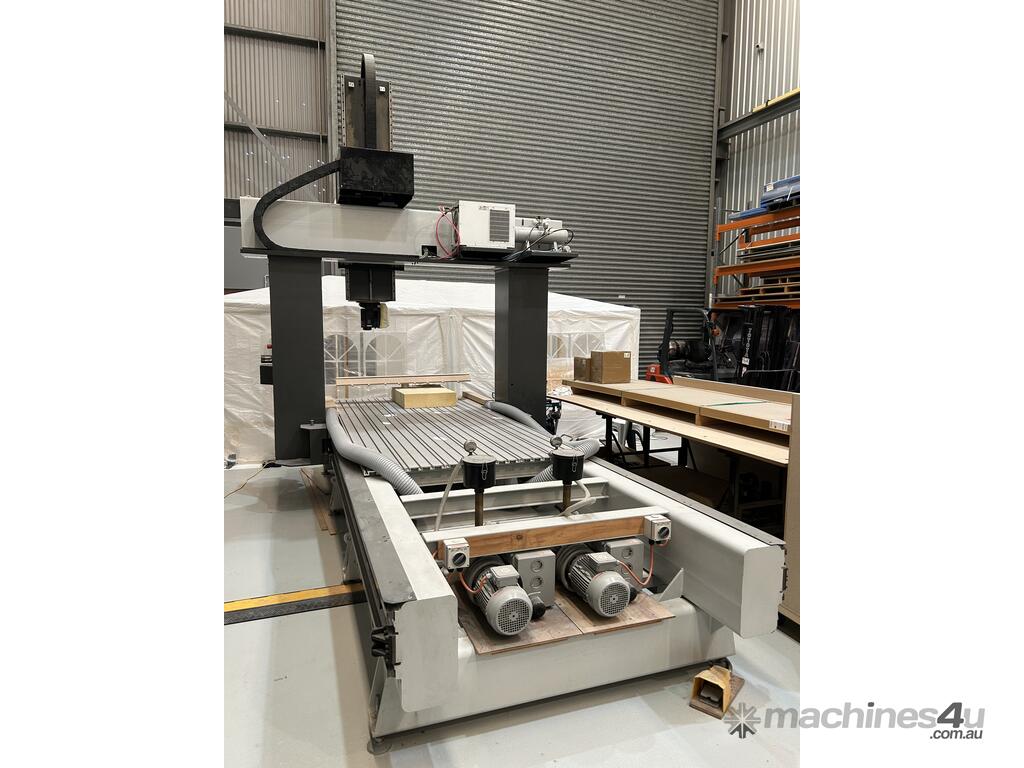

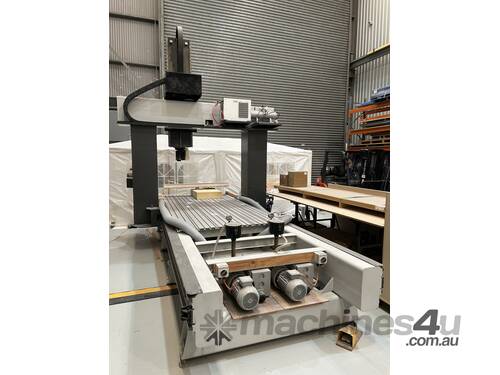

MatCam 8000 Series gantry-style 5-axis CNC router in excellent condition, only being sold as it’s now surplus to SLS’s future requirements. Built on the same heavy-duty platform as the MultiCam 8000 five-axis routers, it’s designed for high-speed machining of wood, plastics, non-ferrous metals and composite materials.
Yumpu
+1
The machine is currently set up for complex timber mouldings, plug and mould manufacture and large 3D shapes, and would suit marine, patternmaking, composite, architectural and general fabrication work.
Key features

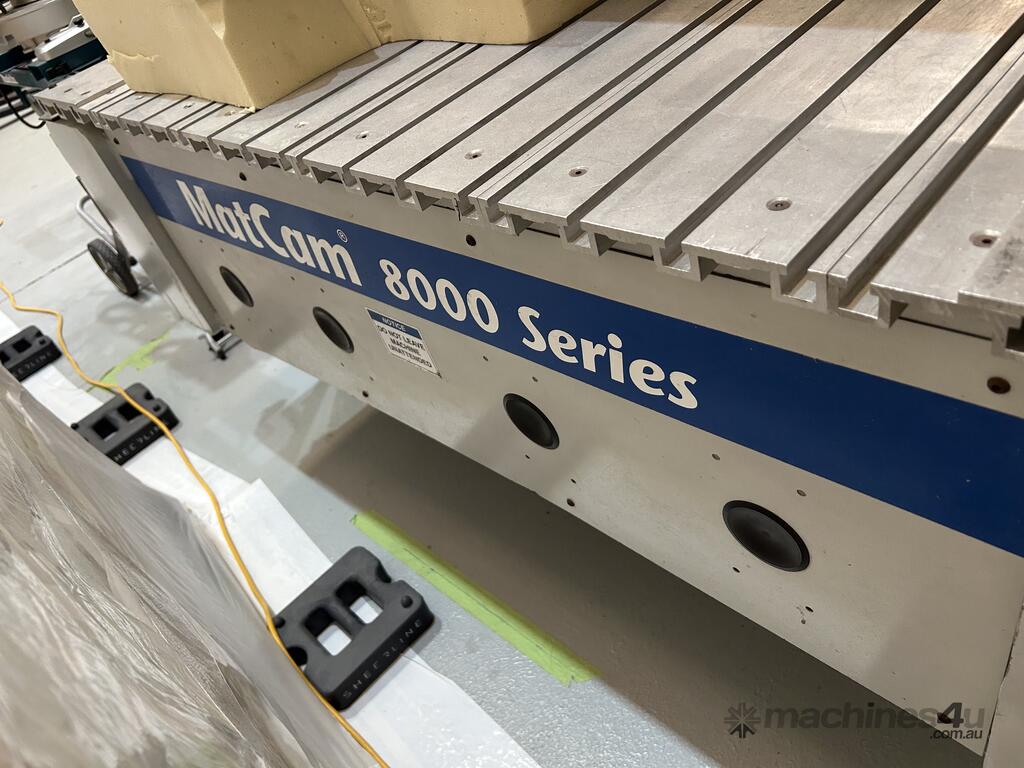

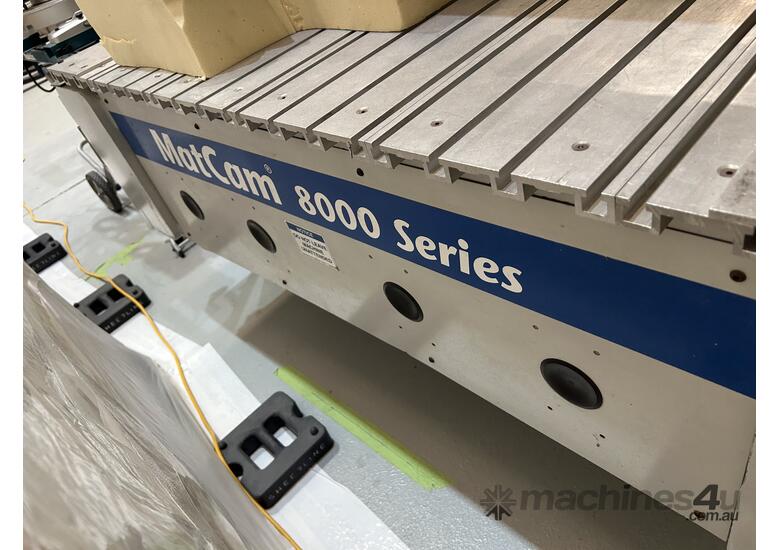

MatCam 8000 Series 5-axis CNC router – moving-gantry design with heavy welded steel frame and T-slot aluminium table for rigid, accurate machining.
Yumpu

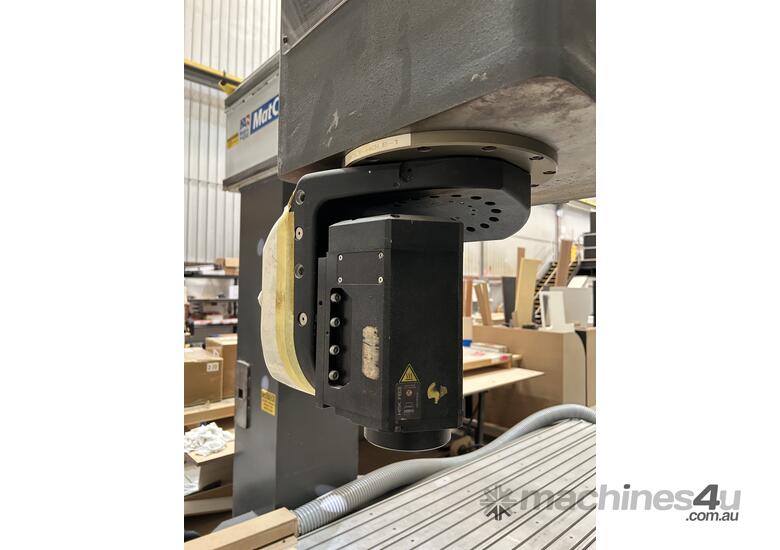

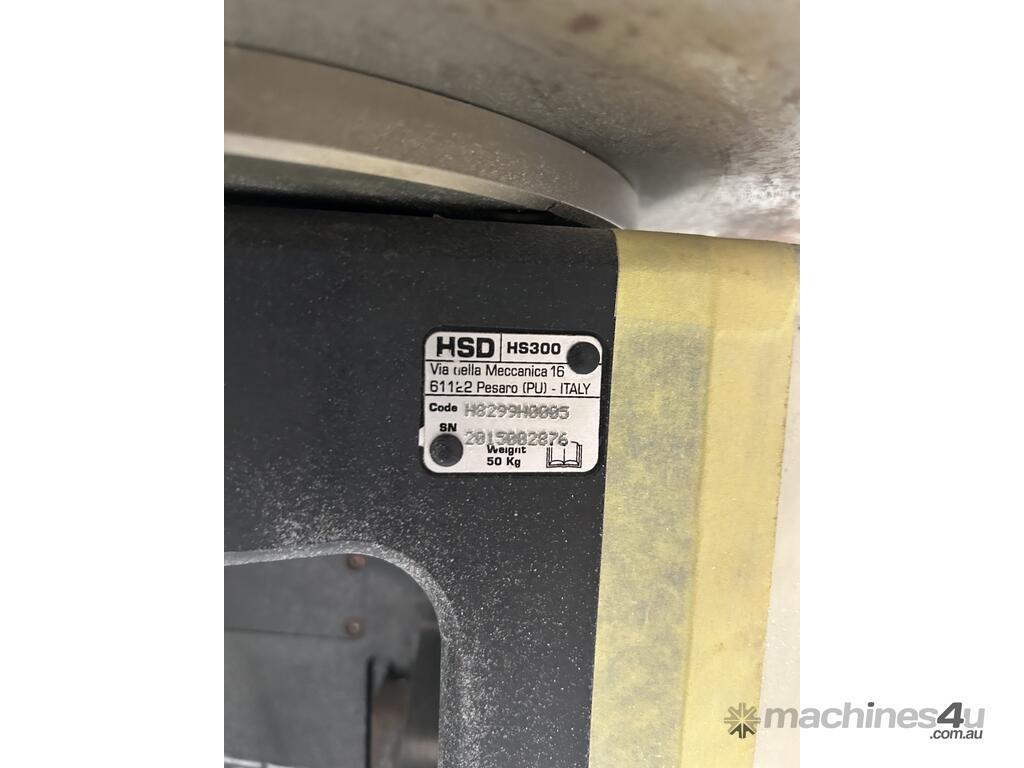

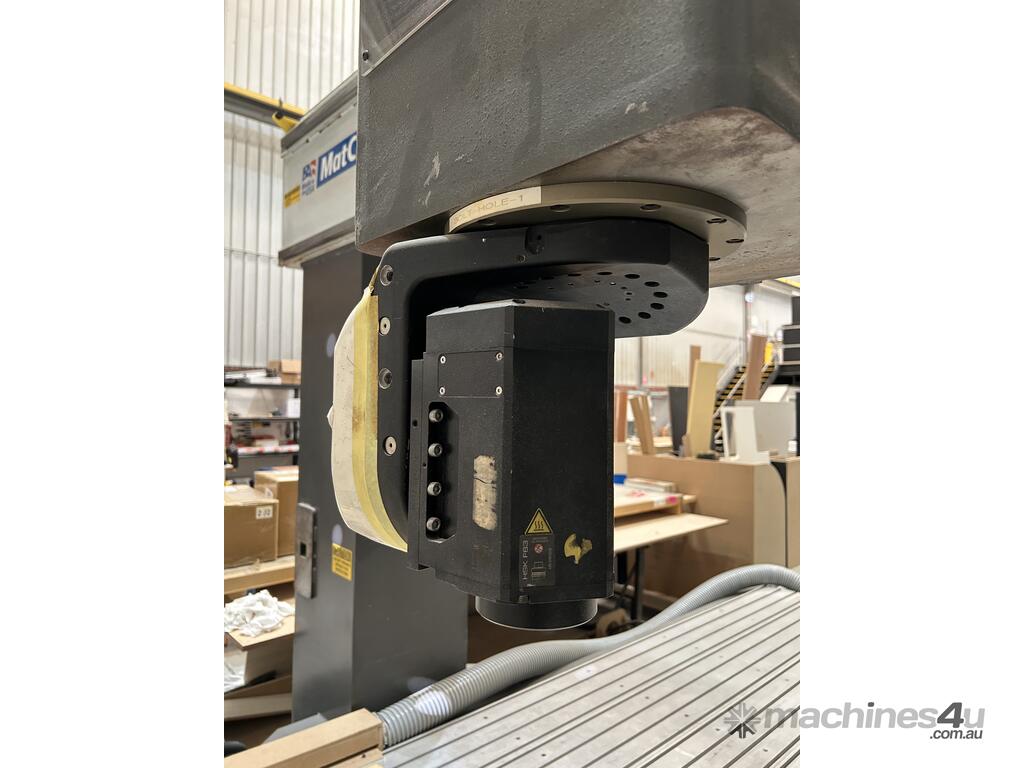

Italian HSD HS300 5-axis machining head with HSK F63 taper (see nameplate in photos) – compact rotary head ideal for 5-sided machining and deep cavities. HS300 heads provide approximately +100°/-40° A-axis tilt and ±220° C-axis rotation, giving excellent access for undercuts and complex geometry.
datasheets.globalspec
+1
Rare 1000 mm Z-axis travel/clearance – ideal for tall plugs, moulds and stacked foam blocks.

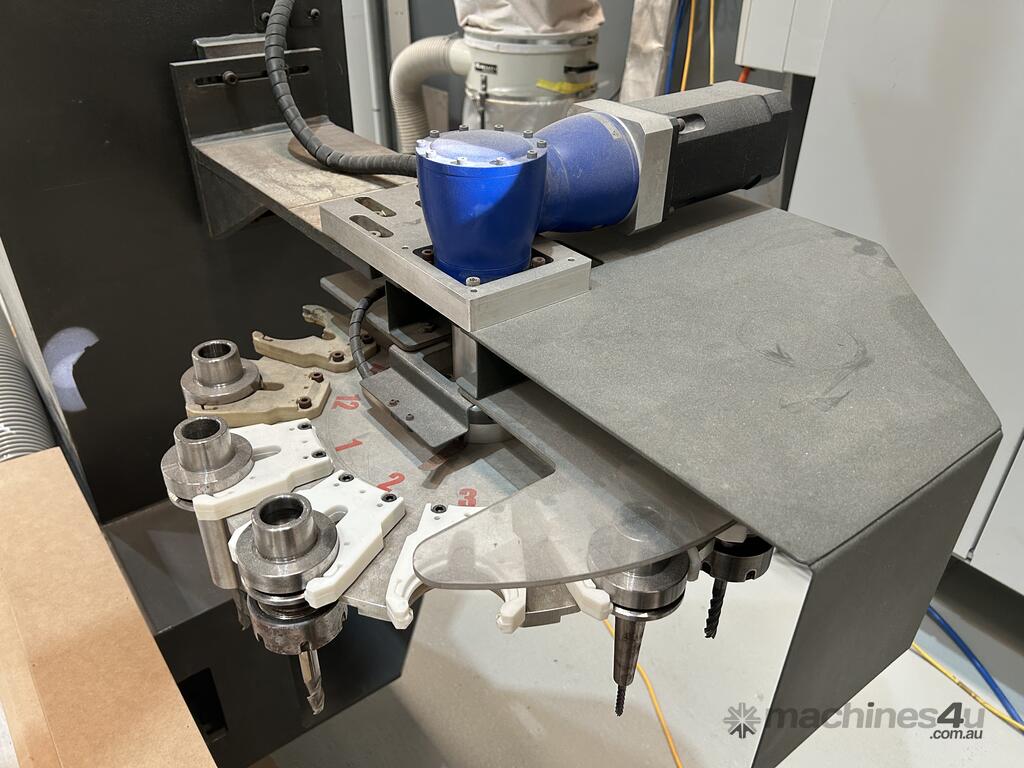

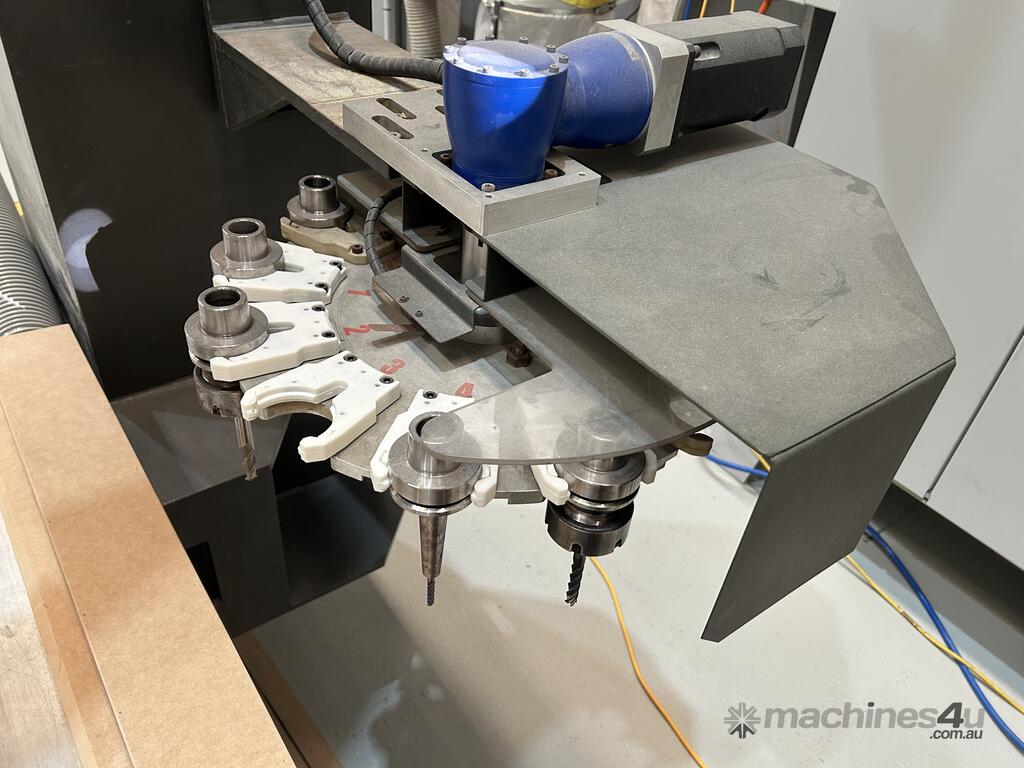

Automatic rotary toolchanger mounted on the gantry with HSK F63 toolholders – fast tool changes and reduced setup time.
CNCsurplus

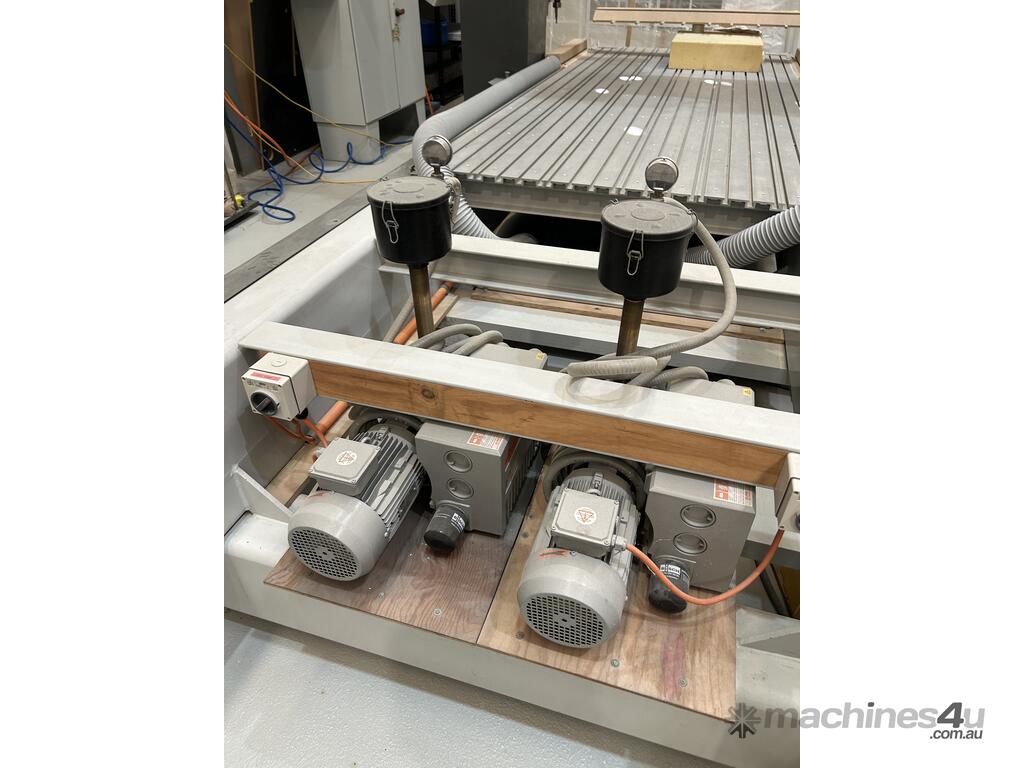

Twin vacuum pumps plumbed to the table for strong workholding on timber, plastics and foam sheet or blocks.

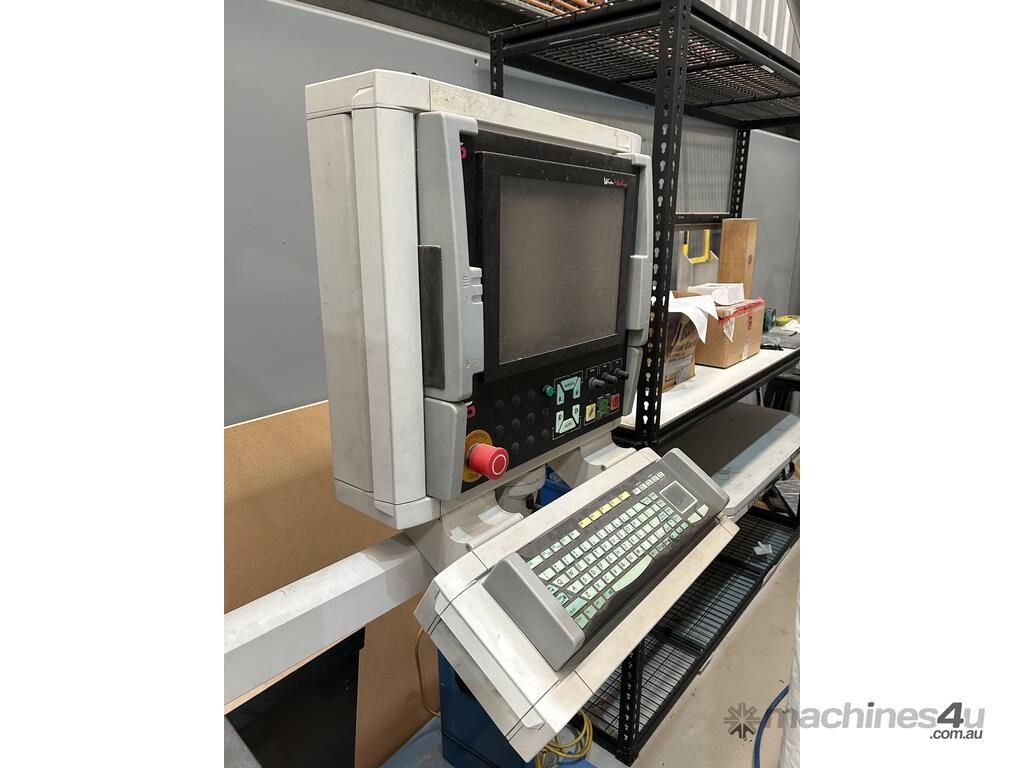

WinMedia operator console with industrial control (OSAI-based system on this series) – proven 5-axis control package used on MultiCam 8000 routers.
Yumpu
+1
Linear guideways and precision drive system (helical rack and pinion with planetary gearboxes on this platform) for smooth motion and high rapids, designed for heavy routing duty.
Yumpu
+1
Typical applications
5-axis trimming and machining of timber and MDF mouldings
Plug and mould making for marine, composite and thermoforming work
Large 3D shapes in foam or modelling board
Machining of plastics and non-ferrous metals where 5-axis access is required
Yumpu
+1
Why this machine stands out
Genuine industrial-grade 5-axis gantry router, not a light hobby machine
Unusually large 1000 mm Z-axis, giving far more vertical capacity than most routers in this class
HSD HS300 head with HSK tooling – a current, well-supported European head design
In clean condition, still under power in our workshop and available for inspection and cutting demonstrations
