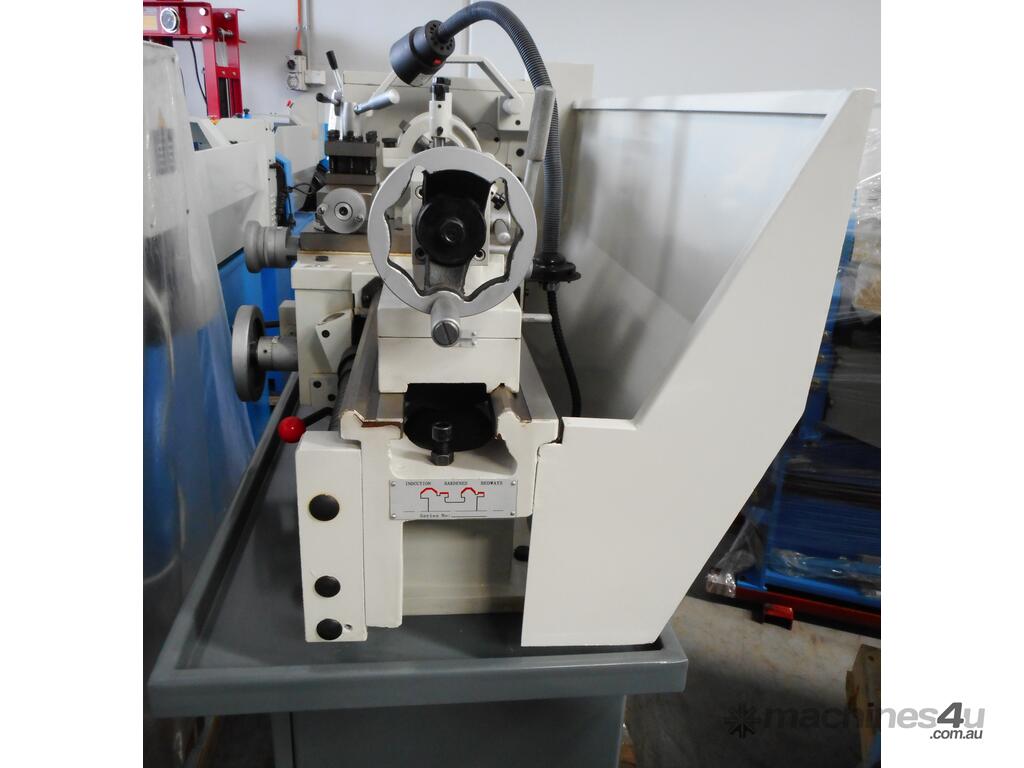

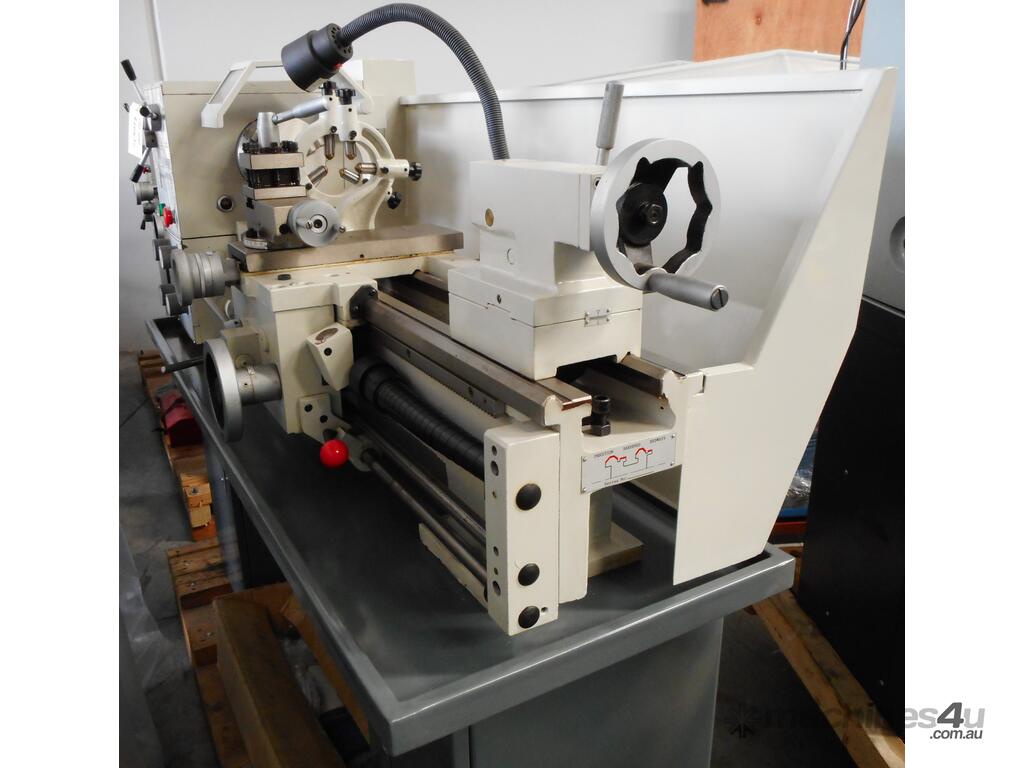

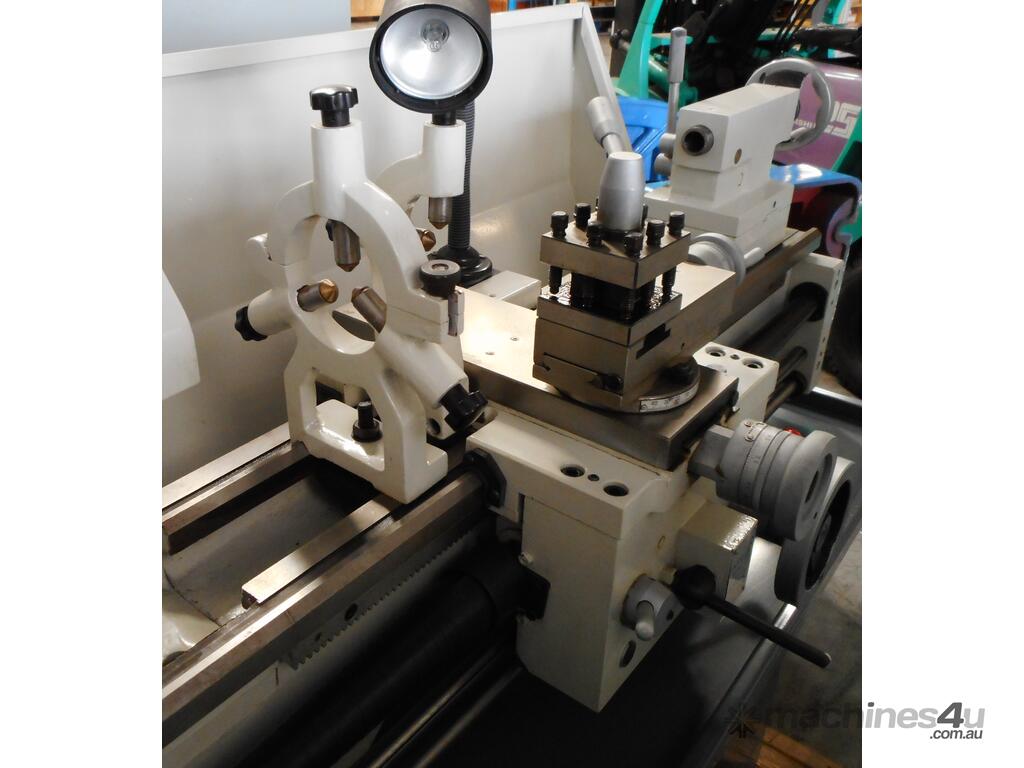

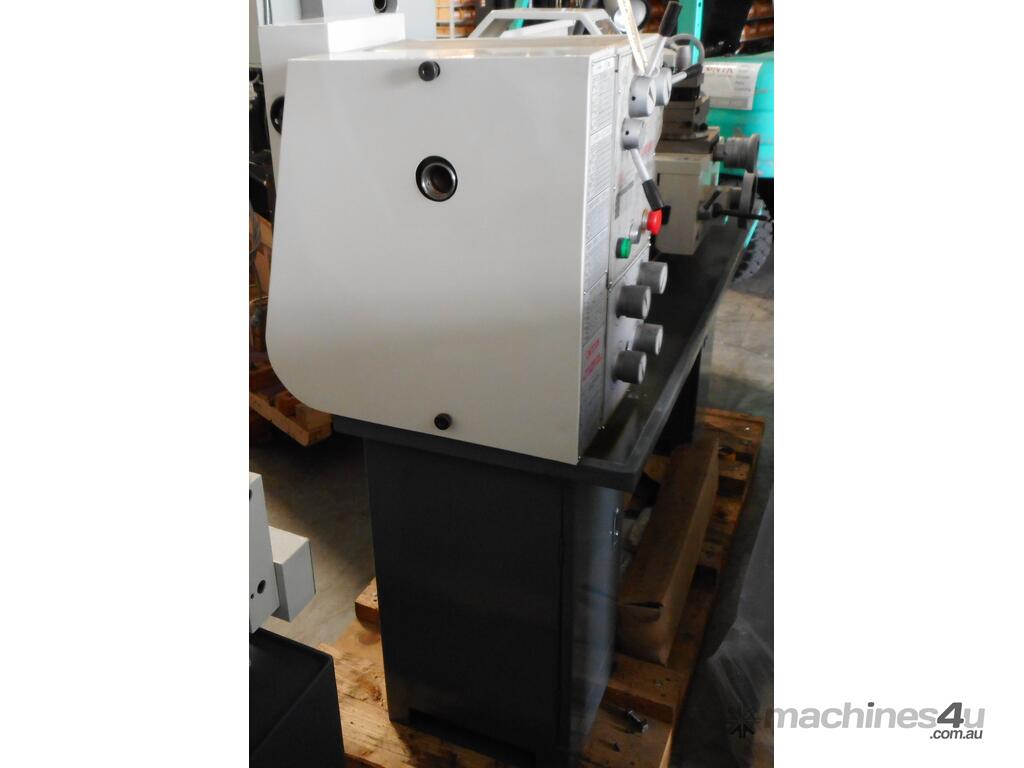

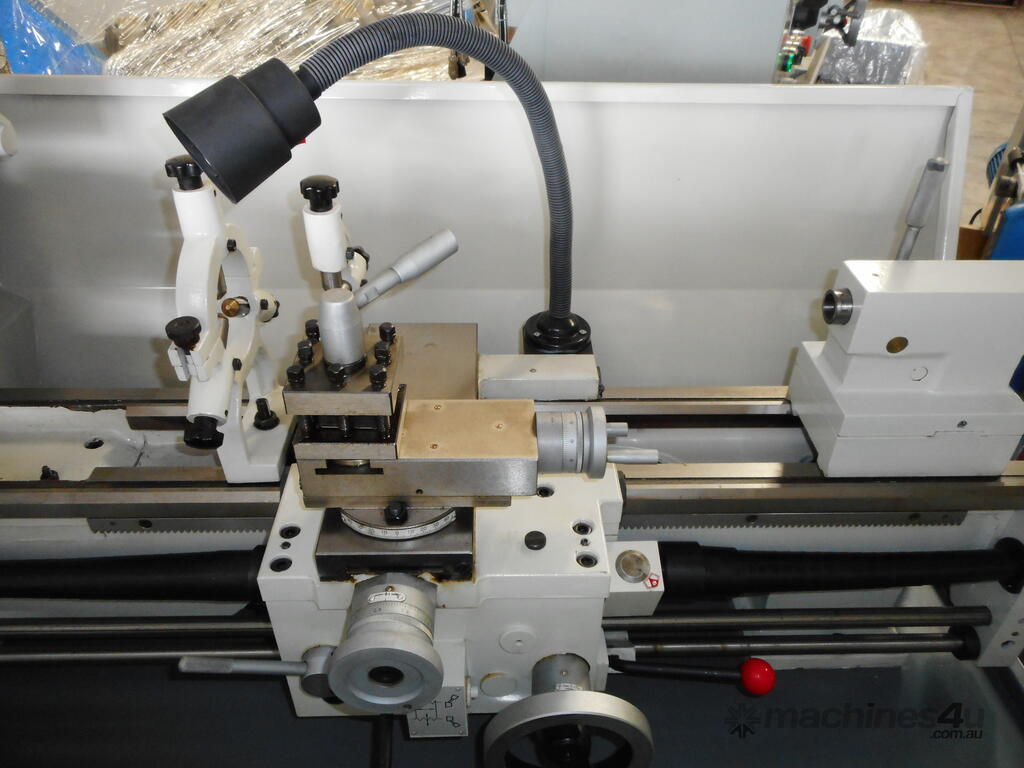

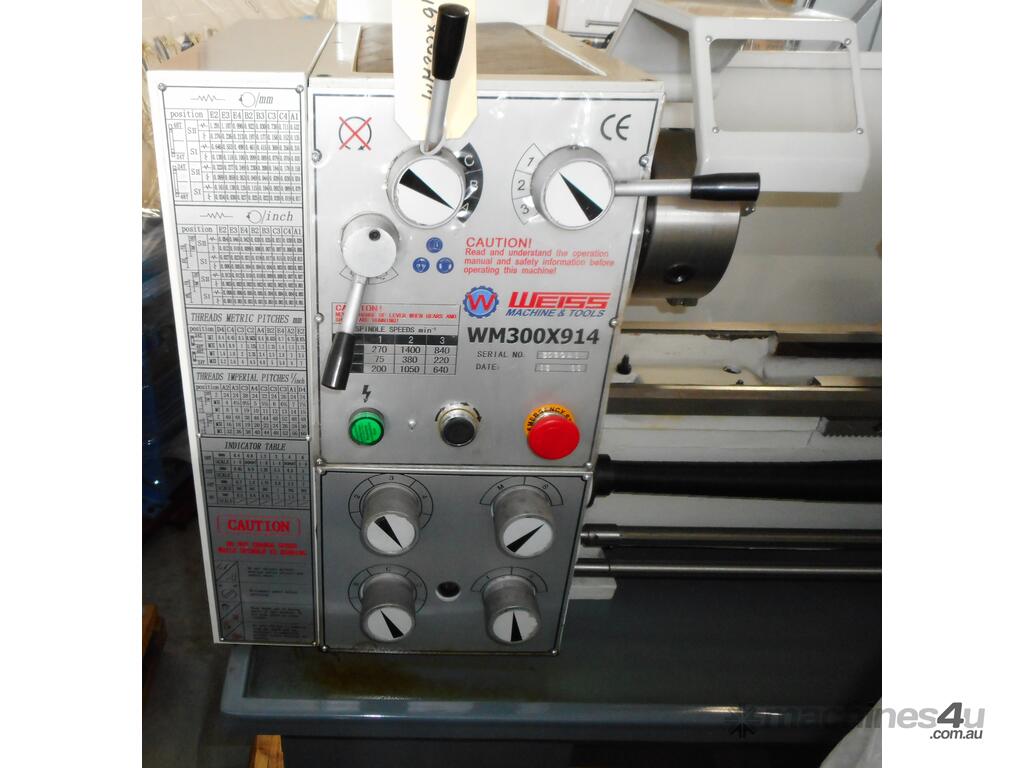

Matal Lathe WM300x1000

ACCESSORIES:
3 Jaw chuck(160mm),4 Jaw chuck(200mm),Face Plate(250mm)Steady,Follow Rest,Chuck Guard, Floor stsnd,Splash Guard,Tool Box, Dead Centres

OPTIONAL ACCESSORIES:
Foot Brake, Digital Read Out, Turning Tools, Boring Tools, Live centre,Parting Tool.

FEATURES:Industion Hardened & Precision Ground. D1-4 Spindle supported by high quality taper roller bearings. Hardened and precision Ground gears in the headstock. Independent Leadscrew and feed rod. Spindle start/stop lever mounted on Carriage.Adjustable Jibs for Slideways. Automatic longitudinal and cross feed. Tailstock can be offset for taper turning. Inching button. Chuck Cuard for safety. Removal Gap

Parameters of Category: Machine Tools
Swing Over Bed 300mm
Swing Over XSlide 180mm
Swing Over Gap 430mm
Distance Btw Centres 915mm
Bed Width 180mm
Tool Size 16mm
Spindle Nose D1-4
Spindle Speeds 9
Speed Range 75-1400rpm
Spindle Bore 38mm
Spindle Taper MT5
Threading Metric 0.4-7mm
Threading Imperial 4-60tpi
Tailstock Taper MT3
Motor 2hp 3ph 415v
Weight Nett/Gross 540kg/620
Volume 1.8488
