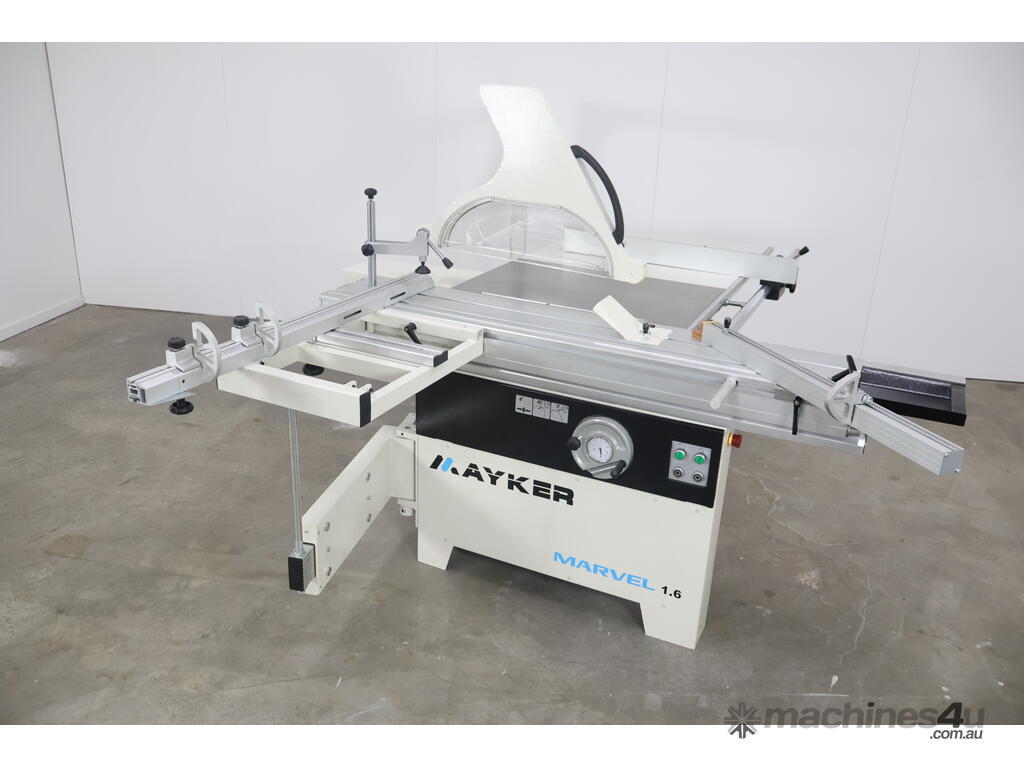

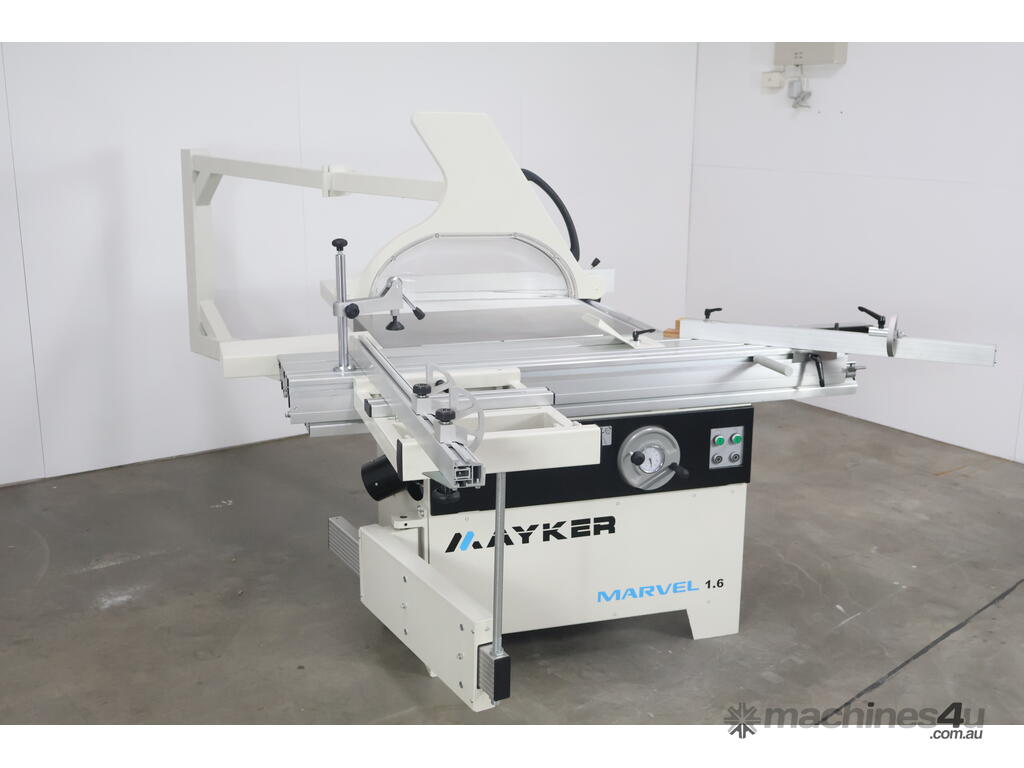

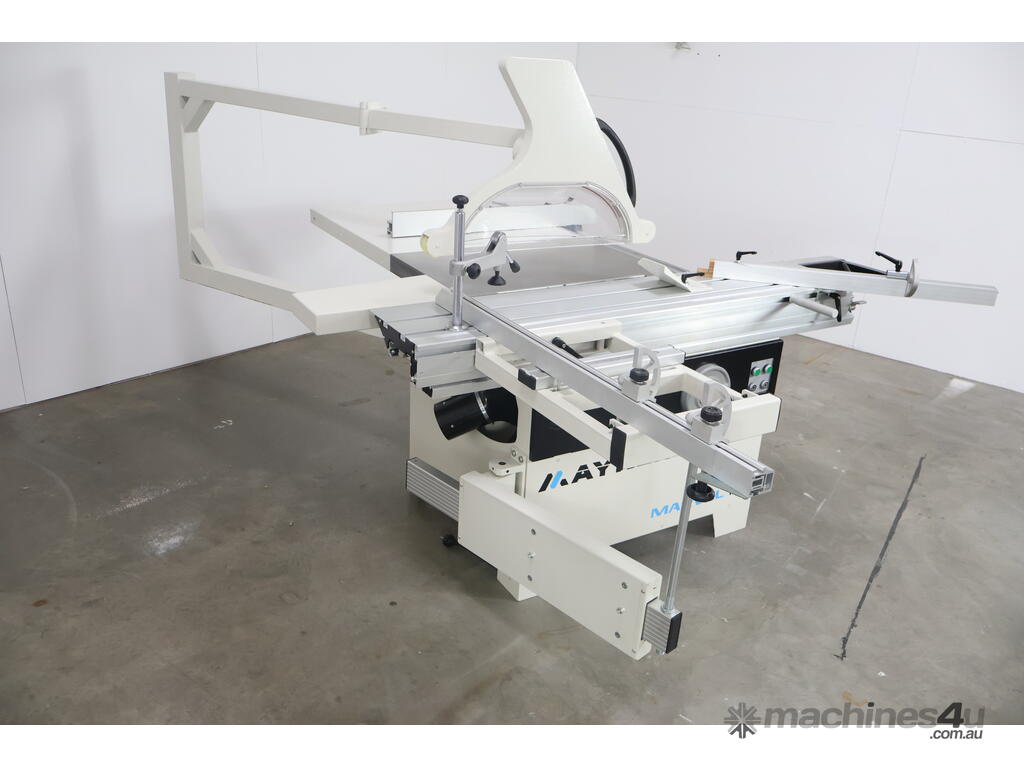

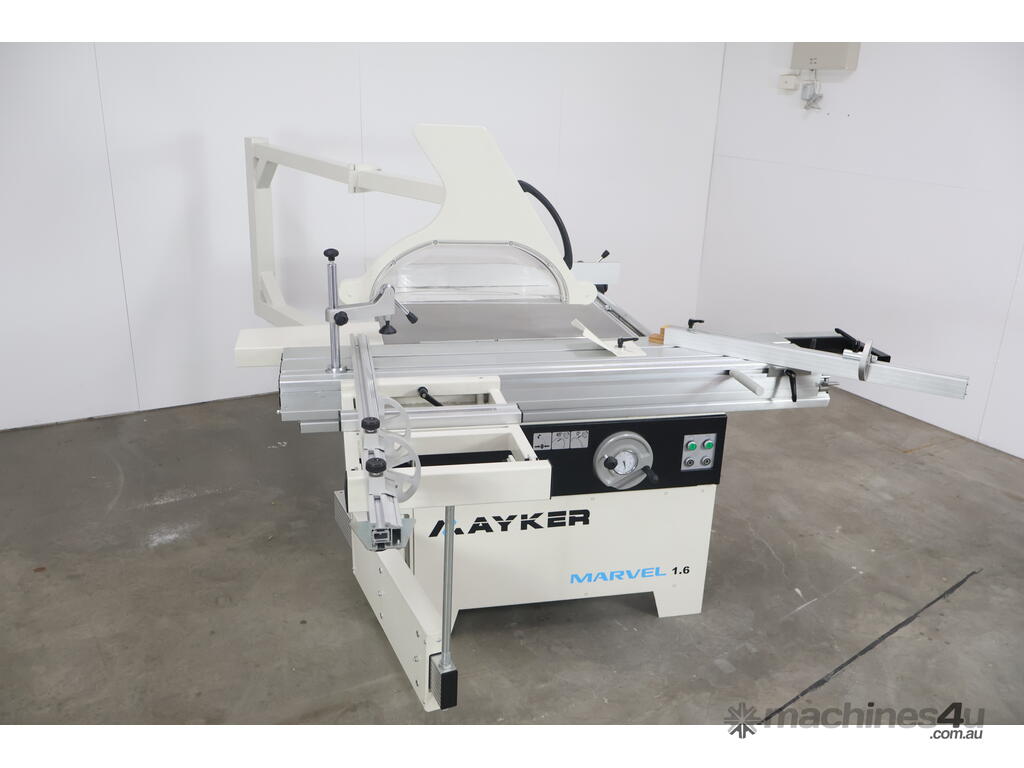

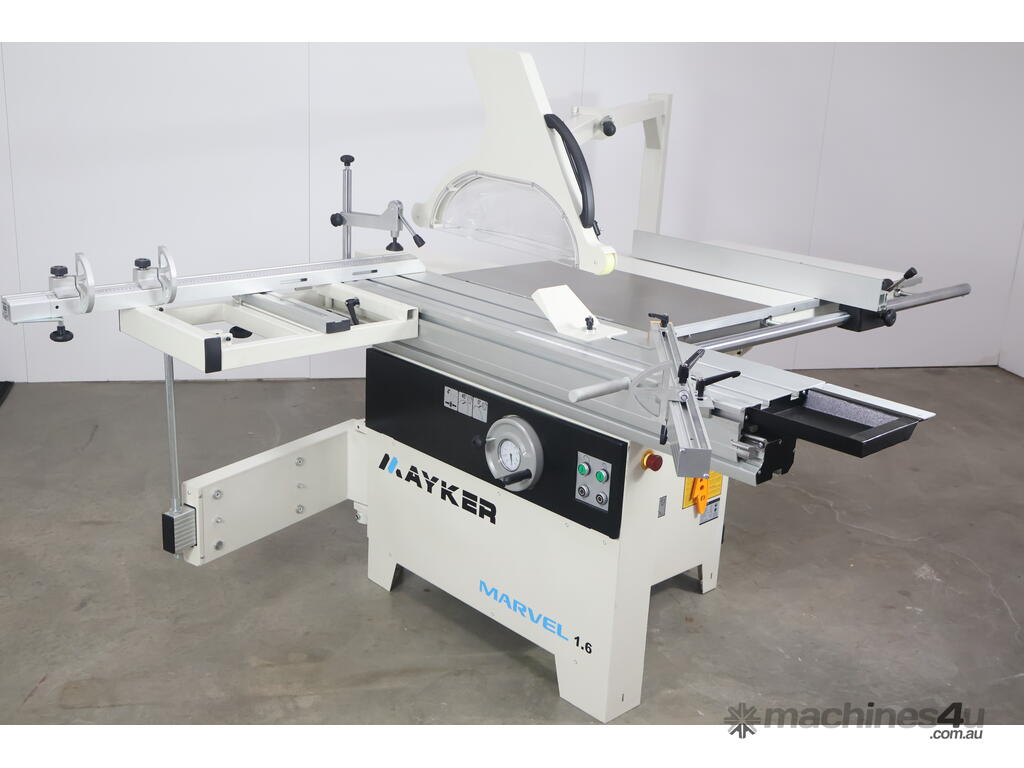

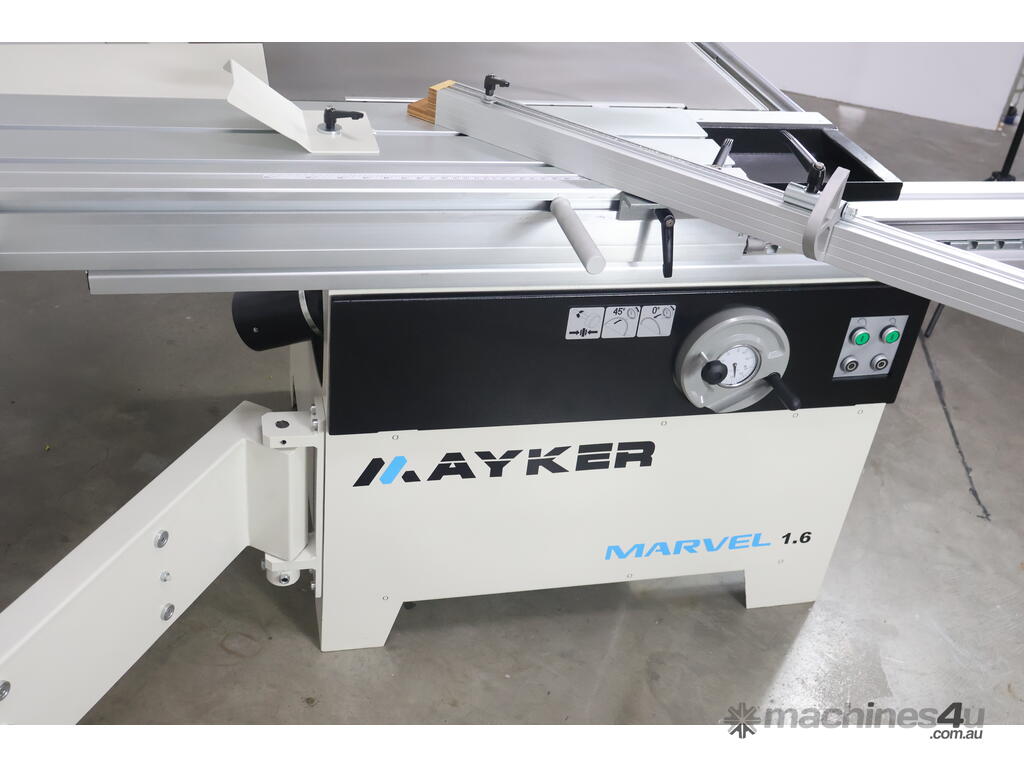

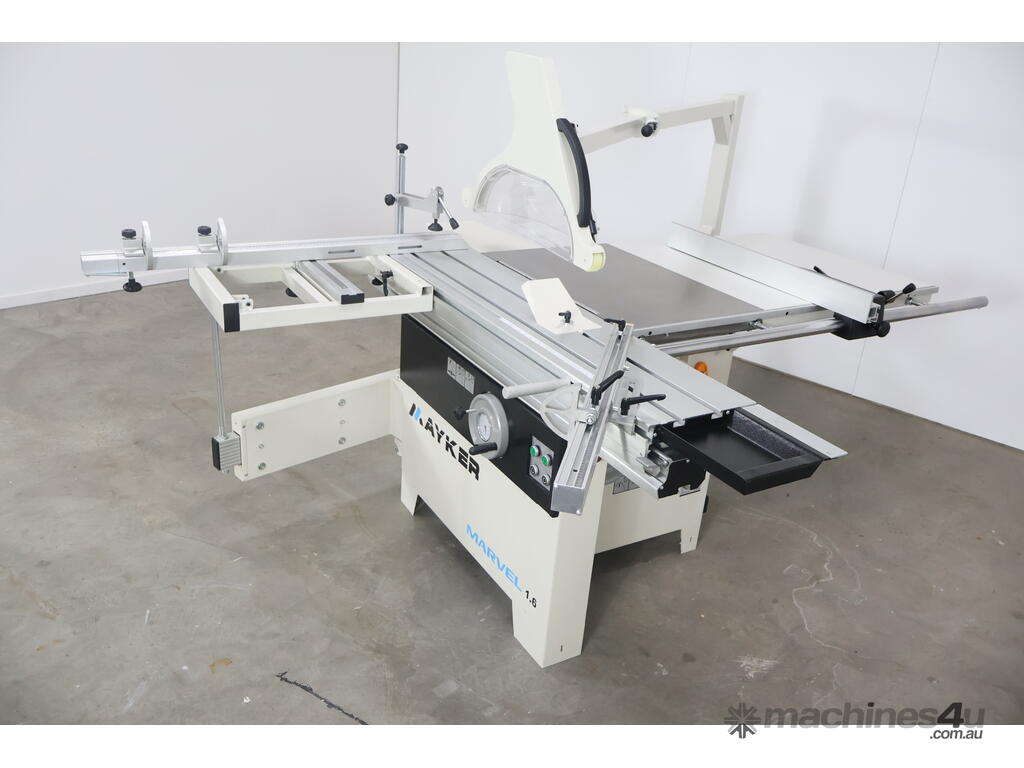

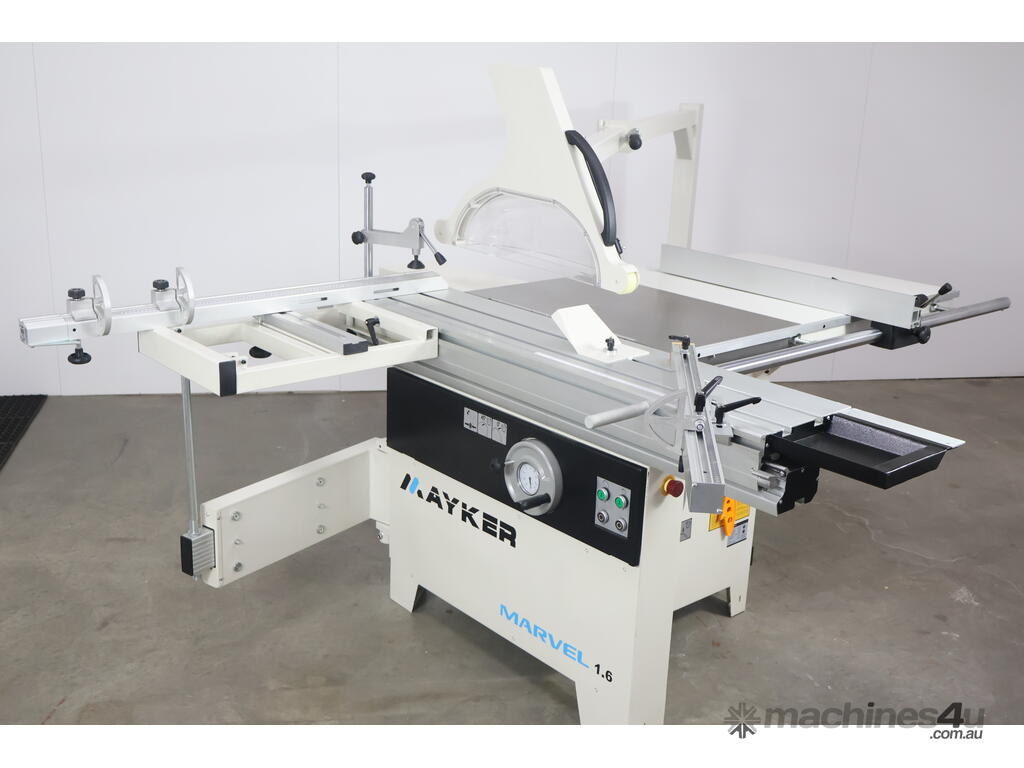

Mayker Marvel Panel Saw (1PH)
Compact and Fully Featured for Precision Cutting
The Marvel Panel Saw 315 is the perfect compact alternative for workshops that don’t require a large panel saw. Built with a robust chassis of heavy-gauge steel and grey cast iron trunnion, this saw delivers excellent stability and vibration-free operation. Ideal for precise and efficient panel cutting, it combines durability and ease of use in a space-saving design.
Main Blade Diameter: 315mm
Main Blade Speed: 4500 RPM
Max Rip Capacity: 1250mm

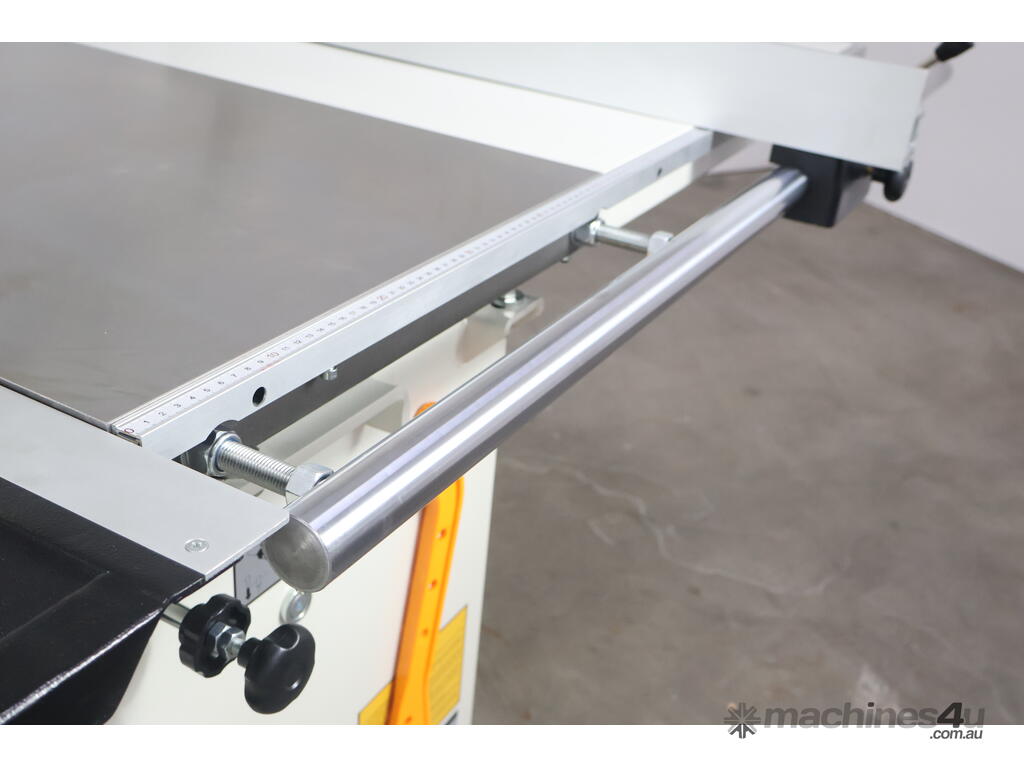

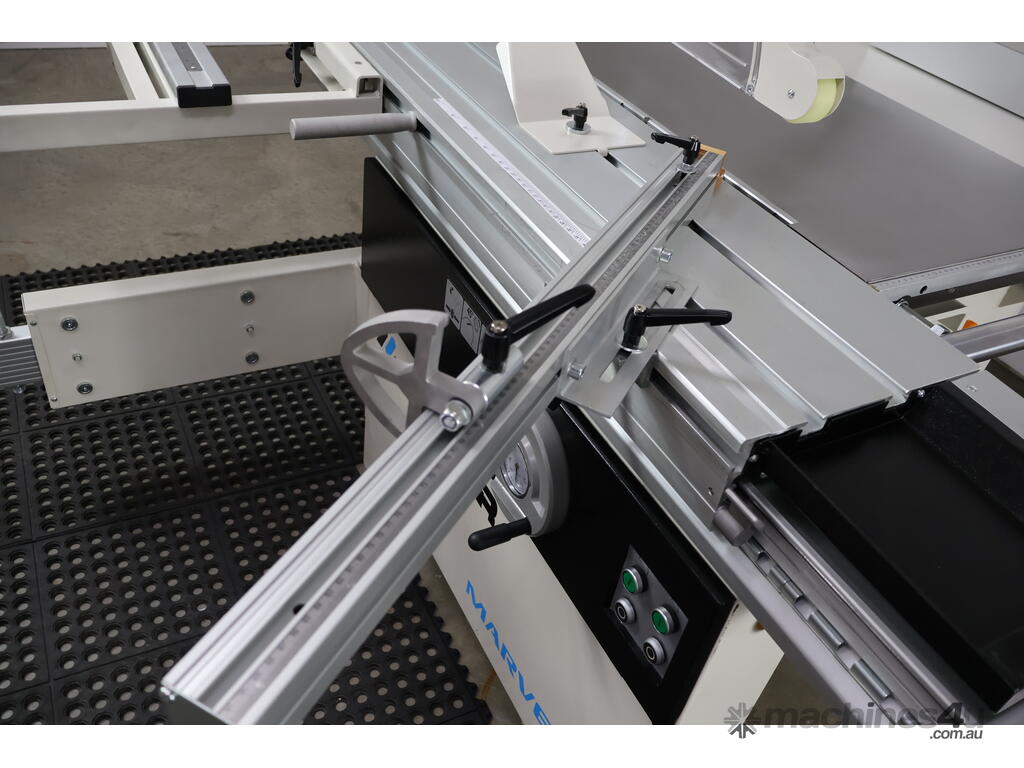

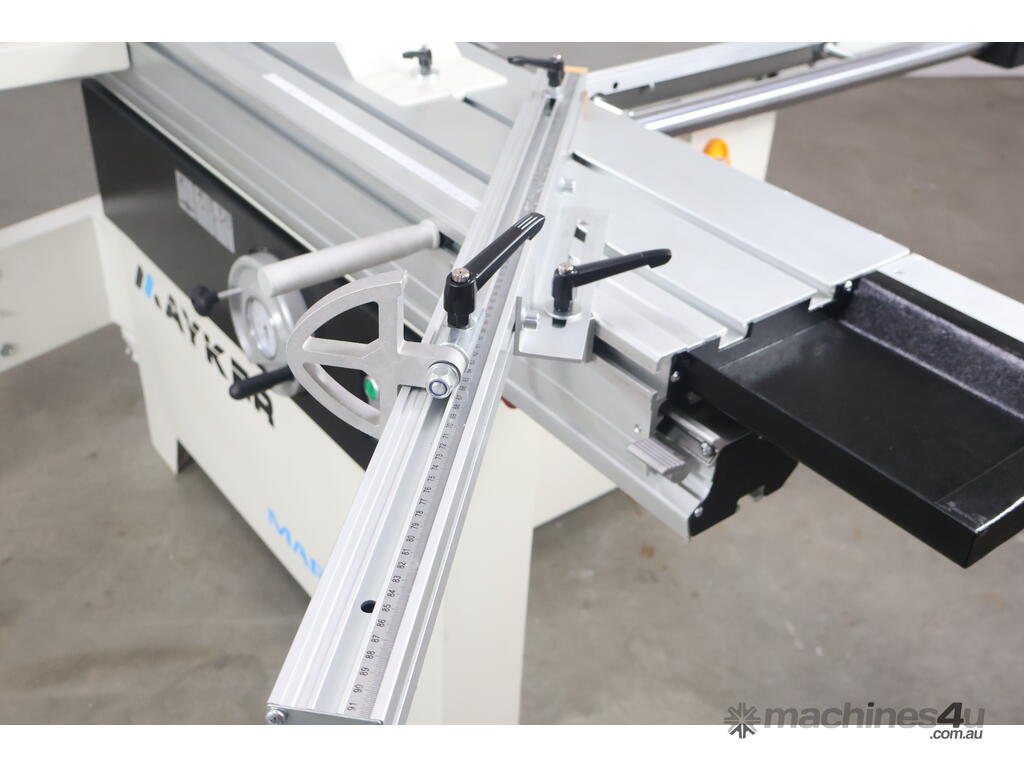

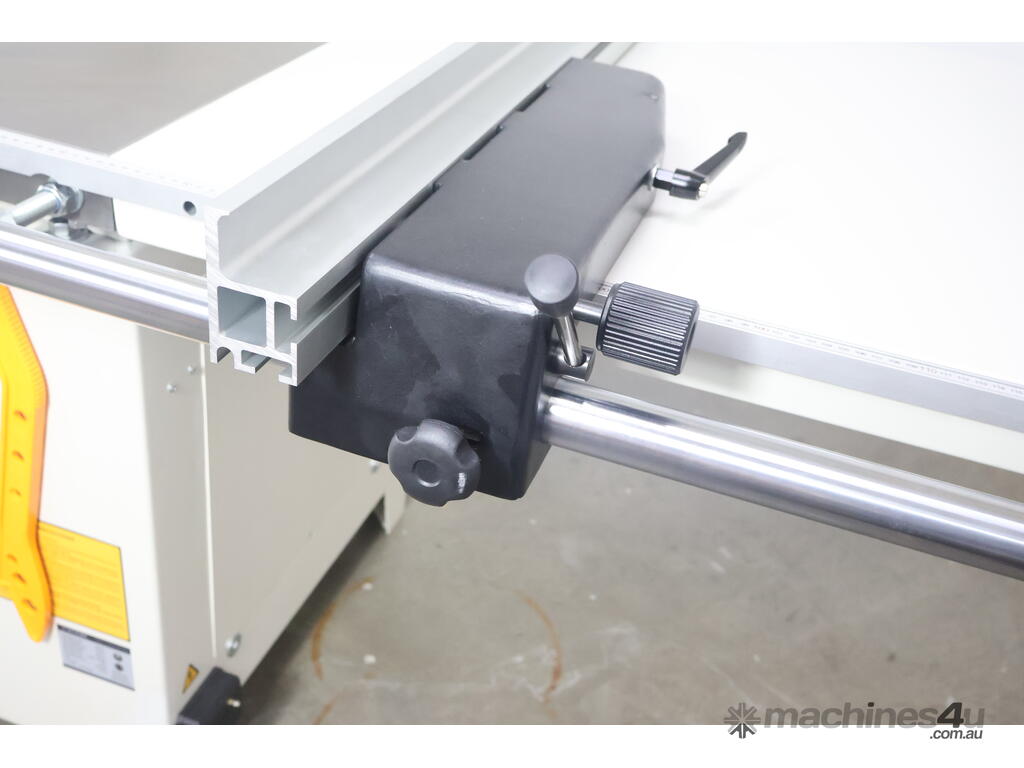

Equipped with a dual-shaft sliding saw unit for enhanced stability, reversible saw fence for efficient handling of large panels, and a ball-bearing sliding carriage for precision cutting, the Marvel Panel Saw 315 ensures flawless performance in any woodworking project.
Feature Specification
Main Blade Diameter 315mm
Main Blade Speed 4500 RPM
Scoring Blade Diameter 120mm
Scoring Blade Speed 8000 RPM

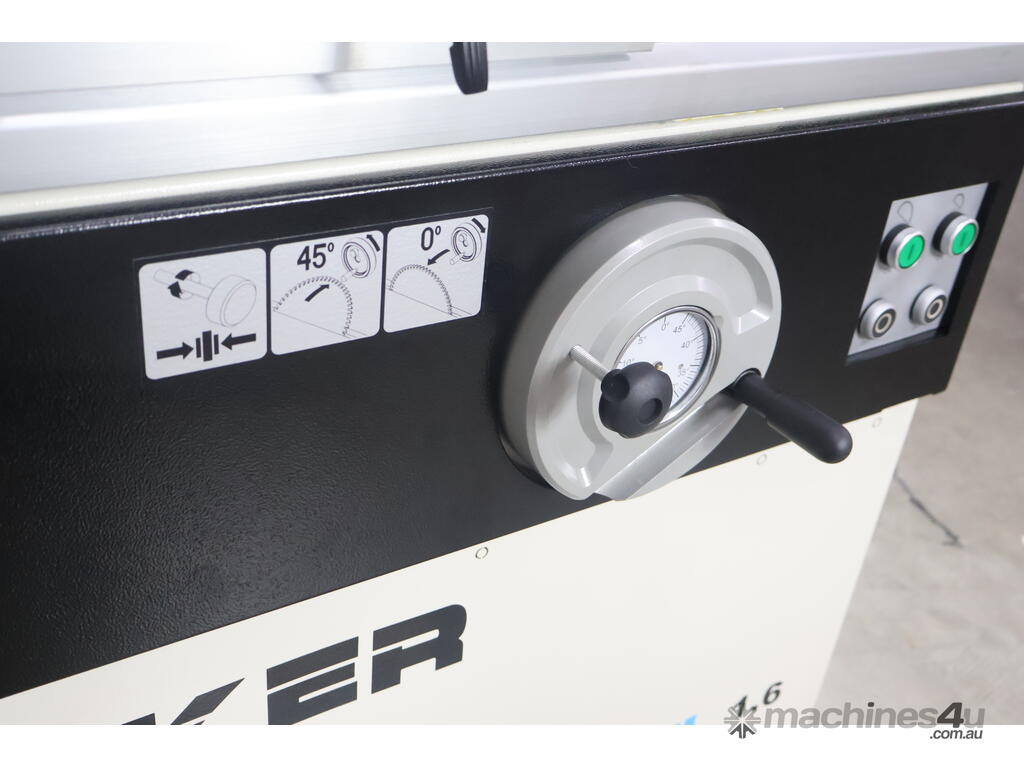

Blade Tilt 0–45°
Max Depth of Cut 45° 67mm
Max Depth of Cut 90° 95mm
Max Rip Capacity Standard: 900mm
Sliding Table Standard: 1600x360mm
Table Size 800x530mm
Dust Extraction Outlet 120mm
Main Motor Output 3*400V, 2.5kW S1 / 4kW S1 / 5kW S1
1*230V, 3kW S1
Scoring Motor Output 0.75kW S1
Net/Gross Weight 400kg / 460kg
