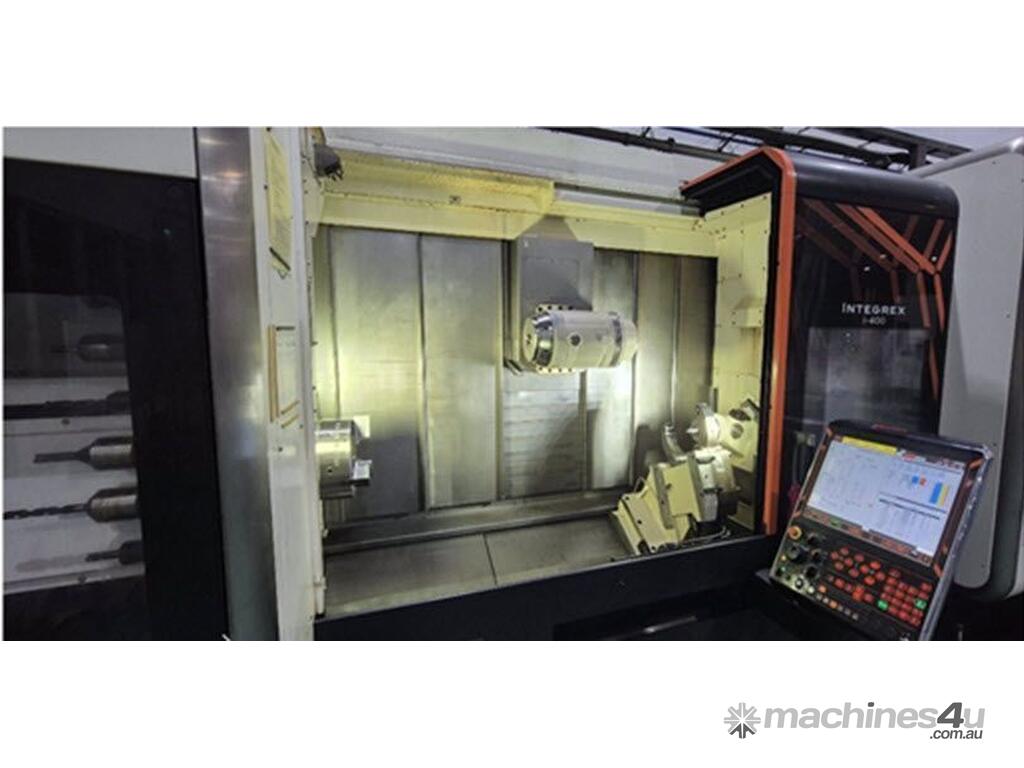

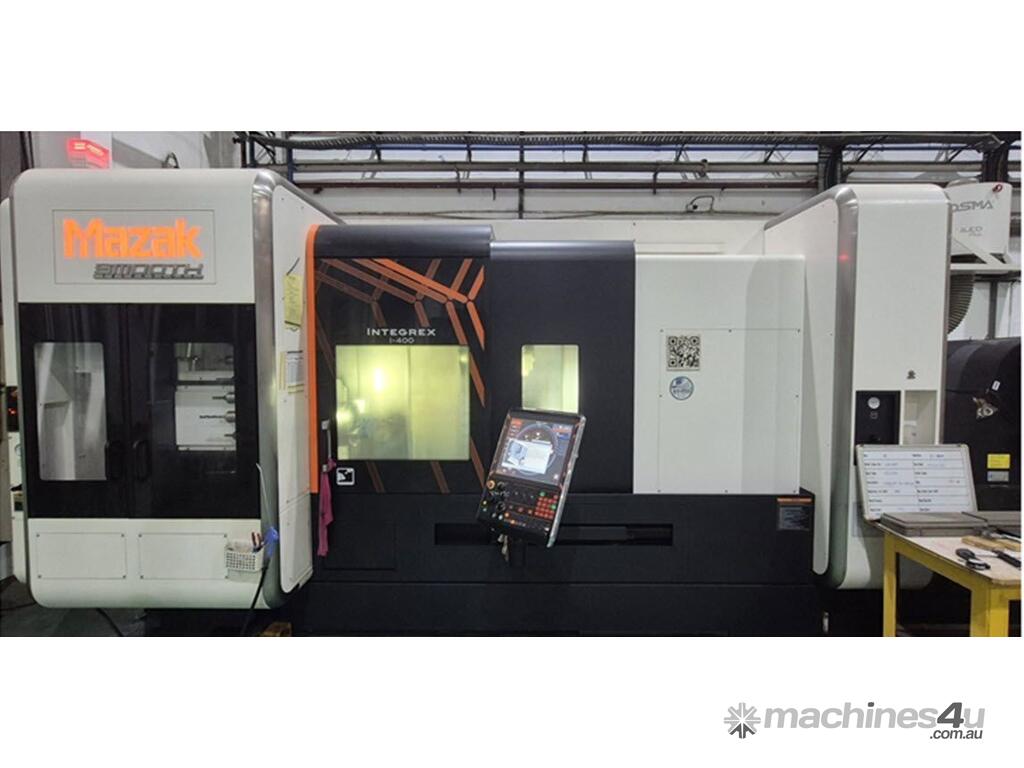

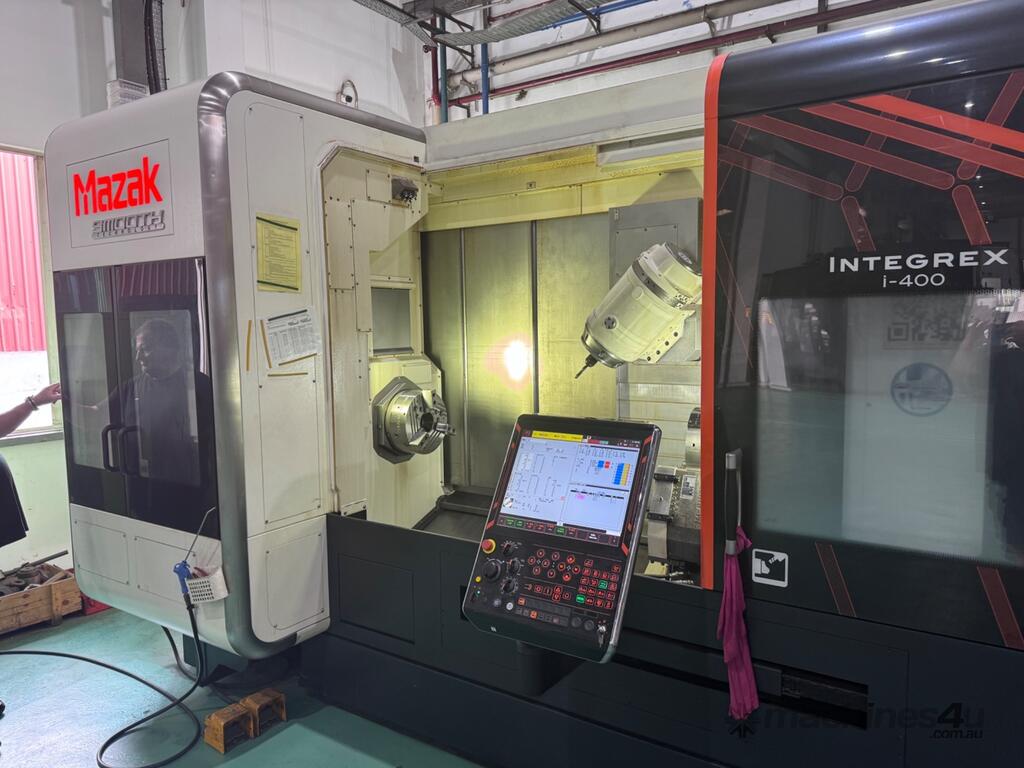

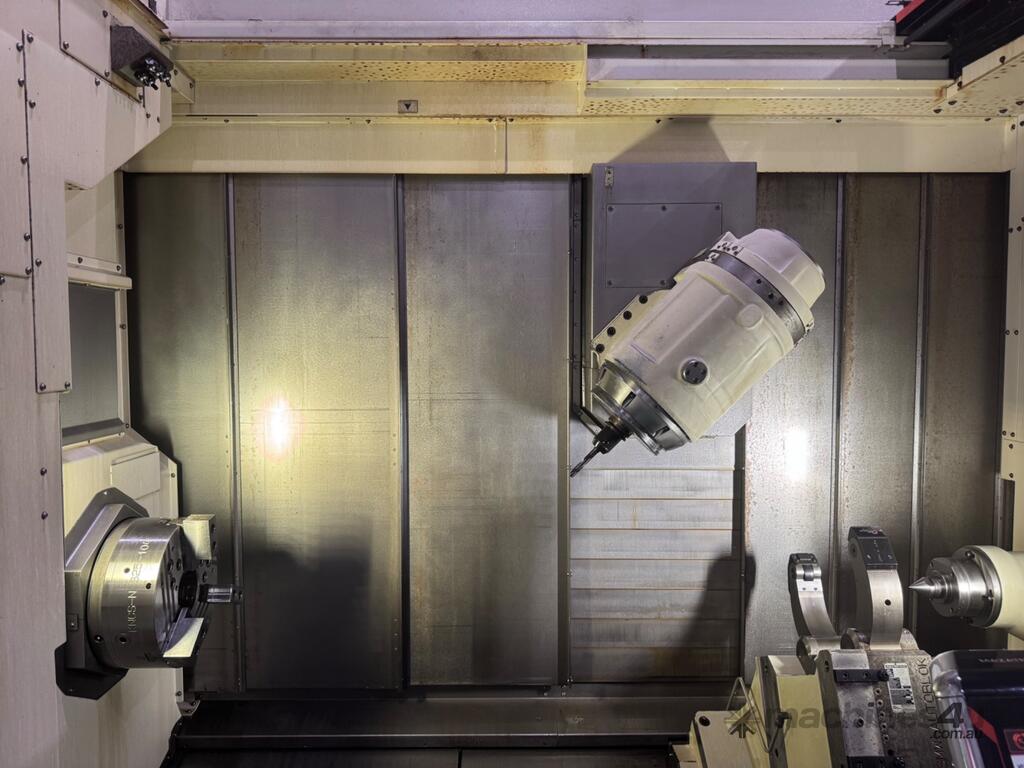

MAZAK 2018 INTEGREX i-400 (1500U), 5-axis CNC lathe.
New to the market due to the retirement of the owner.
A 5-axis multi-tasking CNC turning center designed for high-accuracy, complex machining.
Key features include a Mazatrol SMOOTH X control system, a maximum machining diameter of 658 mm (25.91 inches), a maximum machining length of 1,524 mm (60 inches), and a 12-inch chuck.
A versatile machine that can perform both turning and milling operations in a single setup.
Machine Type: 5-axis multi-tasking CNC turning center

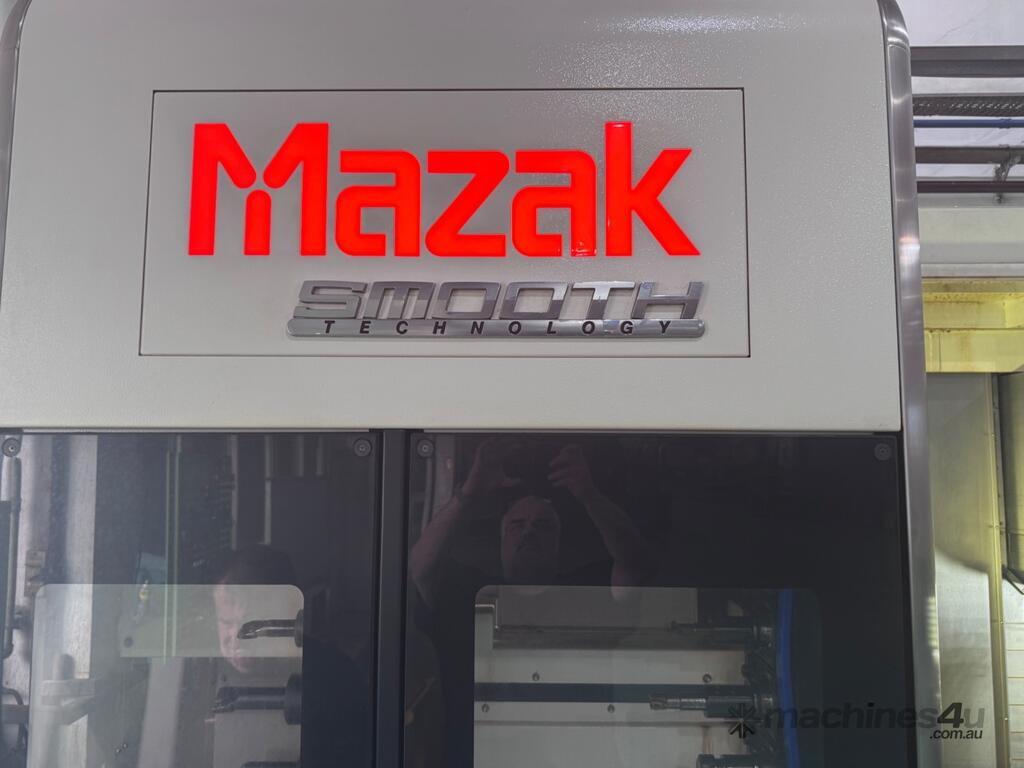

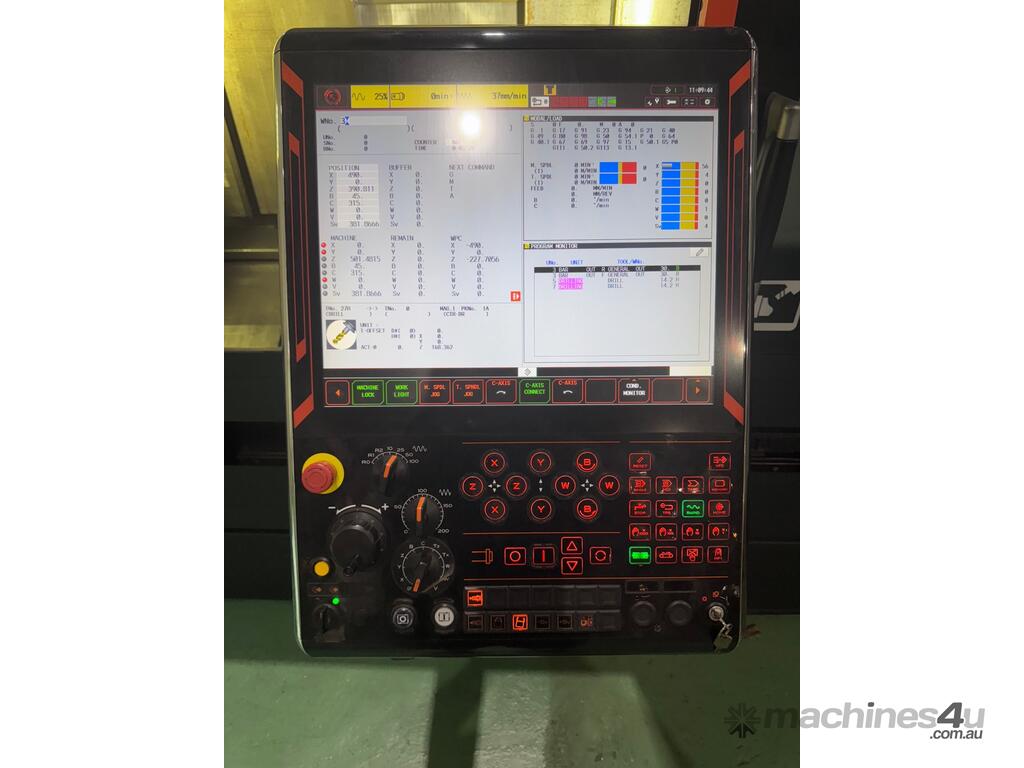

Control: MAZATROL SMOOTH X
Max Machining Diameter: 658 mm (25.91 inches)
Max Machining Length: 1,524 mm (60 inches)

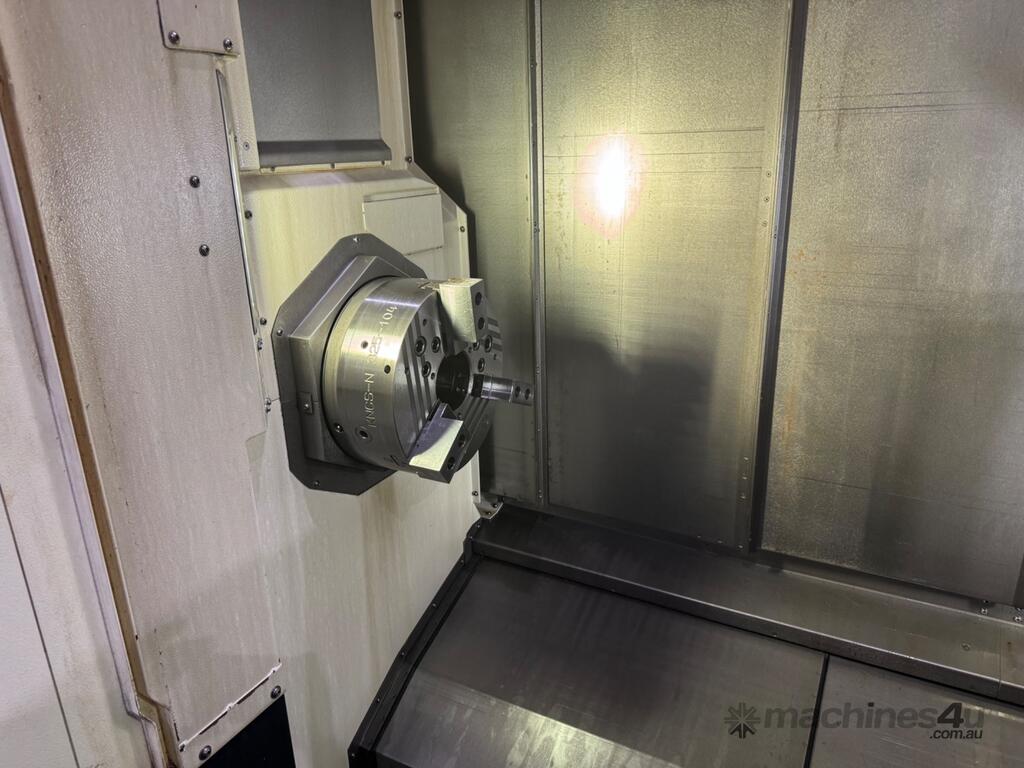

Chuck Size: 12 inches
Bar Capacity: 4 inches (101.6 mm)
Main Spindle Speed: 3,300 RPM
Milling Spindle Speed: 12,000 RPM

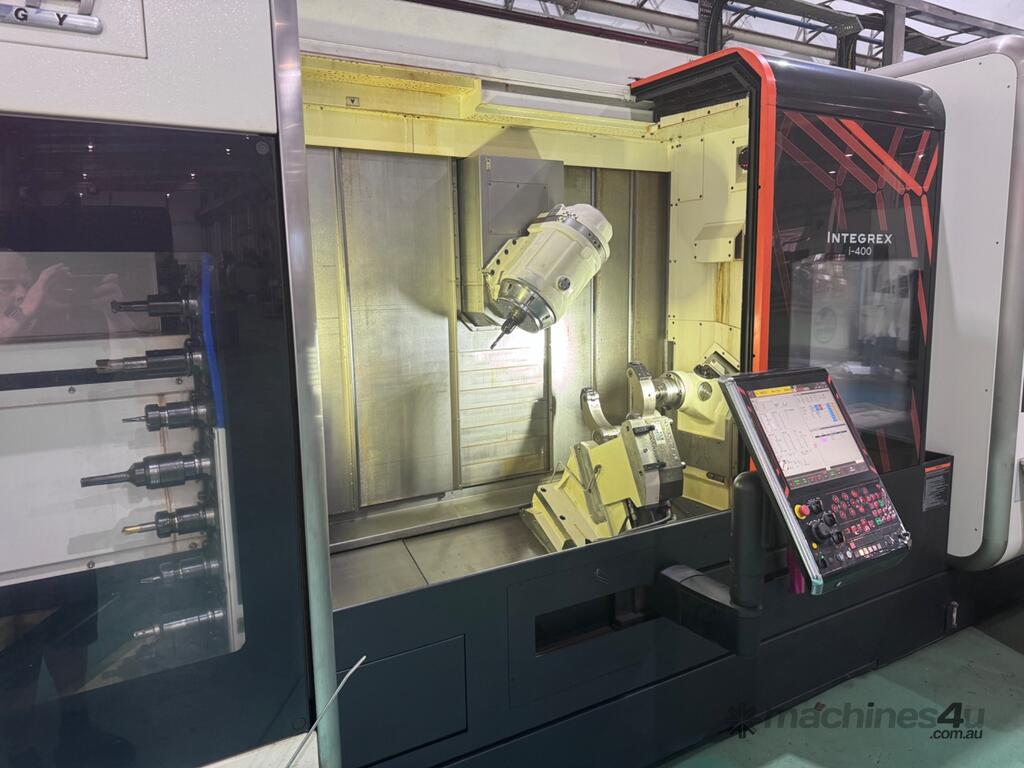

Tool Magazine: 72 tools
Axis Travel: Includes X, Y, and Z axes
B-Axis: 240-degree rotation for 5-axis capability
Rapid Traverse: Up to 50 m/min on the X-axis. Lots of Tooling.
The machine is in excellent condition. Very little use.

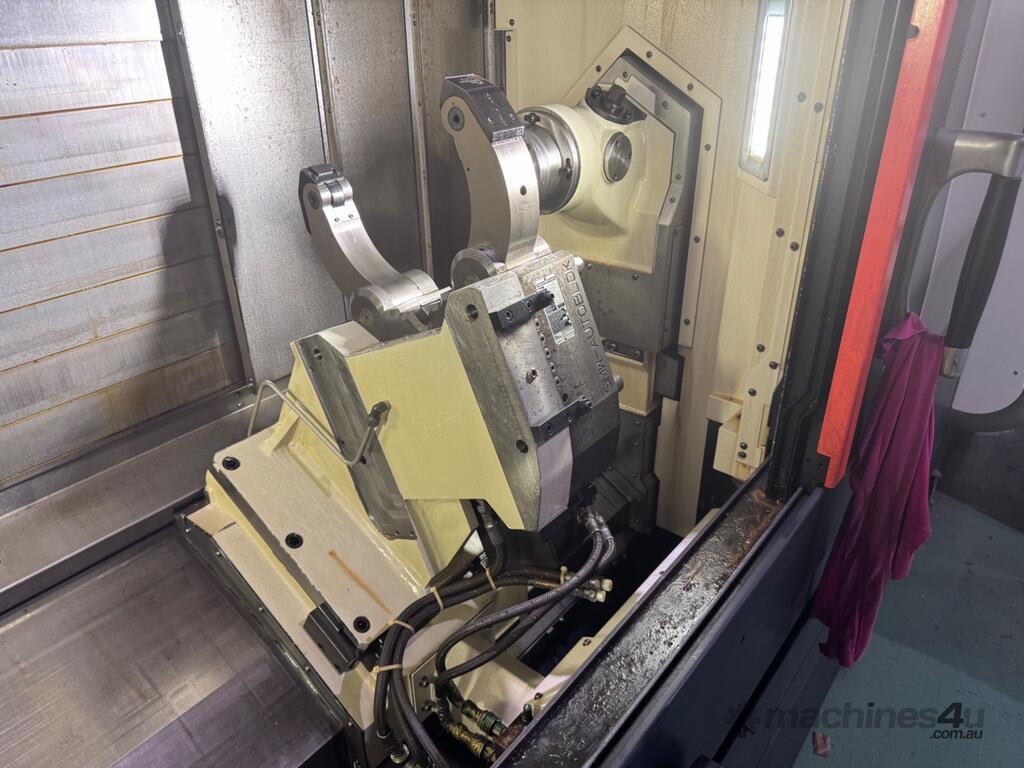

Tailstock: Included with a tailstock position that can be set via the setup screen.
