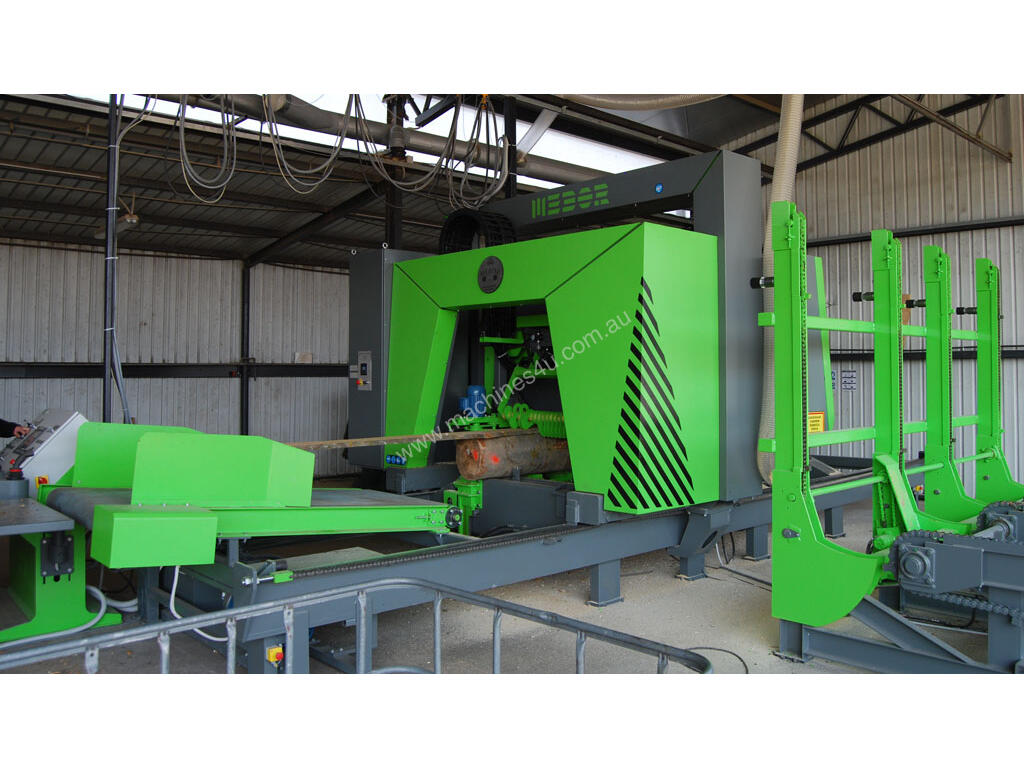

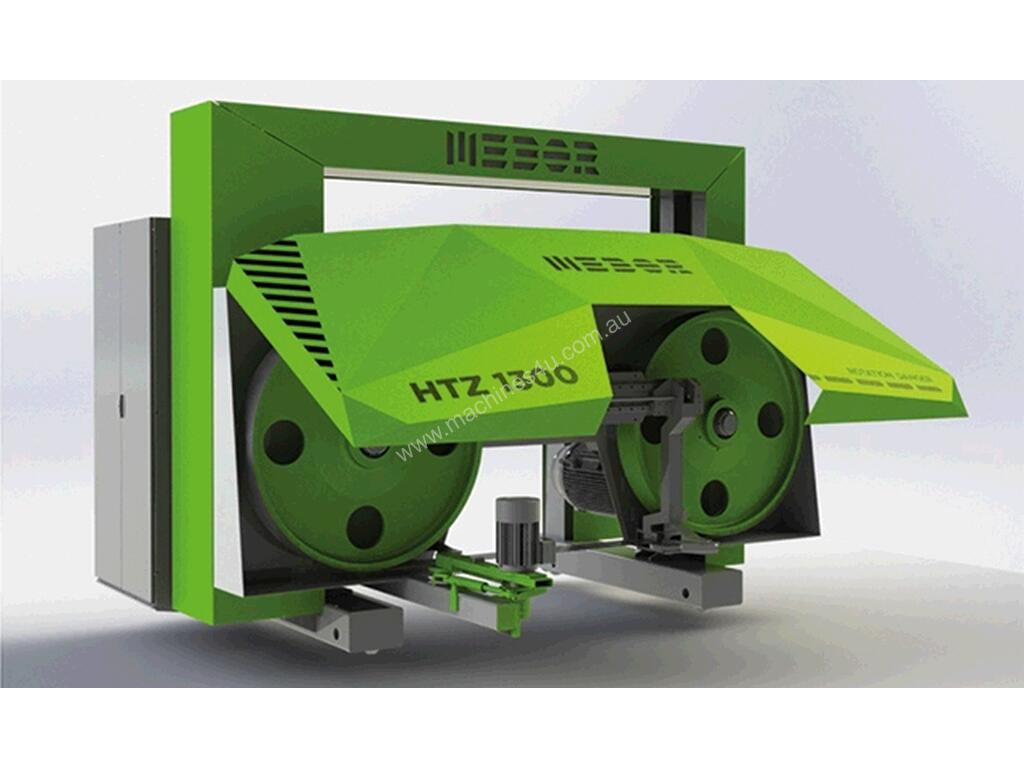

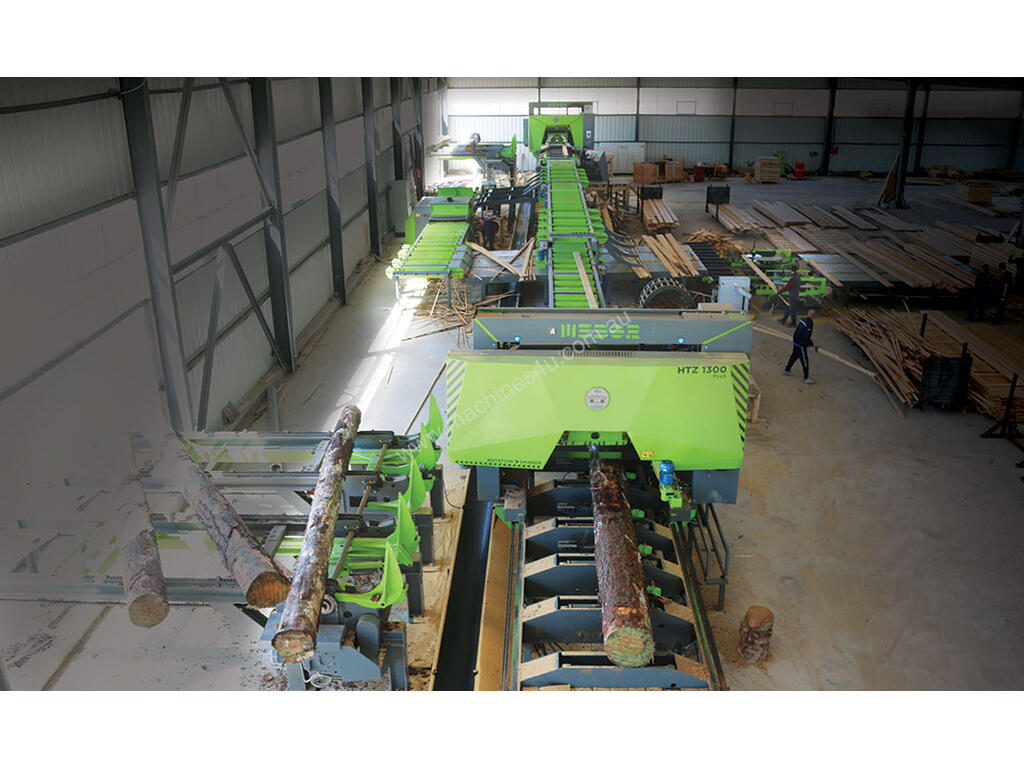

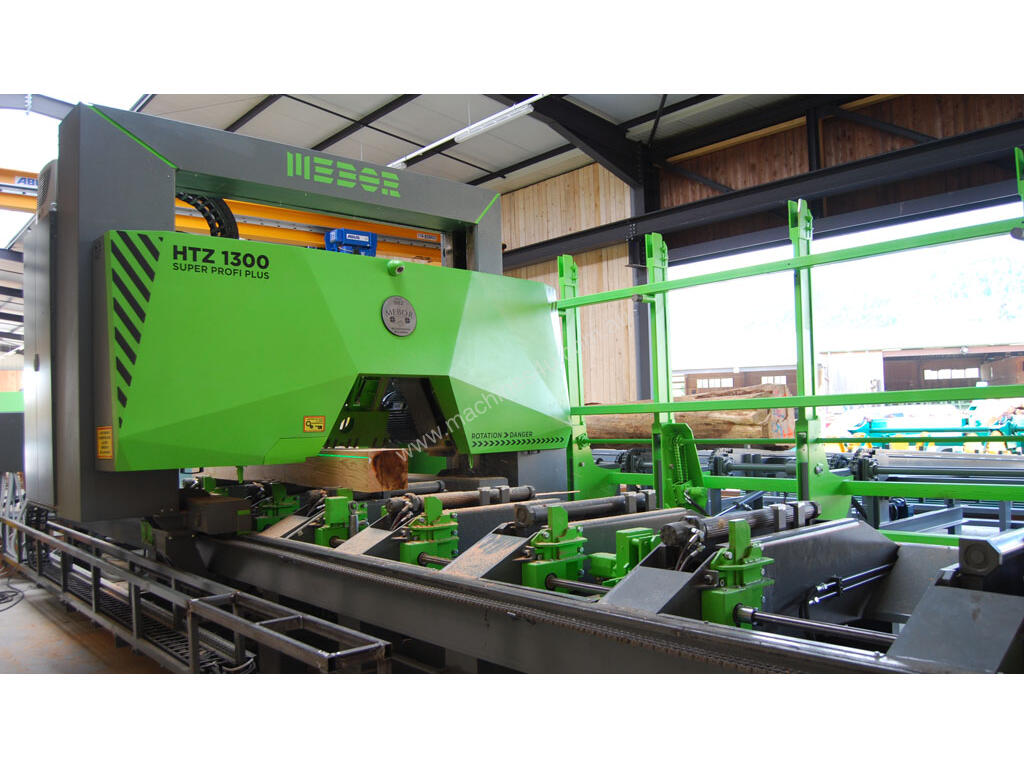

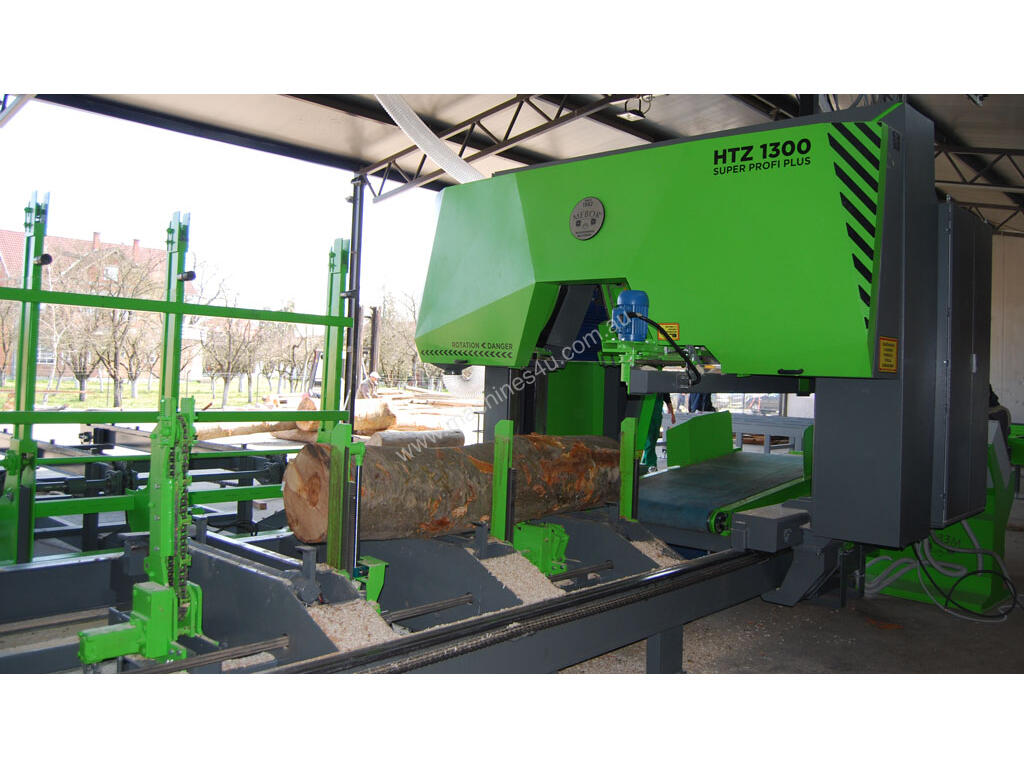

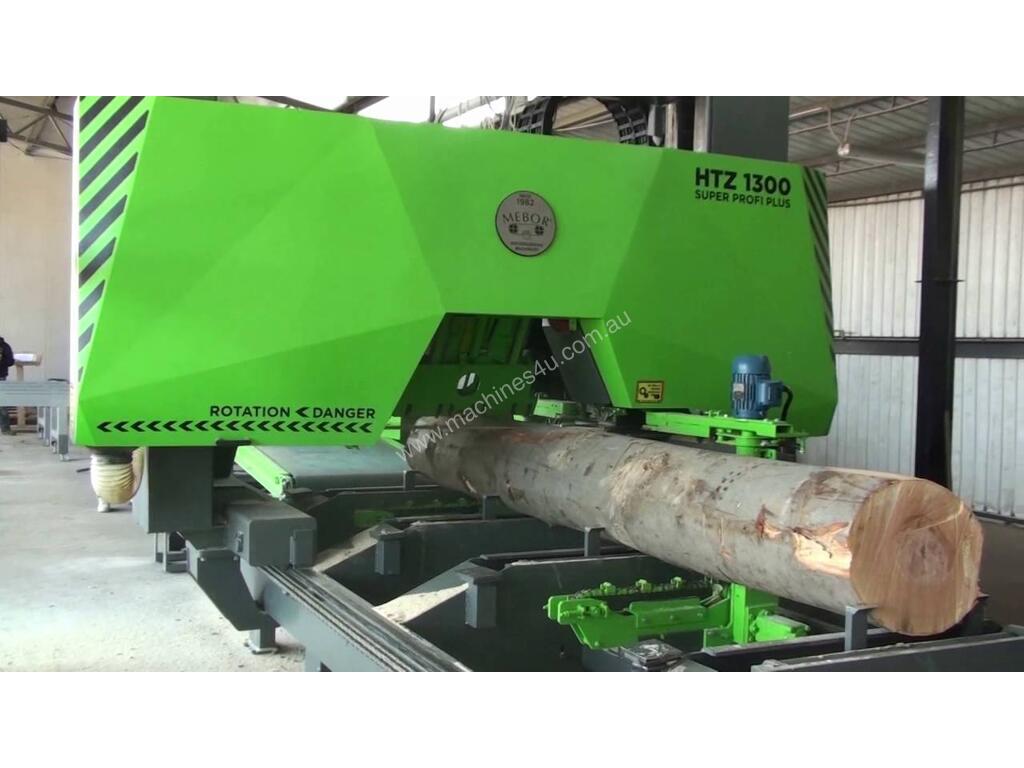

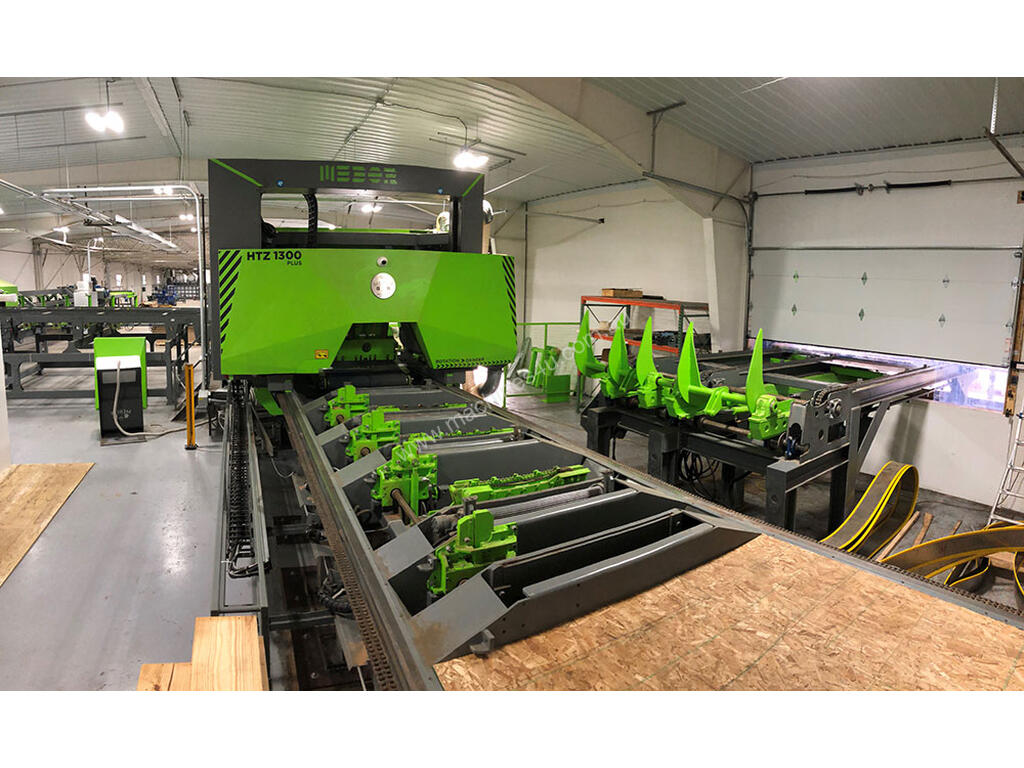

Mebor HTZ 1300 horizontal band mill.
Available in two wheel widths, a range of motor powers and hydraulic packages.
Operator controls in a movable panel with touch screen.

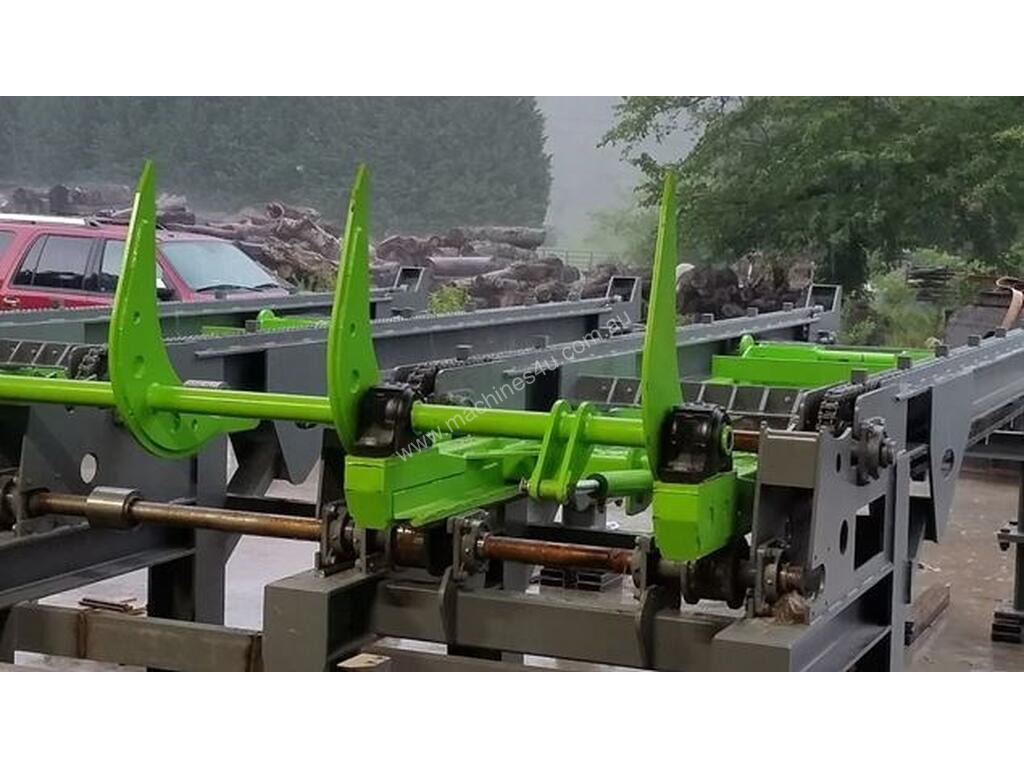

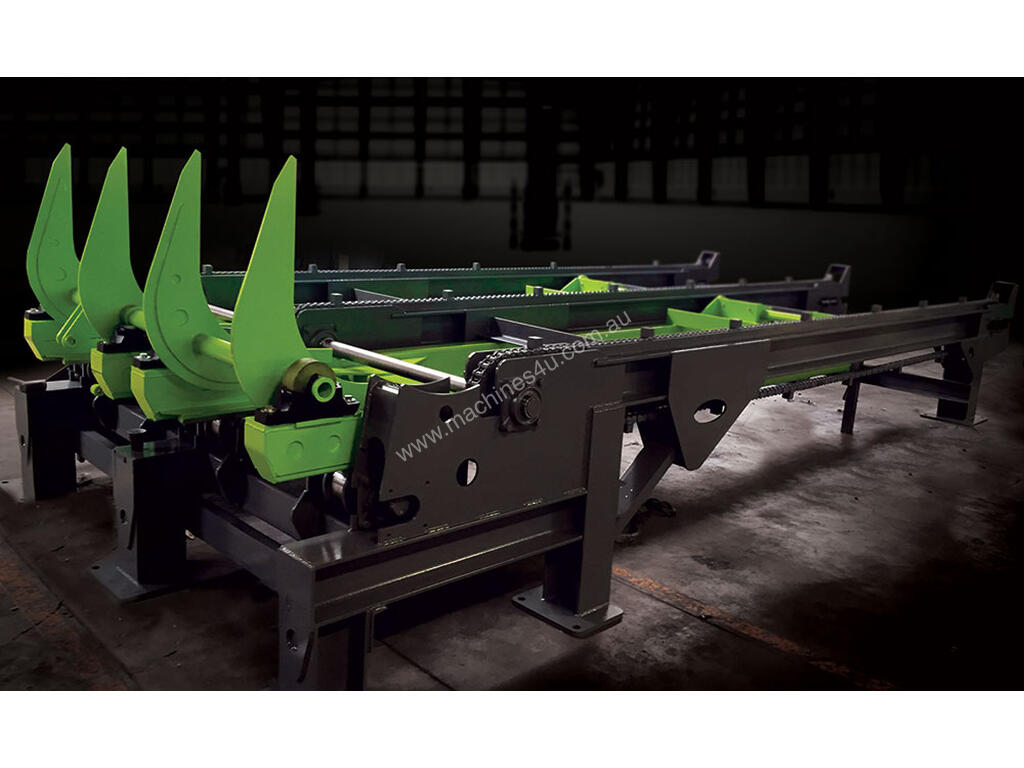

Hard and softwood specifications with a choice of log deck styles.
Mebor are a leader in the mid ground between million dollar mills and lighter weight equipment.
Band sawing saves on kerf but an uneven surface can quickly erode that advantage. This saw has the stability to produce a very flat cut with a consistent thickness.
Good engineering backed by strong metalwork. This saw is meets most businesses target of initial outlay and production. A lot of trouble free running hours with a little operator comfort give the owner continued profit.
TECHNICAL DATA HTZ 1300 PLUS
Productivity: up to 48/80 m3/8h
Max. log diameter: 1250 mm
Max. cutting width: 1200 mm
Max. log length: custom made

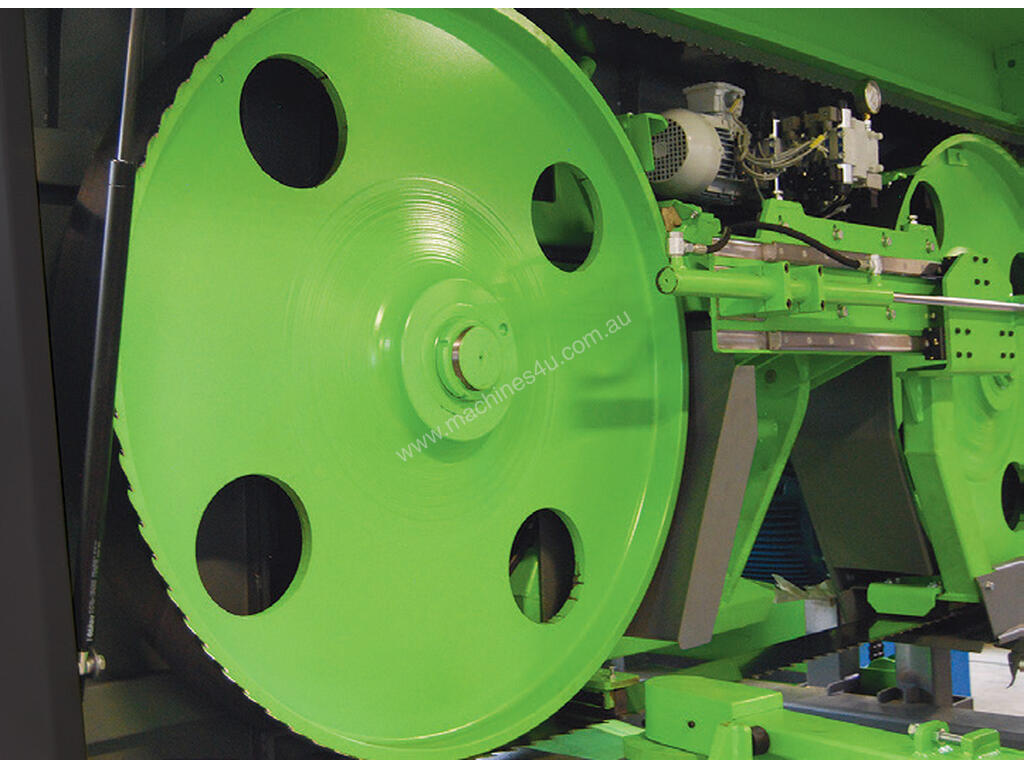

Diameter of wheels: 1320 mm
Width of wheels: 165 mm, more on request
Blade length: 8600 mm
Blade width: 180 mm +
Blade thickness: 1,38-1,47 mm
Approximate weight: 14000-17000 kg
Width: 3940 mm
Total height (blade in highest position): 3450 mm
Total length: log length to 10m + 4,5m
Main motor power: 55/75 kW
