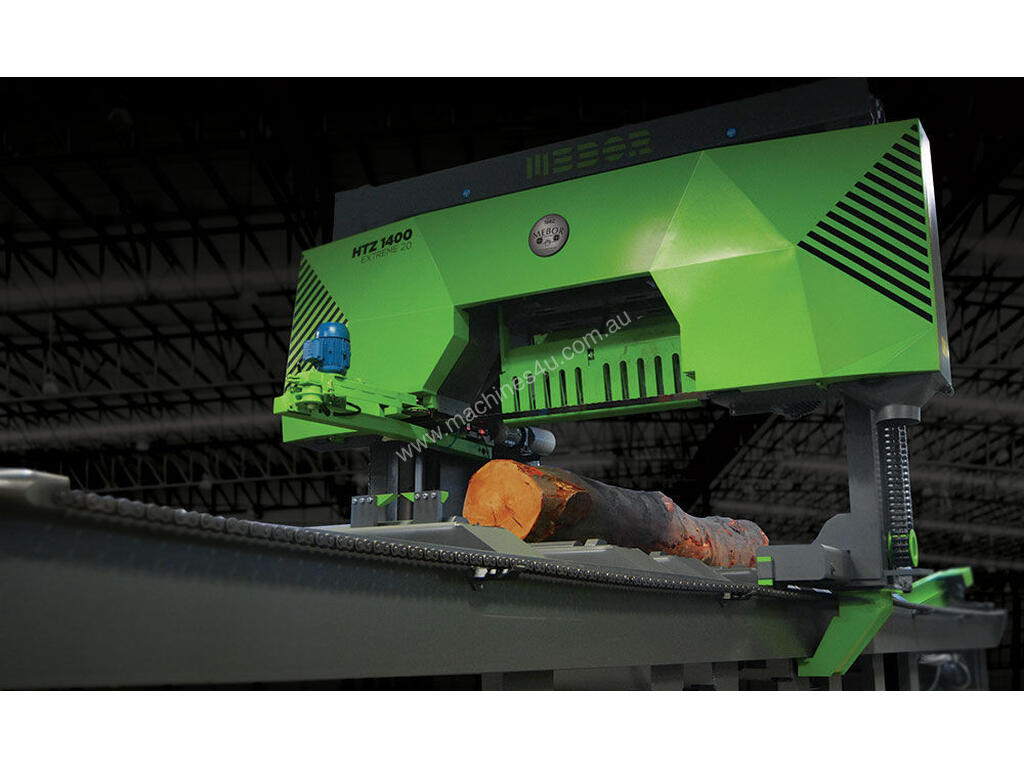

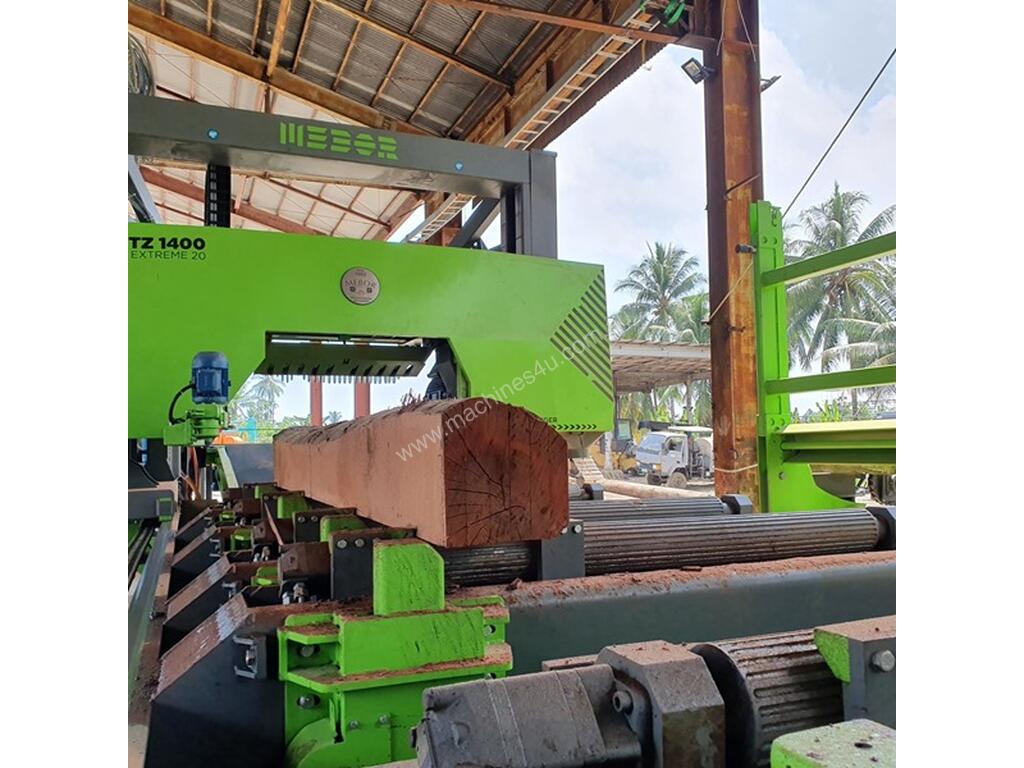

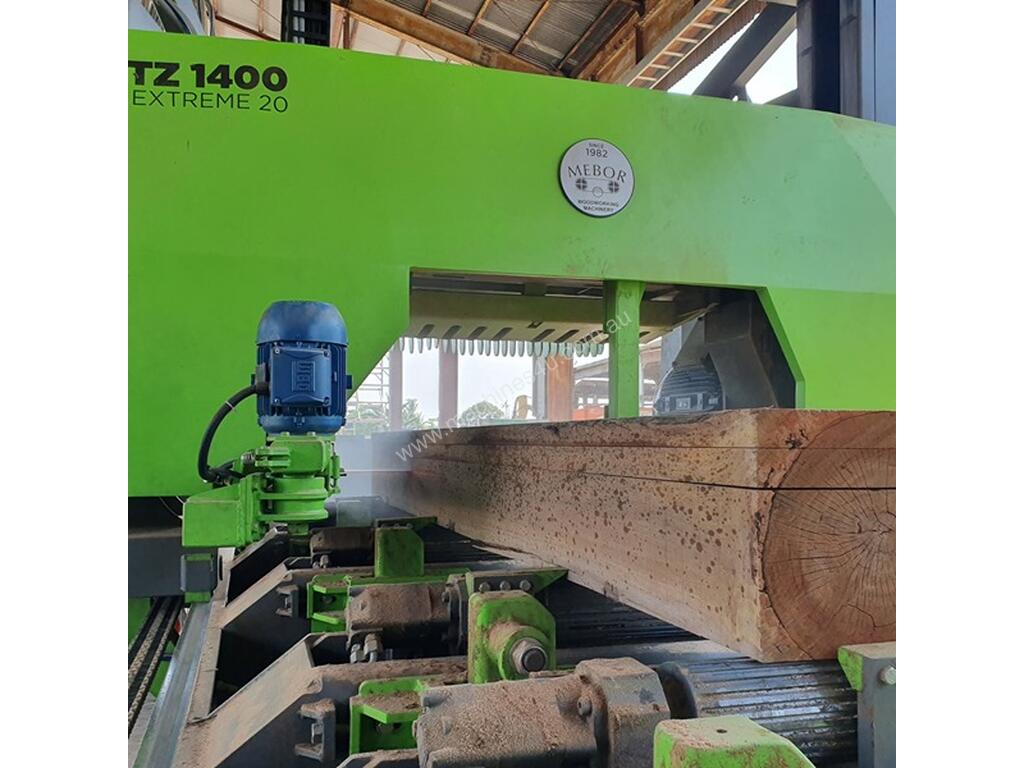

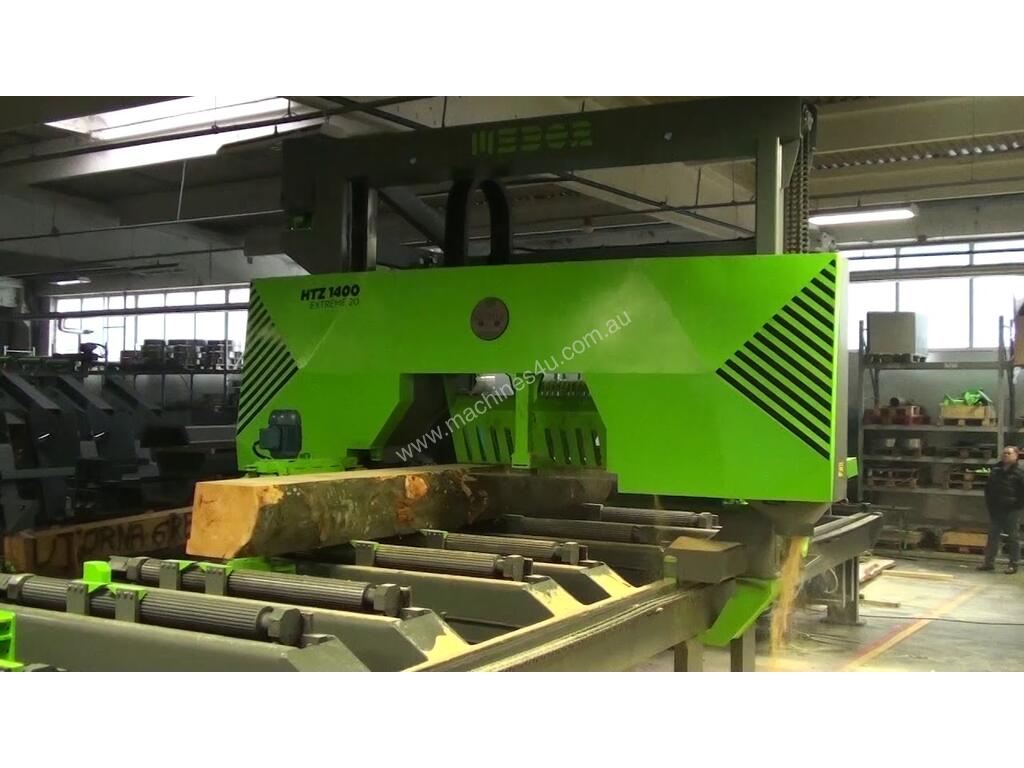

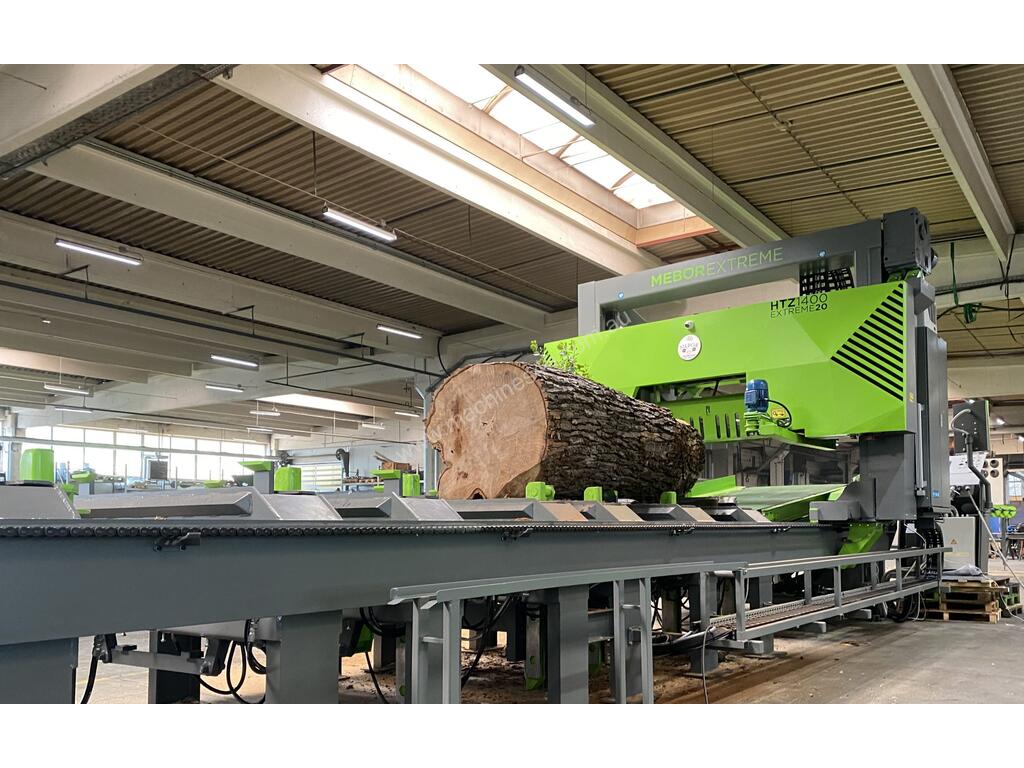

Mebor's heaviest horizontal band mill model with a log capacity up to 2M.
Well proven with machines working on all timber species.
Available in band wheel widths and motor powers to get profitable output and quality sawn stock from the hardest species. If your logs are not hard then cutting speed is maximised.
Key features:
Designed for high production; with fast drives & powerful hydraulics,
Suitable for all sizes of hardwood logs,
Very wide blade, powered by a 90/110 kW motor,
28 tonnes+ of steel.

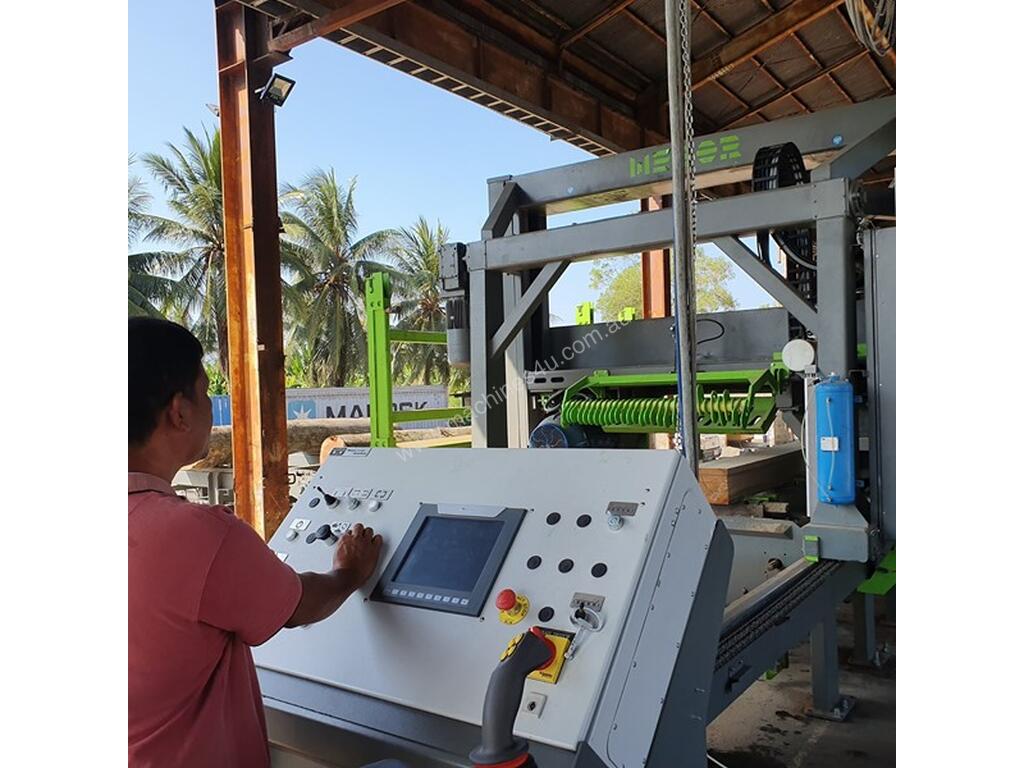

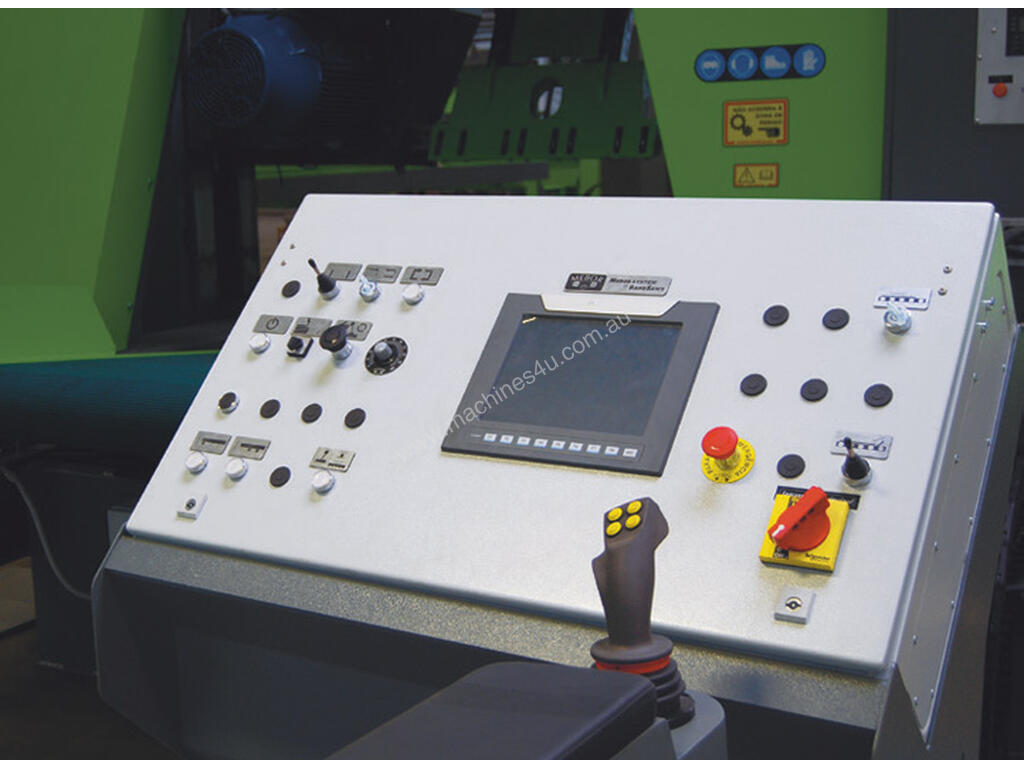

Optional upgrade to servo controlled blade positioning and faster return speed for more production.
TECHNICAL DATA HTZ 1400 Extreme20
Productivity: up to 65/90 m3/8h
Max. Log diameter: 2000 mm
Max. Cutting width: 1870 mm
Max. Log length: custom made 10M +

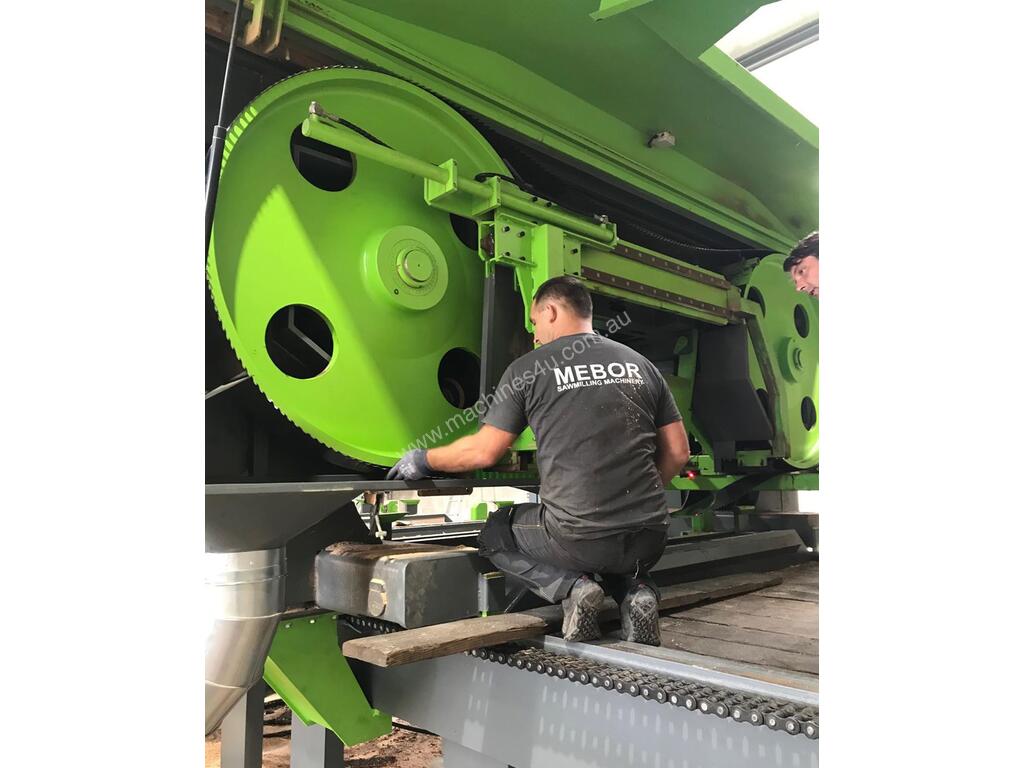

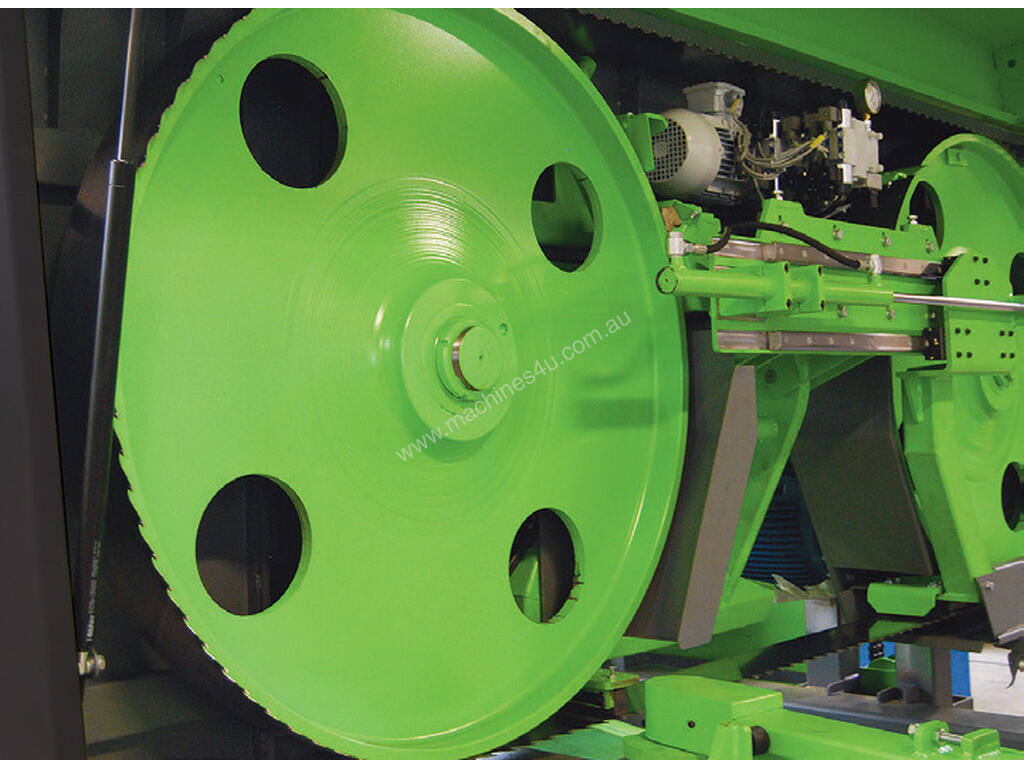

Diameter of flywheels: 1420 mm
Width of flywheels: 190 mm
Blade length: 10500 mm
Blade width: 206 mm
Blade thickness: 1.47 mm
Approximate weight: 25000 - 32000 kg
Width: 4600 mm
Total height (blade in highest position): 4300 mm
Total length: log length + 6 m
Main motor power: 90 / 110kW
