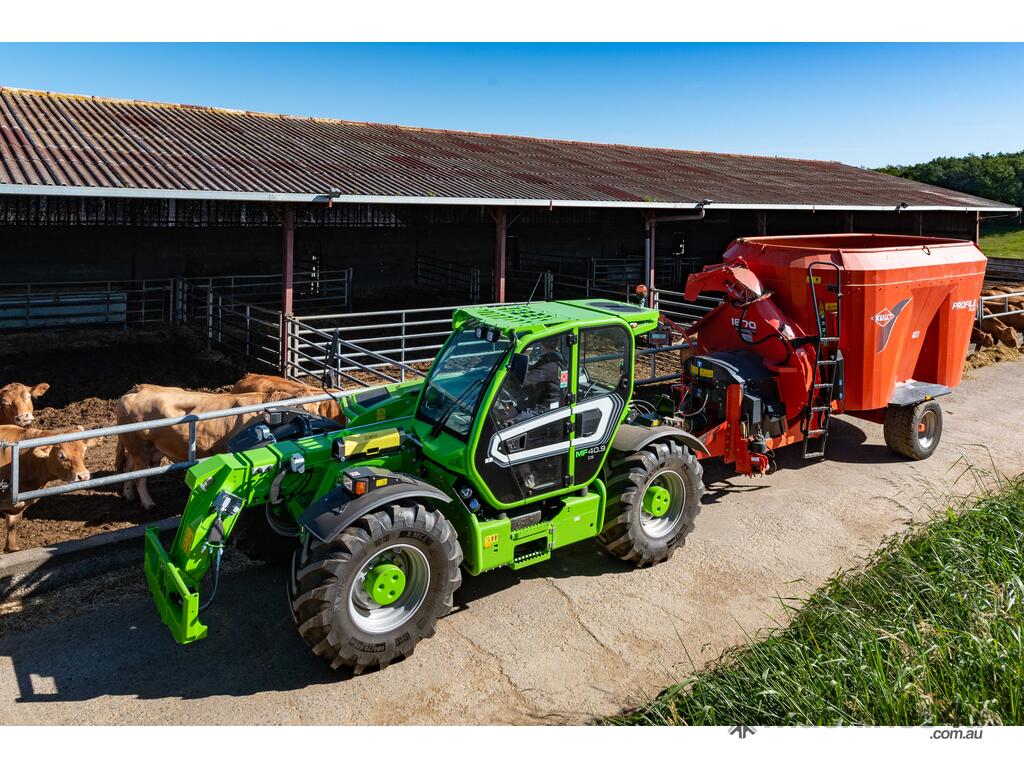

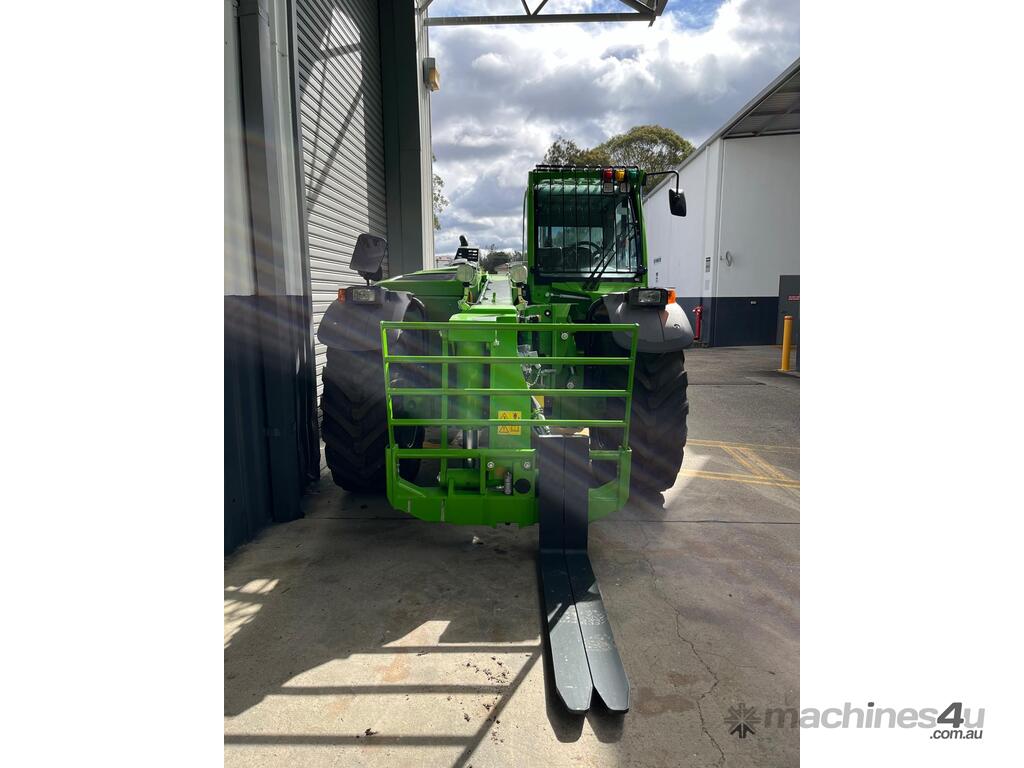

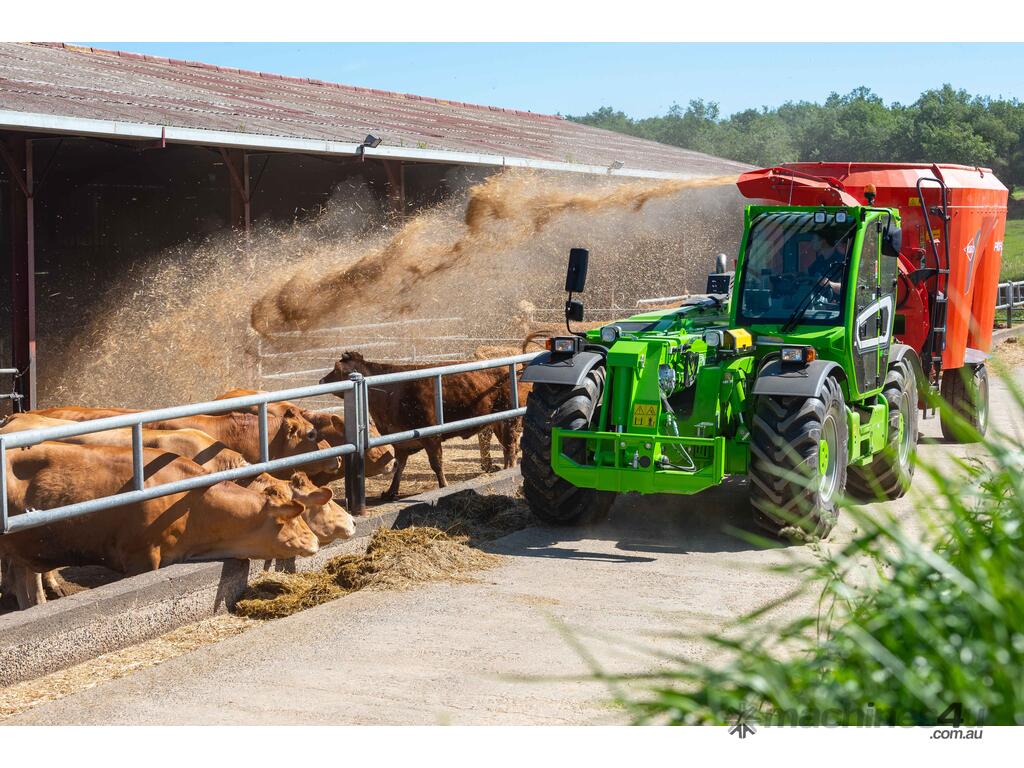

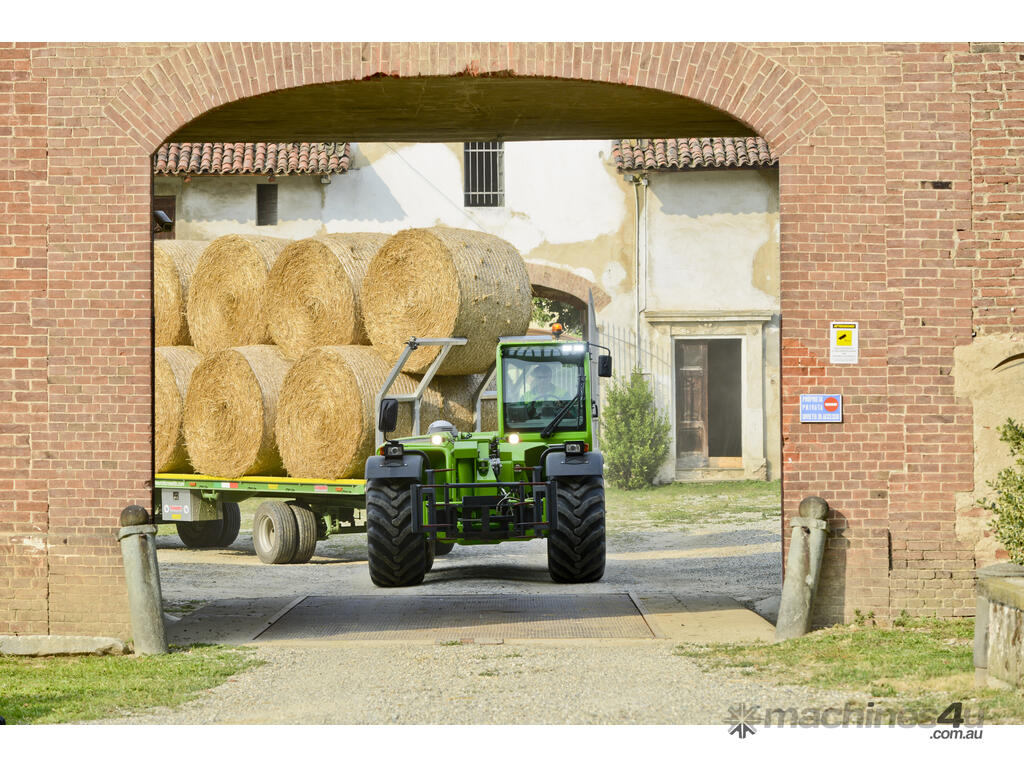

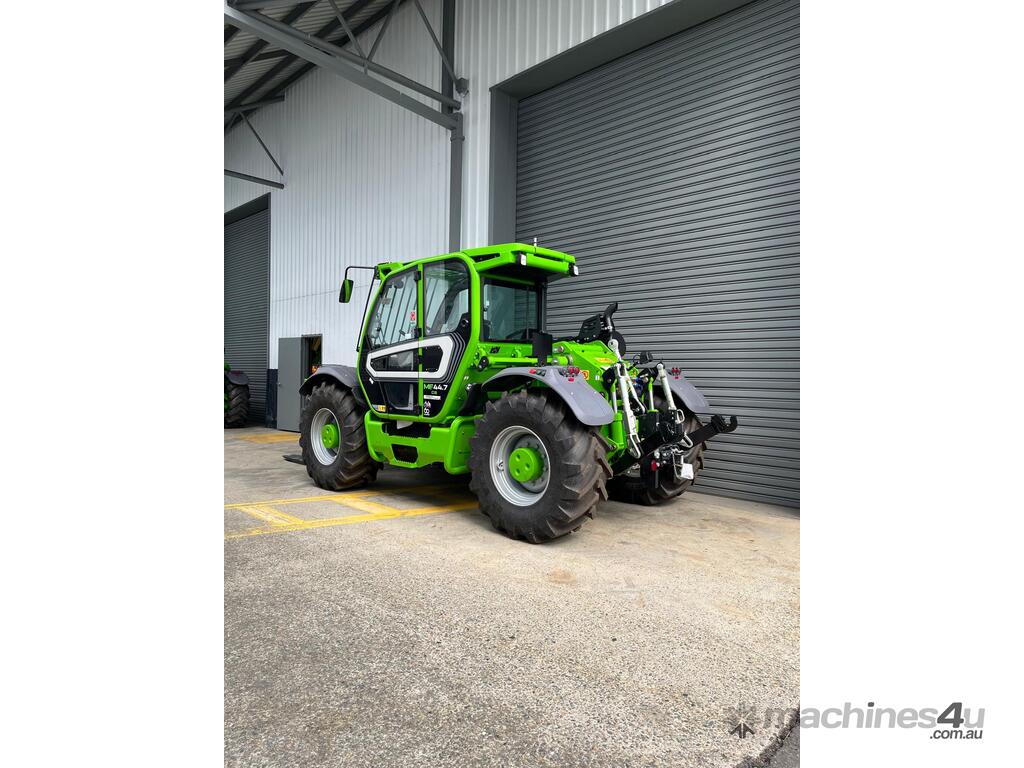

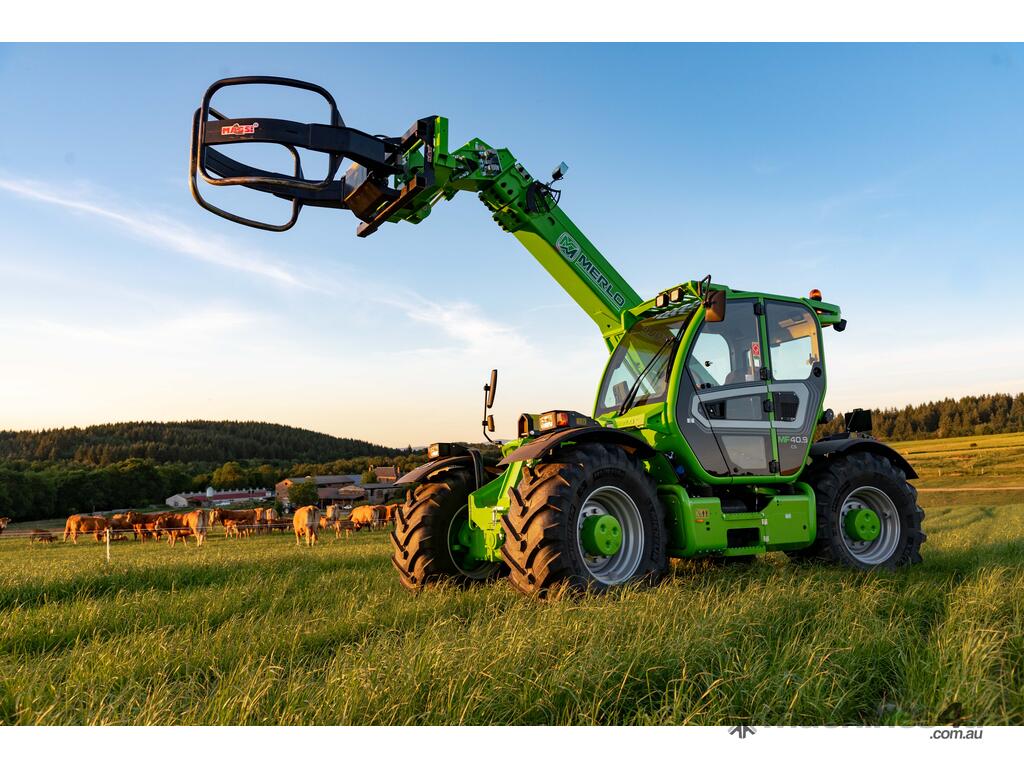

Merlo Telehandler: Multifarmer 44.7CS - 170 The Ultimate Tractor-Telehandler Hybrid

The ultimate telescopic tractor-telehandler hybrid, designed to revolutionize your agricultural operations. With a powerful 170 HP engine, a 4.4-ton lifting capacity, and a 7-meter reach, this versatile machine seamlessly combines the capabilities of a high-performance tractor and a robust telehandler. Its advanced hydraulics, ergonomic cab, and intuitive controls ensure maximum efficiency and comfort, making it perfect for handling a wide range of tasks from lifting and transporting to plowing and towing. Experience unparalleled versatility and productivity with the Multifarmer 44.7CS - 170.

Merlo was the first company on the market to translate the concept of a telescopic boom tractor into reality and to patent it: the Multifarmer.

It is a real crossover, which combines the characteristics of a traditional agricultural telescopic handler with those of a tractor, producing truly exciting results.

The result is a range that offers high-performance vehicles, all equipped with a 3-point rear linkage and mechanical power take-off.

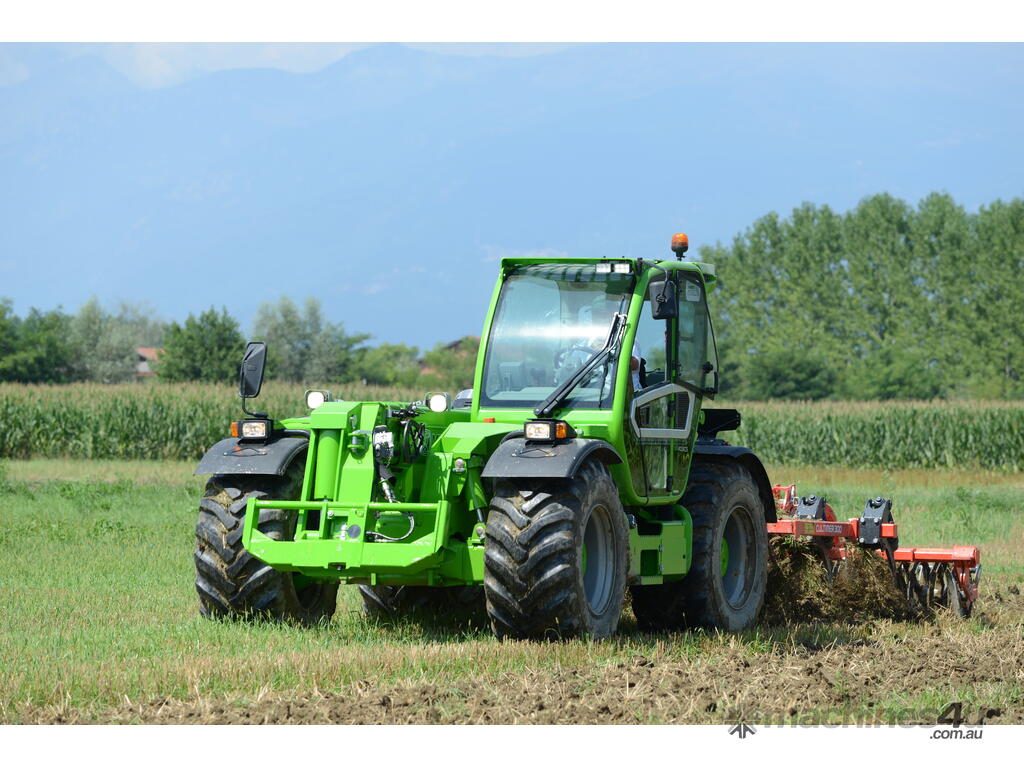

The Multifarmer models represent the revolutionary Merlo solution for performing all farm work, handling, lifting, transporting loads and operating attachments with a high level of performance for operations typically carried out by traditional tractors (towing and tillage).
The Multifarmers are also equipped with the anti-tipping MCDC (Merlo Dynamic Load Control) system and engines managed by the EPD (Eco Power Drive) system, which allows for a reduction in diesel consumption.

The new construction concept allows you to customise the models according to operational needs, consequently offering the widest agricultural range with tailor-made solutions for the customer.

Maximum Lift Capacity - 4400kg
Maximum Lift Height - 6.8m
Maximum Reach - 3.6m
Overall Length to Carriage - 5.37m
Overall Width - 2.4m
Overall Height - 2.59m

PERFORMANCE
Everything at your fingertips

Exclusive precision:
Guarantees maximum movement precision, thanks to the hydrostatic transmission, which ensures millimetric variations in the machine's movements and load's positioning.

Compact and lightweight:
The Merlo telescopic handlers are compact and lightweight to reduce manoeuvring space and impact on the ground. These features guarantee safety, manoeuvrability, productivity and lower consumption.

Visibility:
Merlo telescopic handlers are designed to offer the best visibility on the market, ensuring faster and safer operations.

MCVTronic
The Merlo CVTronic intelligent continuous transmission combines the Merlo experience, acquired on hydrostatic transmissions, with new technical solutions that allow to reach the same performances, consumption and yields of a traditional CVT transmission.

Chassis levelling:
The tilt correction system, integrated into the chassis, is available as standard on this model. It allows the operator to offset the ground slopes to work in total safety. On sloping terrain the operator can correct the lateral inclination by 8%; this allows the telescopic boom to be moved out perpendicularly to work in conditions of maximum safety.

Multifarmer power take-off:

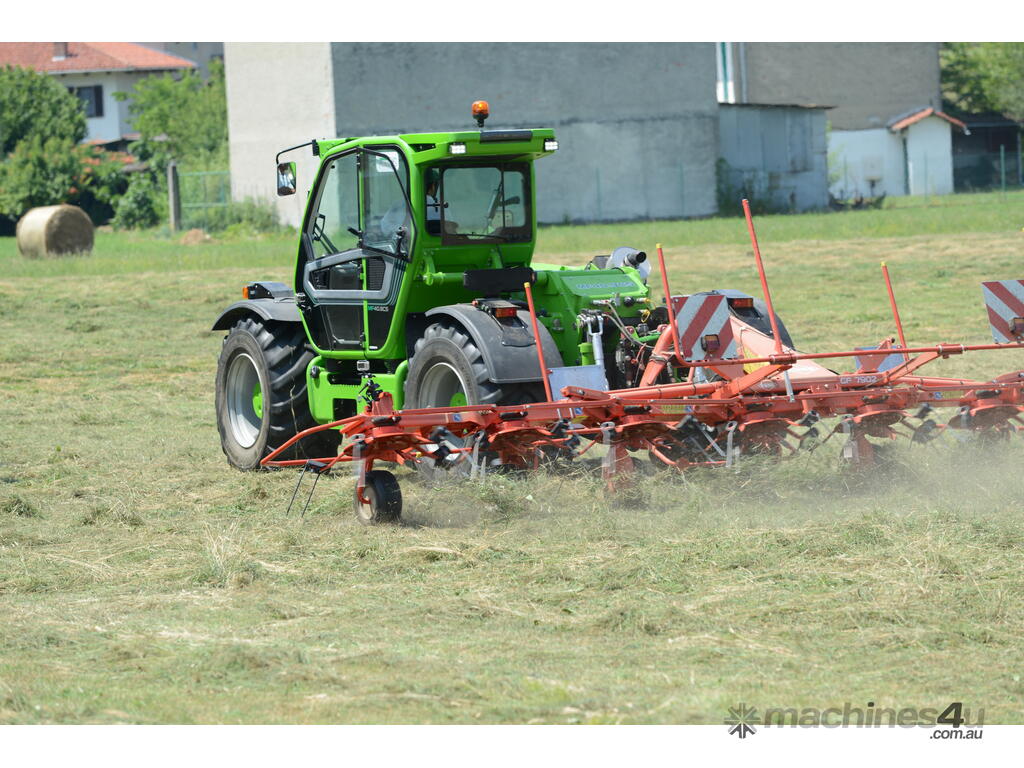

The Multifarmers are equipped with a mechanical power take-off as standard that, in combination with the 3-point rear linkage, allows mounted and trailed attachments to be connected.

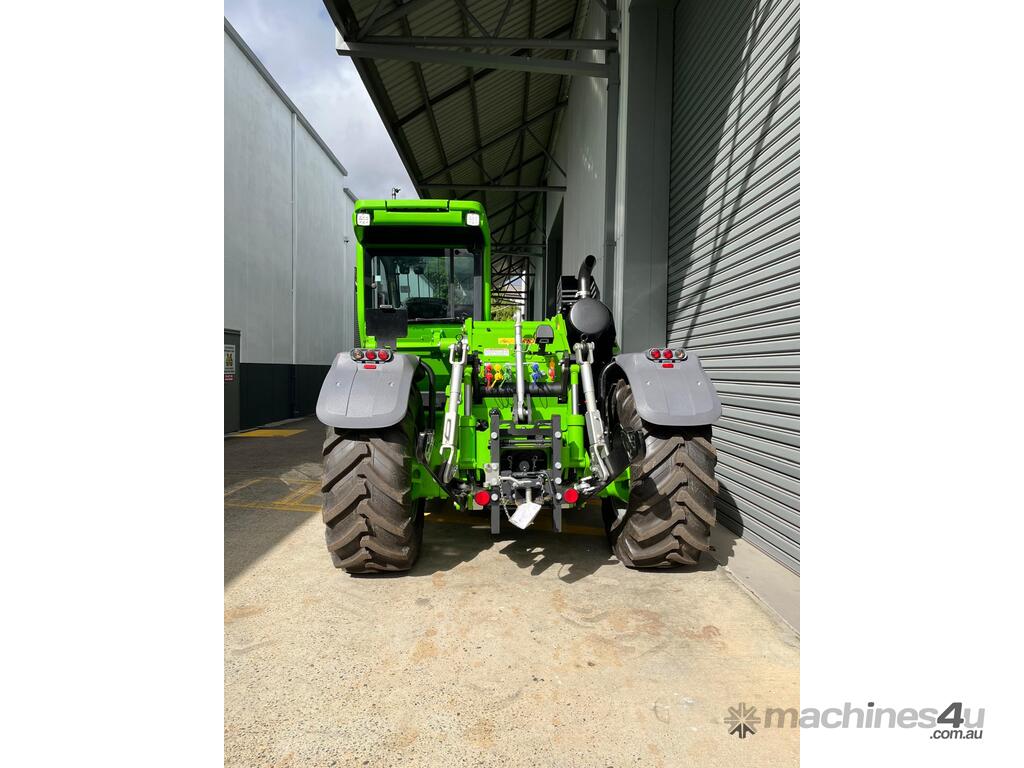

3-point rear linkage: cat. III
This model is equipped as standard with a category III 3-point rear linkage with a 7,000 kg lifting capacity.

COMFORT
The best workplace.

Quick accessories changeover:
The Tac-Lock system for hydraulic clamping of the attachments further improves operating comfort.

Protection of the handled load:
The boom suspension system (BSS) is available as an option, which protects the load during transfer and maintains a high level of driving comfort on rough terrain.

Exclusive comfort / The most comfortable cab:
This model is equipped with the exclusive patented and dampened Merlo CS cab with active hydropneumatic suspension that can be switched off by the operator. The low frequency system allows the drastic reduction of vibrations inside the passenger compartment and facilitates the absorption of the stress and vibrations transmitted during the transfer and work phases, even on uneven ground.

SAFETY
Not just feelings.

Record-breaking safety:
The Merlo integrated safety system controls the operating parameters in real time, allowing the operator to work in peace.

Certified cabs / Certified protection:
The Merlo cab is FOPS - Level II - and ROPS certified, to guarantee a high level of safety for the operator.

Exclusive safety:
The exclusive new generation Merlo Dynamic Load Control (CDC) system automatically detects the type of attachment used, the machine's geometric configuration, the "boom extension and angle" and the handled load.
All information is displayed on the LCD screen, allowing the operator to use the telescopic handler simply and safely.

EFFICIENCY
Simpler and smarter

Simple and precise operations:
The entire range is equipped with hydrostatic transmission, which makes the work phases simpler and more precise. Moreover, the dry disc brakes limit the absorption of energy, thereby reducing the machine’s fuel consumption.

Customised mapping:
The exclusive Eco Power Drive EPD technology automatically controls and adjusts the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of up to 18%. The TOP version Eco Power Drive can be used in the following modes: "Heavy Load", "Eco" and "Speed Control" that allow the performance to be adapted to the various operational requirements. It also includes the engine speed management function from the joystick.
