Metal Cutting Band Saw - Swivel Vice- With Roller Conveyor

Metal Cutting Band Saw - Swivel Vice - BS-912
Mitre Cuts Up To 45º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control
305 x 178mm (W x H) Rectangle Capacity
Overview
Manufactured in Taiwan

The BS-912 is a larger 240 volt band saw suitable for the medium fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system and greatly increased cutting capacity.

The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.
Features
305 x 178mm (W x H) rectangular capacity
Adjustable hydraulic feed cutting rate for multiple applications
Mitre cuts to 45º using calibrated vice
Built-in coolant system to both blade guides for maximum cutting efficiency
Limit switch stops machine when cut is complete

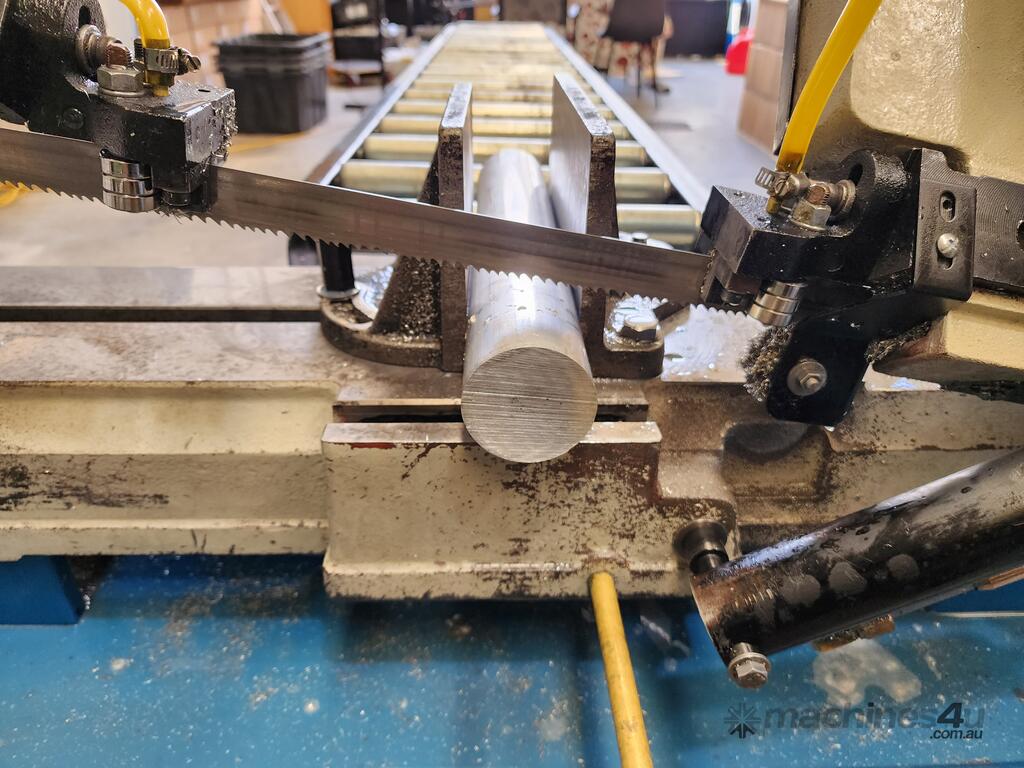

Quick action material clamping lever
Adjustable blade roller guides provides accurate cutting
Adjustable 4-speed pulley drive system enabling -95mpm cutting speeds
Adjustable length stop for repetition cutting
Wire wheel brush to clean swarf from blade
Portable - on wheels for ease of use
Automatic electric cut-out switch
Heavy-duty 750W 240V fully enclosed fan-cooled motor

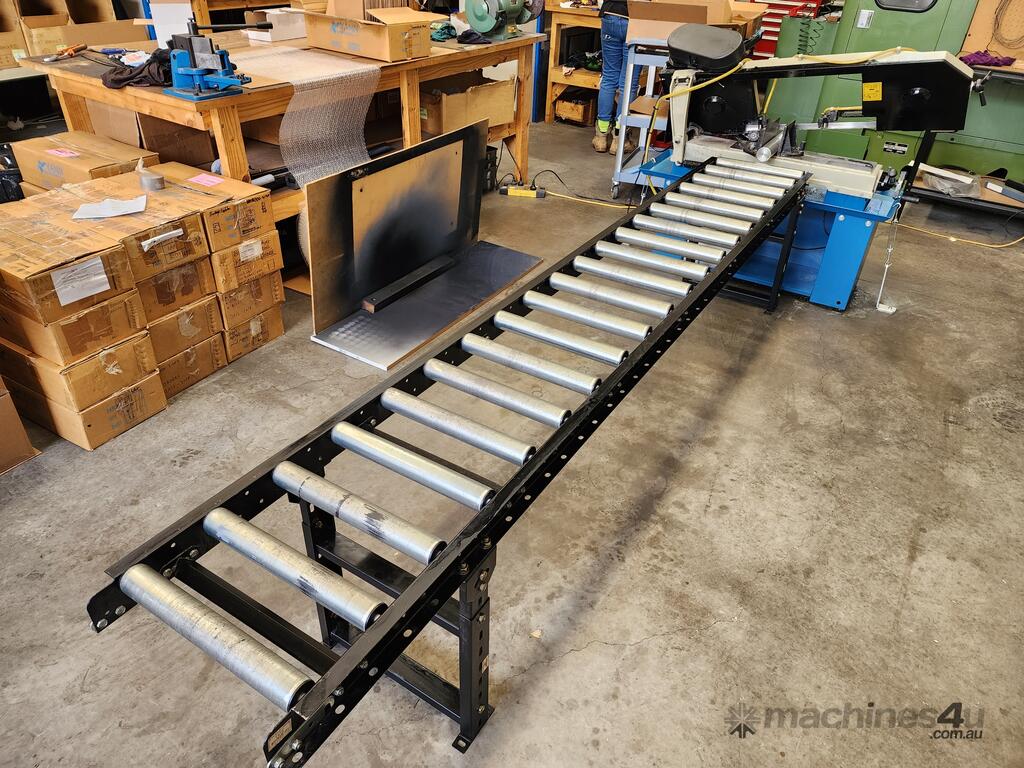

Roller Conveyor - RC-290
290 x 3000mm
Ø50mm Rollers
Features
Roller capacity of 60kg each
20 x Zinc plated steel rollers at 150mm pitch
Rollers are Ø50mm with commercial bearings
Frames are powder coated
Conveyor is pre-assembled with 7 cross-members
Frames are pre-drilled at 75mm pitch to accept "Optional 19 rollers" totalling to 39 rollers

Please Note:
Roller load capacity is calculated on even weight distribution over entire roller
Total load capacity is calculated on even weight distribution over entire roller conveyor system
Includes
20 steel rollers 150mm pitch

Roller Conveyor Stand - RS-290H
Suits RC-290 Conveyor
715-1050mm Adjustable Height
Features
Adjustable height
