Metal Cutting Drop Saw CHS-355, 240V TCT Cold Cut Saw

Cold Cut Saw CHS-355

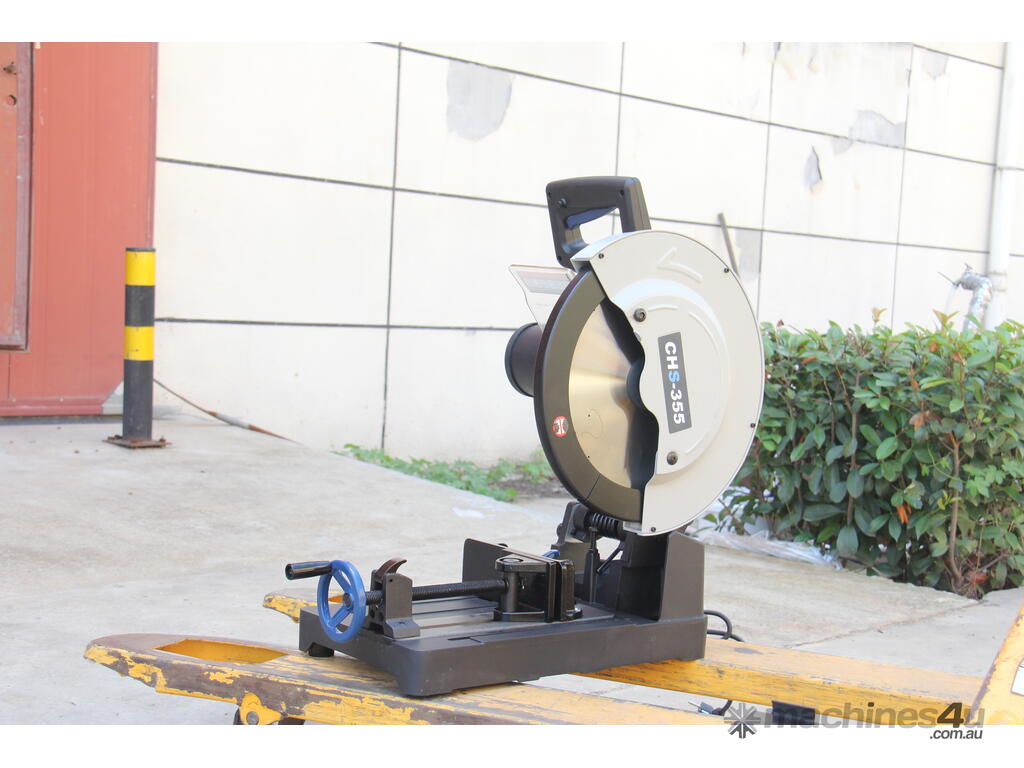

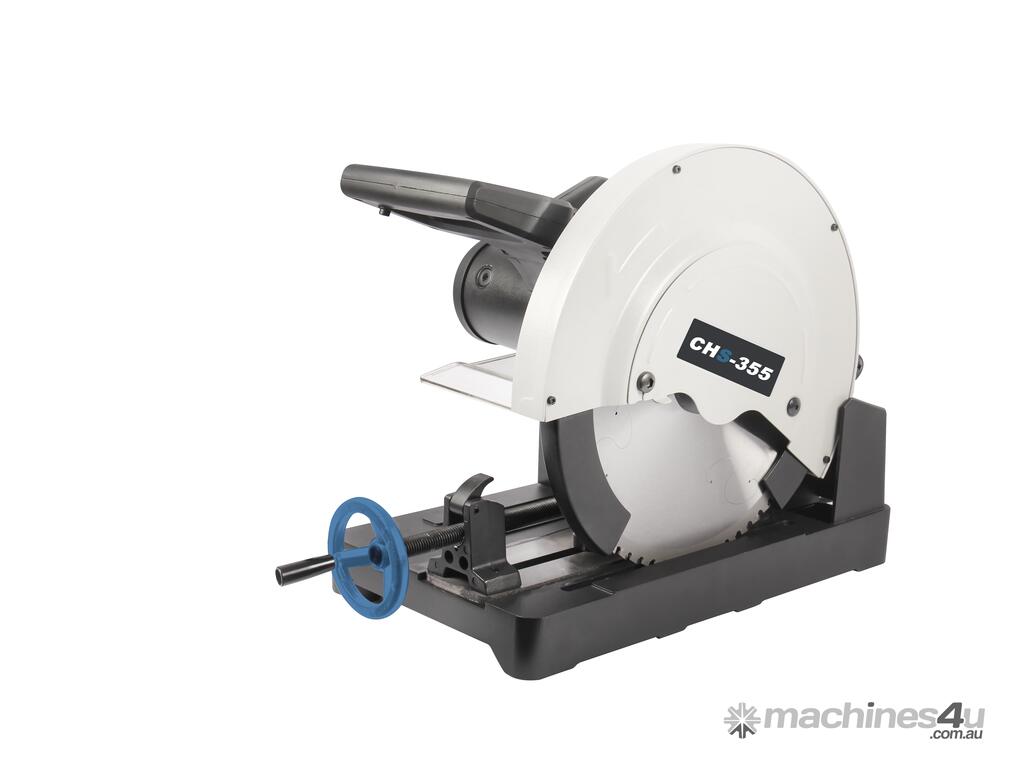

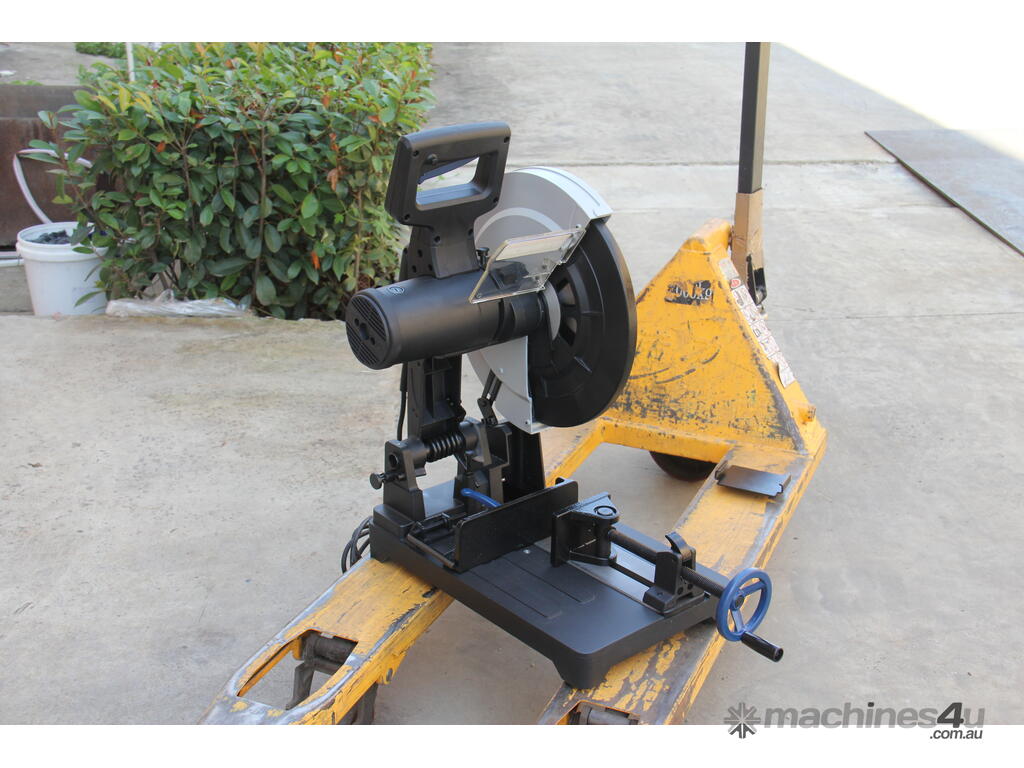

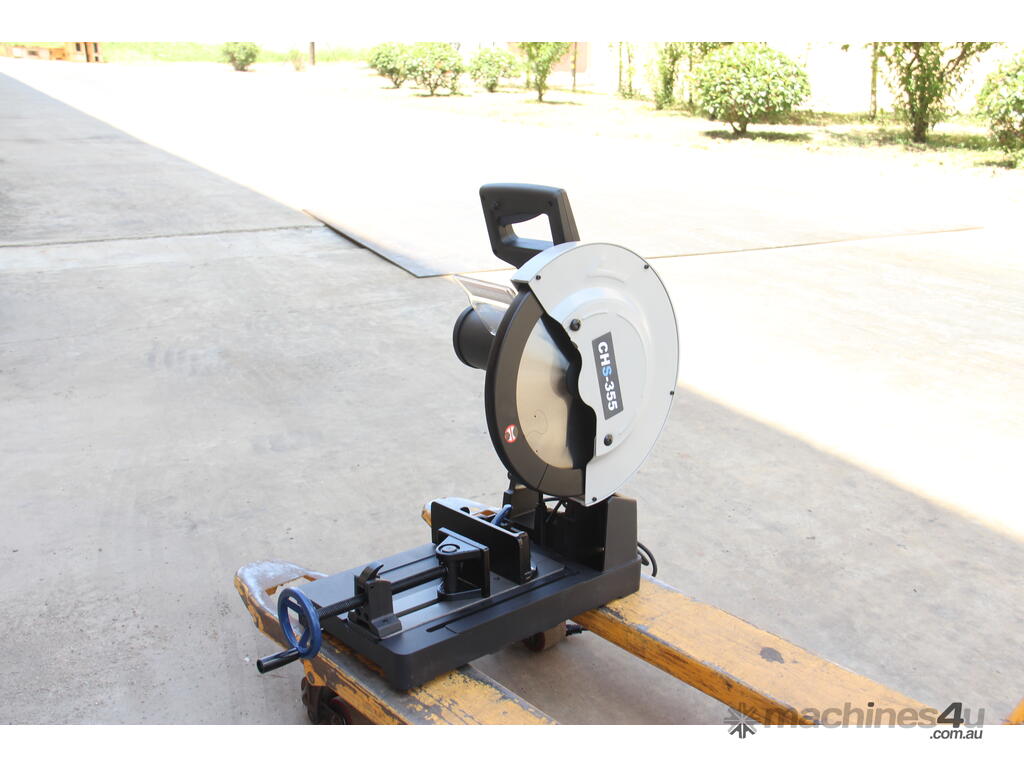

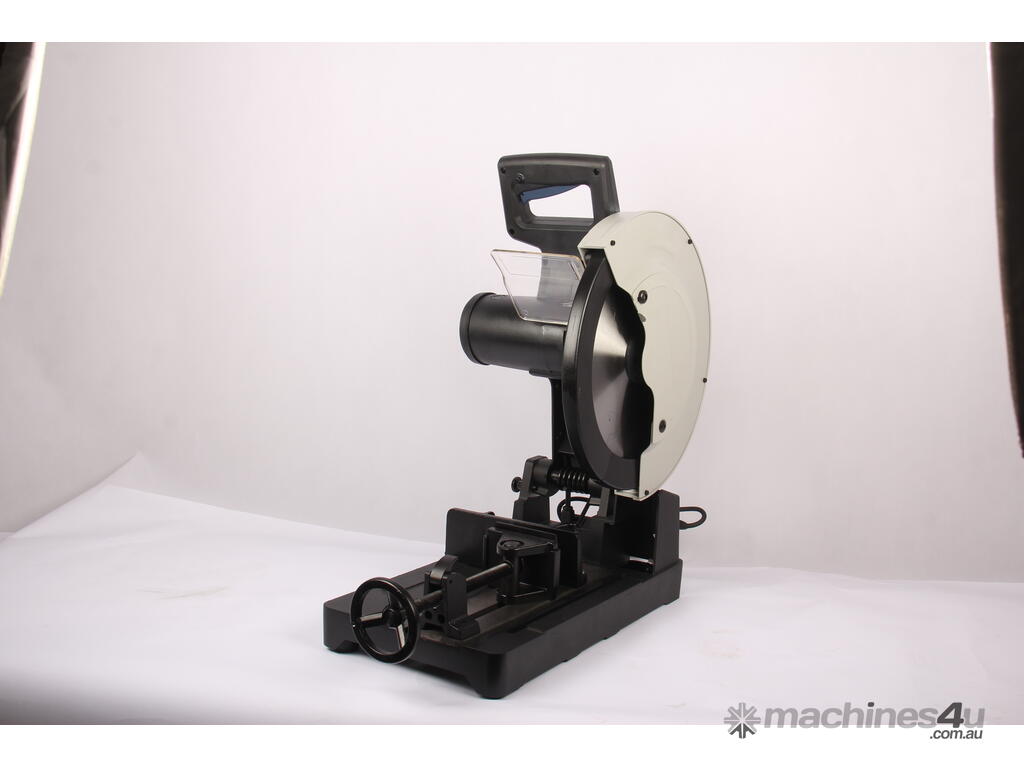

The KANG 350mm Metal Cutting Drop Saw CHS-355 is a robust, professional-grade power tool designed primarily for precise and efficient cutting of mild steel and aluminum materials. Operating on a standard 240V single-phase power supply (ideal for Australian households and workshops), it features a powerful 3hp motor that delivers a consistent blade speed of 1450 RPM. The saw comes equipped with a 350mm Tungsten Carbide Tipped (TCT) blade specifically for mild steel, enabling cool, spark-minimized cuts that require minimal post-cut finishing—no grinding or extended cooldown periods. This makes it a time-saving alternative to traditional abrasive saws.

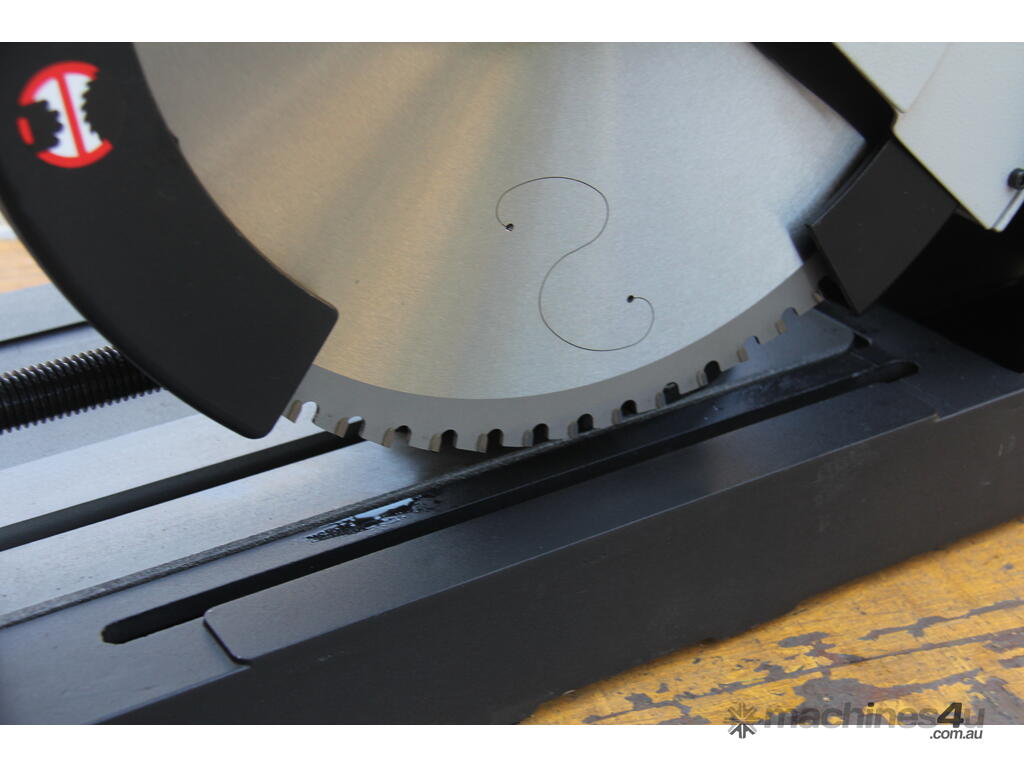

Premium Cold-Cut Technology. Supplied with a high-quality TCT mild steel blade that delivers "burr-free" results. This saves significant time and money by providing finished cuts that require little to no extra grinding.

Cool-to-Touch Results. The TCT blades provide spark-free, cool cuts that eliminate grinding or deburring, saving time and reducing material waste. Your workpieces are ready for immediate handling or welding, increasing productivity in the workshop.

Heavy-Duty 3HP Motor Cold Cut Saw. The powerful 240V motor is designed for consistent performance under load, effortlessly cutting through solid rounds up to 25mm and square up to 120 x 120mm.

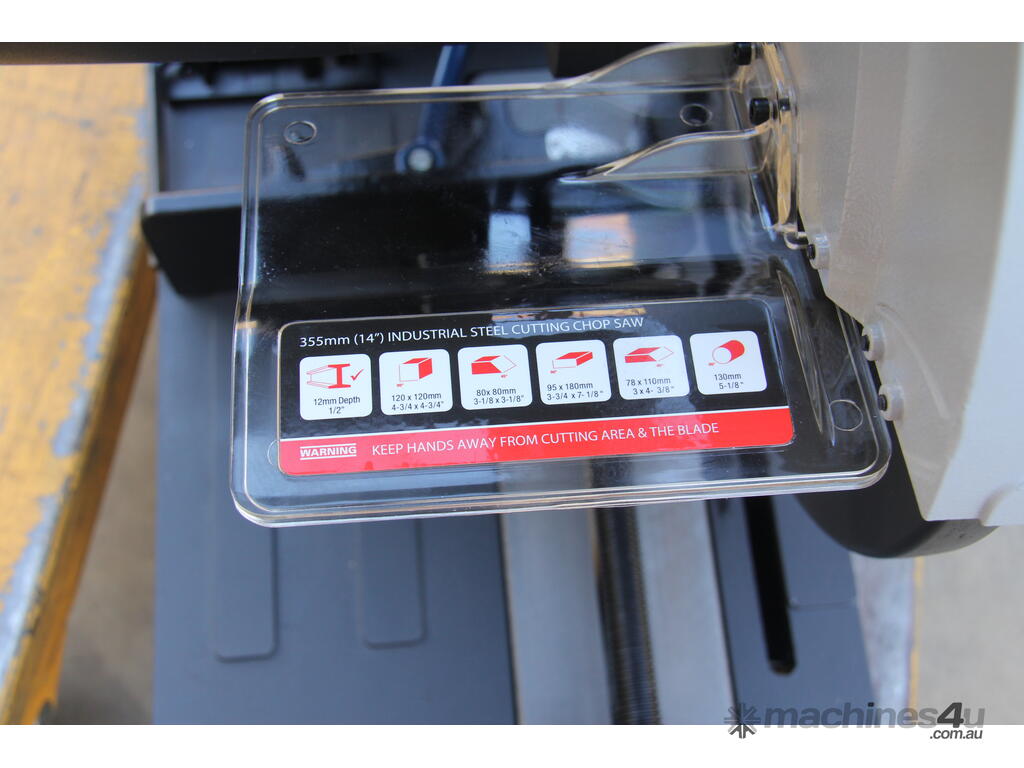

Enhanced Safety Cutting. Features a fully enclosed retractable safety guard and a stable, heavy-duty base to ensure maximum operator protection during heavy use.

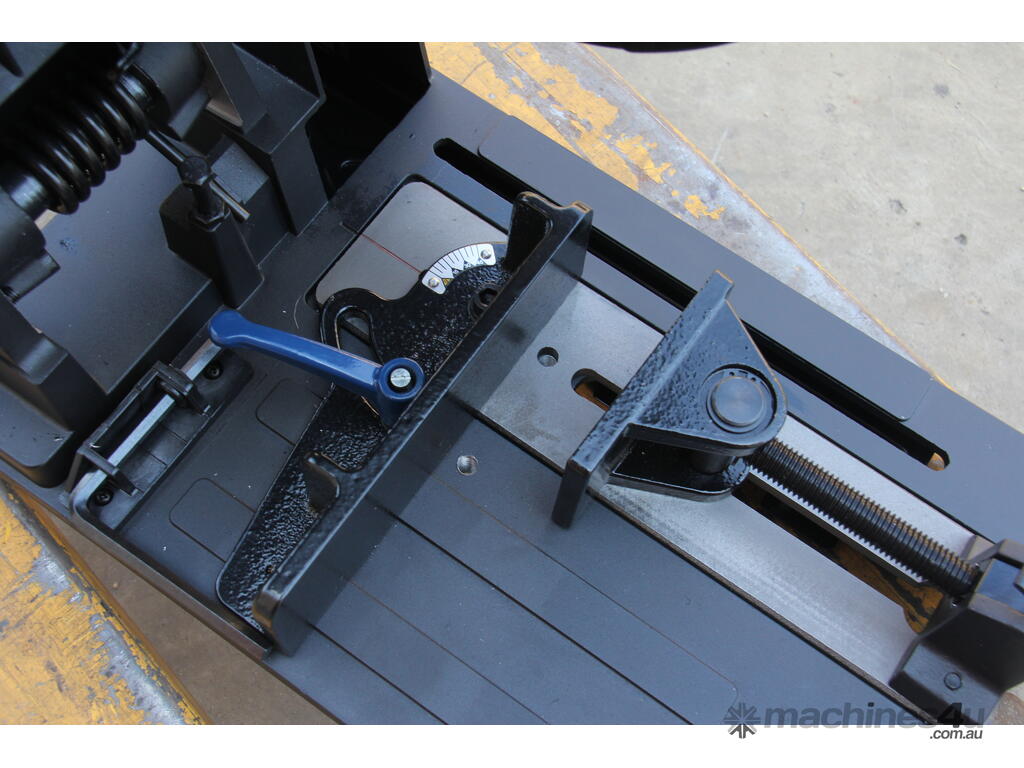

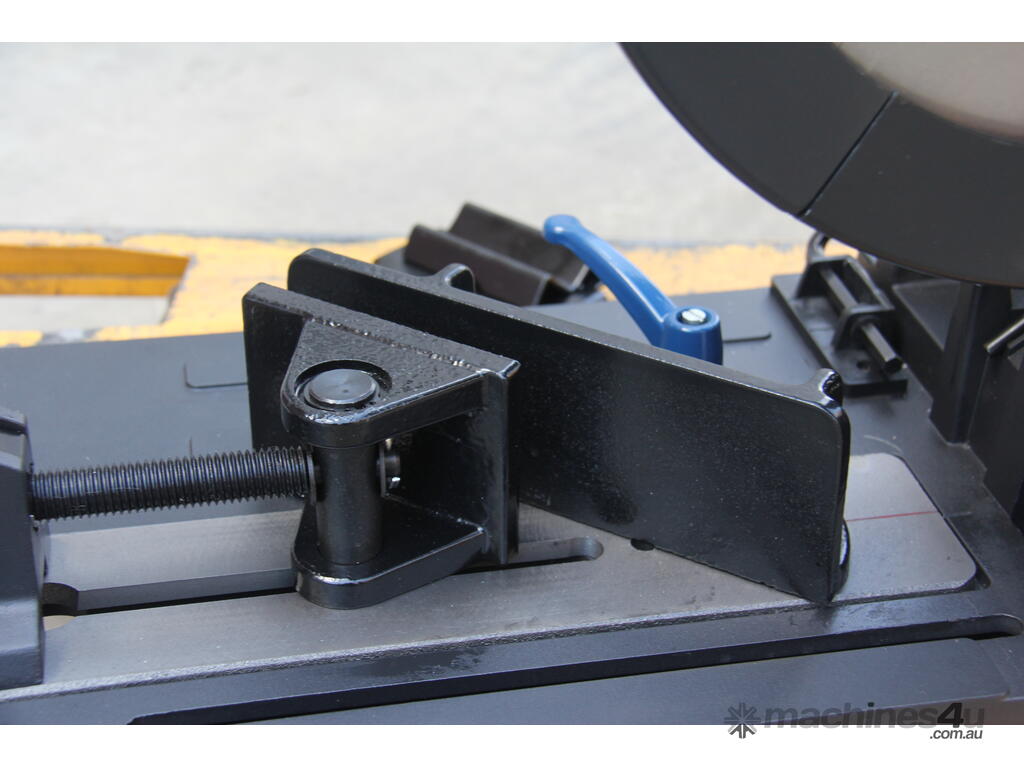

Precision Mitre Cutting. The integrated vice allows for quick adjustments from 90° to 45°, providing the flexibility needed for frames, gates, and complex fabrication.

Specialized Pipe Vice Included. Includes a dedicated pipe vice attachment, ensuring round materials are held securely for safer and more accurate cuts.

Features

Runs on 240V motor, single phase, both industrial and home use

Supplied with TCT steel blade (Installed on the machine)

Low-burr sawing of profiles and pipes in various kinds of materials without coolant

Fully enclosed retractable guard

 Light-duty chop saw, easy to transport

Quick adjustment vice for mitre cuts, 0-45 degrees

Quick saw blade change

Standard Included:

Pipe Attachment

TCT Saw Blade, (355mm OD, 66 Teeth)

Specifications
SKU 162411
Model CHS-355
Max. blade size 355 mm
Max. mild steel thickness 12.7 mm
Max. stainless steel plate size 5.2 mm
Cut square tube 120mm 90°,   80mm 45°
Cut rectangular tube 95x180mm 90°,   78x110mm 45°
Cut round tube OD130mm 90°,   OD105mm 45°
Cut wood 89x184 mm 90°,   64x89 mm 45°
Motor 2.2 kW
Speed 1450 rpm
Packing size 57x39x46 cm
N.W./G.W. 25/29 kg
