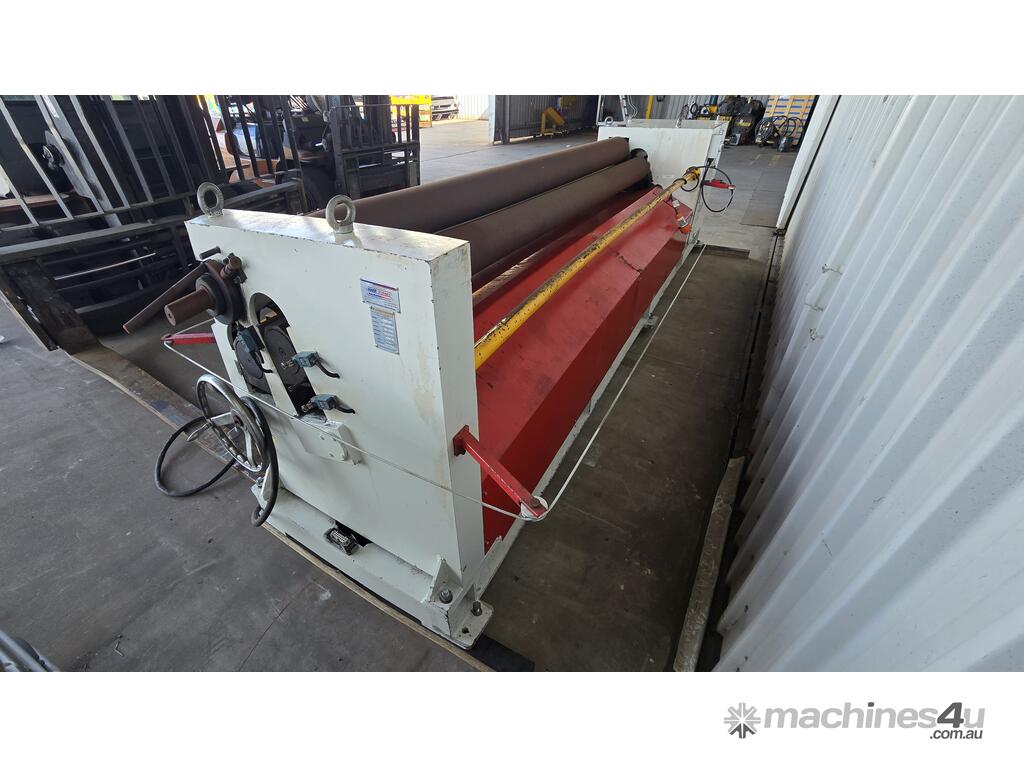

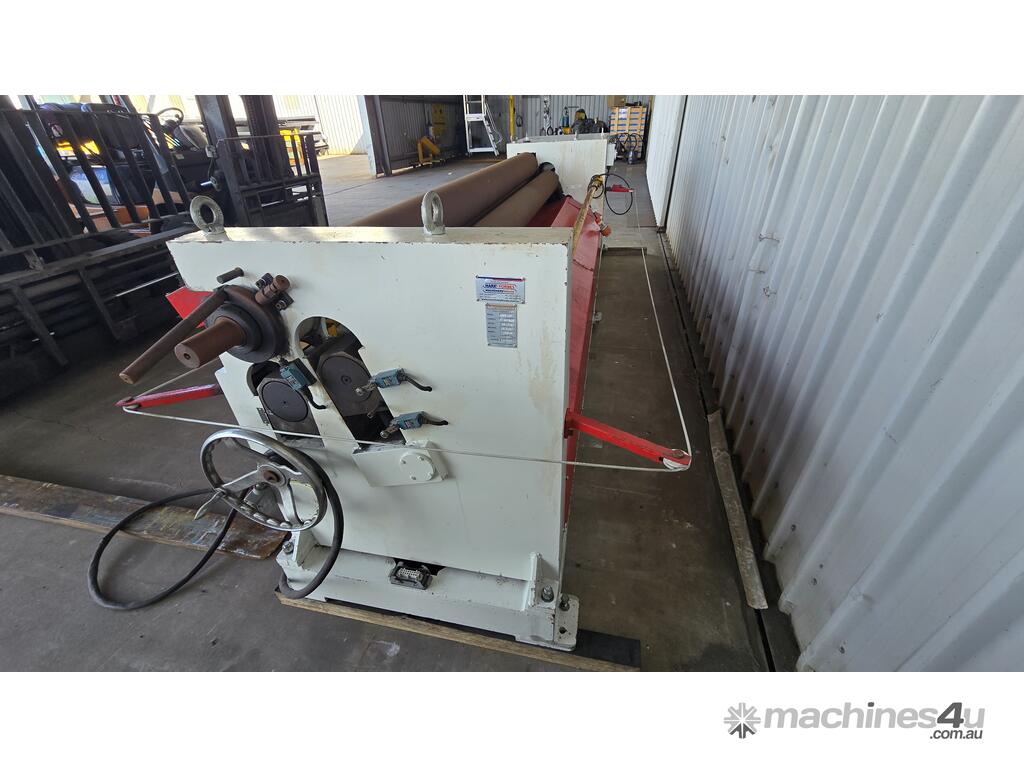

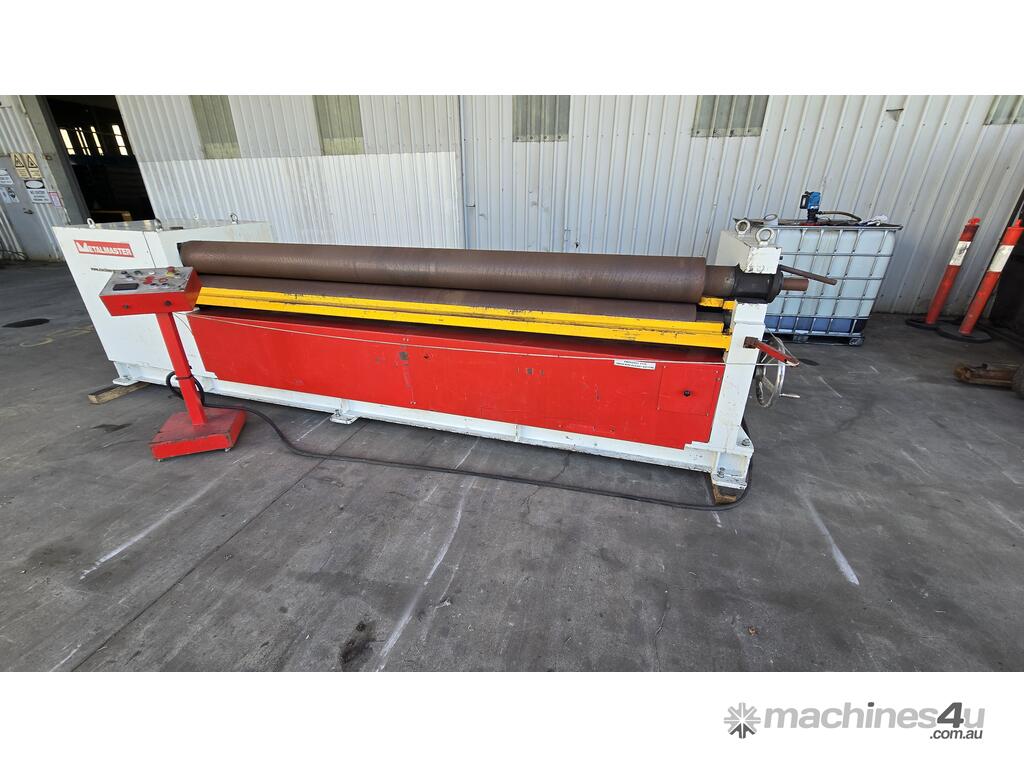

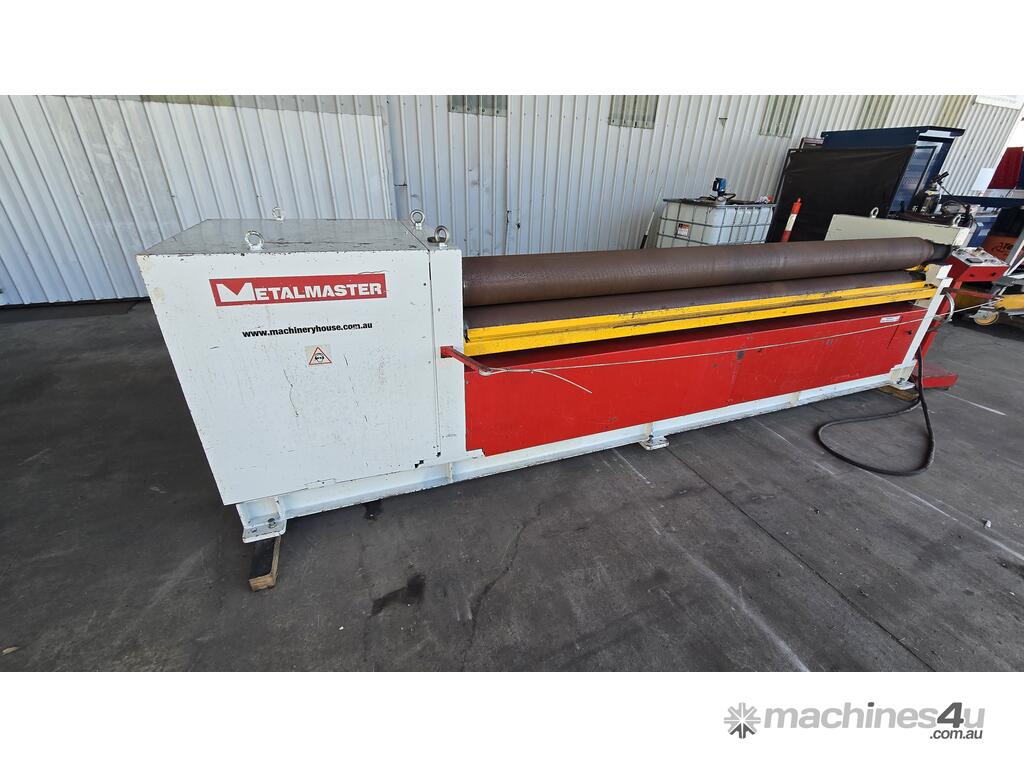

Invest in your own plate rolling capacity at an affordable price with these 2018 Metalmaster Plate rolls. We used these rolls in our in-house manufacturing workshop but no longer need them as our product mix has changed. Rolls are in good working order.
FEATURES
- 3100 x 6mm Mild Steel Capacity.
- Initial Pinch Design.
- Two rolls powered by gearbox and gear system.
- Swing out end enables complete cylinder to be removed.
- Digital readout display on rear curving roll position.
- Motorised up & down rear curving roll.
- Heavy duty steel welded mainframes.
- Safety wire interlock system with emergency shut-off.

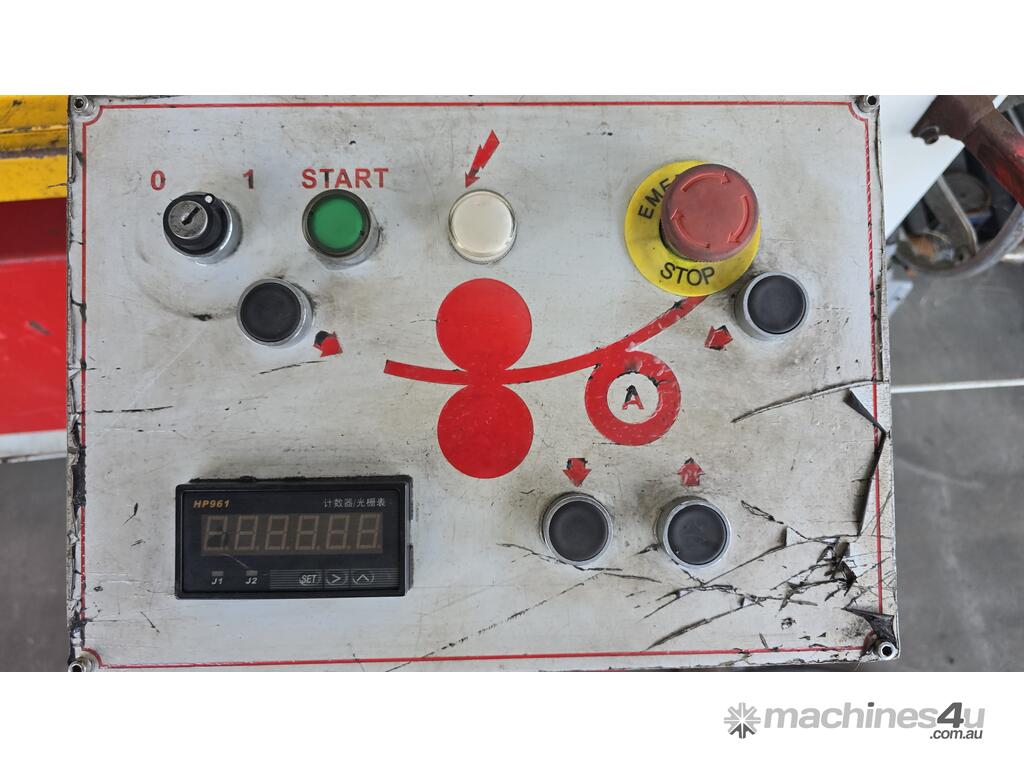

- Mobile control panel.
- Mild steel capacity is rated on hot rolled material with 250MPA.
SPECIFICATIONS
Curving System Type: Initial Pinch
Curving Material width: 3100mm
Curving Plate Thickness - Mild Steelmm
Minimum Rolling Diameter 400mm
Roll Diameter 210mm
Motor Power 5.5kw
Dimensions (LxWxH) 4720mm x 900mm x 1200mm
Nett Weight 4050kg
