Metal Slitting line and Guillotine

Schlebach Slasher 1250

*productive slitting and cross-cutting system for wide strips 1,250 mm
*cross cutting with guilotine shear for high productivity
*run-in width steplessly adjustable from 200-1,250 mm
*material thickness up to 2 mm (depending on material and number of cuts)

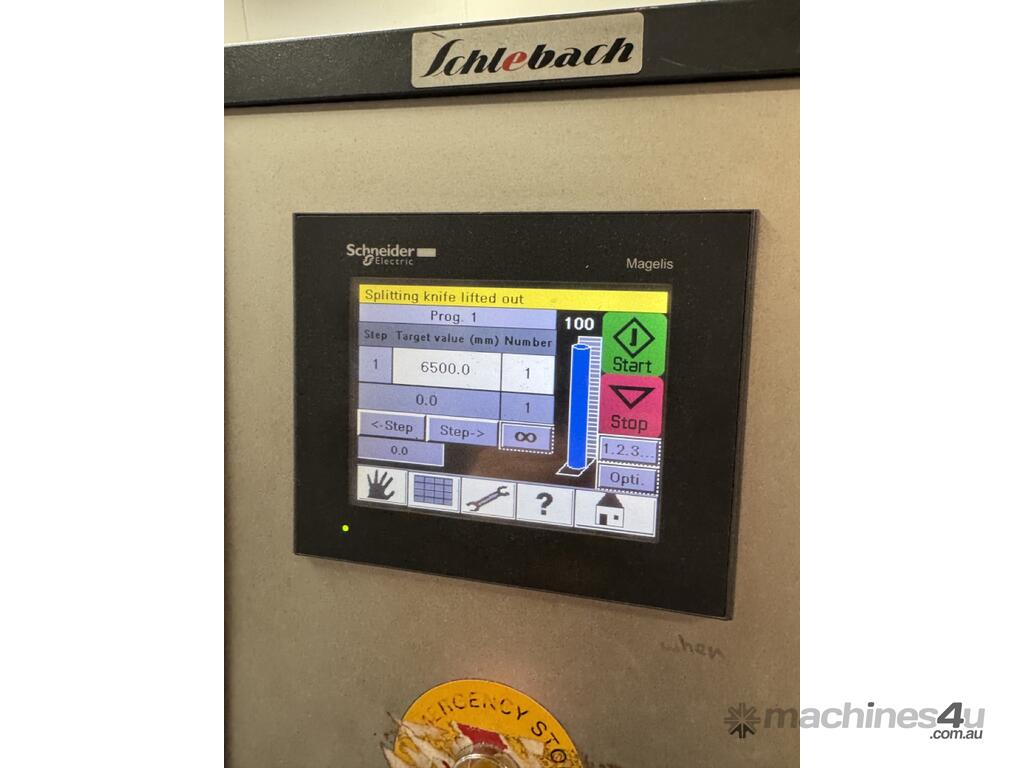

*user-friendly PLC control with 7“ touch panel
*feed rate 22 m/min (adjustable via frequency converter)
*strip in-feed, easy on materials, with specially coated feed rolls
*rapid clamping mechanism for damage-free clamping of the blades

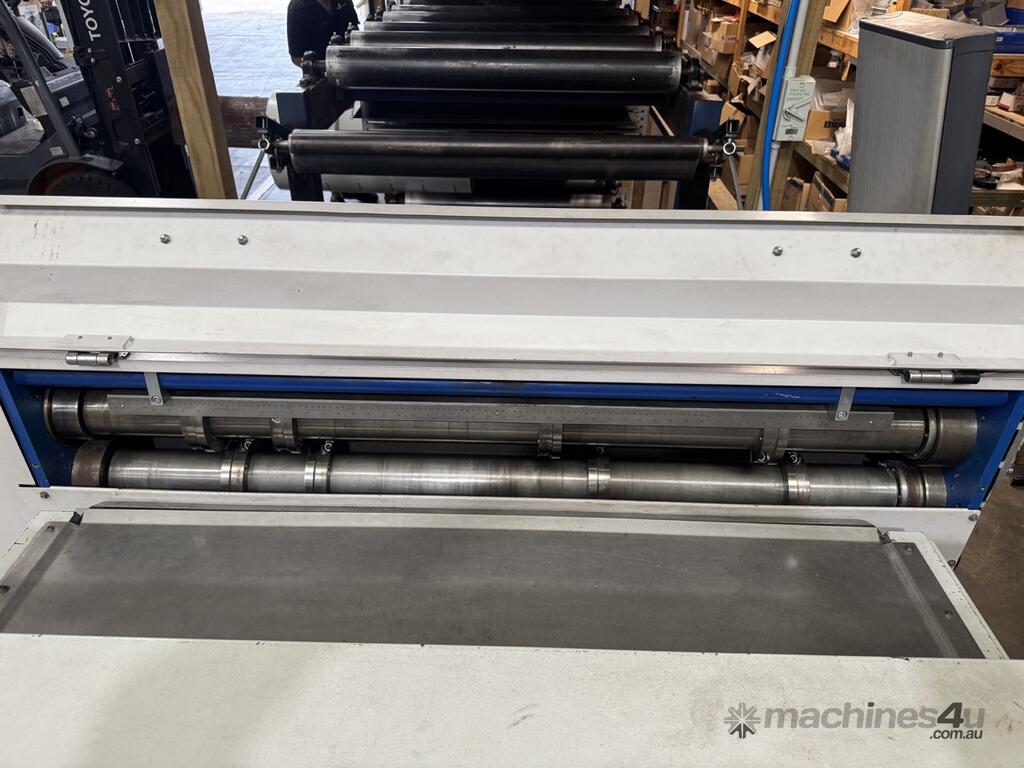

*blade shafts with 4 pairs of knives (deployable and regrindable from both sides)
*adjustable support for lower blade shaft
*blade position control using scale, with millimetre precision
*blade shaft with 100 mm diameter
optional enhancement up to 8 pairs of knives at reduced cutting capacity
*raising of the upper shaft for waste optimization and for cross-cutting operating mode
*maintenance-friendly, easier and more efficient blade changing
*uniform base frame for cross-cutting system and guillotine shear
*forklift pockets for safe transport
