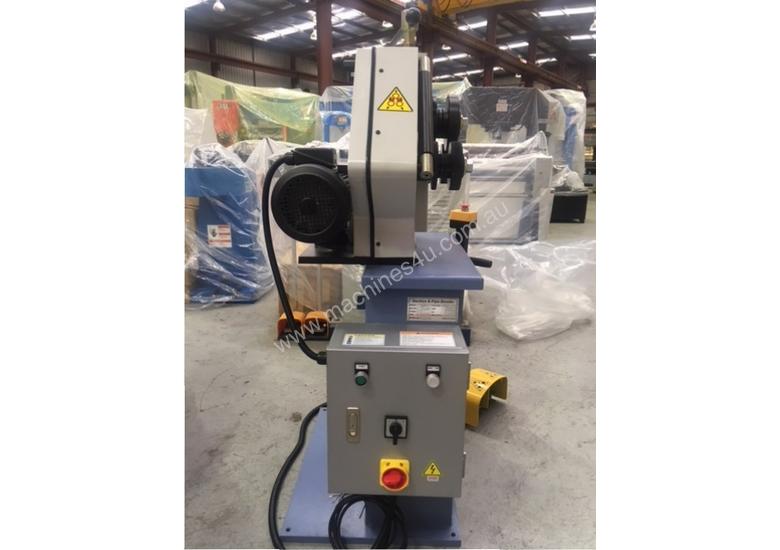

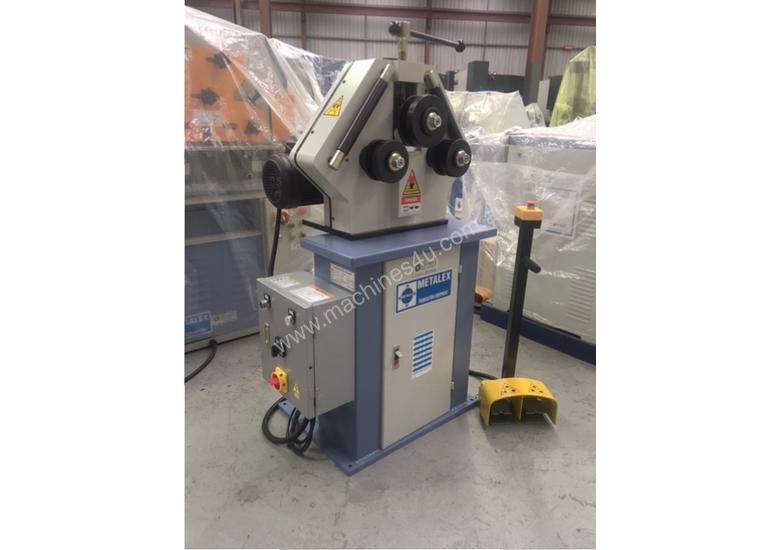

Metalex Model SK-30 Powered Section Rolls.
Specification
Max. profile-sections and minimum bending diameter.
Flat Bar 80 x 15 Ø 700 mm
Flat Bar On Edge 50 x 10 Ø 600 mm
Square 30 x 30 Ø 900 mm
Round Ø 30 Ø 900 mm
Tube Ø 60 x 1.5 Ø 1000 mm
Pipe Ø 1 ½ Ø 600 mm
Angle-Flange in 40 x 5 Ø 600 mm
Angle-Flange out 35 x 5 Ø 600 mm
Tee-Flange in 50 x 6 Ø 600 mm
Tee- Flange out 50 x 6 Ø 600 mm
Top Roll Diameter 148 mm
Bottom Rolls Diameter 118 mm
Shafts Diameter 30 mm
Motor 0.75 kw
Weight 266 kg
Standard Equipment
Two driving rolls.
Rotation by foot control.
One set of standard rolls.
