Metalmaster Hydraulic Guiiotine and Panbrake Package

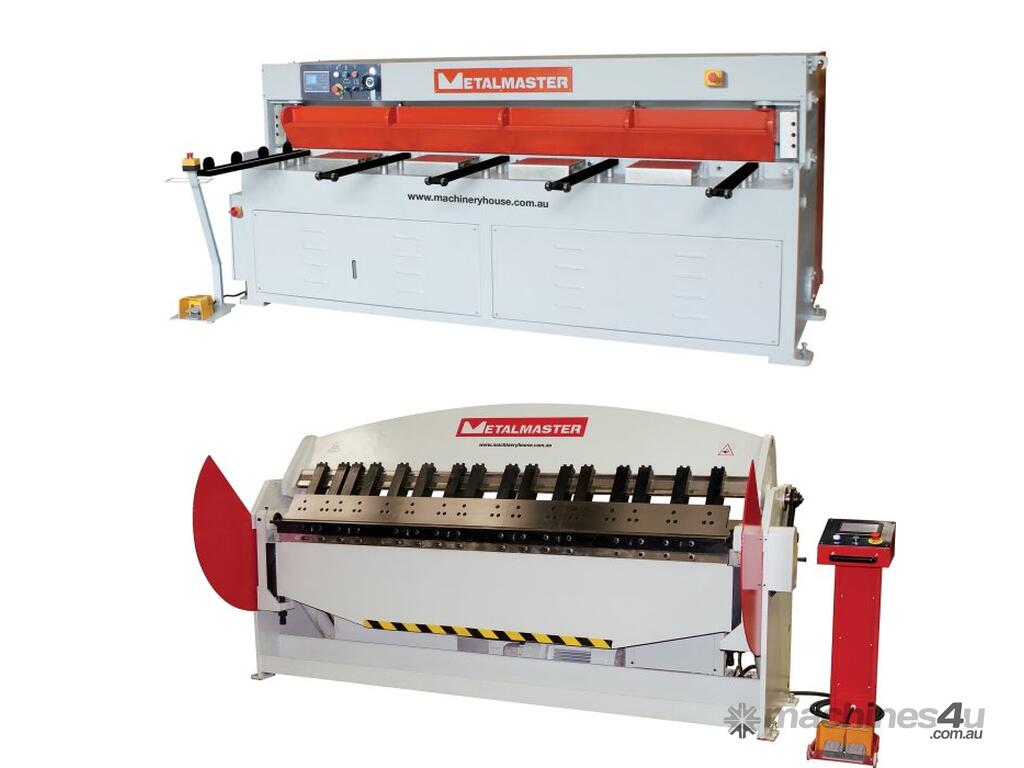

HG-840B & PB-830A - Hydraulic NC Guillotine & NC Panbrake Package Deal
Guillotine - 2500 x 4mm, Panbrake 2500 x 4mm
Guillotine - Ezy-Set NC-89 Control & Panbrake - NC Ezytouch Control

Features:
HG-840B GUILLOTINE:
2500mm x 4mm cutting capacity
5.5kW / 7.5hp 415V motor
Ezy-Set NC-89 Go-To digital display controlled backgauge with DRO counter
Quick action blade clearance adjustment for shearing material 1 - 4mm
Hydraulic material clamping for accurate shearing
One shot lubrication pump & reservoir for slideway protection
Roving foot pedal control
Clamp beam design allows clear view to shadow line on material
Blades made from 9CrSi material suitable for cutting stainless steel
Plate support tables with transfer balls for quick & easy material alignment and manoeuvrability
Front sheet supports with ball bearing guides preventing material damage when setting up
Safety three photo electric light beams on rear guarding
Safety reset rear guarding button mounted to back of electrical box
Heavy duty under driven machine construction
Equipped with shadow line lighting-alignment device
Mild steel capacity is rated on hot rolled material with 250MPA

PB-830A PANBRAKE:
2500mm x 4mm bending capacity
Ezy-Touch NC Touch Screen Control features 99 programs, each program has up to 20 bends & each bend has material compensation. It also incorporates a quick bend function for jobbing work
Auto cycle: after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position
Ezy-Touch NC programmable opening height & bending dwell timer ensures consistent bending angle
Quick action rapid head adjustment to optimise bend radius on 1-4mm material thickness
Heavy duty steel fabricated construction
Roving foot pedal incorporates control panel for maximum flexibility
High quality components ensure reliable performance for years of continuous operation
Extended fingers allows bending of pans or boxes to a depth of 205mm
Includes an adjustable rear manual backgauge, also adjustable for tapered material
Mild steel capacity is rated on hot rolled material with 250MPA

Package buy - as new condition - minimum use
Purchased new from Hare and Forbes 2011- new price $37+
Surplus to our needs - Located in Orange NSW
Inspections welcome
Delivery can be arrange Australia wide
