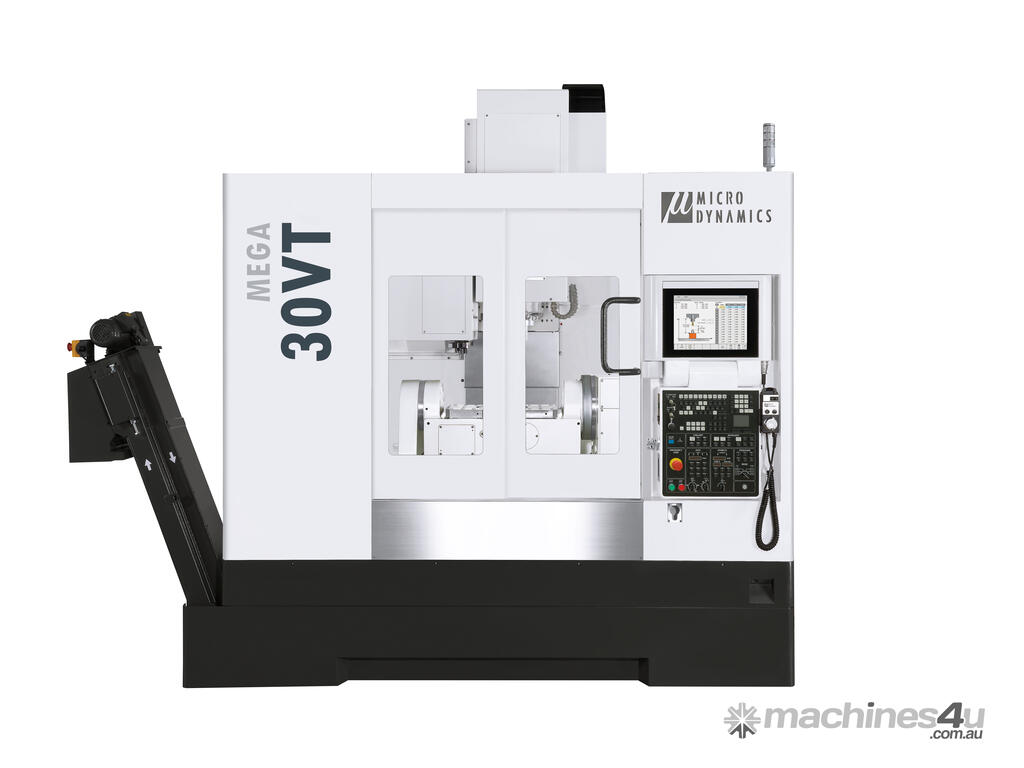

MEGA 30VT

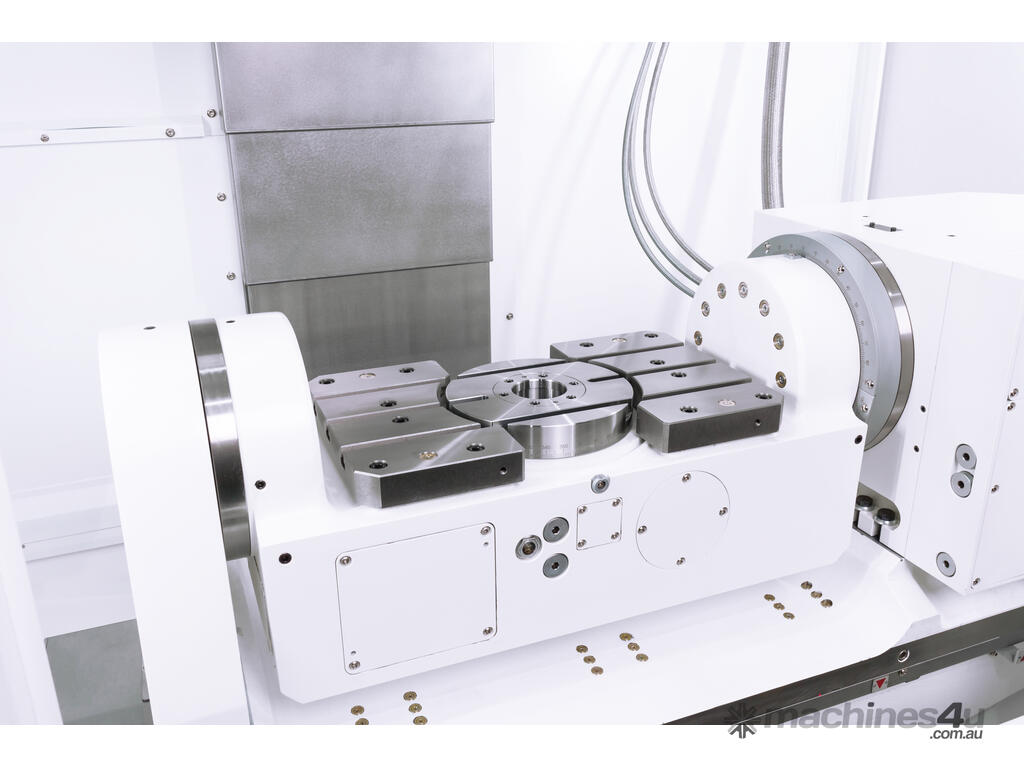

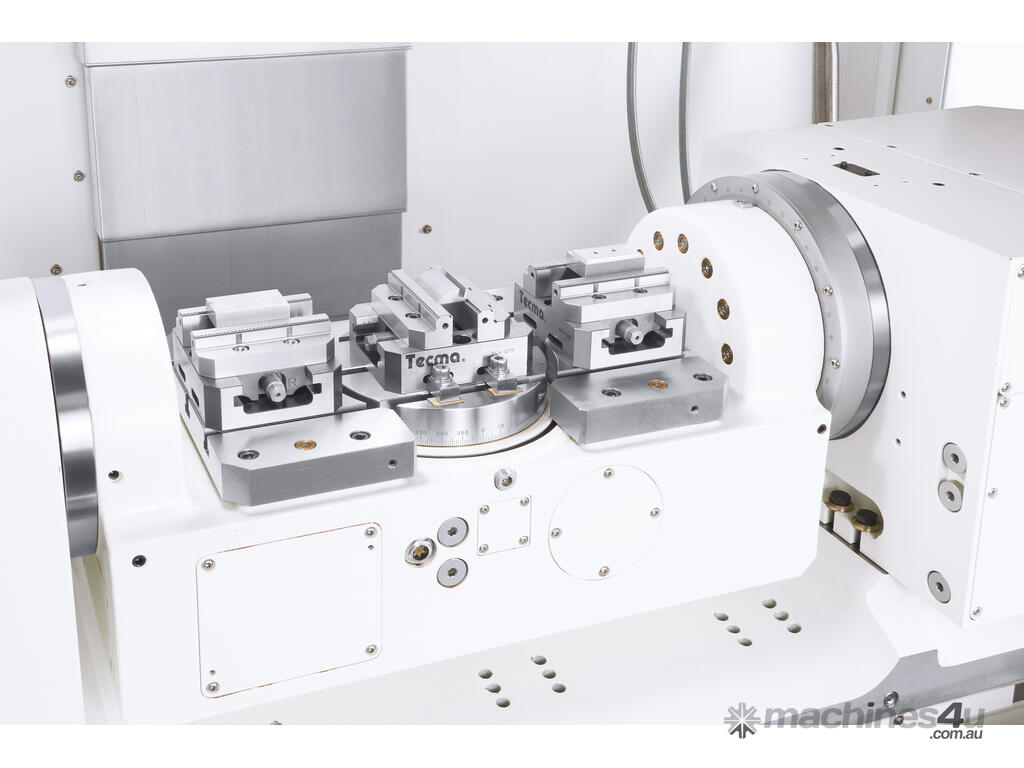

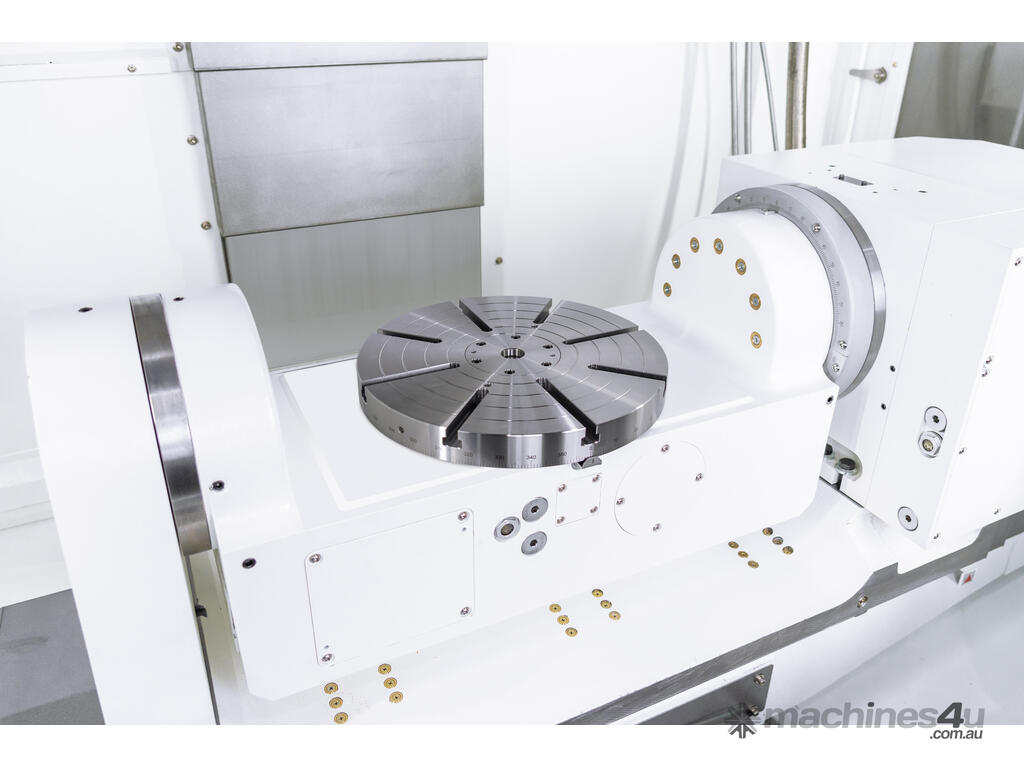

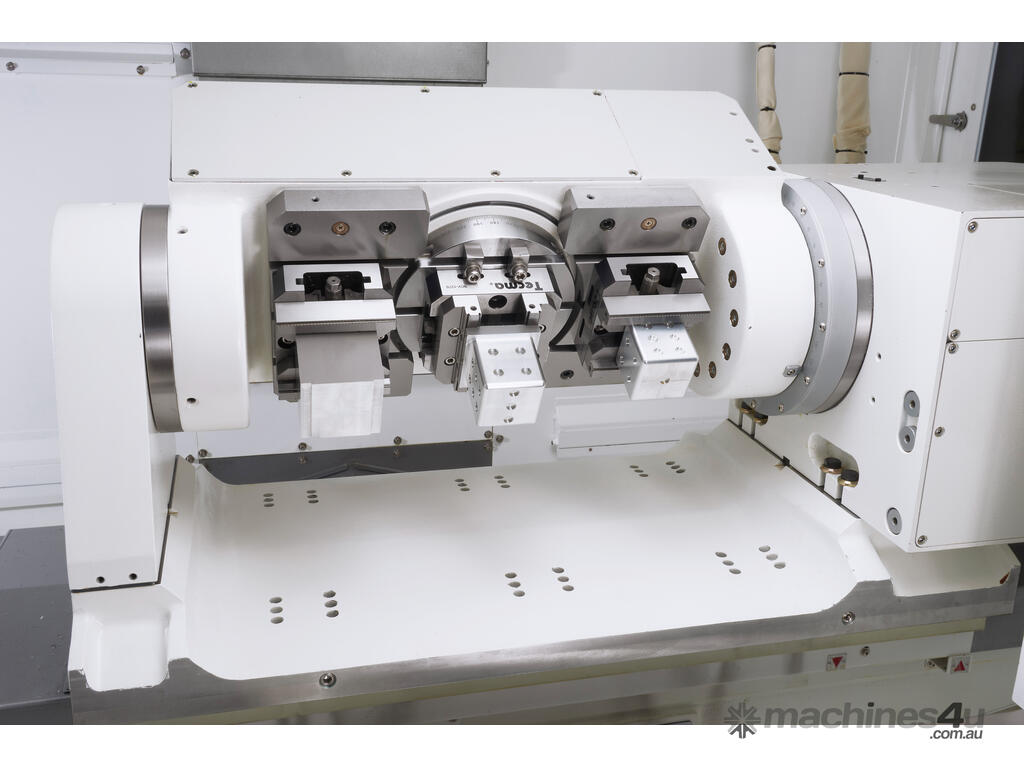

The MEGA 30VT is Micro Dynamics’s five-axis(*) trunnion table machine equipped with hydraulic brakes. The design allows the user to load three vises or use it as a 500 x 300 mm (19.7” x 11.8”) work table with a 220 mm (8.7”) diameter face plate.
For automation, the through hole of the rotary table allows for the plumbing of hydraulics, pneumatics, or other devices. A true five-axis simultaneous version is available as an option.
(*) 5-Axis simultaneous version is an optional upgrade.
780 / 510 / 441 mm X / Y / Z Travel
ROLLER GEAR CAM
Mechanism
Ø220(500 × 300 mm) Table Size
BUILT-IN SPINDLE
15K rpm / 31 kW / 141 Nm
150 kg
Max. Table Load

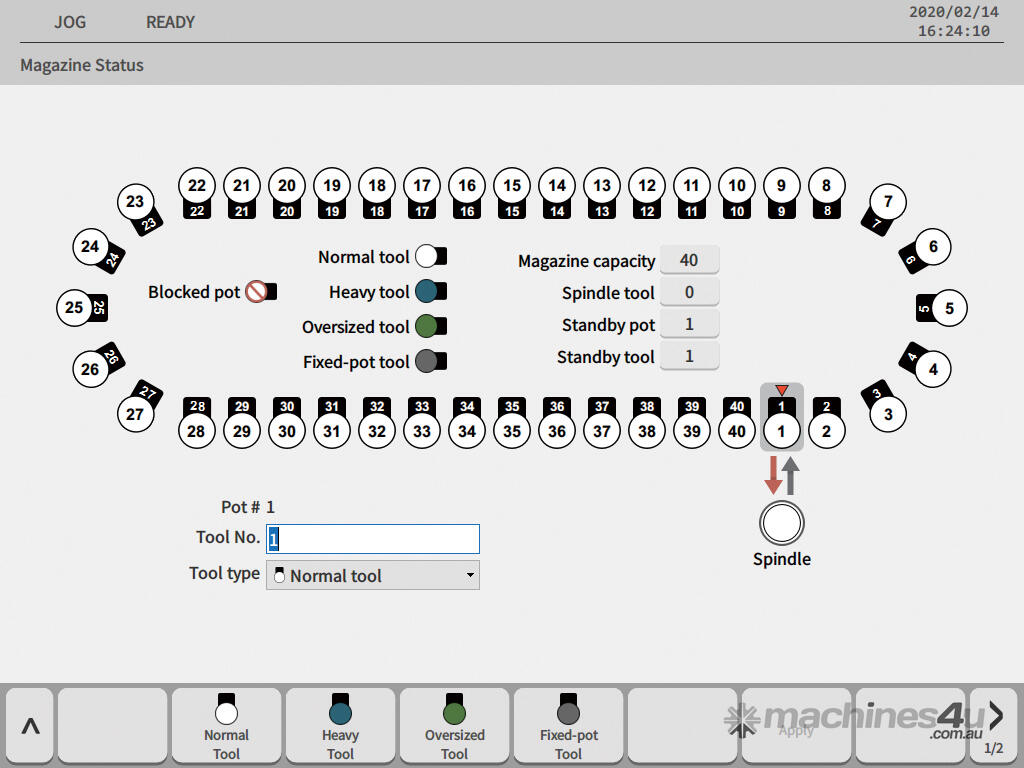

Tool to Tool 1.2 Sec.
High Speed ATC
40° – -120°
Tiltilg Axis Motion Ranges
MINIMAL FOOTPRINT
3,044 × 2,293 mm
