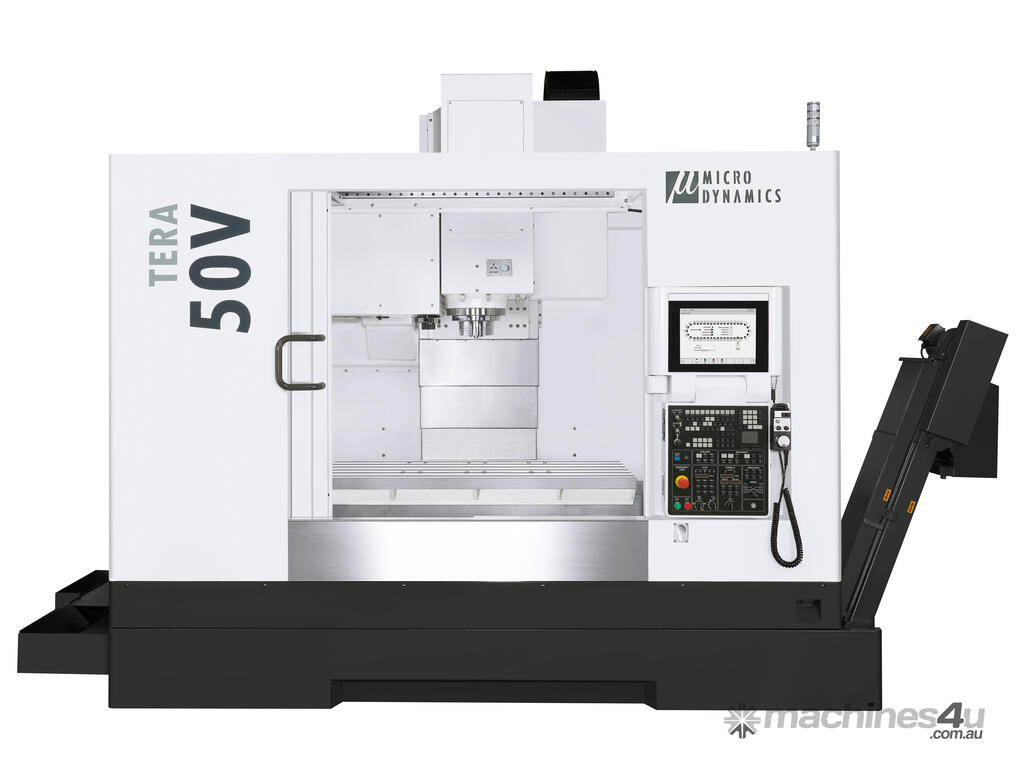

TERA 50V
TERA series is the strongest Vertical Machining Center, providing powerful and precise results for manufacturers of dies and molds, aerospace, automotive, semiconductor, job shops and general machine sectors.
1,270 / 710 / 635 mm X / Y / Z Travel

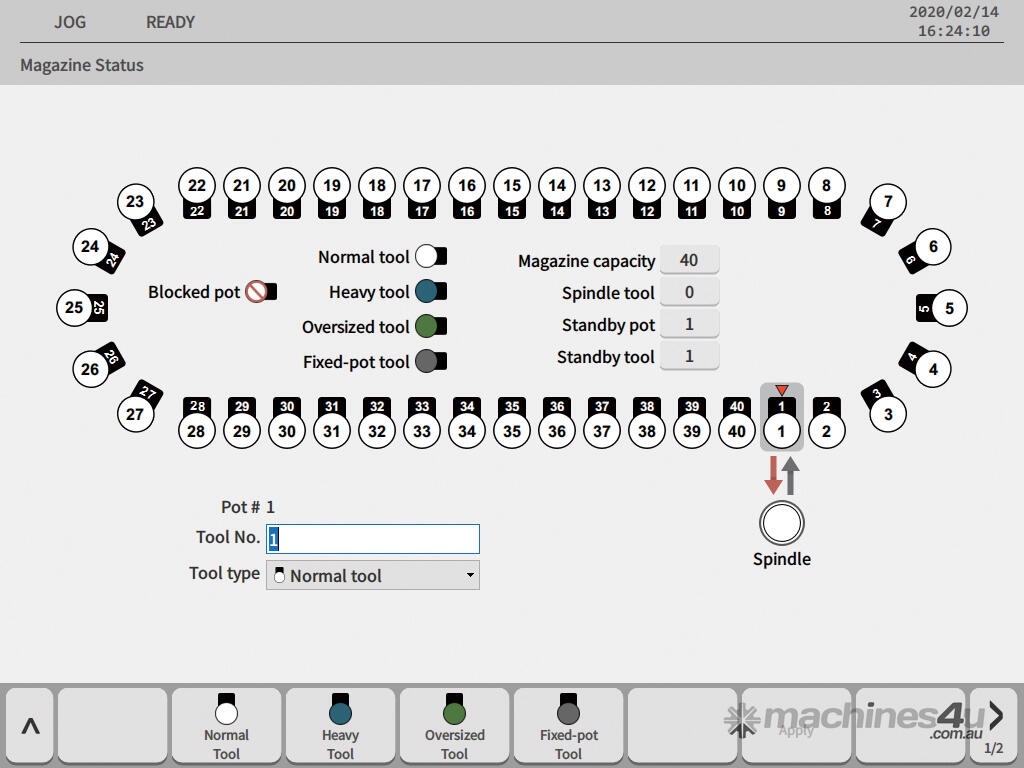

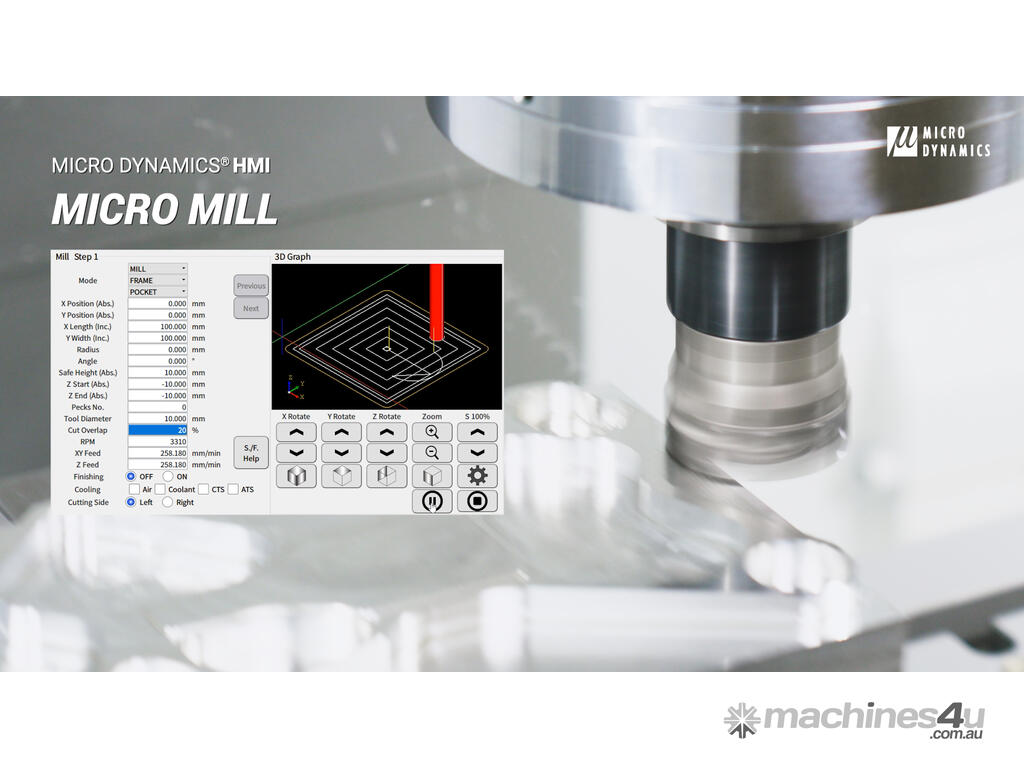

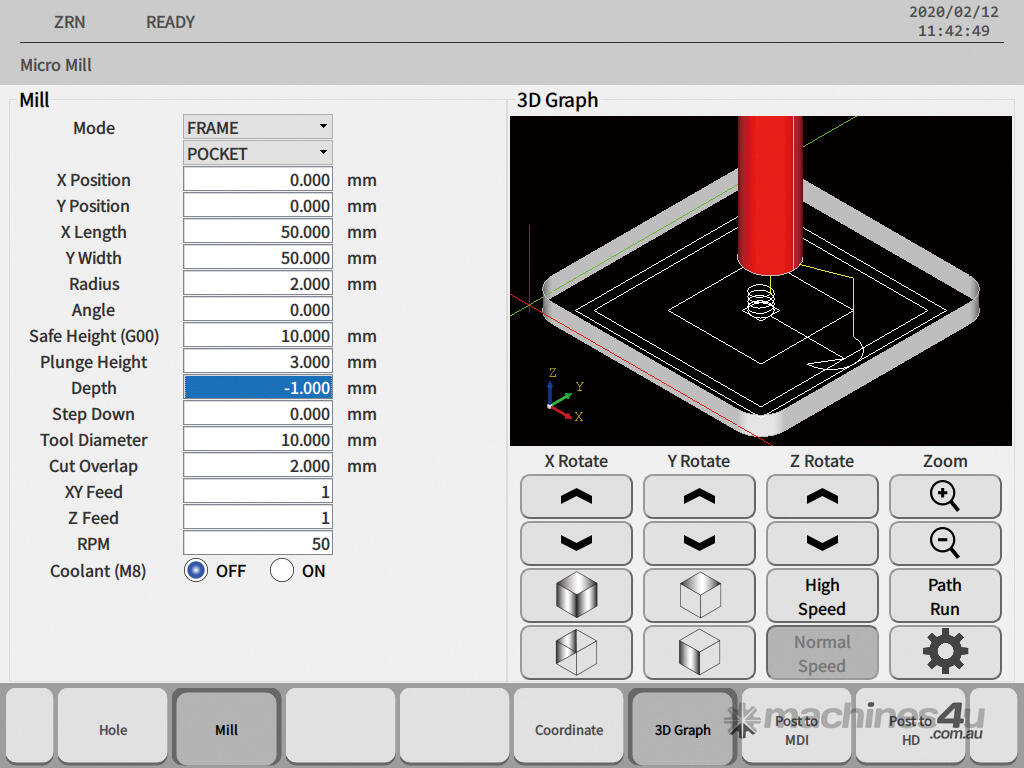

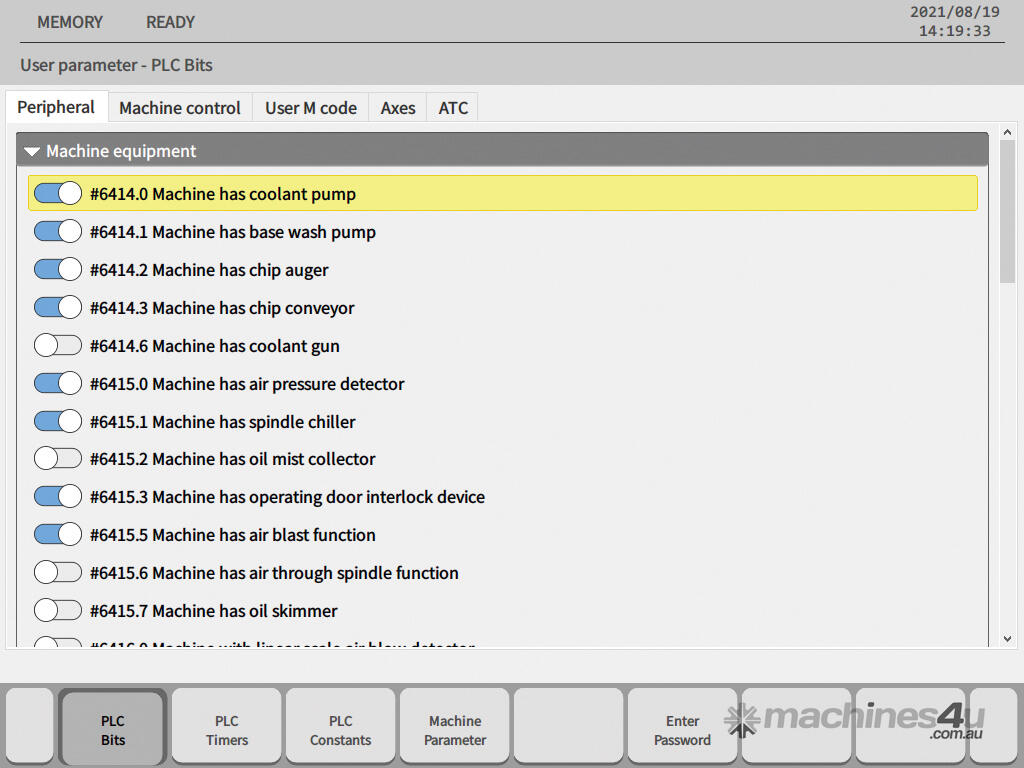

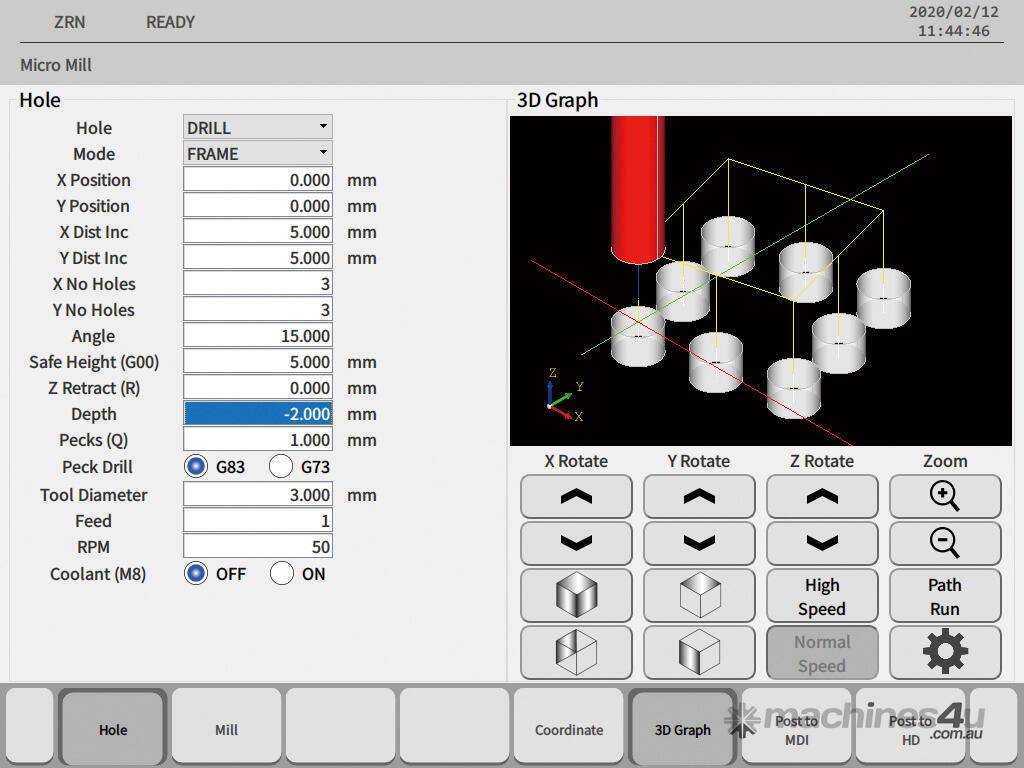

MICRO DYNAMICS HMI

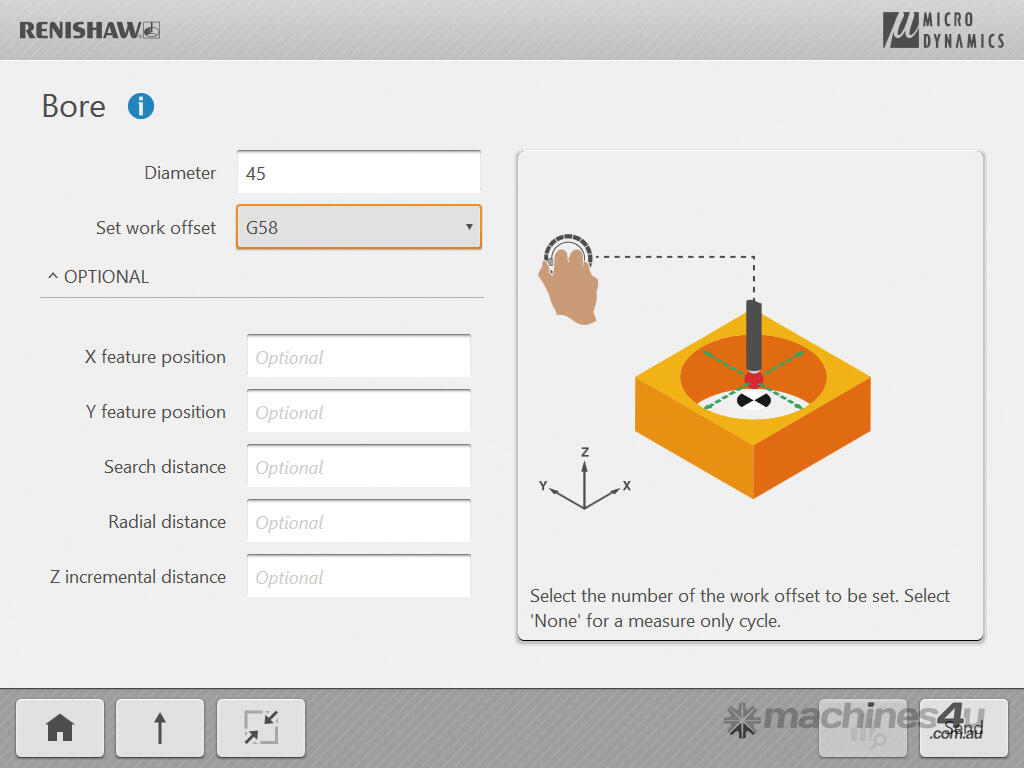

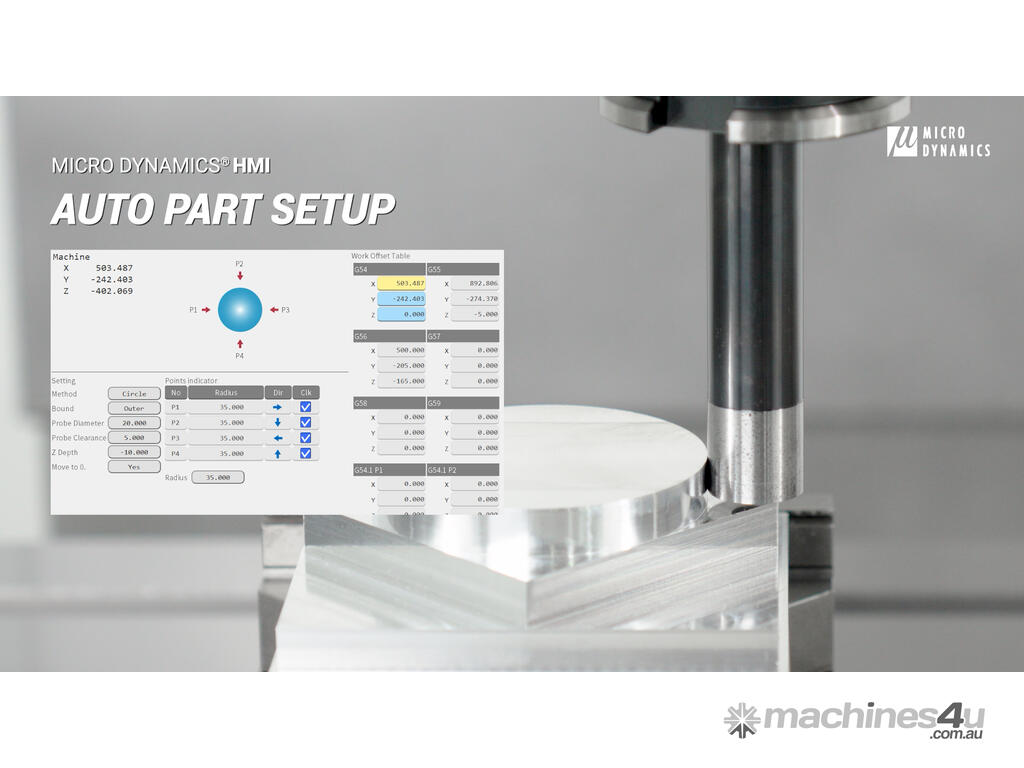

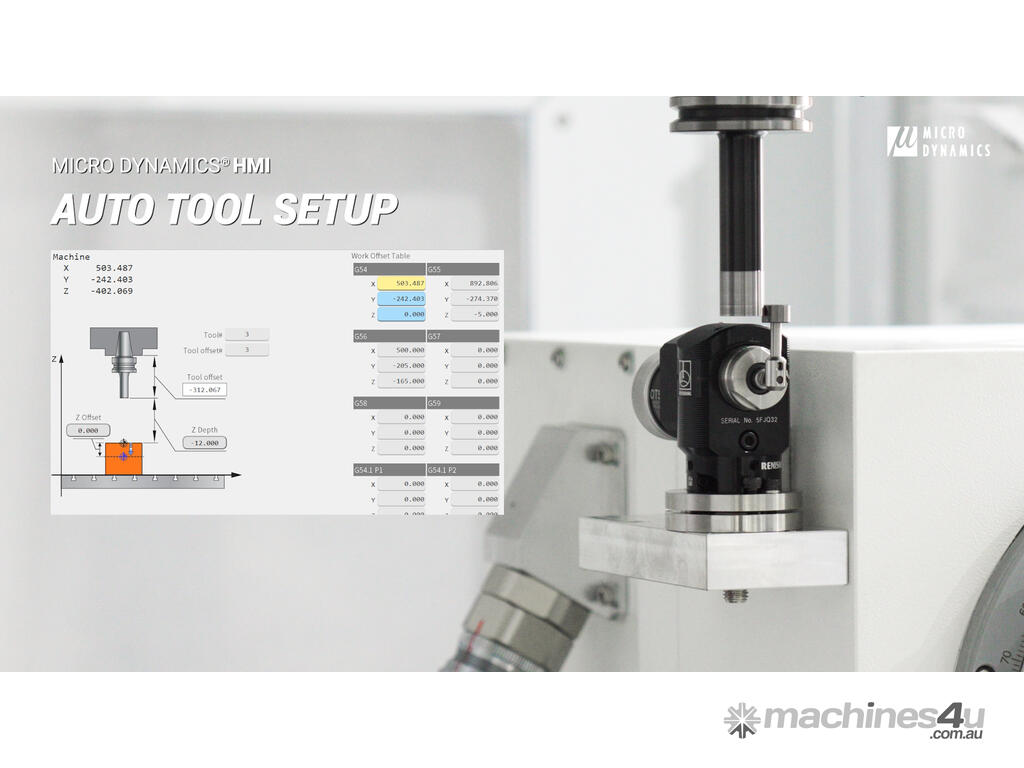

Auto Part / Tool Setup
1,420 × 700 mm Table Size
MITSUBISHI M830VW
High Speed CNC Control
BUILT-IN SPINDLE
15K rpm / 31 kW / 141 Nm
Tool to Tool 1.2 Sec.
High Speed ATC
DYPEC® Thermal Compensation
MINIMAL FOOTPRINT
3,606 × 2,478 mm
KEY FEATURES
– Minimal Footprint
Footprint size of only 3,606 × 2,478 mm, optimize efficiency, cut costs, and boost flexibility with a reduced footprint compared to other vertical machining centers with the same travel.

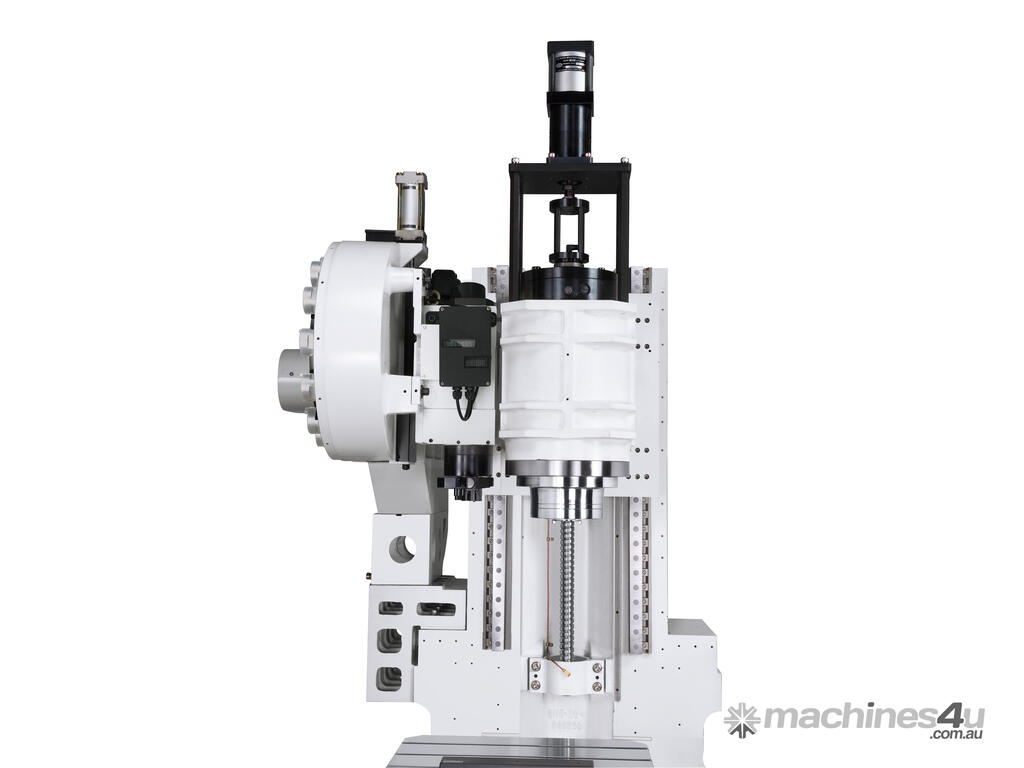

– Built-in Spindle
The standard 15,000 rpm spindle (optional 18,000 or 20,000 rpm) offers excellent cutting performance.

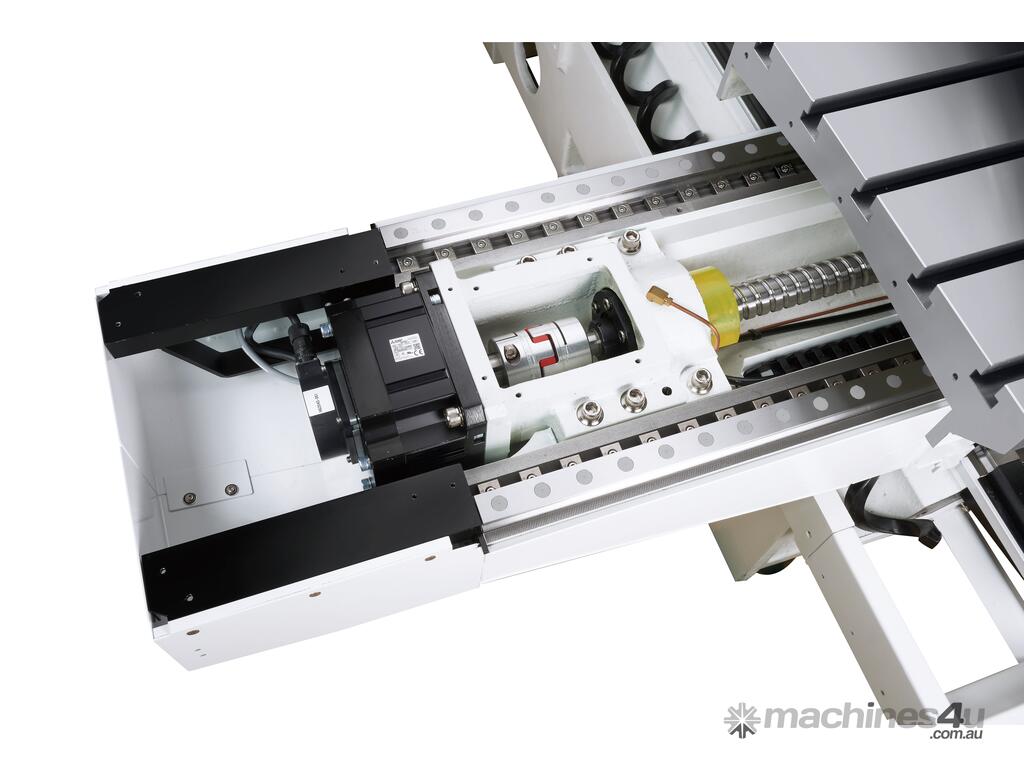

– Rapid Feedrate
Up to 52 m/min on X/Y-axis and 48 m/min on Z-axis, reducing non-cutting time significantly.

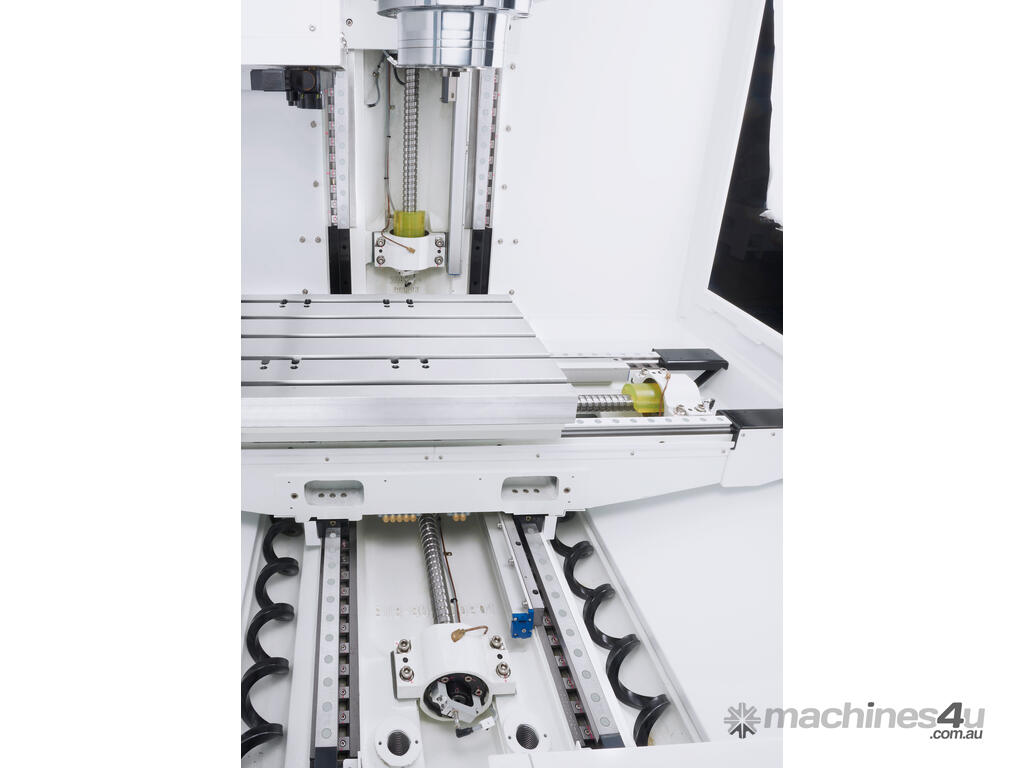

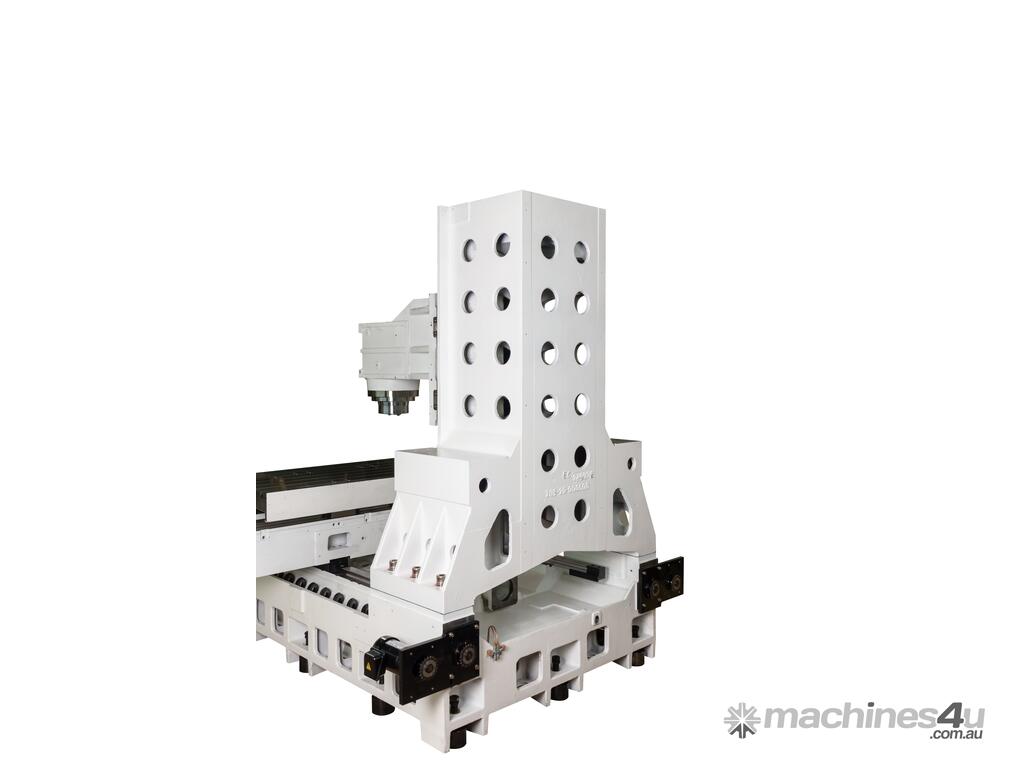

– Ribbed Structure
FC300 Meehanite® casting and optimized rib design using FEA analysis to ensure machining stability.

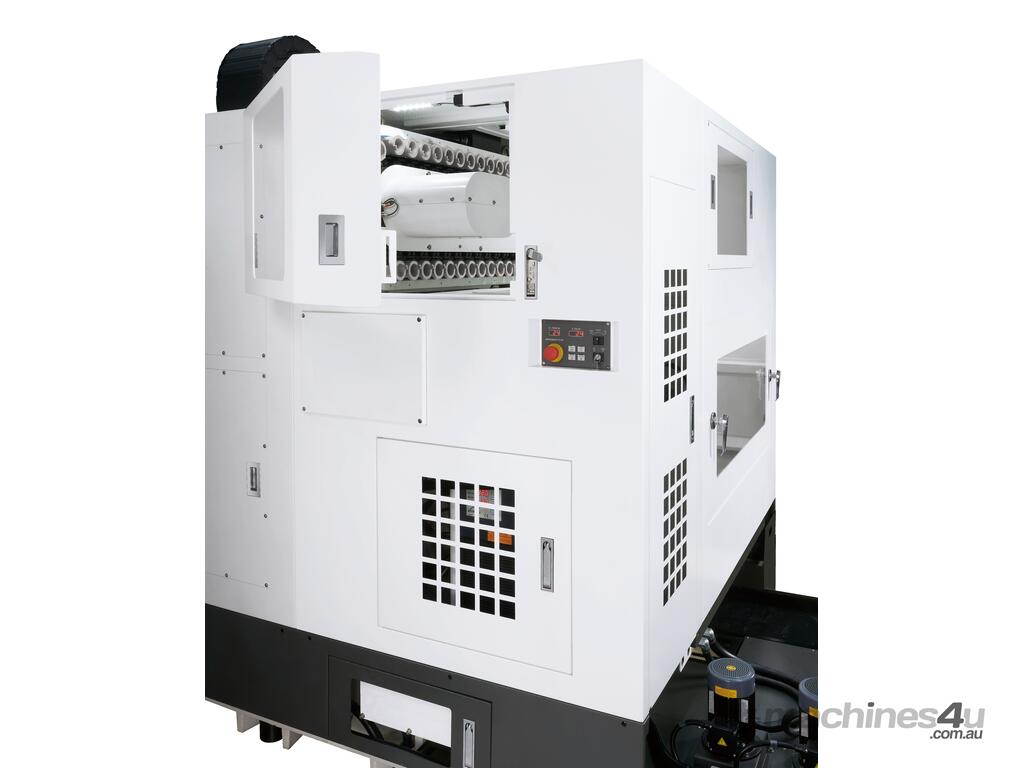

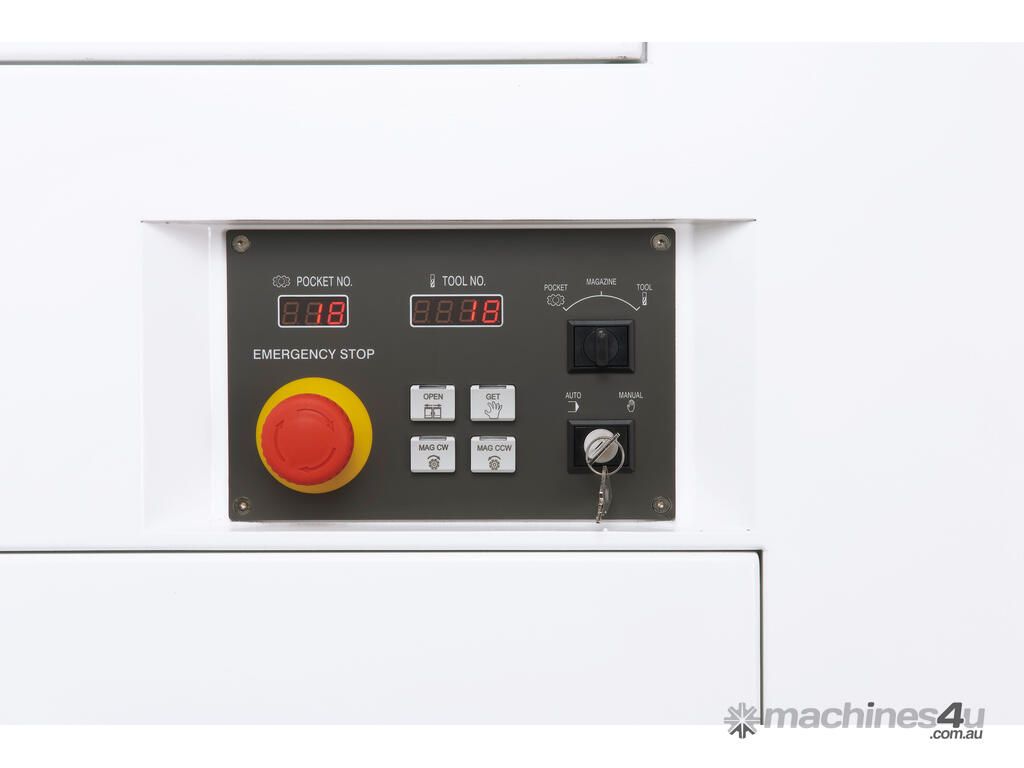

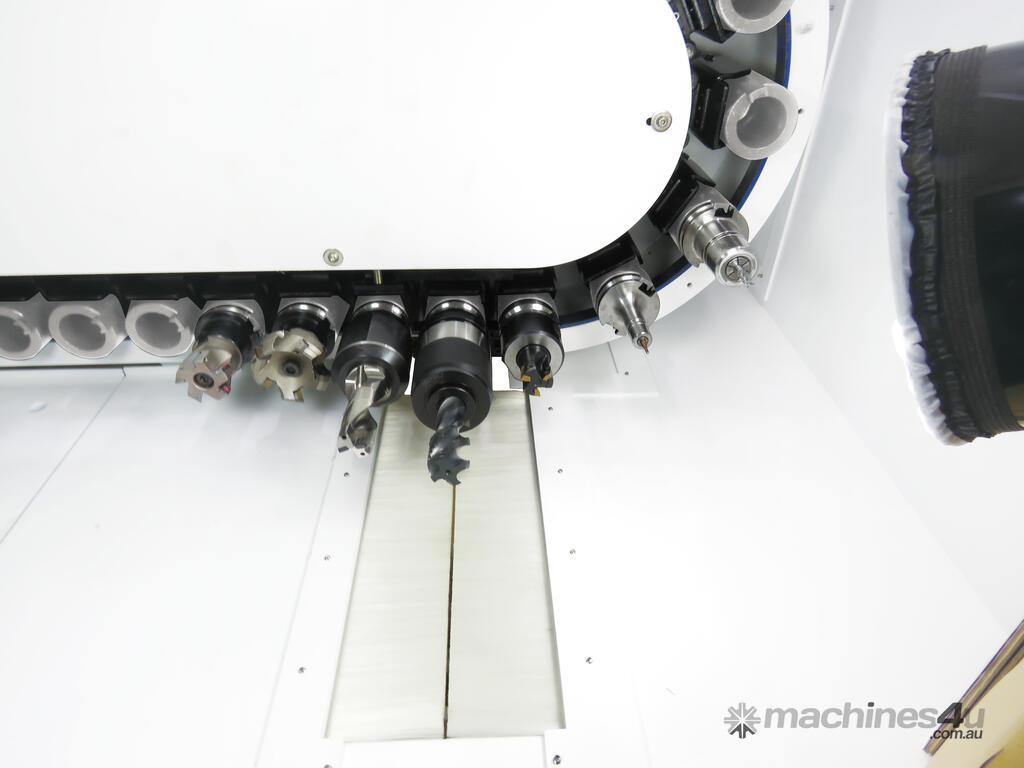

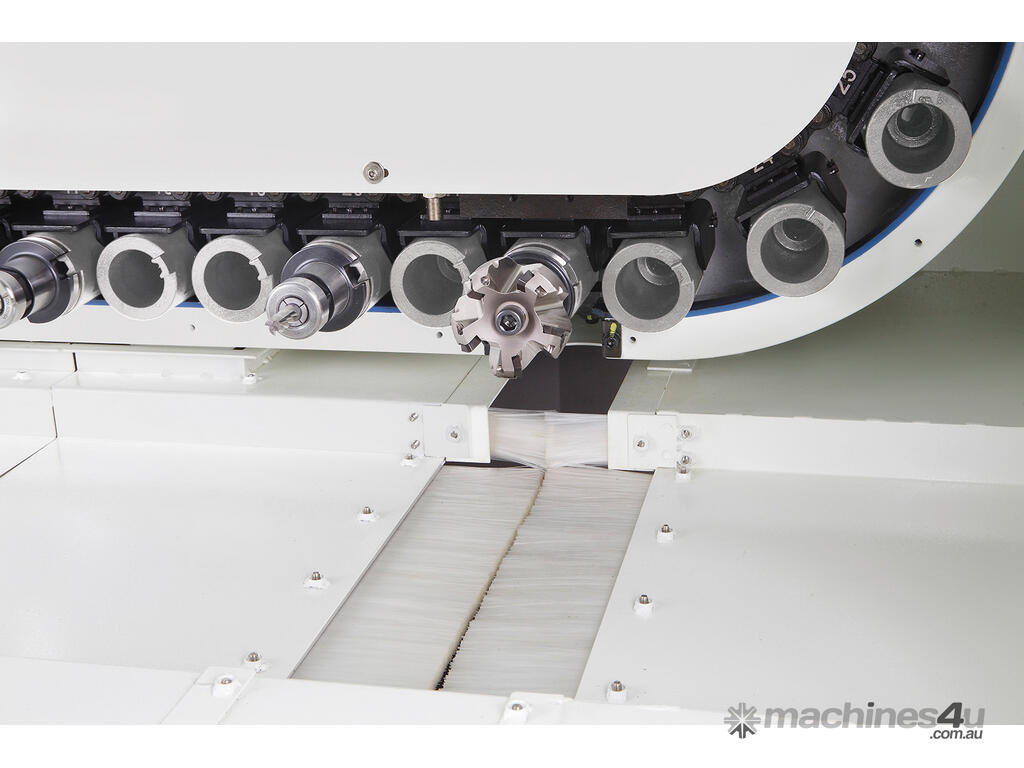

– High Speed Automatic Tool Changer
Tool to tool change time 1.2 seconds.
Standard 40-tool capacity, expandable to 60, 90, 120 tools.

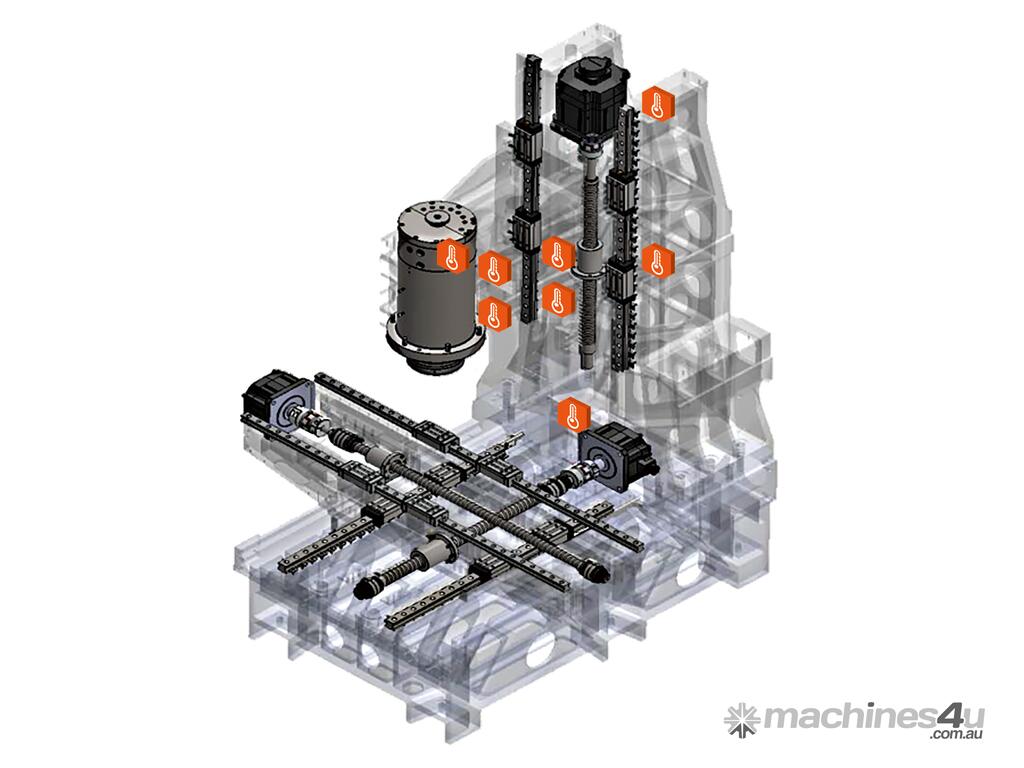

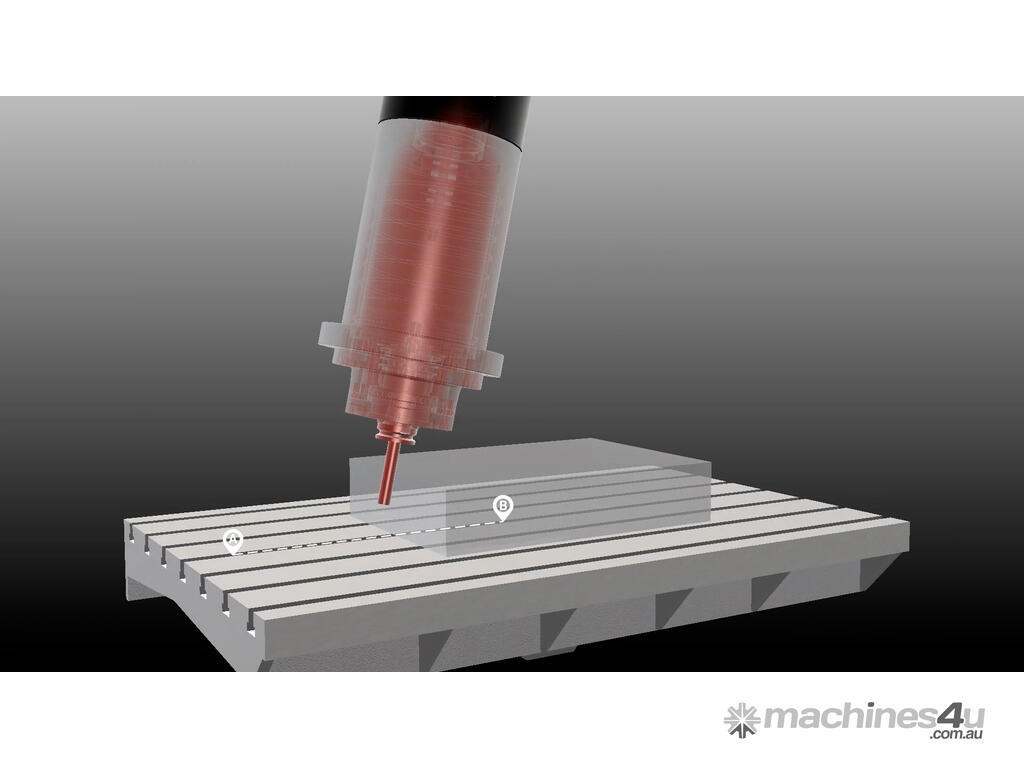

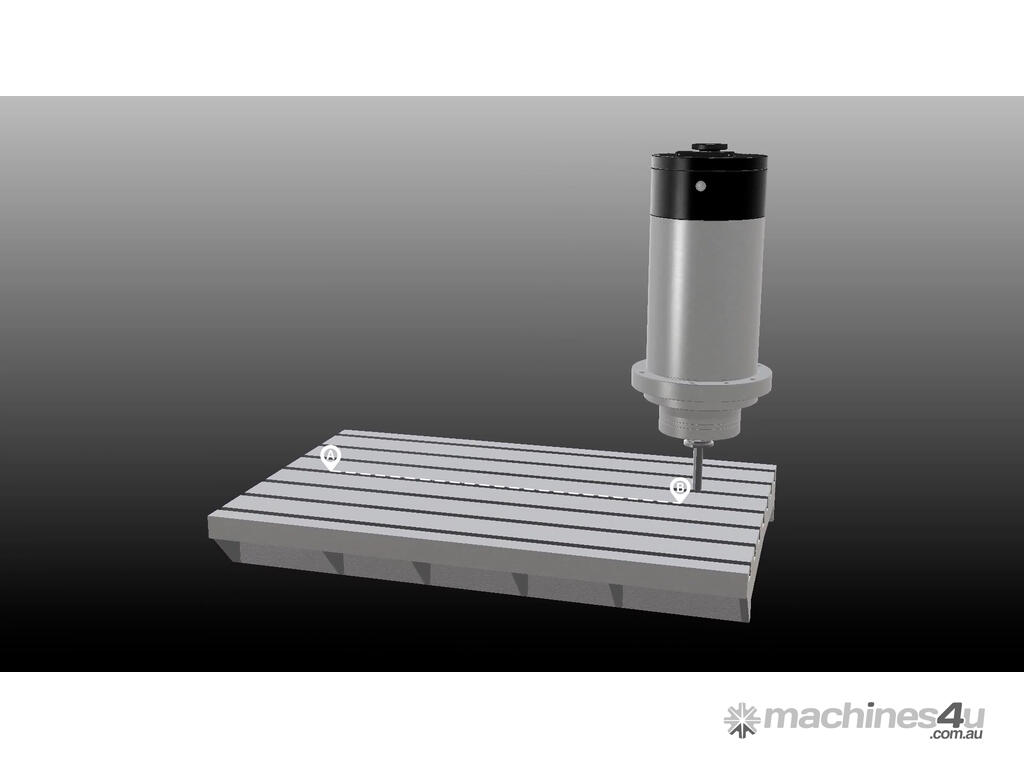

– Thermal Compensation
DYPEC® Dynamic Predictive Error Compensation corrects position error caused by thermal changes.
(Resolution 0.1 ?m)

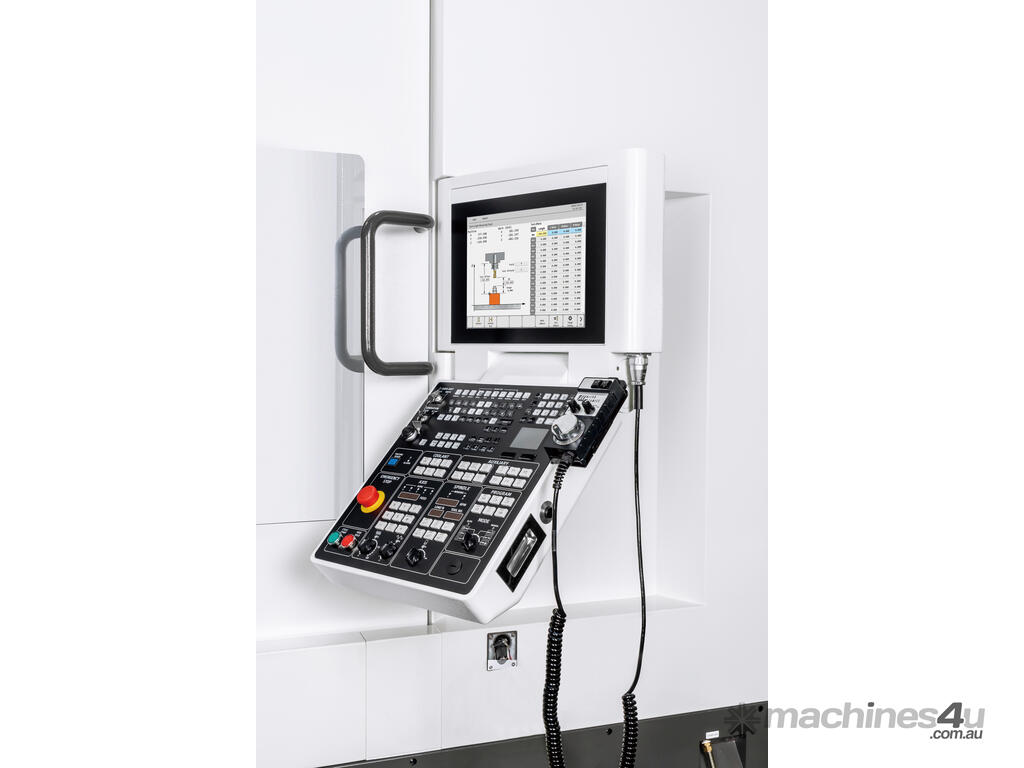

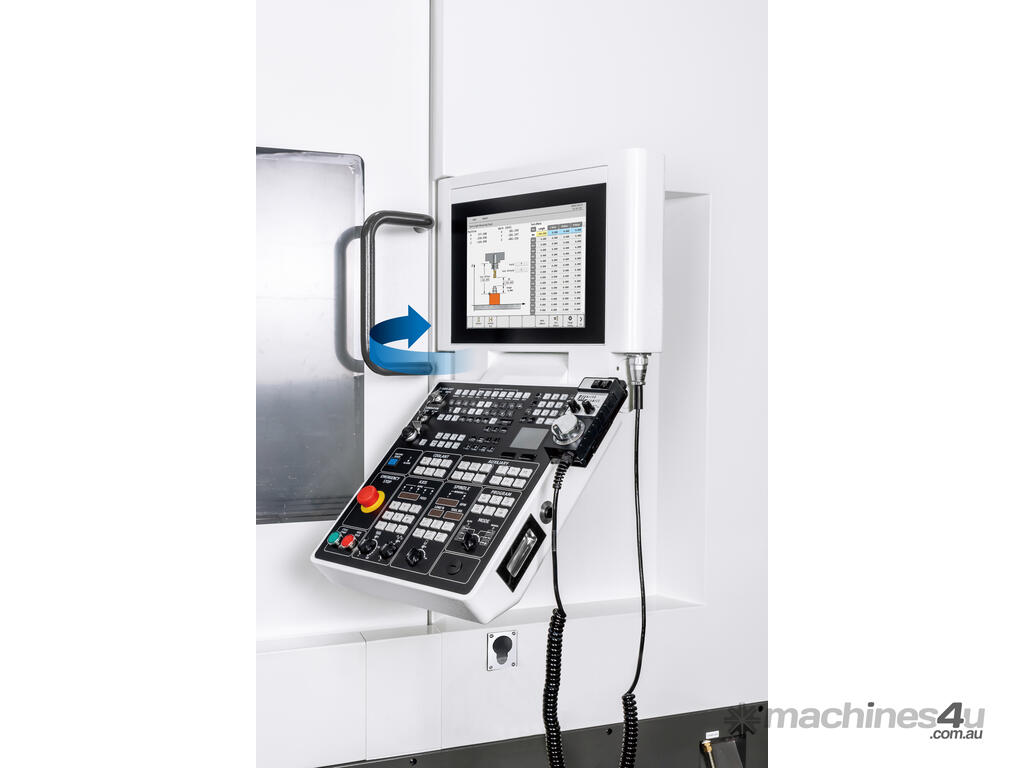

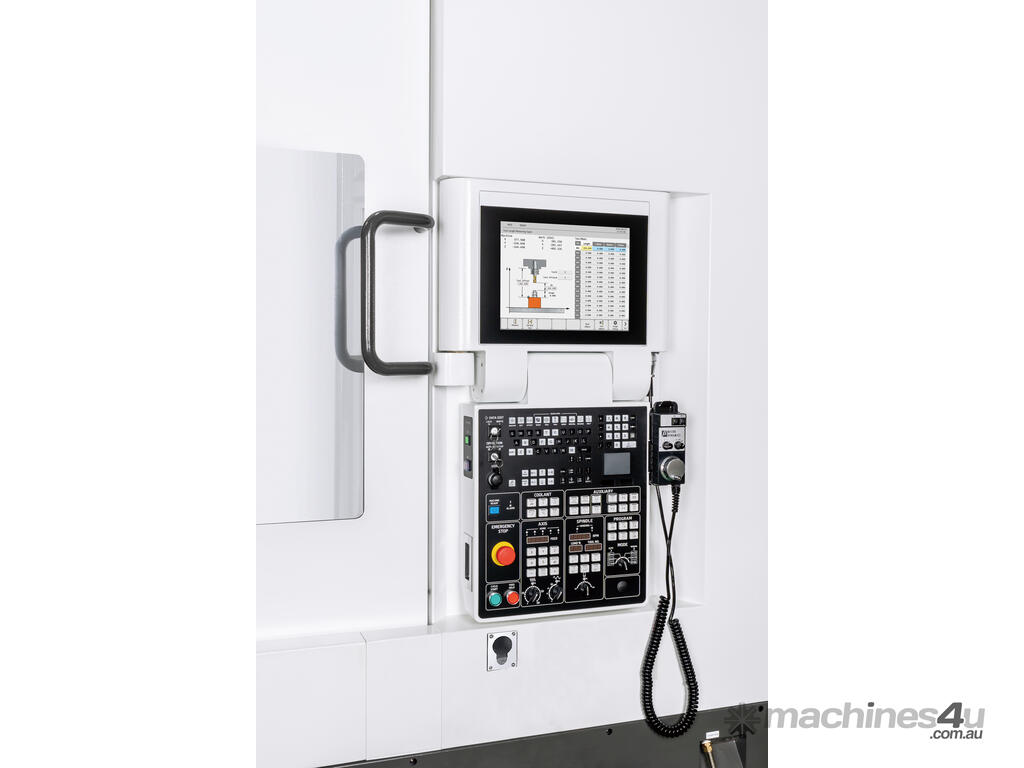

– Advanced CNC Controller
Equipped with a MITSUBISHI M830VW controller and a MICRO DYNAMICS HMI for intuitive operation.
