Milling Machine Horizontal/Vertical

Horizontal/Vertical Milling Machine
Table Size: 1370 x 254mm
Table Travel 810x420x410mm (XYZ)
Quill Diameter 105mm
Quill Travel 127mm
Taper NT40 for both Horizontal & Vertical
Motor: 5hp Vertical 4HP Horizontal
Speed: 65-4500 Variable for Vertical, 45-1350rpm for Horizontal

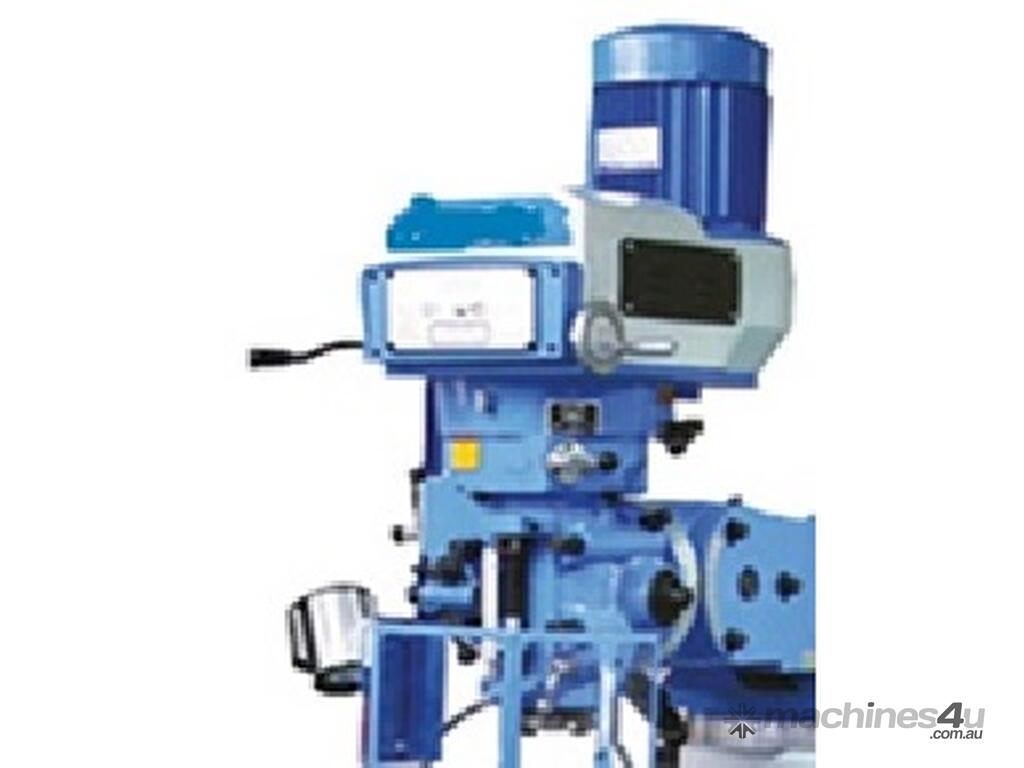

Heard Fully Turret +/- 90deg & +/- 45 Front-Rear
Power Feed X Y Z Direction
Pneumatic Drawbar

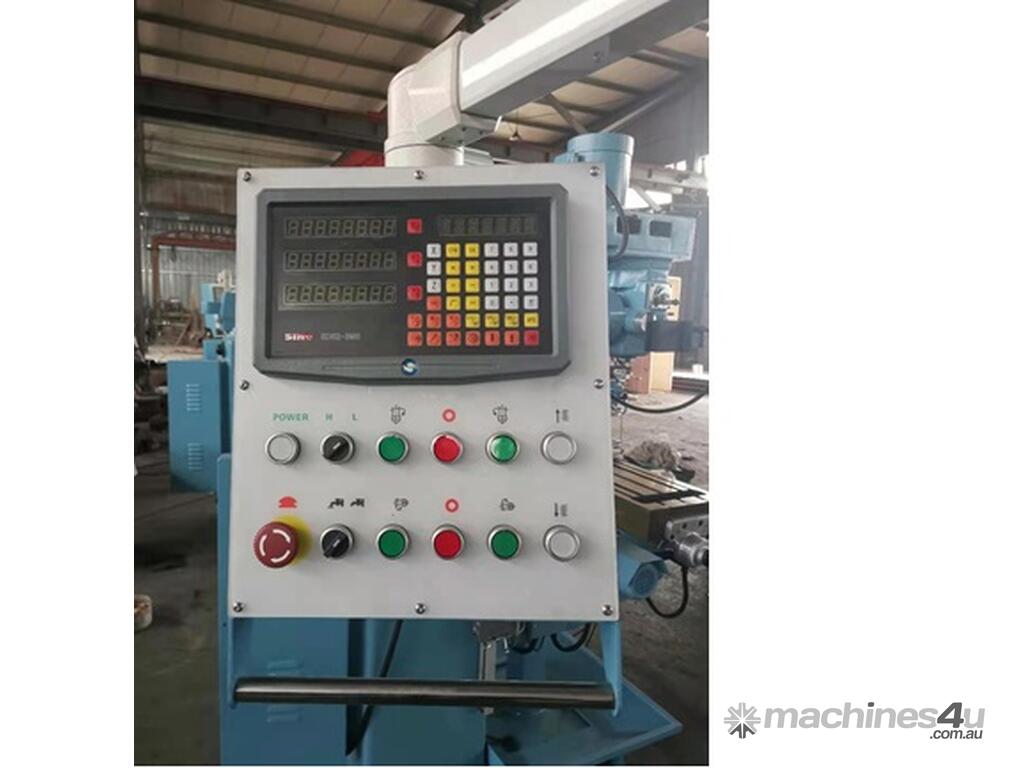

3 Axis Digital Readoud
Ball Screws for Longitudinal and Cross
Coolant System
