Description

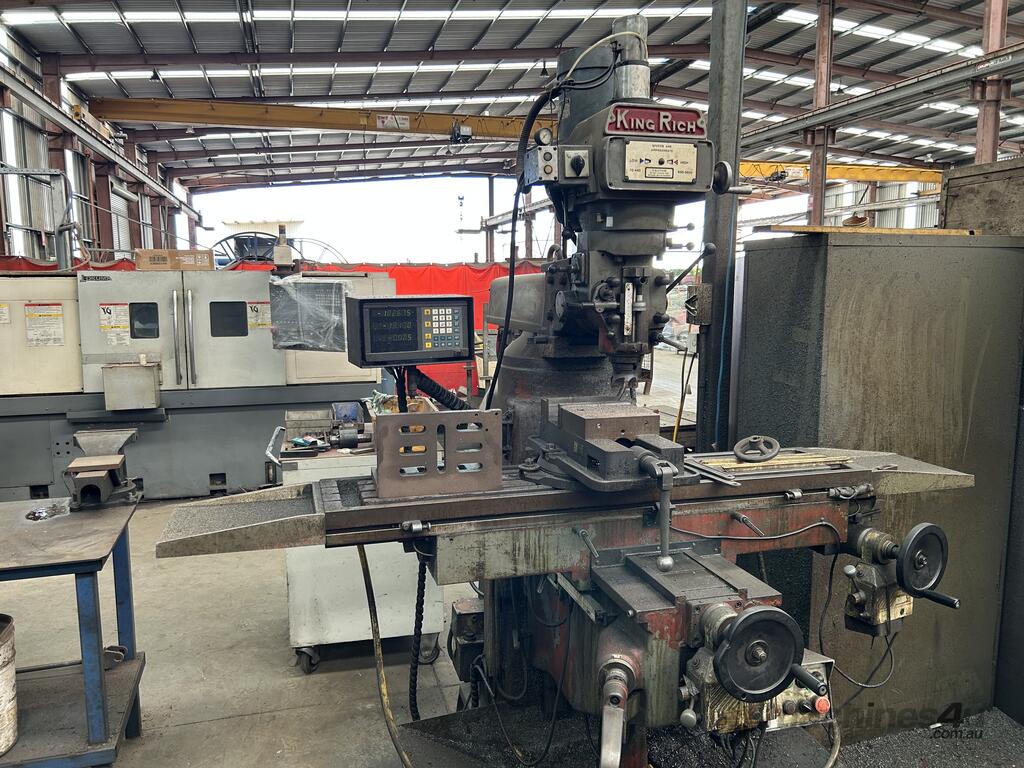

Premium Quality Mill
Features
The solid Meehanite castings, ground table and hardened slides ensure longevity of accuracy and performance
The automatic lubrication system meters and distributes oil to guideways and ballscrews to ensure longevity
Usage
Precision machining of parts
Specification
Model KR-V3000SL
Spindle Drive Motor (HP) 5 HP
Spindle Speed Range (mm) (Variable Head) Low: 70 – 460
High: 460 – 3600
Spindle Taper ISO 40
Table Size (mm) 143 x 305
T-Slots 3 15.9 mm 3 off
Longitudinal Travel – X Axis (mm) 1016
Cross Travel – Y Axis (mm) 400
Knee Vertical Travel – Z Axis(mm) 406
Slide Type Hardened Box Way
Ram Travel (mm) 450
Quill Power Feeds (mm) .038 .076 .152
Quill Diameter (mm) 105
Max. Table Load (kg) 550
Swivel on Turret 360°
Quill Travel (mm) 127
Head Tilt Front to Back 45° – 45°
Head Tilt Left to Right 90° – 90°
Max. Throat Depth (mm) 700
Spindle Nose to Table Surface (mm) 50 – 457
Machine Weight (kg) 1700
Available from Eagle Farm Brisbane
Buyer to arrange removal and transport
