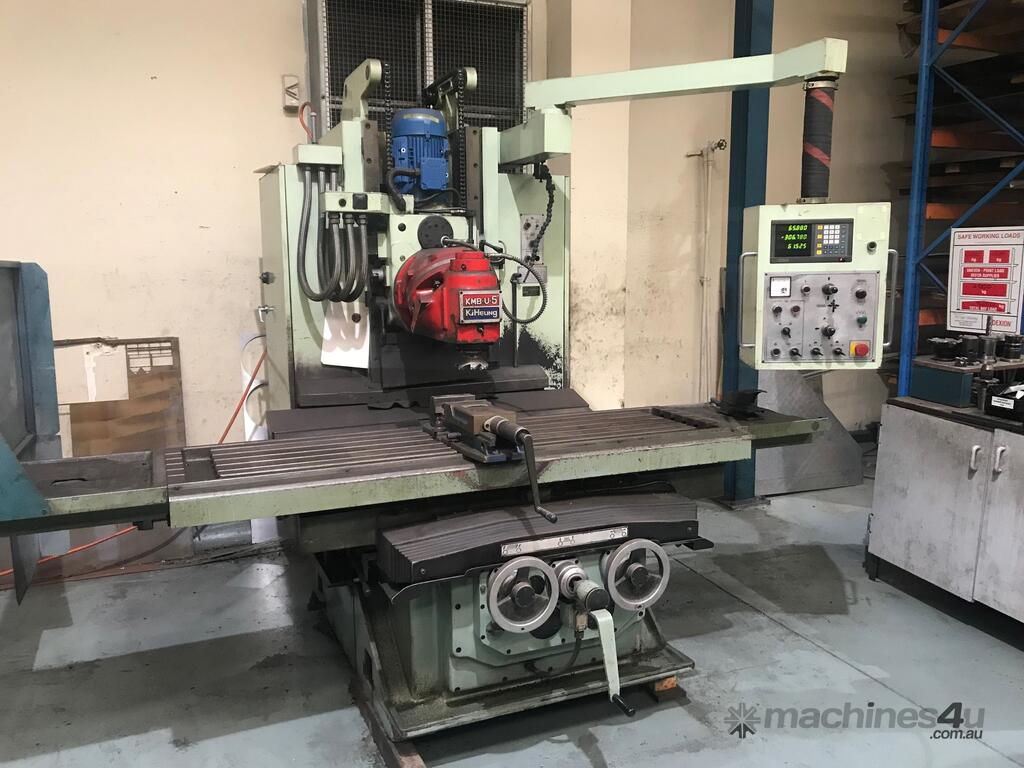

KIHEUNG Miling Machine

Model: KMB-U5

Year: 1998
• One owner from new
• Very good condition
• Can view running

High-quality KIHEUNG bed-type Milling Machine, Model KMB-UH-5. Purchased new in 1998, this machine is in very good condition and features a robust table size of 2000 x 530 mm and a maximum load capacity of 2,000 kg. Built in Korea and well known for its rugged construction and reliability and suitable for vertical & horizontal machining. Kiheung has a unique Huron system with up head and low head for angle milling.


X Axis Travel: 1400 mm
Y Axis Travel: 600 mm
Z Axis Travel: 650 mm
3 Axis DRO

Table:
• Working Surface: 2000 x 530mm
• T-slots: 5 x 22mm
• Max. Permissible Load: 2000kg
Travel:
• X-axis (Longitudinal): 1400mm
• Y-axis (Cross): 600mm
• Z-axis (Vertical): 650mm
• Height from Table to Vertical Spindle Nose: 40 - 690mm
• Height from Table to Horizontal Spindle Nose: 50 - 700mm
Spindle:
• Taper: ISO50
• Speed Range: 40-1720 rpm (50Hz) or 40-1620 rpm (60Hz)
• Number of Spindle Speeds: 12
• Spindle Drive Motor: 7.5kW Variable
Feed:
• Rapid Feed: 5000 mm/min (X,Y) / 2500 mm/min (Z)
• Feed: 2000 mm/min (X,Y) / 1000 mm/min (Z)
Other:
• Weight: Approximately 7000kg
• Floor Space: 4660 x 2525 x 2700mm
• Coolant Pump Motor: 0.1kW
• Hydraulic Tool Clamping Motor: 0.75kW


Complete Operation & Maintenance manual with all drawings
Tooling included
Buyer to remove
Can be viewed running in Knoxfield Vic
