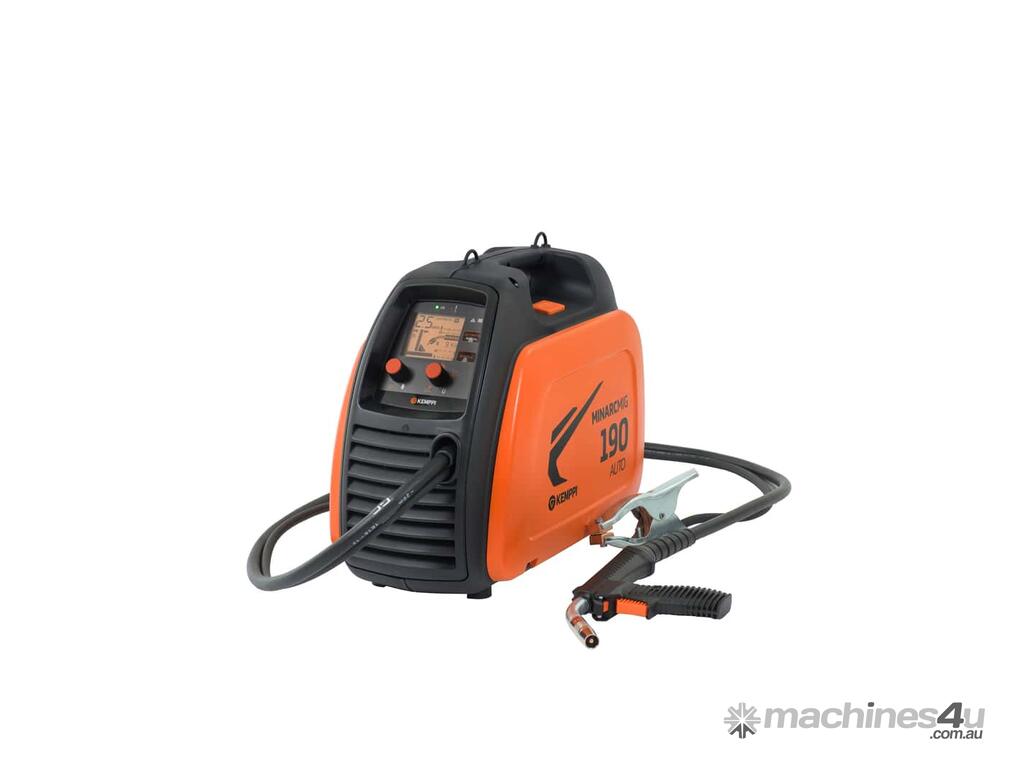

Minarcmig 190 Auto Au Portable MIG/MAG Welding

A 14.2 kg, portable MIG/MAG welding machine providing 190 A with a 35% duty cycle from a 16 A, single-phase mains supply. Manual and synergic welding options available. Compatible with a wide range of materials, including steel (Fe), stainless steel (Ss), aluminum (Al), and CuSi brazing filler wires.? A 3-meter welding torch with an ergonomic gun handle, cable set, and carrying strap included. This model is specifically for the Australian market due to the different mains plug fitted and VRD active.


Description Value
Mains connection voltage 230 V ±15 %
Mains connection phases 1~50/60 Hz
Mains connection cable type 3G, H07RN-F
Mains connection cable size 1.5 mm²
Rated maximum input power [S1max] 6 kVA
Mains fuse 15 A
Mains fuse type Type C
Idle state power consumption [P1idle] 12 W
Output, duty cycle % at rated max. current, MIG 35 %
Output at +40 °C, rated max current, MIG 190 A
Output at +40 °C, 60% MIG 140 A
Output at +40 °C, 100% MIG 100 A
Power factor at rated maximum current [?] 0.99
Efficiency at rated maximum current [?] 84 %
EMC class A
Welding connection type Built-in
Wire feed mechanism Single-motor, 2-roll
Maximum wire spool weight 5 kg
Maximum wire spool diameter 200 mm
Maximum shielding gas pressure 0.5 MPa
Control panel, display LCD
Control panel, controls 2 control knobs, Push buttons
Control panel, type of installation Built-in
Degree of protection (fully installed) IP23
External dimensions, length 450 mm
External dimensions, width 227 mm
External dimensions, height 368 mm
Weight without accessories 14.2 kg
Standards IEC 60974-1, -5, -10, IEC , AS 60974.1
