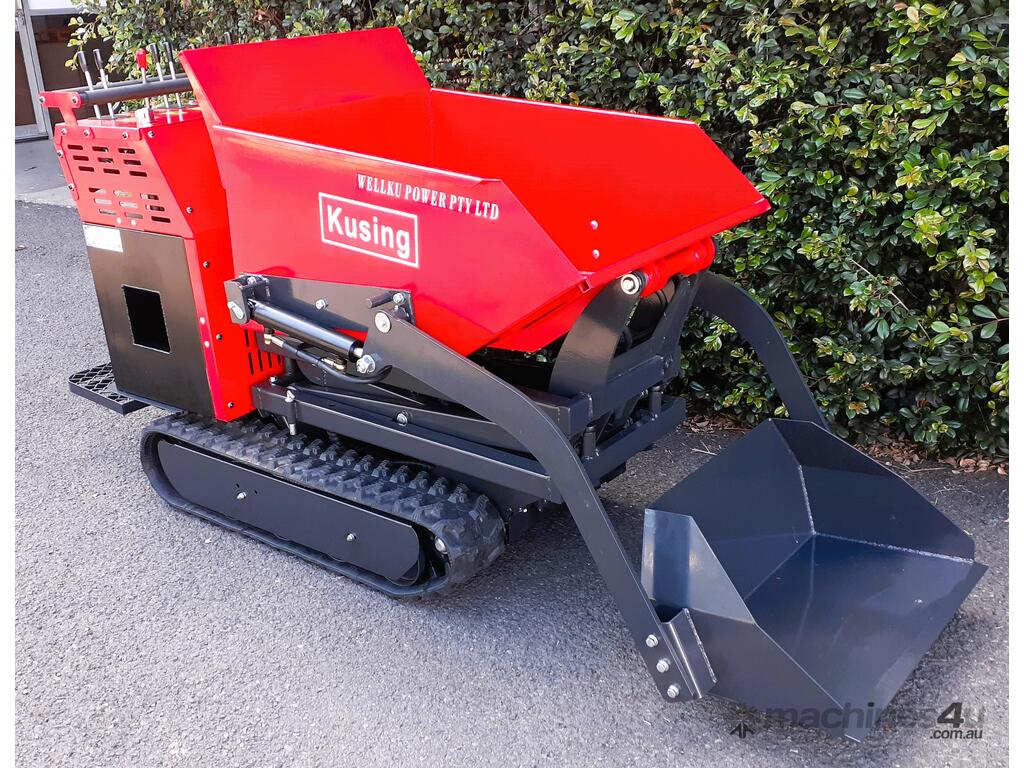

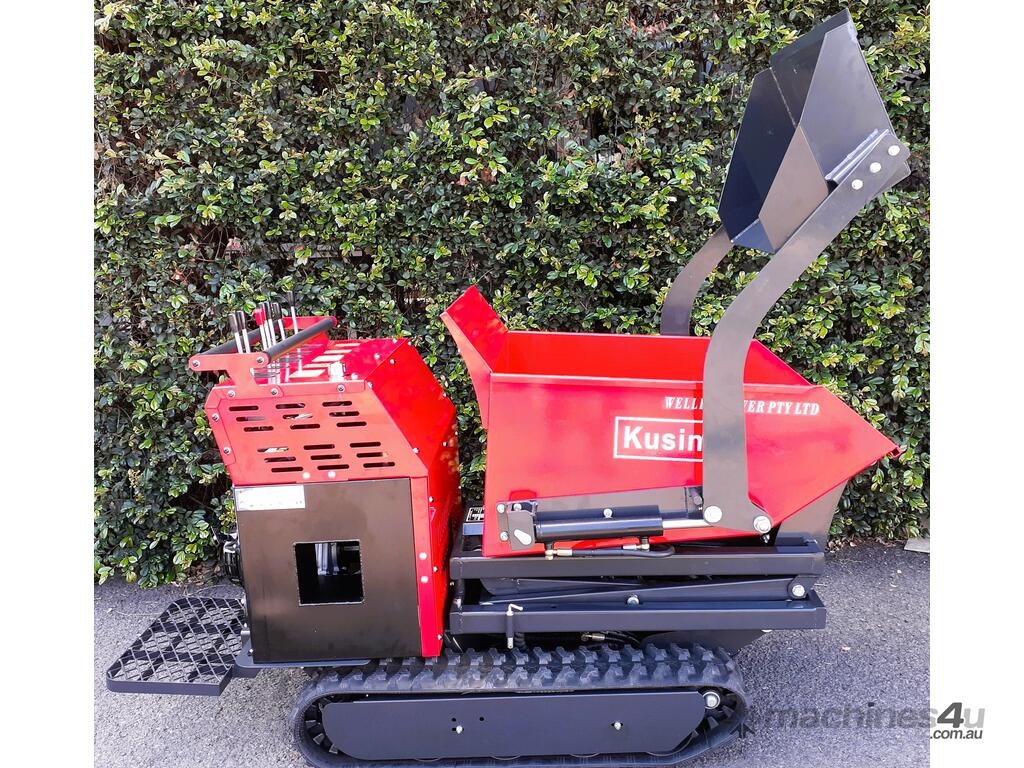

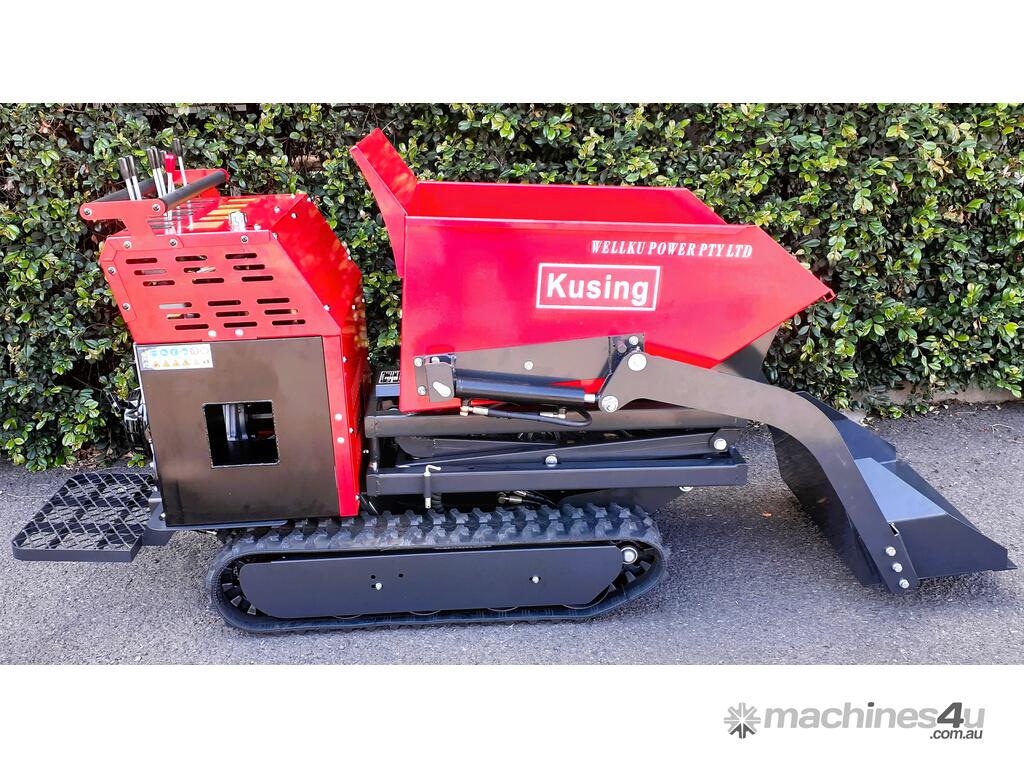

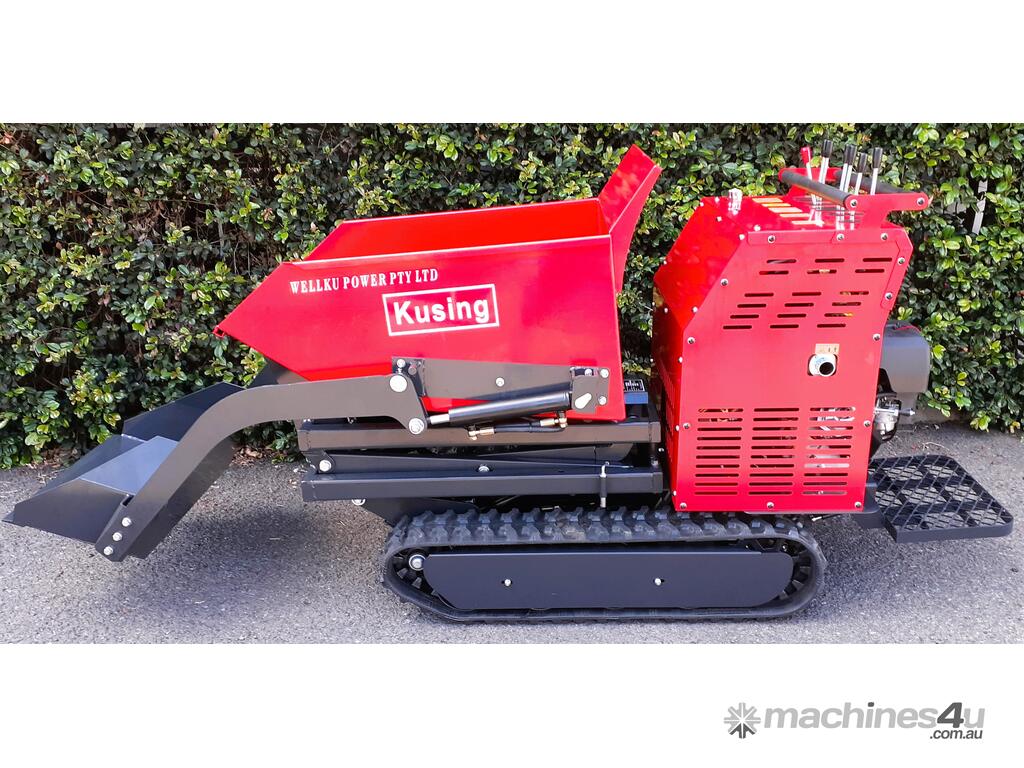

The Kusing Mini Loader is an essential piece of machinery for removing and transporting garden waste & debris, landscaping materials, and much more. Perfect for moving over uneven, boggy wet surfaces where conventional machines can’t go.
•	Variable speed forward & reverse
•	Centrifugal clutch steering.

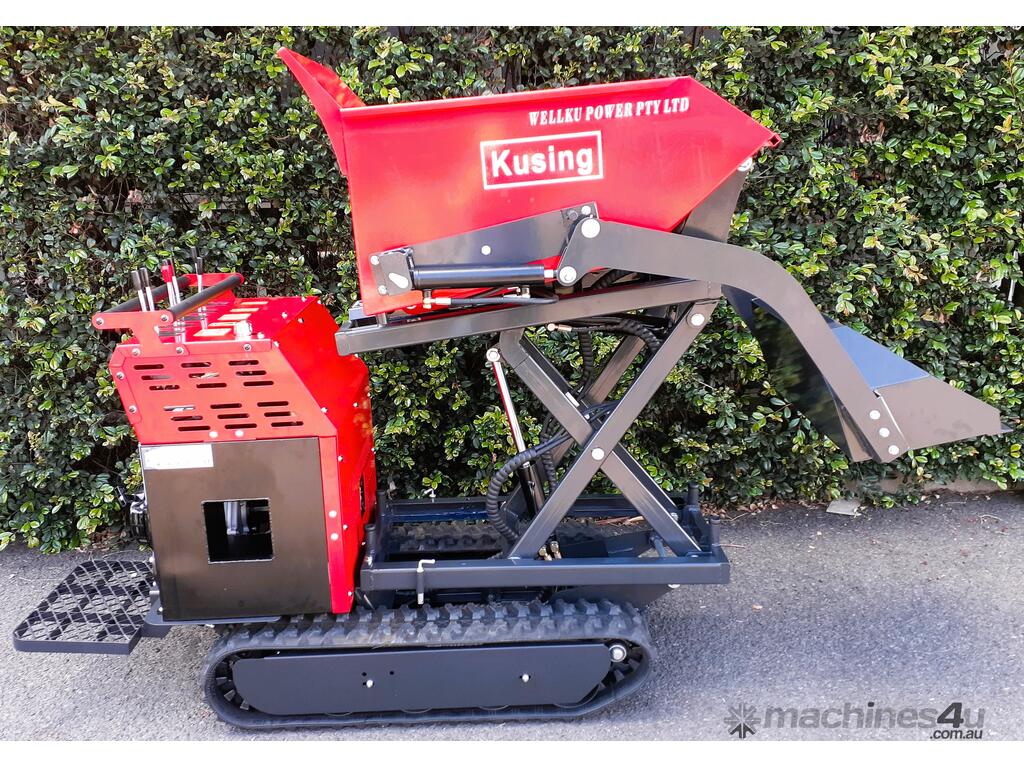

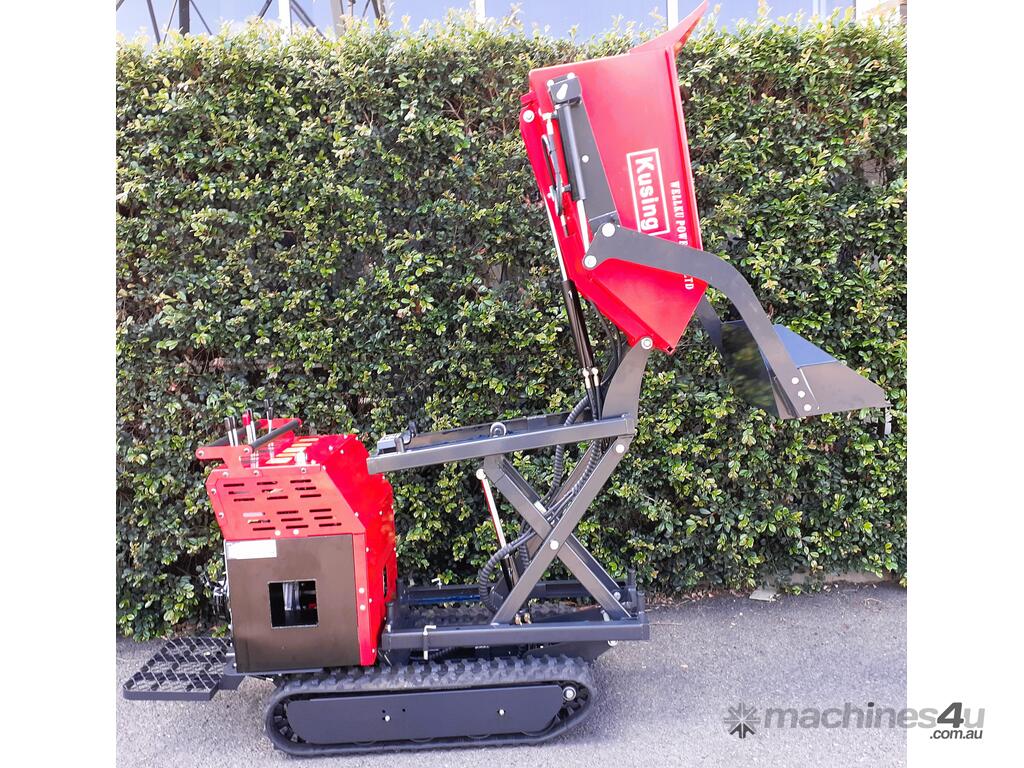

•	Hydraulic tipping & digging operation
•	Heavy duty bin
•	Tracks made from heavy duty rubber for safe use on paved surfaces.
•	Ground clearance 62mm
•	Turning distance 82cm
•	Maximum working pressure 200BAR
•	Colour #RAL3020
Model No.	750DLHB

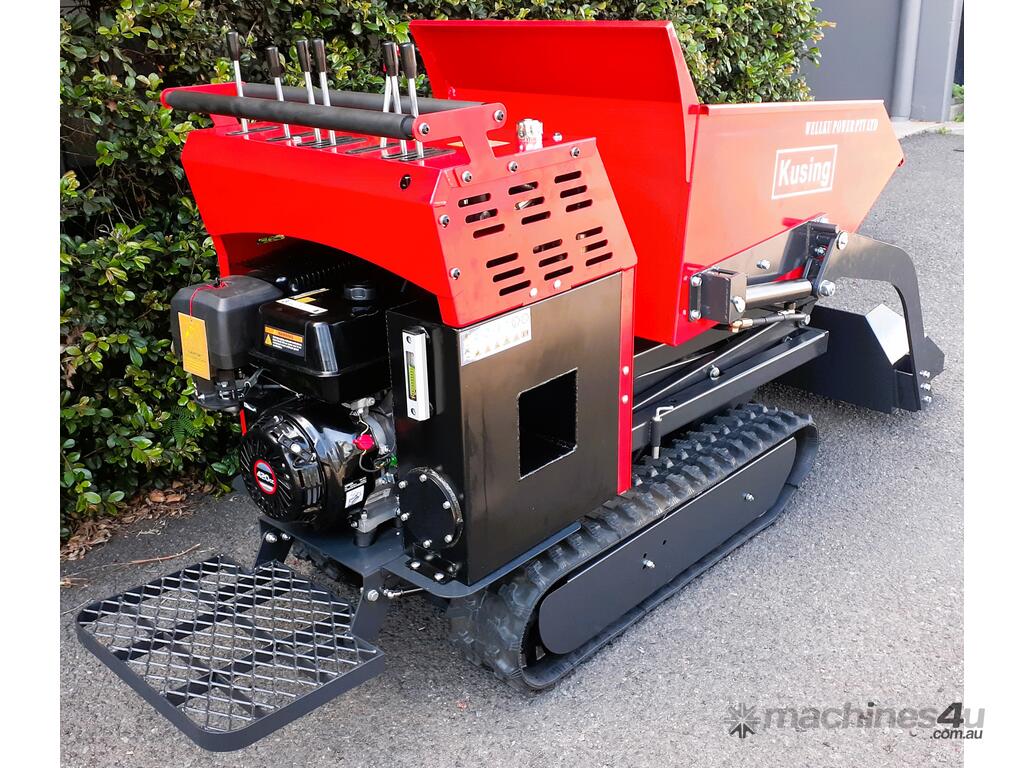

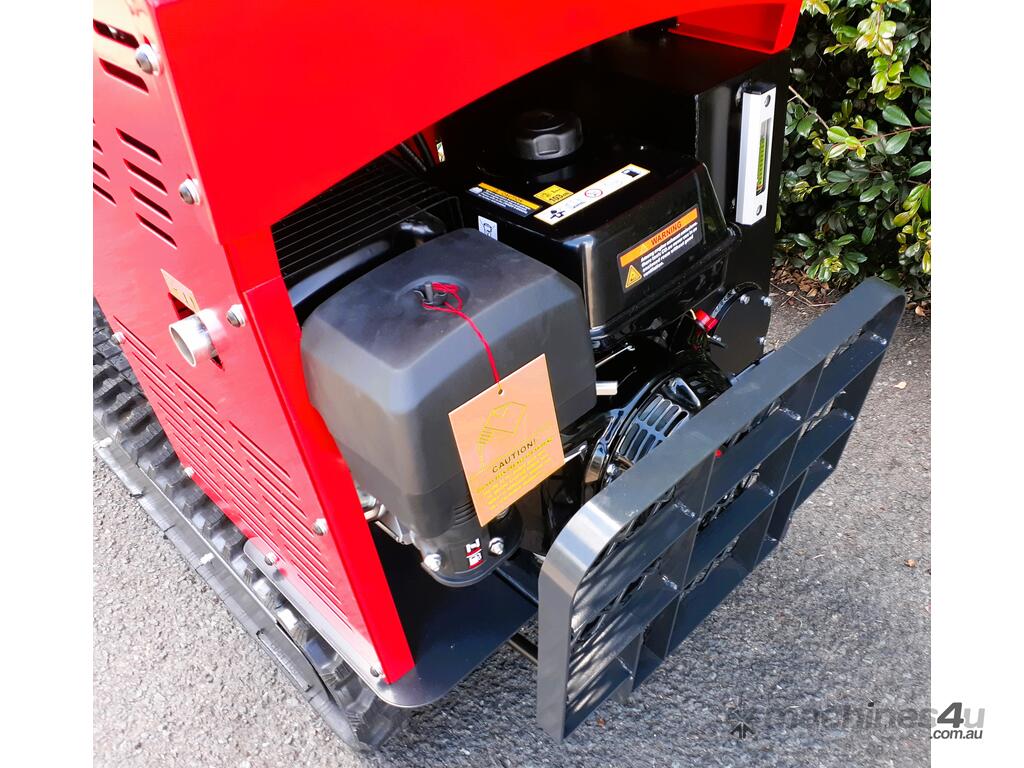

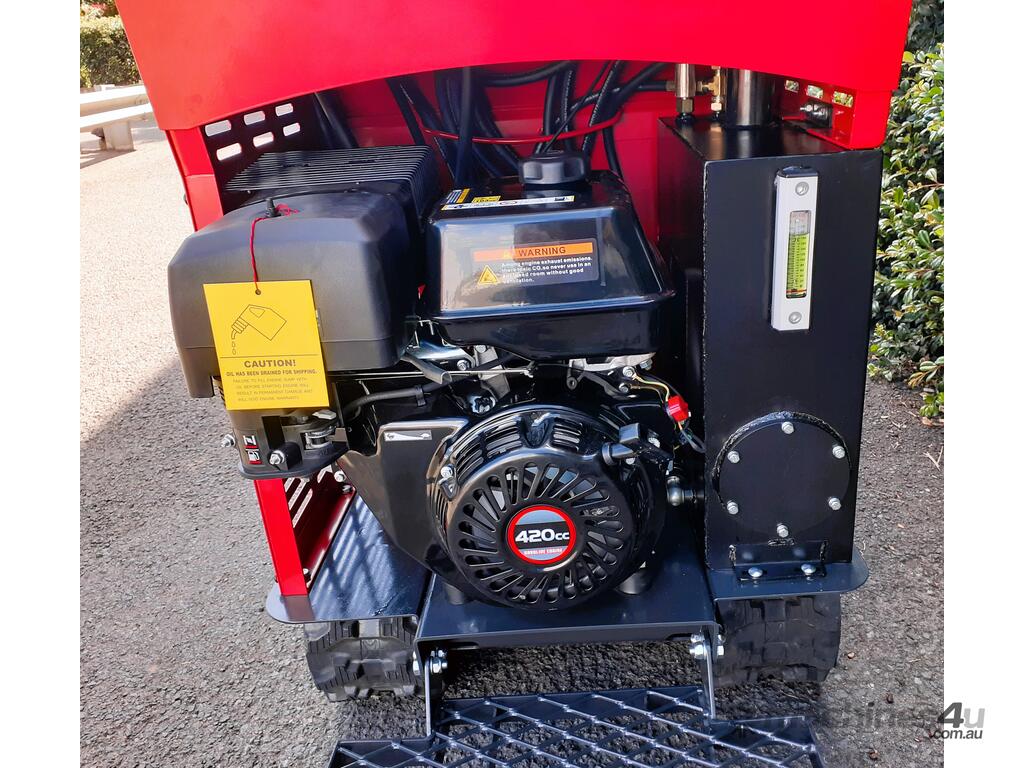

Engine Make	Lancin OHV
Engine Displacement	420cc / 15HP
Engine Type	Single Cylinder 4 Stroke Air Cooled
Fuel Tank Capacity		10 Litres
Maximum Carry Weight	500kg

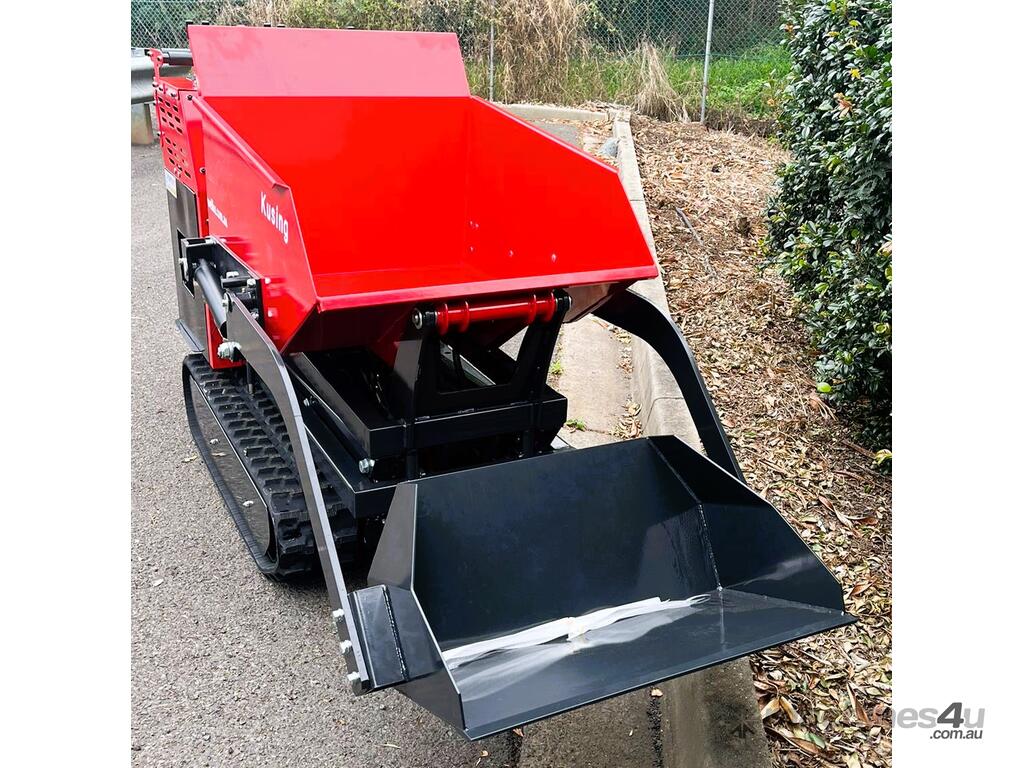

 Bin Volume & Scoop Dimensions	Bin 230L - Scoop (665W x 315H x 380D)
30% Gradient Max. Load	375kg
Maximum Lift Height	1.2 metres
Maximum Speed	3km/hour
Start System 	Recoil
Fuel Consumption Est.	1.5 L/hr
Engine Oil Specification 	10W/30 Winter - 10W/40 Summer
Engine Oil Capacity	2 Litres

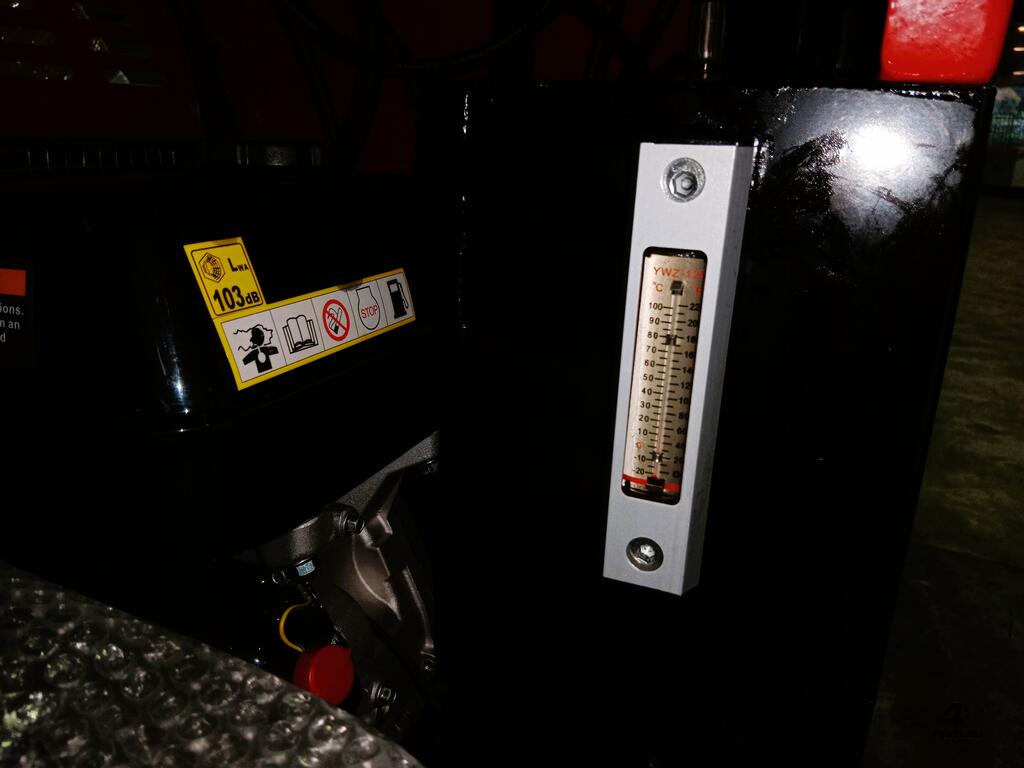

Hydraulic Oil Specification	ISO 46
Hydraulic Oil Capacity 	33 Litres
Fuel Specification	ULP 91
Noise Level	93DBA
Track Width	180mm
Bin Dimensions	1000L x 700W x 450H mm
Dimensions (footrest in up position)	2330L x 930W x 1200H mm
Shipping Dimensions		1820L x 950W x 1350H mm
Weight	430kg
Shipping Weight	450kg
