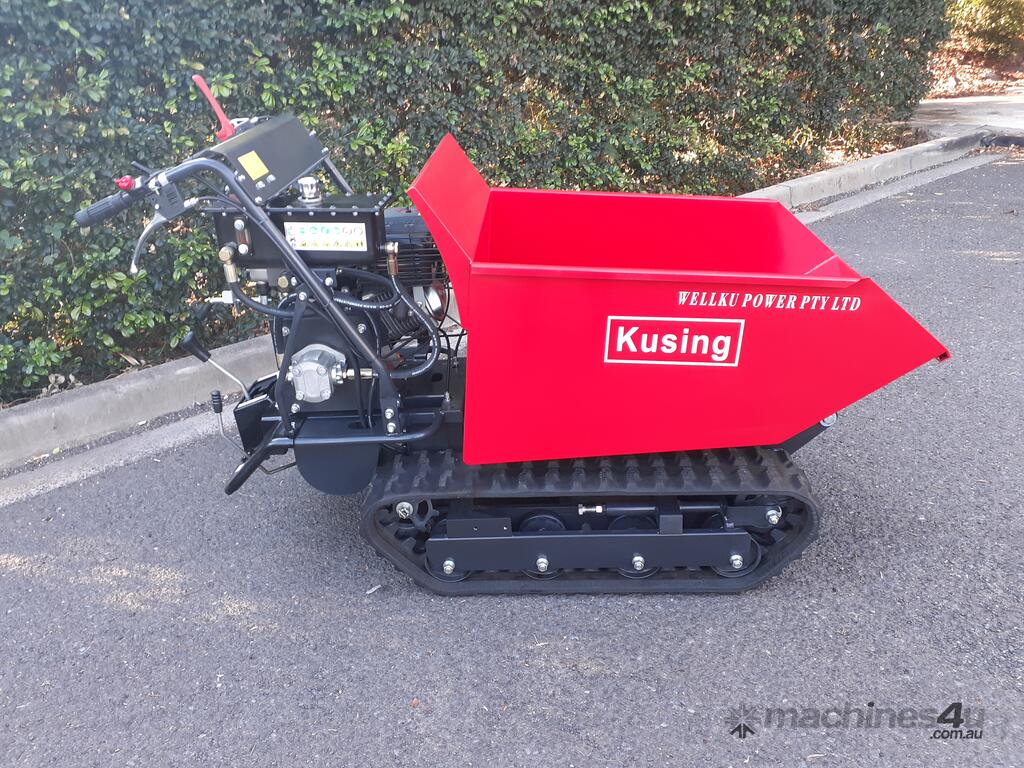

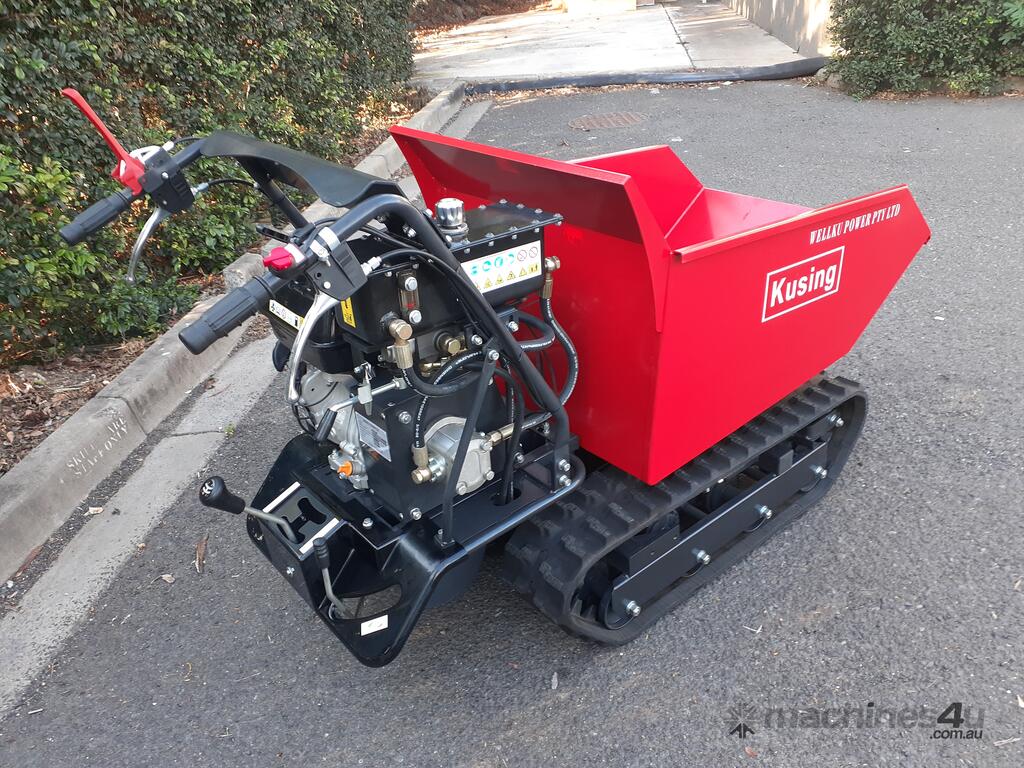

Mini Track Dumper 6 Speed with Hydraulic Lift 500kg

The new 6 speed Kusing Mini Dumper is an essential piece of machinery for transporting garden waste & debris, landscaping materials, and much more. Perfect for moving over uneven, boggy wet surfaces where conventional machines can’t go.
Now with the high and low range gearbox making this mini dumper even more versatile and twice as fast in high range.

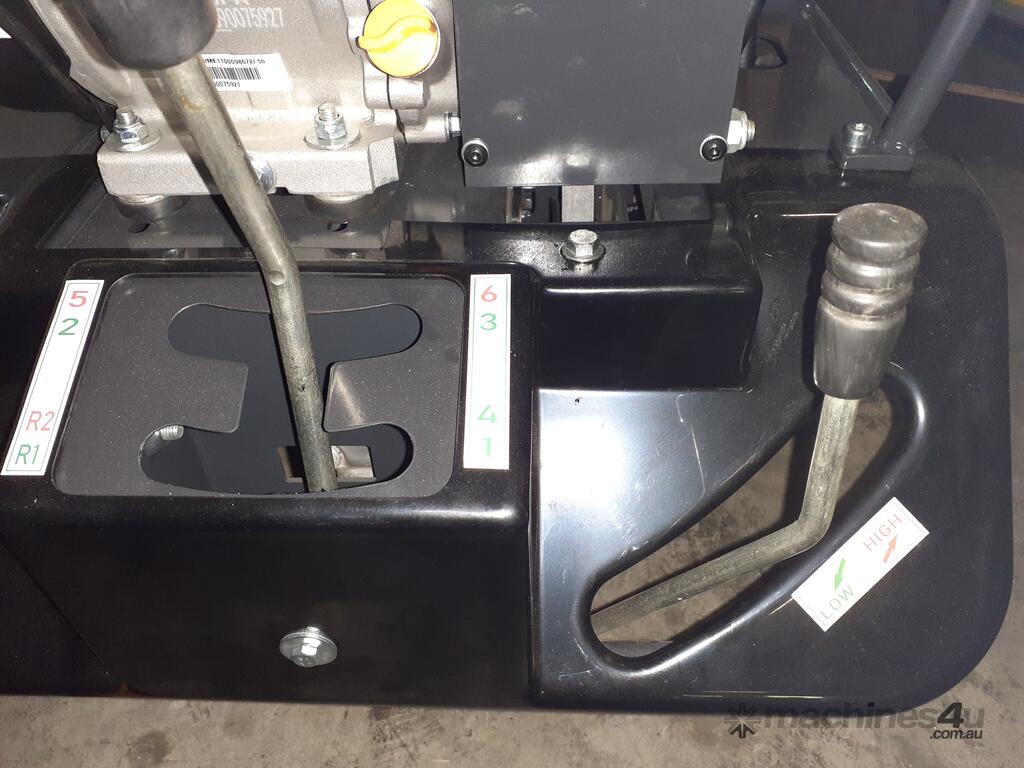

• Transmission gears 3 x Fwd & 1 x Rev (High/Low Range)

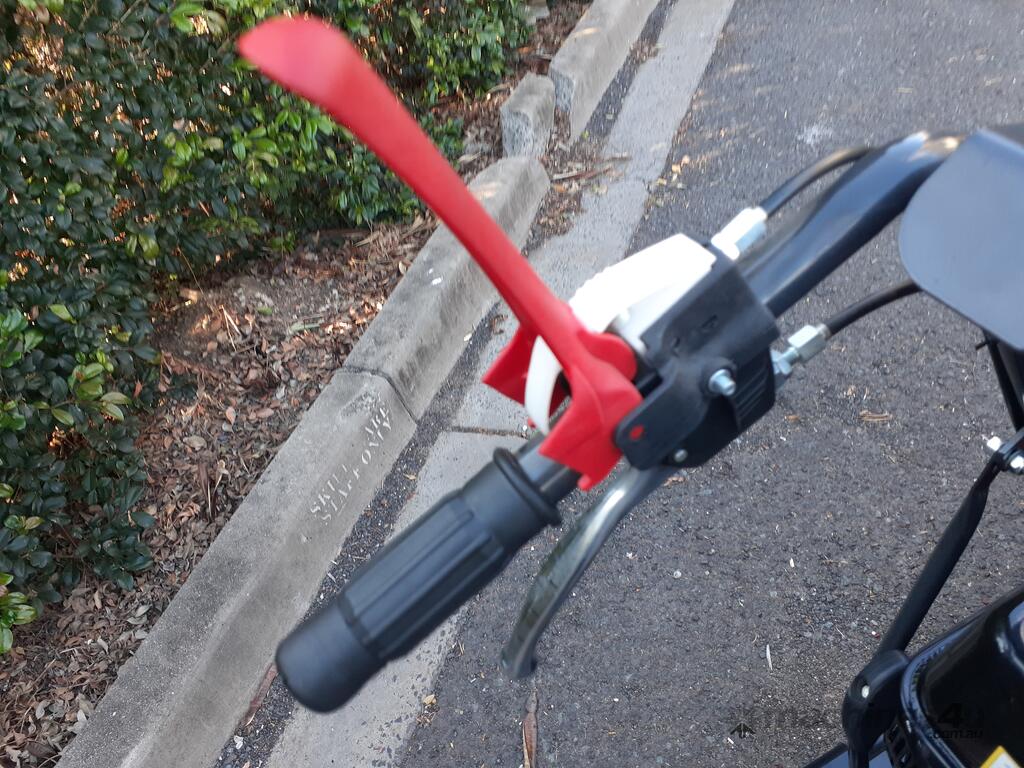

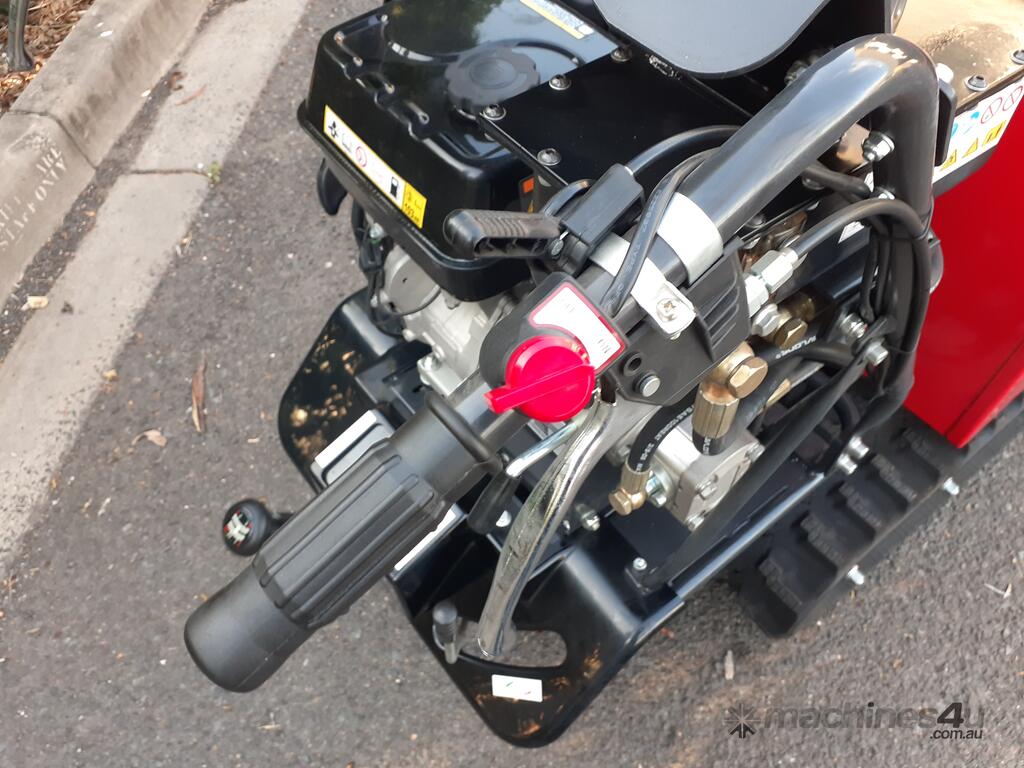

• Centrifugal clutch steering.

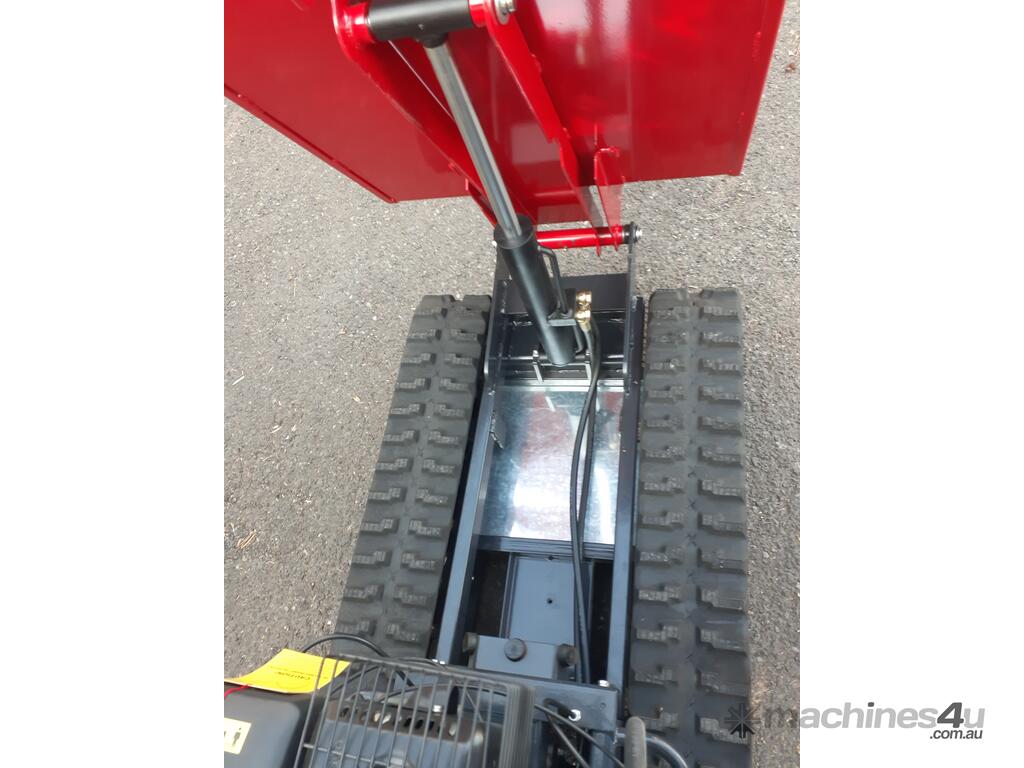

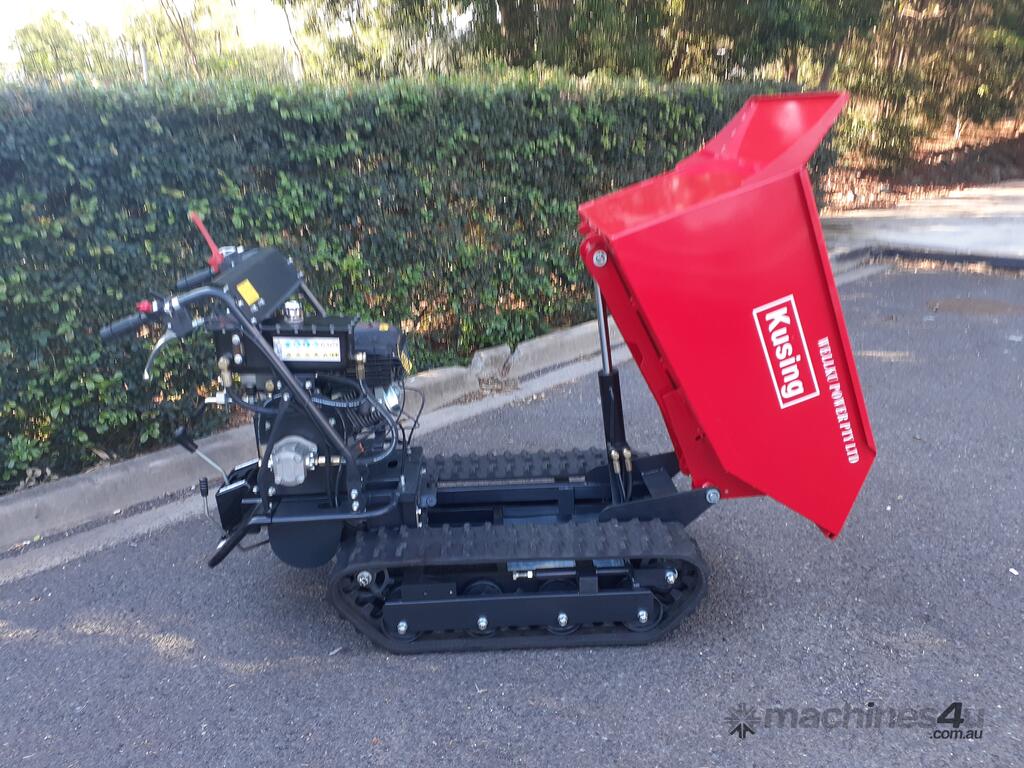

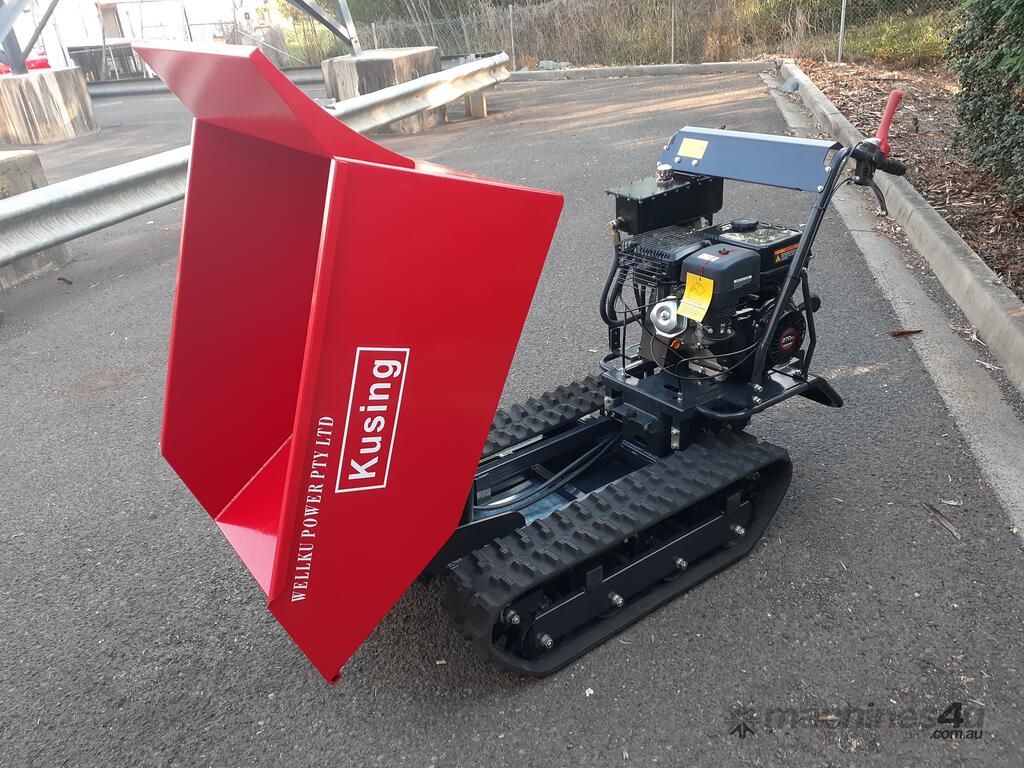

• Hydraulic tipping operation

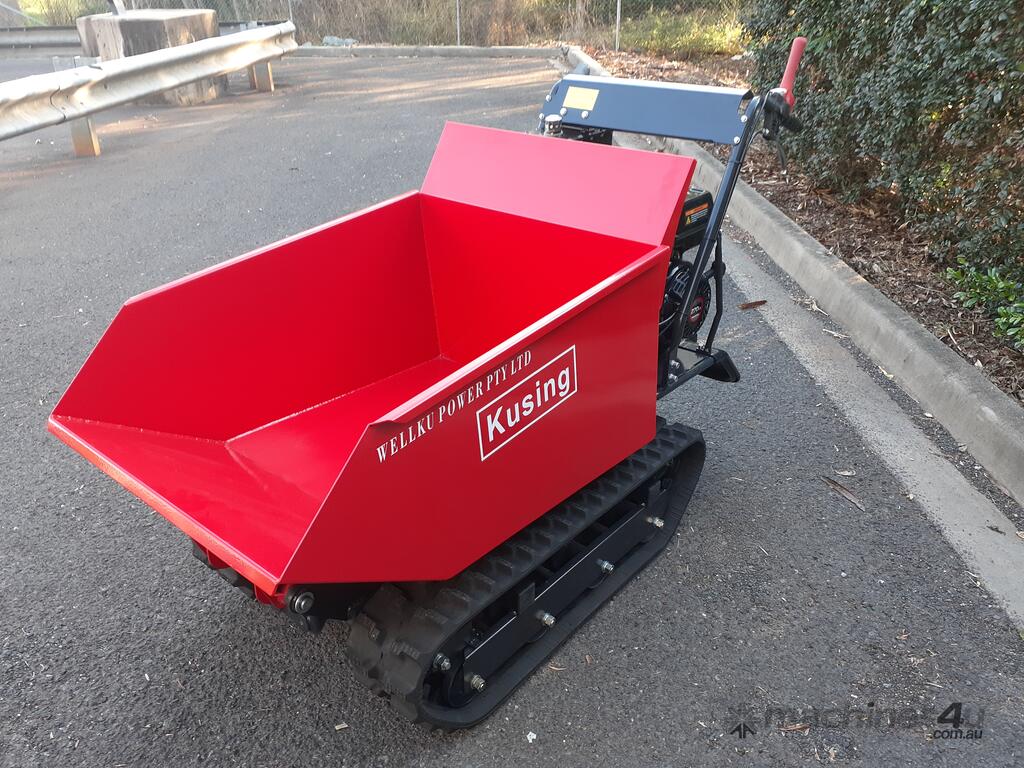

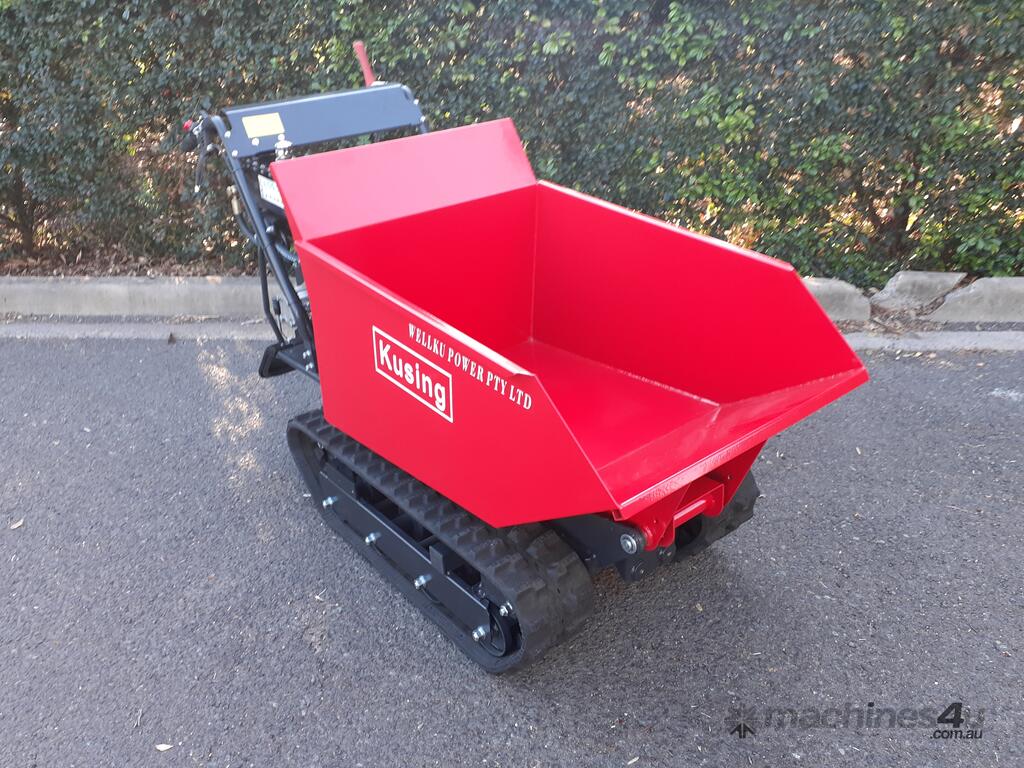

• Heavy duty bin
• Tracks made from heavy duty rubber for safe use on paved surfaces.
• Ground clearance 110mm
• Turning distance 82cm
• Maximum working pressure 200BAR

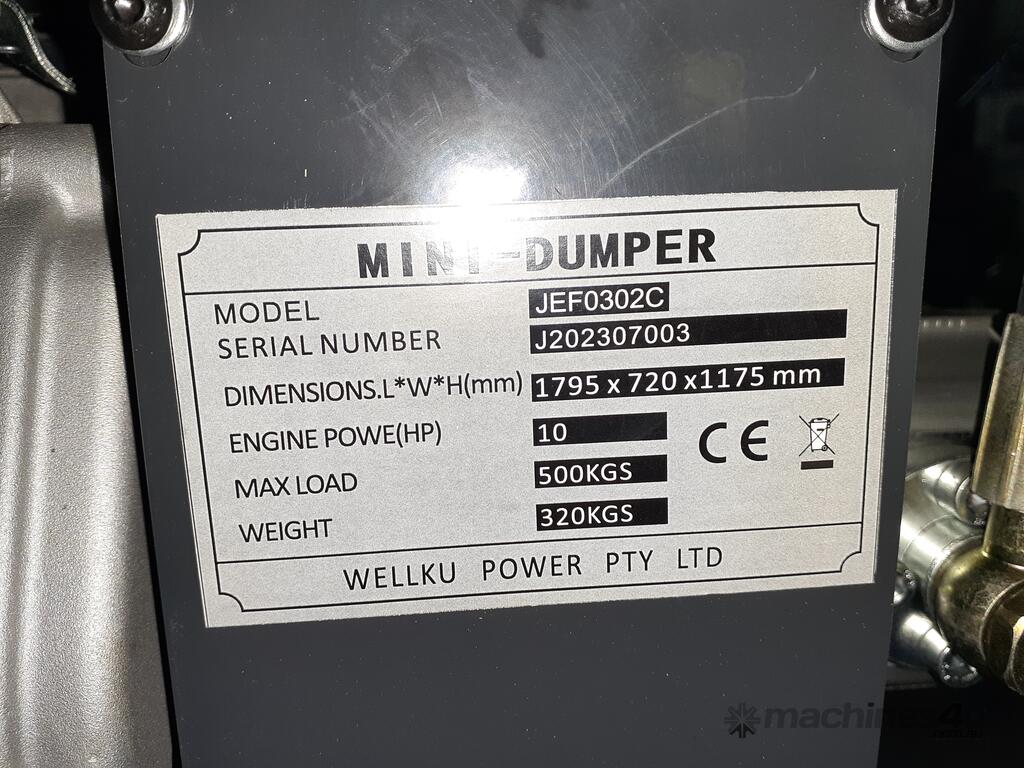

Model No. K0302C

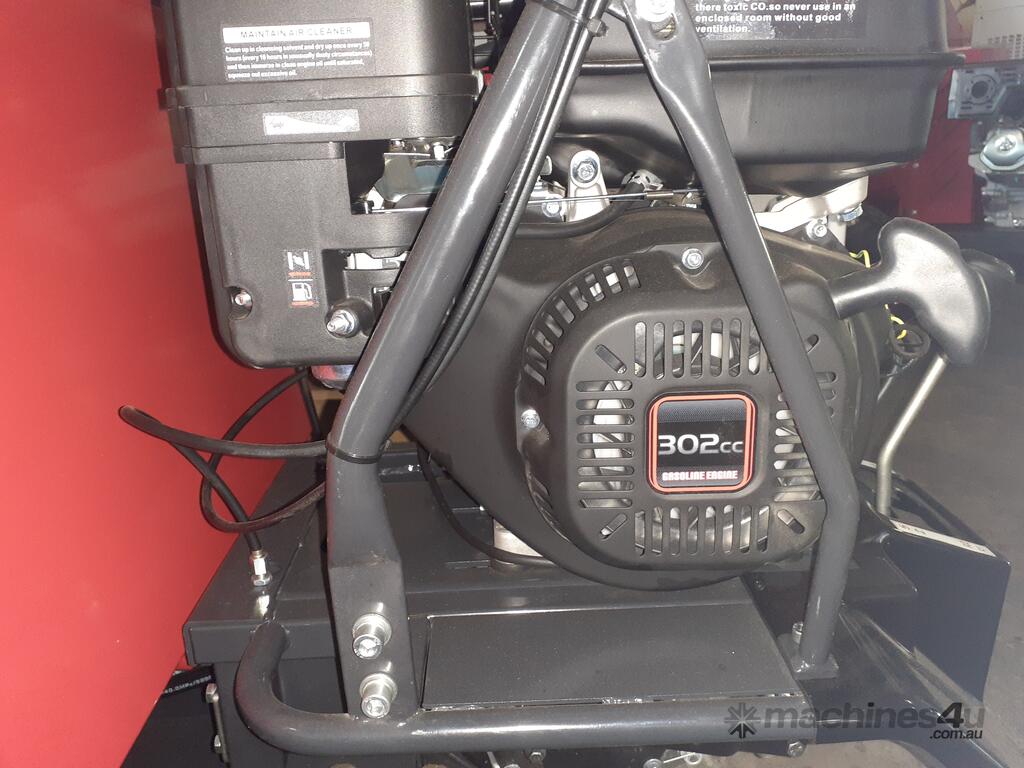

Engine Make Lancin OHV
Engine Displacement 302cc / 10HP
Engine Type Single Cylinder 4 Stroke Air Cooled
Fuel Tank Capacity 10 Litres
Maximum Carry Weight 500kg / 30% gradient 375kg
Maximum Speed 5km/hour
Start System Recoil
Fuel Consumption Est. 1.5 L/hr
Engine Oil Specification 10W/40
Engine Oil Capacity 2 Litres
Hydraulic Oil Specification ISO 46
Hydraulic Oil Capacity 5-6 Litres
Fuel Specification ULP 91
Noise Level 93 DBA
Track Width 180mm
Bin Dimensions 1000L x 700W x 450H mm
Dimensions 1630L x 750W x 970H mm
Shipping Dimensions 1650L x 750W x 1110H mm
Weight 320kg
Shipping Weight 350kg

12 months warranty
All spare parts available
