Minimax C 26G X1 Combination Machine

The minimax c 26g affordable universal combined machine, offering the exceptional quality of minimax. Ideal for demanding hobbyists and crafts woodworking workshops, this machine excels in ease-of-use with an inward-opening surfacing worktable and anodized-extruded guides, maximum flexibility with adjustable speeds on the spindle moulder unit and precise cutting with a tiltable saw unit and sliding aluminum carriage.

-minimax c 26g CE version
-Wheels for machine movement
-“Xylent” spiralknife cutterblock with 3 series of knives
-Single-phase motors 1,8kW (2,5hp) 50Hz – 2,2kW (3hp) 60Hz
-Spindle moulder shaft of 30 mm diam
-Locking by countersunk socket screw

Additional Information
Cutting precision

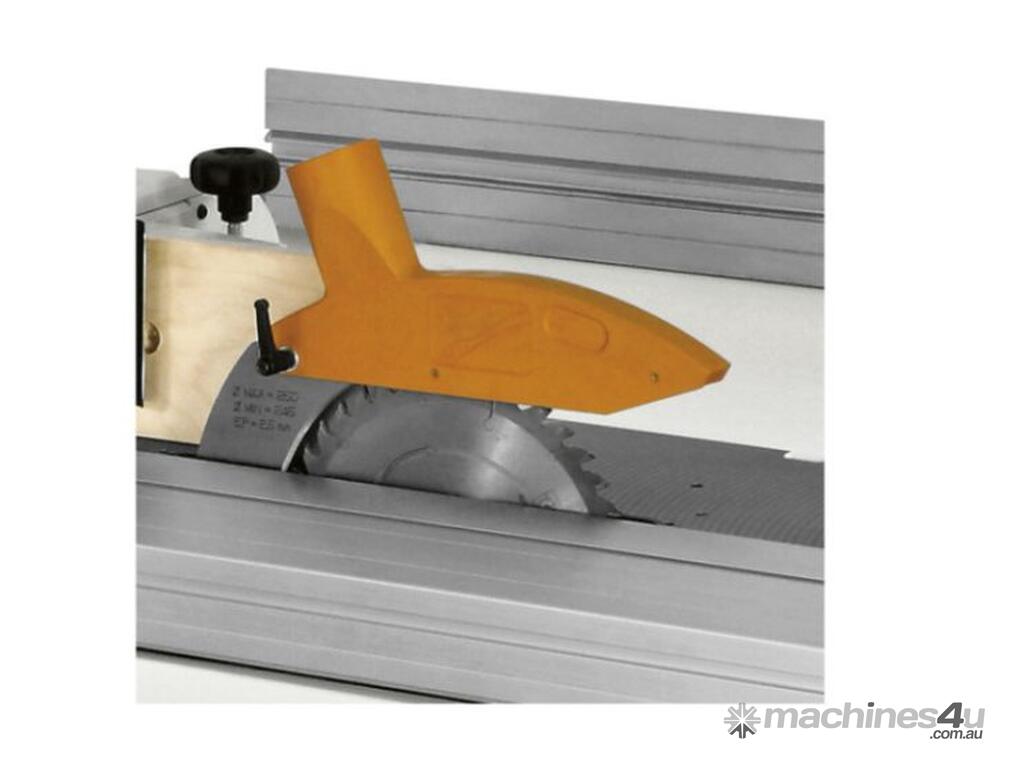

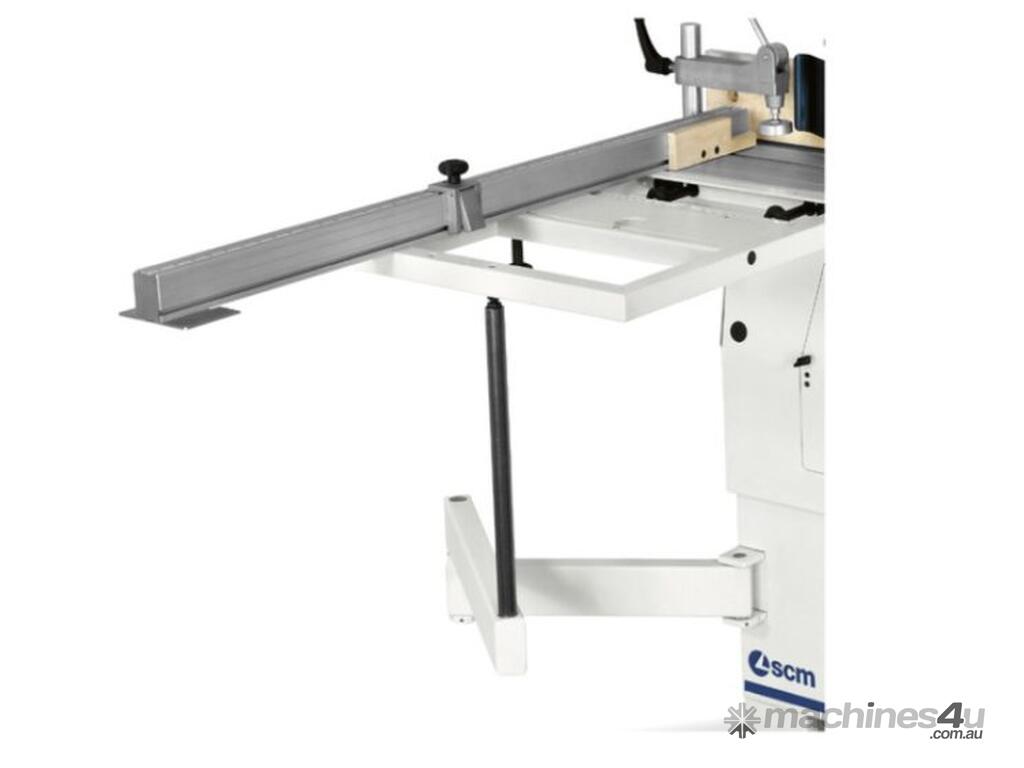

Tilting saw unit with a 250 mm blade and a maximum blade projection from table at 90° of 80 mm. The saw unit can be raised and tilted using convenient hand-wheels. The anodized aluminum sliding table, with a 1200 mm stroke, slides next to the blade, thus ensuring better cutting precision.

Flexibility

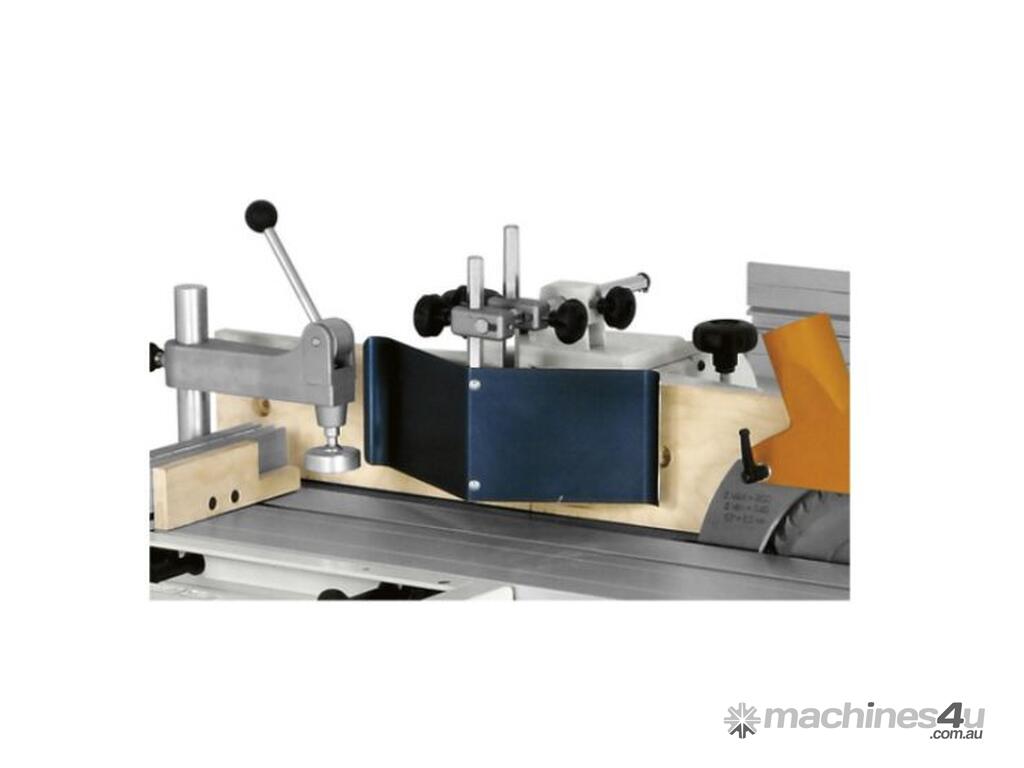

Maximum flexibility in spindle moulder tool use, with the unit with 2 speed (5000/7500 rpm). The machines have a spindle moulder fence with micrometric adjustment, a feature which is particularly useful on profiling jobs. Tenoning is easy too, thanks to the aluminum sliding table, the right speed setting and the special protection hood (option).

Practical and ergonomic
To keep the machine compact and make machining easier, the surfacing table opens towards the inside of the machine. Thanks to an efficient feed system, the thicknessing unit can process wood up to 200 mm thick.

CE safety
Genius machines have a rich equipment of CE safety available as standard, such as the spindle protection to carry out machining on curved and shaped profiles.

TECHNICAL DATA
Cutterhead working width mm / inches 260 /10
Jointer bed length mm / inches 1040 / 41
Max. sawblade diameter mm / inches 250 / 10
Sawblade arbor size mm / inches 16 /
Max. sawblade projection from table at 90°/45° mm / inches 75/60 2.95/2.36
Cutting width on parallel fence (Rip capacity) mm / inches 500 / 20
Max. useful spindle length mm / inches 75 / 3
Max. tool diameter when profiling mm / inches 160 / 6.25
Spindle moulder speed rpm 4000/6500
Single-phase motors kW (Hp) 1,8 (2.5) – 2,2 (3)
