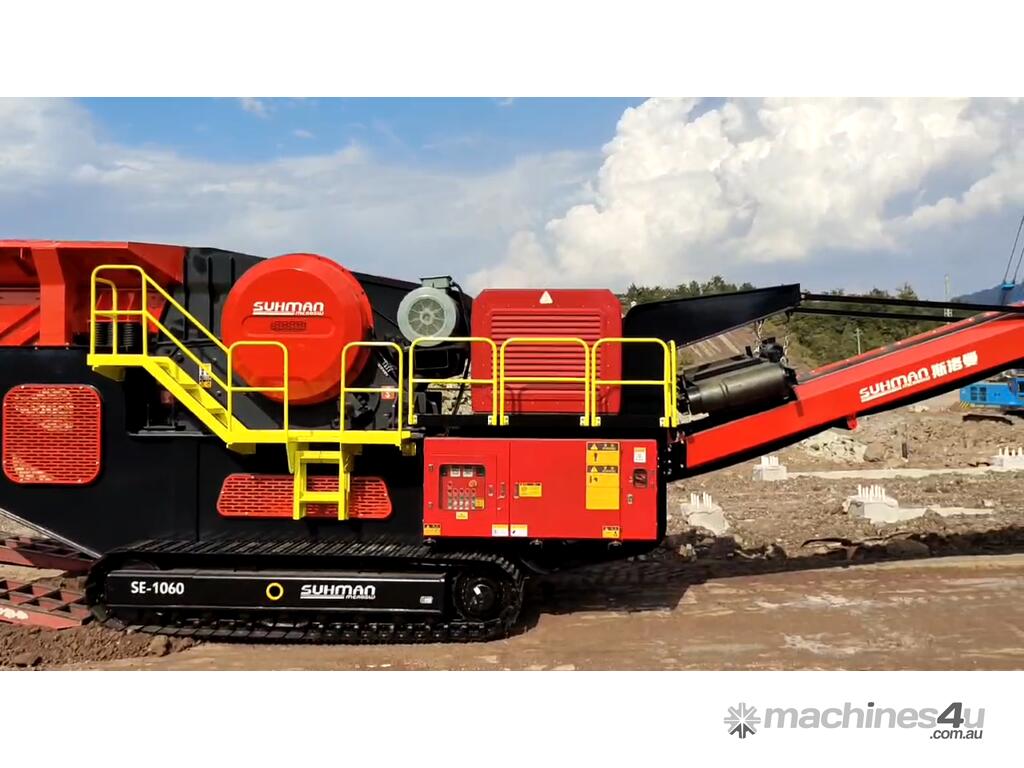

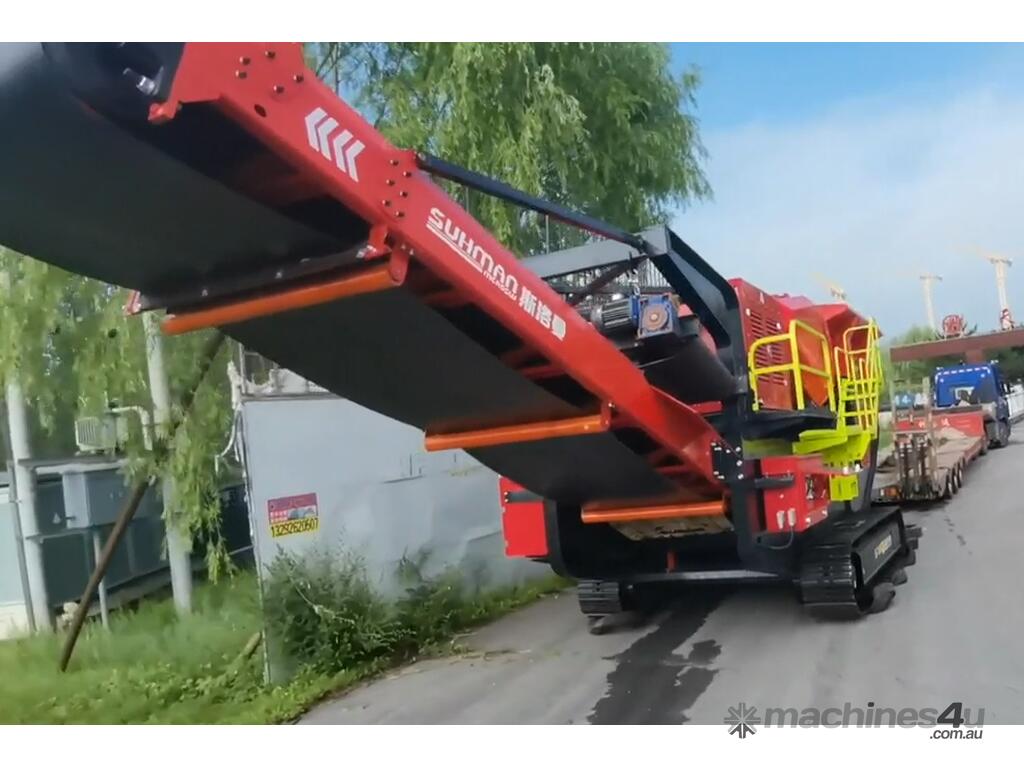

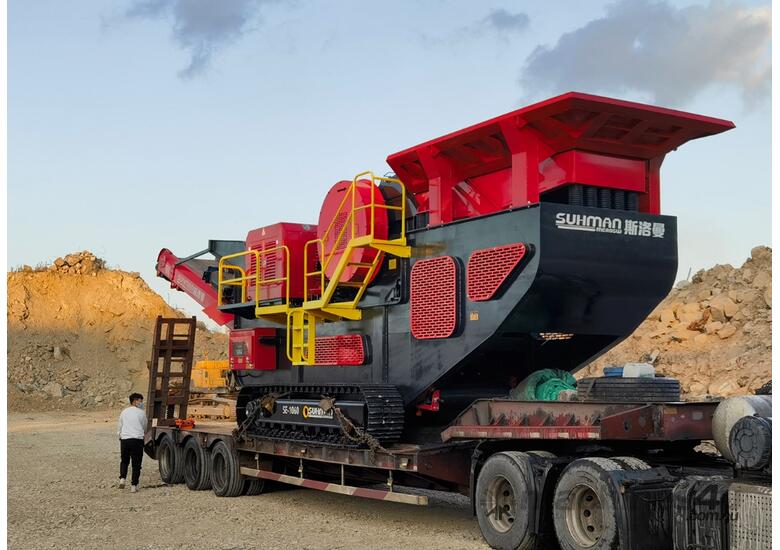

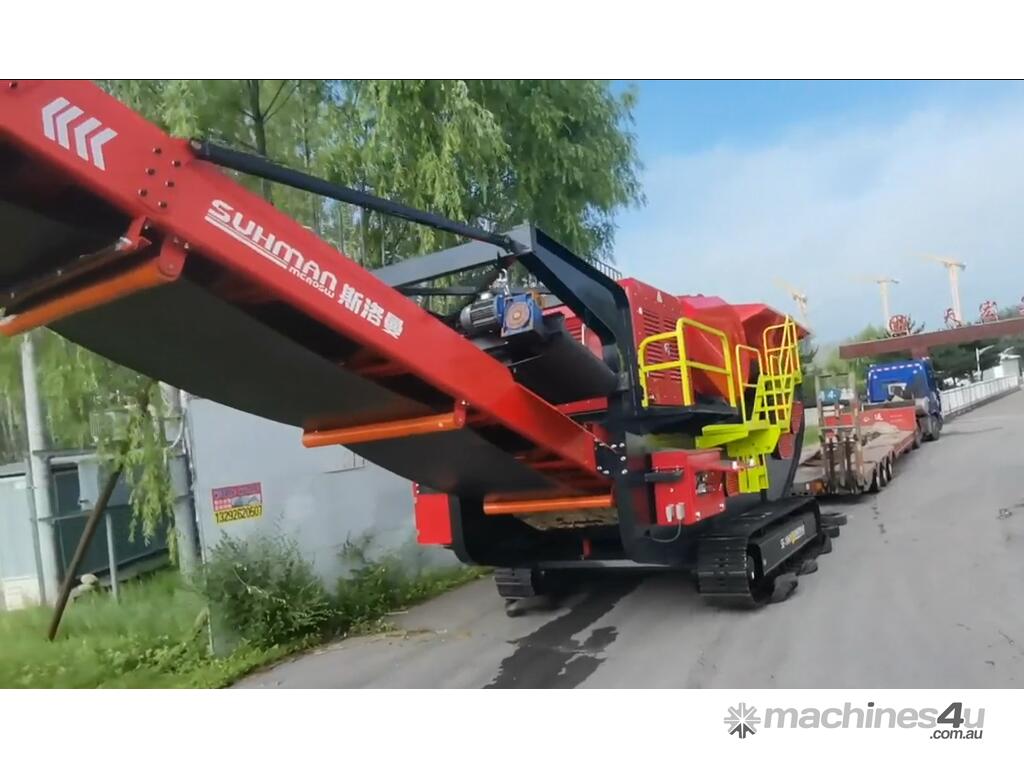

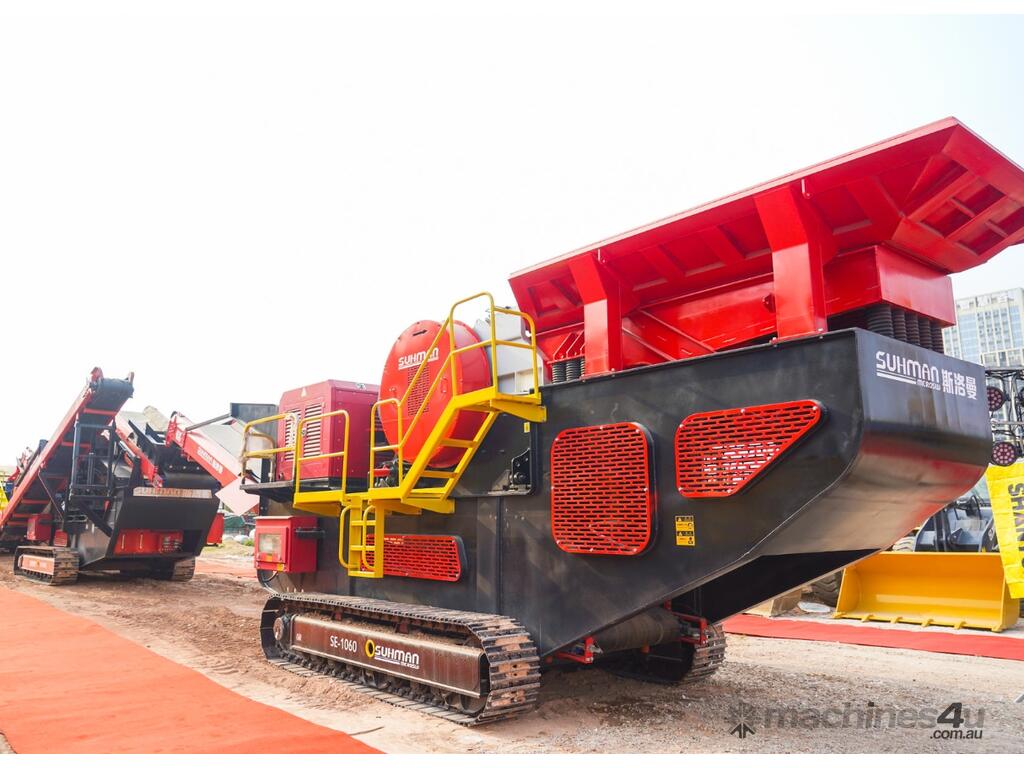

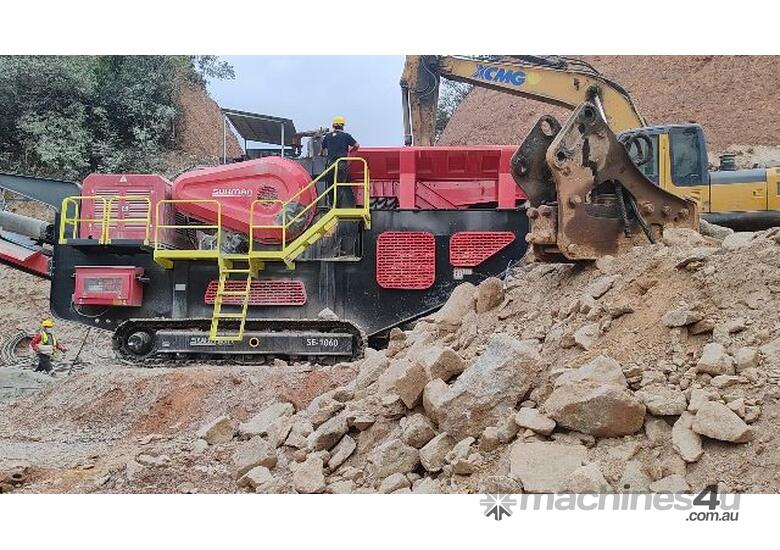

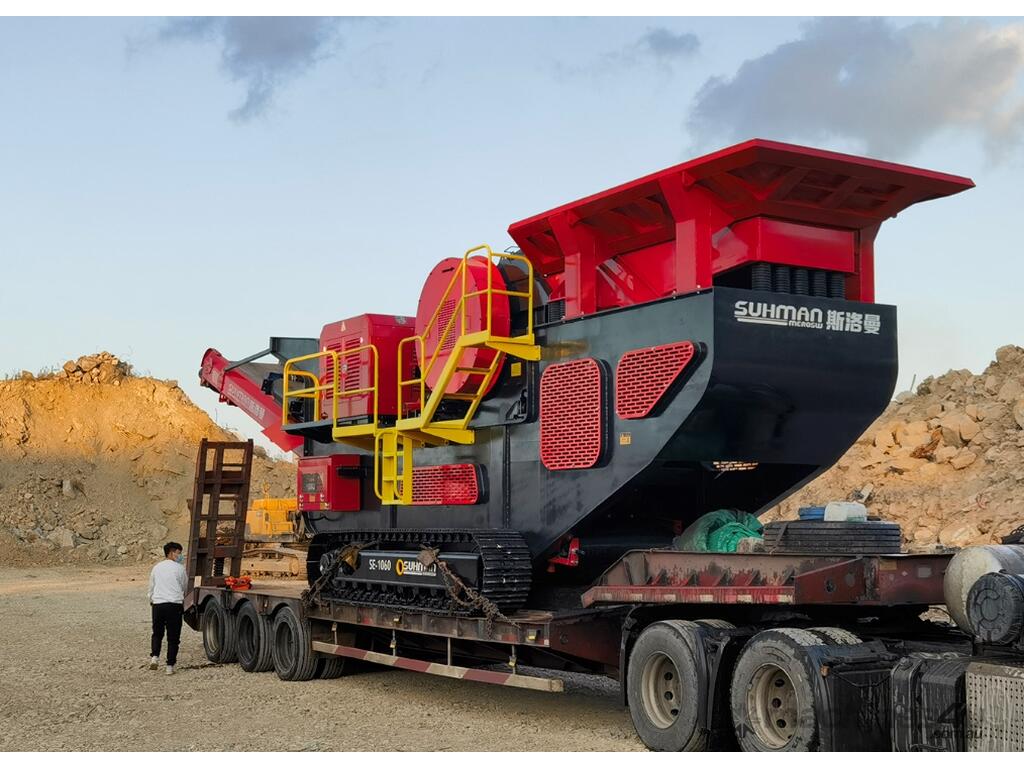

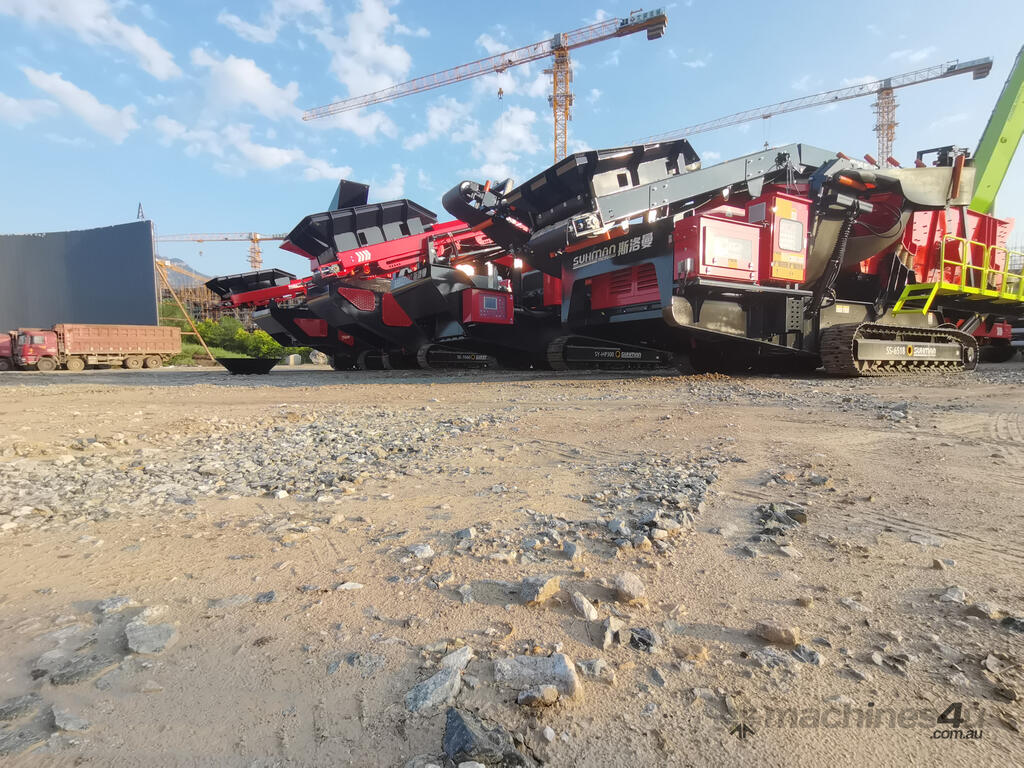

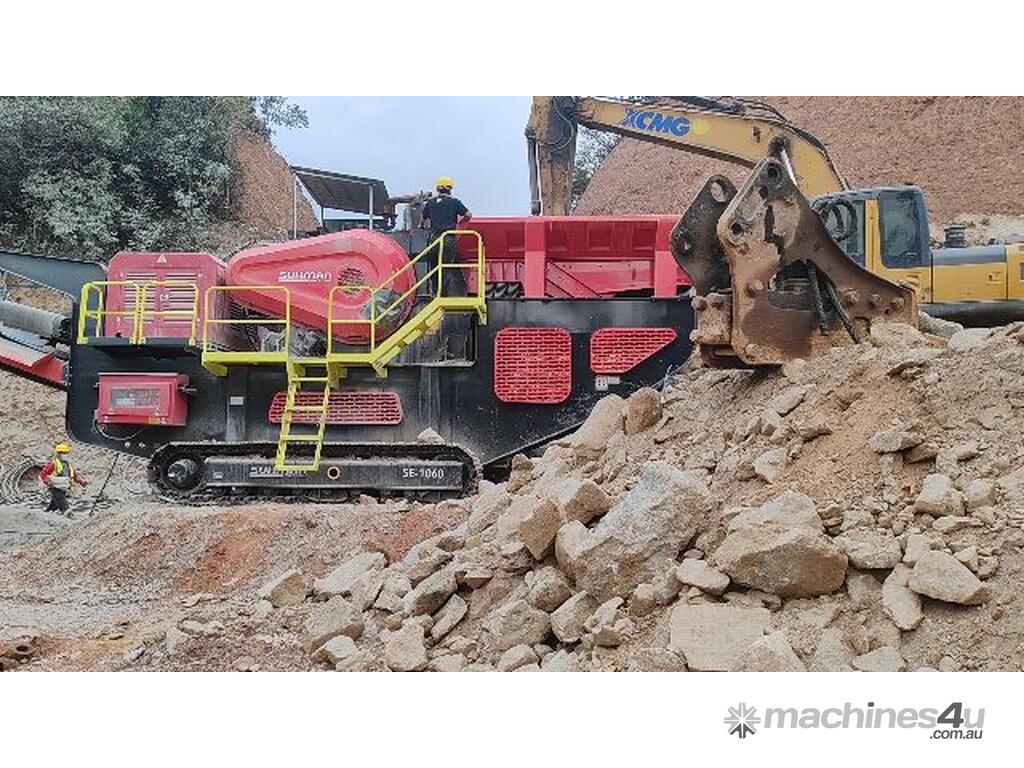

High-performance tracked mobile jaw crusher designed to maximise productivity in mining, construction, aggregate manufacturing, and C&D recycling projects.
Equipped with a feed hopper, vibrating feeder with a pre screen, jaw crusher, stockpiling conveyors, and a diesel generator for stand-alone operation.
SE-1060 Technical Features:
- Feed Hopper Volume: 3m³
- Feed Hopper Dimensions: 4200 x 2100mm (3800mm Feed Height)
- Vibrating Pre Screen: 3500 x 1000mm (7.5kW)
- Jaw Crusher: 1060 x 700mm (110kW)
- CSS Adjustment: 80-180mm
- Overband Magnet (3kW)

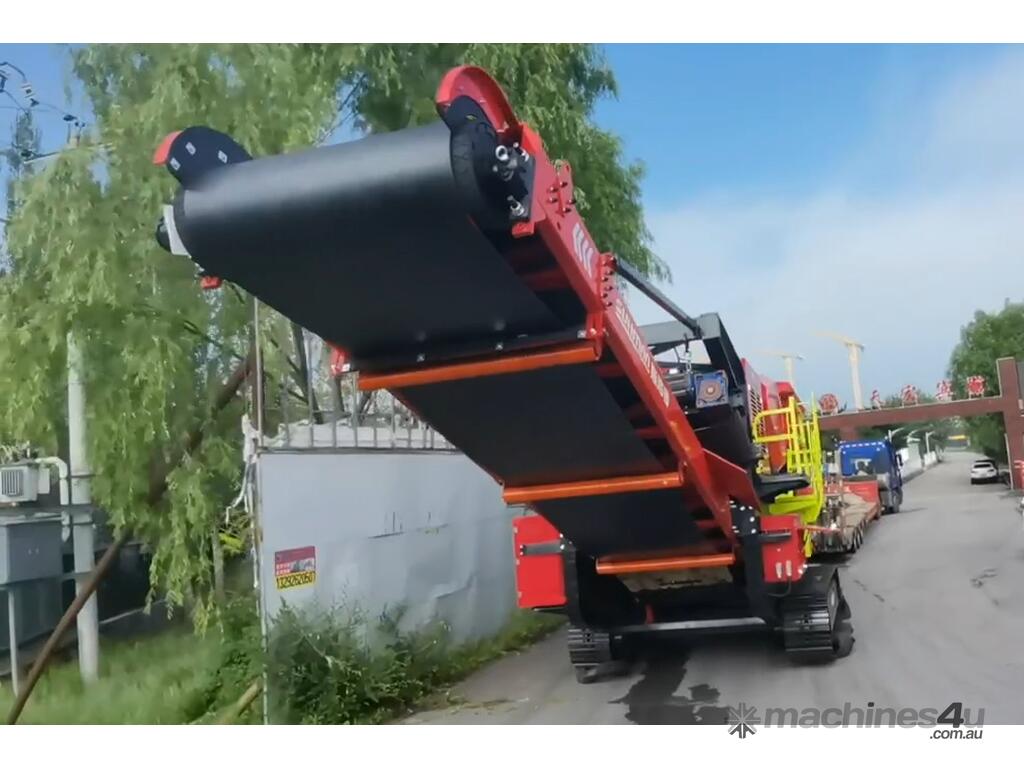

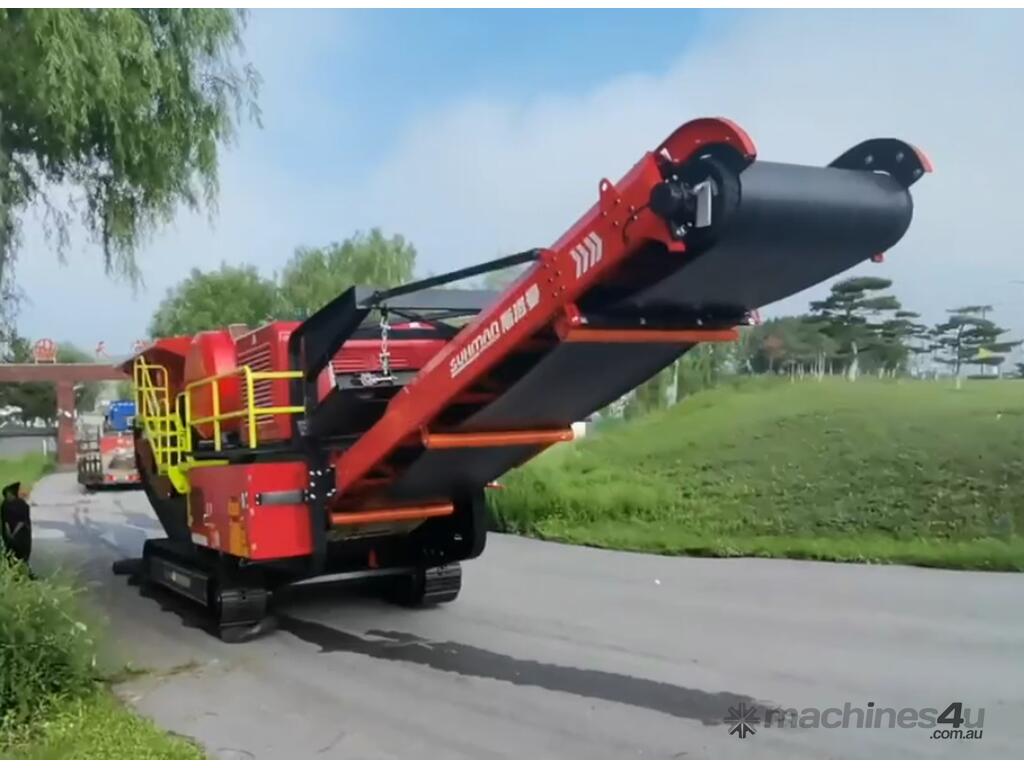

- Main Stockpile Conveyor (3kW)
- Dimensions (LxW): 11m x 1.2m
- Discharge Height: 3000mm
- Strickland tracks
- Dimensions (LxW): 4500mm x 500mm
- Maximum Gradient: 30°
- Travel Speed: 0.8 to 1.5km/h (w/audible and visual telltales)
Diesel Tank Capacity: 600L

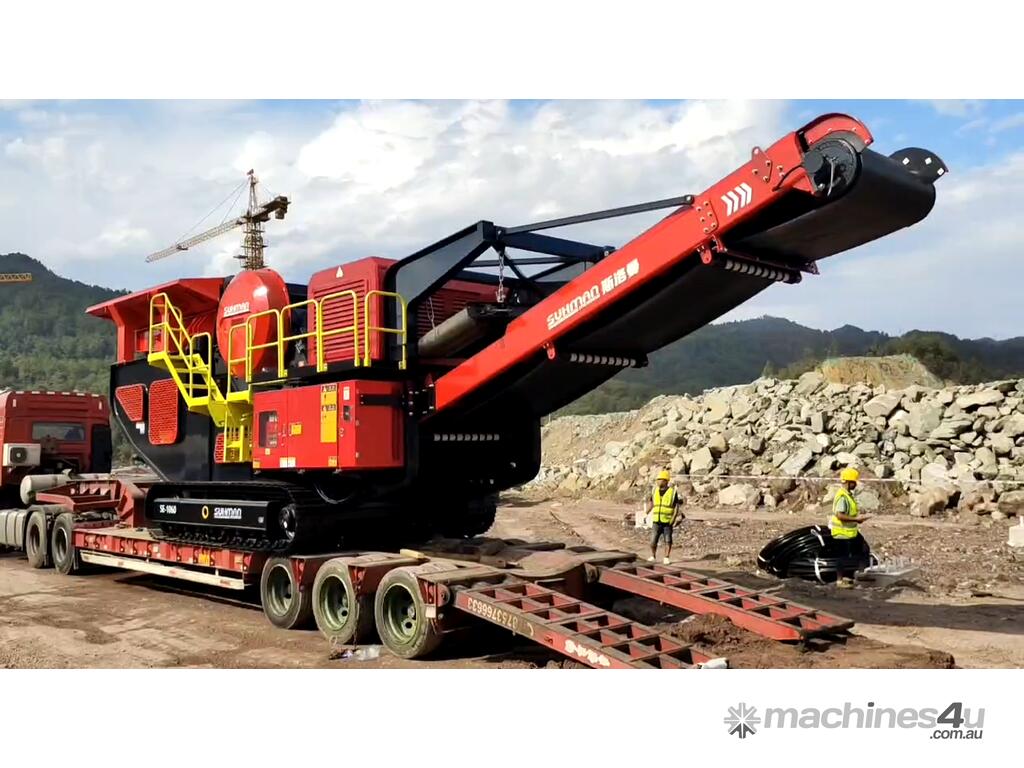

Transport Dimensions (LxWxH): 15.65m x 3.1m x 3.8m
Complete Weight: 46T
Production Capacity: up to 250TPH (material and input size dependent)
With a deep understanding of large-scale infrastructure projects, including civil aspects, we are well-positioned to facilitate the integration of different equipment into overall project scopes. Our specialised equipment is sourced from around the world from only class leading manufacturers. This, coupled with our process driven methodology, enables us to deliver projects to the highest quality.
