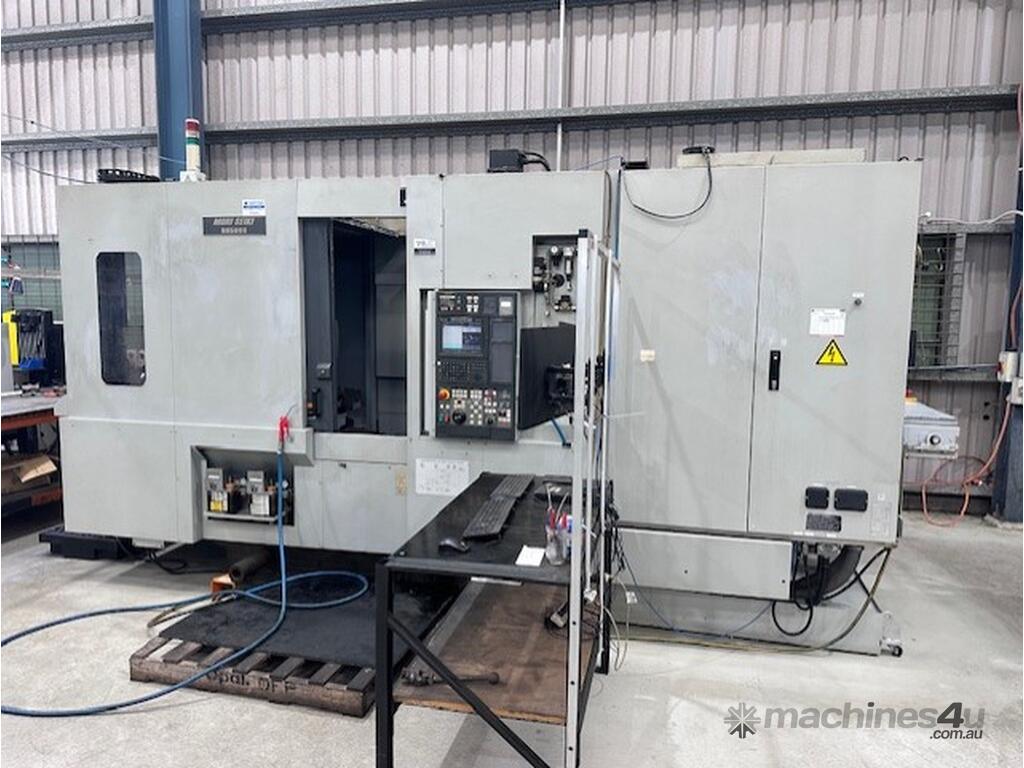

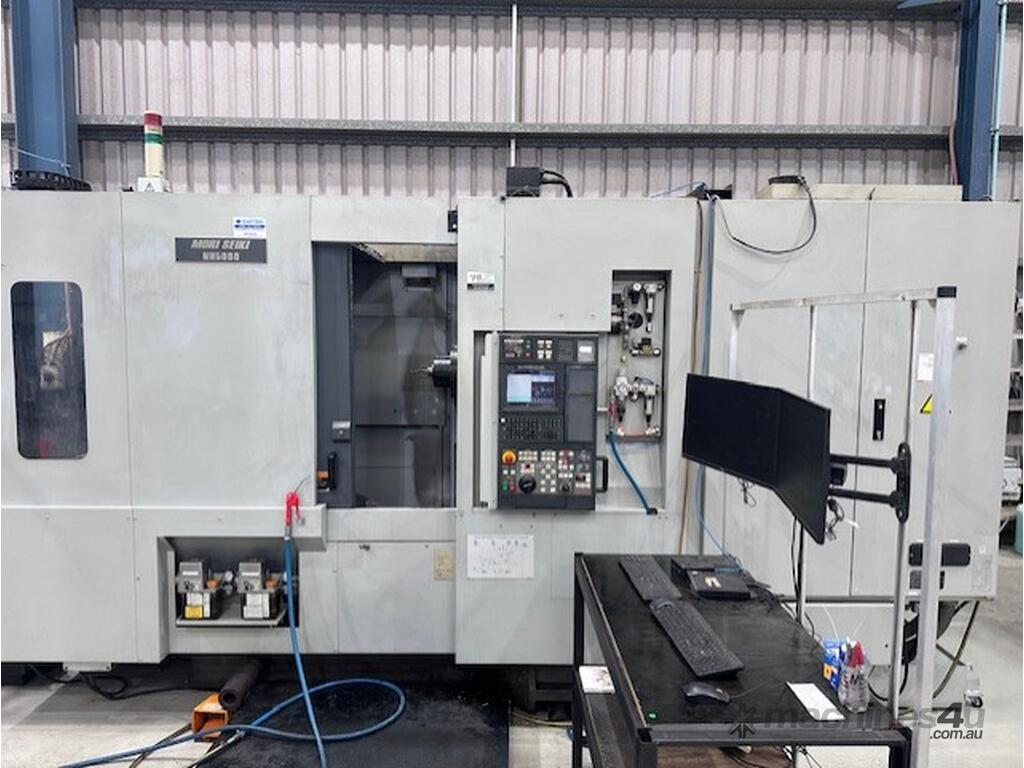

Used NH5000 Mori Seiki - Horizontal Machining Centre
Machine in excellent working order. Regretful sale.
Machine available for inspection by appointment or video call.

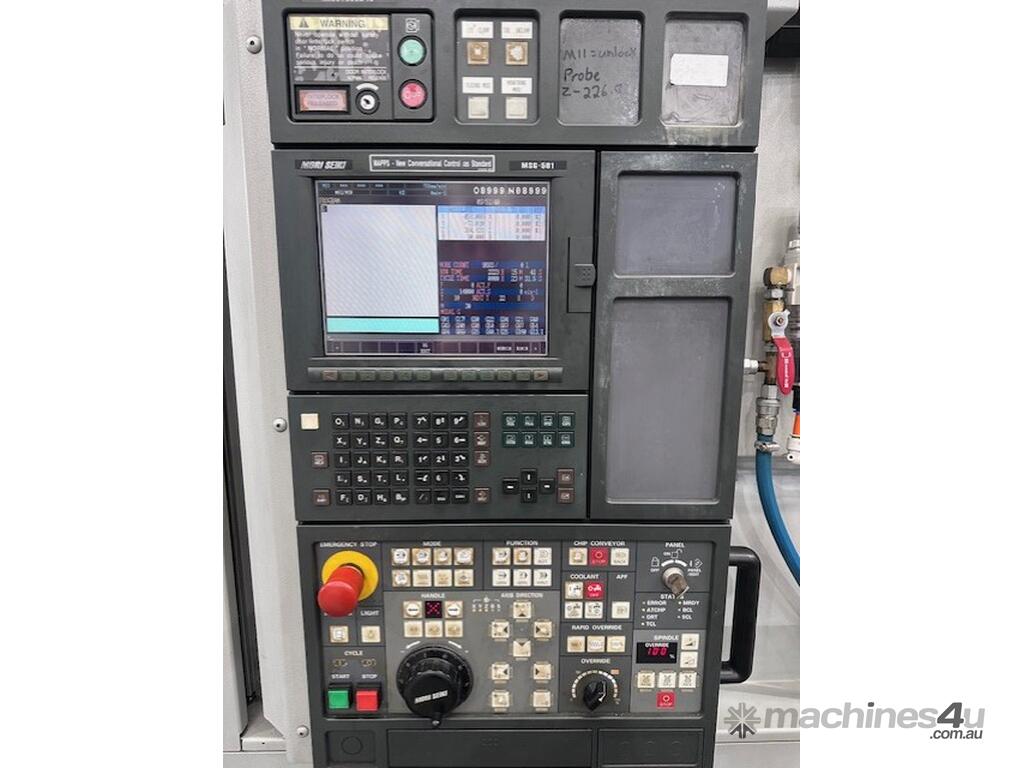

- Control -
Fanuc system with Mori MSX501 control
RS232 data transfer

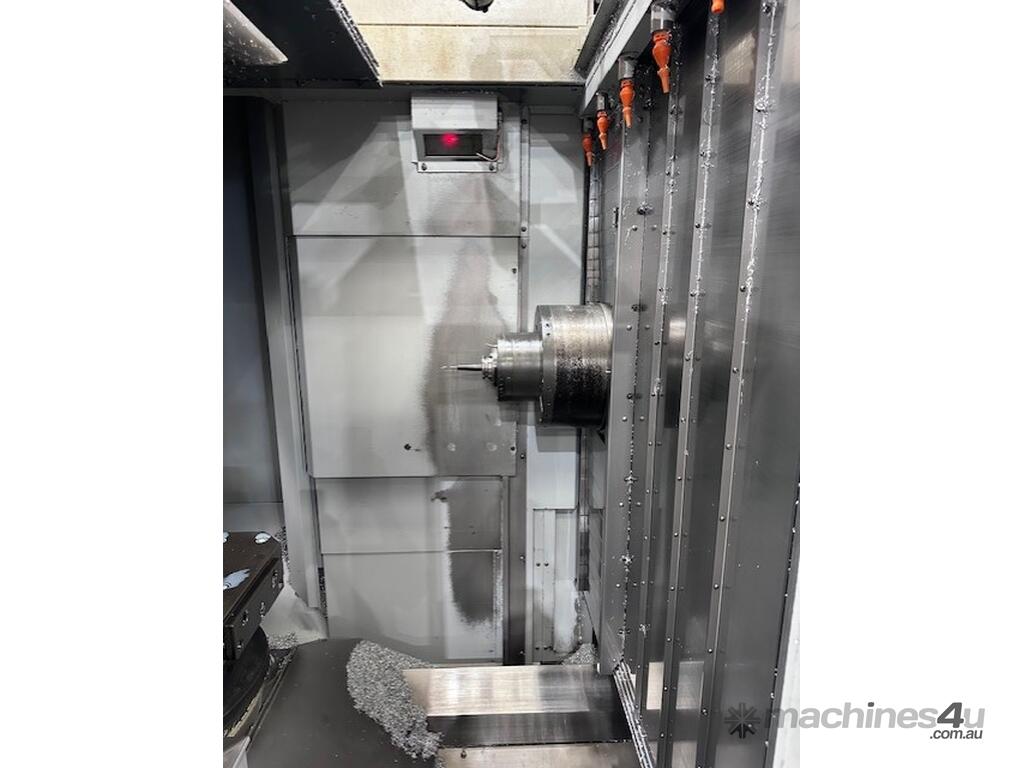

- Spindle -
14,000 rpm in-line spindle – 18.5/22kW
BT40 spindle taper
Chiller
Through Spindle Coolant
- Travels -
X – 630mm Y – 600mm Z – 670mm
Rapids 40m/min
Cutting Feed 40m/min

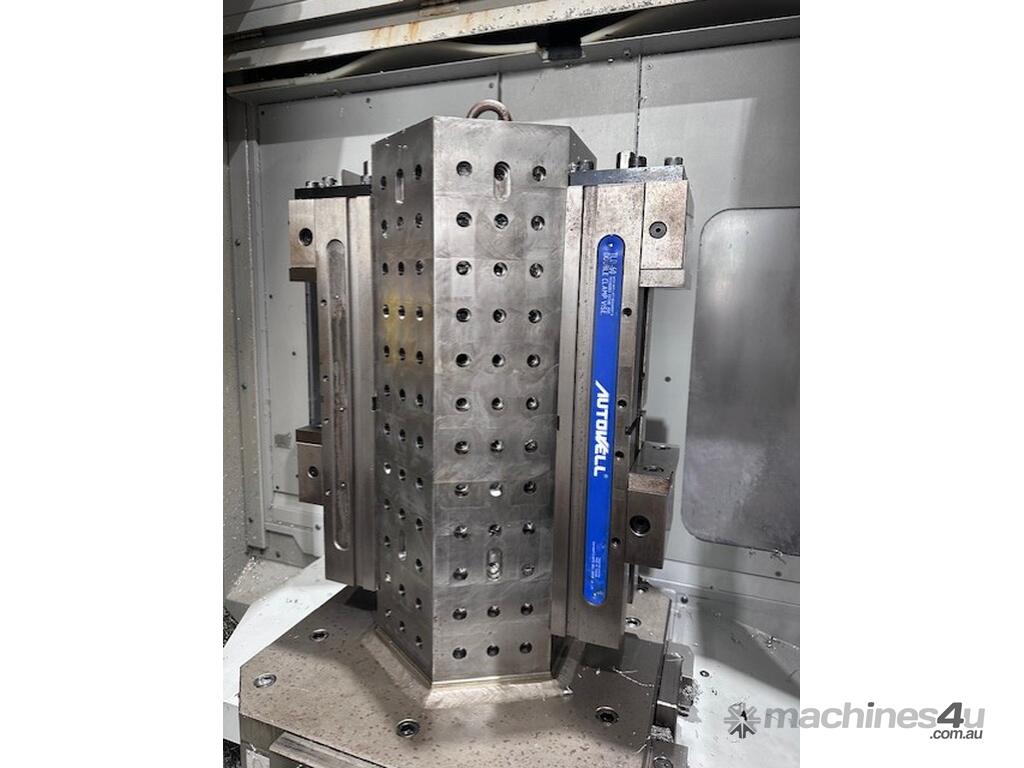

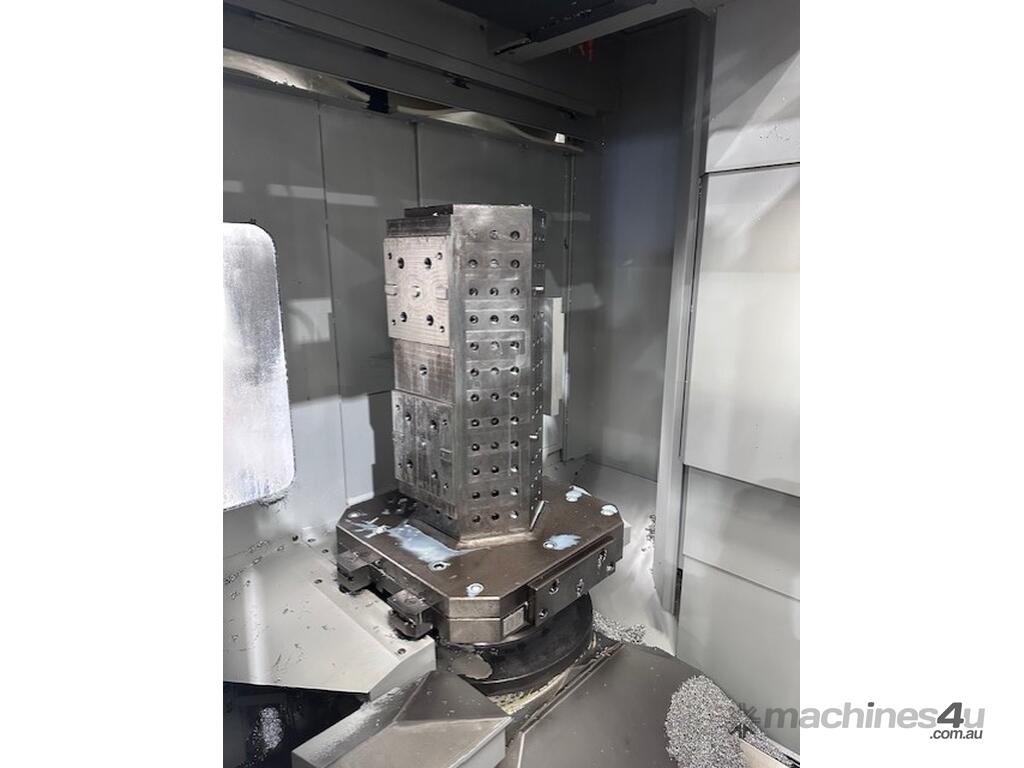

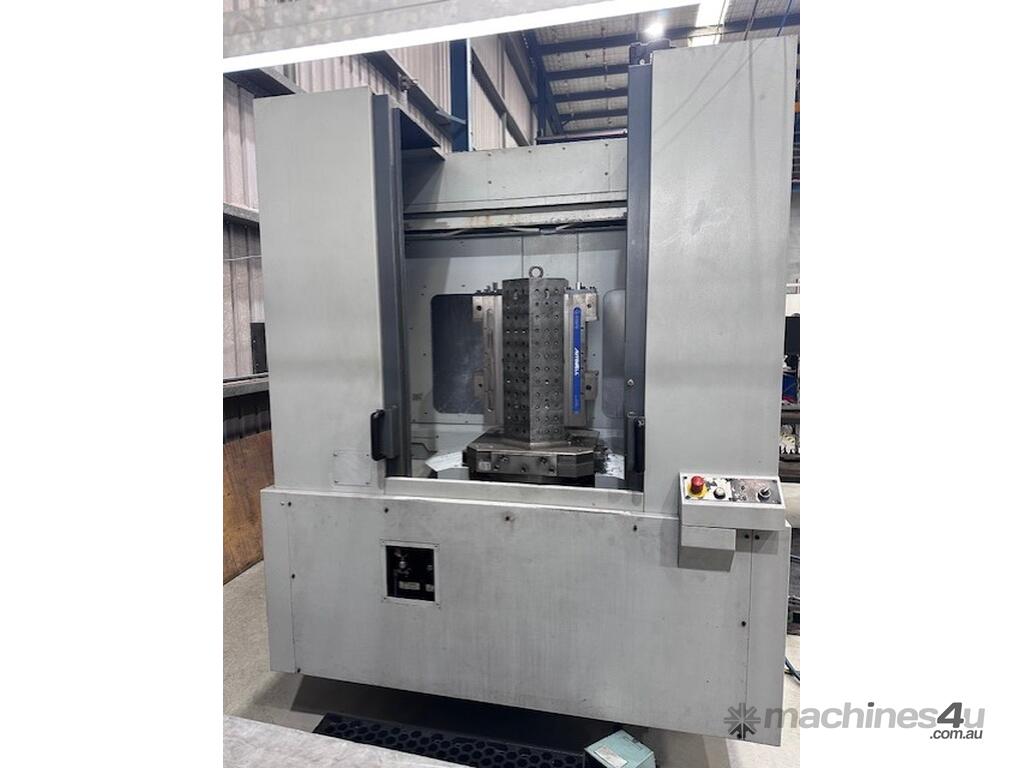

- Pallet -
Dual Pallet size 500mm x 500mm
0.001 degree table index

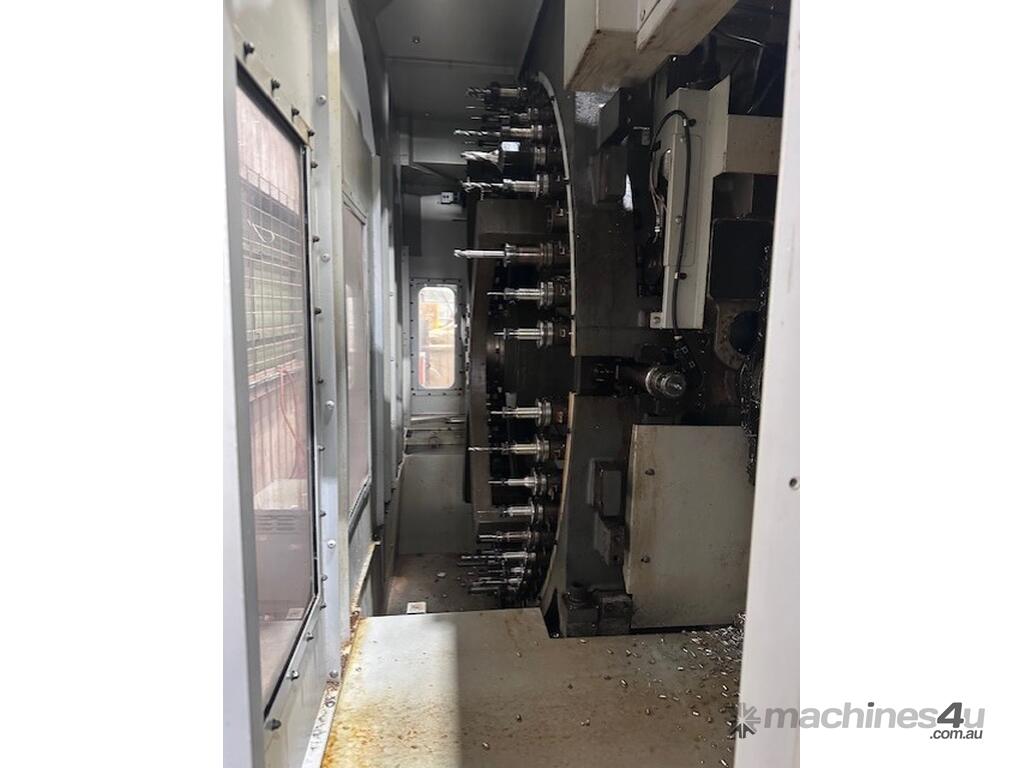

- Tool Changer -
60 tool ATC
8kg max
Chip conveyor
- Machine Dimensions -
L- 5,000mm x W – 2,415 x H – 2930mm
Weight 10,000Kg

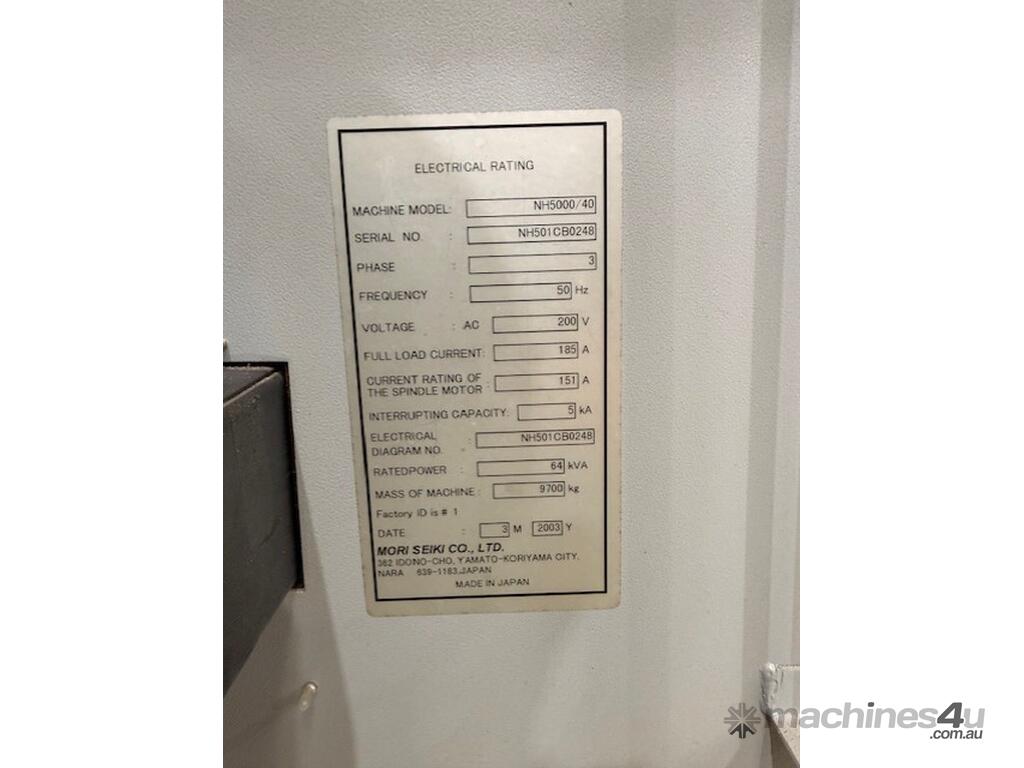

Power 68kvA
