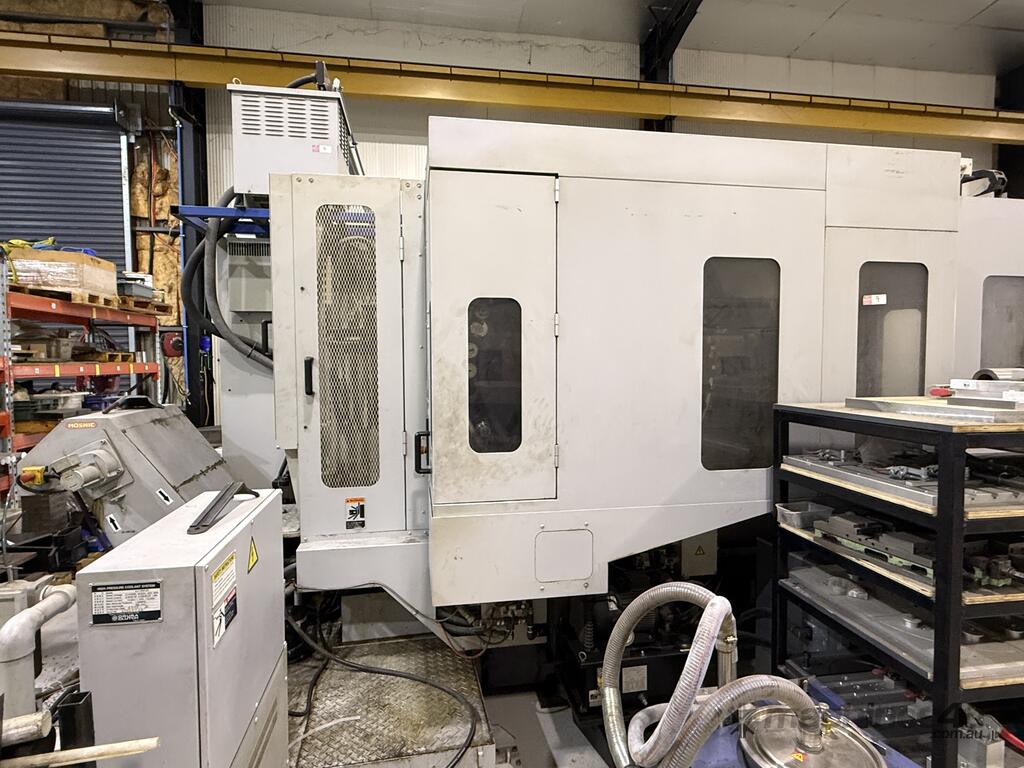

The Mori Seiki NH5000/40 is a high-precision horizontal machining center designed for efficient and accurate machining of medium to large-sized workpieces. Engineered with advanced features, it enhances productivity and precision across various manufacturing processes.
Key Specifications
Pallet Size: 500 mm × 500 mm (19.7" × 19.7")
Number of Pallets: 2
Maximum Pallet Load: 500 kg (1,100 lbs)
X-Axis Travel: 630 mm
Y-Axis Travel: 600 mm
Z-Axis Travel: 670 mm
B-Axis Indexing: 1° increments
Spindle Speed: Up to 14,000 RPM
Spindle Taper: BT40
Spindle Motor Power: 30 HP (22.4 kW)
Tool Magazine Capacity: 60 positions
Tool Change Time: ~2.3 seconds (chip-to-chip)
Rapid Traverse Rates (X, Y, Z): 50 m/min
Control System: Fanuc MSX-501 or MSX-701
Machine Dimensions: Approx. 2,725 mm (W) × 4,610 mm (D) × 2,770 mm (H)
Machine Weight: Approx. 9,700 kg
Year of Make: May 2005
Typical Applications
Automotive: Engine blocks, transmission housings, brackets
Aerospace: Turbine housings, structural components, brackets
General Engineering: Custom parts and tight-tolerance prototypes
Medical Device Manufacturing: Surgical instruments, implants
