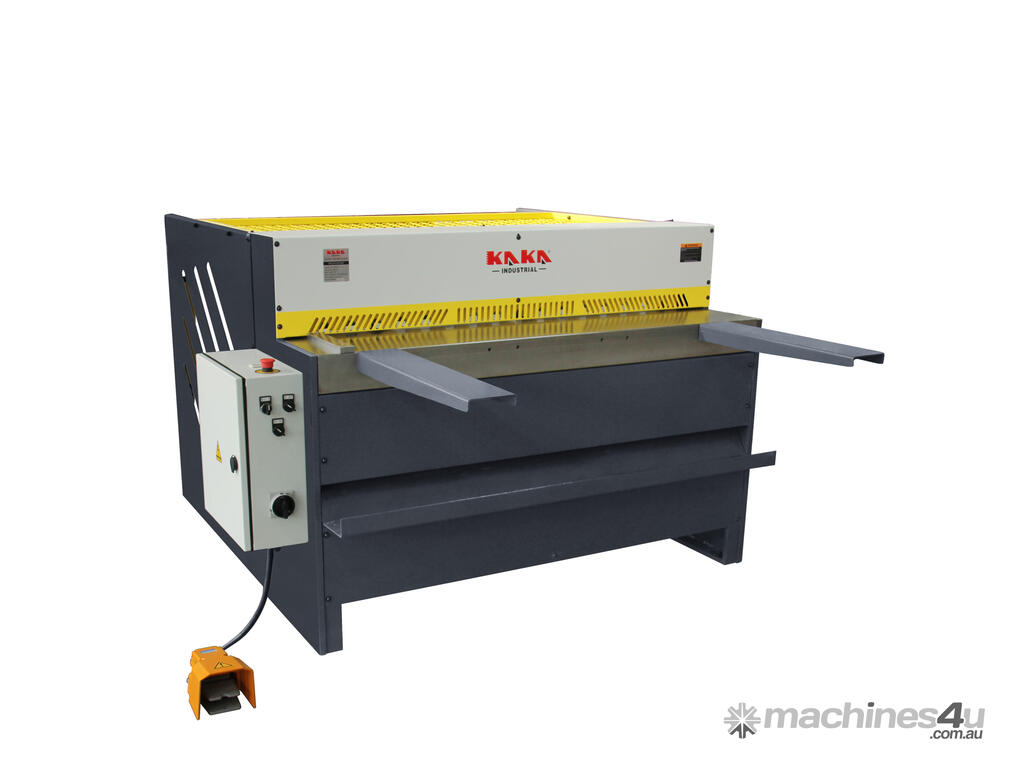

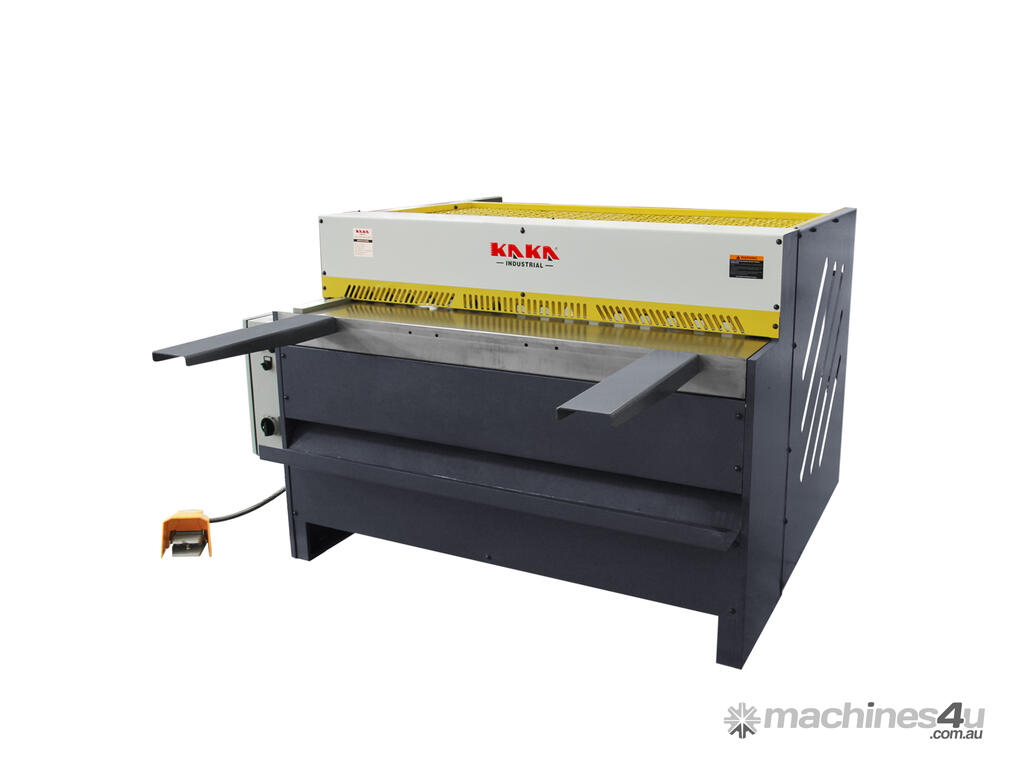

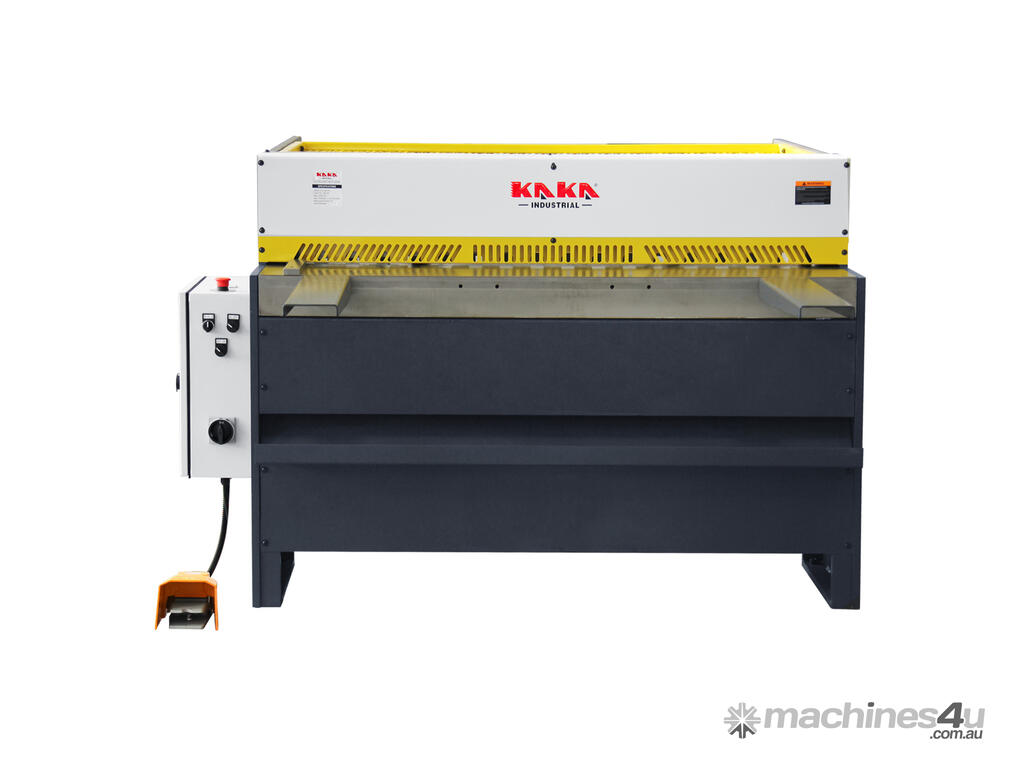

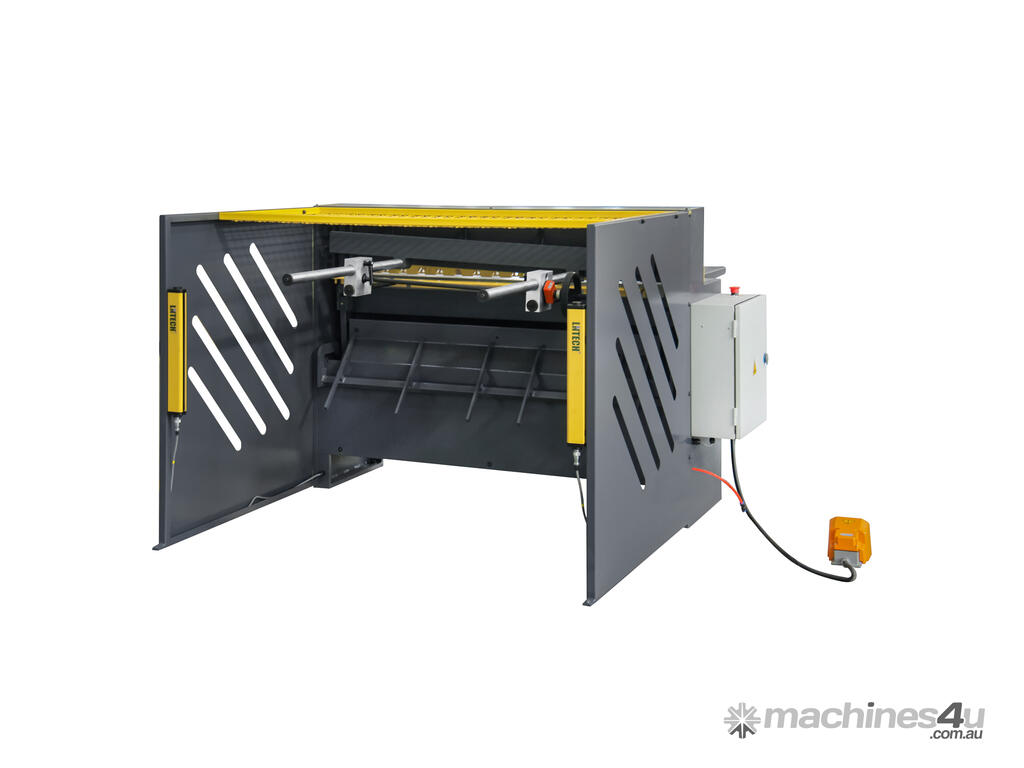

Motorised Guillotine for 3x1250mm Sheet Metal Cutting
The Motorised Guillotine Shear Q11-4811A with Pneumatic Sheet Support System is a robust, motorised sheet metal cutting machine engineered for precision and efficiency in workshops and industrial settings. Ideal for cutting materials like mild steel sheet (up to 3 mm thickness ), brass, aluminium, and copper, it features a cutting length of 1250 mm and a cutting angle of 2°. The machine includes a pneumatic sheet support system that enables flexible sheet ejection either to the front (operator side) or the back, enhancing workflow versatility.
Precision and Clean Sheet Cutting. Delivers burr-free, accurate cuts with quality steel blades and cutting line illumination, reducing material waste and post-processing time, ideal for the fabrication industry.
Versatile Material Cutting. Supports a range of metals and large sheets with integrated rolls and pneumatic support, perfect for diverse projects from automotive repairs to construction.
Efficiency and Durability Guillotine Shear. Motorised backgauge and automatic downholders boost productivity, while the sturdy build ensures long-term reliability in demanding conditions.
Flexible Workflow. Sheet ejection to front or back adapts to different workspace layouts, optimising space in compact garages or industrial sheds.
Features
Max. cut 3.0mm thick mild steel at full length

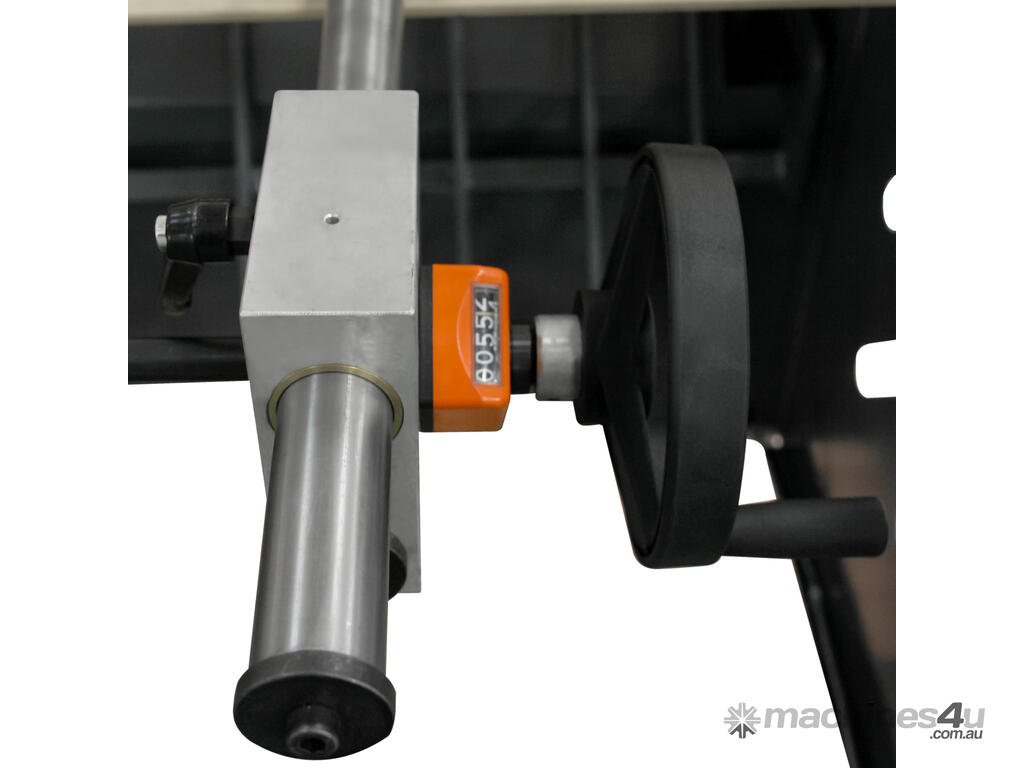

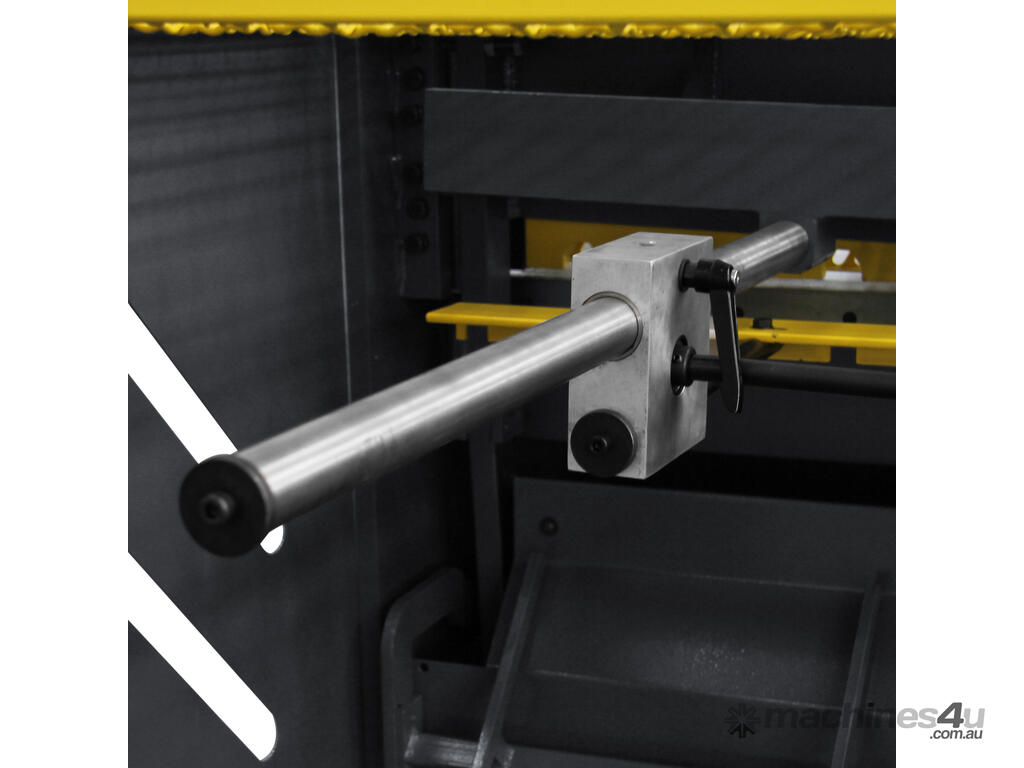

Manual adjustable 635mm backgauge
Double-edged top and bottom blades made of quality steel guarantee a clean and burr-free cutting
Cutting beam works perfectly sliding, precision cutting.
The mechanical sheet clamping system holds the materials well.
The integrated cutting line illumination with silhouette
Standard Included:

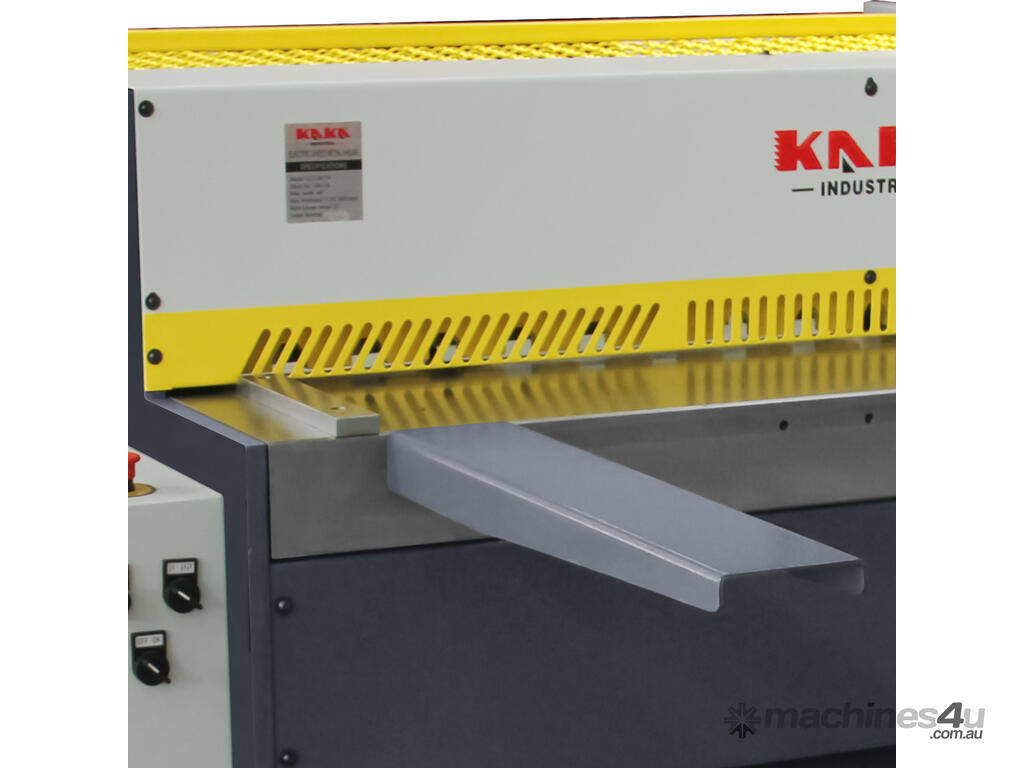

Front sheet metal support
Cutting line illumination
Side stop
Pneumatic sheet support system
Specifications
SKU 186108
Model Q11-4811A
Shearing capacity 3x1250 mm (Mild Steel)
Shearing angle 2 °
No. of stroke 28 per min.
Motor power 3.0 kW
Back gauge 635 mm
Packing size 184x117x133 cm
N.W./G.W. 870/975 kg
