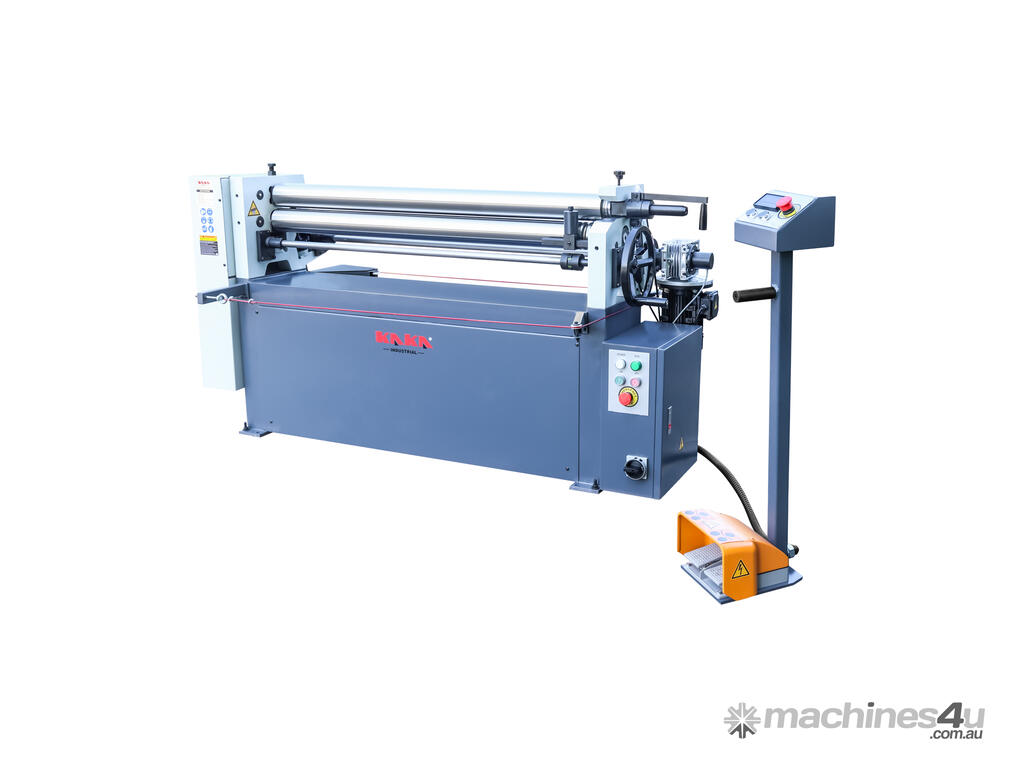

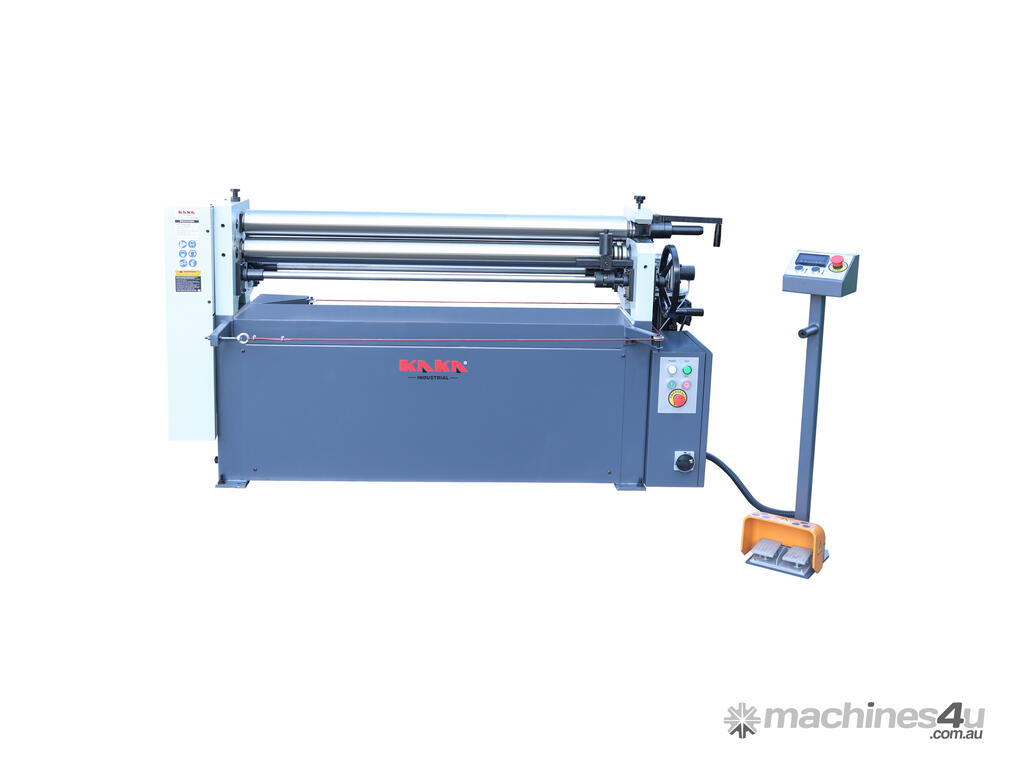

Motorised Plate Curving Roller ESR-5108E, 1300x4.5mm Motorised Plate Roll Curving Machine

KANG Industrial ESR-5108E, 4.5x1300mm motorised plate curve rolling machine

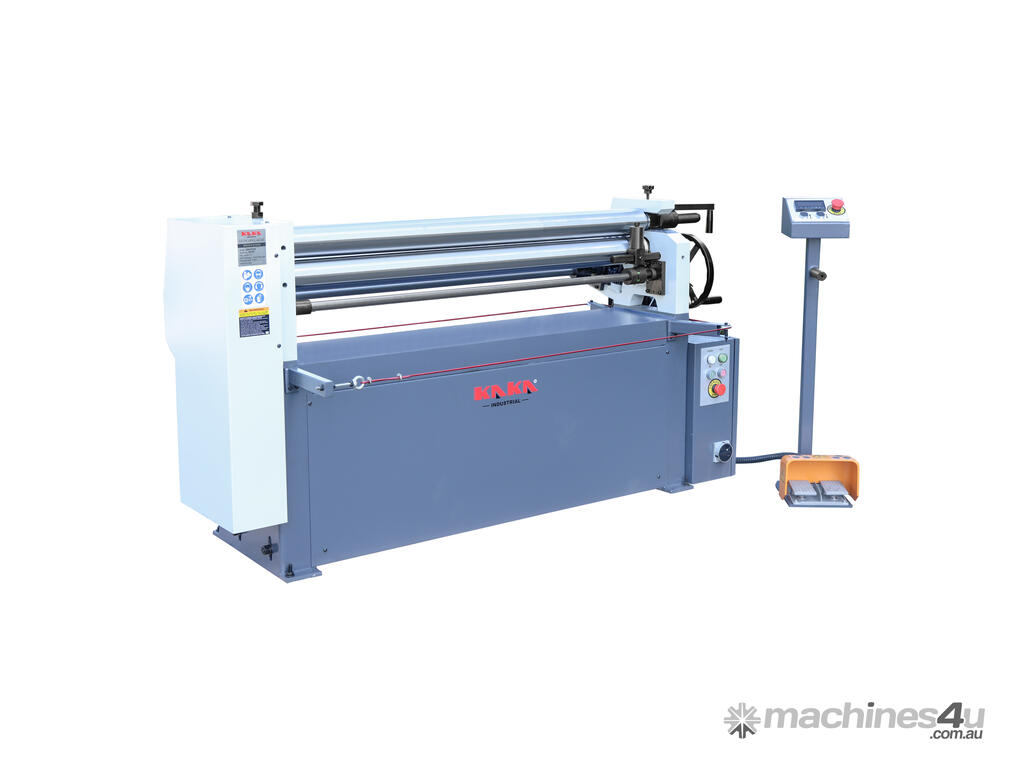

The KANG ESR-5108E is a heavy-duty, professional motorised 3-roll sheet metal curving roller built for serious sheet metal fabrication. It features an extremely robust sheet steel construction designed to deliver the highest level of accuracy and durability for industrial use.
With a substantial capacity for sheets up to 4.5 mm thick over a 1300 mm roll length, this machine is perfectly suited for manufacturing large diameter components, tanks, ductwork, and specialised sections from ferrous and non-ferrous metals. Precision is ensured by the motorised adjustment of the back roll and a digital readout, allowing operators to achieve repeatable bends quickly

High Versatility-1300mm x 4.5mm Capacity Slip Roller. Handles sheet steel up to 4.5 mm thick and 1300 mm wide, making it ideal for large-scale, heavy-duty fabrication projects.

Motorised Back Roll with Digital Readout. Provides fast, high-precision adjustment of the back roll, ensuring excellent repeatability and reducing setup time for complex or batch rolling jobs.

Easy Workpiece Removal. The swivelling upper roller streamlines the production process, allowing for fast and effortless removal of completed, closed workpieces (e.g., cylinders).

Enhanced Safety. Mobile foot pedal with emergency stop and safety rope reduces risks in busy workshops.

Conical Bending Device Included. Allows for the production of conical shapes (tapers) without the need for additional attachments, increasing the machine's utility.

Professional Durability Sheet Plate Roller. Heavy steel construction ensures long-term reliability and minimal deflection.

Features

Runs on 415V-3PH power

Working width up to 1300mm

Could roll 4.5mm mild steel plate max. across the full-width

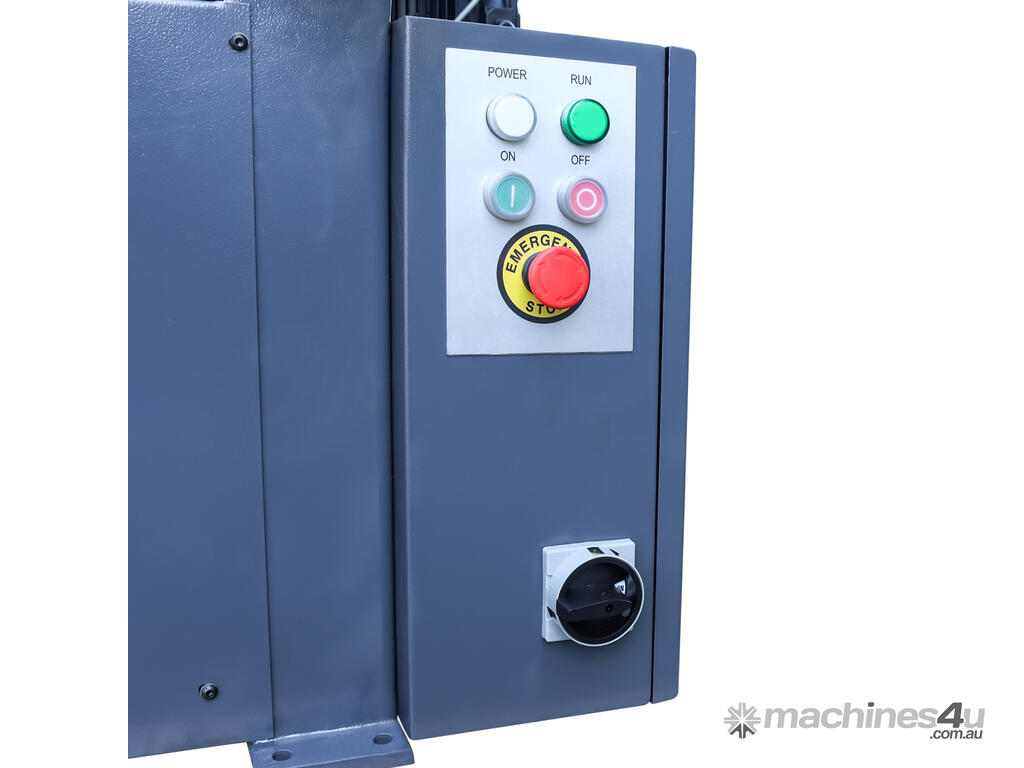

Safety line interlock system with emergency stop

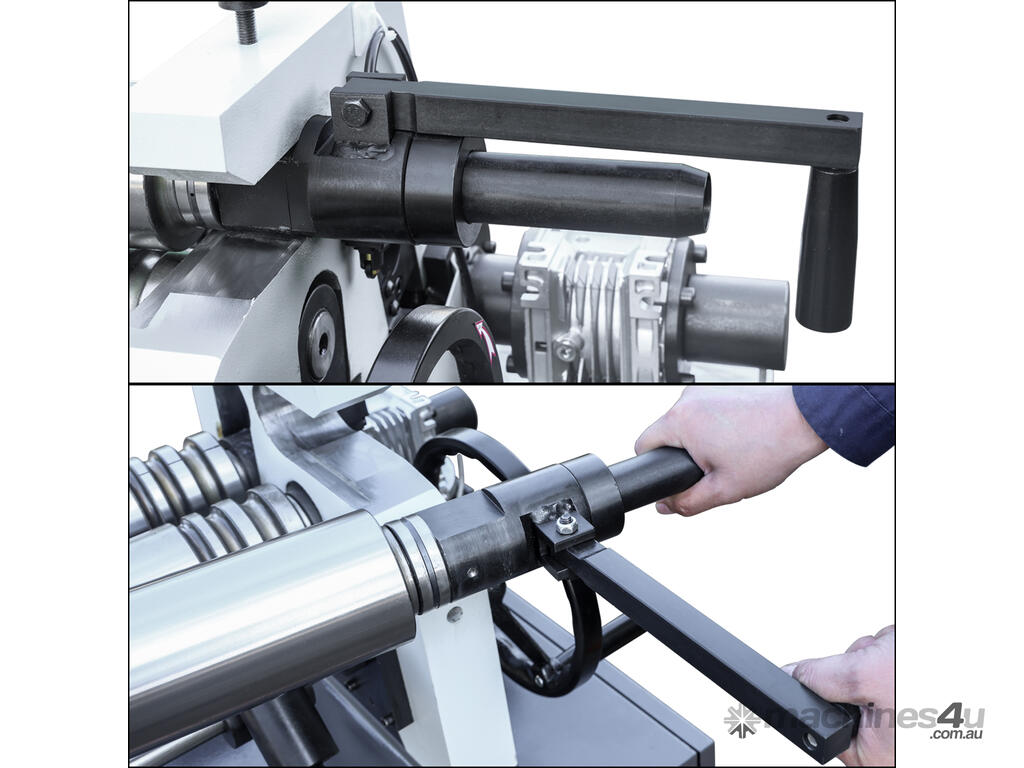

The top roll swings out across the cam lock to take out the workpiece

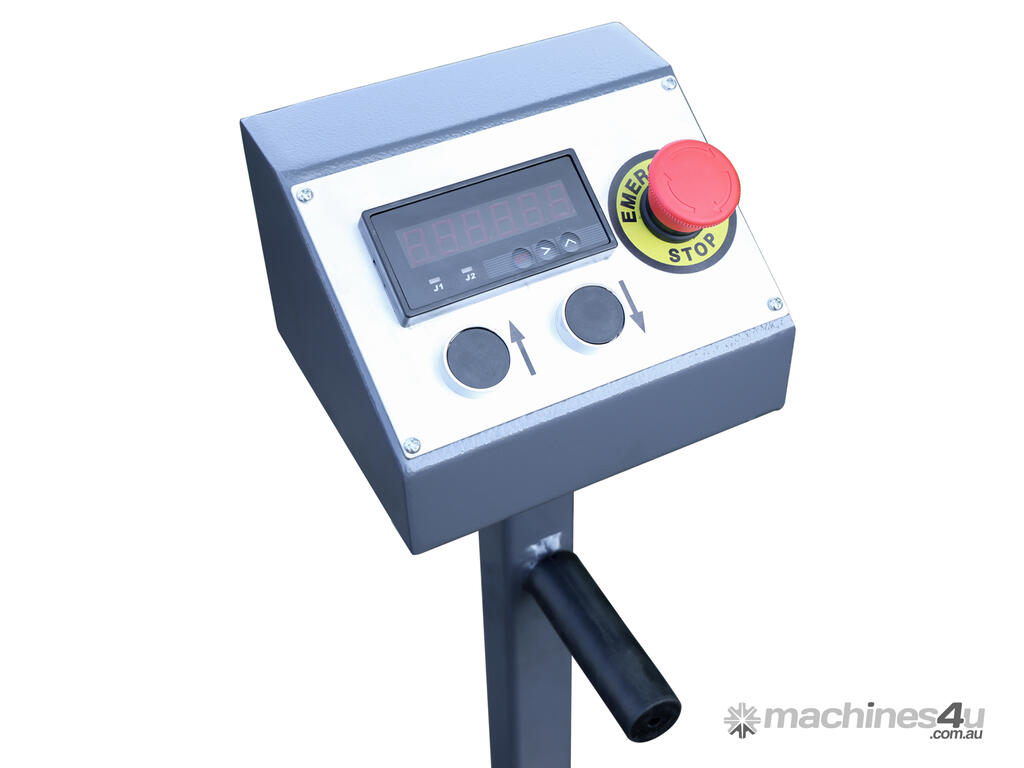

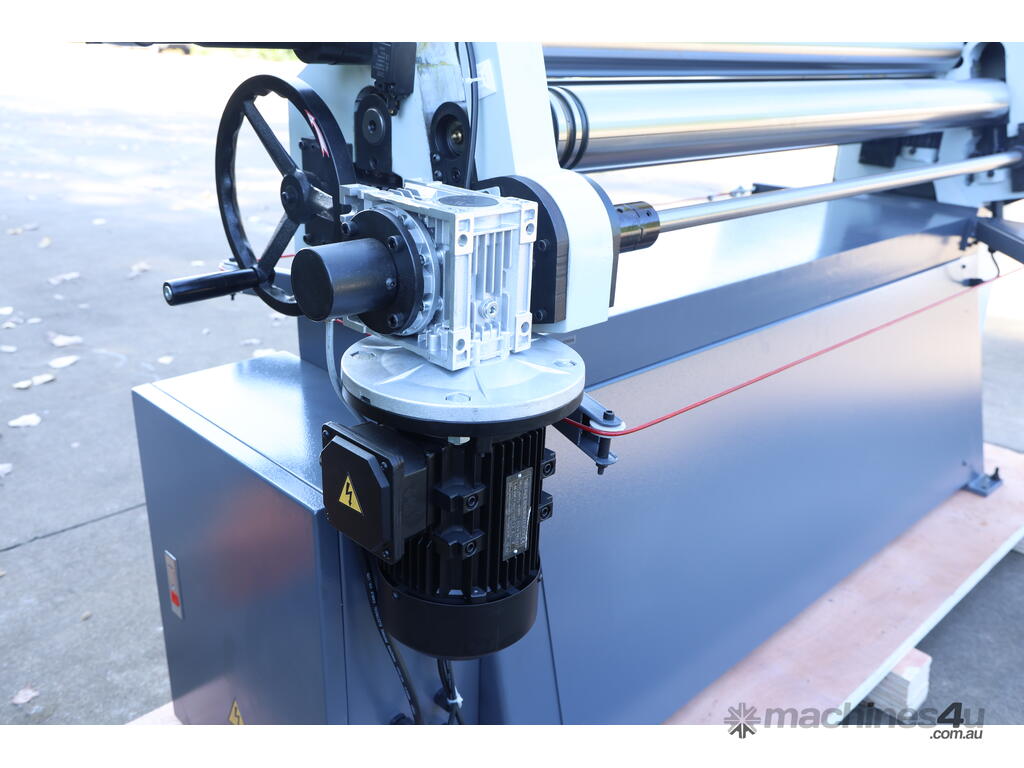

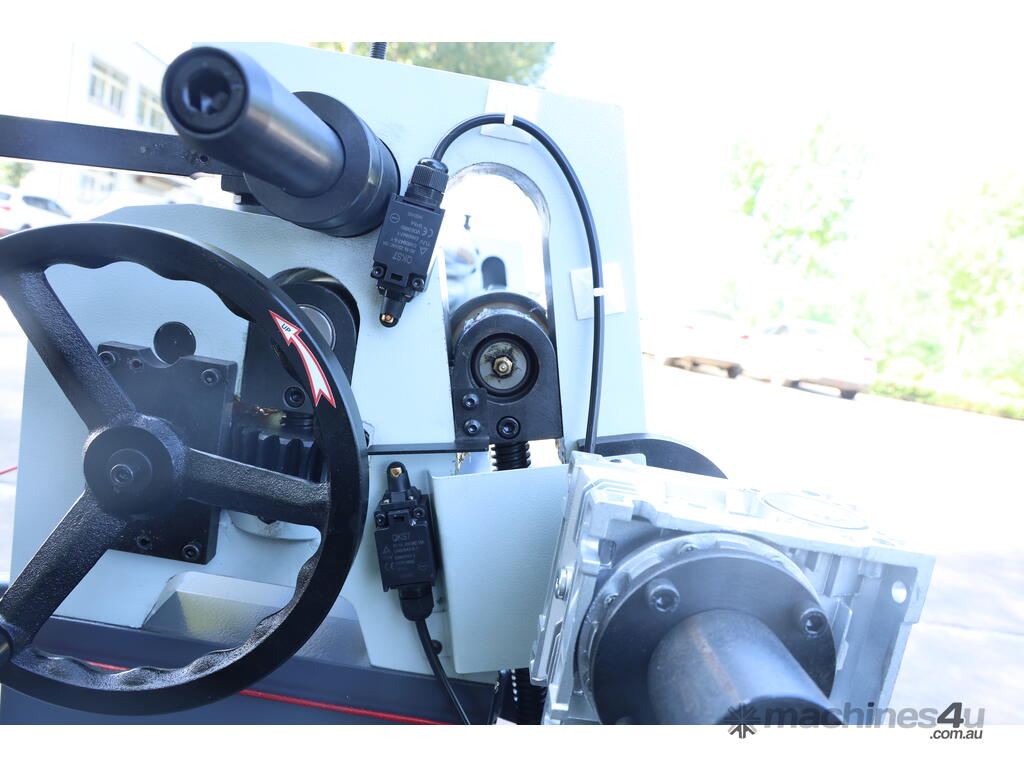

Rear roll positions are adjusted by the motor, and a readout shows the positions



Specifications



SKU 191112
Model ESR-5108E
Max. rolling thickness 4.5 mm
Max. rolling width 1300 mm
Dia. of roller 120 mm
Min. Rolling dia. 130 mm
Motor power 2.2 kW
Roller speed 9.3 rpm
Packing size 200x76x127 cm
N.W./G.W. 750/840KG
