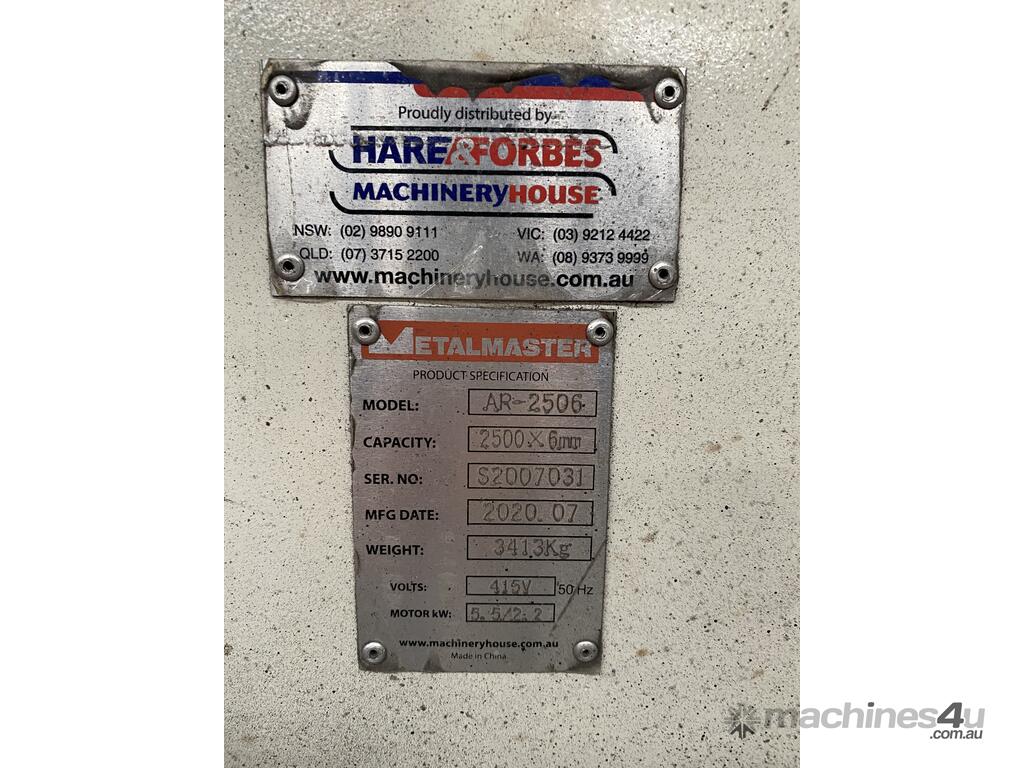

MODEL: AR-2506
Curving System Type: Initial Pinch
Curving Material Length (mm): 2550
Curving Plate Thickness - Mild Steel:6mm
Minimum Rolling Diameter (mm): 400
Roll Diameter (mm): 190
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Dimensions (LxWxH) (mm): 4160 x 900 x 1200
Nett Weight (kg): 3200
Features
• Two rolls powered by gearbox and gear system
• Swing out end enables complete cylinder to be removed
• Digital readout display on rear curving roll position
• Motorised up & down rear curving roll
• Heavy duty steel welded mainframes
• Safety wire interlock system with emergency shut-off

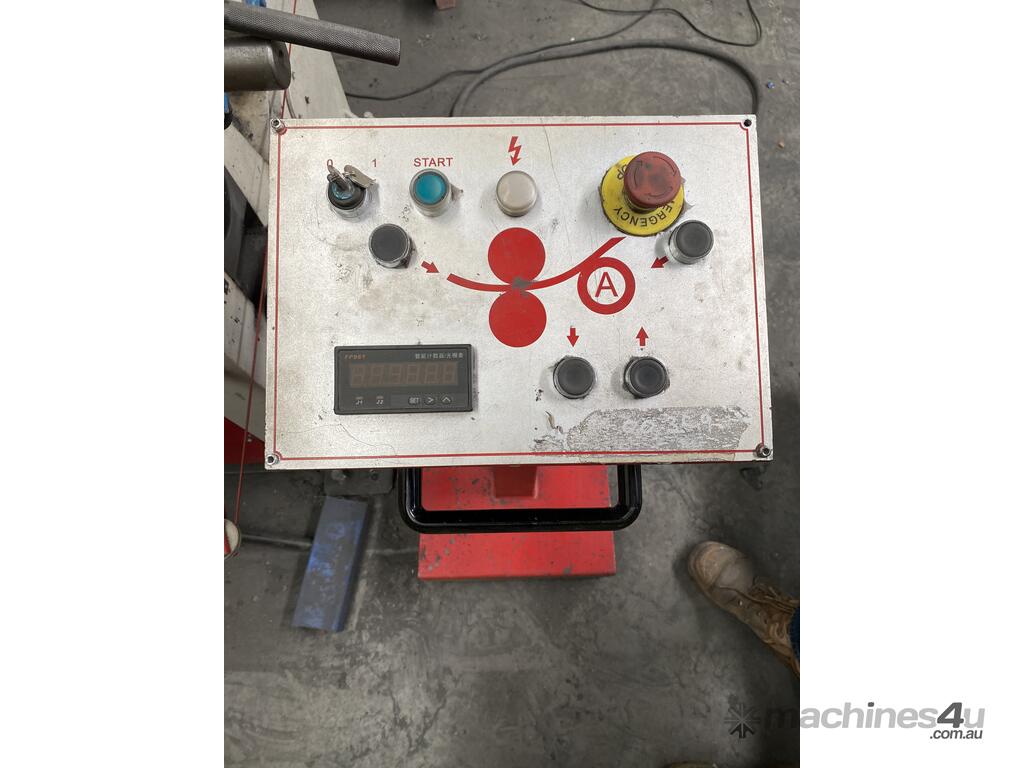

• Mobile control panel
• Mild steel capacity is rated on hot rolled material with 250MPA
