Motorised Plate Curving Rolls ESR-5108, 1300x4.5 mm Sheet Metal Curving Rollers

Motorised Plate Curve Rolling, 1300x4.5mm Plate Roller

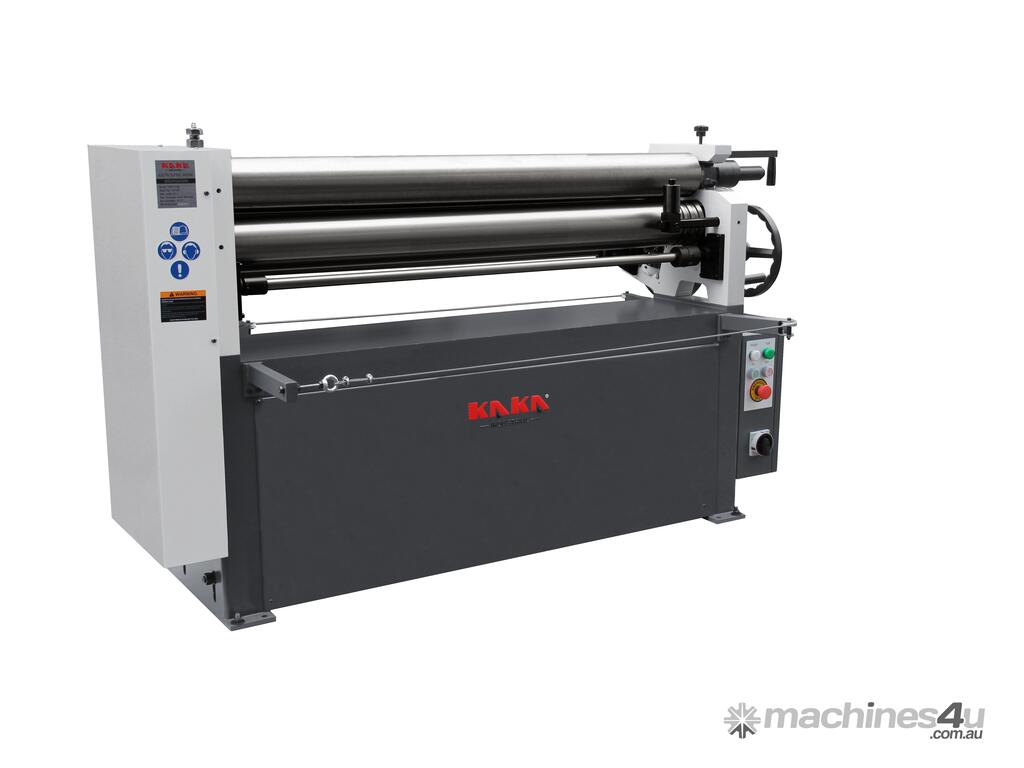

The KANG ESR-5108 is a robust, motorised Plate Curving Roller, designed for precise sheet metal forming in workshops and fabrication environments. It offers a maximum rolling width of 1300mm and can handle up to 4.5mm thick mild steel across its full length, making it suitable for medium-duty applications such as creating cylinders, curves, ducts, and custom panels. The machine features three high-quality rollers with a diameter of 120mm and a minimum rolling diameter of 130mm, powered by a 2.2kW motor that delivers smooth rolling speeds of 9.3 RPM at 50Hz. It includes foot pedal operation for hands-free control, forward/reverse functionality, and a simple, user-friendly design with no need for complex setups.

Strong Capacity Plate Curve Roller for Workshops. Handles up to 4.5mm mild steel over 1300mm width, perfect for common sheet sizes in construction, roofing, HVAC, and fabrication, ideal for producing ducts, tanks, or curved panels without struggling with thinner machines.

Powered Efficiency Rolling Machine. 2.2kW motor and foot pedal control reduce manual effort, enabling faster, more consistent rolling.

Precise and Reliable Forming. 120mm diameter high-quality rollers provide smooth, accurate bends with a minimum 130mm diameter, minimizing flat spots and delivering professional results on thicker materials.

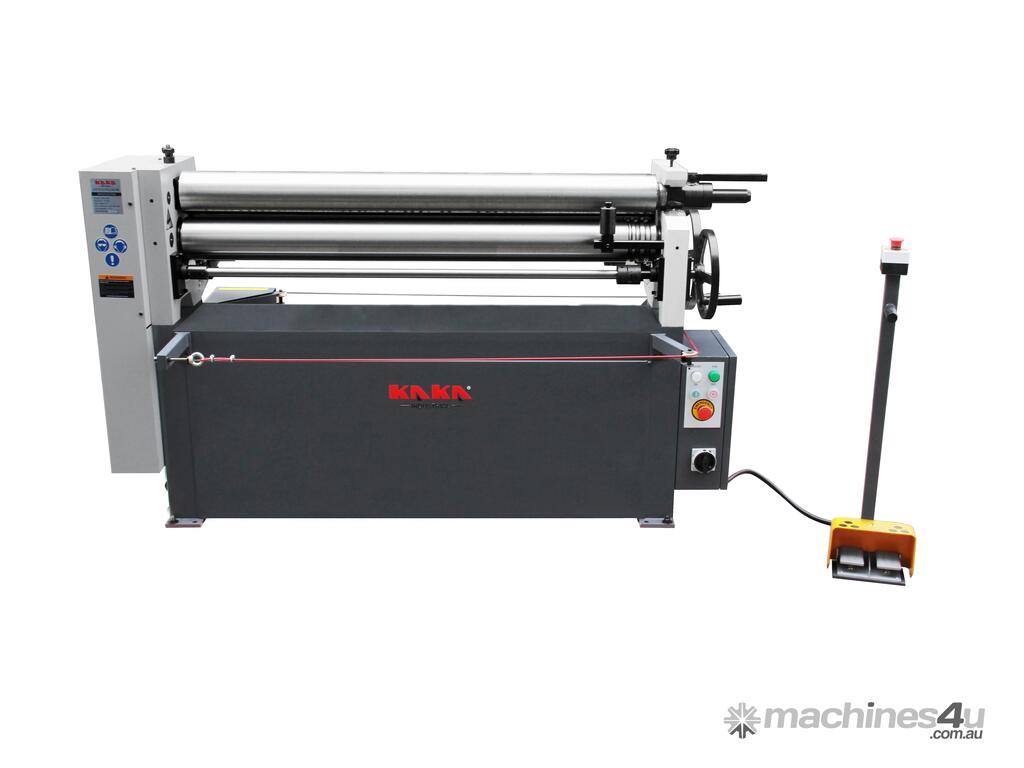

User-Friendly Roll Bending Machine. Simple foot pedal design with forward/reverse allows easy control and quick adjustments, making it accessible for both experienced fabricators and newcomers.

Built for Durability.  Robust construction and 750kg weight ensure long-term stability and performance under heavy use, offering better longevity than lighter or manual alternatives.

Versatile for Everyday Sheet Metal Fabrication. Great for forming cylinders, cones (with standard adjustments), and custom shapes, appealing to diverse markets like metal art, automotive, and industrial fabrication.

Features

Runs on 415V-3PH power

Initial pinch asymmetrical roller

Working width up to 1300mm

Could roll 4.5 mm mild steel plate max. across the full width

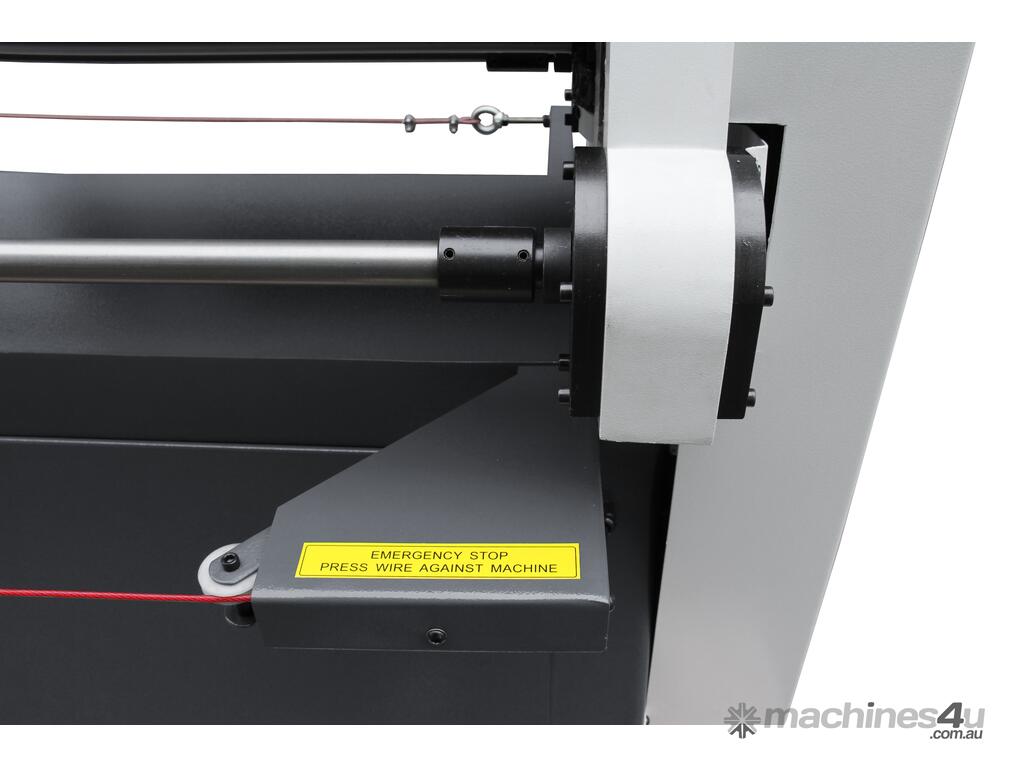

Safety line interlock system with emergency stop

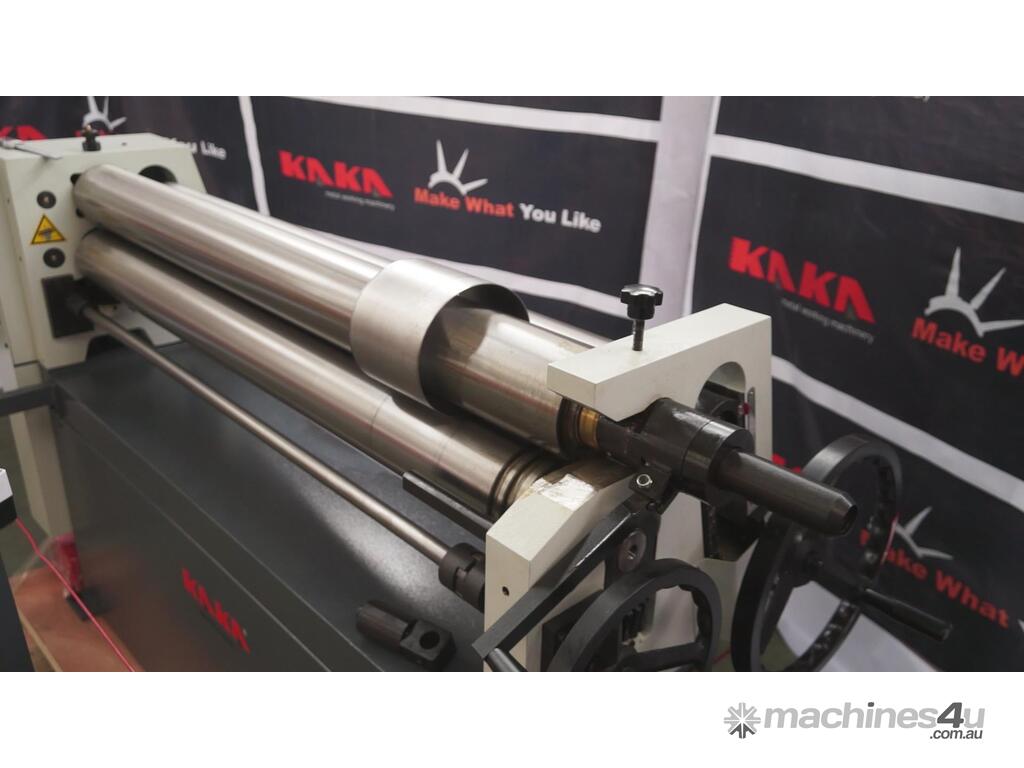

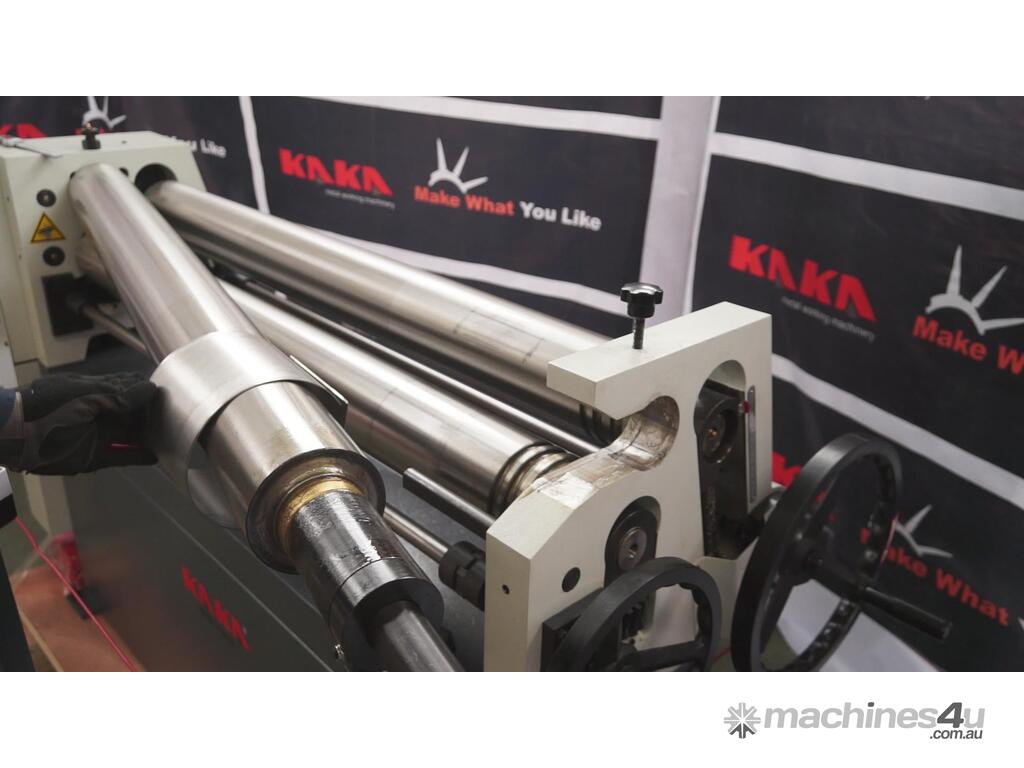

The top roll swings out across the cam lock to take out the workpiece

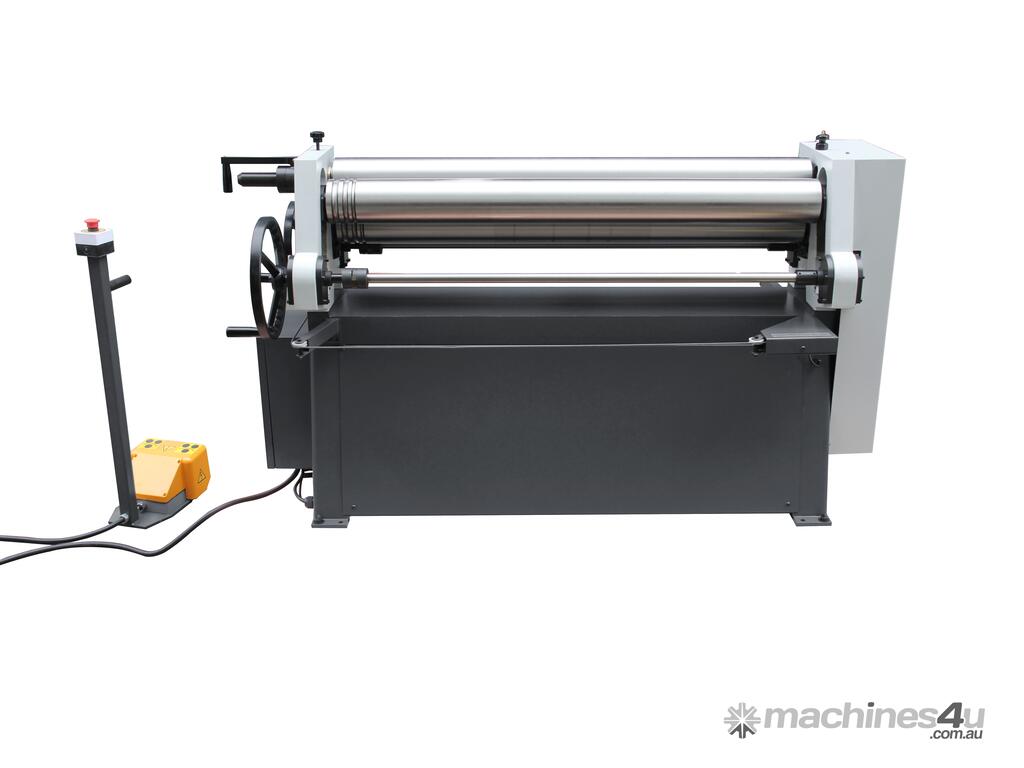

Standard with wire core groove for wire rolling, 3 off, 10mm, 13mm & 18 mm

Optional motorised rear roller ESR-5108E available.

Different sizes are available for order:

ESR-5116 (1300x1.5mm)

ESR-5113 (1300x2.5mm)

ESR-5103 (1300x6.5mm)

ESR-9812E (2500x2.5mm)

Specifications
SKU 191105
Model ESR-5108
Max. rolling thickness 4.5 mm
Max. rolling width 1300 mm
Dia. of roller 120 mm
Min. Rolling dia. 130 mm
Motor power 2.2 kW
Roller speed 9.3 rpm
Packing size 200x76x127 cm
N.W./G.W. 750/840
