Motorised Plate Curving Rolls ESR-9812E, 2.5x2500 mm Steel Capacity with Motorized Up/ Down Rear Rol

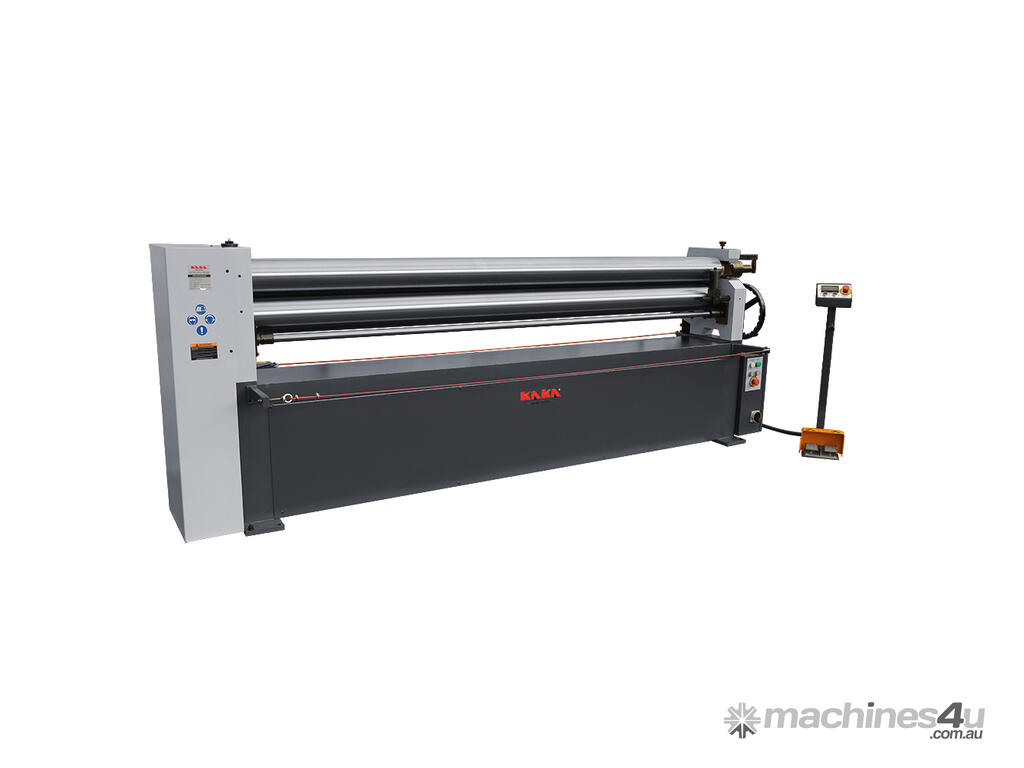

KANG Industrial Motorized Plate Curving Machine

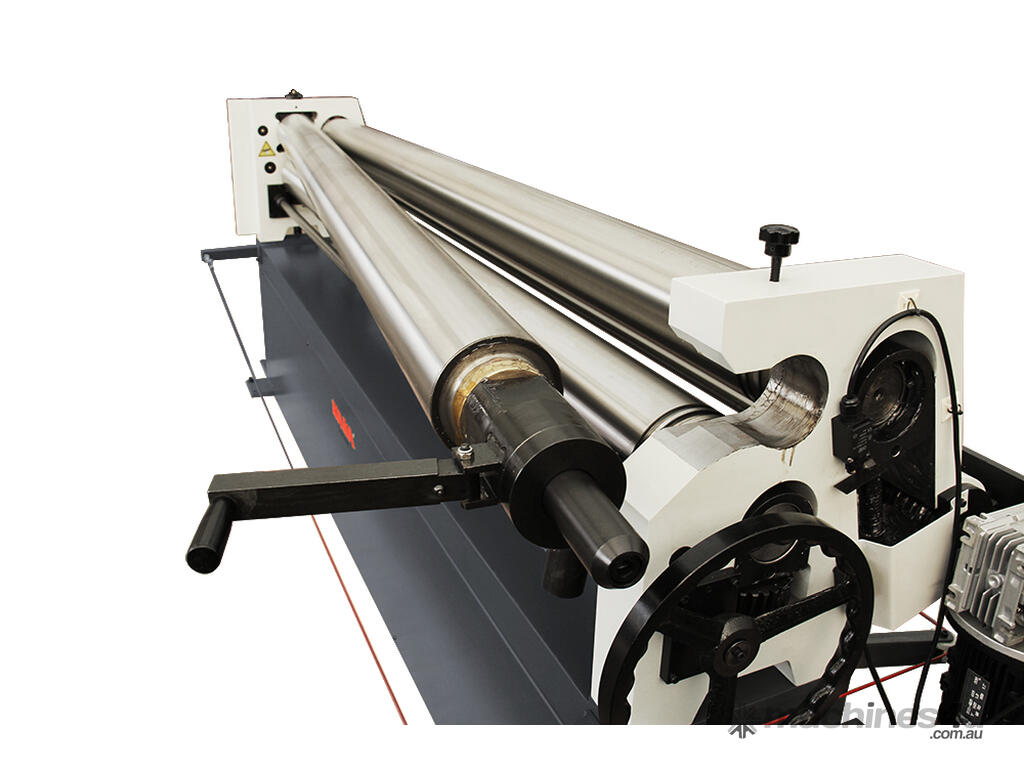

The KANG ESR-9812E is a high-quality motorised plate curve rolling machine designed for professional sheet metal forming, ideal for creating cylinders, curves, tubes, and conical shapes. It features a bending length of 2500 mm and handles up to 2.5 mm thick mild steel across the full width. The plate roller is equipped with three 140 mm diameter hardened steel rolls, a minimum bending diameter of 160 mm, and a roll speed of 6.4 RPM.  Powered by a 3.0 kW main motor and a 0.75 kW motor for the back roll, it offers motorised adjustment of the back roll with digital readout for precise positioning.

Generous Rolling Width. 2050 mm roller length handles large sheets common in roofing, ductwork, and structural fabrication, allowing efficient production of long cylinders or panels without multiple passes.

Solid Capacity for Everyday Materials. Rolls up to 2.5 mm mild steel, suitable for stainless steel and aluminum, making it versatile for construction, HVAC, and custom metalwork in workshops.

Motorized Precision and Efficiency. Dual motors (3.0 kW main + 0.75 kW back roll) with digital readout provide smooth, accurate rolling and fast adjustments, reducing manual effort and boosting productivity.

Conical Bending Included. Standard conical device enables easy forming of tapered shapes like funnels, hoppers, or custom cones.

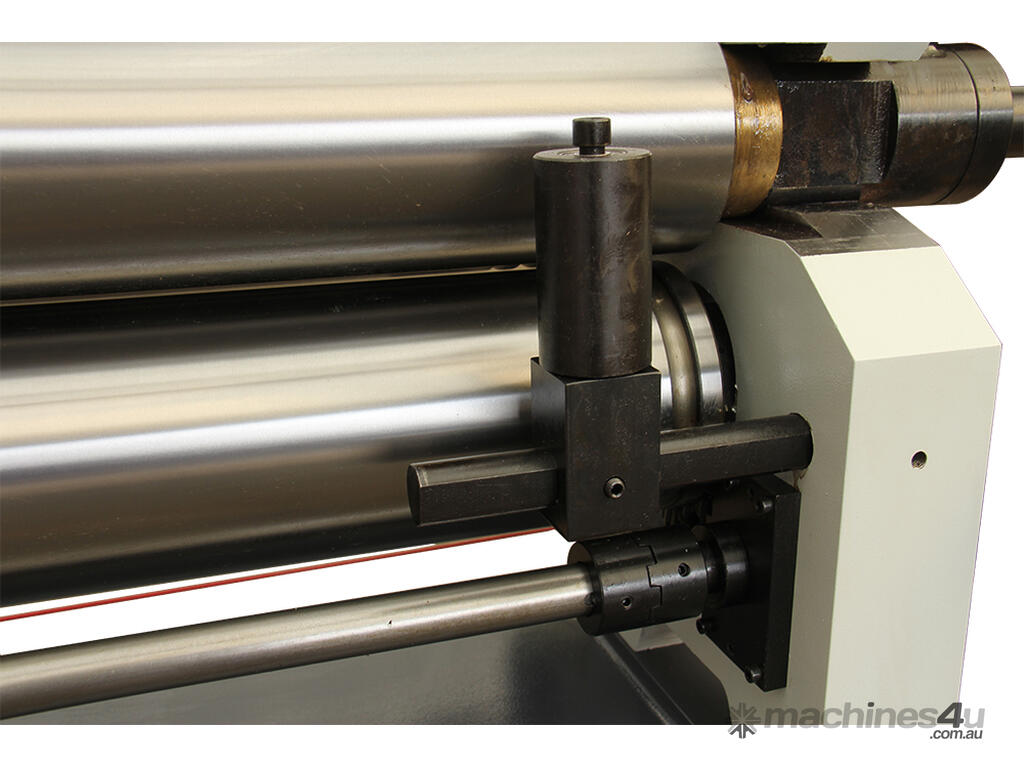

User-Friendly Plate Roller. Swivelling upper roll simplifies workpiece removal, foot pedal control offers hands-free operation, and digital display ensures repeatable results, ideal for both pros and smaller fabricators.

Enhanced Safety Features. Rope emergency stop and foot pedal with integrated emergency function, minimizing risks during heavy use.

Features

Runs on 415V power, 3.0 kW motor

2.5 mm mild steel capacity across its full width of 2500 mm

Cast iron end frames

Motorized Up/Down rear roll

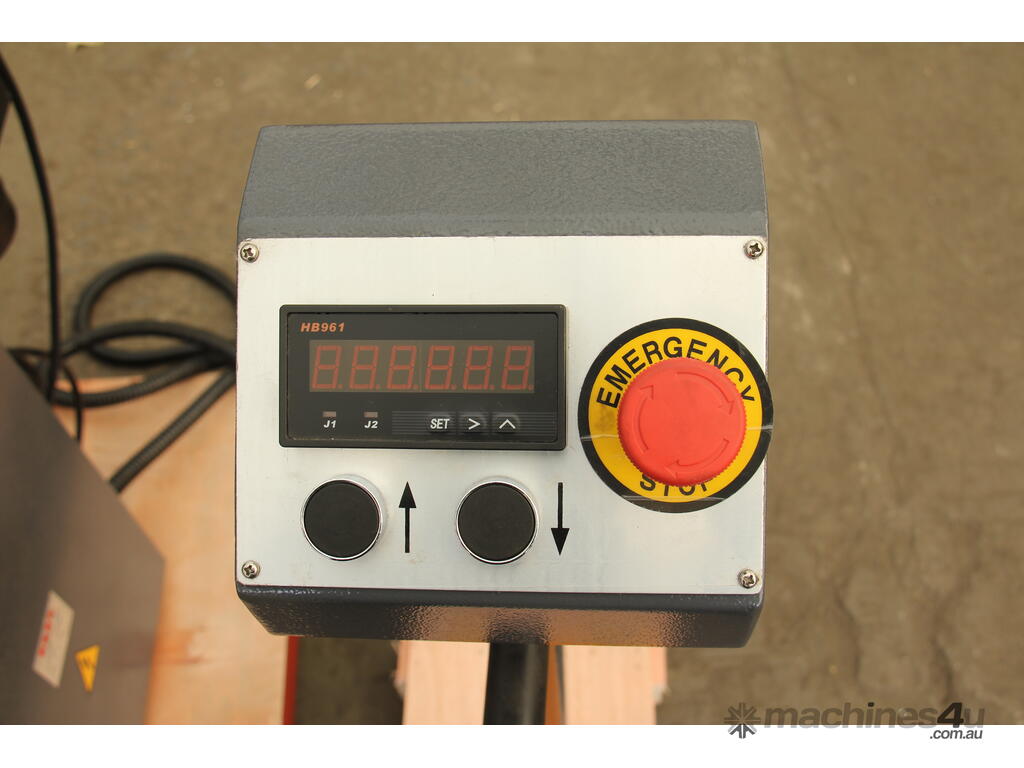

Digital readout display on the rear curving roll position

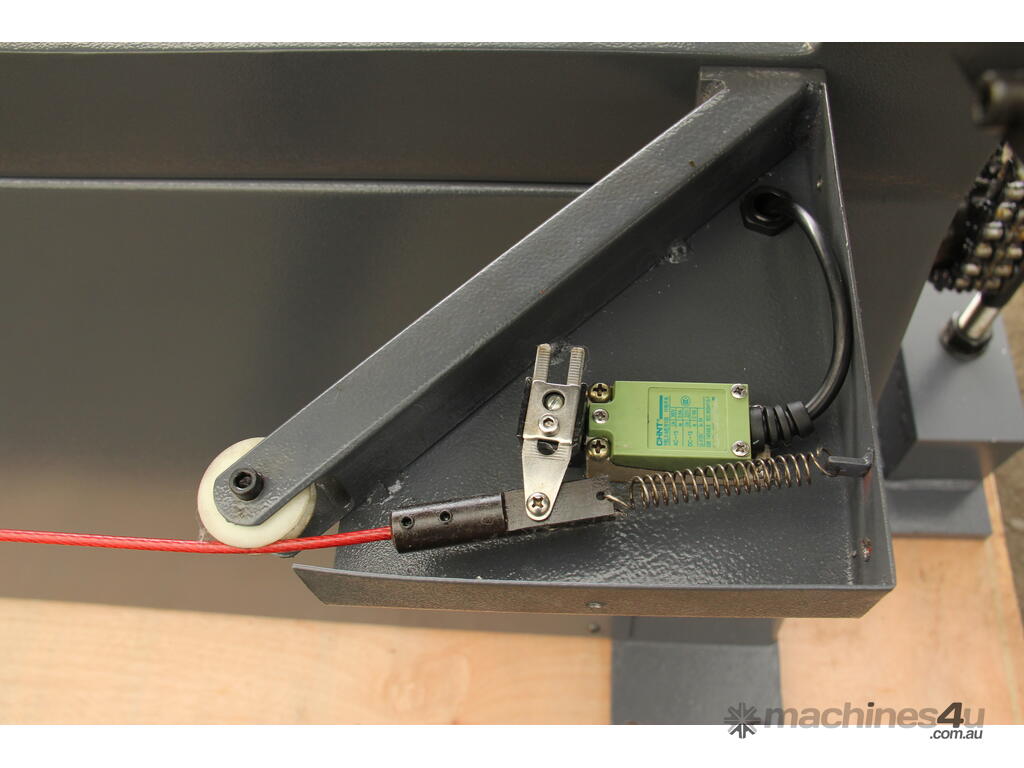

Safety trip wire with emergency shut-off

Conical bending

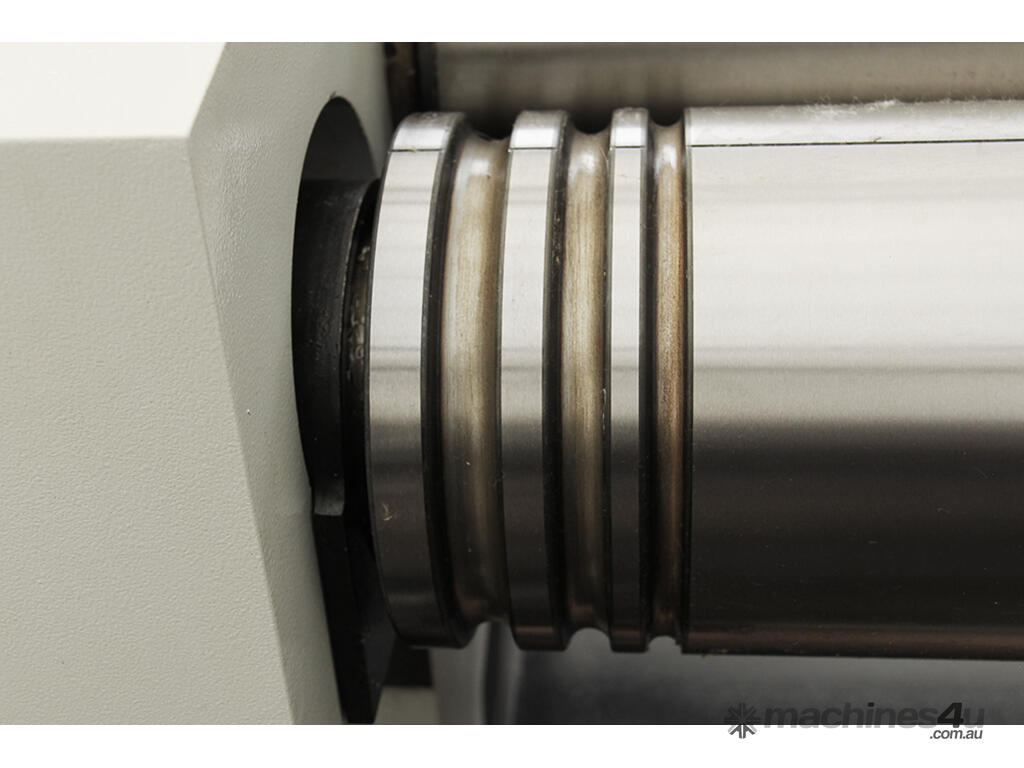

Standard wire core groove

Specifications
SKU 191113
Model ESR-9812E
Max. rolling thickness 2.5 mm
Max. rolling width 2500 mm
Dia. of roller 140 mm
Min rolling dia. 160 mm
Motor power 3.0 kW
Roller speed 6.4 rpm
Packing size 342x83x132 cm
N.W./G.W. 1510/1710 kg
